Large Capacity High Speed Refrigerated Centrifuge CF100R-B

In stock
SKU: 926904+927017
Regular price $21,508.00
Regular price -28% $30,000.00 Sale price $21,508.00
Voltage
Rotor
Adapter
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details

Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.

Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.

  • Description
  • Product Downloads
  • Shipping Information

CF100R-B is specially designed for users who require both high capacity and high speed. lt is widely used in bioengineering, genetic engineering, biopharmacy and other fields.

Features:

  • Max Speed up to 10000r/min, Max RCF up to 18300×g.
  • Many adapters are available for 4x1000ml swing rotor.
  • Microprocessor control, AC brush-less motor, without carbon dust pollution, low noise, less vibration and service life is long.
  • Touch panel, LED display, programmable. lt can store many routine programs.
  • Providing multiple protection against imbalance, over-temperature and over-speed, and door interlock for safe operation
  • The imported refrigerant is environmental and efficient.
  • Acc and Dec time can be set freely by users, and RCF value will be calculated automatically.
  • The rotor and bucket adopt 7075-T6 aviation grade aluminum alloy, which is hard anodized and corrosion-resistant. Each process from raw materials, processing to finished products is strictly controlled. The material certificate, flaw detection report, tensile test report, chemical composition inspection report have original records.

Specifications:

Model: CF100R-B
Max Speed: 10000r/min
Max Capacity: 6×1000ml
Max RCF: 18300×g
Speed Accuracy: ±10r/min
Time Setting Range: 1min~23h59min
Temperature Setting Range: -20~40℃
Temperature Accuracy: ±2℃
Noise: ≤65dB (A)
Power Supply: AC220±22V 50Hz
Power Consumption: 5.5kW
Compressor Unit: Non-CFC unit (R404a)
Dimension (W×D×H): 710×820×1200 (mm)
Packing Dimension (W×D×H): 920×1040×1520 (mm)
Net Weight: 310kg

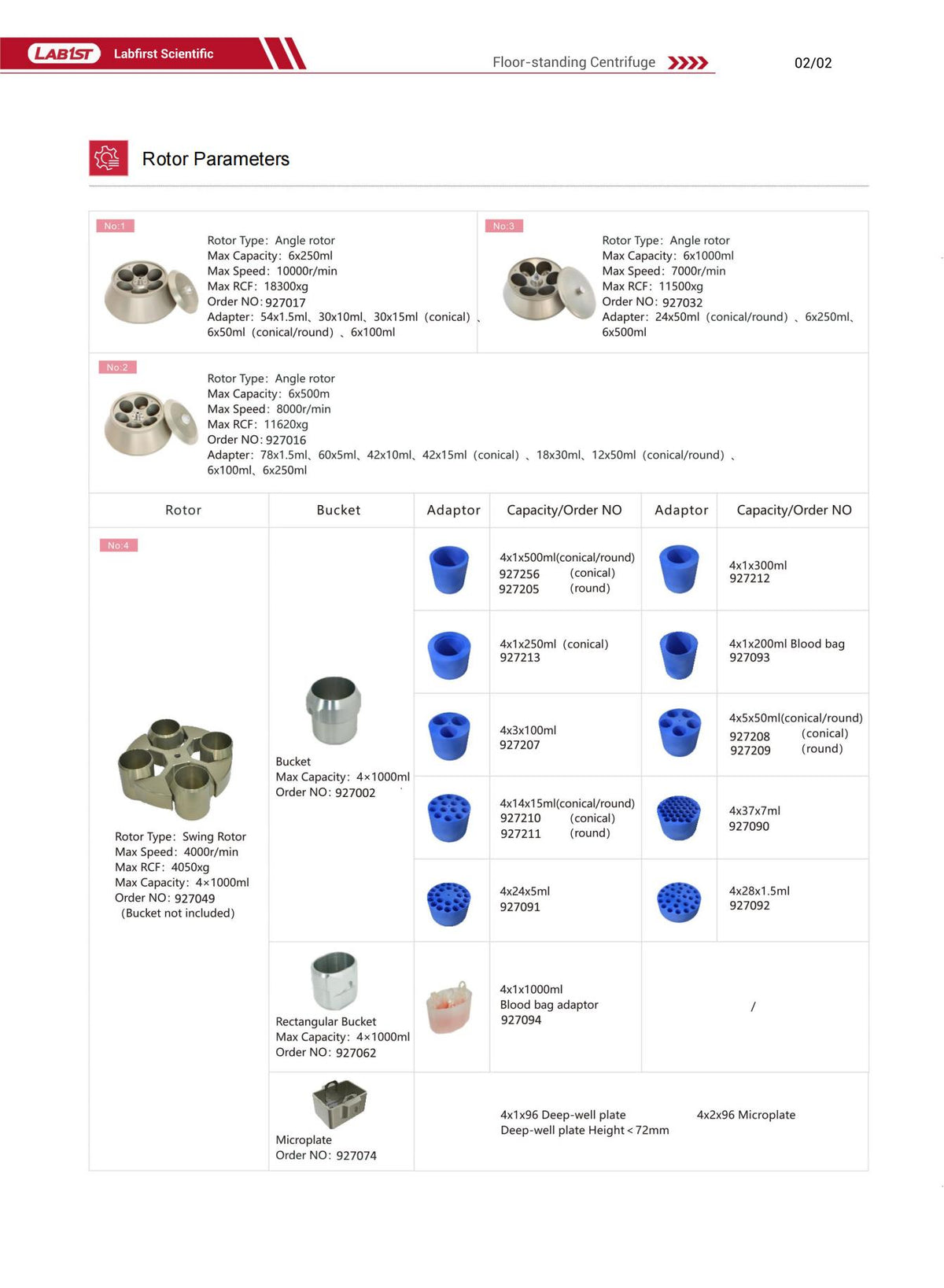

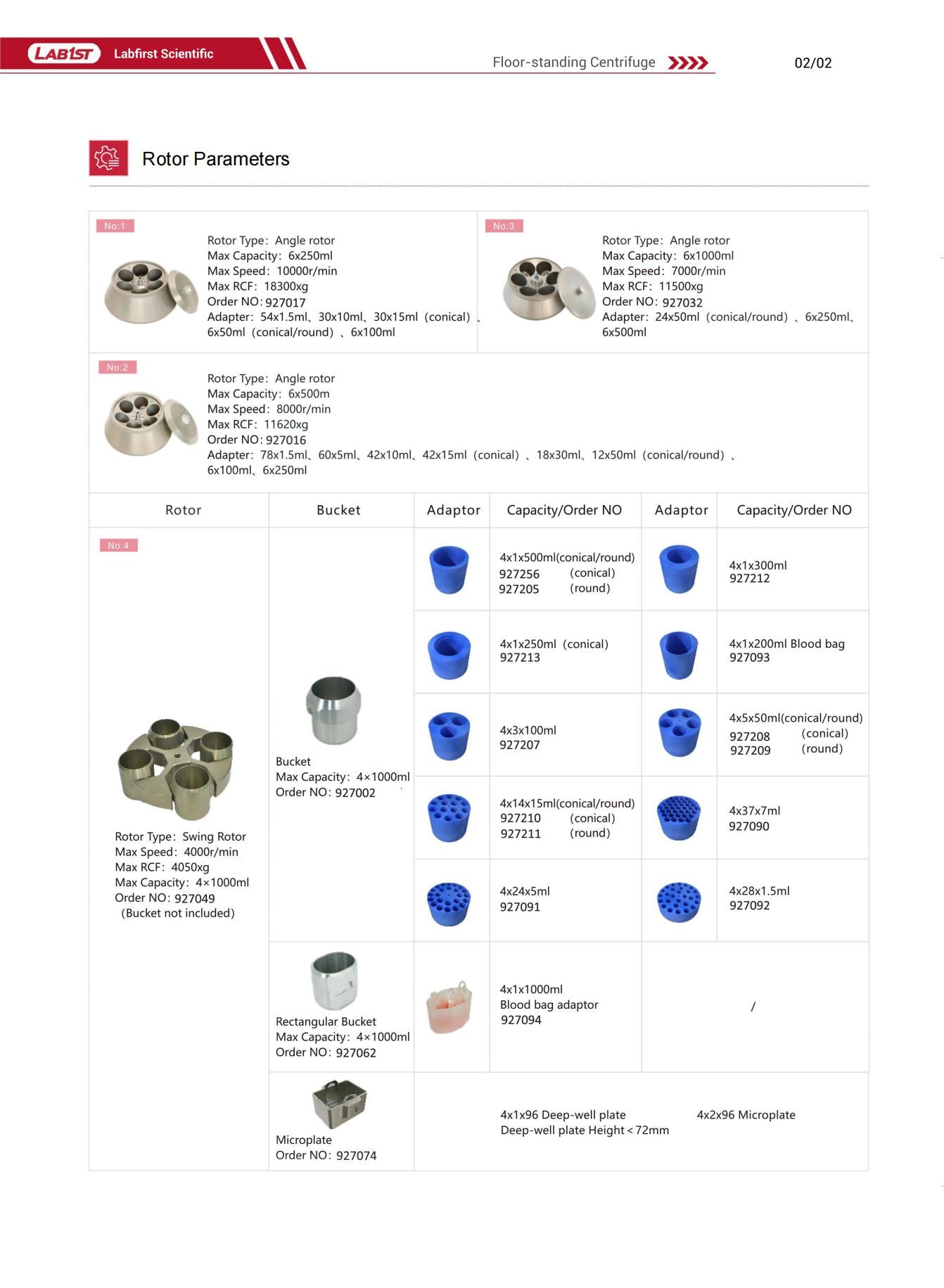

Rotor Specifications:

Model Rotor Type Max Capacity Max Speed Max RCF Adapter
927016 Angle Rotor 6×500ml 10000r/min 17700×g 78x1.5ml, 60x5ml, 42x10ml, 42x15ml (conical), 18x30ml, 12x50ml (conical/round), 6x100ml, 6x250ml
927017 Angle Rotor 6×250ml 10000r/min 18300×g 54x1.5ml, 30x10ml, 30x15ml (conical), 6x50ml (conical/round), 6x100ml
927032 Angle Rotor 6×1000ml 7000r/min 11500×g 24x50ml (conical/round), 6x250ml, 6x500ml
927049 Swing Rotor 4×1000ml 4000r/min 4050×g 4×28x1.5ml, 4×24×5ml, 4×37×7ml, 4×14×15ml (conical/round), 4×5×50ml (conical/round), 4×3×100ml, 4×1×200ml Blood Bag, 4×1×250ml (conical), 4×1×300ml, 4×1×500ml (conical/round), 4×1×1000ml Blood Bag Adaptor, 4×1×96 Deep-well plate (contact us for the price)

How to Choose Centrifuge:

Model Type Max Speed Max Capacity Max RCF Display
CF50R Refrigerated Angle Rotor: 5000r/min, Swing Rotor: 5000r/min Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml Angle Rotor: 4640×g, Swing Rotor: 6100×g Touchscreen
CF60R Refrigerated Angle Rotor: 6000r/min, Swing Rotor: 4200r/min Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml Angle Rotor: 6680×g, Swing Rotor: 5100×g Touchscreen
CF60R-B Refrigerated Angle Rotor: 6000r/min, Swing Rotor: 4200r/min Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml Angle Rotor: 6680×g, Swing Rotor: 5100×g LED
CF72R Refrigerated Angle Rotor: 7200r/min, Swing Rotor: 4000r/min Angle Rotor: 6×1000ml, Swing Rotor: 6×2400ml Angle Rotor: 12166×g, Swing Rotor: 5600×g Touchscreen
CF80R Refrigerated Angle Rotor: 8000r/min, Swing Rotor: 4200r/min Angle Rotor: 6×1000ml, Swing Rotor: 4×1500ml Angle Rotor: 11875×g, Swing Rotor: 5100×g Touchscreen
CF90R Refrigerated Angle Rotor: 9000r/min, Swing Rotor: 4500r/min Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml Angle Rotor: 18610×g, Swing Rotor: 6756×g Touchscreen
CF100R Refrigerated 10000r/min Angle Rotor: 6×1000ml 17700×g Touchscreen
CF100R-B Refrigerated Angle Rotor: 9000r/min, Swing Rotor: 4500r/min Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml Angle Rotor: 18610×g, Swing Rotor: 6756×g LED
CF160R Refrigerated Angle Rotor: 16000r/min, Swing Rotor: 5700r/min Angle Rotor: 6×250ml, Swing Rotor: 4×1000ml Angle Rotor: 27648×g, Swing Rotor: 5103×g /
CF205R Refrigerated 20500r/min 4×750ml 29200×g LCD
CF210R Refrigerated Angle Rotor: 21000r/min, Swing Rotor: 4200r/min Angle Rotor: 6×100ml, Swing Rotor: 4×750ml Angle Rotor: 32752×g, Swing Rotor: 3860×g Touchscreen
CF210R-B Refrigerated Angle Rotor: 21000r/min, Swing Rotor: 4000r/min Angle Rotor: 6×100ml, Swing Rotor: 4×750ml Angle Rotor: 32752×g, Swing Rotor: 3860×g Touchscreen
CF220R Refrigerated Angle Rotor: 22000r/min, Swing Rotor: 4000r/min Angle Rotor: 6×500ml, Swing Rotor: 4×750ml Angle Rotor: 52020×g, Swing Rotor: 3500×g Touchscreen
CF230R Refrigerated Angle Rotor: 23000r/min, Swing Rotor: 4000r/min Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml Angle Rotor: 60460×g, Swing Rotor: 3500×g Touchscreen
CF250R Refrigerated Angle Rotor: 25000r/min, Swing Rotor: 4000r/min Angle Rotor: 4×1000ml, Swing Rotor: 4×750ml Angle Rotor: 64800×g, Swing Rotor: 3500×g Touchscreen
CF260R Refrigerated Angle Rotor: 26000r/min, Swing Rotor: 4000r/min Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml Angle Rotor: 81623×g, Swing Rotor: 3500×g Touchscreen

Pls note: Some of the price listed doesn't include adapters. If you need them, please contact us.
