CF230R is an international leading level centrifuge with its outstanding parameters. lt is widely used in molecular biology, biochemistry and other high-tech fields, for separation and concentration of cytoplasm, virus bacteria and chemical substances.
Features:
- 7-inch HD touch screen, intuitive display and easy to operate. The setting parameters and running parameters can be displayed simultaneously
- Data records: Data traceabiity management, running history records, diagnosis records can be checked on the screen or exported by USB port and saved to the relevant storage device, which can ensure the data integrity.
- Super powerful control system, offering step centrifugation, scheduled start, sample ID, curve mode, program mode, multi-language selection and other functions.
- Strong safety performance, the user management function can prevent tampering and removing programs accidentally.
- Stable centrifugation performance, the max speed up to 23000r/min, and a variety of rotors are optional, which can easily help you to achieve rapid sample separation.
- Automatic rotor identification, imbalance protection, over-speed protection, door-lock protection and so on.
- All aluminum alloy rotors are forged with 7075-T6 series aluminum alloy, the surface is hard oxidation, with thick oxide layer and strong corrosion resistance.
- Direct drive, no need vacuumizing, replacing belt and maintenancing vacuum system.
Specifications:
| Model: | CF230R |
| Max Speed: | Angle Rotor: 23000r/min |
| Swing Rotor: 4000r/min | |
| Max RCF: | Angle Rotor: 60460×g |
| Swing Rotor: 3500×g | |
| Max Capacity: | Angle Rotor: 4×1000ml |
| Swing Rotor: 4×750ml | |
| Speed Accuracy: | ±10r/min |
| Time Setting Range: | 1min-99h59min |
| Time Mode: | Start Timing after Spinning, Start Timing after reaching Setting Speed, Continuous Timing, Operation at an appointed Time |
| Temperature Setting Range: | -20~40℃, Step 1℃ adjustable |
| Temperature Accuracy: | ±1℃ |
| Noise: | ≤65dB (A) |
| Power Supply: | AC220±22V 50/60Hz |
| Power Consumption: | 5kW |
| Computer Control: | RS485 or RS232 |
| Pre-cooling Function: | Yes |
| Steps Centrifugation: | Yes (100 programs, each programs with 5 steps, more program can be saved by adding external memory card) |
| Compressor Unit: | Environment-friendly refrigerant (R404a) |
| Dimension (W×D×H): | 730×930×960 (mm) |
| Packing Dimension (W×D×H): | 880×1120×1180 (mm) |
| Net Weight: | 260kg |

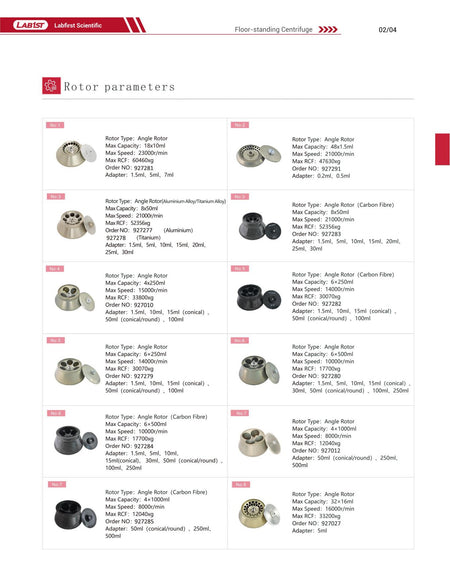

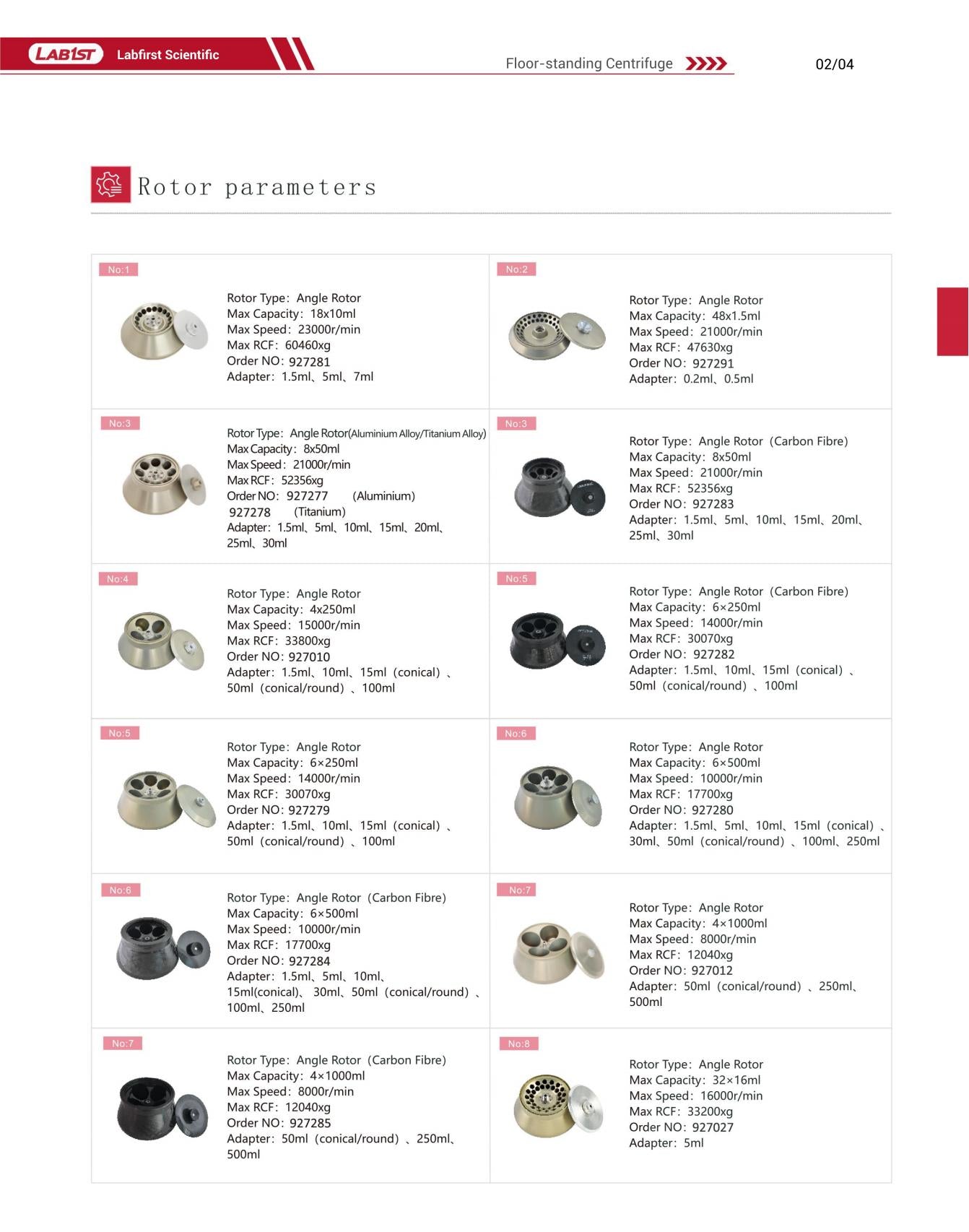

Rotor Specifications:
| Model | Rotor Type | Max Capacity | Max Speed | Max RCF | Adapter |
| 927281 | Angle Rotor | 18×10ml | 23000r/min | 60460×g | 1.5ml, 5ml, 7ml |
| 927291 | Angle Rotor | 48×1.5ml | 21000r/min | 47630×g | 0.2ml, 0.5ml |
| 927277 | Angle Rotor (Aluminium Alloy) | 8×50ml | 21000r/min | 52356×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927278 | Angle Rotor (Titanium Alloy) | 8×50ml | 21000r/min | 52356×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927283 | Angle Rotor (Carbon Fibre) | 8×50ml | 21000r/min | 52356×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927010 | Angle Rotor | 4×250ml | 15000r/min | 33800×g | 1.5ml, 5ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927282 | Angle Rotor (Carbon Fibre) | 6×250ml | 14000r/min | 30070×g | 1.5ml, 5ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927279 | Angle Rotor | 6×250ml | 14000r/min | 30070×g | 1.5ml, 5ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927280 | Angle Rotor | 6×500ml | 10000r/min | 17700×g | 1.5ml, 5ml, 10ml, 15ml (conical/round), 30ml, 50ml (conical/round), 100ml, 250ml |
| 927284 | Angle Rotor (Carbon Fibre) | 6×500ml | 10000r/min | 17700×g | 1.5ml, 5ml, 10ml, 15ml (conical/round), 30ml, 50ml (conical/round), 100ml, 250ml |
| 927012 | Angle Rotor | 4×1000ml | 8000r/min | 12040×g | 50ml (conical/round), 250ml, 500ml |
| 927285 | Angle Rotor (Carbon Fibre) | 4×1000ml | 8000r/min | 12040×g | 50ml (conical/round), 250ml, 500ml |

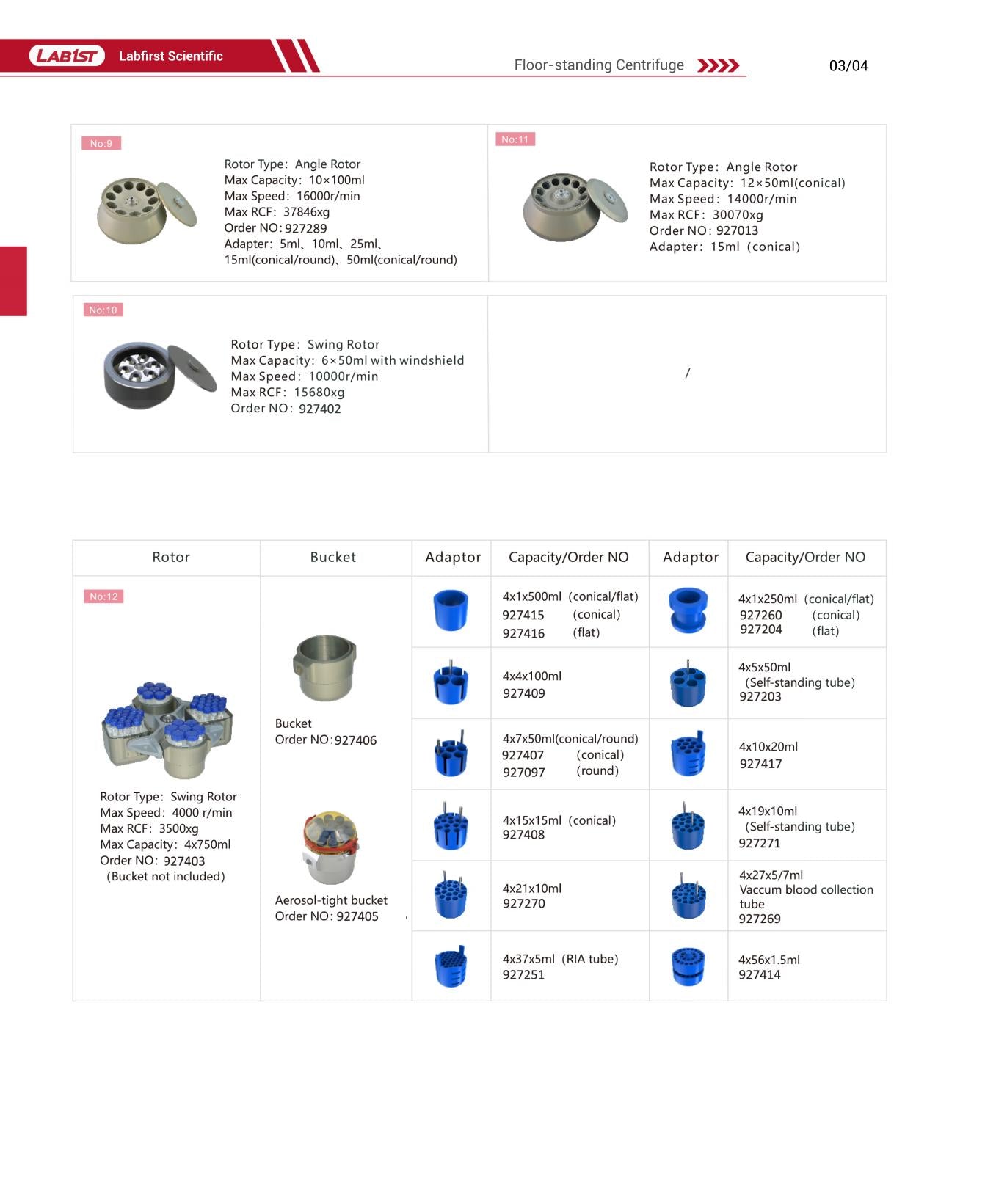

| 927027 | Angle Rotor | 32×16ml | 16000r/min | 33200×g | 5ml |
| 927289 | Angle Rotor | 10×100ml | 16000r/min | 37846×g | 5ml, 10ml, 15ml (conical/round), 25ml, 50ml (conical/round) |
| 927013 | Angle Rotor | 12×50ml (conical) | 14000r/min | 30070×g | 15ml (conical) |
|
927402 (contact us for the price) |
Swing Rotor | 6×50ml with windshield | 10000r/min | 15680×g | / |

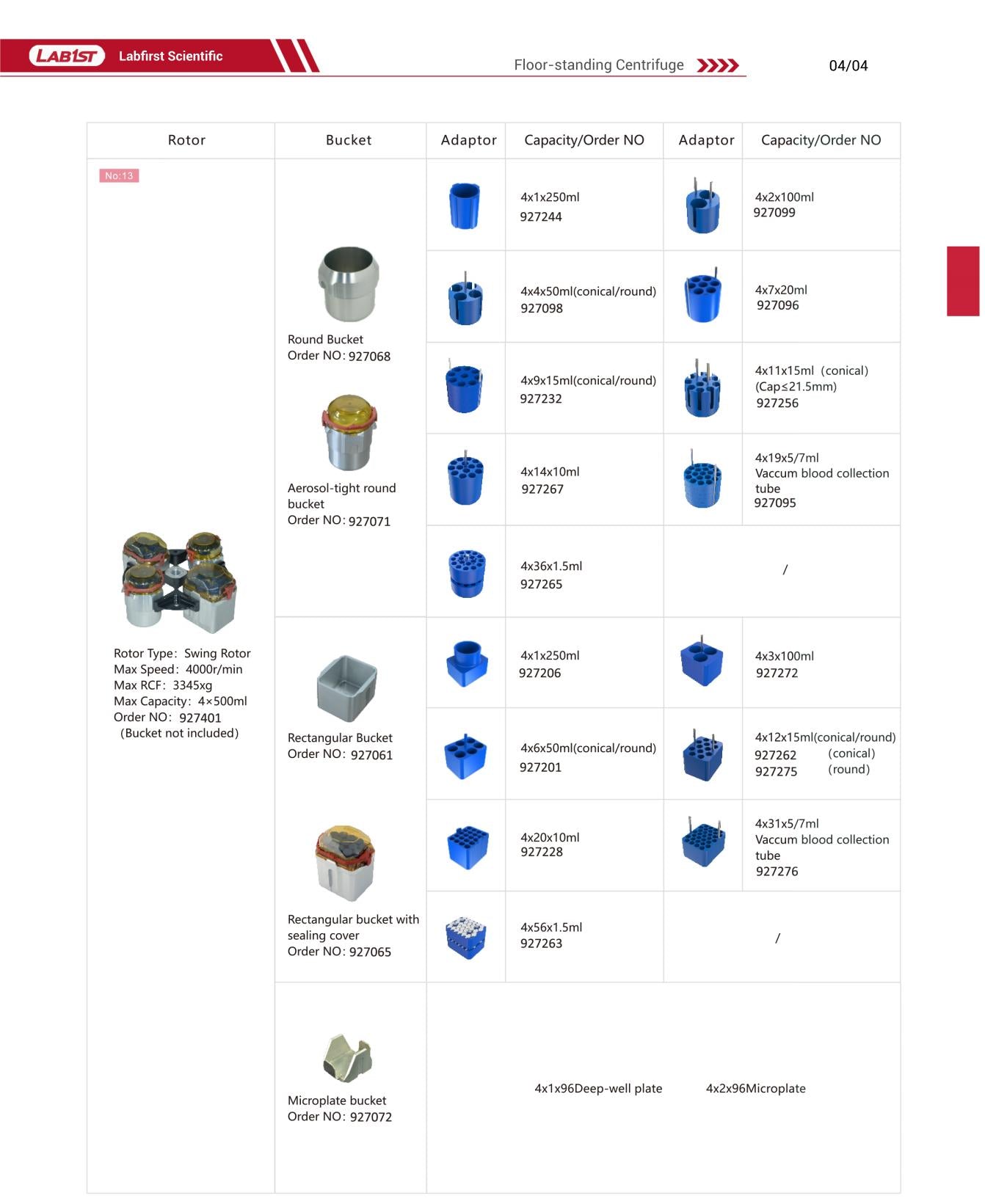

| 927403 (contact us for the price) | Swing Rotor | 4×750ml | 4000r/min | 3500×g | 1.5ml, 5ml, 5/7ml, 10ml, 15ml, 20ml, 50ml, 100ml, 250ml, 500ml |
| 927401 (contact us for the price) | Swing Rotor | 4×500ml | 4000r/min | 3345×g | 1.5ml, 5/7ml, 10ml, 15ml, 50ml, 100ml, 250ml, 96 Deep-well plate, 96 Microplate |
How to Choose Centrifuge：
| Model | Type | Max Speed | Max Capacity | Max RCF | Display |
| CF50R | Refrigerated | Angle Rotor: 5000r/min, Swing Rotor: 5000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 4640×g, Swing Rotor: 6100×g | Touchscreen |
| CF60R | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | Touchscreen |
| CF60R-B | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | LED |
| CF72R | Refrigerated | Angle Rotor: 7200r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 6×2400ml | Angle Rotor: 12166×g, Swing Rotor: 5600×g | Touchscreen |
| CF80R | Refrigerated | Angle Rotor: 8000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×1500ml | Angle Rotor: 11875×g, Swing Rotor: 5100×g | Touchscreen |
| CF90R | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | Touchscreen |
| CF100R | Refrigerated | 10000r/min | Angle Rotor: 6×1000ml | 17700×g | Touchscreen |
| CF100R-B | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | LED |
| CF160R | Refrigerated | Angle Rotor: 16000r/min, Swing Rotor: 5700r/min | Angle Rotor: 6×250ml, Swing Rotor: 4×1000ml | Angle Rotor: 27648×g, Swing Rotor: 5103×g | / |
| CF205R | Refrigerated | 20500r/min | 4×750ml | 29200×g | LCD |
| CF210R | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF210R-B | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF220R | Refrigerated | Angle Rotor: 22000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×750ml | Angle Rotor: 52020×g, Swing Rotor: 3500×g | Touchscreen |
| CF230R | Refrigerated | Angle Rotor: 23000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 60460×g, Swing Rotor: 3500×g | Touchscreen |
| CF250R | Refrigerated | Angle Rotor: 25000r/min, Swing Rotor: 4000r/min | Angle Rotor: 4×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 64800×g, Swing Rotor: 3500×g | Touchscreen |
| CF260R | Refrigerated | Angle Rotor: 26000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 81623×g, Swing Rotor: 3500×g | Touchscreen |
Pls note: The price listed doesn't include adapters. If you need them, please contact us.
