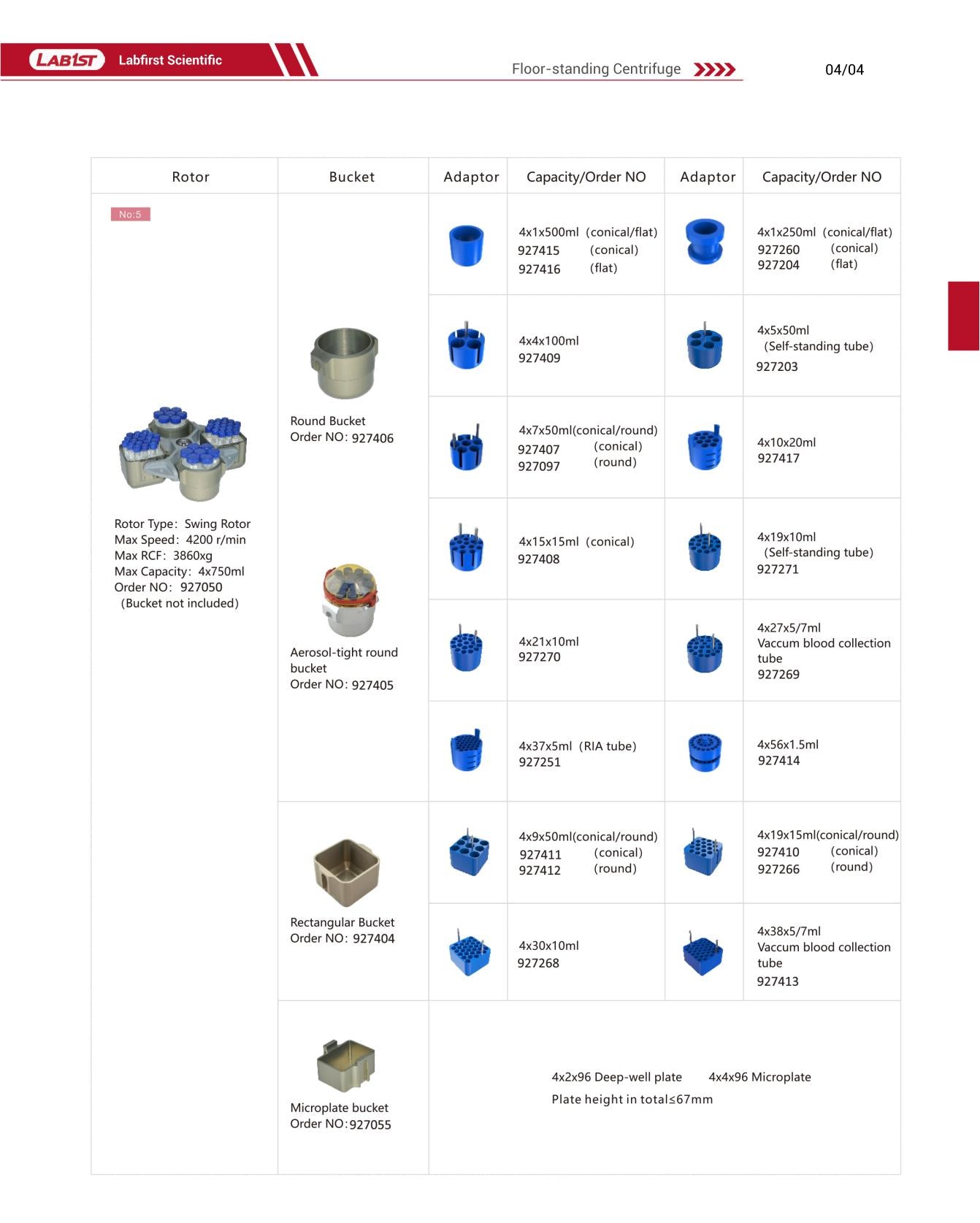

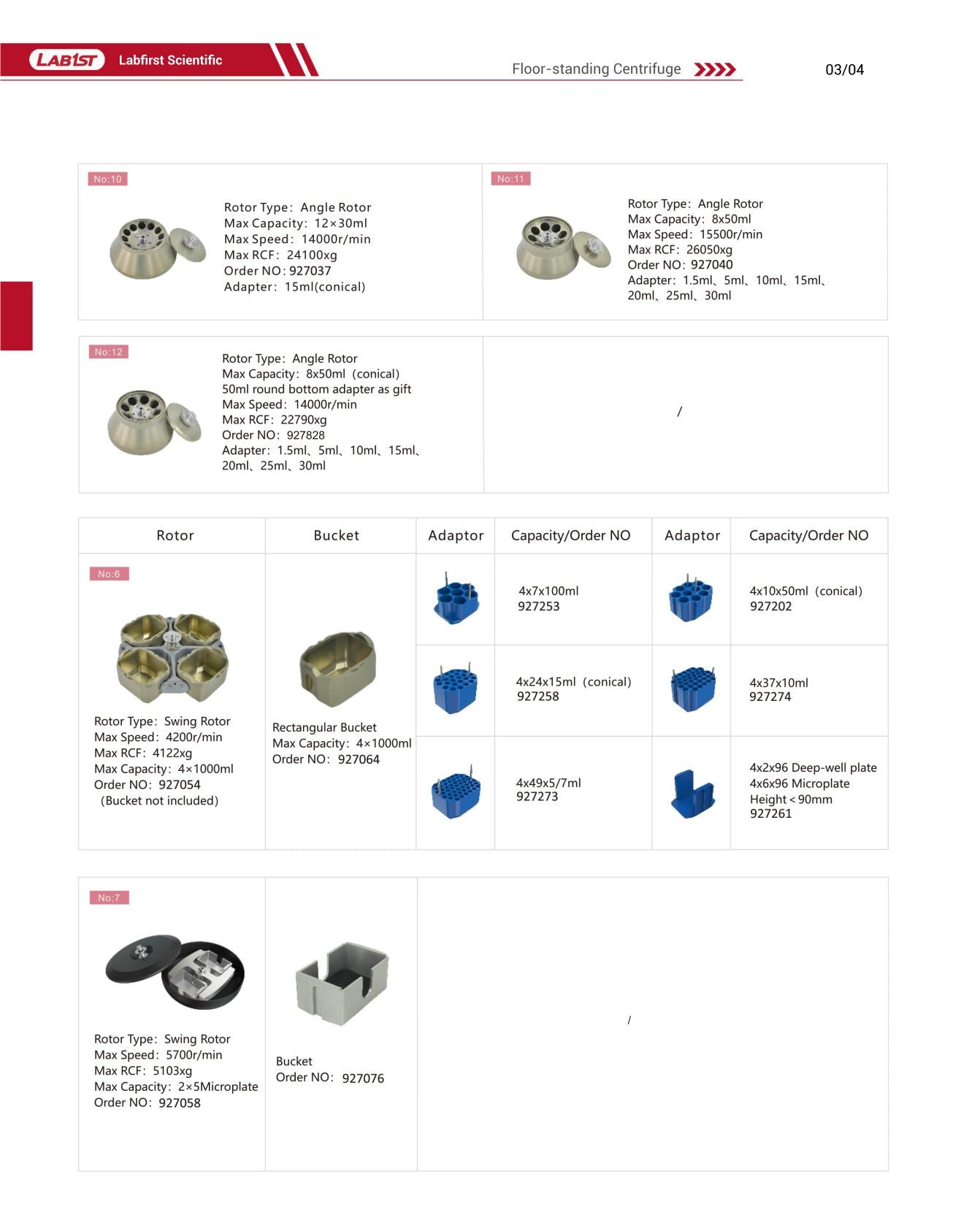

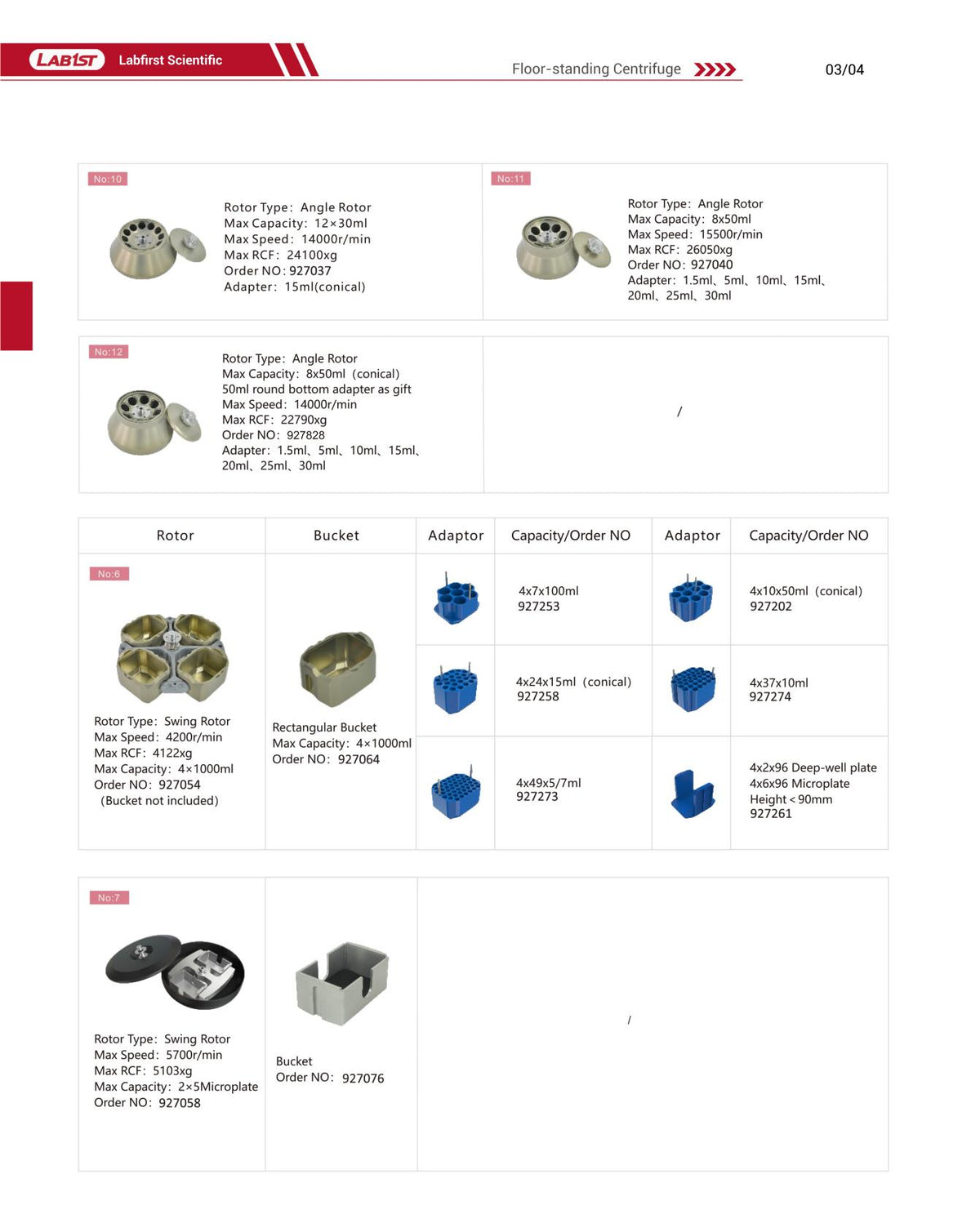

CF160R centrifuge is extremely versatile and powerful. Swing rotor 4x1000ml (rectangular bucket), it can spin up to 40x50mlconical tube, 96x15ml conical tube and 148x10ml, 196x5/7ml vacuum blood collection tube, 20 pcs MTP in one cycle. So a rotor can do multiple experiments without replacing the bucket.In addition, angle rotor 6x250ml and 8x50ml can realize high speed centrifugation. lt's a universal centrifuge for different lab application.
Features:
- High-throughput Sample Processing: Swing rotor: Multiple rotor and adapters available, max capacity 4x1000ml. It can spin up to 36x50ml conical tube or 196x5/7ml. Angle Rotor: 9 rotor options, such as 6 x250ml,. 8 x50ml, 48 x1.5ml. Max RCF up to 27650xg, suitable for 0.2-250ml high-speed centrifugation of molecular biology.
- Energy Saving, Frequency conversion Technology: Frequency conversion dual channel control, refrigeration through frequency regulation,energy saving and high efficiency. According to the time interval of the experiment, the sleep time of the instrument can be set, which can ensure good refrigeration effect as well as save energy and increase the service life of the instrument.
- Built-in safety: Featuring multiple protection, such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
- Reliable Material: The rotor adopt 7075-T6 aviation grade alloy aluminum and titanium alloy, hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled.The flaw detection report, tensile test report, chemical composition test report and processing test report can be provided.
- Extensible: The system adopts unified and standard Etheret communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring.
- Programmable: Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps (set speed, time, temperature ), to meet the diversified experimental needs.
- ACC/DEC Rates: 11 acceleration and 11 deceleration rate, to prevent second emulsion or turbid, to achieve best centrifugation result.
- Main Interface Function: In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed switched by soft touch the key.
- Powerful System Setting Function: Powerful control system allows easy data capture, storage, and processing.

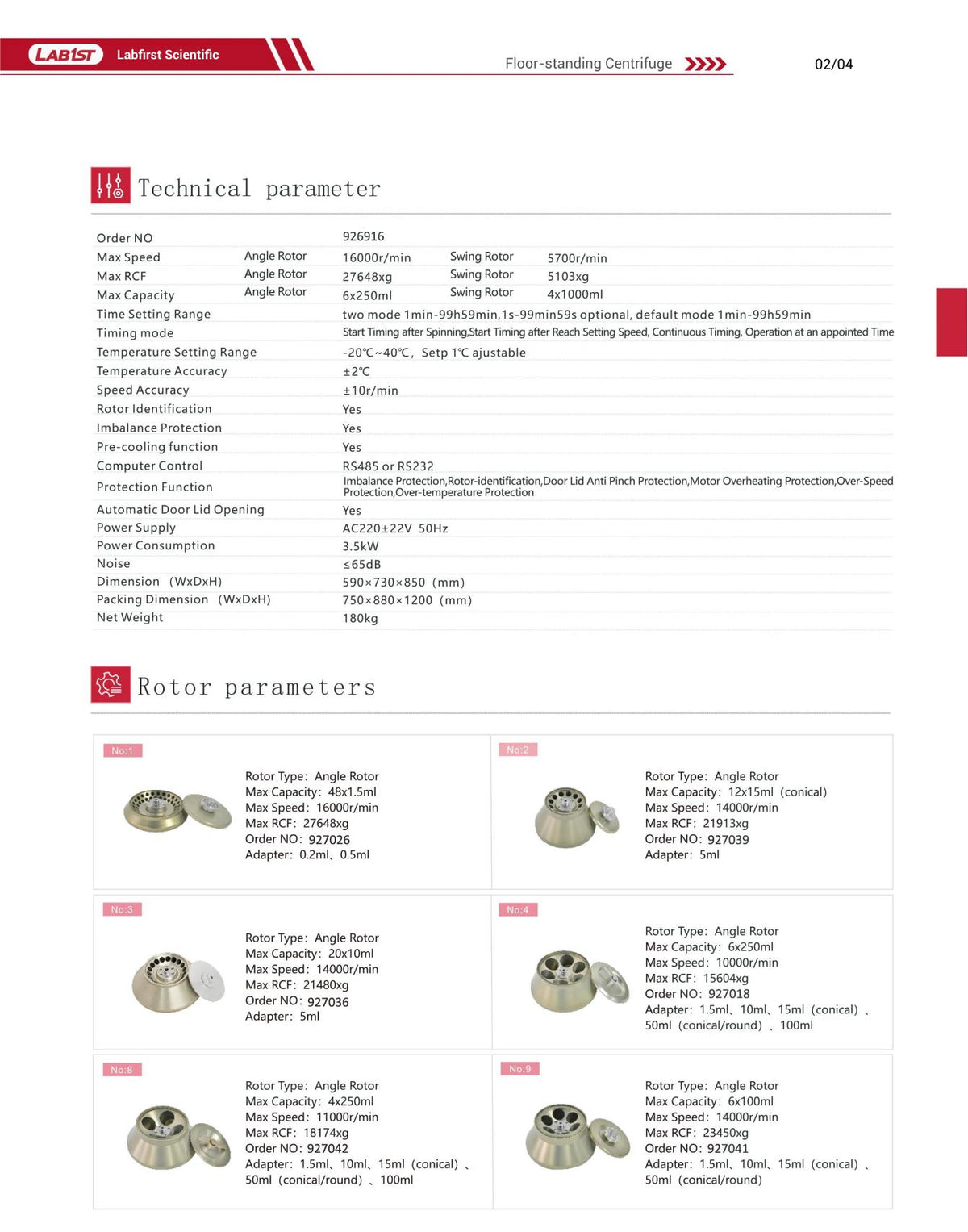

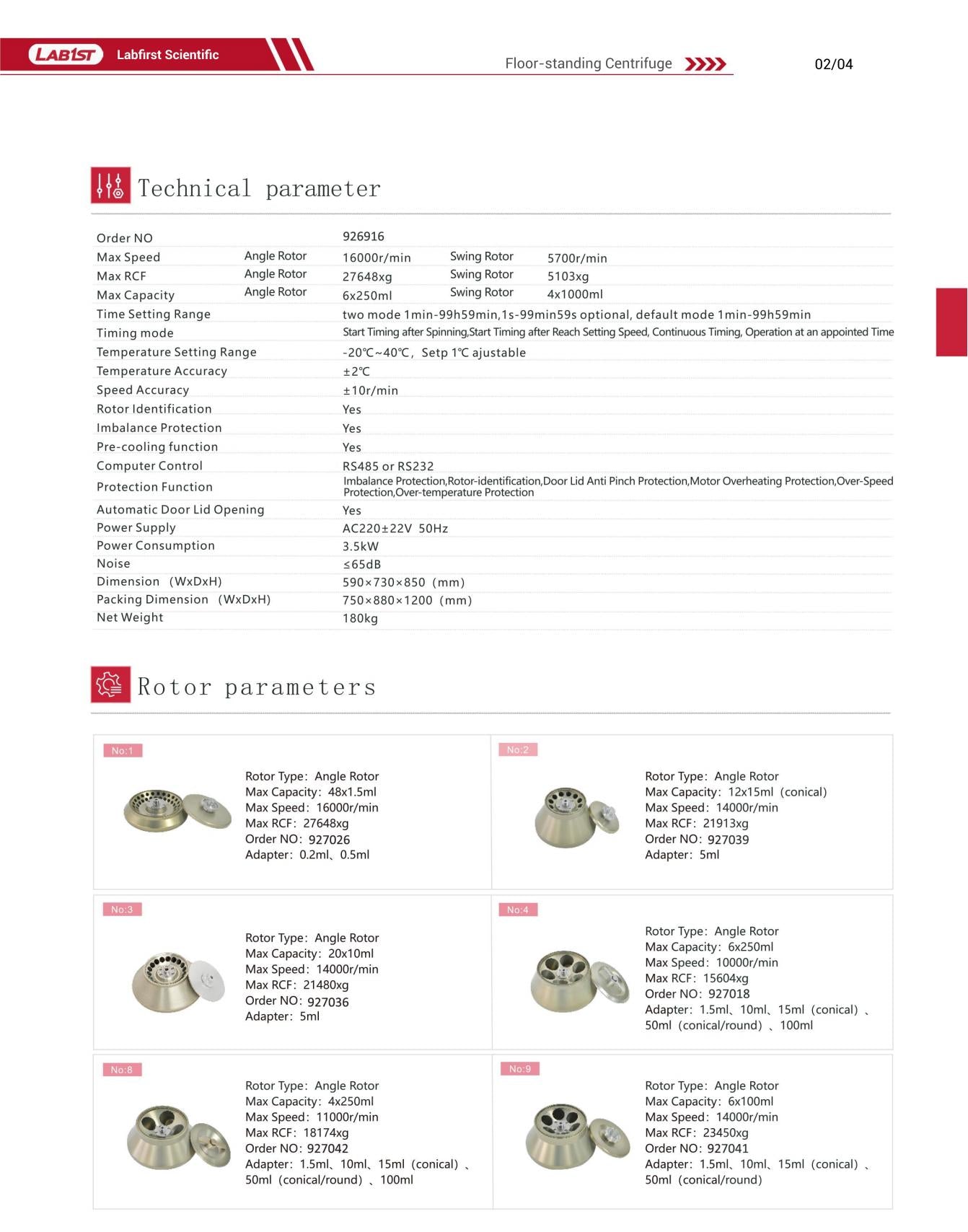

Specifications:
| Model: | CF160R |
| Max Speed: | Angle Rotor: 16000r/min |
| Swing Rotor: 5700r/min | |
| Max RCF: | Angle Rotor: 27648×g |
| Swing Rotor: 5103×g | |
| Max Capacity: | Angle Rotor: 6×250ml |
| Swing Rotor: 4×1000ml | |
| Speed Accuracy: | ±10r/min |
| Time Setting Range: | 2 mode1min-99h59min, 1s-99min59s optional, default mode 1min-99h59min |
| Time Mode: | Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time |
| Temperature Setting Range: | -20~40℃, Step 1℃ adjustable |
| Temperature Accuracy: | ±2℃ |
| Noise: | ≤65dB (A) |
| Power Supply: | AC220±22V 50Hz |
| Power Consumption: | 3.5kW |
| Rotor Identifition: | Yes |
| Imbalance Protection: | Yes |
| Pre-cooling Function: | Yes |
| Computer Control: | RS485 or RS232 |
| Dimension (W×D×H): | 590×730×850 (mm) |
| Packing Dimension (W×D×H): | 750×880×1200 (mm) |
| Net Weight: | 180kg |
Pls note: The price listed doesn't include rotors or adapters. If you need them, please contact us.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
