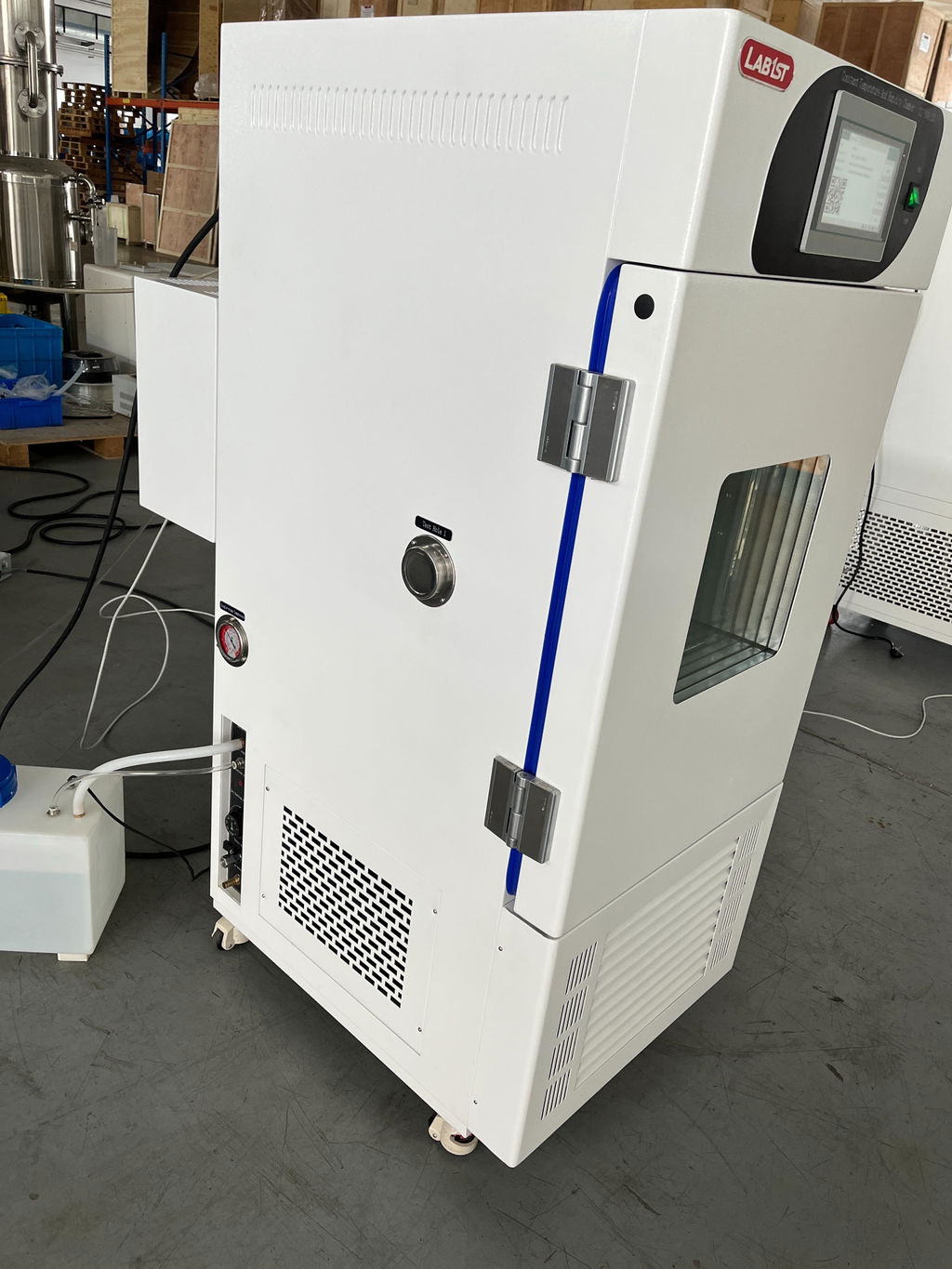

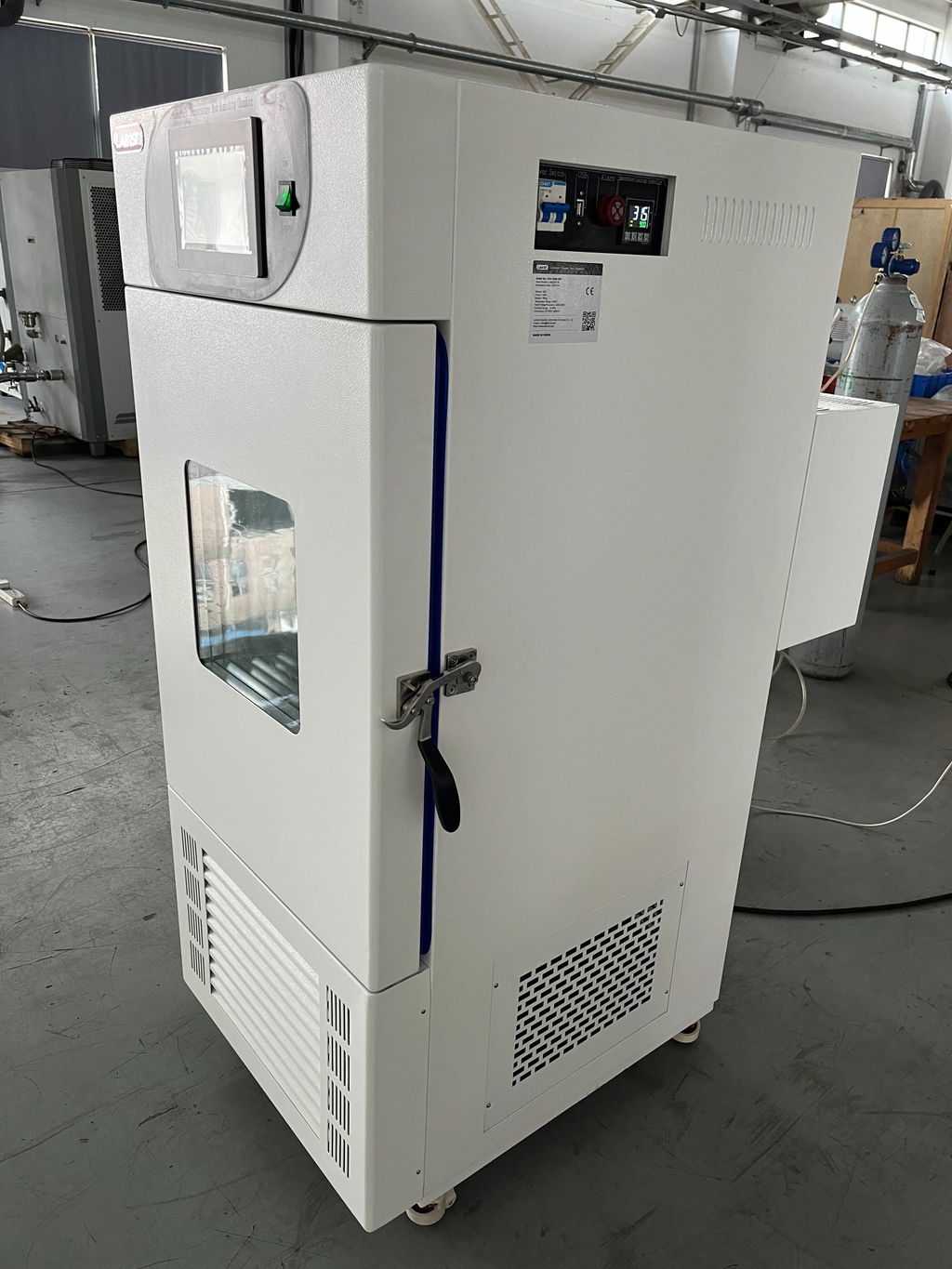

Constant Climate Chamber with Temperature and Humdity Control
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Shipping Information

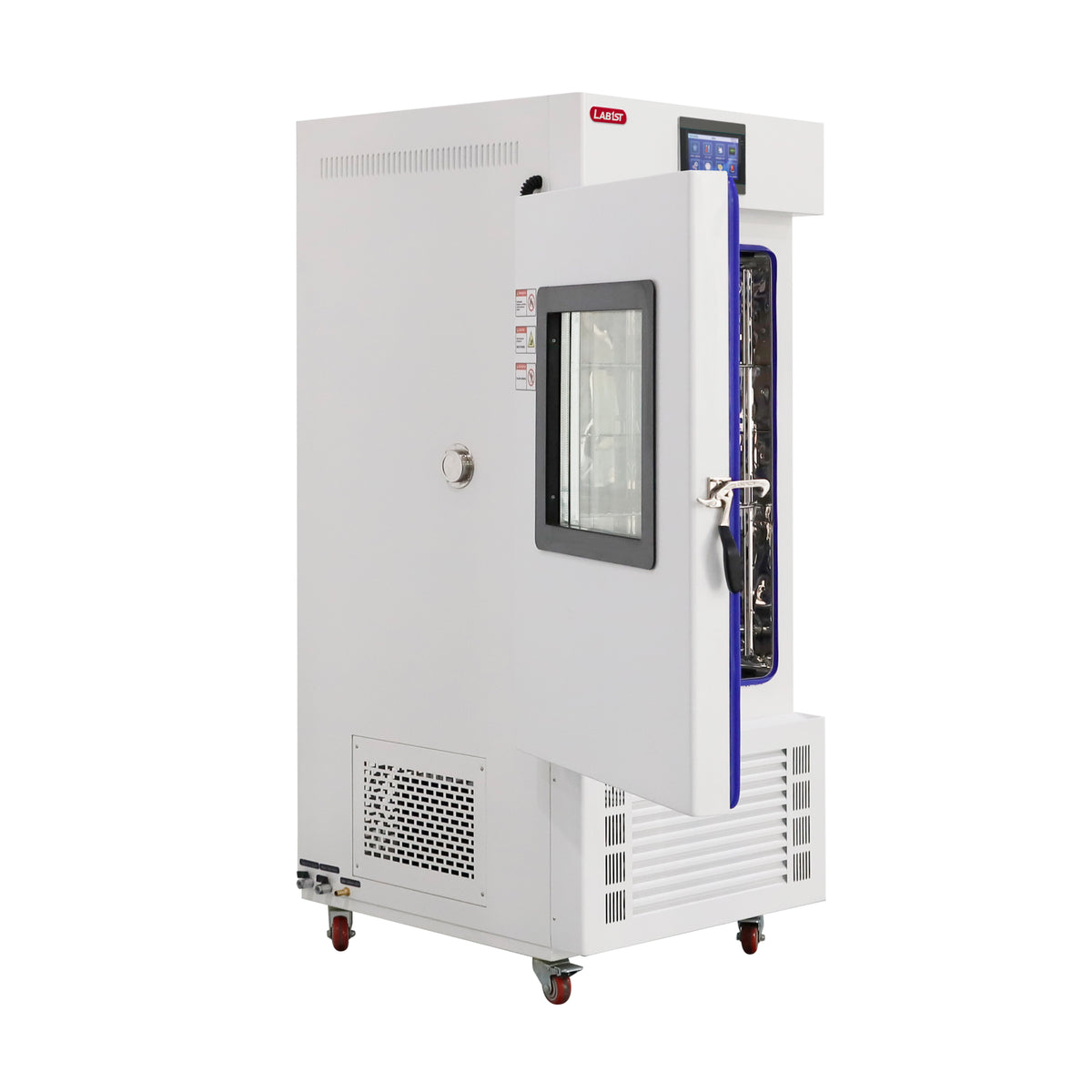

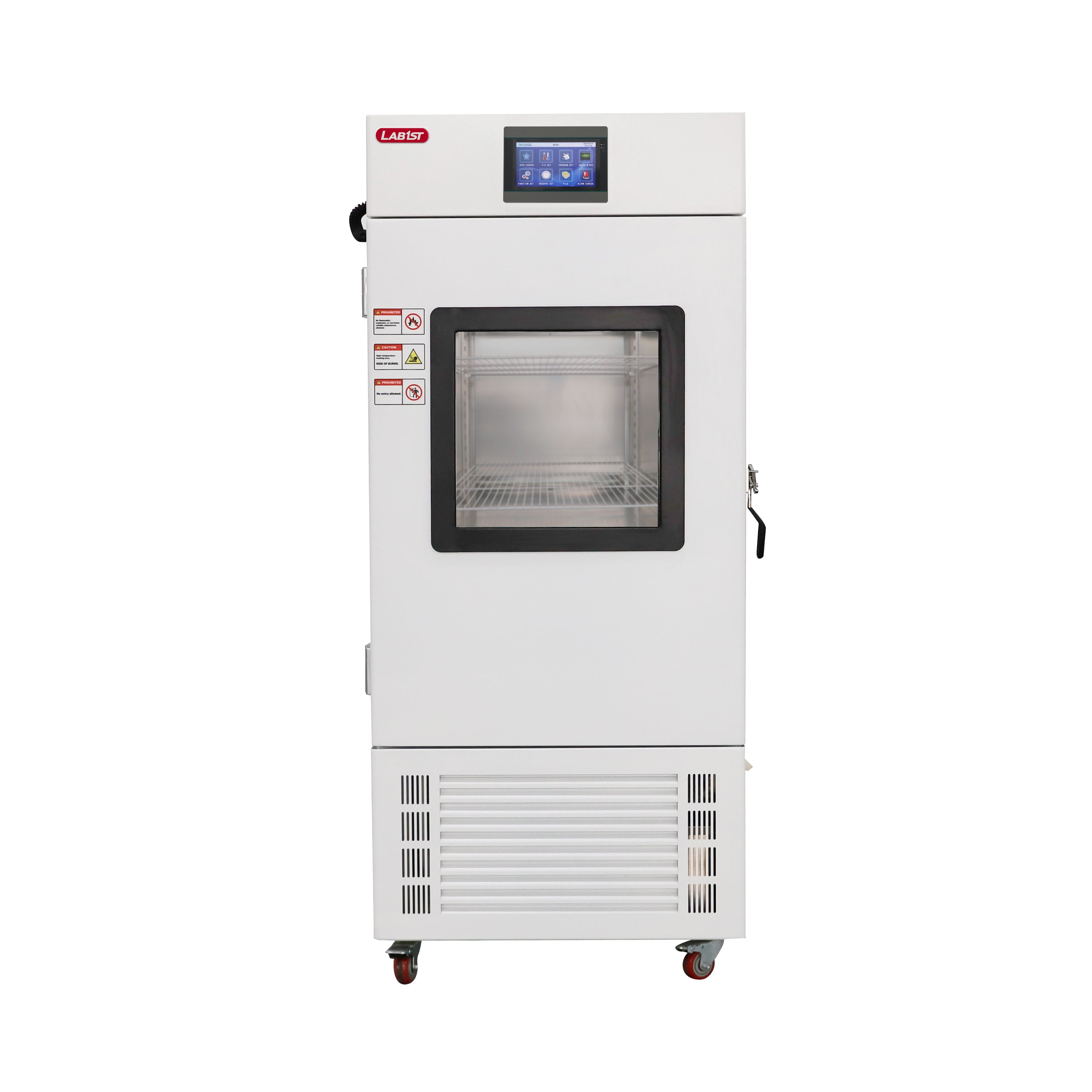

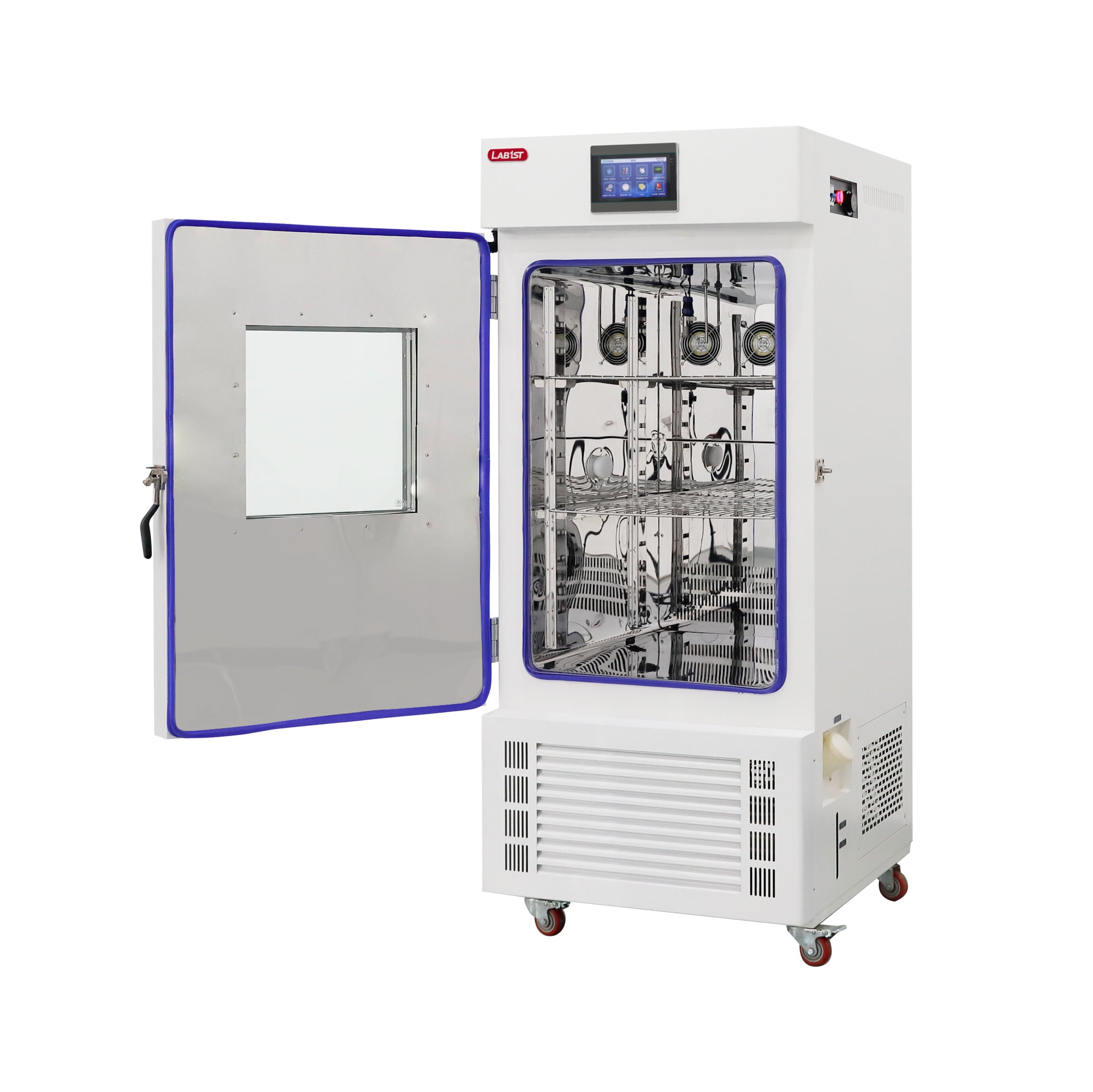

The Constant Climate Chamber, alternatively referred to as a climate cabinet or environmental test chamber, serves as a critical tool for replicating specific environmental parameters, namely temperature and relative humidity. This sophisticated device is utilized to conduct environmental simulation tests, which are designed to predict the behavior of test samples under controlled climatic scenarios. By doing so, these tests play a pivotal role in validating product quality, ensuring stability, and providing insights into the longevity and endurance of the products.
Features:
- Available Capacities: 50L, 100L, 150L, 250L, 500L, 800L and 1000L.
- Different temperature control range: 0°C to 80°C / customizable.
- Wide humidity control ranges: 30-95%R H / customizable.
- Rapid temperature cycling rate: 0.5 °C/min for cooling, 1 °C/min for heating.
- Powerful customization cabilities: various temperature and humidity range, chamber size, material and structure, etc.
- Stable operation & quality assurance based on smart PLC control system, ensures reliable and consistent performance.
- Standard Humidity Control with Dual Modes for Versatile Applications
- Water Tank Mode: Ideal for low water consumption tests, requiring only periodic refilling.
- Continuous Water Supply Mode: Perfect for high water consumption scenarios, featuring automatic level-maintaining water replenishment.
- Global Server Coverage: Servers located across continents ensure fast speeds and low latency.
- Feature-Rich Mobile App: Enables seamless team collaboration and device management.
- Quick Setup: IoT deployment and connection completed in just 10 minutes.
- Safety & Certifications:
- Multiple Electrical and Refrigeration System Protections.
- Independent temperature limit switch (cuts off circuit during control failure) with audible and visual alarms to ensure safe operation without accidents.
- Compressor overheat, overcurrent, and overload protection; fan overheat protection; water shortage protection.
- Standard independent digital overtemperature protector provides additional safety protection.
- CE certified, with optional UL/ETL standard electrical components (UL508A).
- Smart IoT & User-Friendly Software:
- Global Server Coverage: Servers located across continents ensure fast speeds and low latency.
- Feature-Rich Mobile App: Enables seamless team collaboration and device management.
- Quick Setup: IoT deployment and connection completed in just 10 minutes.
- Full-Featured Temperature & Humidity Controller:

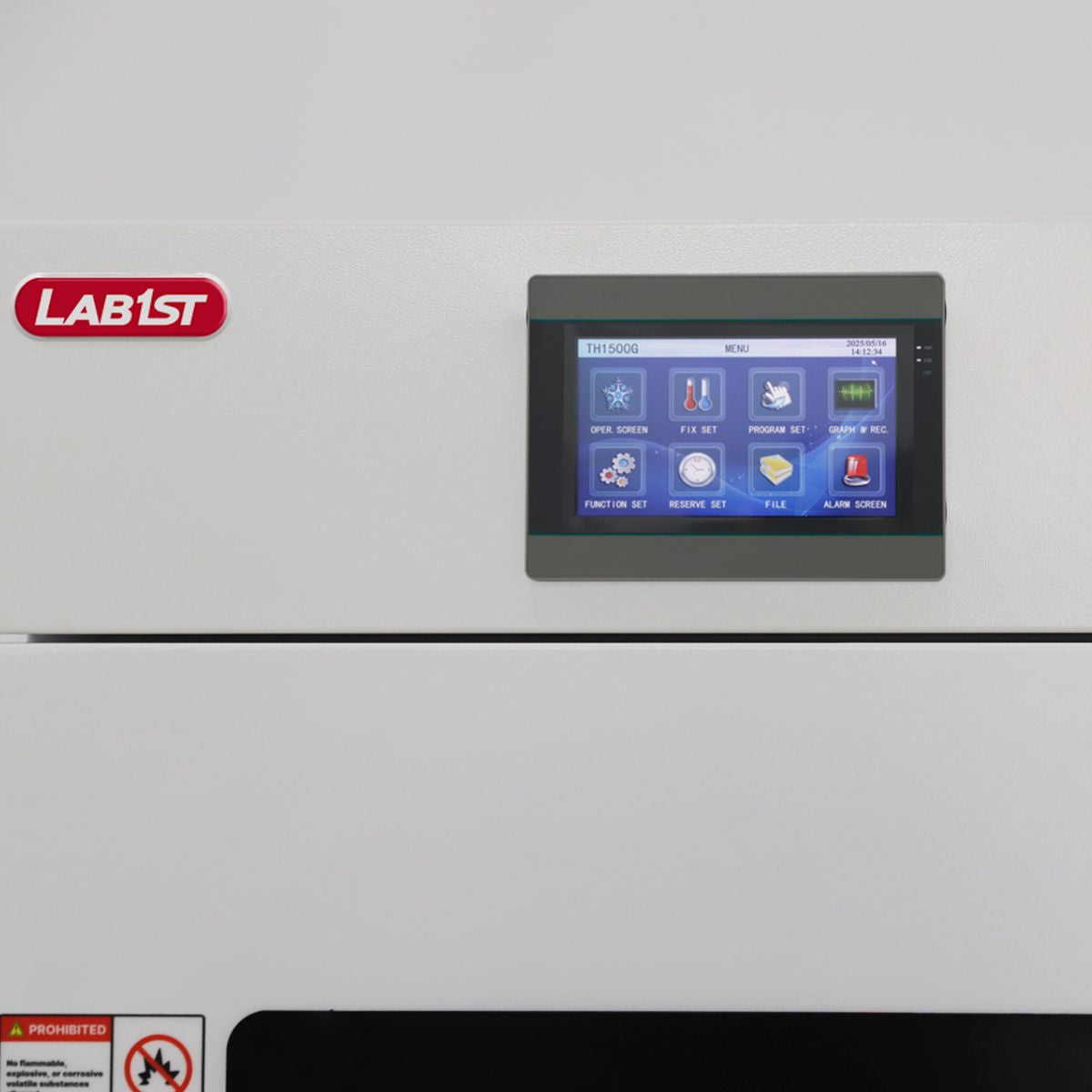

- 7-inch touchscreen, operable even with gloves
- USB port (standard) for easy data export and analysis
- Programmable control (standard)
- Upgraded algorithms delivers precise temperature and humidity regulation
- Industrial-grade electrical panel: Safe, stable, and maintenance-friendly
Specifications:
| Model: | 50L | 100L | 150L | 250L | 500L | 800L | 1000L |
| Performance |
|||||||
| Temperature Range: | 0 ~ 80℃ | ||||||
| Humidity Range: | 30 ~ 95% RH | ||||||
| Temperature Fluctuation: | ±0.5 ~ 1.0 ℃ | ||||||
| Temperature Uniformity: | ±2 ℃ | ||||||
| Average Heating Rate: | Approx. 1℃/min | ||||||
| Average Cooling Rate: | Approx. 0.5℃/min | ||||||
| Humidity Range: | 20%~98% RH | ||||||
| Humidity Fluctuation: | ±3% RH | ||||||
| General Information |
|||||||
| Working Ambient Temp. | RT + 5 ~ 35℃ | ||||||

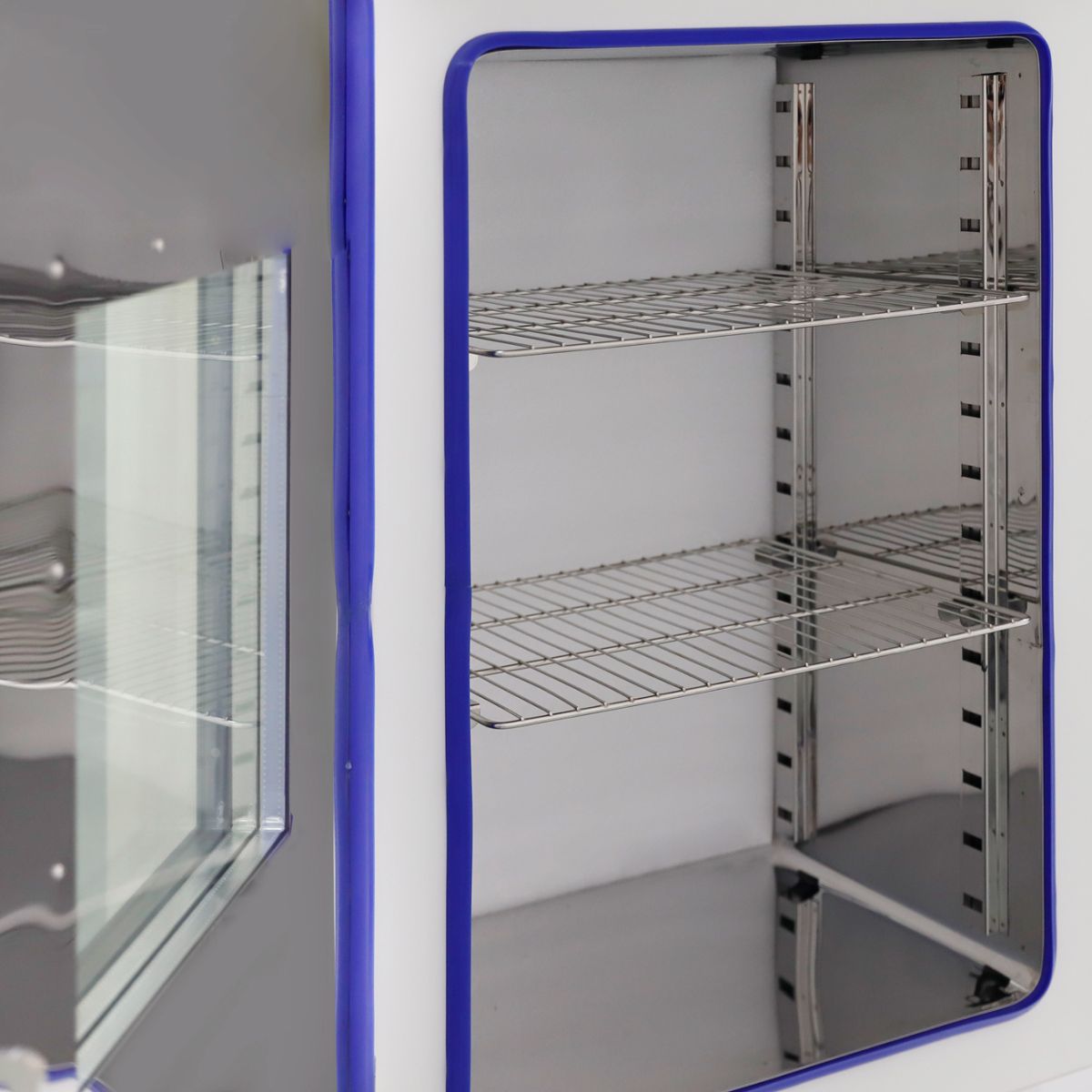

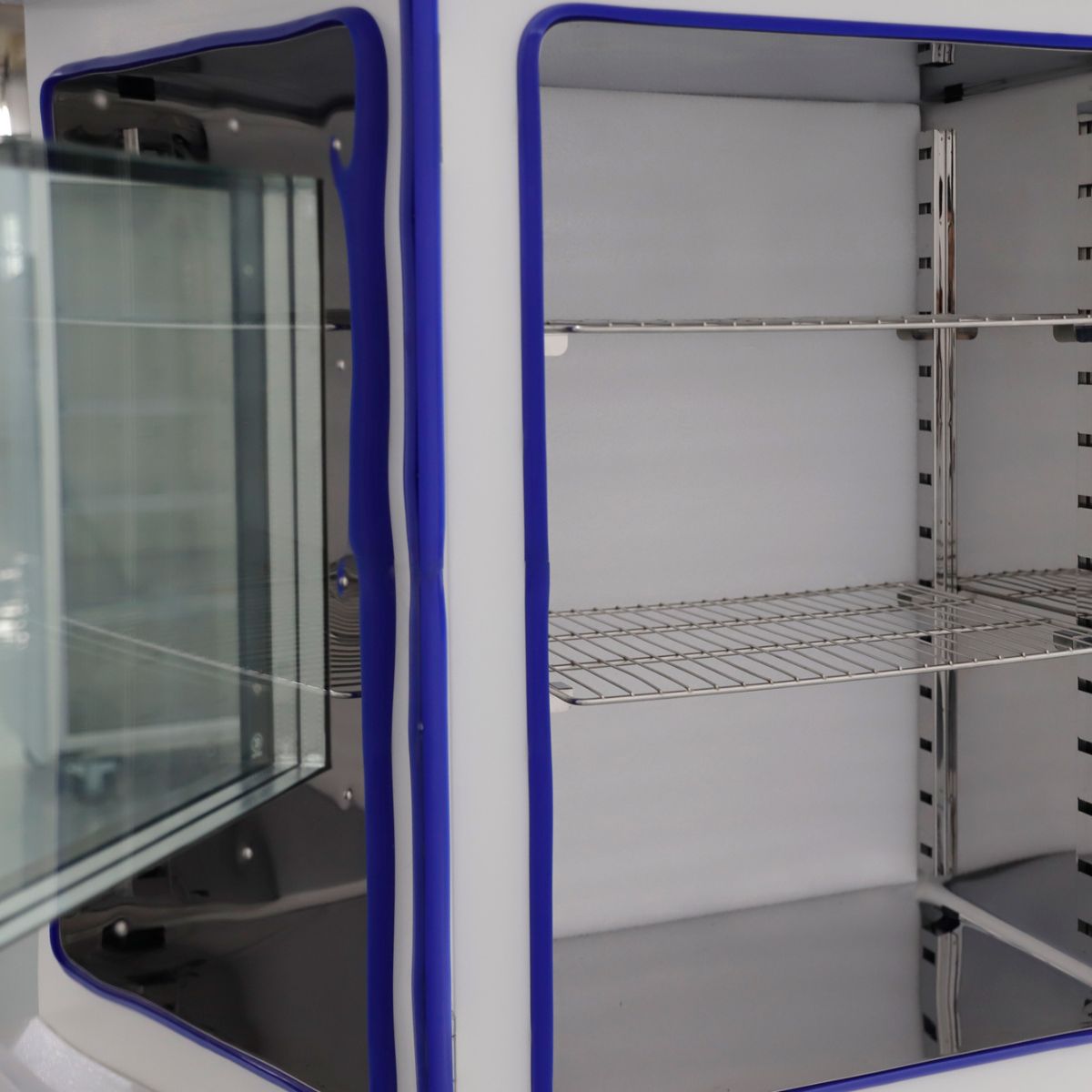

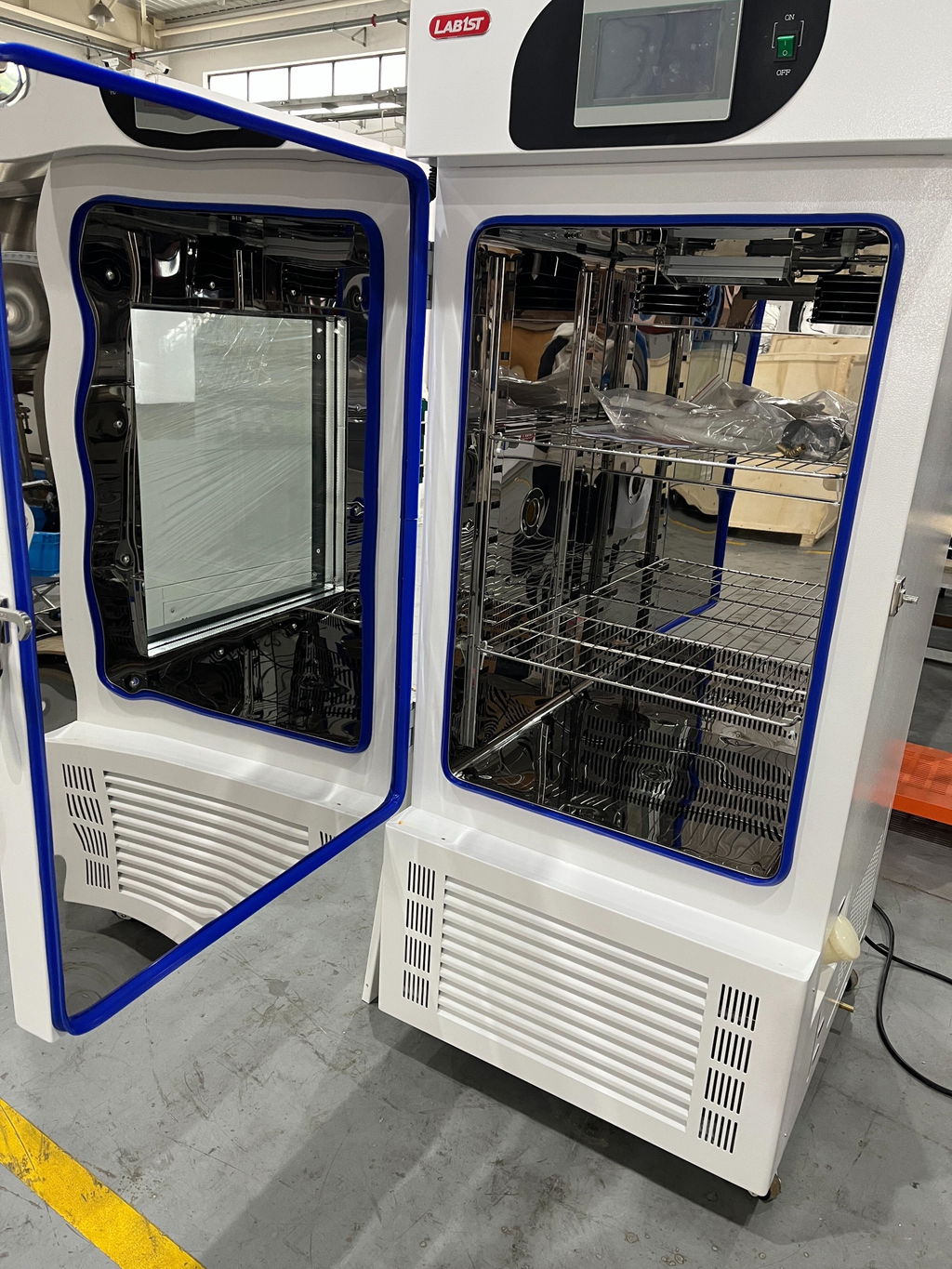

| Shelf: | 2 pcs | 3 pcs | |||||
| Max. Shelf Load: | 5 kg [11 lbs] | ||||||
| Max. Chamber Load: | 50 kg | ||||||
| Min. Shelf Spacing: | 70 mm | ||||||

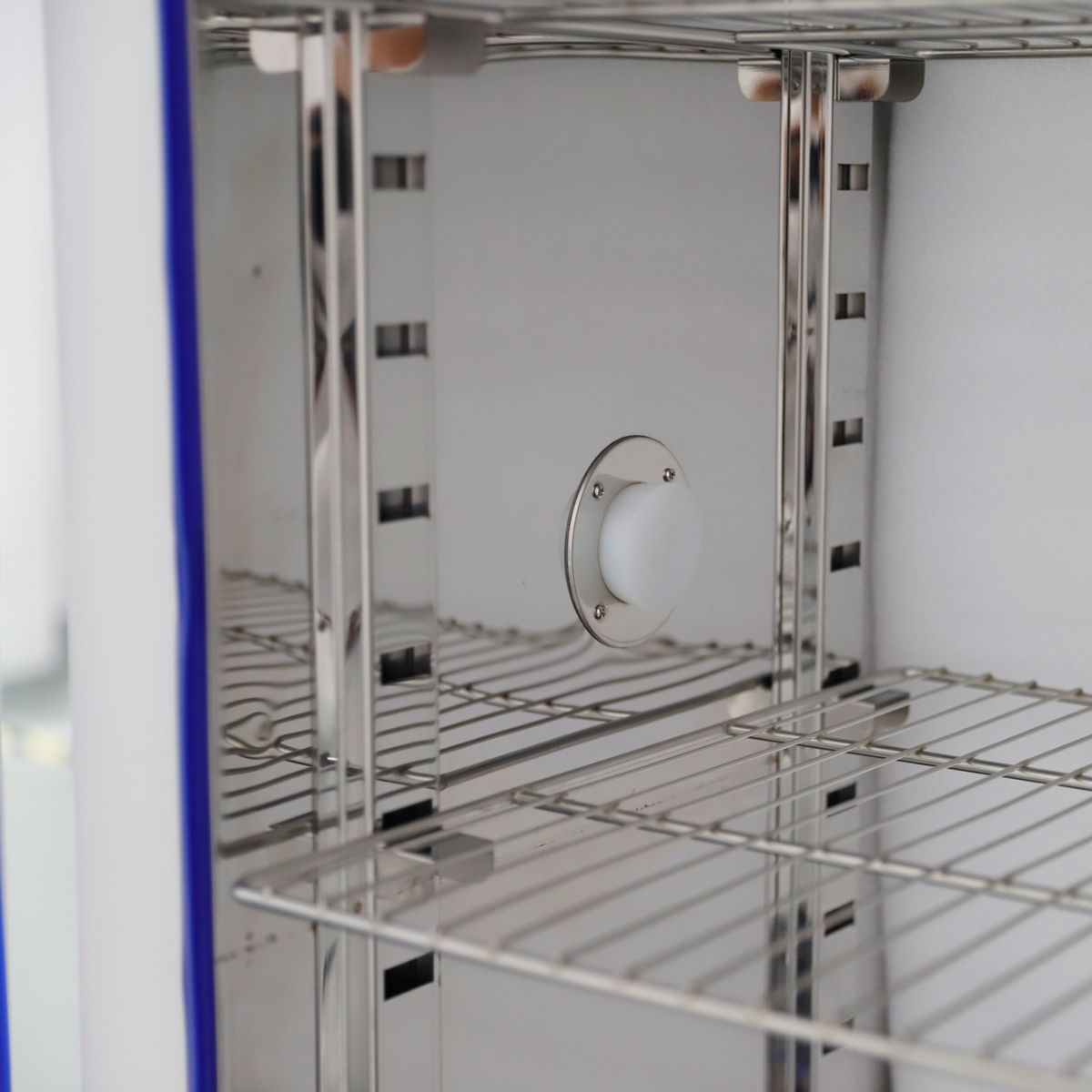

| Cable Port: | 50 mm [2 inch] | ||||||
| Control Panel: | Industrial color touch screen, temperature and humidity program controller | ||||||
| Comminication: | USB, RS485 and Ethernet | ||||||
| Compressor Brand: | Germany Secop, French Tecumseh, Germany BIitzer, etc | ||||||
| Electrical Supply: | North America: 208~240V, 1P, 60Hz；International: 220~240V, 1P, 50Hz | North America: 460~480V, 3P, 60Hz; International: 380~400V, 3P, 50Hz | |||||
