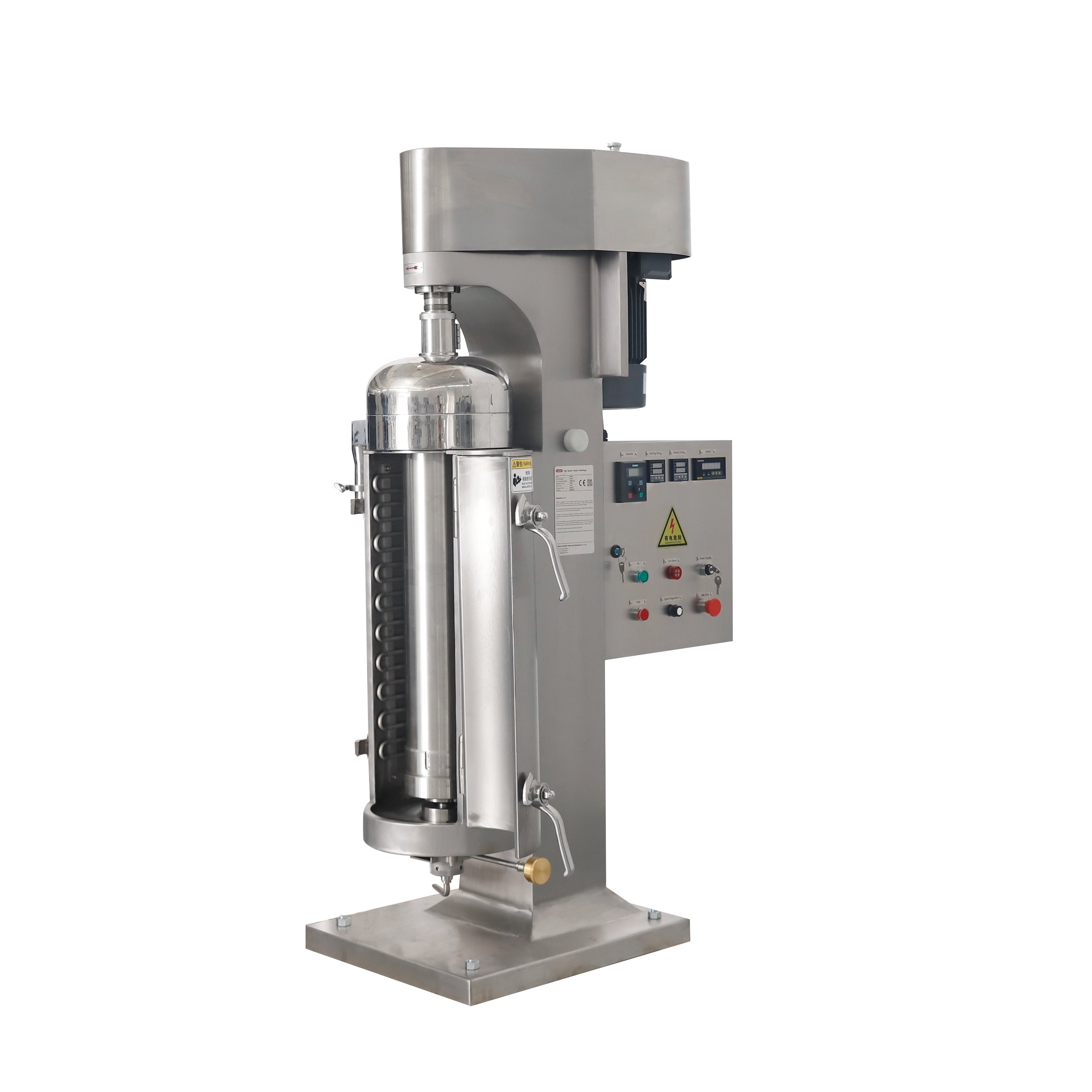

Large Industrial High-Speed Tubular Centrifuge
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
When it comes to the toughest separation challenges, high-speed tubular centrifuges deliver results that conventional equipment simply can’t match. Engineered for suspensions with fine particles, low concentrations, and even the slightest differences in density, they provide clean, reliable separation where other methods fall short.
From pharmaceuticals and biotech to food, beverage, chemicals, and blood products, our centrifuges have become a trusted choice for industries where purity and efficiency matter most. Whether the goal is to maximize product yield, improve process consistency, or ensure regulatory compliance, they offer the performance to get it done.
With flexible configurations—from GMP-compliant stainless steel and explosion-proof models to CIP-cleaning systems and mobile units for field testing—these machines adapt to the way you work. The result: powerful separation technology that keeps your operation running cleaner, faster, and smarter.
Features:
- Versatile Performance: Engineered for both solid-liquid (GQ Series) and liquid-liquid-solid (GF Series) separation, our tubular centrifuges deliver efficient clarification, purification, concentration, and recovery—tailored to a wide range of industrial applications.
- GMP-Compliant Construction: Built with a SUS304 exterior and SUS316L product-contact surfaces, the system meets pharmaceutical-grade Good Manufacturing Practice (GMP), guaranteeing hygiene, durability, and full regulatory compliance.
- Superior Separation Efficiency: Reach maximum operational performance with speeds up to 20,000 rpm and centrifugal forces of 17,000 × g—ensuring sharp separation, high purity, and consistent output.
- Intelligent Safety Assurance: Real-time rotor and chamber temperature monitoring, coupled with an over-temperature alarm, provides proactive protection and secure operation under demanding conditions.
- Smooth & Silent Operation: Premium FAG bearings and Swiss-made Habasit drive belts significantly reduce noise and vibration, with factory-tested vibration levels 60% below industry standards.

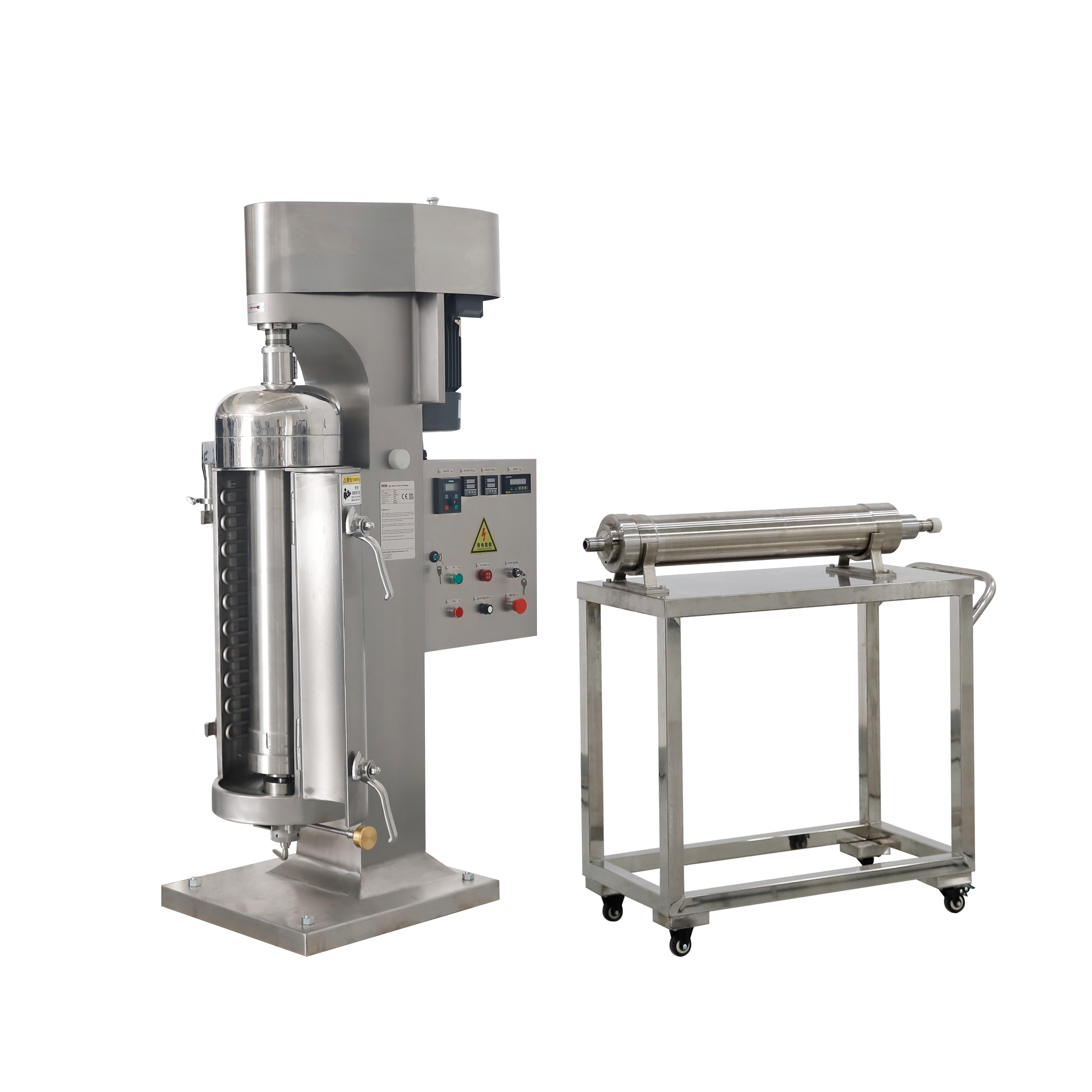

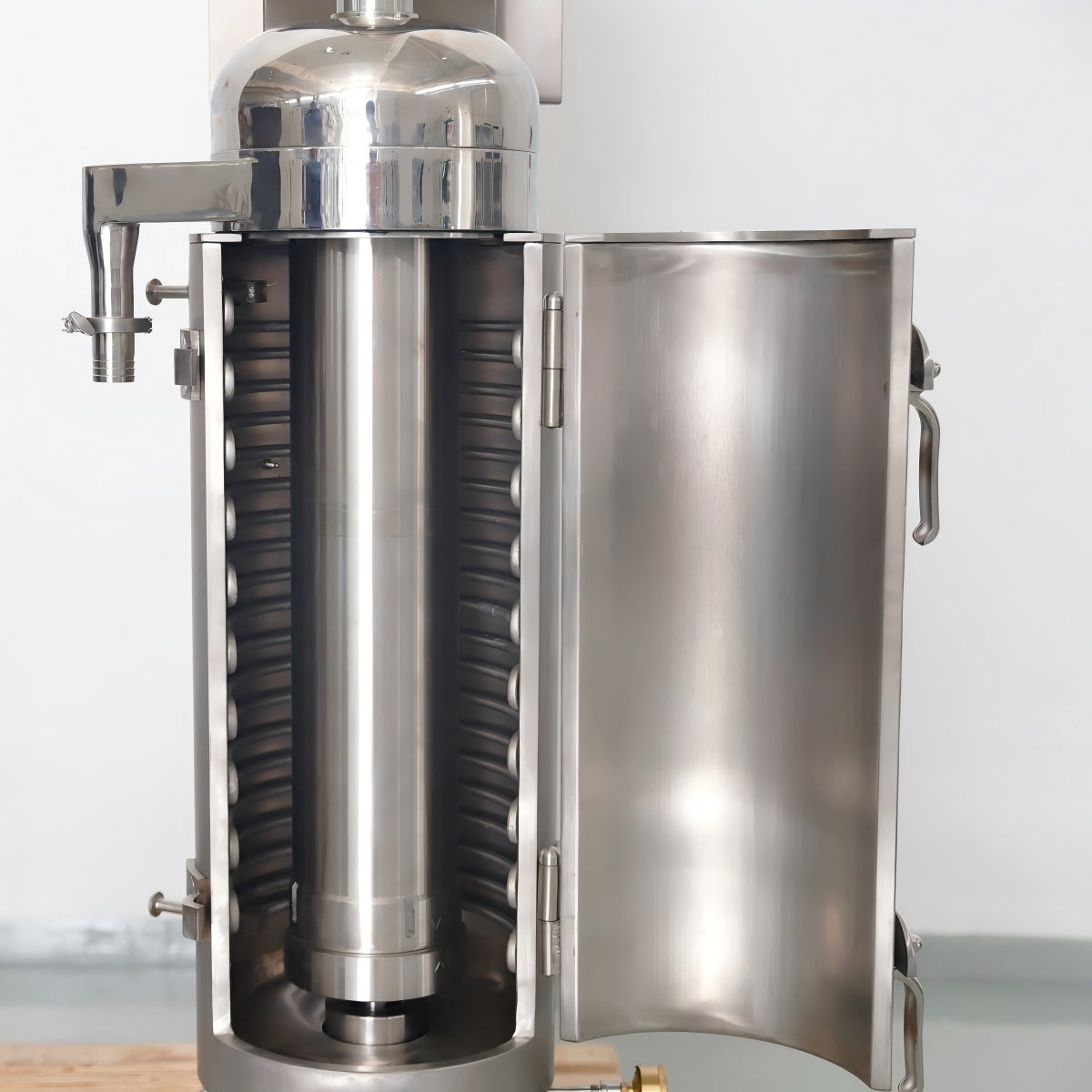

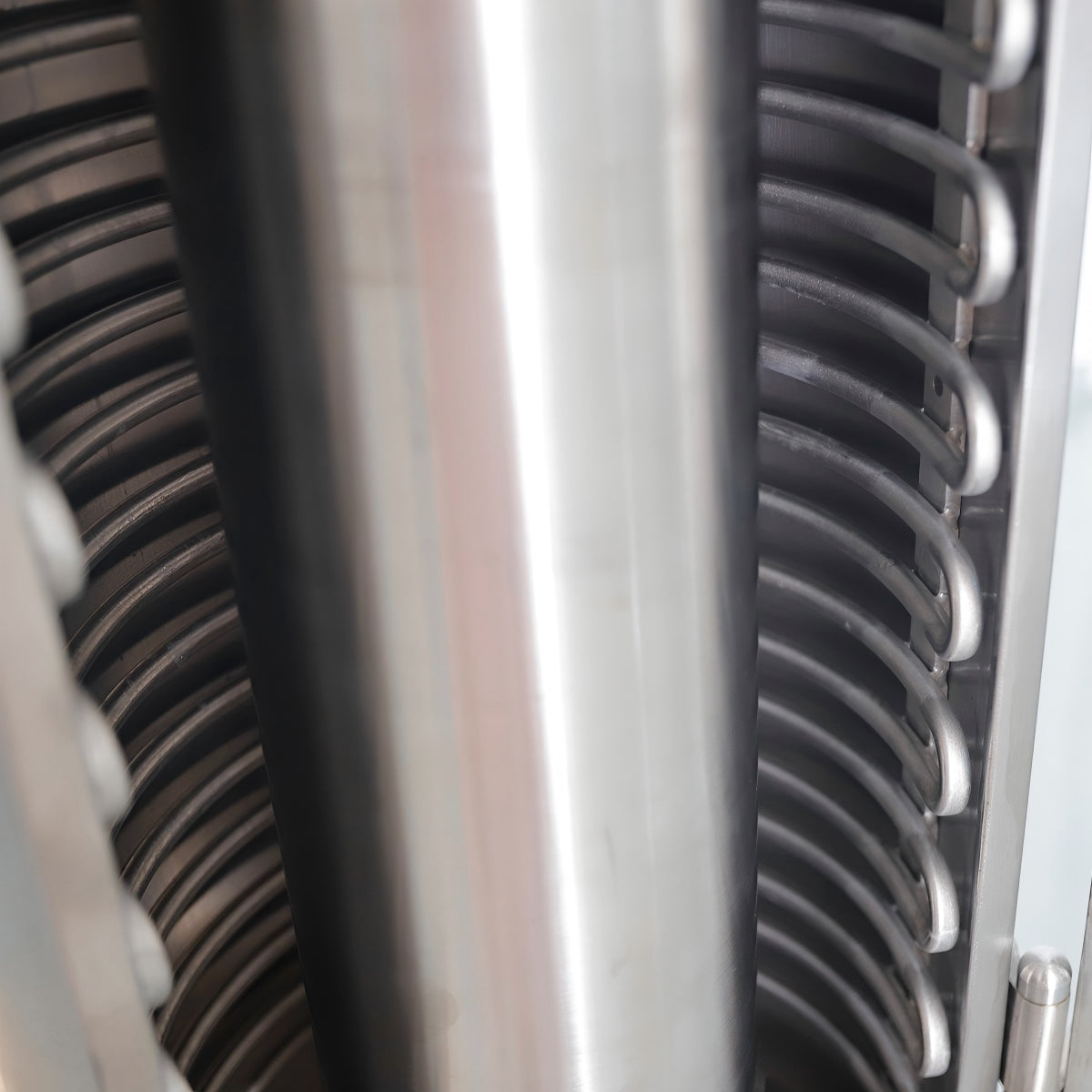

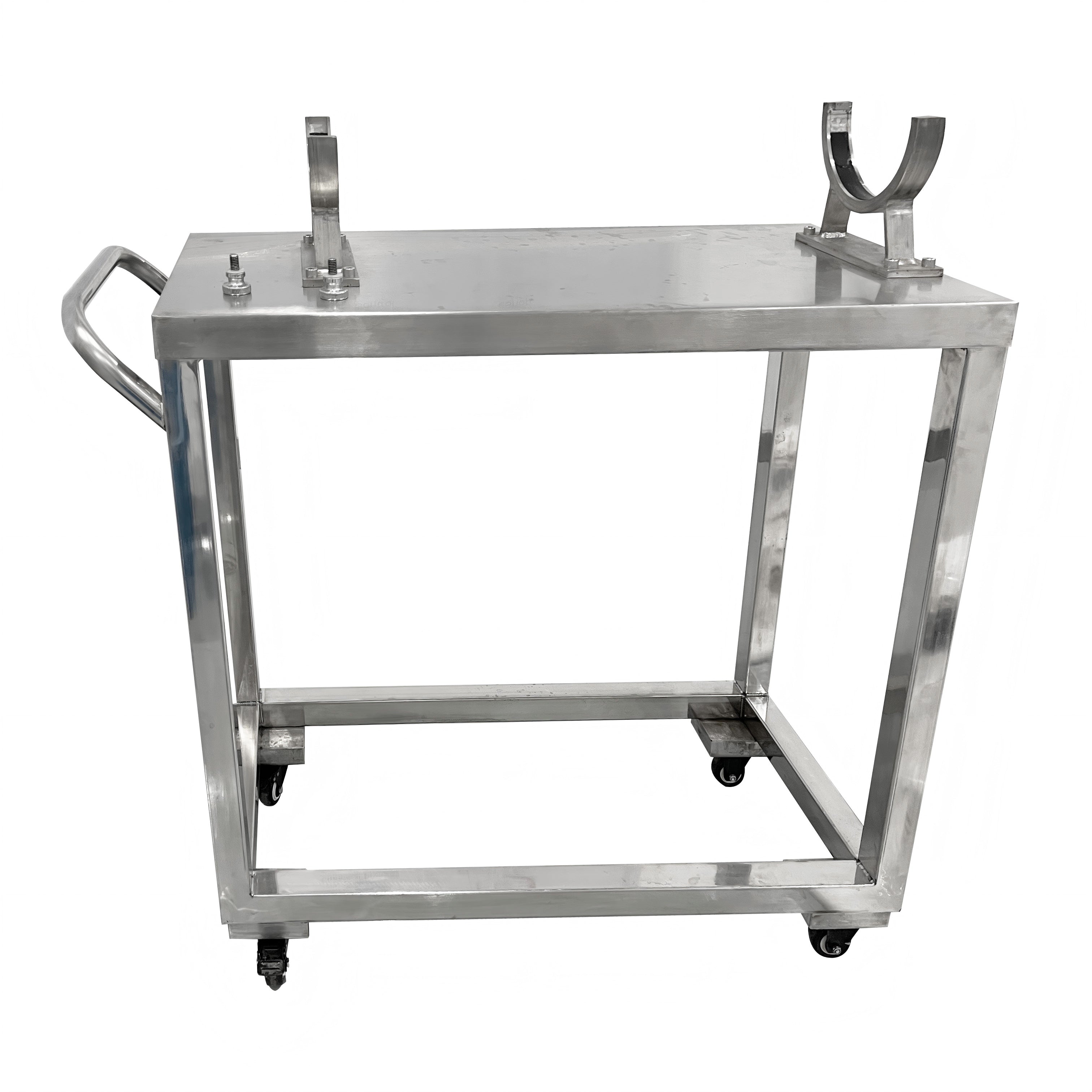

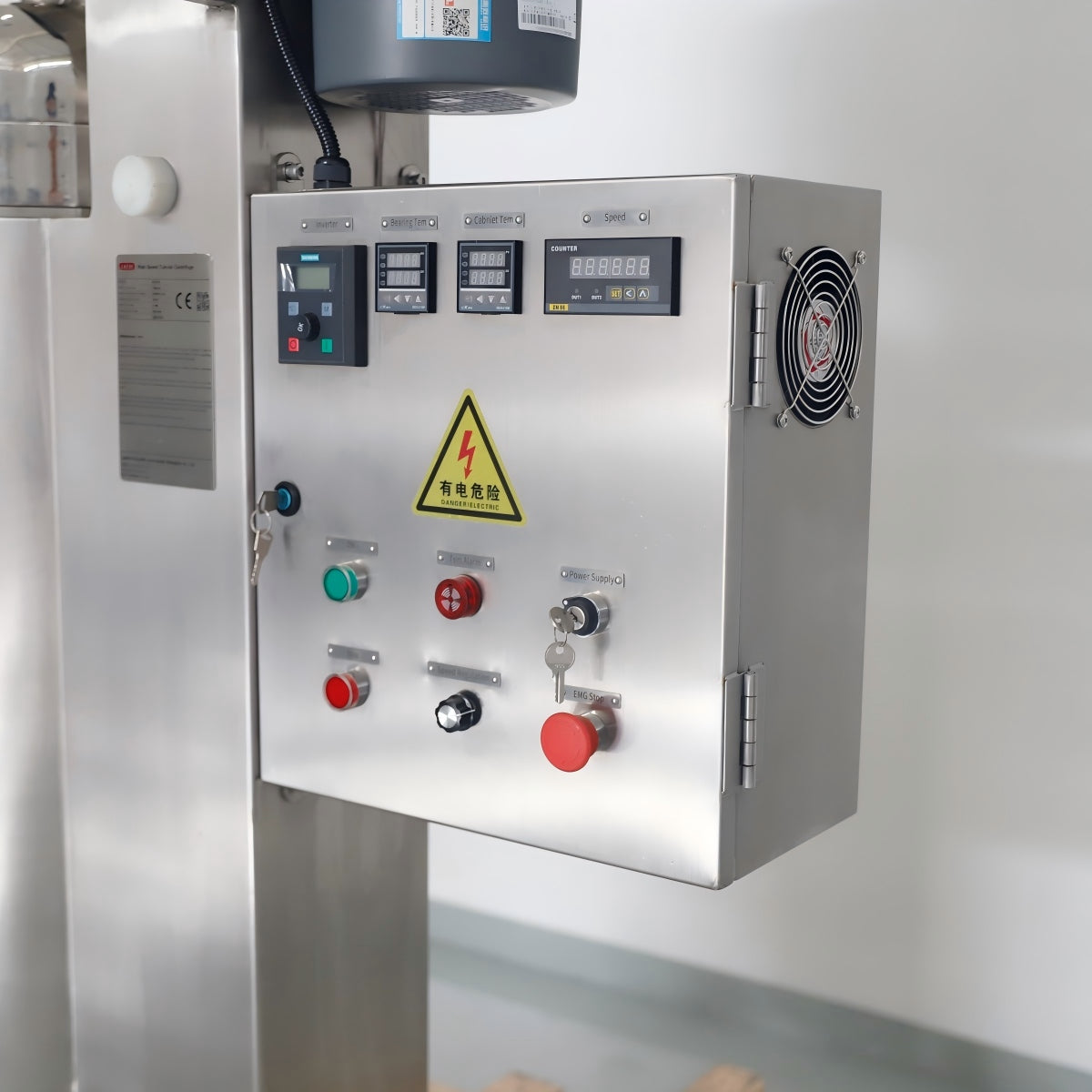

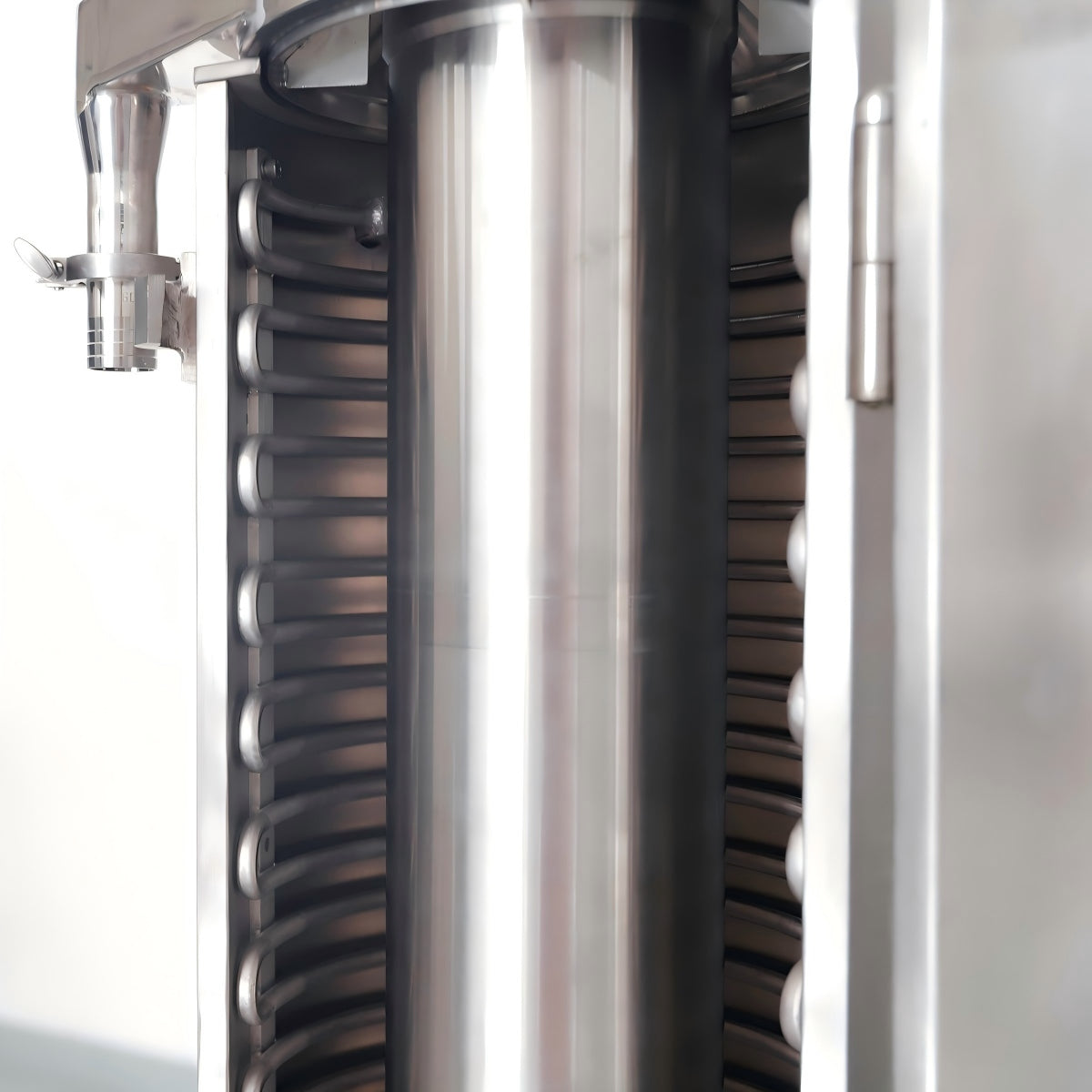

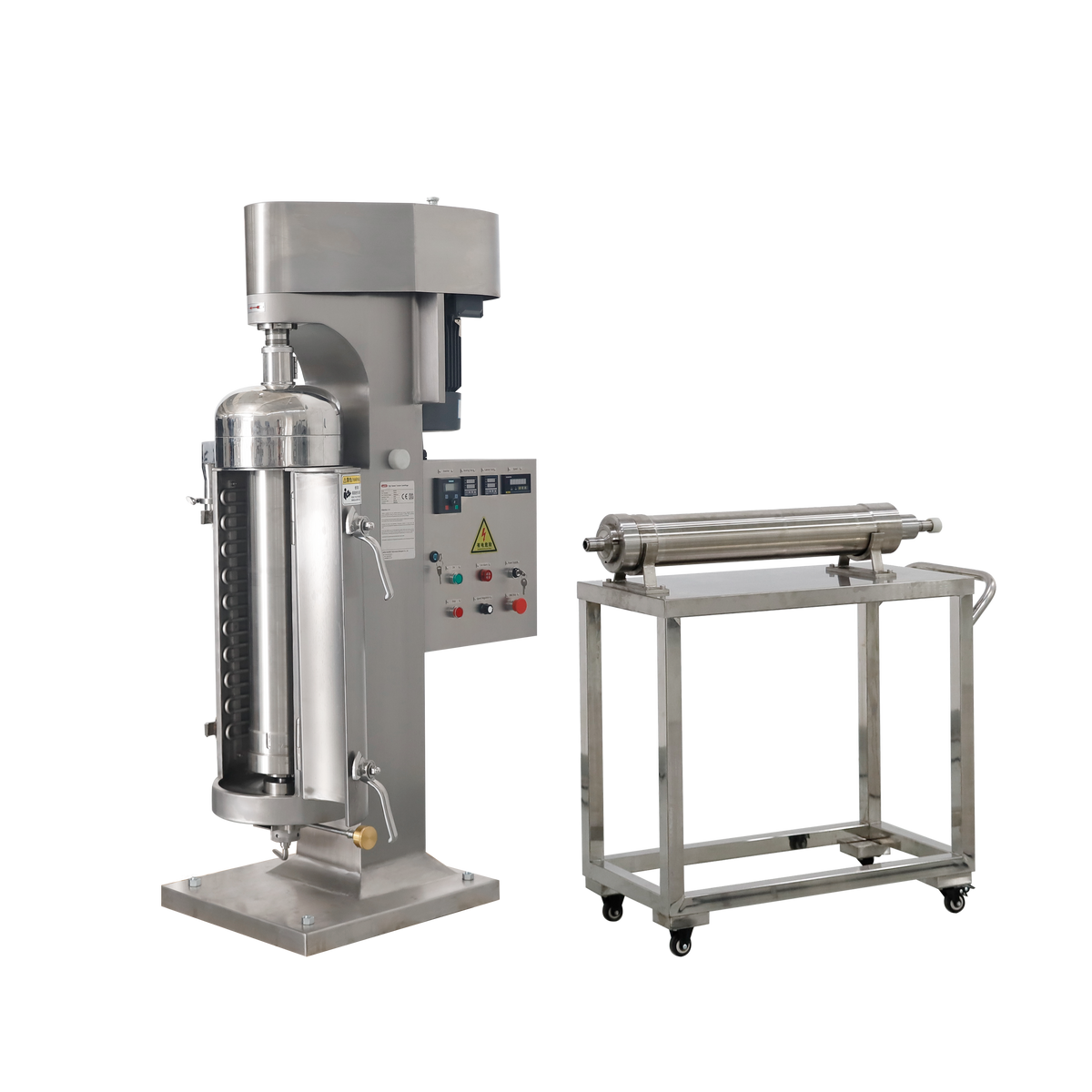

- Modular Flexibility: Customize your centrifuge with options such as feed pumps, internal cooling coils, mobile trolleys, PLC controls, and full automation packages—adapting seamlessly to your process needs.
Specifications:
| Model | GQ/GF-75 | GQ/GF-105 | GQ/GF-150 |
| Production Capacity (L/h) | 50 ~ 200 | 80 ~ 600 | 100 ~ 1000 |
| Water Capacity (L/h) | 200 | 1200 | 2000 |
| Rotation Speed (rpm) | 0 ~ 20000 (17000×g) | 0 ~ 16000 (156000×g) | 0 ~ 14000 (159000×g) |
| Bowl Total Capacity (L) | 2 | 6 | 11 |
| Bowl Capacity (L) | 1.4 | 4.2 | 7.7 |
| Bowl Dimensions [ID×H] (mm) | 76 (ø)×490 | 105 (ø)×490 | 142 (ø)×490 |
|

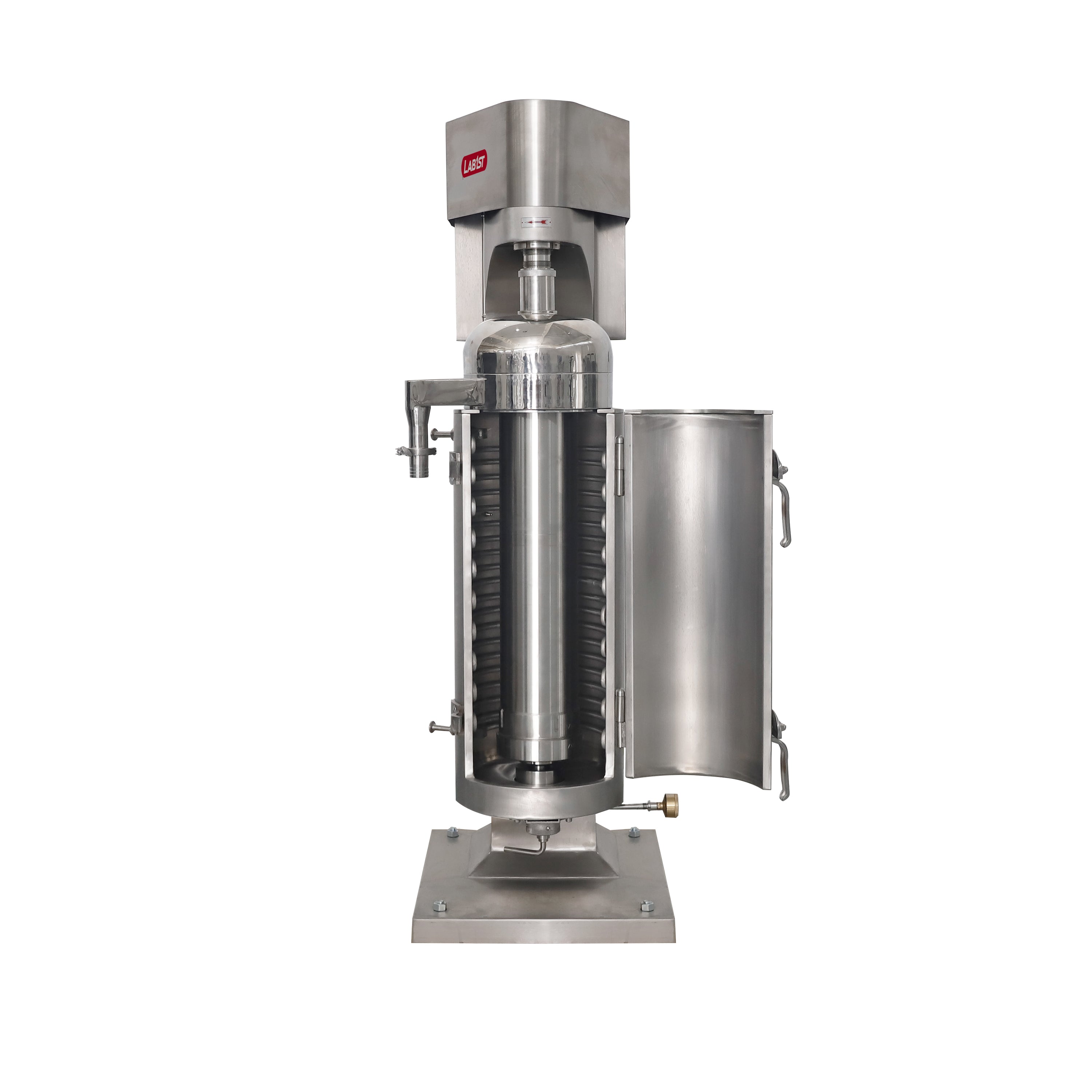

Door opening
|
N/A | Front | Front |
| Power Consumption (kW) | 1.5 | 3 | 3 |
| Power Requirement | 380V/3Phase/50Hz | 380V/3Phase/50Hz | 380V/3Phase/50Hz |
| Dimension [WxHxD] (mm) | 750 × 1150 × 380 | 800 × 1620 × 450 | 900 × 1660 × 510 |
| Weight (KG) | 170 |
415 | 550 |
If you wanna to customized, pls contact us (eshop@lab1st.com) for more details!
