Large Capacity High Speed Refrigerated Centrifuge CF250R
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
CF250R high speed refrigerated centrifuge ingrates many high-technologies of LAB1ST and new design elements. Enhanced ergonomics design and easy to operate. The break-through of high-speed operation technology makes the max speed up to25000r/min with RCF at 64800×g. lt is widely used in academic research, scientific research and bioengineering etc.
Features:
- Max speed up to 25000r/min, Max RCF up to 64800×g (with N0.1 Rotor choose from 13 optional rotors to find the ideal fit for your application).
- Automatic rotor identification, automatic over-speed protection for added safety.
- 7-inch touch screen interface with bright, highly visible, and durable display simplifies run set- up. The seting parameters and running parameters can be displayed simultaneously.
- Automatic storage of main machine and rotor operating parameters, automatic calculation of rotor service life, and alarm.
- Directly driven by a high-torque variable frequency motor, with large starting torque and short acceleration time.
- Equipped with multiple protection against imbalance, over-temperature, over-speed, to ensure user's safety as well as instrument.
- Data records: Data traceability management, running history records, diagnosis records can be checked on the screen or exported by USB port and saved to the relevant storage device, which can ensure the data integrity.
- Super powerful control system, offering step centrifugation, scheduled start, sample lD, curve mode, program mode, multi-language selection and other functions.
- All aluminum alloy rotors are forged with 7075-T6 aviation grade aluminum alloy, the surface is hard oxidation, with thick oxide layer and strong corrosion resistance.
Specifications:
| Model: | CF250R |
| Max Speed: | Angle Rotor: 25000r/min |
| Swing Rotor: 4000r/min | |
| Max RCF: | Angle Rotor: 64800×g |
| Swing Rotor: 3500×g | |
| Max Capacity: | Angle Rotor: 4×1000ml |
| Swing Rotor: 4×750ml | |
| Speed Accuracy: | ±10r/min |
| Time Setting Range: | 1min-99h59min |
| Time Mode: | Start Timing after Spinning, Start Timing after reaching Setting Speed, Continuous Timing, Operation at an appointed Time |
| Temperature Setting Range: | -20~40℃, Step 1℃ adjustable |
| Temperature Accuracy: | ±1℃ |
| Noise: | ≤65dB (A) |
| Power Supply: | AC220±22V 50/60Hz |
| Power Consumption: | 5kW |
| Computer Control: | RS485 or RS232 |
| Pre-cooling Function: | Yes |
| Steps Centrifugation: | Yes (100 programs, each programs with 5 steps, more program can be saved by adding external memory card) |
| Compressor Unit: | Environment-friendly refrigerant (R404a) |
| Dimension (W×D×H): | 730×930×960 (mm) |
| Packing Dimension (W×D×H): | 880×1120×1180 (mm) |
| Net Weight: | 260kg |

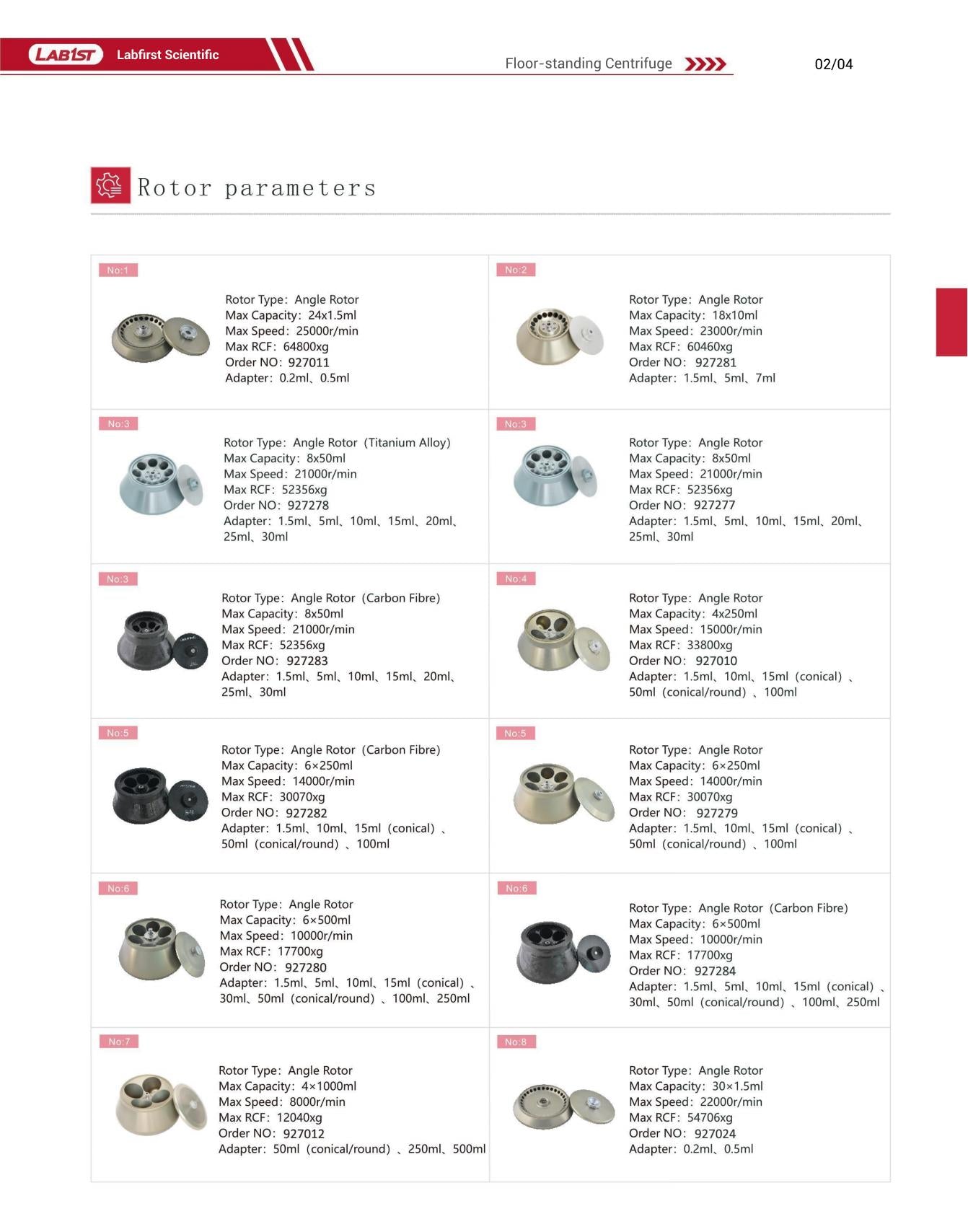

Rotor Specifications:
| Model | Rotor Type | Max Capacity | Max Speed | Max RCF | Adapter |
| 927011 | Angle Rotor | 24×1.5ml | 25000r/min | 64800×g | 0.2ml, 0.5ml |
| 927281 | Angle Rotor | 18×10ml | 23000r/min | 60460×g | 1.5ml, 5ml, 7ml |
| 927278 | Angle Rotor (Titanium Alloy) | 8×50ml | 21000r/min | 52356×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927277 | Angle Rotor | 8×50ml | 21000r/min | 52356×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927283 | Angle Rotor (Carbon Fibre) | 8×50ml | 21000r/min | 52356×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927010 | Angle Rotor | 4×250ml | 15000r/min | 33800×g | 1.5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927282 | Angle Rotor (Carbon Fibre) | 6×250ml | 14000r/min | 30070×g | 1.5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927279 | Angle Rotor | 6×250ml | 14000r/min | 30070×g | 1.5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927280 | Angle Rotor | 6×500ml | 10000r/min | 17700×g | 1.5ml, 5ml, 10ml, 15ml (conical), 30ml, 50ml (conical/round), 100ml, 250ml |
| 927284 | Angle Rotor | 6×500ml | 10000r/min | 17700×g | 1.5ml, 5ml, 10ml, 15ml (conical), 30ml, 50ml (conical/round), 100ml, 250ml |
| 927012 | Angle Rotor | 4×1000ml | 8000r/min | 12040×g | 50ml (conical/round), 250ml, 500ml |
| 927024 | Angle Rotor | 30×1.5ml | 22000r/min | 54706×g | 0.2ml, 0.5ml |
| 927025 | Angle Rotor | 12×15ml (conical) | 18000r/min | 36220×g | 5ml |
| 927013 | Angle Rotor | 12×50ml (conical) | 14000r/min | 30070×g | 15ml (conical) |
| 927402 | Angle Rotor | 6×50ml with windshield | 10000r/min | 15680×g | / |

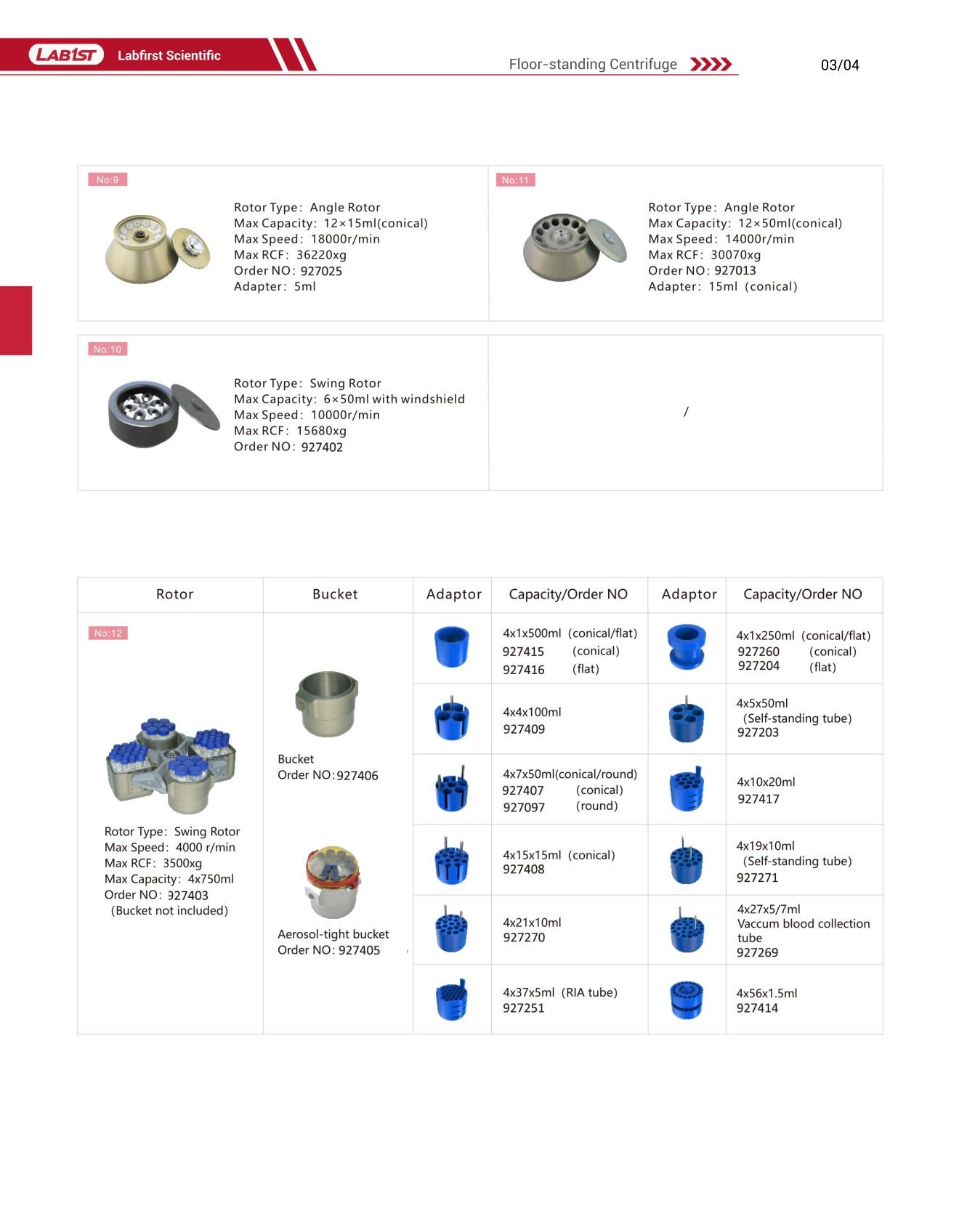

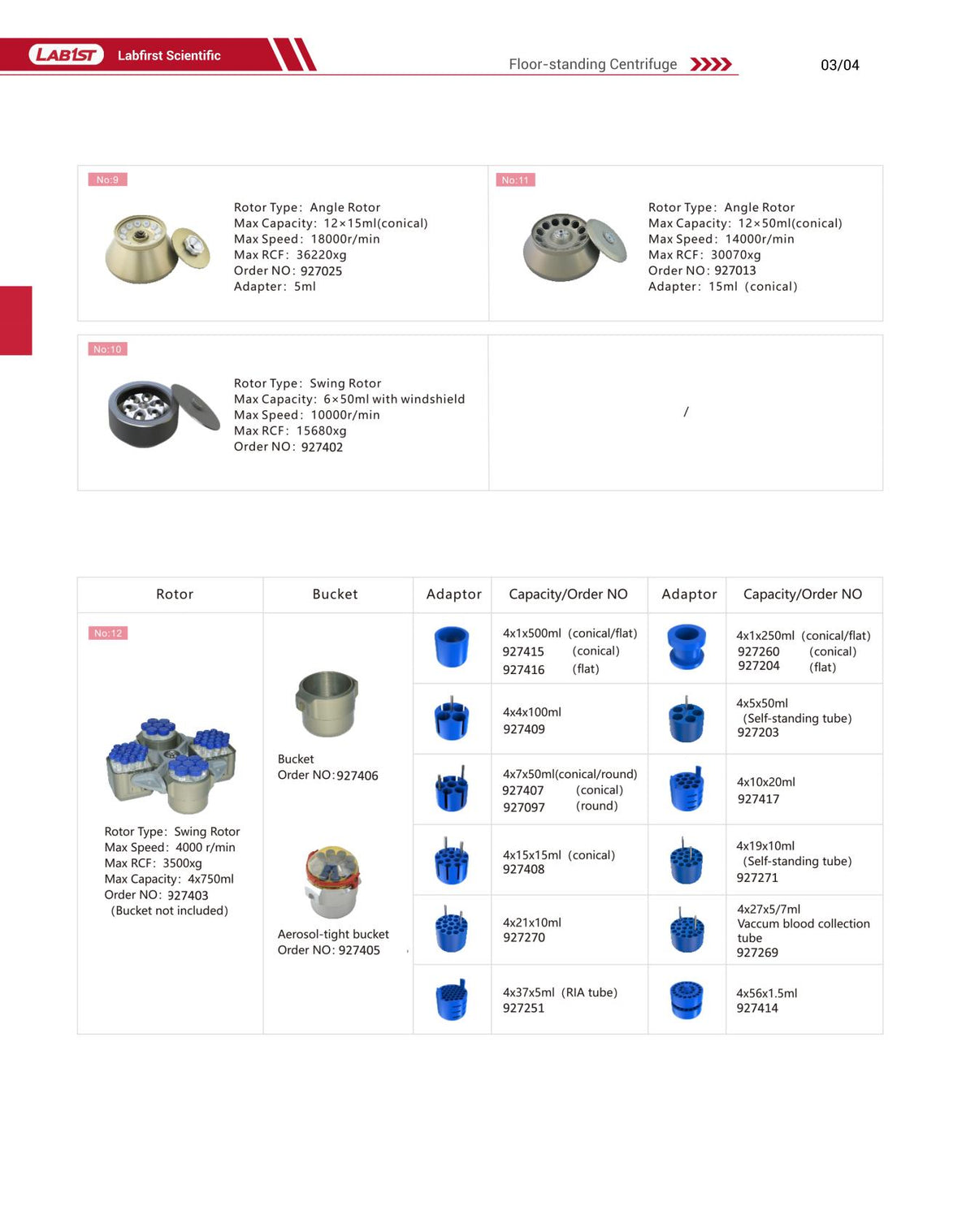

| 927403 | Swing Rotor | 4×750ml | 4000r/min | 3500×g | 1.5ml, 5ml, 5/7ml, 10ml, 15ml, 20ml, 50ml, 100ml, 250ml, 500ml |

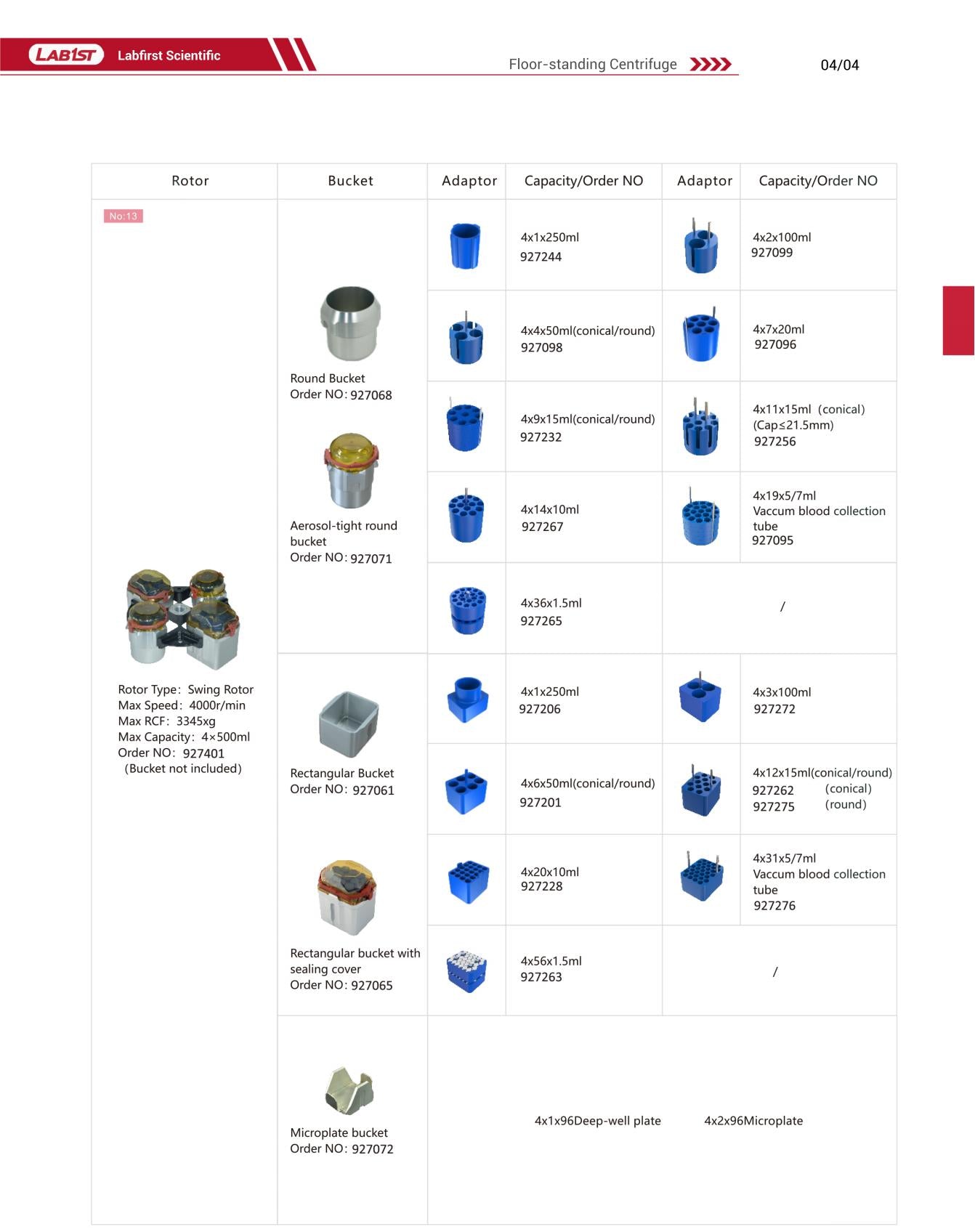

| 927401 | Swing Rotor | 4×500ml | 21000r/min | 52356×g | 1.5ml, 5/7ml, 10ml, 15ml, 50ml, 100ml, 250ml |
How to Choose Centrifuge：
| Model | Type | Max Speed | Max Capacity | Max RCF | Display |
| CF50R | Refrigerated | Angle Rotor: 5000r/min, Swing Rotor: 5000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 4640×g, Swing Rotor: 6100×g | Touchscreen |
| CF60R | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | Touchscreen |
| CF60R-B | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | LED |
| CF72R | Refrigerated | Angle Rotor: 7200r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 6×2400ml | Angle Rotor: 12166×g, Swing Rotor: 5600×g | Touchscreen |
| CF80R | Refrigerated | Angle Rotor: 8000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×1500ml | Angle Rotor: 11875×g, Swing Rotor: 5100×g | Touchscreen |
| CF90R | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | Touchscreen |
| CF100R | Refrigerated | 10000r/min | Angle Rotor: 6×1000ml | 17700×g | Touchscreen |
| CF100R-B | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | LED |
| CF160R | Refrigerated | Angle Rotor: 16000r/min, Swing Rotor: 5700r/min | Angle Rotor: 6×250ml, Swing Rotor: 4×1000ml | Angle Rotor: 27648×g, Swing Rotor: 5103×g | / |
| CF205R | Refrigerated | 20500r/min | 4×750ml | 29200×g | LCD |
| CF210R | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF210R-B | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF220R | Refrigerated | Angle Rotor: 22000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×750ml | Angle Rotor: 52020×g, Swing Rotor: 3500×g | Touchscreen |
| CF230R | Refrigerated | Angle Rotor: 23000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 60460×g, Swing Rotor: 3500×g | Touchscreen |
| CF250R | Refrigerated | Angle Rotor: 25000r/min, Swing Rotor: 4000r/min | Angle Rotor: 4×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 64800×g, Swing Rotor: 3500×g | Touchscreen |
| CF260R | Refrigerated | Angle Rotor: 26000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 81623×g, Swing Rotor: 3500×g | Touchscreen |
Pls note: The price listed doesn't include adapters. If you need them, please contact us.
