Large Capacity Low Speed Refrigerated Centrifuge CF80R
Got questions?
Feel free to get in touch
Couldn't load pickup availability
CF80R is a new developed intelligent centrifuge with international advanced technology. Swing rotor 6x1500ml compatible with LAB1ST unique 1500ml bottle, to improve the production efficiency of biopharmaceutical and chemical products.
Features:
- Powerful Safety Performance: Centrifuge chamber adopt 316L stainless steel, PPCO material centrifuge bottle and blood bag adapter which can be autoclaved. the sturdy rotor, bucket constructed of high strength alloy aluminum. Centrifuge come with the function of non-contact imbalance protection, automatic rotor identification, over-speed, over-temperature, motor over-heating and door lid protection, so as to provide safe guard for sample centrifuge as well as the operator.
- IS09001, 1S013485 quality system runs effectively to guarantee the quality and consistency of the product.
- Sturdy Rotor: All sturdy rotors adopt 7075-T6 series aluminum ,hard oxidation, corrosion resistance.
- Excellent Temperature Control System for Sample Protection and Energy-saving: Through multiple data simulation and integral calculation, ensure that the temperature change of the sample does not exceed 2℃. Dynamic compressor control (DCC) technology for optimized cooling performance. The compressor will stop running after the centifuge door lid is opened, reduces 40% energy consumption compared with similar products, and extend compressor service life.
- Quiet Operation to Benefit Your Environment: Make your lab environment a better place to work with L800R-2 refigerated centrifuge that are quiet, user-fiendly,little heat dissipation and relatively compact, and you can operate comfortably with ergonomic machine height.
- Extensible: The system adopts unified and standard Ethernet communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring.
- Programmable: Save up to 1000 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed,time, temperature), to meet the diversified experimental needs.
- ACC/DEC Rates: 11 acceleration and 11 deceleration rate, to prevent second emulsion or turbid, to achieve best centrifugation result.
- Main interface Function: In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed switched by soft touch the key. The stability of temperature and speed during spinning can be viewed through the curve.
- Powerful System Setting Function: Powerful control system alLows easy data capture, storage, and processing. English /Chinese operation language optional.
- Centrifuge Management System( Optional): It can monitor 1 to 100 centrifuges through inteligent terminal (computer), monitor the operation status of centrifuges, and save relevantrecords of centrifuge operation. Establish a safe conection with the centrifuge and remotely control the startup and stopping of the centrifuge.

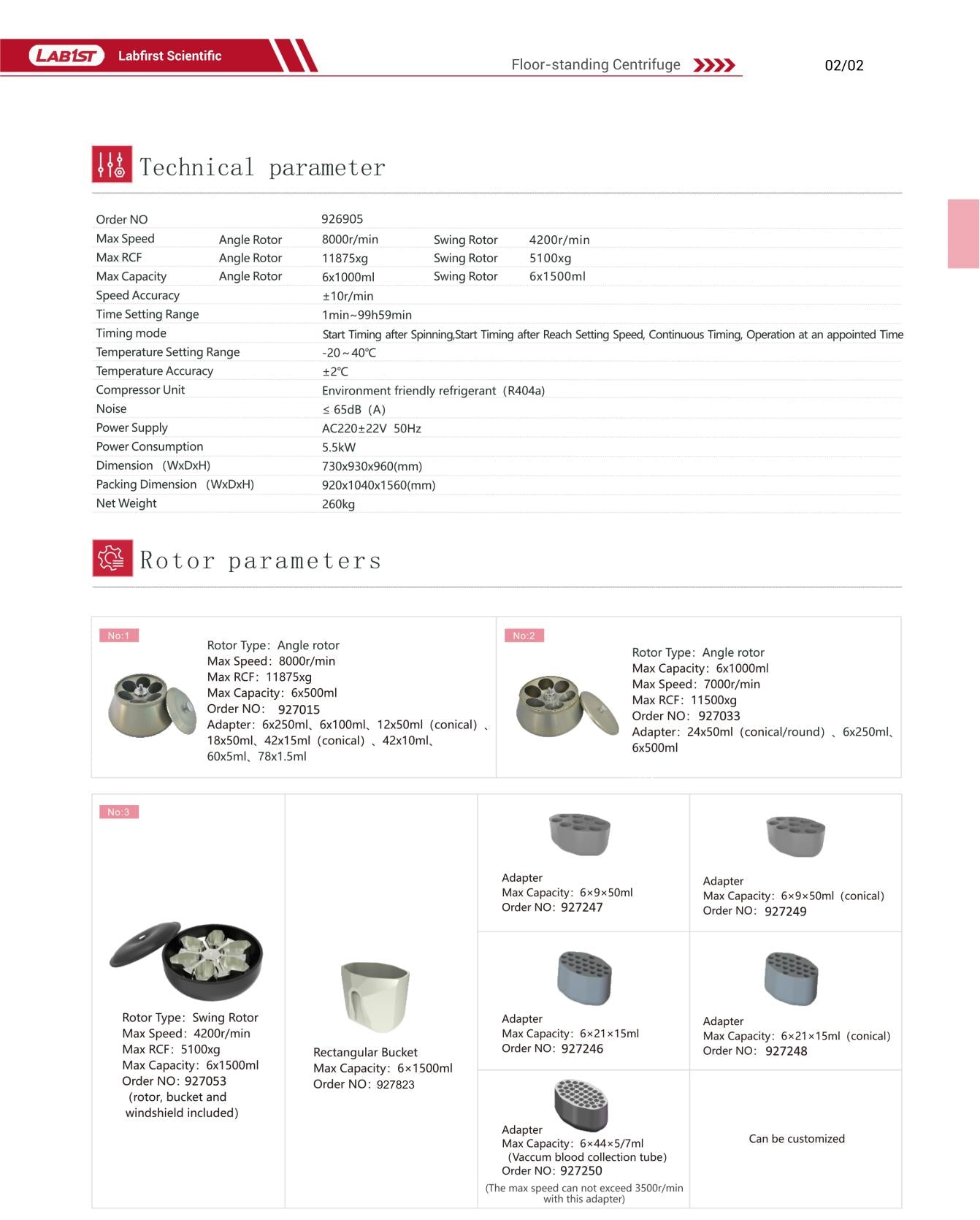

Specifications:
| Model: | CF80R |
| Max Speed: | Angle Rotor: 8000r/min |
| Swing Rotor: 4200r/min | |
| Max RCF: | Angle Rotor: 11875×g |
| Swing Rotor: 5100×g | |
| Max Capacity: | Angle Rotor: 6×1000ml |
| Swing Rotor: 6×1500ml | |
| Speed Accuracy: | ±10r/min |
| Time Setting Range: | 1s-99min59s |
| Time Mode: | Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time |
| Temperature Setting Range: | -20~40℃ |
| Temperature Accuracy: | ±2℃ |
| Noise: | ≤65dB (A) |
| Power Supply: | AC220±22V 50Hz |
| Power Consumption: | 5.5kW |
| Compressor Unit: | Environment friendly refrigerant (R404a) |
| Dimension (W×D×H): | 730×930×960 (mm) |
| Packing Dimension (W×D×H): | 920×1040×1560 (mm) |
| Net Weight: | 260kg |
Pls note: The price listed doesn't include rotors or adapters. If you need them, please contact us.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
