Centrifuge CF260R has obtained a number of patented technologies. lt is the latest intelligent high-efficiency centrifugedeveloped by LAB1ST. Powerful system management function with different operation options for different applications greatly simplify the experiment management. 16 rotor options, which can separate and concentrate cytoplasm, virus bacteria and chemical substances. it is widely used in high-tech fields such as molecular biology, biology and biochemistry.
Features:
- Direct drive motor without replacing the belt.
- The intelligent vacuum friction reducing system has a simple and effective sealing structure. The sealing part does not need tobe coated with vacuum silicone grease, and all sealing parts do not need special maintenance.
- New generation dynamic intelligent control system, user operate the centrifuge according to conventional centrifuge use method without additional operation.
- Excellent energy consumption performance. Save up to 65% energy consumption compared with traditional centrifuge.
- Adopt AC variable frequency motor, speed accuracy + 10 r/ min. Unique motor bearing heat dissipation patent makes the motor bearing always work in the best state and qreatly improves the service life of the motor.
- The flexible driving device of centrifuge with protection, which makes the rotor spinning extremely smoothly, meanwhile continuously detect the unbalance state of the rotor in operation. Which greatly improve safety in centrifugation process, This technology has obtained national patent.
- The centrifuge door lock with labor-saving operation and good safety has won national patent.
- 316 stainless chamber and unique copper pipe configuration technology, not only make the refrigeration efficiency extremely high, but also the overall corrosion resistance is excellent.
- The self-developed high-speed centrifuge bottle can not only bear high centrifugal force , but also disinfect at high temperature without deformation (121℃, 15min)。
- Ergonomic height design ensure easy sample loading and unloading and easy cleaning.
- Convenient installation of the rotor without the help of any tools, just put rotors on Rotor shaft without screw fixing or buttons'operation.
- All the alloy aluminum rotor are forged with 7075 series alloy aluminum, hard oxidation on the surface and strong corrosion resistance.
- lmprove productivity with new generation carbon fiber rotors, an advanced alterative to metal rotors, offering unequalled durability with fatigue and corrosion-resistance for worry-free operation spin after spin.
- Glove-friendly 7-inch HD touch screen, intuitive display and easy to operate . The setting parameters and running parameters can be displayed simultaneously.
- Directly input the setting value without adjustment, more convenient compared with traditional knob operation.
- Powerful control system offering the function of 5-steps gradient separation, sample lD, startup at appointed time, the mode of profiles, free choice of programs and multiple operation language option.
- Strong safety performance, the user management function prevent programs from unexpected modification or deletion.
- Safe and reliable centrifugation, max speed up to 26000rpm, and many rotors are available to choose from.

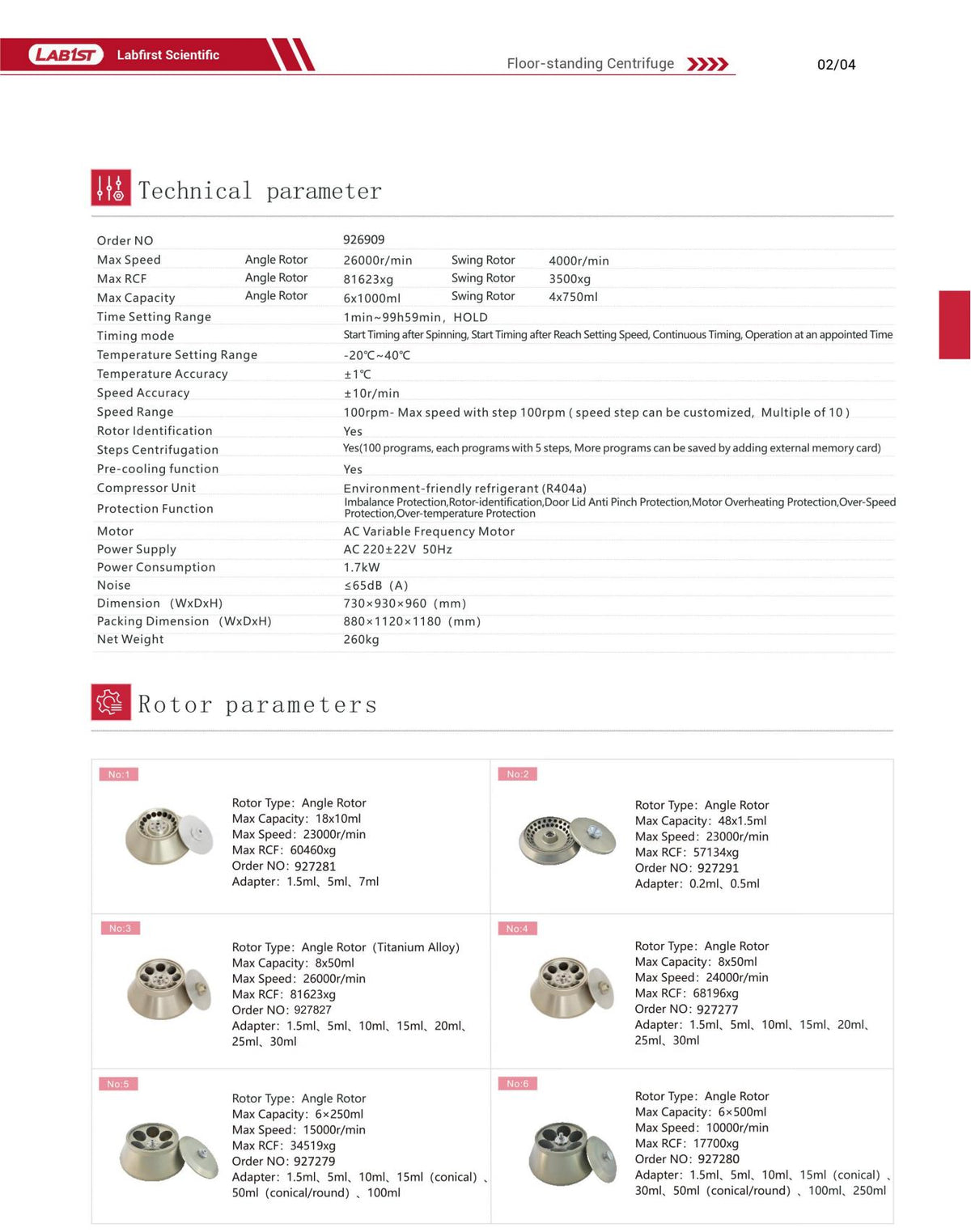

Specifications:
| Model: | CF260R |
| Max Speed: | Angle Rotor: 26000r/min |
| Swing Rotor: 4000r/min | |
| Max RCF: | Angle Rotor: 81623×g |
| Swing Rotor: 3500×g | |
| Max Capacity: | Angle Rotor: 6×1000ml |
| Swing Rotor: 4×750ml | |
| Speed Accuracy: | ±10r/min |
| Time Setting Range: | 1min-99h59min, HOLD ON |
| Time Mode: | Start Timing after Spinning, Start Timing after reaching Setting Speed, Continuous Timing, Operation at an appointed Time |
| Temperature Setting Range: | -20~40℃ |
| Temperature Accuracy: | ±1℃ |
| Noise: | ≤65dB (A) |
| Power Supply: | AC220±22V 50/60Hz |
| Power Consumption: | 1.7kW |
| Speed Range: | 100rpm - Max speed with step 100rpm (speed step can be customized, Multiple of 10) |
| Pre-cooling Function: | Yes |
| Steps Centrifugation: | Yes (100 programs, each programs with 5 steps, more program can be saved by adding external memory card) |
| Motor: | AC Variable Frequency Motor |
| Dimension (W×D×H): | 730×930×960 (mm) |
| Packing Dimension (W×D×H): | 880×1120×1180 (mm) |
| Net Weight: | 260kg |
Rotor Specifications:
| Model | Rotor Type | Max Capacity | Max Speed | Max RCF | Adapter |
| 927281 | Angle Rotor | 18×10ml | 23000r/min | 60460×g | 1.5ml, 5ml, 7ml |
| 927291 | Angle Rotor | 48×1.5ml | 23000r/min | 57134×g | 0.2ml, 0.5ml |
| 927827 (contact us for the price) | Angle Rotor | 8×50ml | 26000r/min | 81623×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927277 | Angle Rotor | 8×50ml | 24000r/min | 68196×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927279 | Angle Rotor | 6×250ml | 15000r/min | 34519×g | 1.5ml, 5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927280 | Angle Rotor | 6×500ml | 10000r/min | 17700×g | 1.5ml, 5ml, 10ml, 15ml (conical), 30ml, 50ml (conical/round), 100ml, 250ml |
| 927277 | Angle Rotor | 8×50ml | 24000r/min | 68196×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927285 | Angle Rotor (carbon Fibre) | 4×1000ml | 10500r/min | 20740×g | 50ml (conical/round), 250ml, 500ml |
| 927283 | Angle Rotor (carbon Fibre) | 8×50ml | 23000r/min | 62690×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927289 | Angle Rotor | 10×100ml | 18000r/min | 47898×g | 5ml, 10ml, 15ml (conical/round), 25ml, 50ml (conical/round) |
| 927402 | Swing Rotor | 6×50ml | 13000r/min | 26500×g | / |
| 927013 (contact us for the price) | Angle Rotor | 12×50ml (conical) | 14000r/min | 30070×g | 15ml (conical) |
| 927282 | Angle Rotor (Cabron Fibre) | 6×250ml | 16000r/min | 39275×g | 1.5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927284 | Angle Rotor | 6×250ml | 16000r/min | 39275×g | 1.5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927296 | Angle Rotor (Cabron Fibre) | 6×1000ml | 9000r/min | 18320×g | 1.5ml, 5ml, 10ml, 15ml (conical), 30ml, 50ml (conical/round), 100ml, 250ml |
| 927403 (contact us for the price) | Swing Rotor | 4×750ml | 4000r/min | 3500×g | 1.5ml, 5ml, 5/7ml, 10ml, 15ml (conical/round), 20ml, 50ml (conical/round), 100ml, 250ml, 500ml |
| 927401 (contact us for the price) | Swing Rotor | 4×500ml | 4000r/min | 3345×g | 1.5ml, 5/7ml, 10ml, 15ml (conical/round), 20ml, 50ml (conical/round), 100ml, 250ml |
How to Choose Centrifuge：
| Model | Type | Max Speed | Max Capacity | Max RCF | Display |
| CF50R | Refrigerated | Angle Rotor: 5000r/min, Swing Rotor: 5000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 4640×g, Swing Rotor: 6100×g | Touchscreen |
| CF60R | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | Touchscreen |
| CF60R-B | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | LED |
| CF72R | Refrigerated | Angle Rotor: 7200r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 6×2400ml | Angle Rotor: 12166×g, Swing Rotor: 5600×g | Touchscreen |
| CF80R | Refrigerated | Angle Rotor: 8000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×1500ml | Angle Rotor: 11875×g, Swing Rotor: 5100×g | Touchscreen |
| CF90R | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | Touchscreen |
| CF100R | Refrigerated | 10000r/min | Angle Rotor: 6×1000ml | 17700×g | Touchscreen |
| CF100R-B | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | LED |
| CF160R | Refrigerated | Angle Rotor: 16000r/min, Swing Rotor: 5700r/min | Angle Rotor: 6×250ml, Swing Rotor: 4×1000ml | Angle Rotor: 27648×g, Swing Rotor: 5103×g | / |
| CF205R | Refrigerated | 20500r/min | 4×750ml | 29200×g | LCD |
| CF210R | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF210R-B | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF220R | Refrigerated | Angle Rotor: 22000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×750ml | Angle Rotor: 52020×g, Swing Rotor: 3500×g | Touchscreen |
| CF230R | Refrigerated | Angle Rotor: 23000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 60460×g, Swing Rotor: 3500×g | Touchscreen |
| CF250R | Refrigerated | Angle Rotor: 25000r/min, Swing Rotor: 4000r/min | Angle Rotor: 4×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 64800×g, Swing Rotor: 3500×g | Touchscreen |
| CF260R | Refrigerated | Angle Rotor: 26000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 81623×g, Swing Rotor: 3500×g | Touchscreen |
Pls note: The price listed doesn't include rotors or adapters. If you need them, please contact us.
