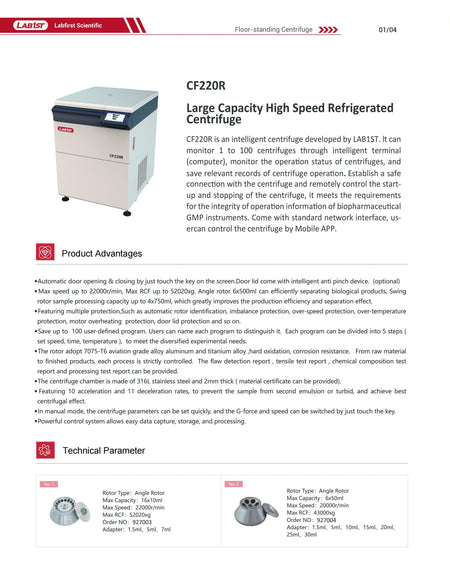

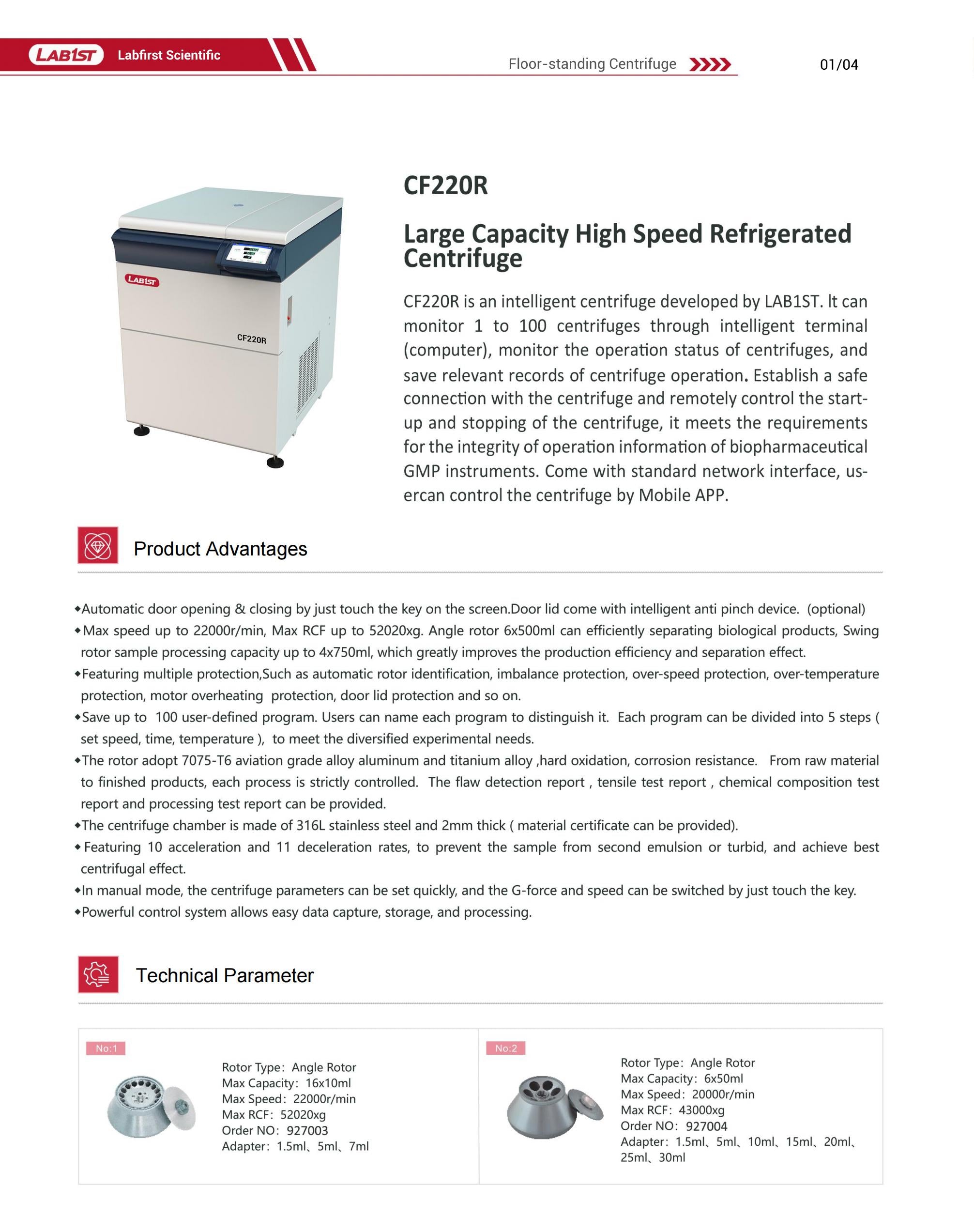

Large Capacity High Speed Refrigerated Centrifuge CF220R
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
12 kinds of rotors are available for CF205R. Not only 4*750ml large capacity rotor, but also small rotor with high speed 20500rpm. It's a powerful andversatile universal centrifuges which is widely used in radioimmunoassay, bio-pharmaceutical, medical inspection and scientific research in universities. biopharmacy and other fields.
Features:
- Max speed up to 22000r/min, Max RCF up to 52020×g. Angle rotor 6x500ml can efficiently separating biological products. Swing rotor sample processing capacity up to 4x750ml, which greatly improves the production efficiency and separation effect.
- Featuring multiple protection, such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
- Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps (set speed, time, temperature ), to meet the diversified experimental needs.
- The rotor adopt 7075-T6 aviation grade alloy aluminum and titanium alloy, hard oxidation, corrosion resistance. From raw materialto finished products, each process is strictly controlled. The flaw detection report, tensile test report, chemical composition test report and processing test report can be provided.
- The centrifuge chamber is made of 316L stainless steel and 2mm thick (material certificate can be provided).
- Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect.
- In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key.
- Powerful control system allows easy data capture, storage, and processing.
- Automatic door opening & closing by just touch the key on the screen. Door lid come with intelligent anti pinch device. (optional)
Specifications:
| Model: | CF220R |
| Max Speed: | Angle Rotor: 22000r/min |
| Swing Rotor: 4000r/min | |
| Max RCF: | Angle Rotor: 52020×g |
| Swing Rotor: 3500×g | |
| Max Capacity: | Angle Rotor: 6×500ml |
| Swing Rotor: 4×750ml | |
| Speed Accuracy: | ±10r/min |
| Time Setting Range: | 2 mode 1min-99h59min, 1s-99min59s optional, default mode 1min-99h59min |
| Time Mode: | Start Timing after Spinning, Start Timing after reaching Setting Speed, Continuous Timing, Operation at an appointed Time |
| Temperature Setting Range: | -20~40℃, Step 1℃ adjustable |
| Temperature Accuracy: | ±2℃ |
| Noise: | ≤65dB (A) |
| Power Supply: | AC220±22V 50/60Hz |
| Power Consumption: | 5kW |
| Computer Control: | RS485 or RS232 |
| Pre-cooling Function: | Yes |
| Rotor Identification: | Yes |
| Imbalance Protection: | Yes |
| Dimension (W×D×H): | 700×935×940 (mm) |
| Packing Dimension (W×D×H): | 920×1040×1200 (mm) |
| Net Weight: | 342kg |

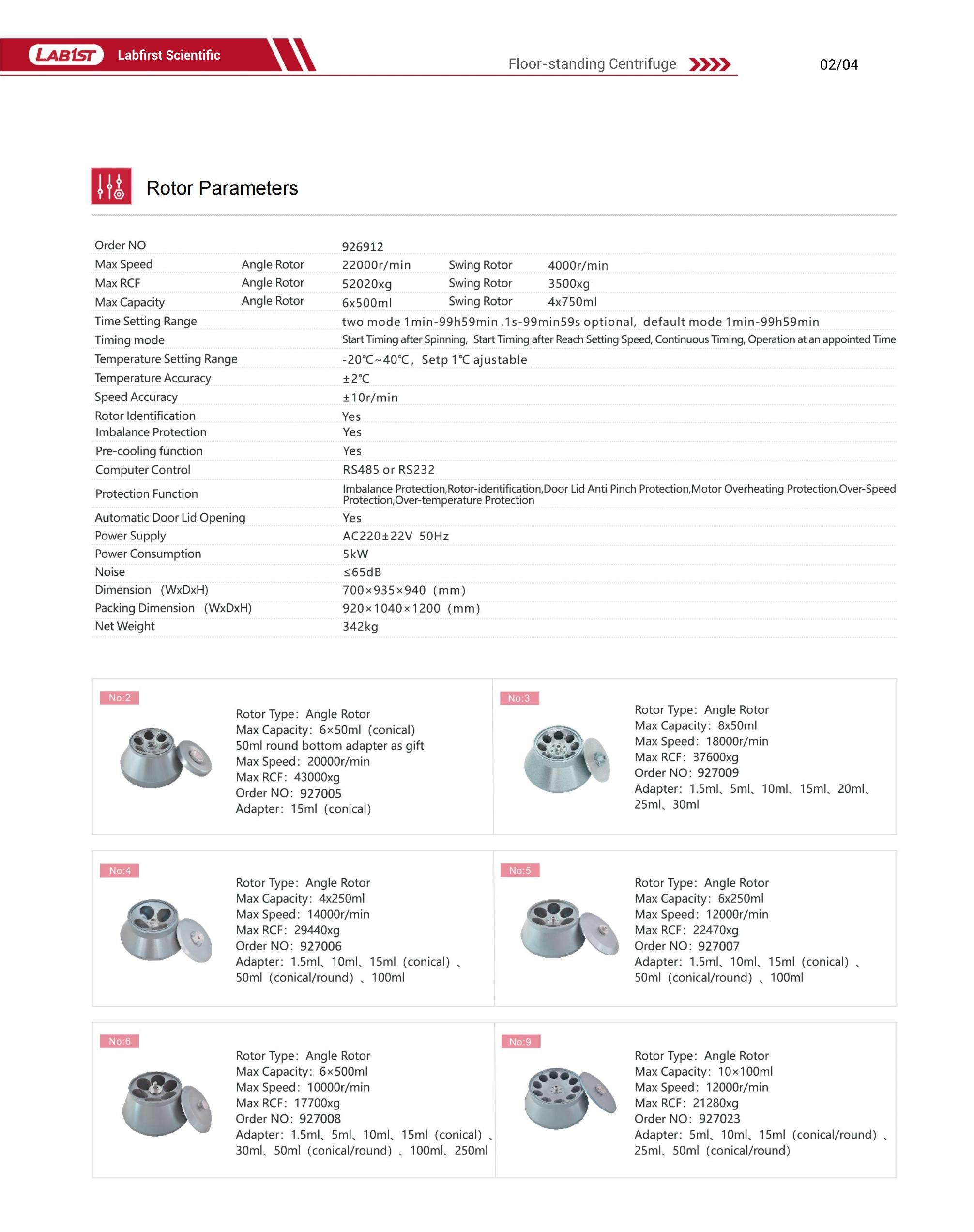

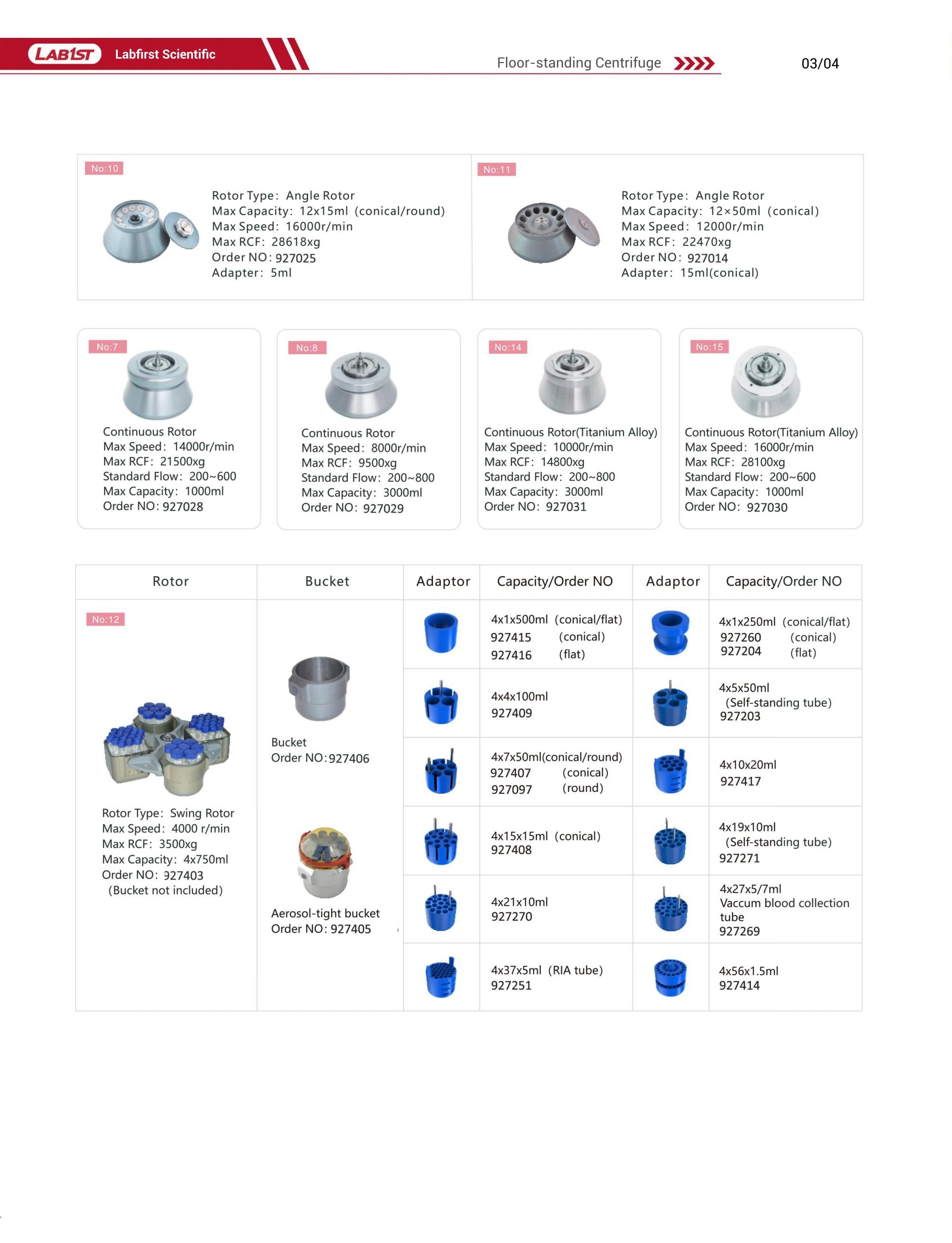

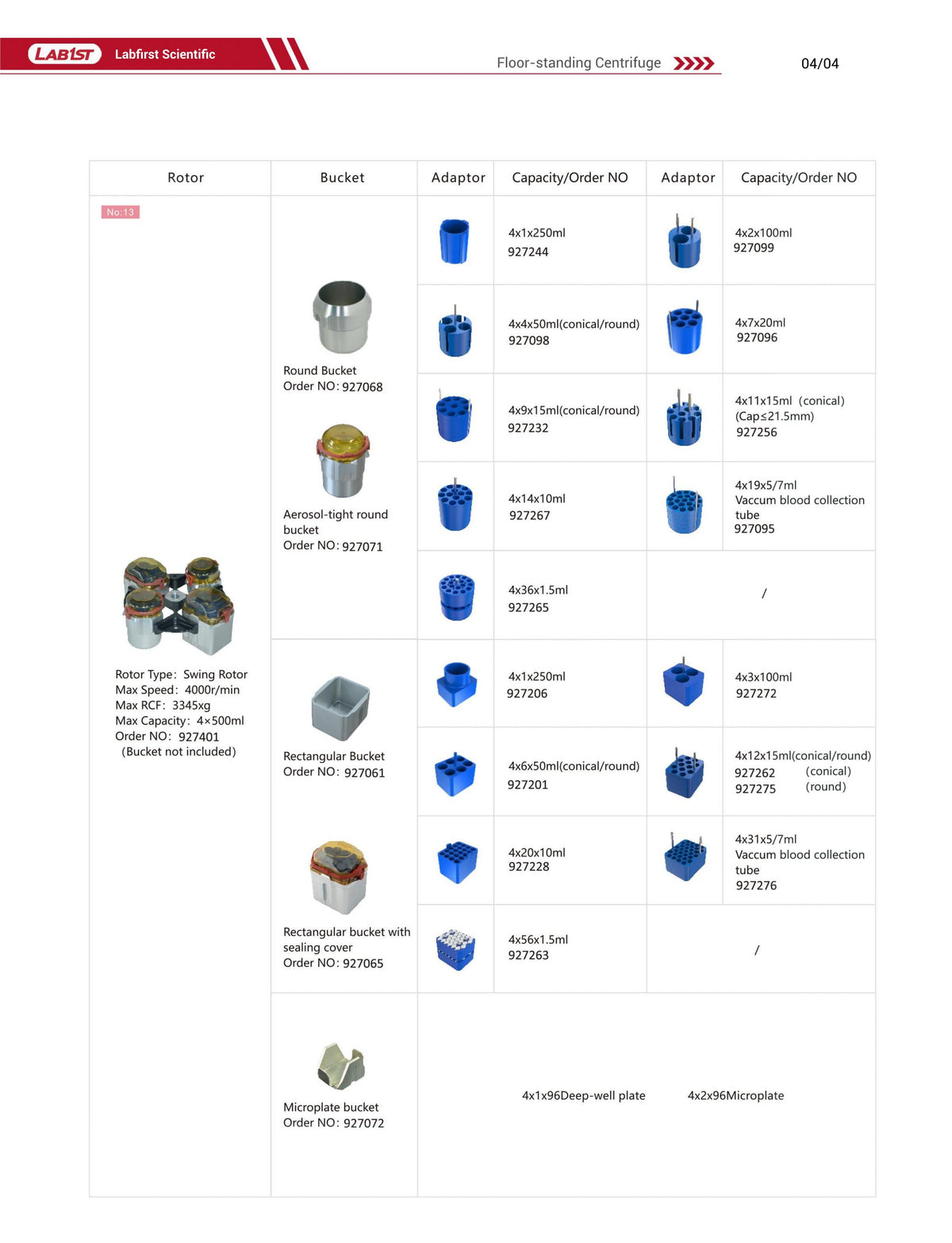

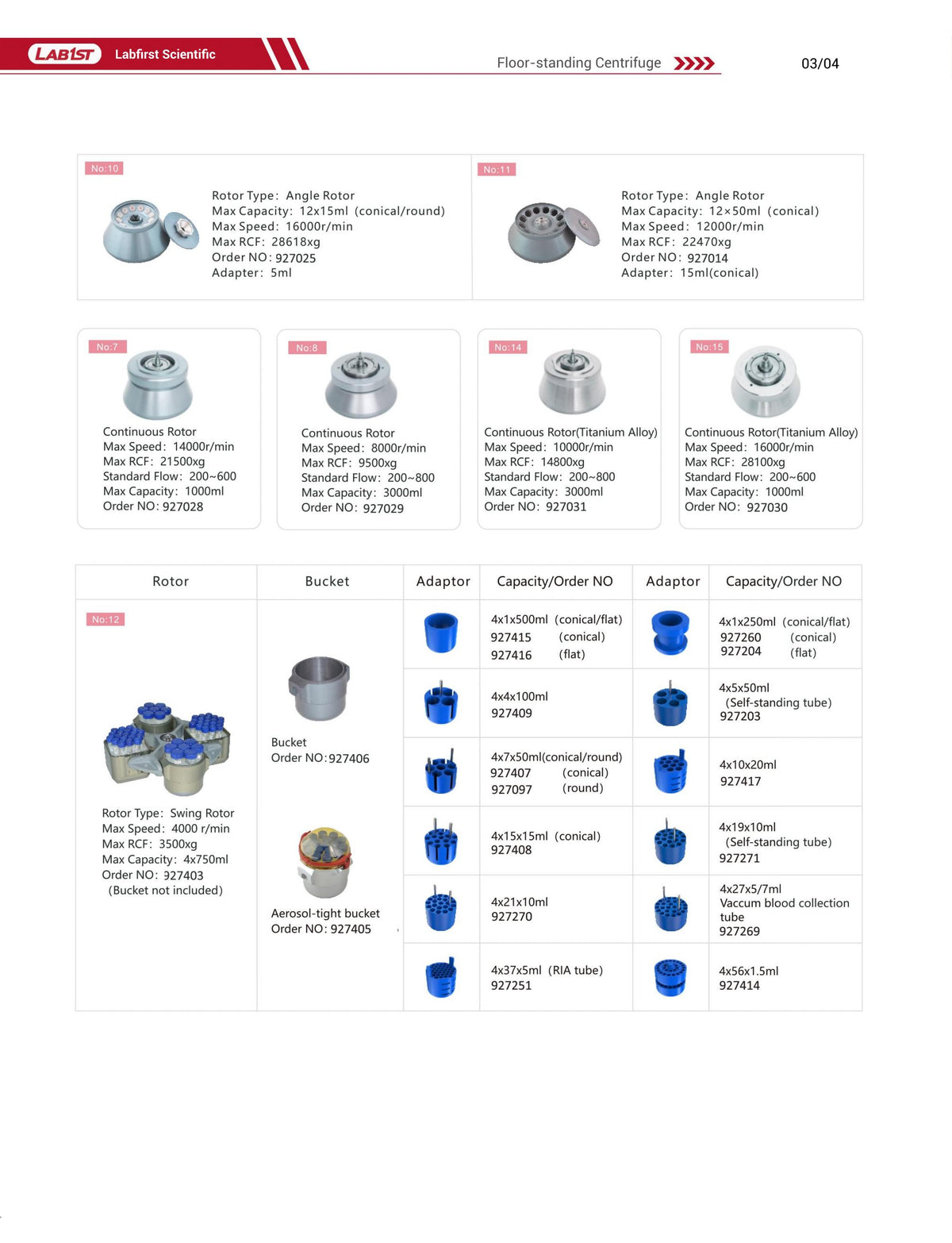

Rotor Specifications:
| Model | Rotor Type | Max Capacity | Max Speed | Max RCF | Adapter |
| 927003 | Angle Rotor | 16×10ml | 22000r/min | 52020×g | 1.5ml, 5ml, 7ml |
| 927004 | Angle Rotor | 6×50ml | 20000r/min | 43000×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927005 | Angle Rotor | 6×50ml (conical) | 20000r/min | 43000×g | 15ml (conical) |
| 927006 | Angle Rotor | 6×250ml | 14000r/min | 14000×g | 1.5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927007 | Angle Rotor | 6×250ml | 12000r/min | 24470×g | 1.5ml, 10ml, 15ml (conical), 50ml (conical/round), 100ml |
| 927008 | Angle Rotor | 6×500ml | 10000r/min | 17700×g | 1.5ml, 5ml, 10ml, 15ml (conical), 30ml, 50ml (conical/round), 100ml, 250ml |
| 927009 | Angle Rotor | 8×50ml | 18000r/min | 37600×g | 1.5ml, 5ml, 10ml, 15ml, 20ml, 25ml, 30ml |
| 927023 | Angle Rotor | 10×100ml | 12000r/min | 21280×g | 5ml, 10ml, 15ml (conical/round), 25ml, 50ml (conical/round) |
| 927025 | Angle Rotor | 12×15ml (conical/round) | 16000r/min | 28618×g | 5ml |
| 927014 | Angle Rotor | 12×50ml (conical) | 12000r/min | 22470×g | 15ml (conical) |
| 927028 | Continuous Rotor | 1000ml | 14000r/min | 21500×g | / |
| 927029 | Continuous Rotor | 3000ml | 8000r/min | 9500×g | / |
| 927031 | Continuous Rotor | 3000ml | 10000r/min | 14800×g | / |
| 927030 | Angle Rotor | 1000ml | 16000r/min | 28100×g | / |
| 927403 (contact us for the price) | Swing Rotor | 4×750ml | 4000r/min | 3500×g | 1.5ml, 5ml, 5/7ml, 10ml, 15ml (conical), 20ml, 30ml, 50ml (conical/round), 100ml, 250ml, 500ml |
| 927401 (contact us for the price) | Swing Rotor | 4×500ml | 4000r/min | 3345×g | 1.5ml, 5/7ml, 10ml, 15ml (conical), 20ml, 30ml, 50ml (conical/round), 100ml, 250ml |
How to Choose Centrifuge：
| Model | Type | Max Speed | Max Capacity | Max RCF | Display |
| CF50R | Refrigerated | Angle Rotor: 5000r/min, Swing Rotor: 5000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 4640×g, Swing Rotor: 6100×g | Touchscreen |
| CF60R | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | Touchscreen |
| CF60R-B | Refrigerated | Angle Rotor: 6000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×1000ml | Angle Rotor: 6680×g, Swing Rotor: 5100×g | LED |
| CF72R | Refrigerated | Angle Rotor: 7200r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 6×2400ml | Angle Rotor: 12166×g, Swing Rotor: 5600×g | Touchscreen |
| CF80R | Refrigerated | Angle Rotor: 8000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×1500ml | Angle Rotor: 11875×g, Swing Rotor: 5100×g | Touchscreen |
| CF90R | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | Touchscreen |
| CF100R | Refrigerated | 10000r/min | Angle Rotor: 6×1000ml | 17700×g | Touchscreen |
| CF100R-B | Refrigerated | Angle Rotor: 9000r/min, Swing Rotor: 4500r/min | Angle Rotor: 6×1000ml, Swing Rotor: 8×2200ml | Angle Rotor: 18610×g, Swing Rotor: 6756×g | LED |
| CF160R | Refrigerated | Angle Rotor: 16000r/min, Swing Rotor: 5700r/min | Angle Rotor: 6×250ml, Swing Rotor: 4×1000ml | Angle Rotor: 27648×g, Swing Rotor: 5103×g | / |
| CF205R | Refrigerated | 20500r/min | 4×750ml | 29200×g | LCD |
| CF210R | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4200r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF210R-B | Refrigerated | Angle Rotor: 21000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×100ml, Swing Rotor: 4×750ml | Angle Rotor: 32752×g, Swing Rotor: 3860×g | Touchscreen |
| CF220R | Refrigerated | Angle Rotor: 22000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×500ml, Swing Rotor: 4×750ml | Angle Rotor: 52020×g, Swing Rotor: 3500×g | Touchscreen |
| CF230R | Refrigerated | Angle Rotor: 23000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 60460×g, Swing Rotor: 3500×g | Touchscreen |
| CF250R | Refrigerated | Angle Rotor: 25000r/min, Swing Rotor: 4000r/min | Angle Rotor: 4×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 64800×g, Swing Rotor: 3500×g | Touchscreen |
| CF260R | Refrigerated | Angle Rotor: 26000r/min, Swing Rotor: 4000r/min | Angle Rotor: 6×1000ml, Swing Rotor: 4×750ml | Angle Rotor: 81623×g, Swing Rotor: 3500×g | Touchscreen |
Pls note: The price listed doesn't include adapters. If you need them, please contact us.
