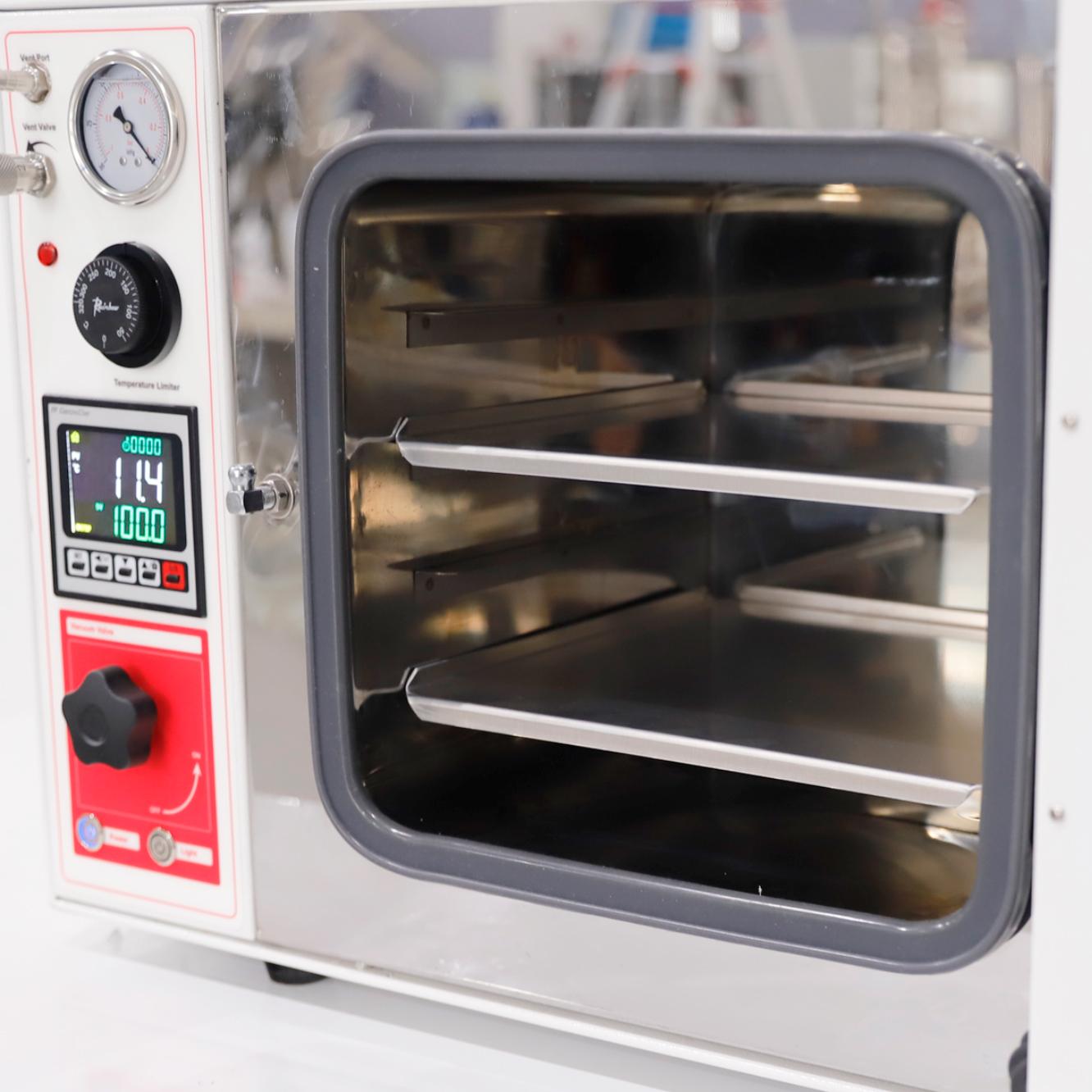

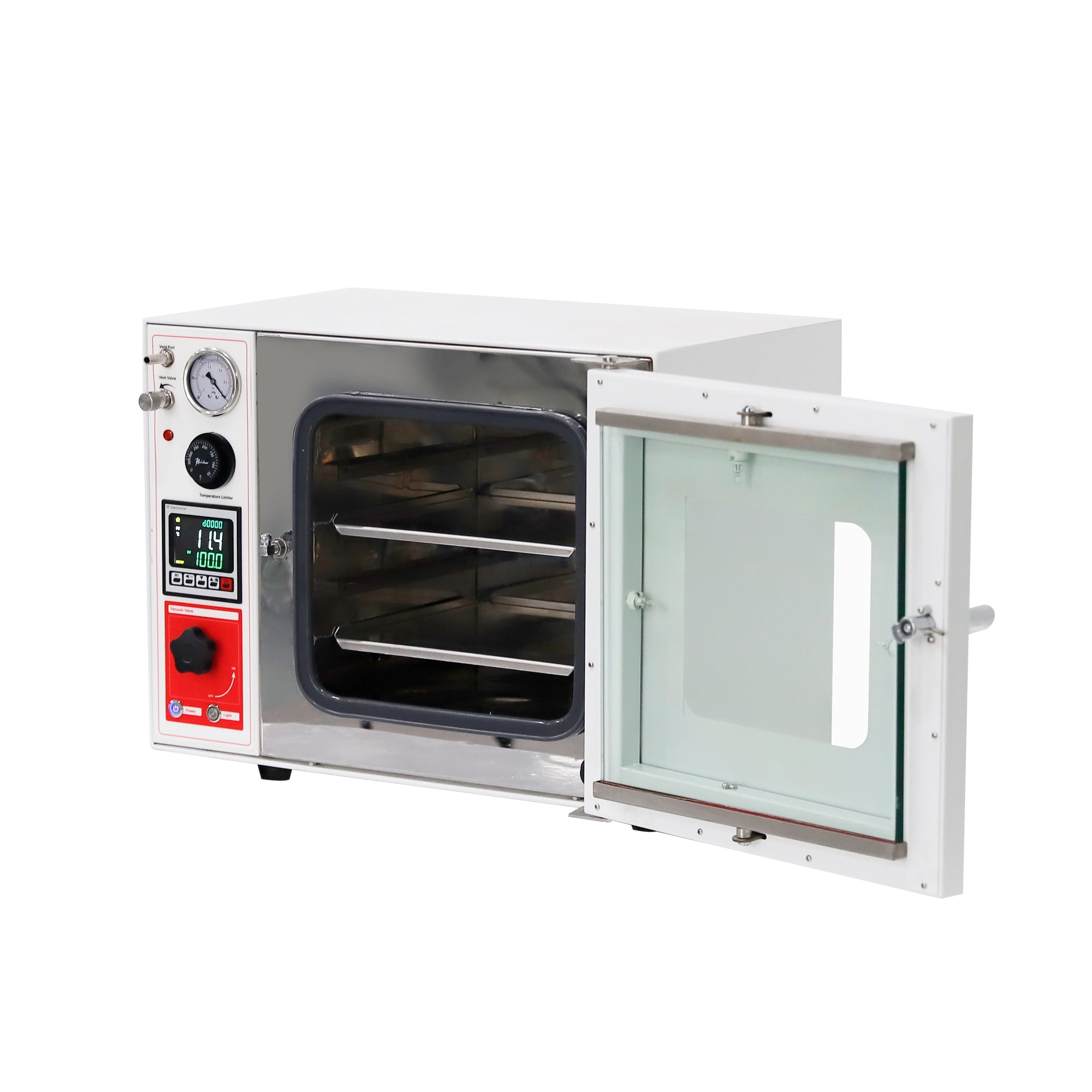

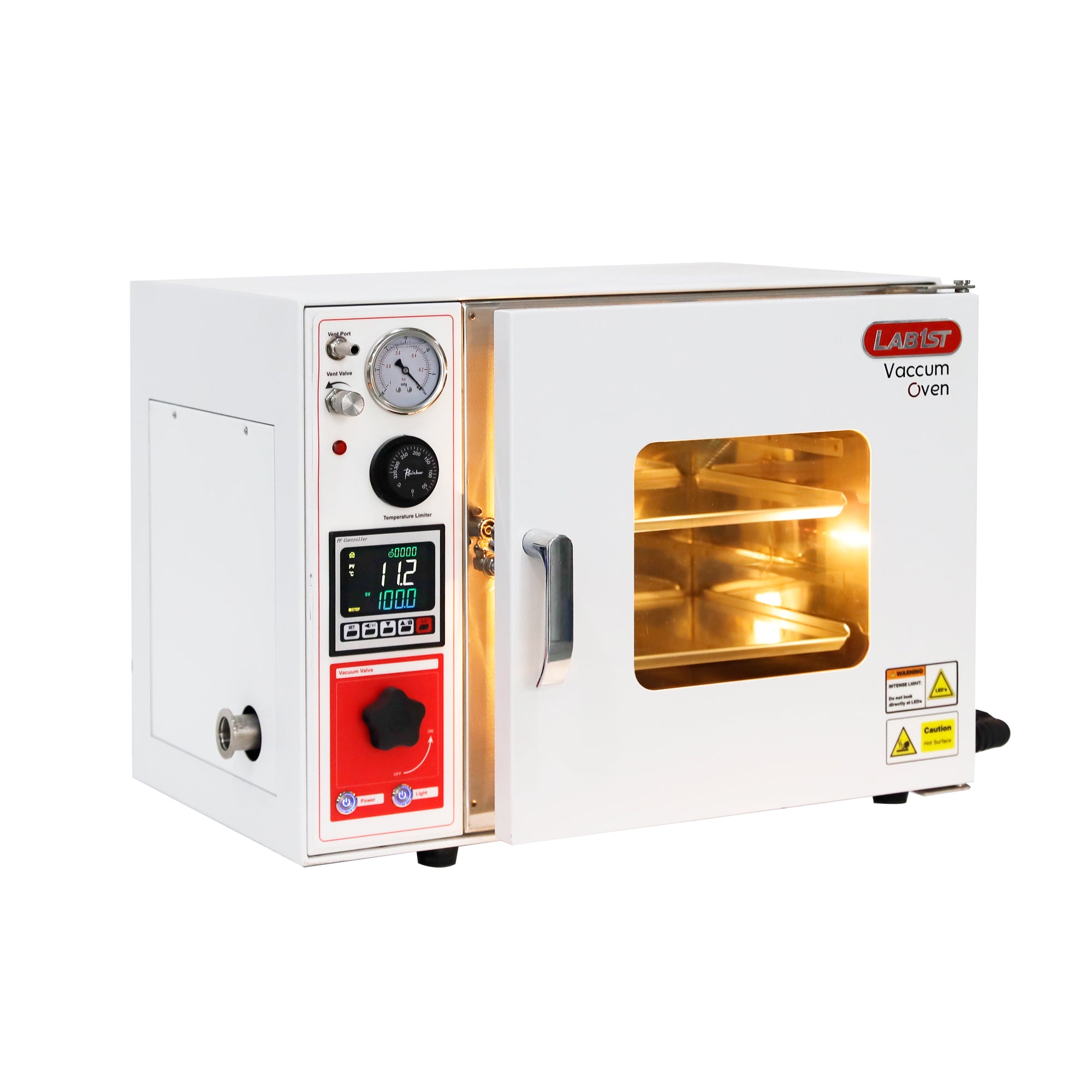

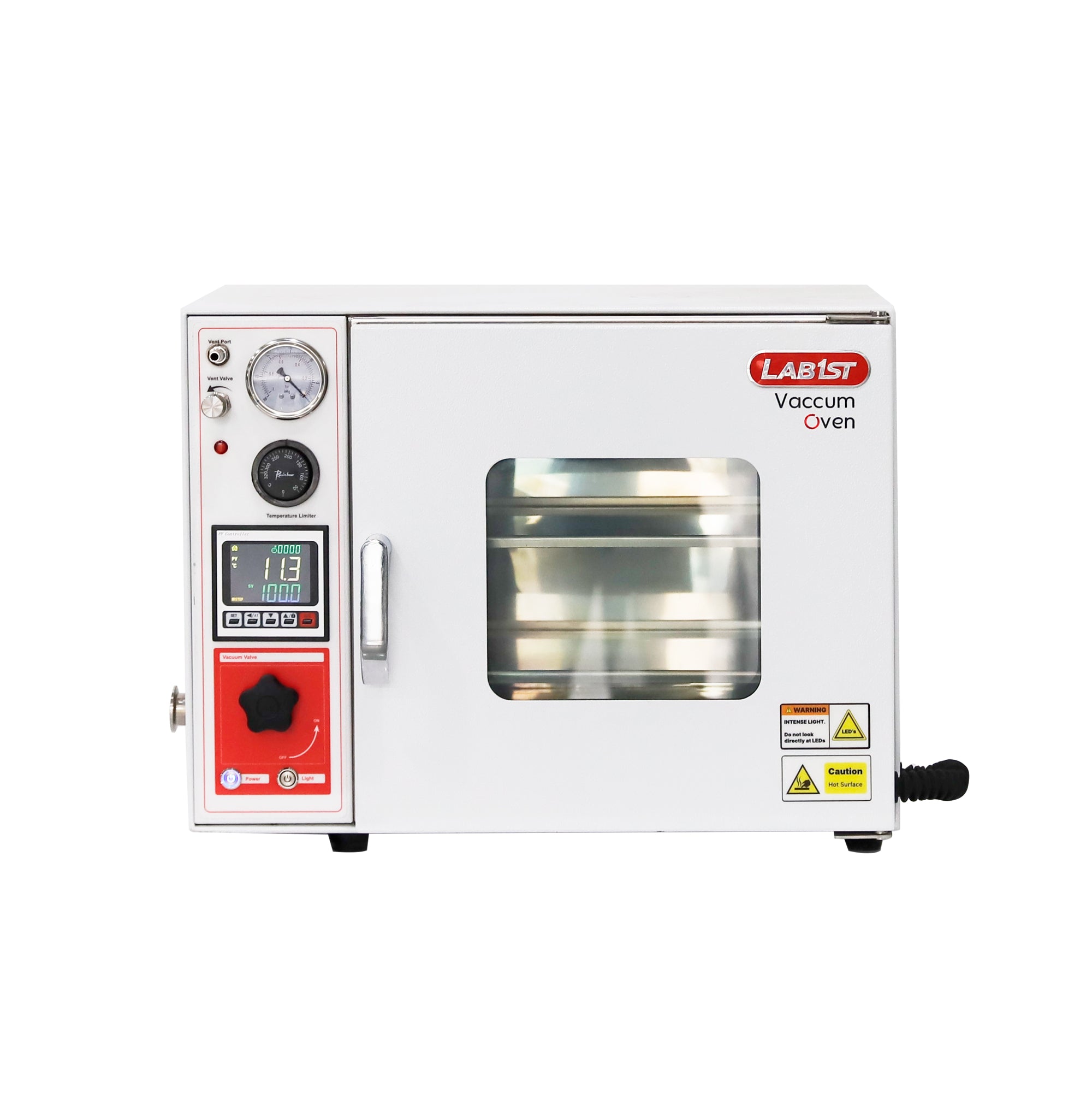

LAB1ST VO-E Series Vacuum Drying Ovens feature an external chamber heating design, providing a versatile and cost-effective solution for drying, heating, and testing under vacuum or inert gas conditions. With a standard temperature range of up to 200°C and a rectangular stainless steel chamber, these ovens maximize usable space and accommodate flexible shelf configurations, making them ideal for laboratories and industrial applications requiring gentle and uniform heating.
Key Features:
- Temperature Range: RT+15 to 200℃
- Vacuum Level: ＜50Pa
- Chamber Volume: 23L to 500L
- Heating Method: Chamber Heating
Features:
-
4th Generation LCD Temperature Controller:
- Specifically calibrated for vacuum ovens to ensure accurate and reliable temperature control.
- Specifically calibrated for vacuum ovens to ensure accurate and reliable temperature control.
-
Calibratable Controller with Countdown Timer:
- Programmable timer from 1 to 9999 minutes for flexible and precise process management.
- Programmable timer from 1 to 9999 minutes for flexible and precise process management.
-
Independent Over-Temperature Protector (with indicator):
- Prevents overheating and ensures operational safety.
-
LED Interior Light:
- Provide clear illumination for easy monitoring of samples.
-

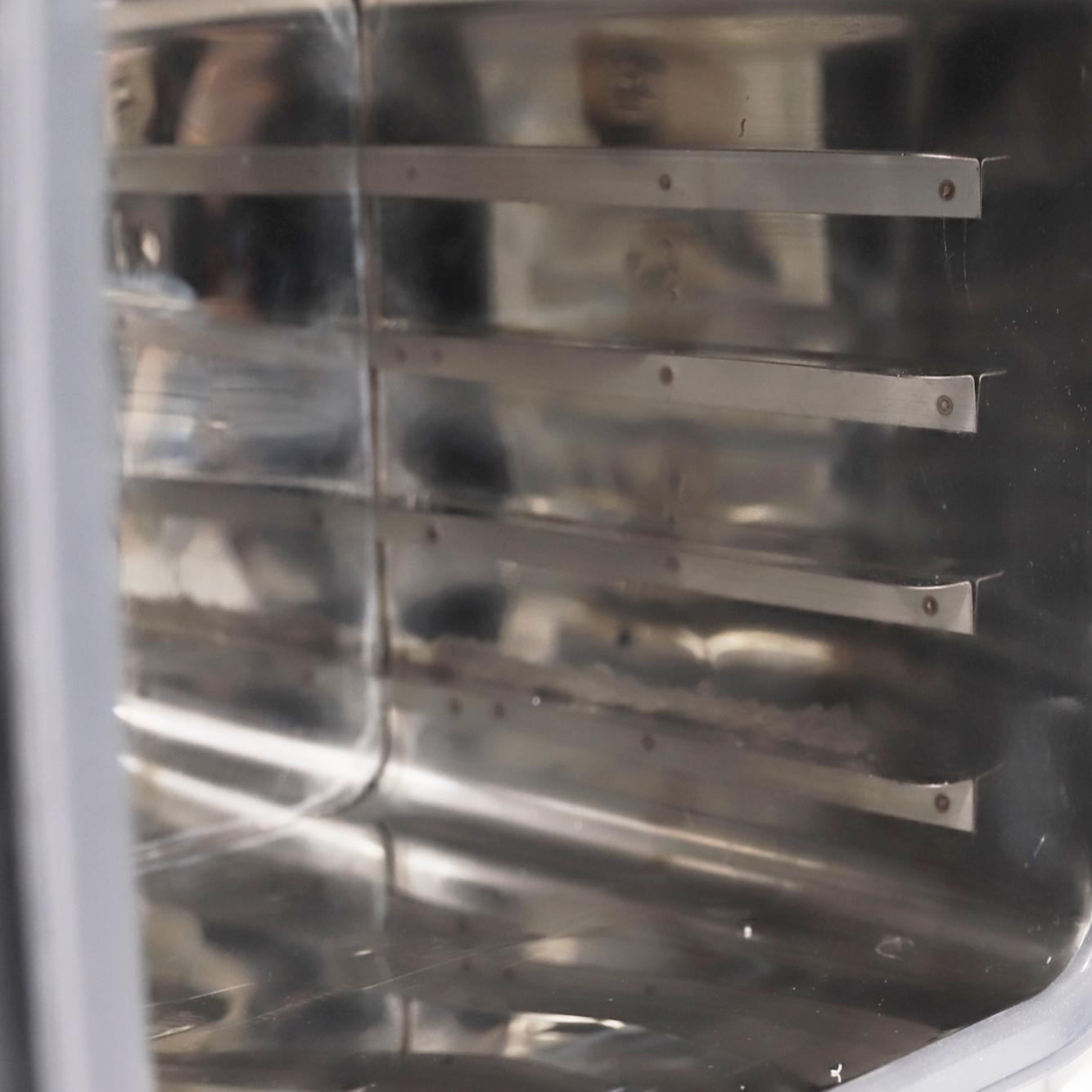

Stainless Steel 304 Interior:
- Combines durability with a clean, professional appearance and easy maintenance.
-
Oil-Filled Mechanical Vacuum Gauge:
- Delivers stable and reliable vacuum measurements.
-
Dedicated Inert Gas Inlet Valve:
- Allow controlled introduction of nitrogen or other inert gases.
-
Standard KF25 Vacuum Port:
- Ensures reliable and convenient vacuum systems.
-
Maximized Capacity:
- Accommodates more trays within the same chamber volume for enhanced productivity.
Specifications:

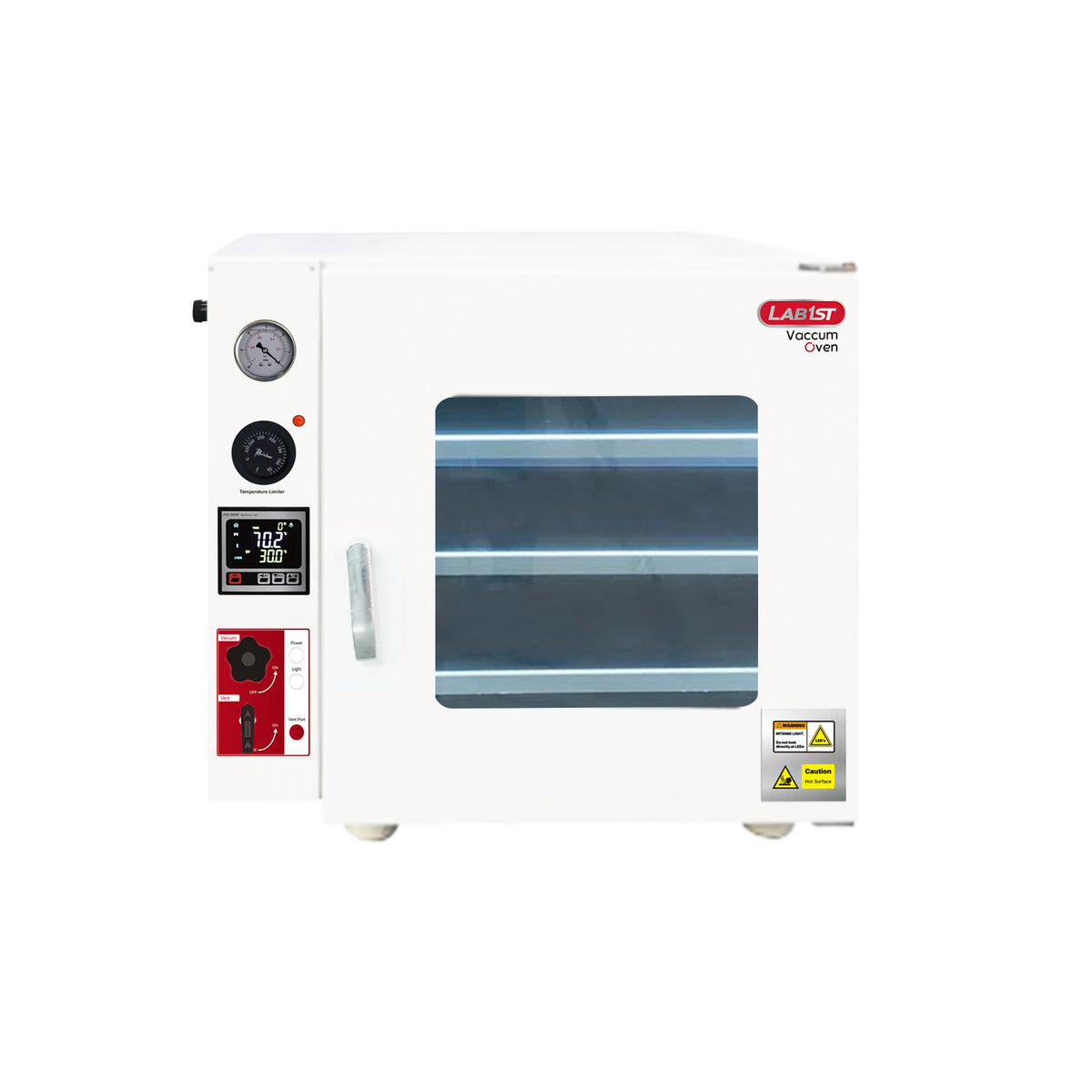

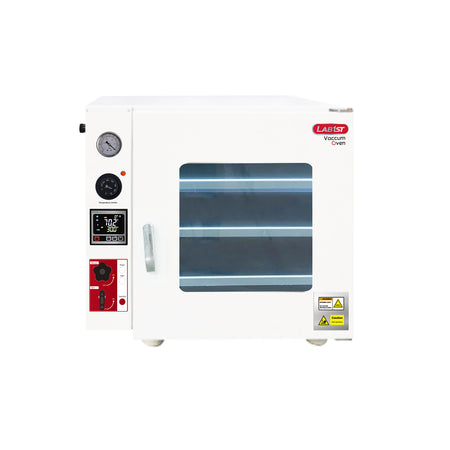

| Model: | VO-01E | VO-02E | VO-03E |
| Capacity: | 23L | 0.81 cu ft | 53L | 1.87 cu ft | 90L | 3.18 cu ft |
| Temp Range: | RT+15 ~ 200℃ | ||
| Shelf QTY (Std/Max) | 2 | 4 | 2 | 5 | 3 | 6 |
| Shelf Size (mm): | 295×270 | 410×340 | 450×420 |
| Interior (W×D×H, mm): | 300×300×275 | 415×370×345 | 450×450×450 |
| Exterior (W×D×H, mm): | 580×450×450 | 720×525×535 | 615×590×635 |
| Vacuum Port: | KF25 | KF25 | KF25 |
| Vacuum Level: | ＜50Pa | ＜50Pa | ＜50Pa |
| Recommend Pump: | 2L/s | 2L/s | 4L/s |
| Gross Weight (kg): | 65 | 90 | 130 |
| Power Input (W): | 500 | 1500 | 1500 |

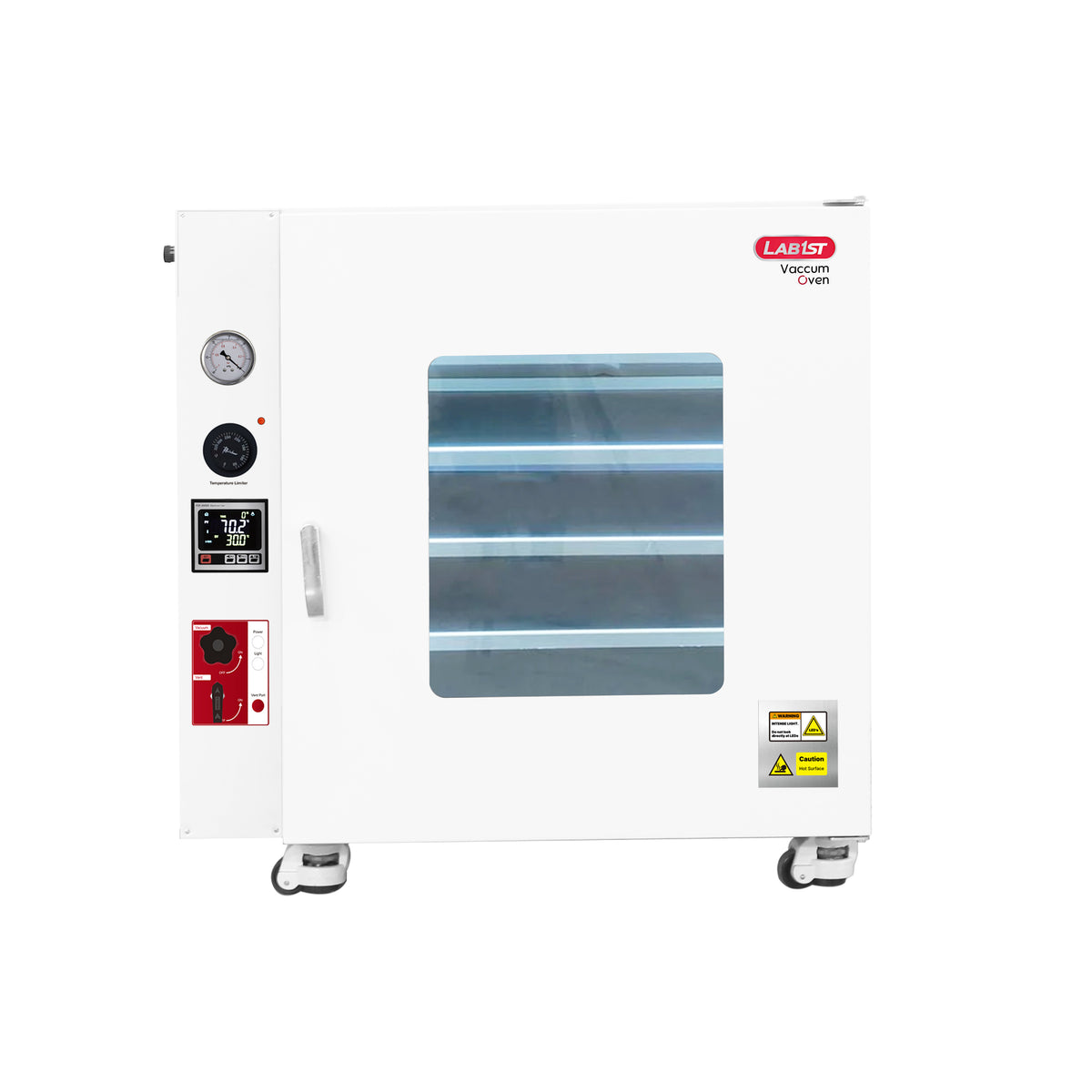

| Model: | VO-07E | VO-18E |
| Capacity: | 210L | 7.42 cu ft | 500L | 17.66 cu ft |
| Temp Range: | RT+15 ~ 200℃ | |
| Shelf QTY | 4 | 8 | 5 | 10 |
| Shelf Size (mm): | 610×555 | 780×625 |
| Interior (W×D×H, mm): | 560×600×640 | 630×810×845 |
| Exterior (W×D×H, mm): | 860×670×890 | 950×950×1115 |
| Vacuum Port: | KF25 | KF25 |
| Vacuum Level: | ＜50Pa | ＜50Pa |
| Recommend Pump: | 8L/s | 8L/s |
| Gross Weight (kg): | 280 | 600 |
| Power Input (W): | 2500 | 3500 |
