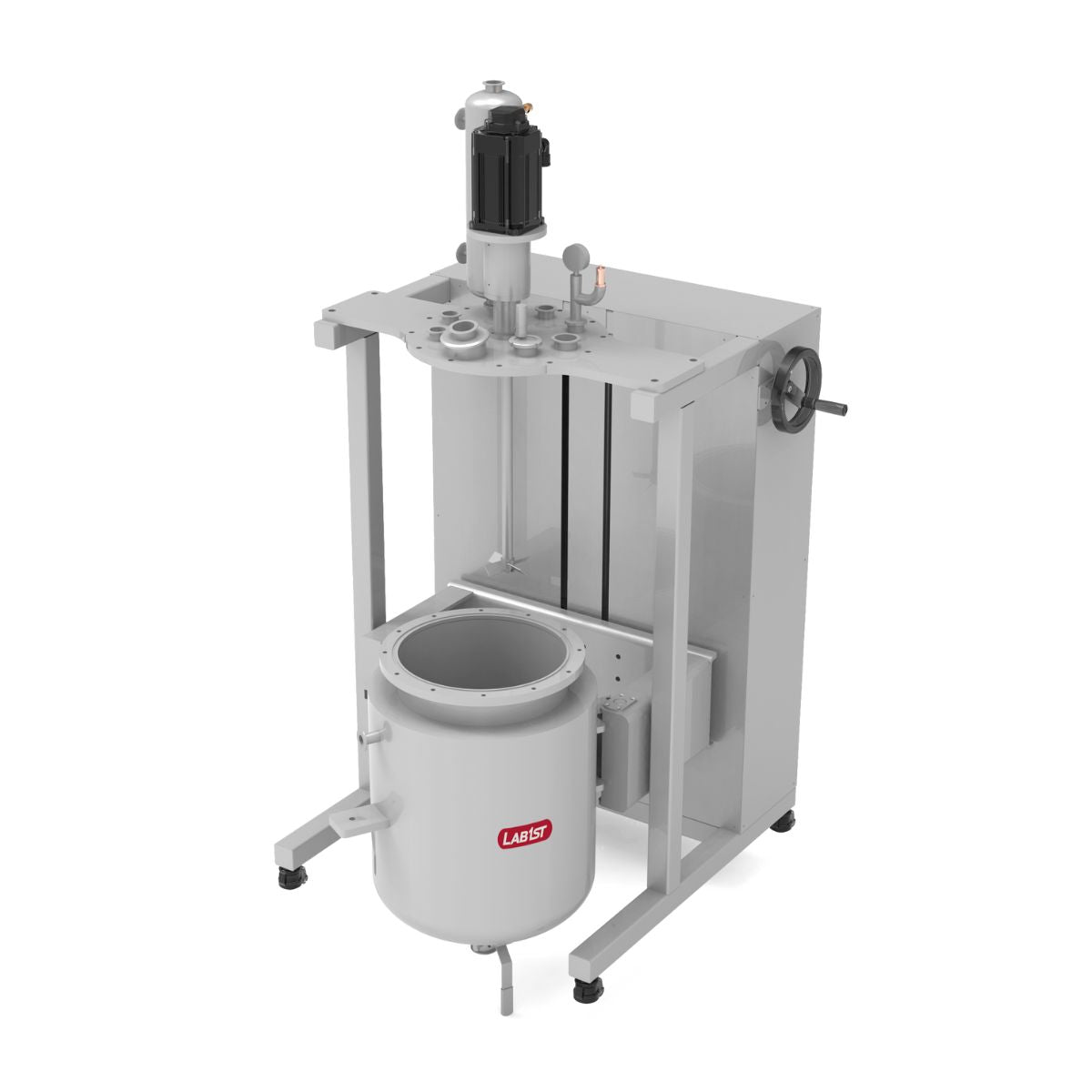

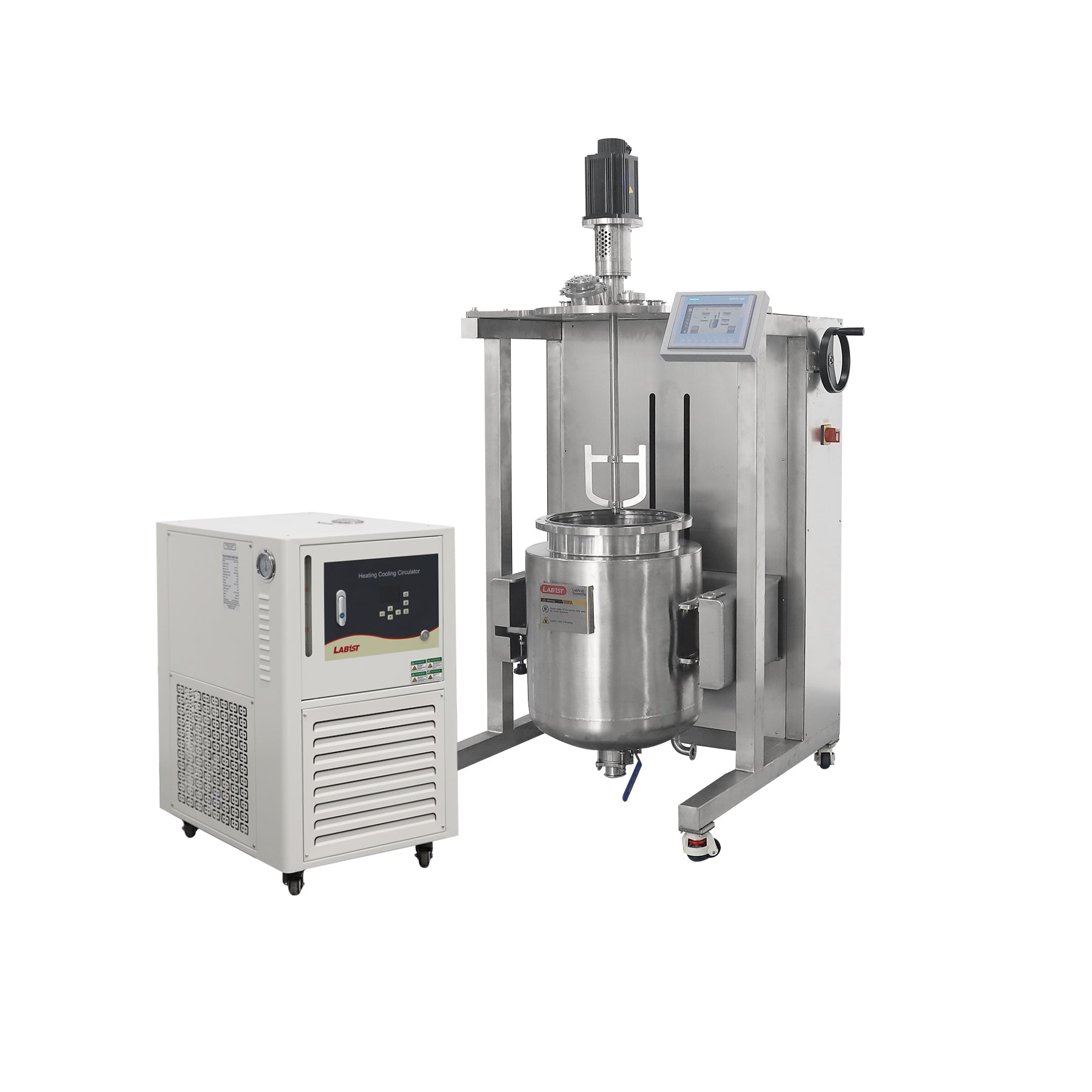

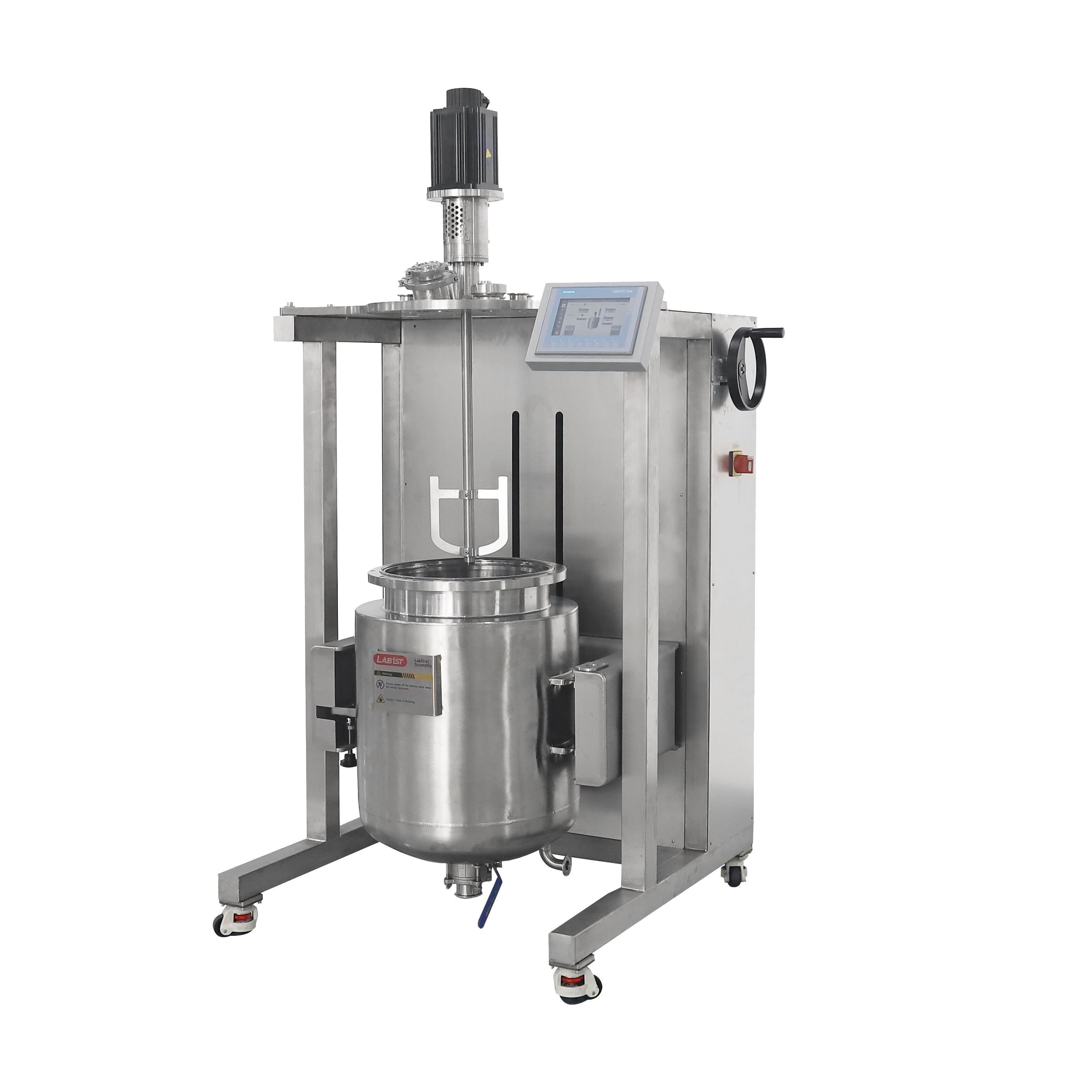

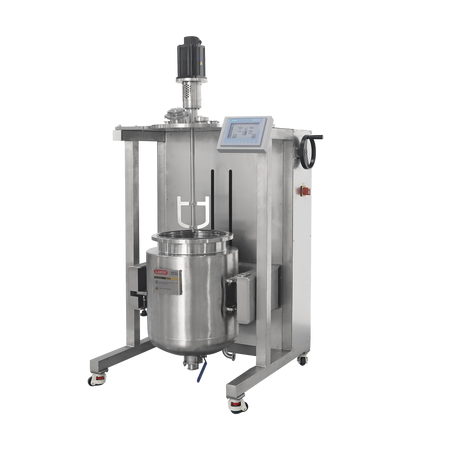

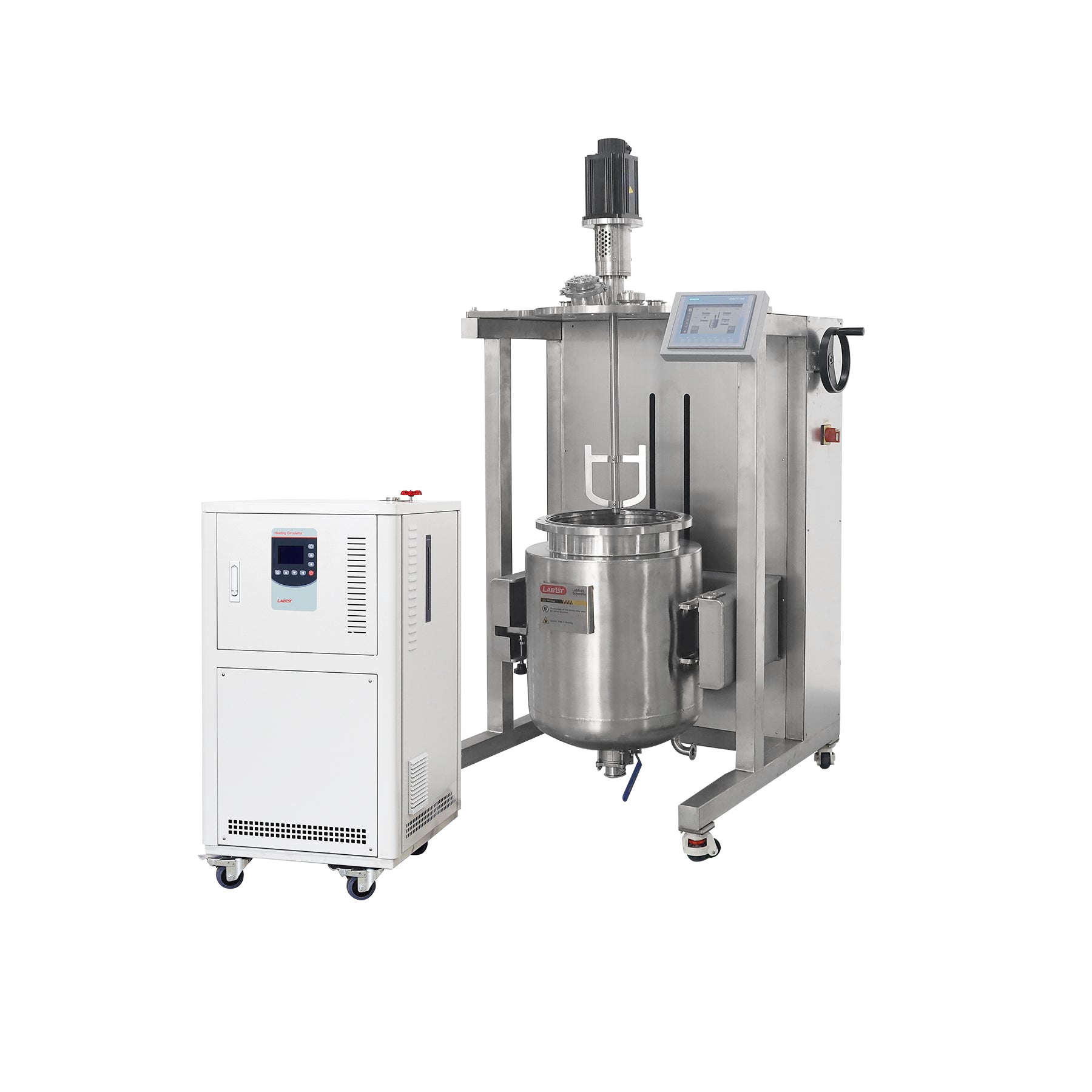

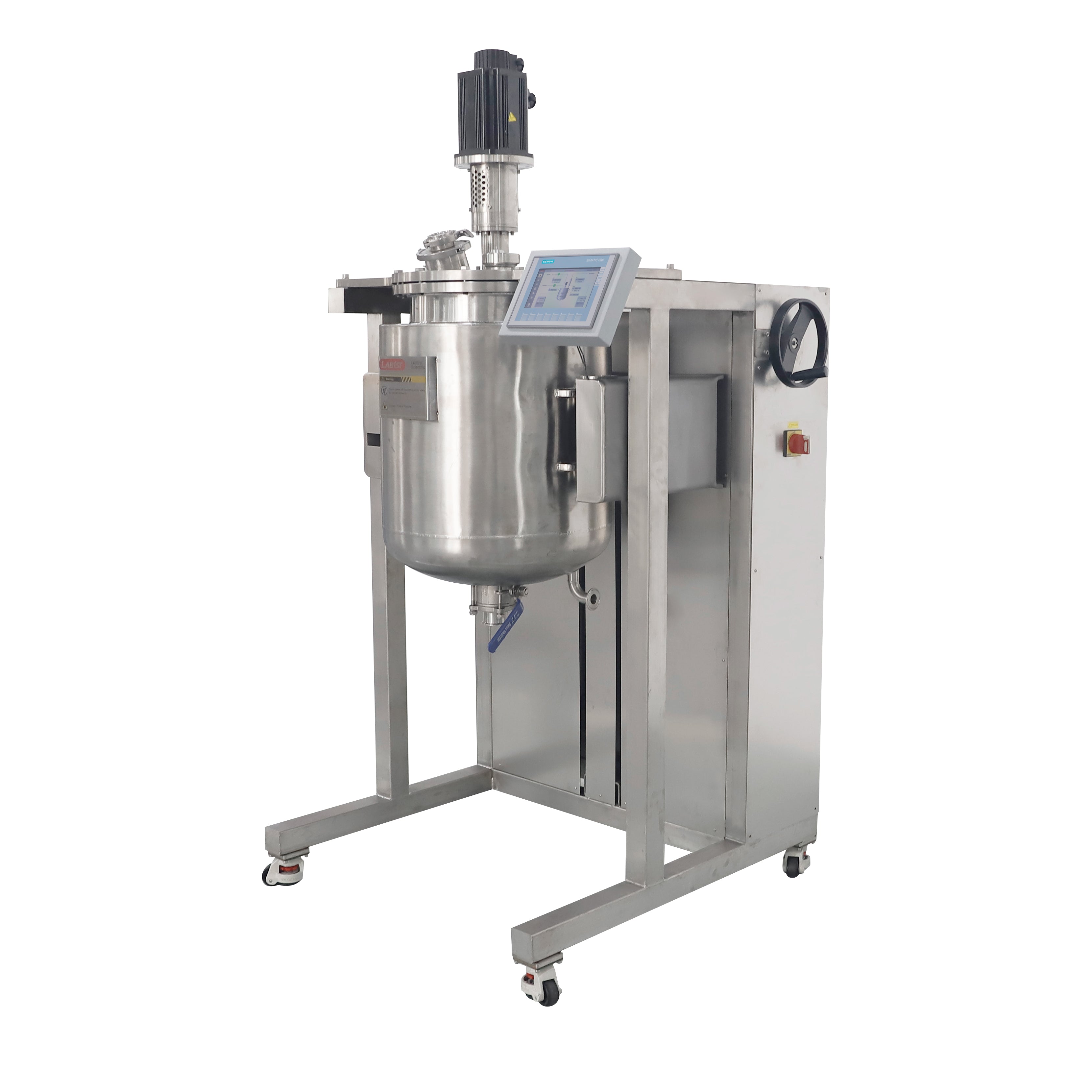

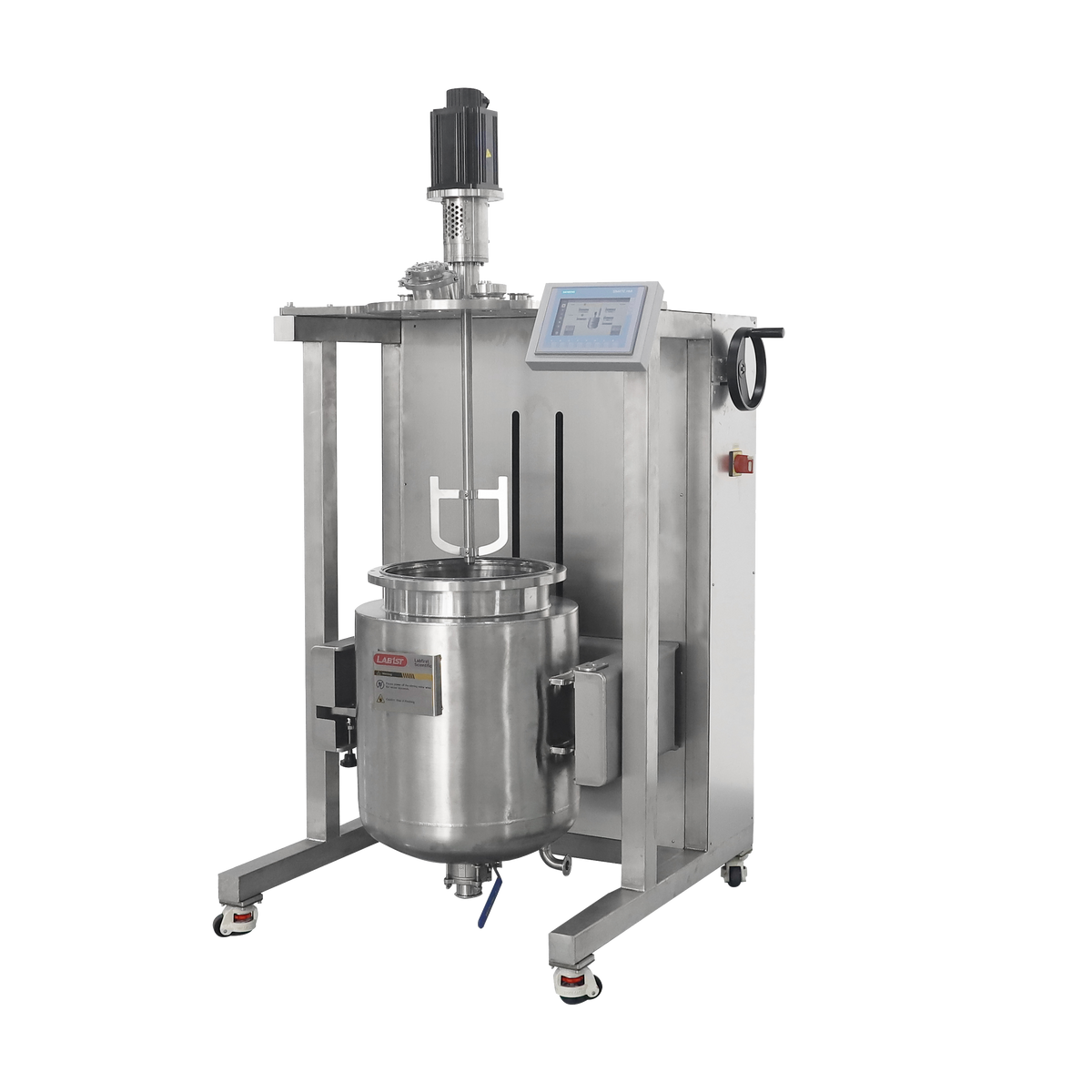

LAB1ST SR600 Series stainless steel reactors are engineered for R&D and pilot-scale applications, offering versatile 5L to 200L capacity options. Constructed with corrosion-resistant SUS316L stainless steel and PTFE/FFKM sealing materials, these reactors ensure reliable performance in demanding chemical processes.
The double-jacket design with baffle plates enables precise temperature control, while modular configurations support flexible expansion including condensation reflux, solvent recovery, and filtration functions. Featuring mobile design, mechanical sealing, and CIP compatibility, the SR600 Series simplifies operation and maintenance. CE certified and backed by comprehensive technical support, these reactors deliver robust, scalable solutions for laboratory and small-scale production needs.
Features:
-
Versatile Capacity Options
- Available in nominal/working volume: 5L, 10L, 20L, 30L, 50L, 100L, 150L and 200L (or larger).
- Multi-process compatibility: Supports diverse reactions in a single apparatus.
-
Compact & Mobile Design

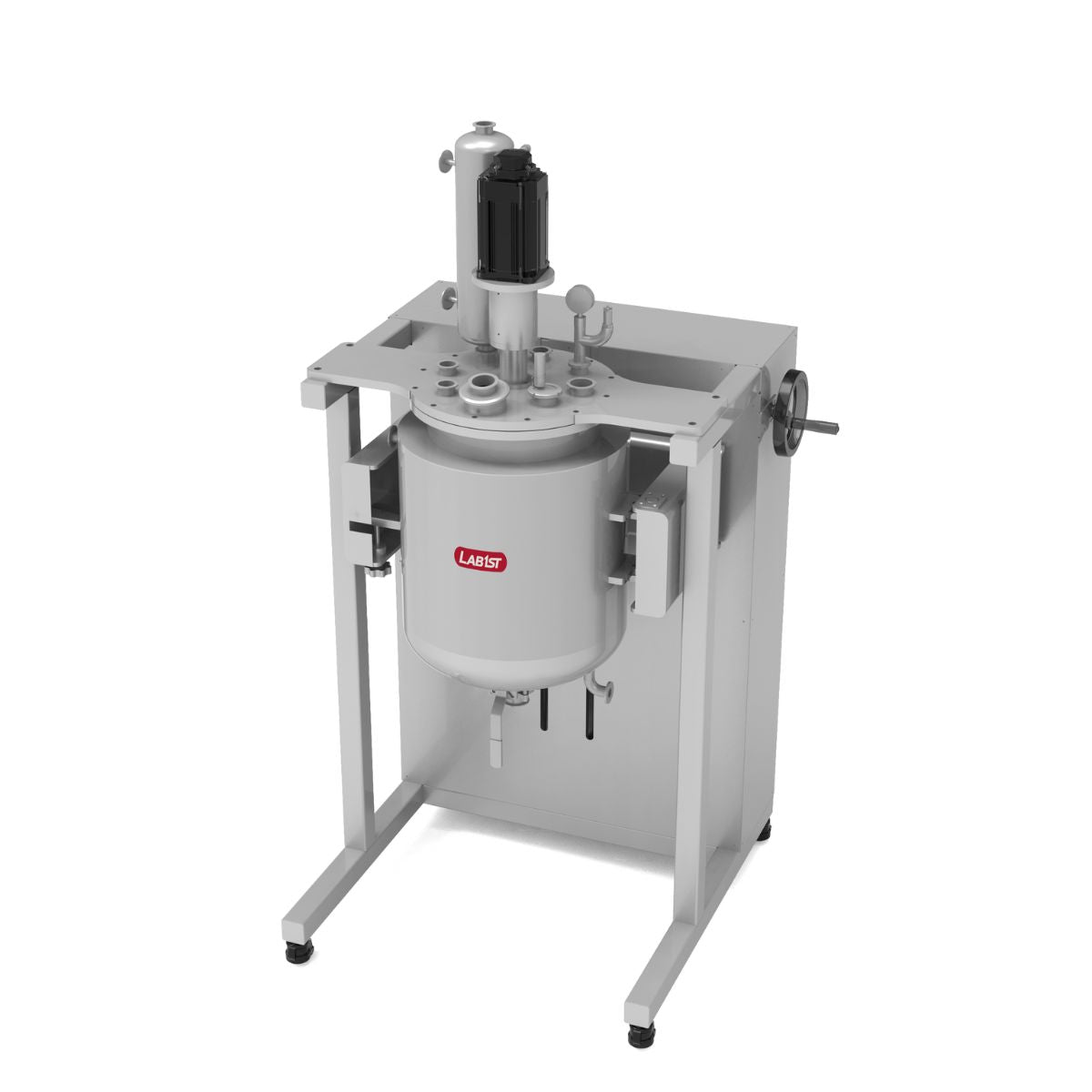

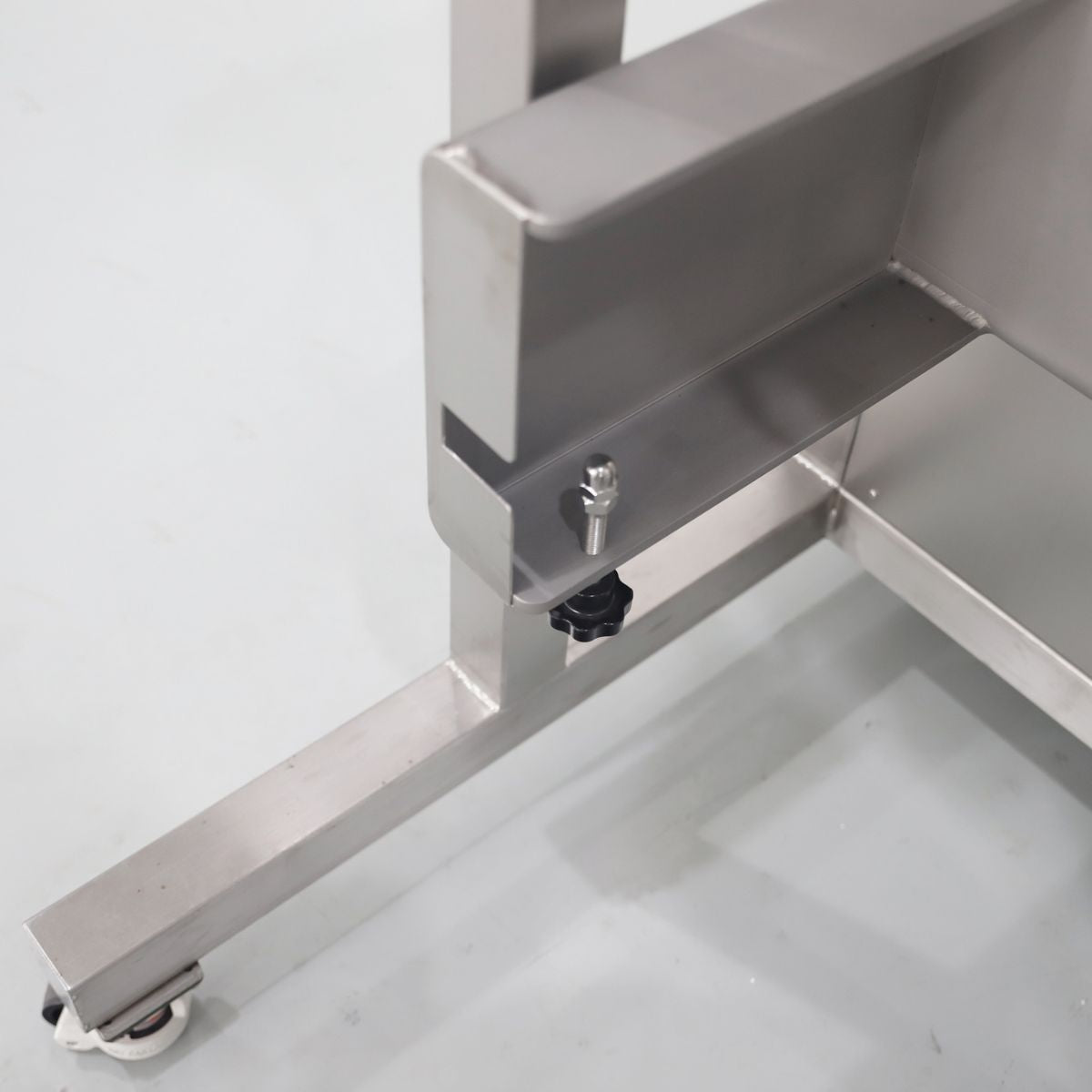

- Space-saving structure with a stainless steel frame on wheels for easy relocation.
-
Superior Corrosion Resistance
- High-performance SUS316L stainless steel
- PTFE, FFKM, PPL seals/lining for harsh chemical environments
-
Efficient Heating & Temperature Control

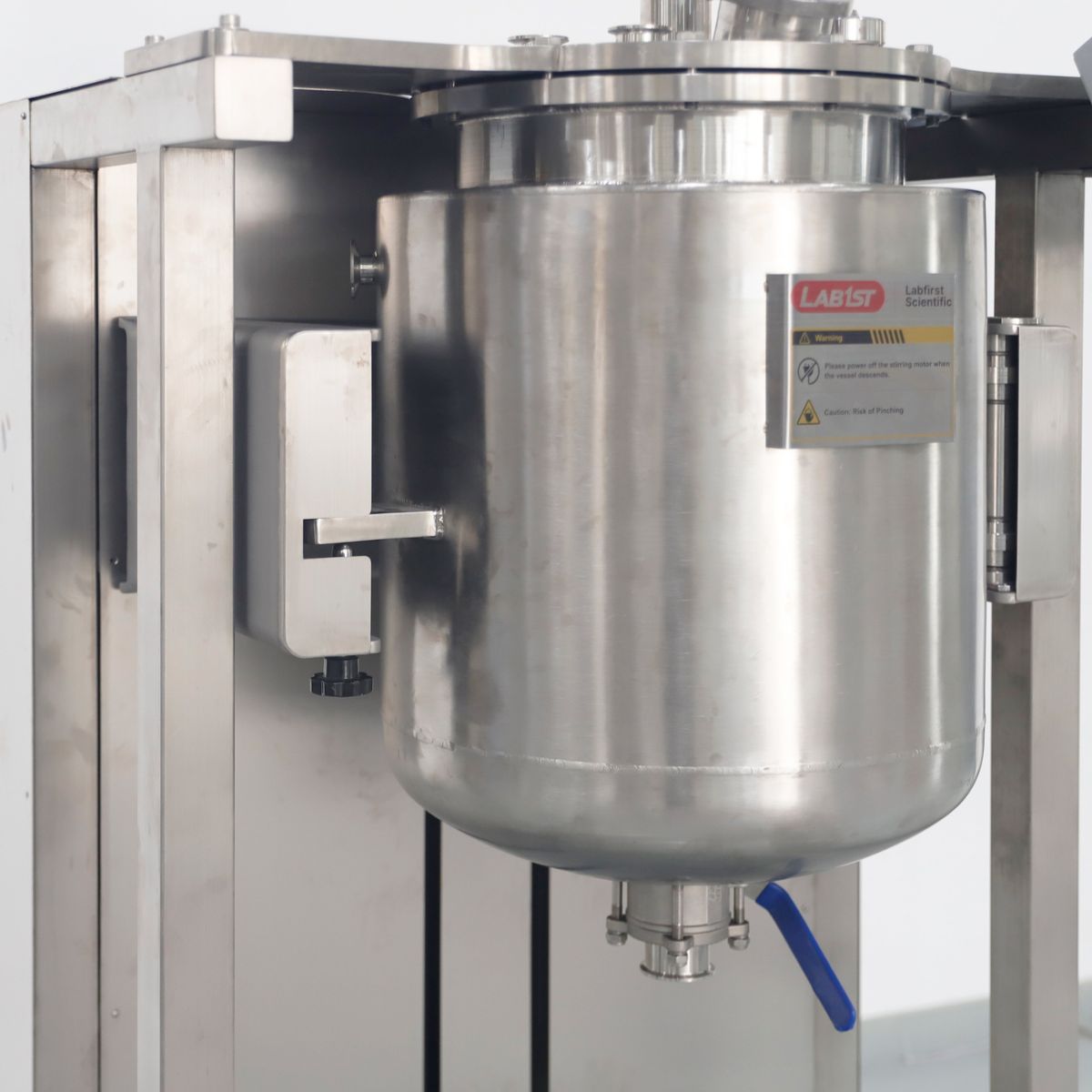

- Double-jacket design (heating/cooling jacket + insulation layer) ensures optimal thermal efficiency
- Baffle plates in the jacket for uniform heat distribution
-
User-Friendly Maintenance

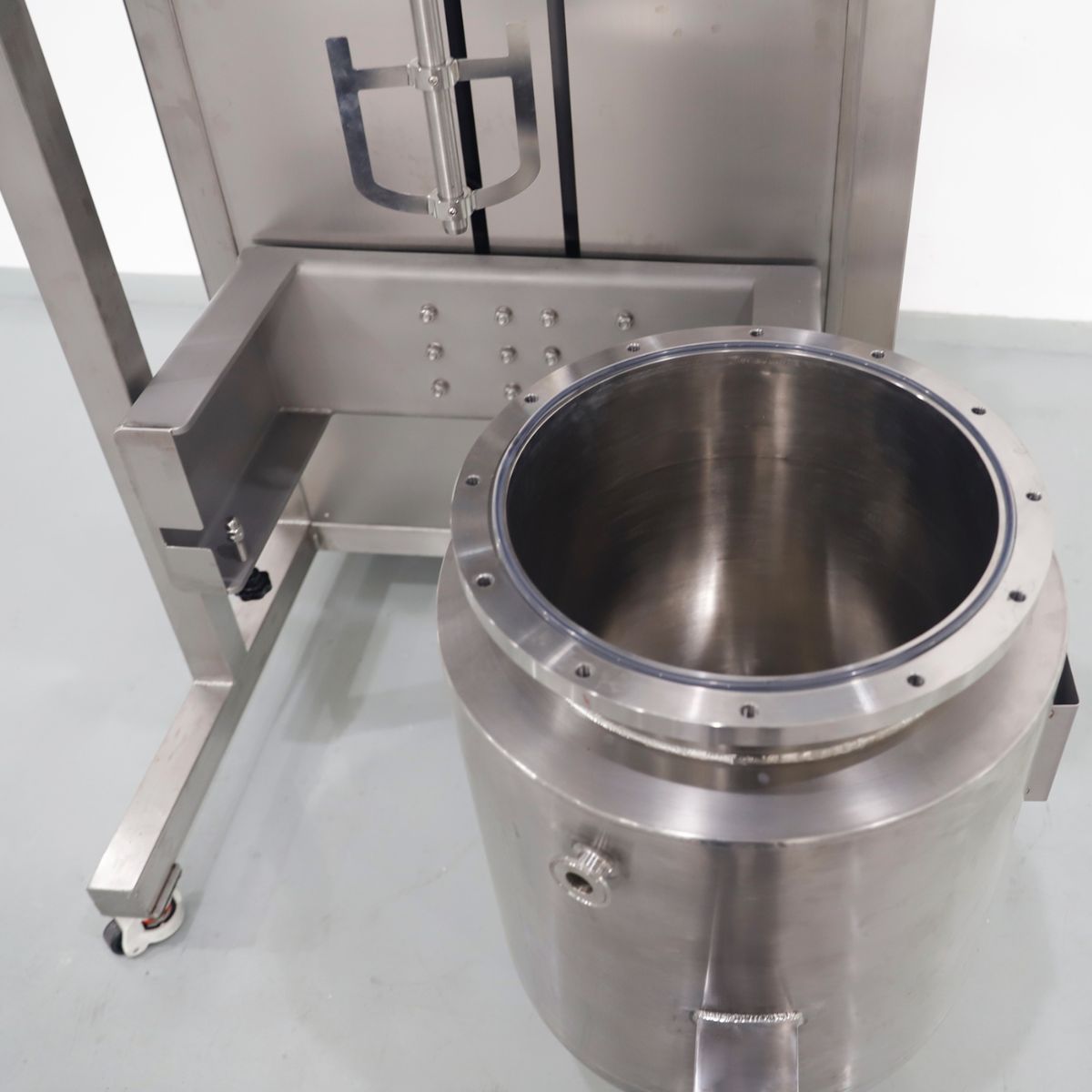

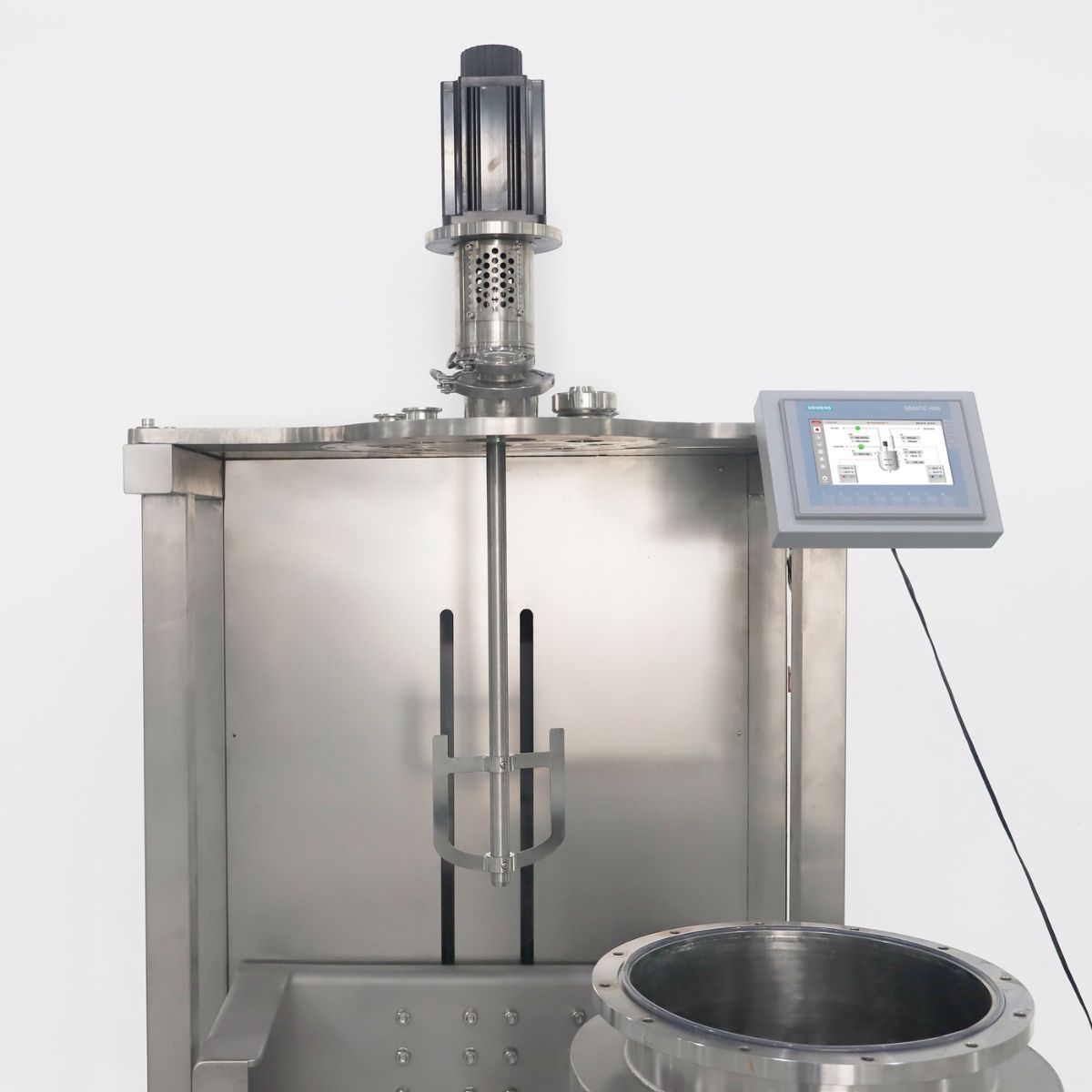

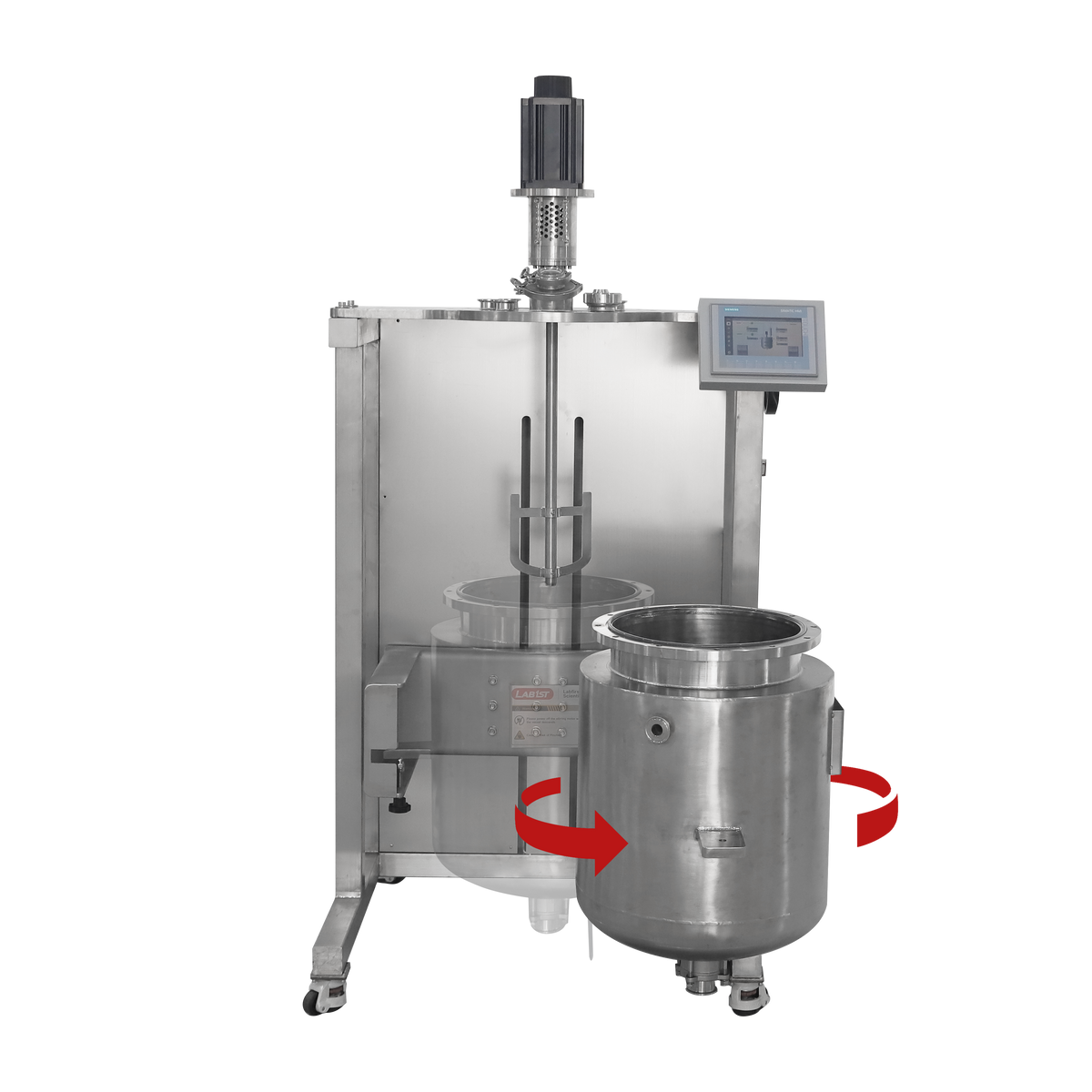

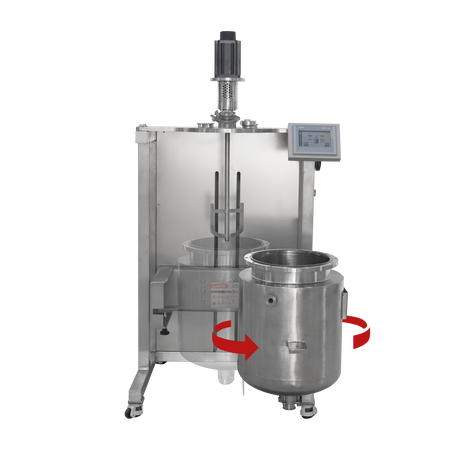

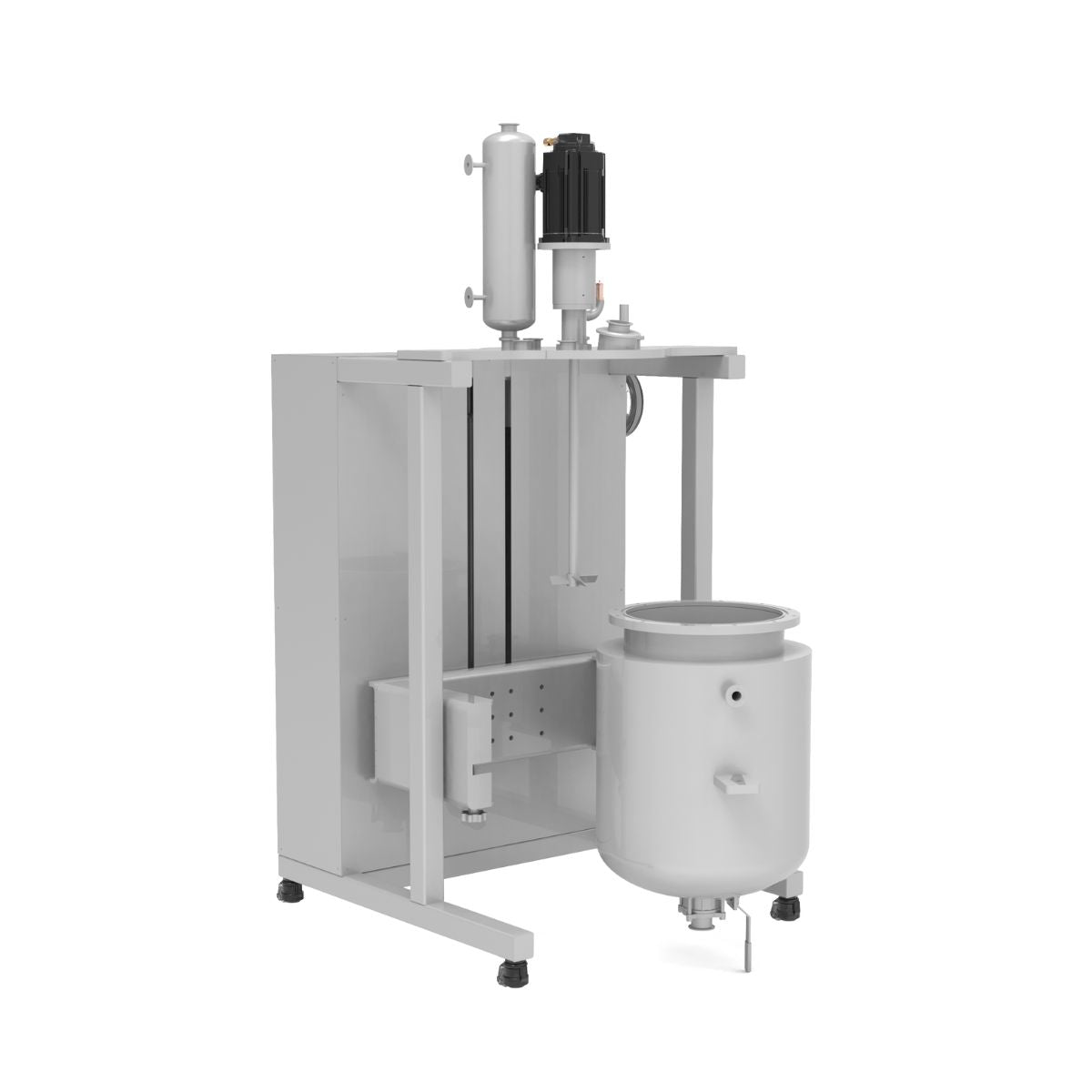

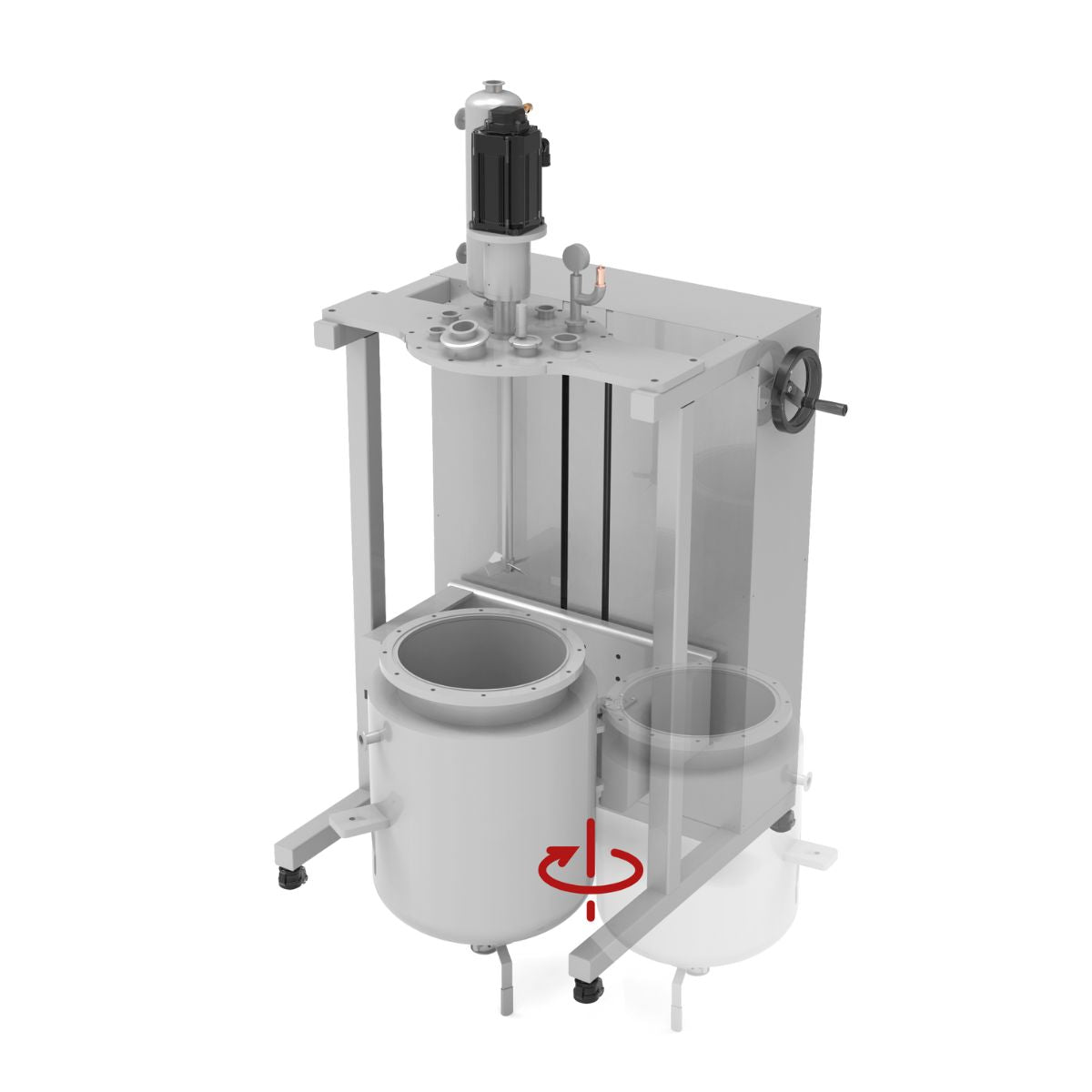

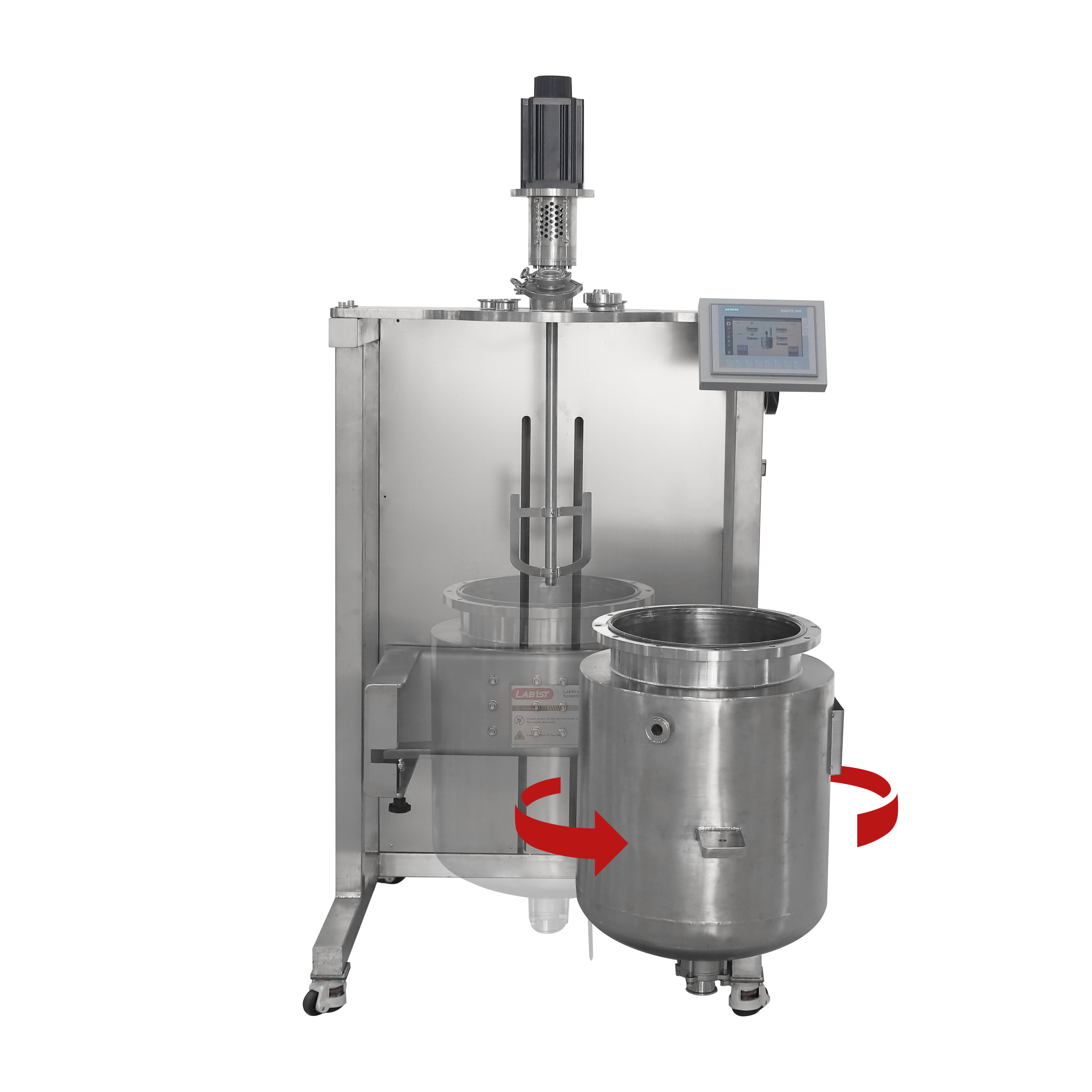

- Manual lift-tilt & swing-out mechanism with locking for tool-free maintenance
- One person can perform system maintenance without auxiliary tools
-
Modular Functional Upgrades
- Customizable with plug-and-play modules:

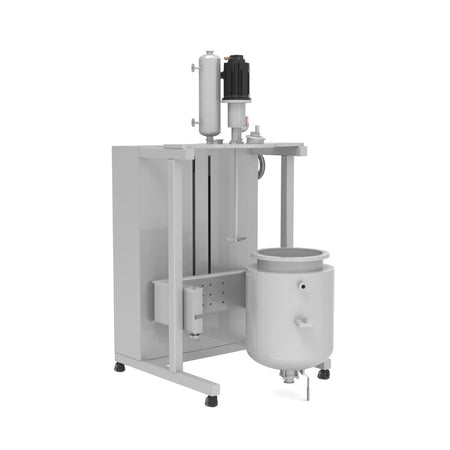

- Condensation reflux | Evaporation recovery
- Crystallization | Filtration
- Avoids over-engineering costs while enabling future expansions
- Customizable with plug-and-play modules:
-
Robust & Safe Operation
- Fully assembled, skid-mounted for quick installation

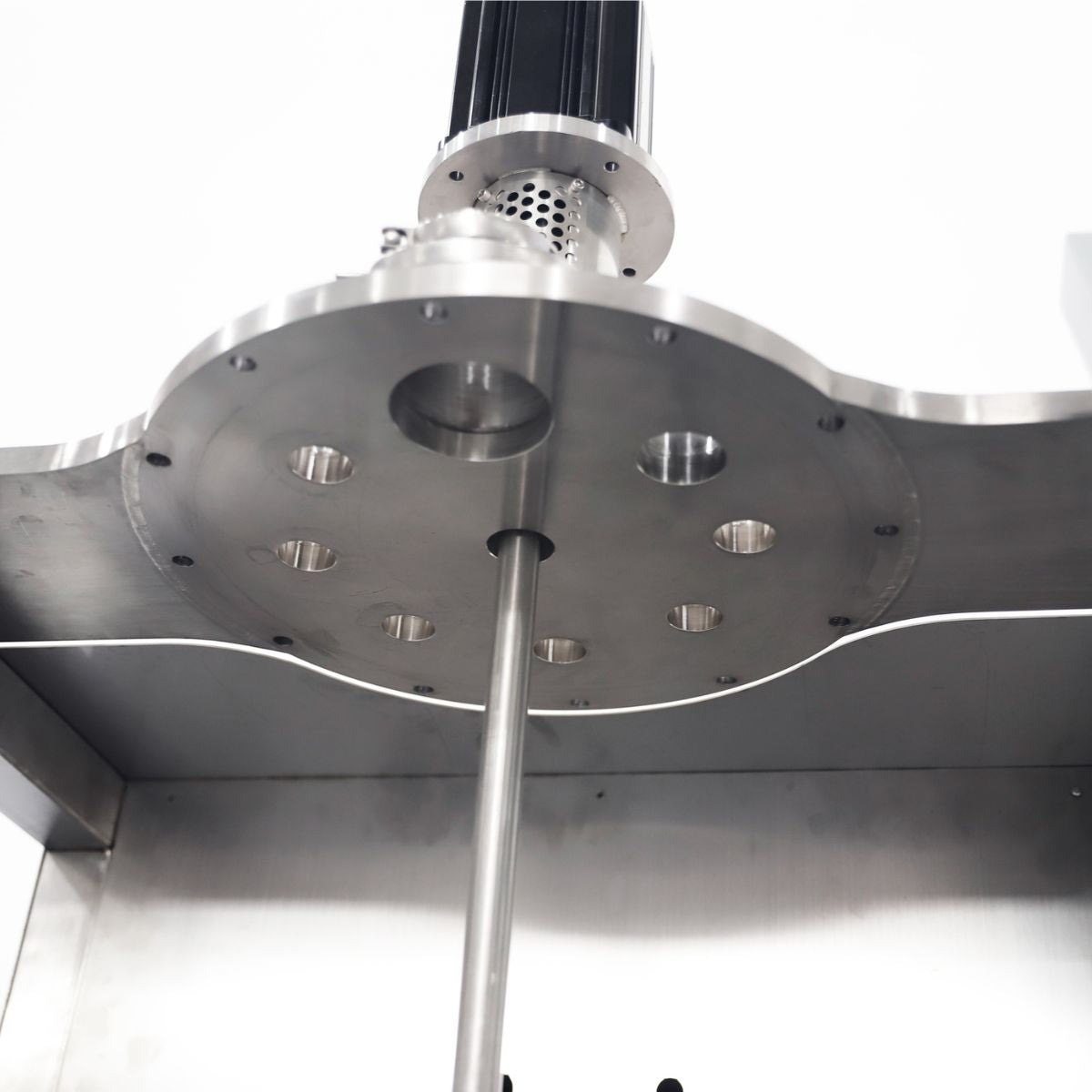

- Mechanical sealing ensures leak-proof performance
- Optional CiP (Clean-in-Place) compatible for efficient cleaning
-
Durability for Demanding Applications
- Suitable for lab and pilot production under rigorous conditions
-
Certification & Compliance
- CE certified (additional certifications available upon request)
-
Turnkey Solutions
- End-to-end service: consultation → design → manufacturing → delivery
Specifications:
| Model: | SR600-5L | SR600-10L | SR600-20L | SR600-30L | SR600-50L |
| Nominal Volume [Liter] |
5L | 10L | 20L | 30L | 50L |
| Pressure Range [bar] |
-1 ~ +6.0 | -1 ~ +6.0 | -1 ~ +6.0 | -1 ~ +6.0 | -1 ~ +6.0 |
| Design Temp. Range [℃] |
-20 ~ 250 | -20 ~ 250 | -20 ~ 250 | -20 ~ 250 | -20 ~ 250 |
| Working Temp. Range [℃] |
-20 ~ 220 | -20 ~ 220 | -20 ~ 220 | -20 ~ 220 | -20 ~ 220 |
| Heat Area [㎡] | 0.20 | 0.32 | 0.50 | 0.65 | 0.91 |
| Volume Below Stirrer [Liter] | 0.41 | 0.54 | 0.76 | 0.9 | 1.05 |
| Agitator Speed Range [rpm] |
0...1000 | 0...1000 | 0...1000 | 0...1000 | 0...1000 |
| Volume Below Dimensions [W×H×D] [m] | 0.6*1.2*0.7 | 0.7*1.4*0.75 | 0.8*1.6*0.85 | 0.9*1.7*1 | 0.91*1.9*1 |
Optional Functional Modules:
Cases:
If you require customization, please contact us at eshop@lab1st.com for more information.
