Scale your process seamlessly with the LAB1ST SR500 Reactor Series. Ideal for chemical reactions, extraction, crystallization, and filtration. Configure with condenser, collection tank, or filter modules for a custom, turnkey solution. Engineered for reliability and easy operation in any lab.
Features:
-
Scalable Platform
- Multi-scale Capacity: 5L, 10L, 20L, 30L, 50L, 100L, 150L and 200L (or larger).
- Modular Versatility: One apparatus enables multiple processes across R&D, pilot, and production scales.

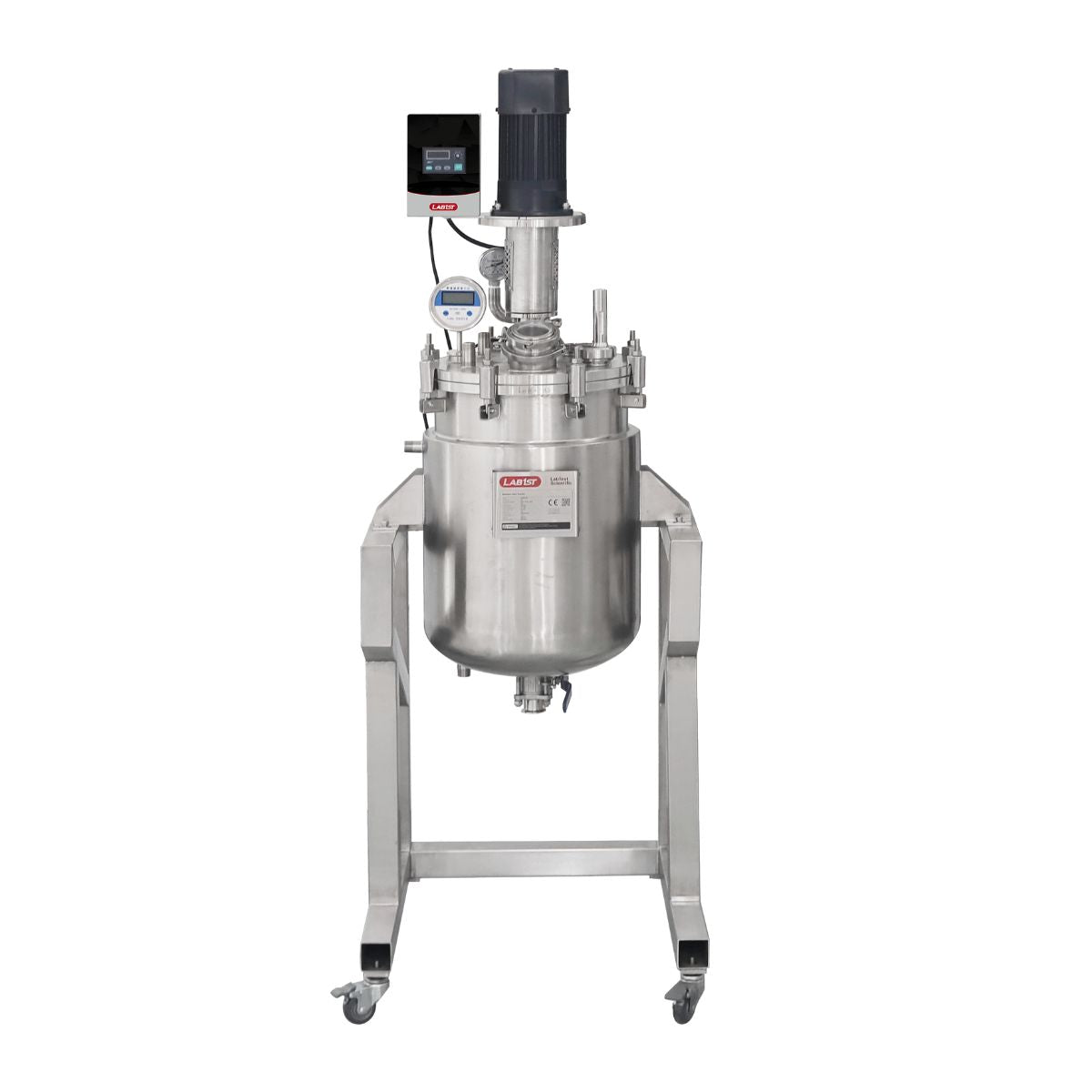

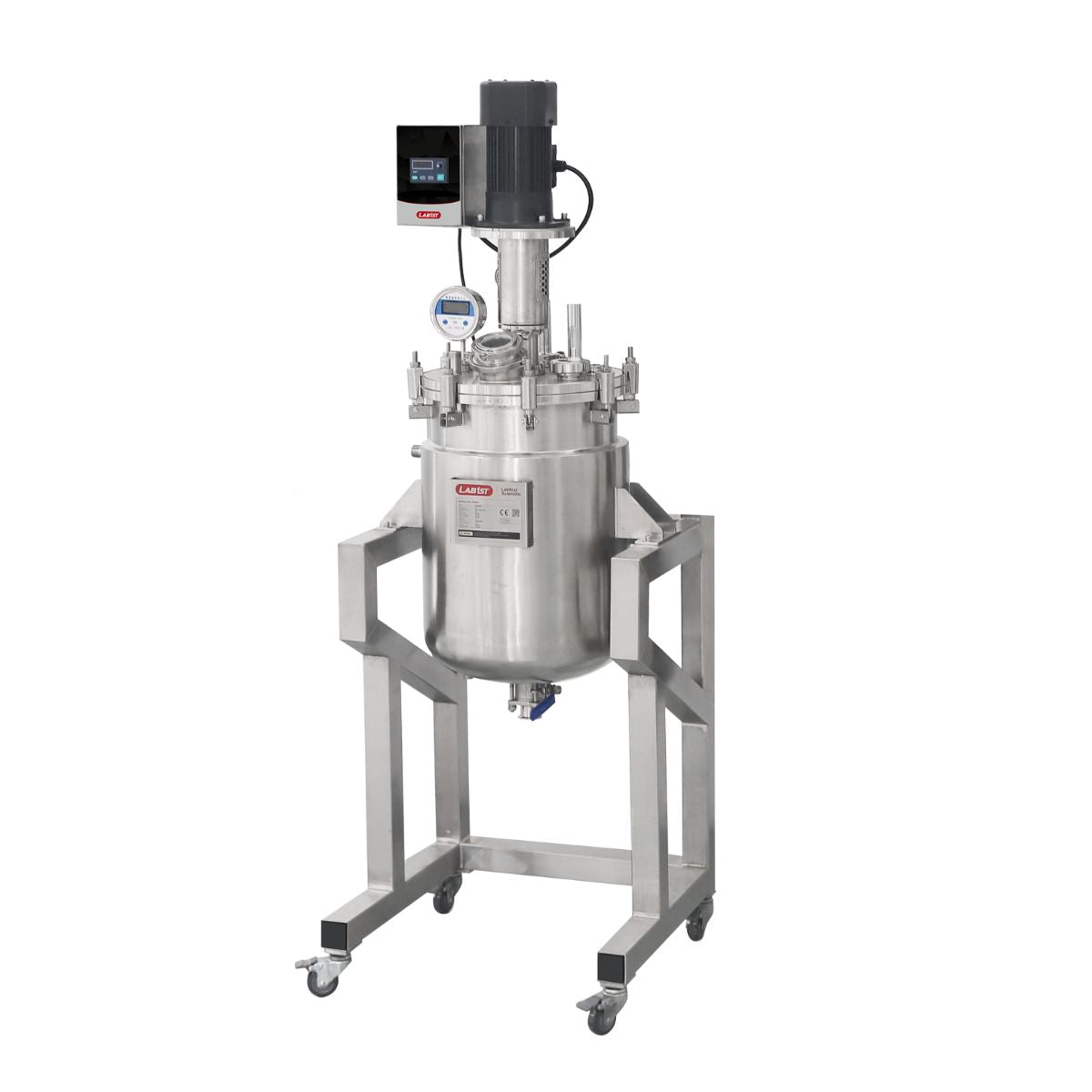

- Compact & Mobile: Space-saving stainless frame on wheels for easy repositioning.
-
Advanced Engineering
- Corrosion-Resistant Materials: SUS304, PTFE, FFKM, and PPL for demanding chemistry.
- Uniform Heating: Baffled thermal jacket ensures precise and consistent temperature control.
- Enhanced Mechanical Sealing: Reliable performance for long-term operation.
-
Flexible Configuration
- Plug & Play: Fully assembled and skid-mounted for quick commissioning.

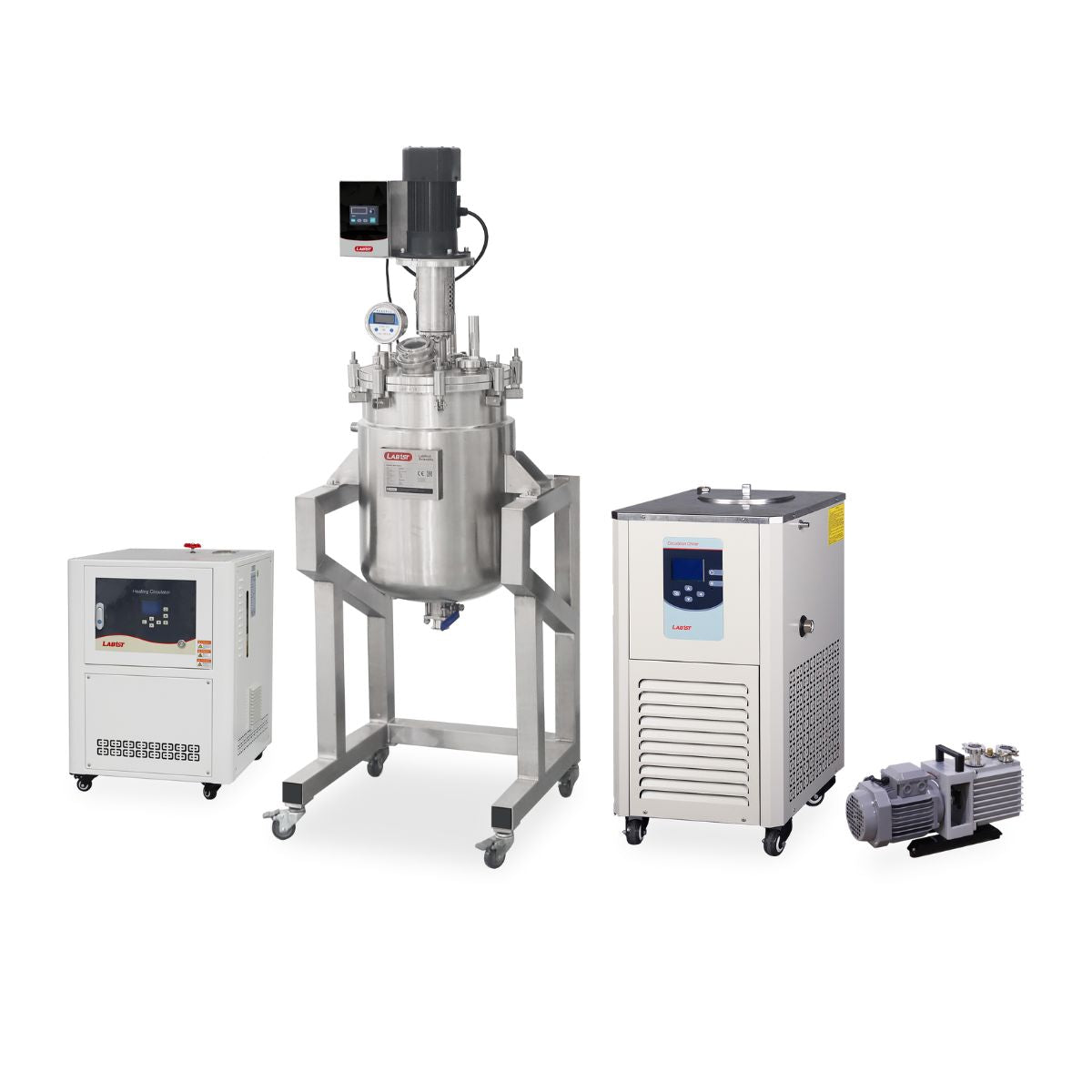

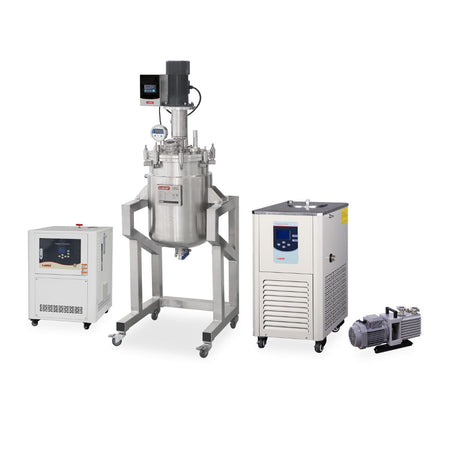

- Modular Upgrades: Optional condenser, solvent collection tank, keg, and filter modules.
- Customizable Systems: Tailored tank structures, control systems, automation, and safety certifications available.
-
Quality Assurance
- Turnkey Solution: From design to delivery, we handle everything.
- Certified & Compliant: CE certified; additional standards upon request.
-
Built to Last: Rugged design suitable for laboratory and industrial environments.
Specifications:
| Model: | SR500-5L | SR500-10L | SR500-20L | SR500-30L | |
| Material Design | SUS304, High Borosilicate Glass, FFKM, PTFE | ||||
| Design/Working Pressure | -0.1 MPa ~ 0.6 MPa [-1 bar ~ 6 bar] / -0.1 MPa ~ 0.5 MPa [-1 bar ~ 5 bar] | ||||
| Design/Working Temperature | -20 ~ 250°C / -20 ~ 220°C | ||||

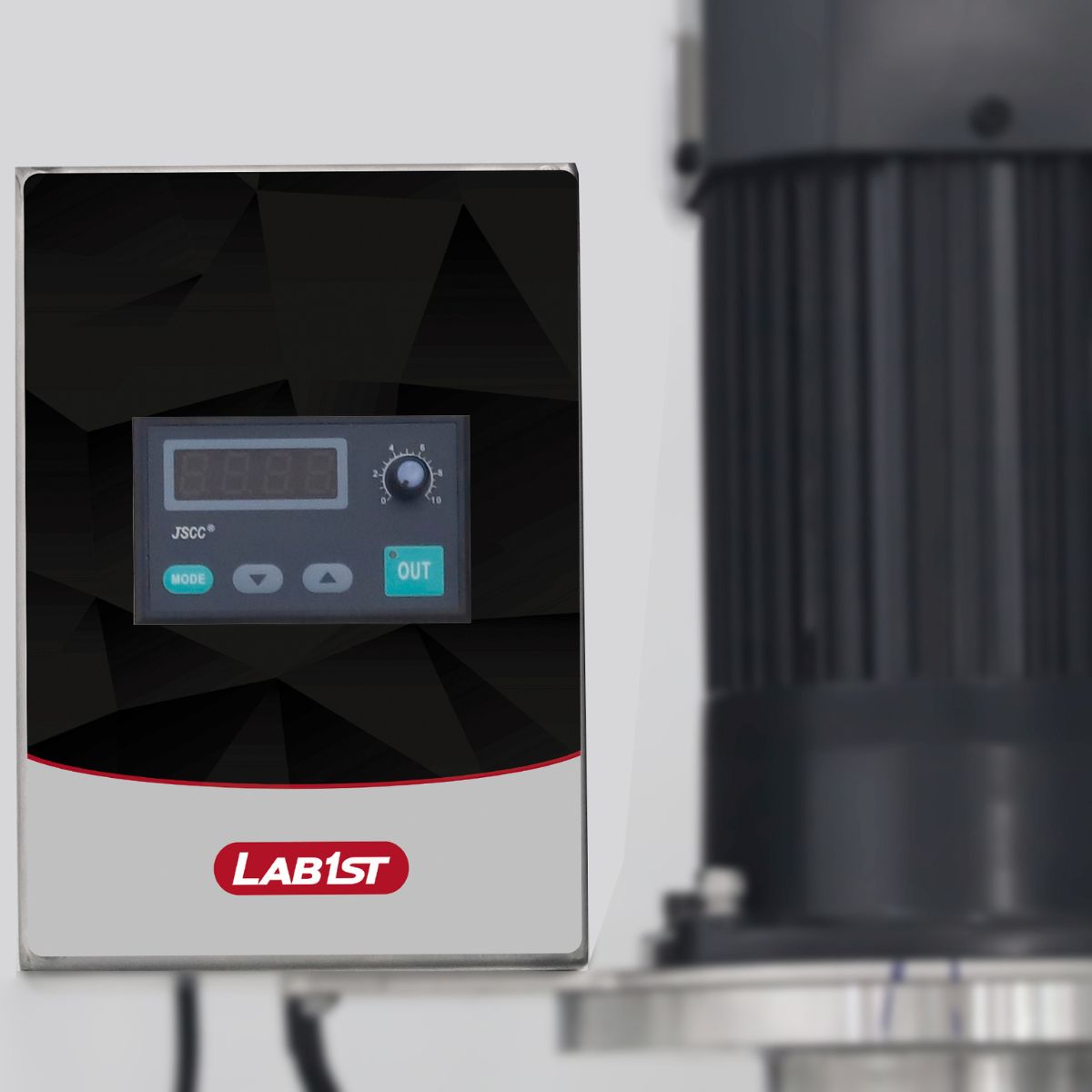

| Agitation | Variable Frequency Speed Control, 20 ~ 500 rpm [<50L], 20 ~ 550 rpm [≥50L] | ||||
| Environmental Requirements | Ambient Temp: 5 ~ 40°C, Humidity: ≤85% | ||||
| Communication | RS485 [Modbus RTU] | ||||
| Power Supply | AC200-240V, 1 Phase, 50-60Hz; AC108-120V, 1 Phase, 60Hz | ||||
| Total Volume [L] | 6.6 | 13.0 | 24.8 | 37.7 | |
| Max Operating Volume [L] | 5.4 | 10.5 | 20.4 | 31.0 | |
| Min Operating Volume [L] | 0.63 | 1.18 | 2.35 | 3.79 | |
| Heating Area [m²] | 0.2 | 0.32 | 0.5 | 0.65 | |
| Jacket Volume [L] | 2.94 | 6.52 | 9.53 | 12.43 | |
| Model: | SR500-50L | SR500-100L | SR500-150L | SR500-200L | |
| Material Design | SUS304, High Borosilicate Glass, FFKM, PTFE | ||||
| Design/Working Pressure | -0.1 MPa ~ 0.6 MPa [-1 bar ~ 6 bar] / -0.1 MPa ~ 0.5 MPa [-1 bar ~ 5 bar] | ||||
| Design/Working Temperature | -20 ~ 250°C / -20 ~ 220°C | ||||
| Agitation | Variable Frequency Speed Control, 20 ~ 500 rpm [<50L], 20 ~ 550 rpm [≥50L] | ||||
| Environmental Requirements | Ambient Temp: 5 ~ 40°C, Humidity: ≤85% | ||||
| Communication | RS485 [Modbus RTU] | ||||
| Power Supply | AC200-240V, 1 Phase, 50-60Hz; AC108-120V, 1 Phase, 60Hz | ||||
| Total Volume [L] | 61.5 | 118.3 | 172.6 | 229.6 | |
| Max Operating Volume [L] | 50.9 | 101.2 | 149.9 | 200.3 | |
| Min Operating Volume [L] | 5.96 | 13.42 | 18.19 | 23.99 | |
| Heating Area [m²] | 0.91 | 1.45 | 1.87 | 2.27 | |
| Jacket Volume [L] | 16.98 | 25.71 | 34.08 | 41.4 | |
