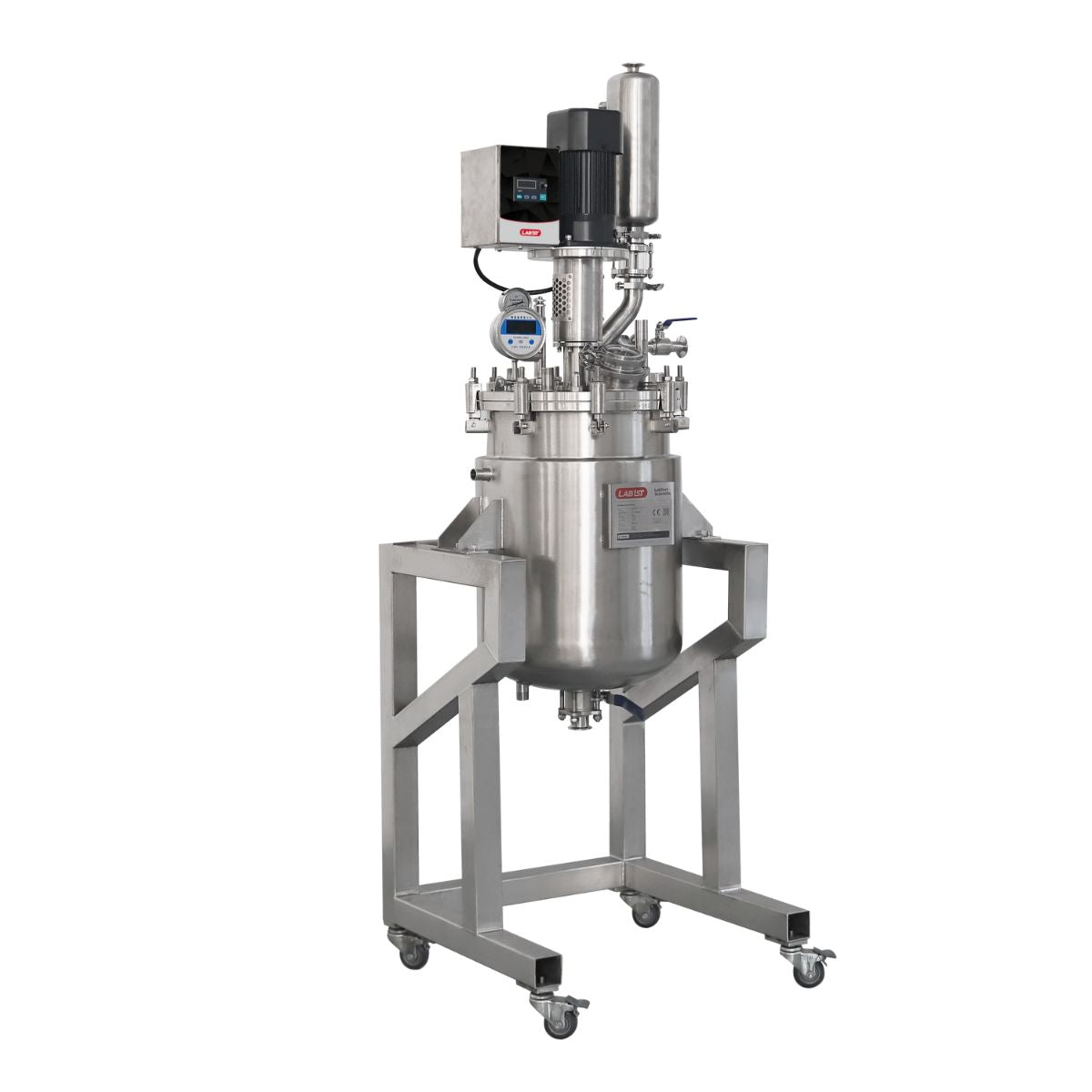

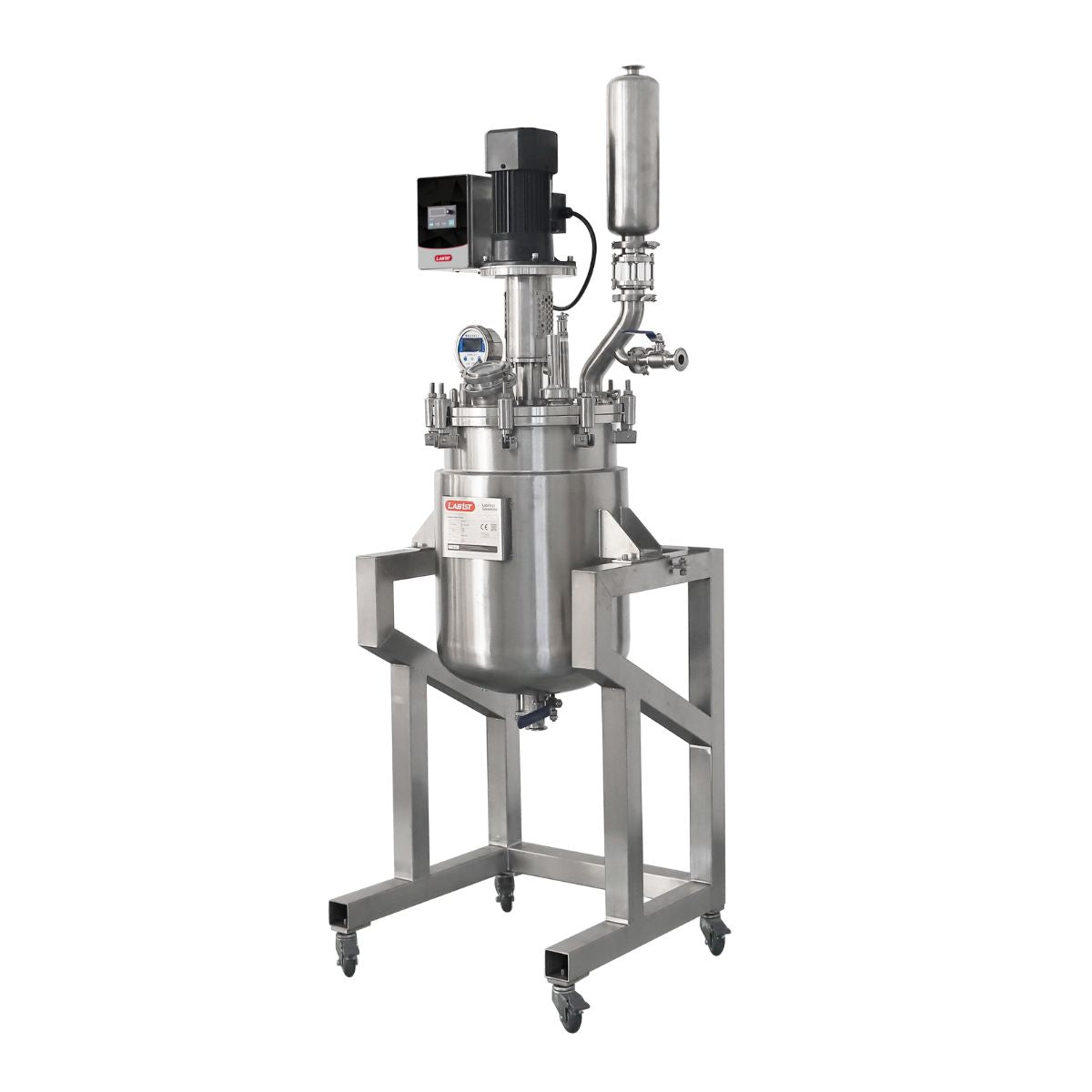

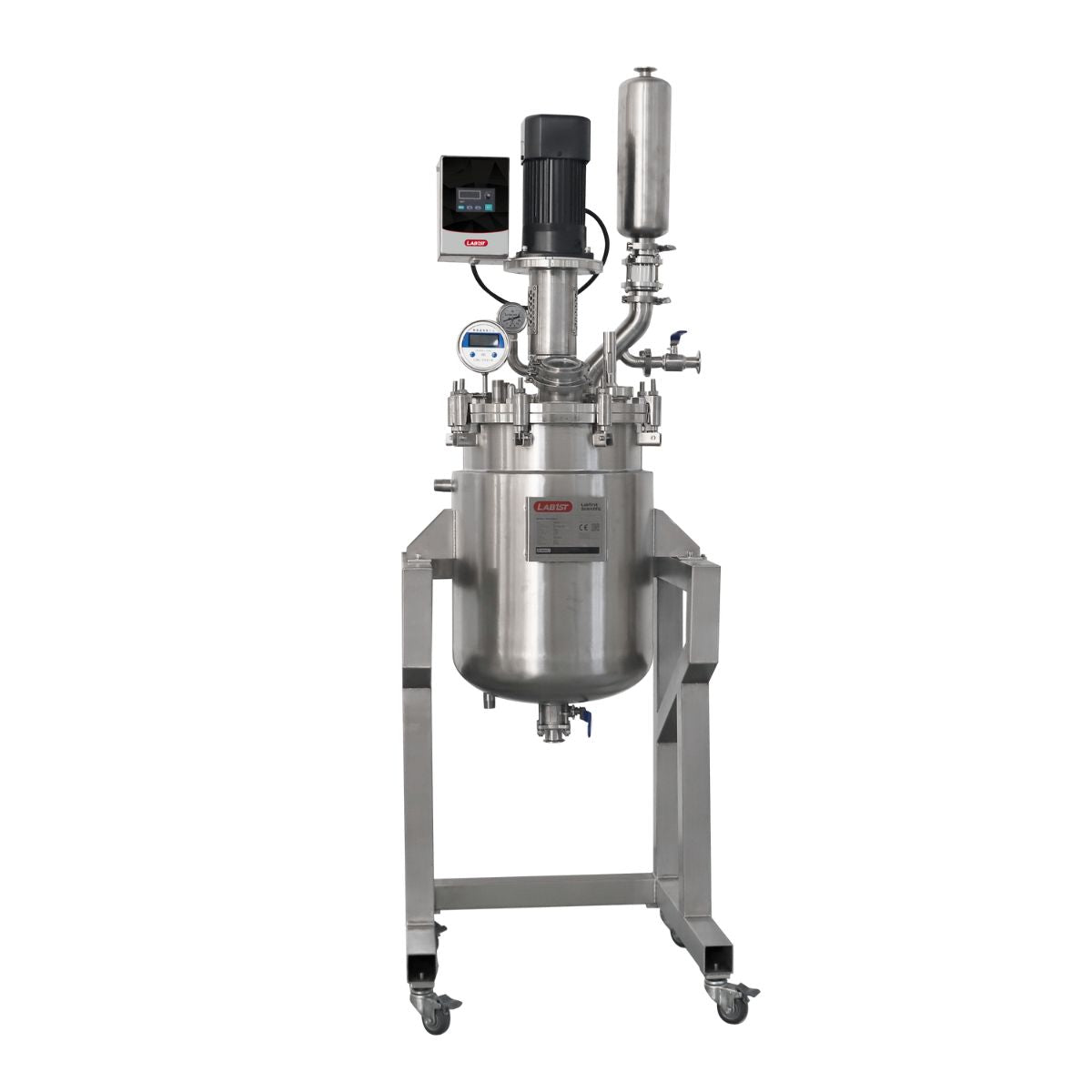

This stainless steel reactor system delivers scalable and reliable performance for R&D, pilot, and full-scale production. Built with corrosion-resistant SUS304 construction, it features a compact, mobile stainless frame and comes fully assembled as a ready-to-run unit. With uniform heating, robust mechanical sealing, and options for custom automation, it’s engineered for precision, compliance, and long-term operation in demanding environments.
Features:
-
Scalable Platform
- Multi-scale Capacity: 5L, 10L, 20L, 30L, 50L, 100L, 150L, and 200L (or larger)
- Modular Versatility: One apparatus enables multiple processes across R&D, pilot, and production scales
- Compact & Mobile: Space-saving stainless frame on wheels for easy repositioning
-
Ready-to-Run Systems

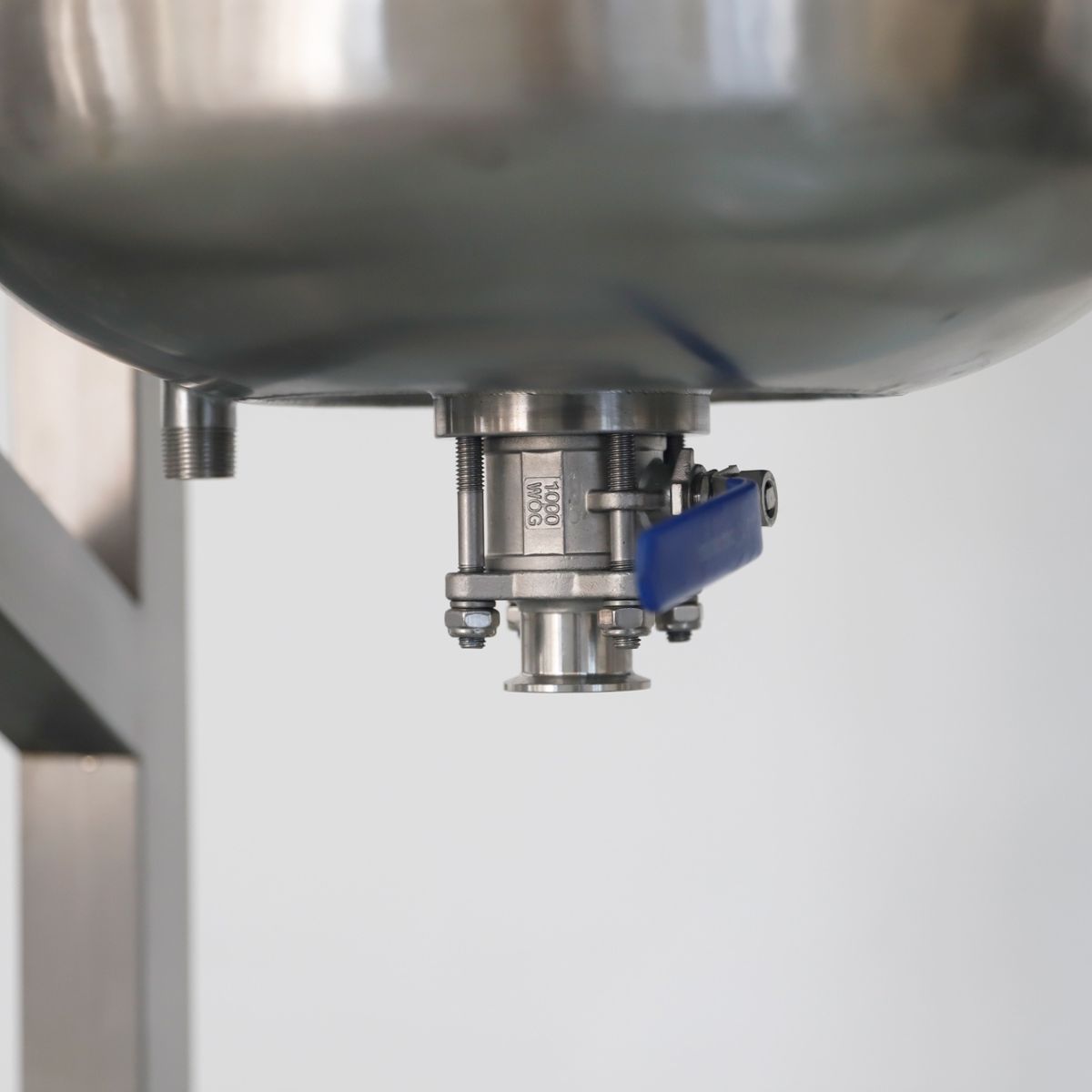

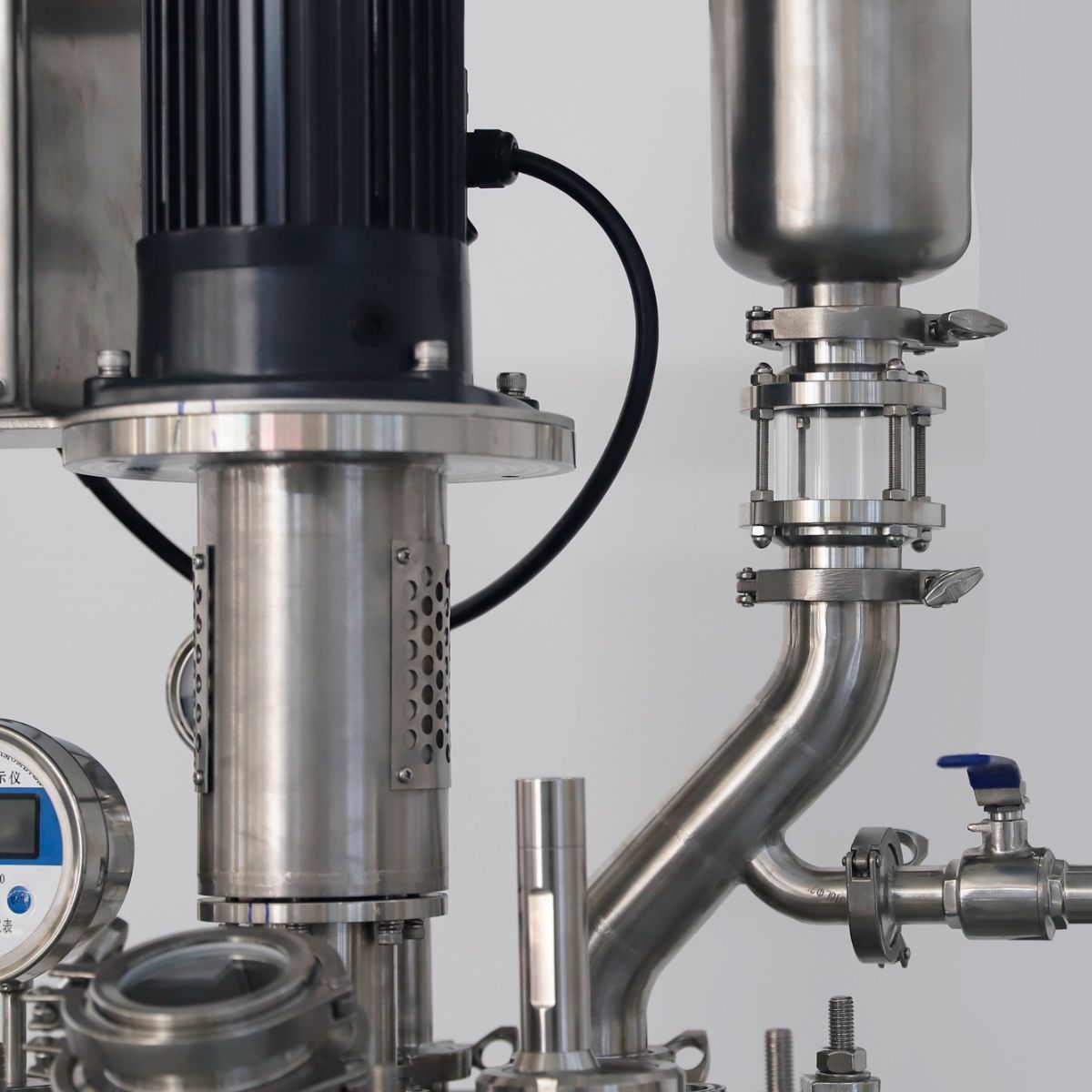

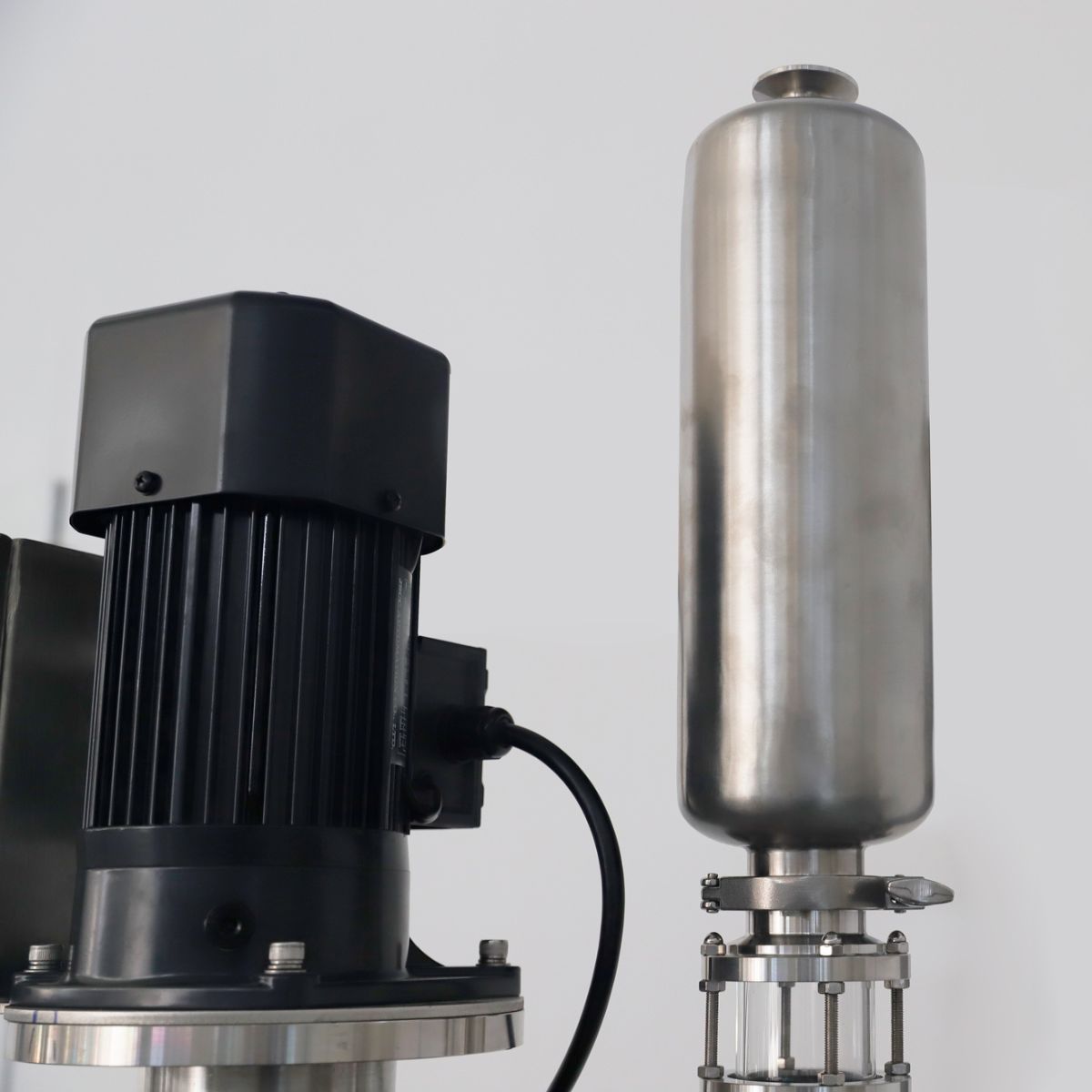

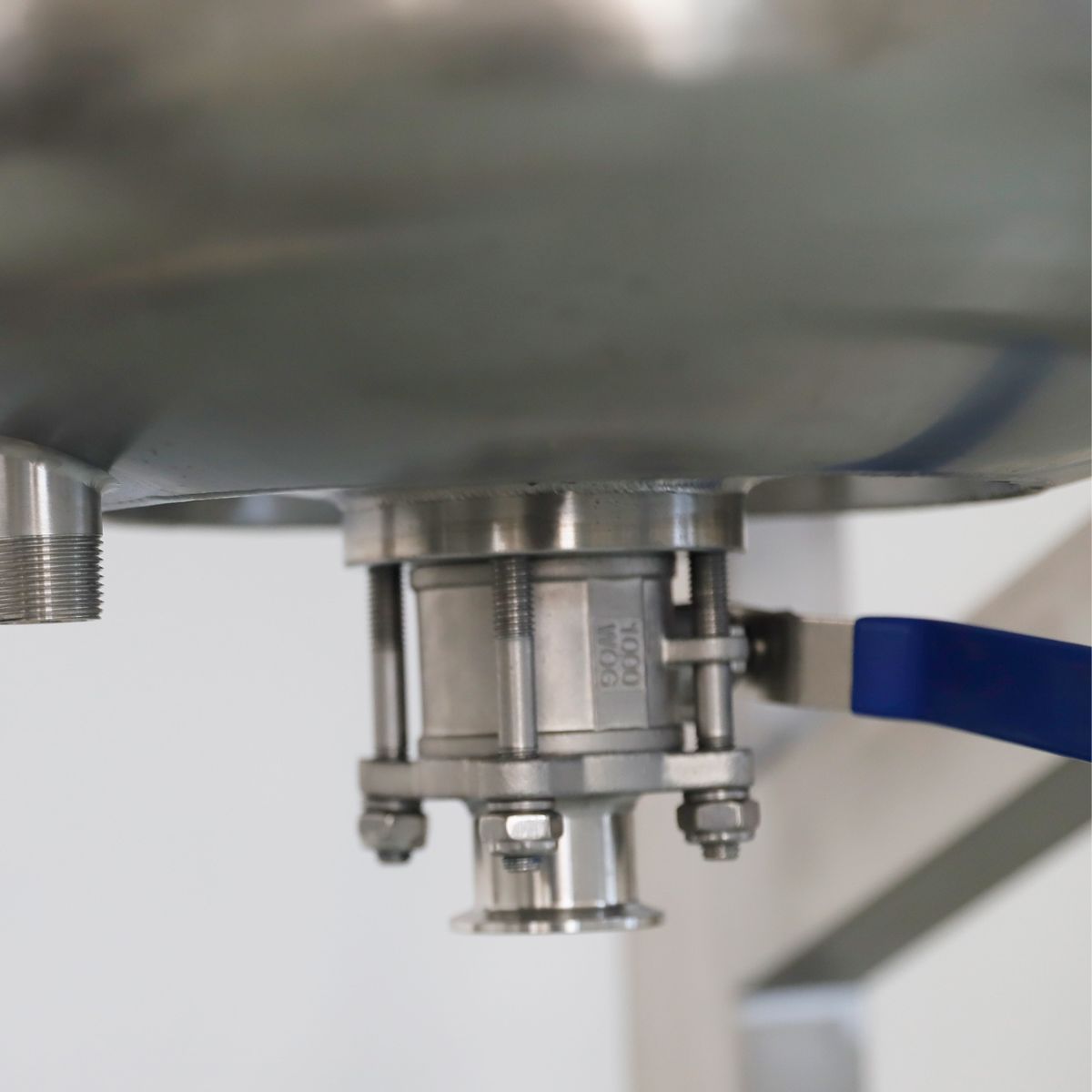

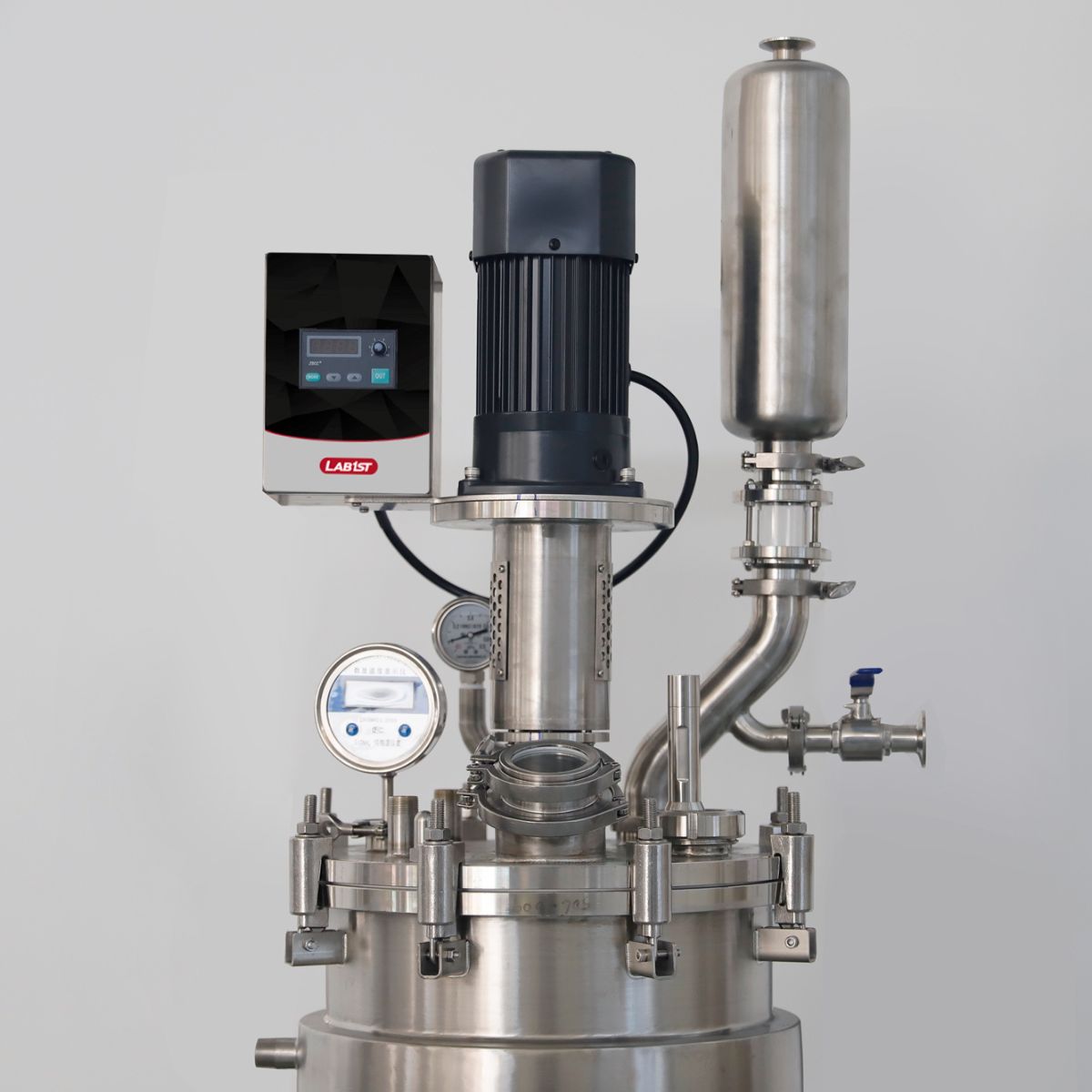

- Complete Integrated Package: Integrates the agitation motor, jacketed vessel, efficient stirrer, LED lighting, bottom discharge valve, and functional lid and reflux condenser
- Plug & Play: Fully assembled and skid-mounted for quick commissioning
- Customizable options: Tailored tank structures, control systems, automation, and safety certifications available
-
Advanced Engineering
- Corrosion-Resistant Materials: SUS304, PTFE, FFKM, and PPL for demanding chemistry
- Uniform Heating: Baffled thermal jacket ensures precise and consistent temperature control
- Enhanced Mechanical Sealing: Reliable performance for long-term operation
-
Quality Assurance
- Turnkey Solution: From design to delivery, we handle everything
- Certified & Compliant: CE certified; additional standards upon request
- Built to Last: Rugged design suitable for laboratory and industrial
Specifications:
| Model | SR500-5B | SR500-10B | SR500-20B | SR500-30B |
| Material Design | SUS304, High Borosilicate Glass, FRKM, PTFE | |||
| Design/Working Pressure | -0.1Mpa–0.6Mpa [-1bar–6bar] / -0.1Mpa–0.5Mpa [-1bar–5bar] | |||
| Agitation | Variable Frequency Speed Control, 20–500rpm [＜50L], 20–550rpm [≥50L] | |||
| Environmental Requirements | Ambient Temp: 5–40℃, Humidity: ≤85% | |||
| Communication | RS485 [Modbus RTU] | |||
| Power Supply | AC200-240V, 1Phase, 50-60HZ; AC108-120V, 1Phase, 60HZ | |||
| Total Volume [L] | 6.6 | 13.0 | 24.8 | 37.7 |
| Max Operating Volume [L] | 5.4 | 10.5 | 20.4 | 31.0 |
| Min Operating Volume [L] | 0.63 | 1.18 | 2.35 | 3.79 |
| Heating Area [m²] | 0.20 | 0.32 | 0.50 | 0.65 |
| Jacket Volume [L] | 2.94 | 6.52 | 9.53 | 12.43 |
| Reflux Condenser | ||||
| Heating Exchange Area [㎡] | 0.1 | 0.1 | 0.1 | 0.2 |
| Optional Collection Tank | 3L×1 | 3L×1 | 3L×1 | 3L×1 |
| Model | SR500-50B | SR500-100B | SR500-150B | SR500-200B |
| Material Design | SUS304, High Borosilicate Glass, FRKM, PTFE | |||
| Design/Working Pressure | -0.1Mpa–0.6Mpa [-1bar–6bar] / -0.1Mpa–0.5Mpa [-1bar–5bar] | |||
| Agitation | Variable Frequency Speed Control, 20–500rpm [＜50L], 20–550rpm [≥50L] | |||
| Environmental Requirements | Ambient Temp: 5–40℃, Humidity: ≤85% | |||
| Communication | RS485 [Modbus RTU] | |||
| Power Supply | AC200-240V, 1Phase, 50-60HZ; AC108-120V, 1Phase, 60HZ | |||
| Total Volume [L] | 61.5 | 118.3 | 172.6 | 229.6 |
| Max Operating Volume [L] | 50.9 | 101.2 | 149.9 | 200.3 |
| Min Operating Volume [L] | 5.96 | 13.42 | 18.19 | 23.99 |
| Heating Area [m²] | 0.91 | 1.45 | 1.87 | 2.27 |
| Jacket Volume [L] | 16.98 | 25.71 | 34.08 | 41.40 |
| Reflux Condenser | ||||
| Heating Exchange Area [㎡] | 0.2 | 0.3 | 0.5 | 0.5 |
| Optional Collection Tank | 5L×1 | 10L×1 | 10L×1 | 15L×1 |
Customized Cases:
If you require customization, please contact us at eshop@lab1st.com for more information.
