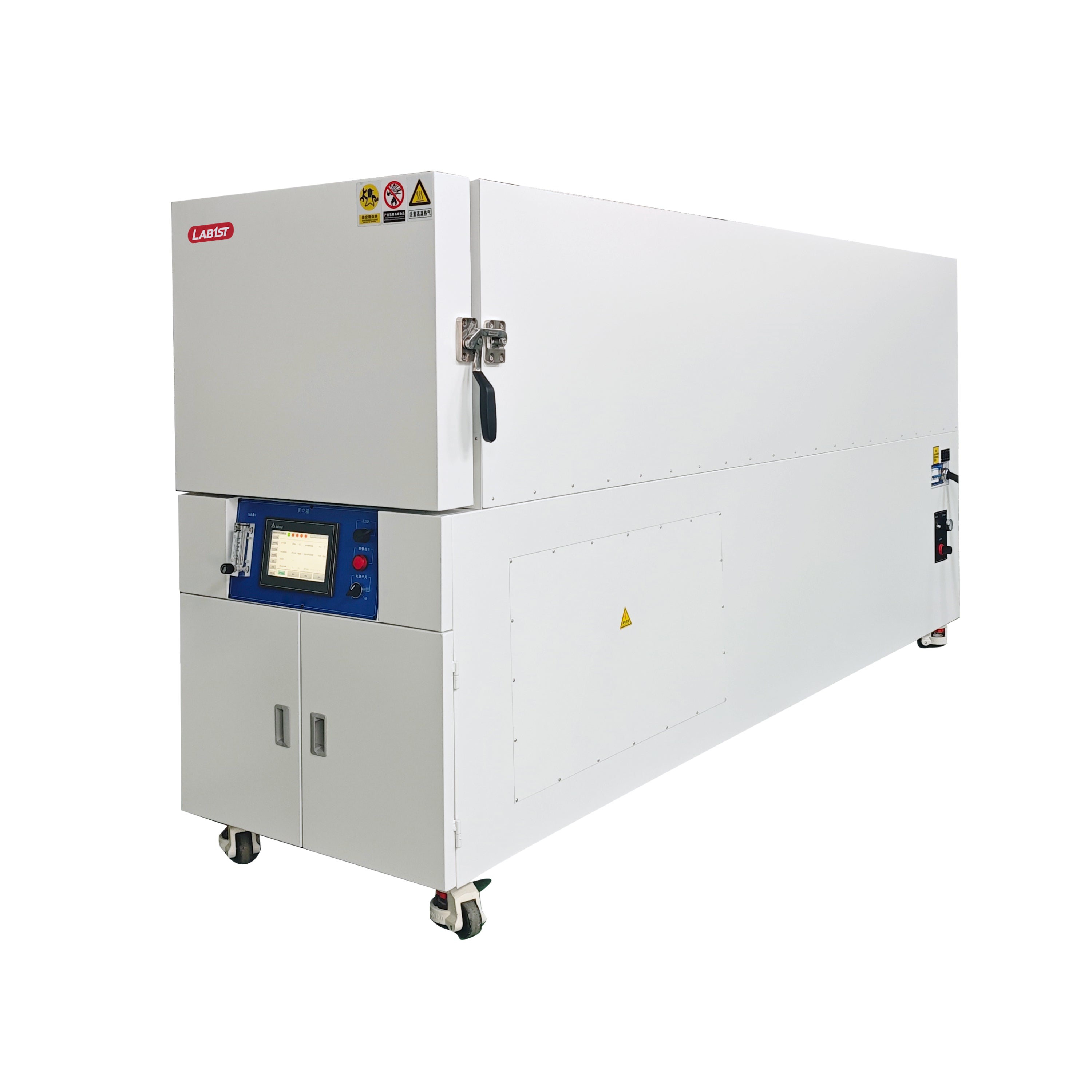

This system features an internal dimension of 500×2700×500 mm and a temperature range from RT+50°C to 400°C, with Siemens PLC intelligent control and external heating. It offers a temperature resolution of 0.1°C and fluctuation of ±1°C. The design limit vacuum is 100Pa, and the 7-inch color touch screen displays temperature and vacuum on one screen. The system includes a USB data interface and allows pressure relief via air or nitrogen with direct touch screen operation. An oil-free screw dry pump with an 8L/S air extraction rate is recommended for the vacuum system.
For more customized cases, please click here to see details. Or you could contact us (eshop.lab1st.com) for more information.
Features:
- Internal Dimension [W×D×H]: 500×2700×500mm
- Temperature Range: RT+50~400℃
- Temperature control method/heating method: Siemens PLC intelligent temperature control/external heating
- Temperature resolution/fluctuation: 0.1℃/±1℃
- Design limit vacuum: 100Pa
- Controller: 7-inch color touch screen, temperature, vacuum, one-screen display, USB data interface
- Pressure relief method: air or nitrogen enters the pressure relief, touch screen direct touch operation
- Vacuum system recommended: oil-free screw dry pump, air extraction rate 8L/S
Customized Contents:
| Model | DZF-HX2700M |
| Temperature Range | RT+50~400℃ |

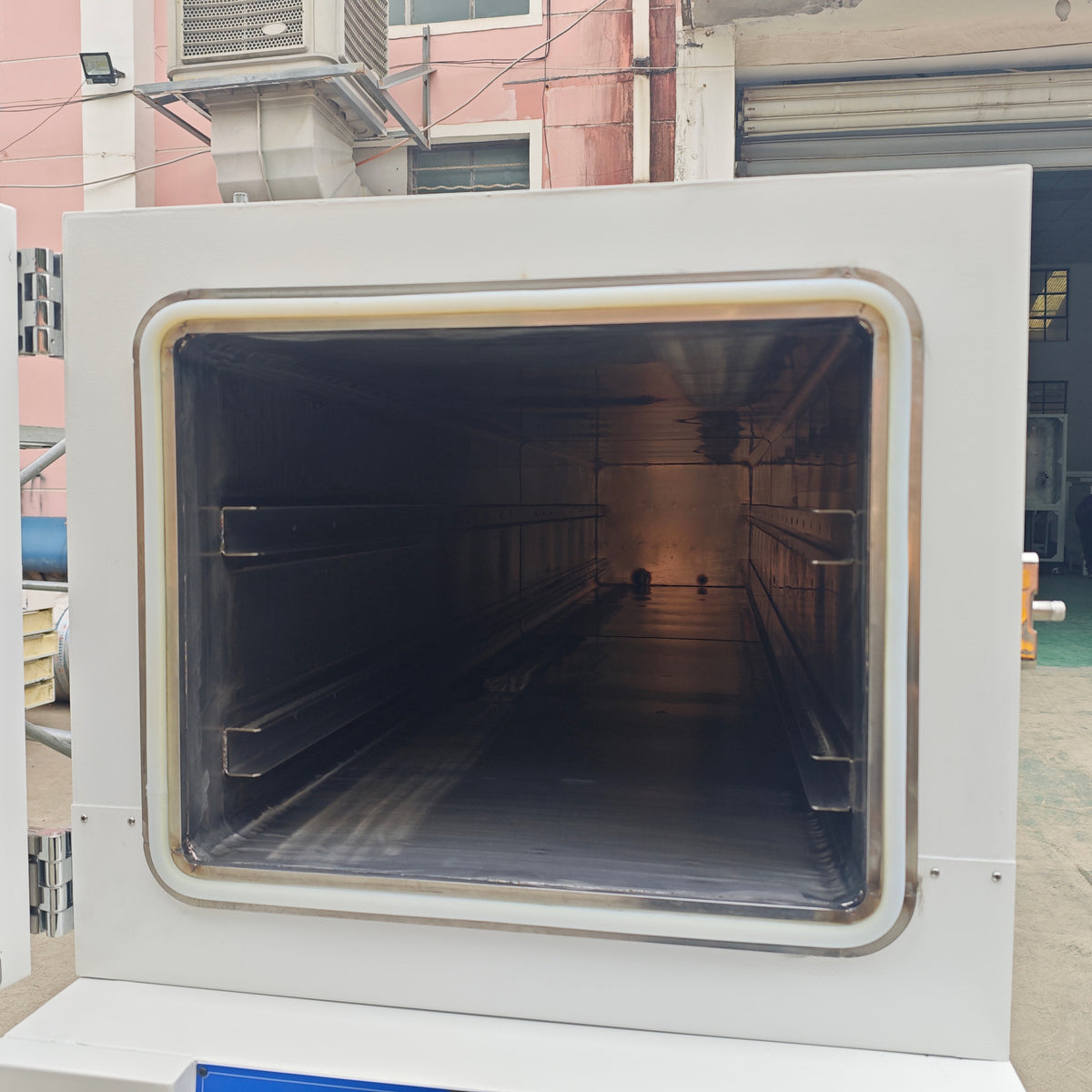

| Internal Dimension [W×D×H] | 500 × 2700 × 500mm |

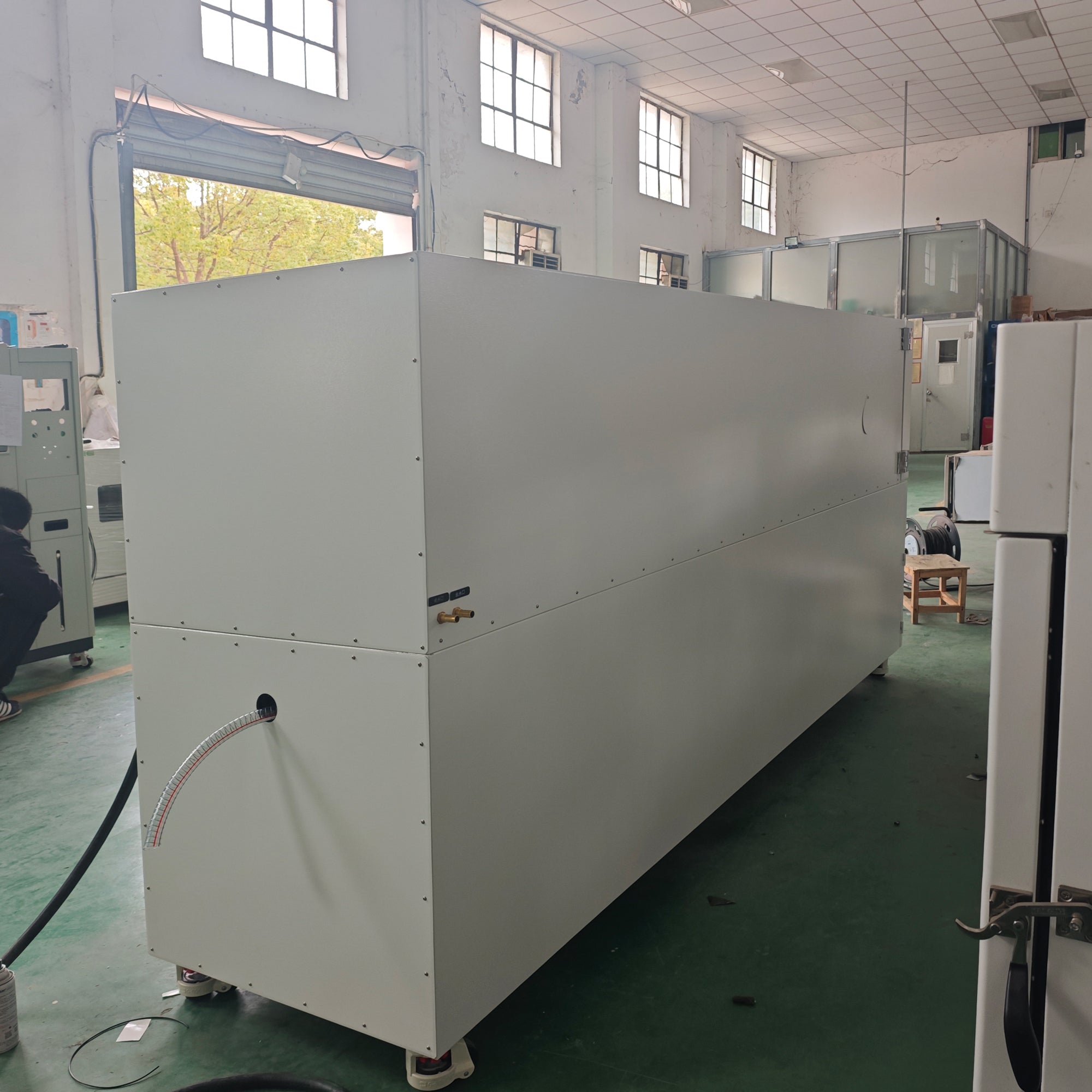

| External Dimension [W×D×H] | 750 × 2850 × 1360mm |

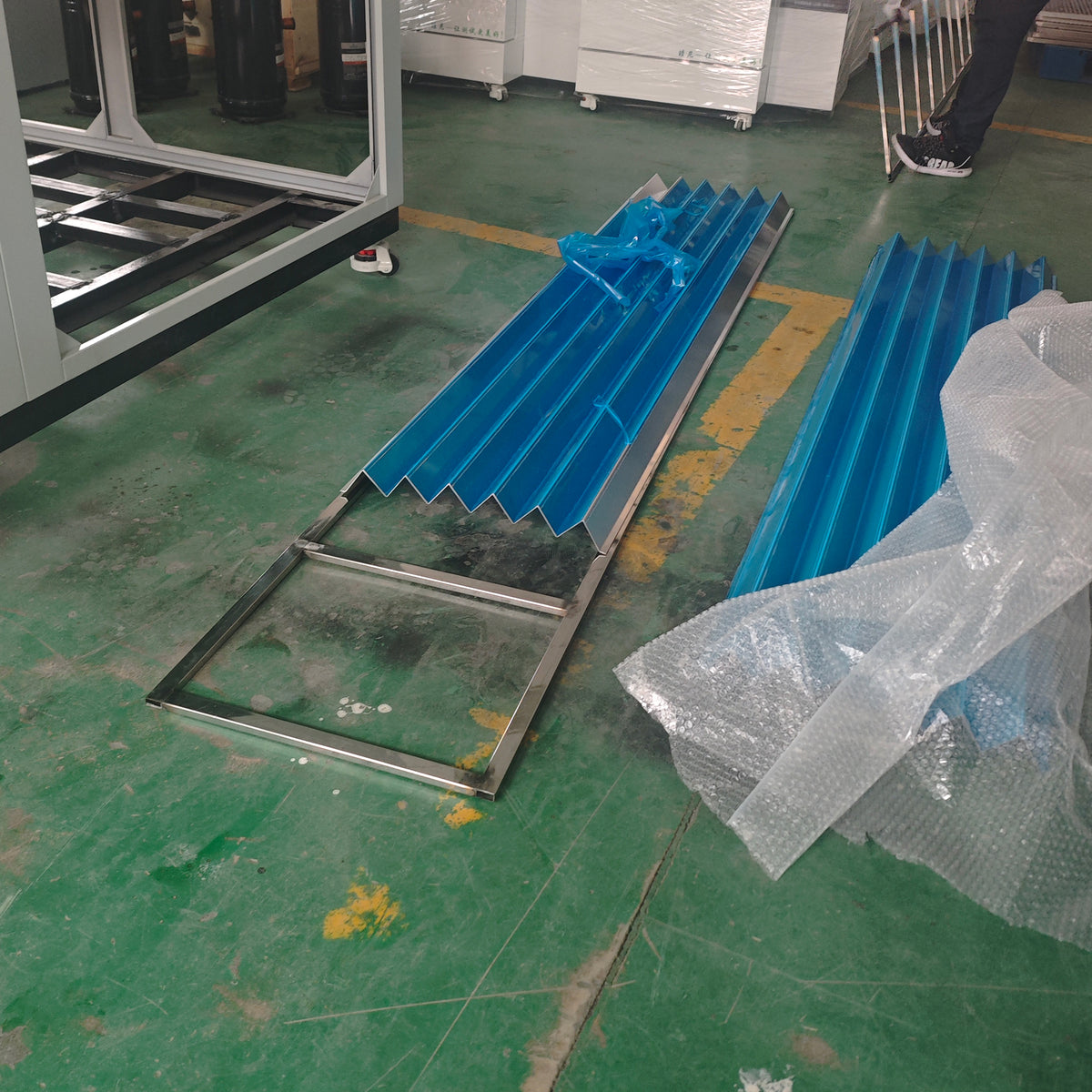

| Shelves | 2pcs (customized type) |

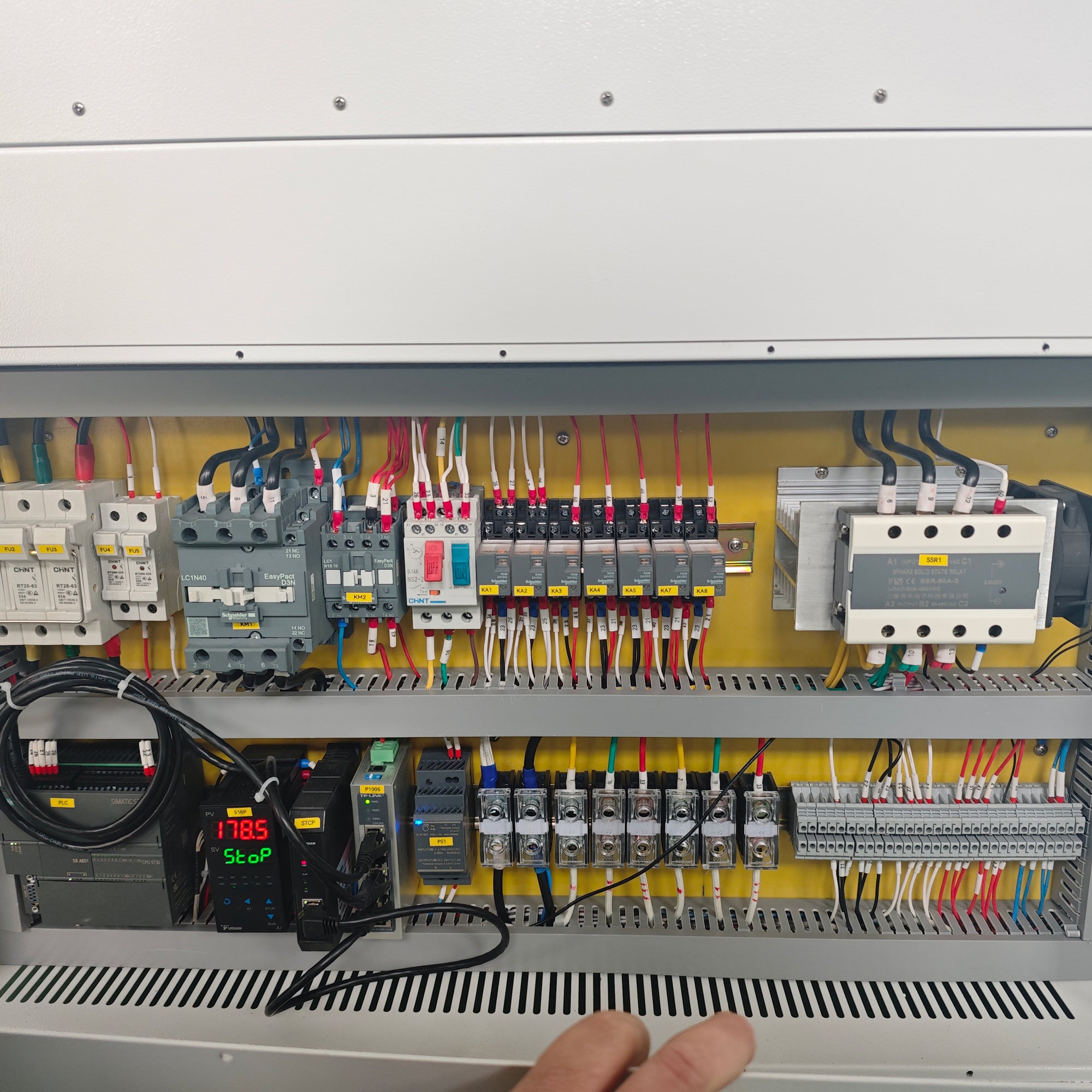

| Temperature Control | Siemens PLC intelligent control |
| Heating Method | External heating |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | 1℃ |
| Vacuum Display | Digital Touchscreen Display |
| Ultimate Vacuum | 100Pa |

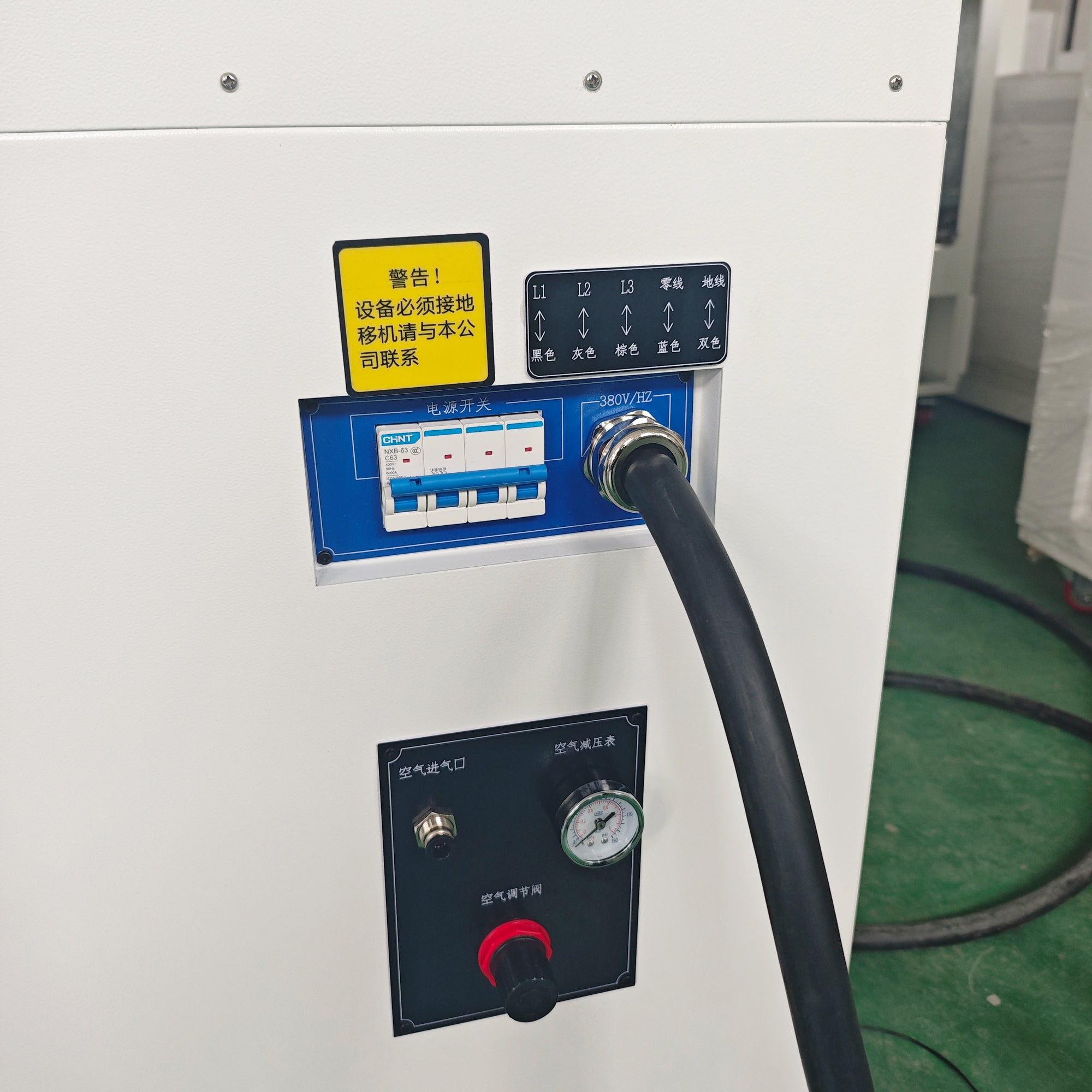

| Power Supply | AC 380V/50Hz, three-phase five-wire system |
| Heating Power | 16.5KW |

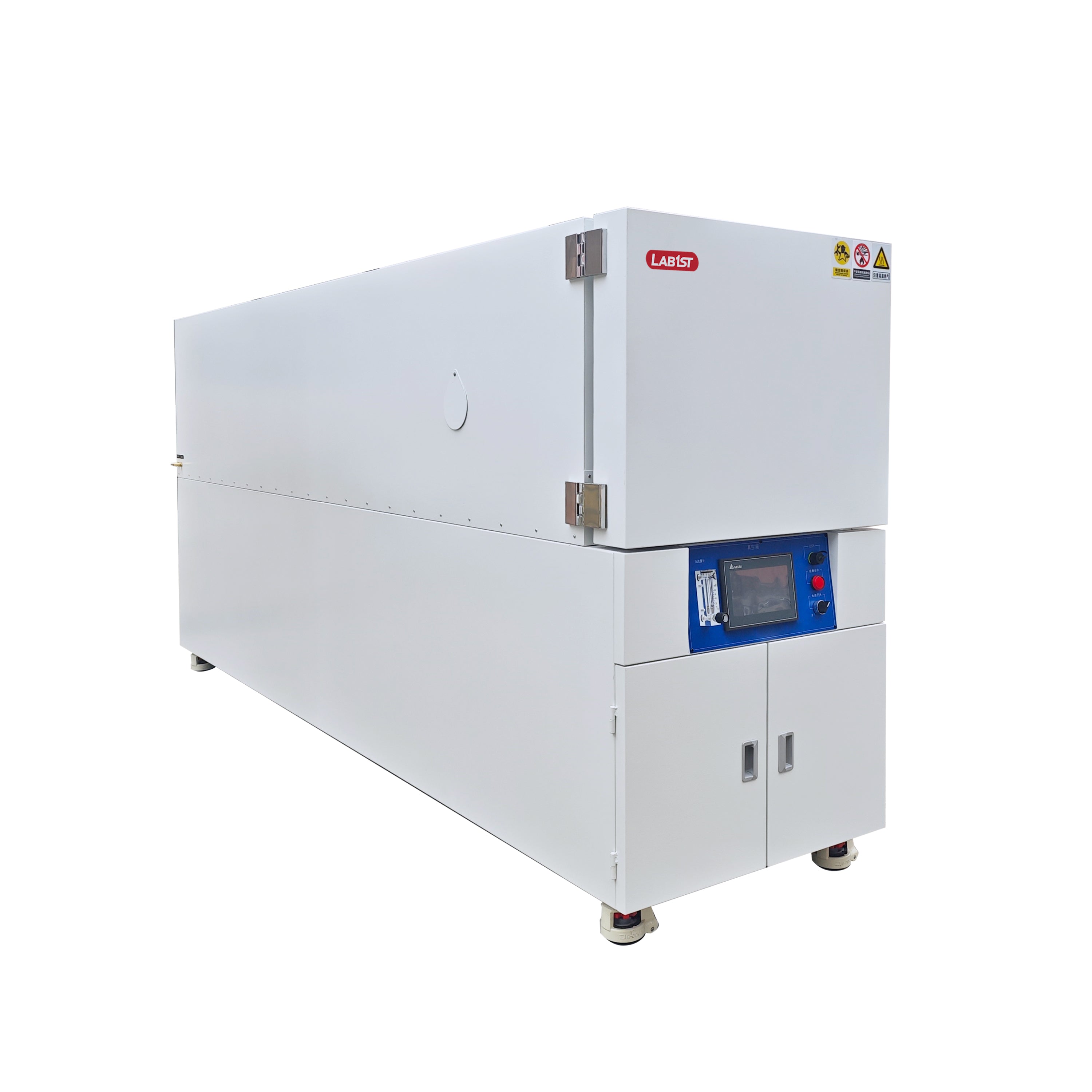

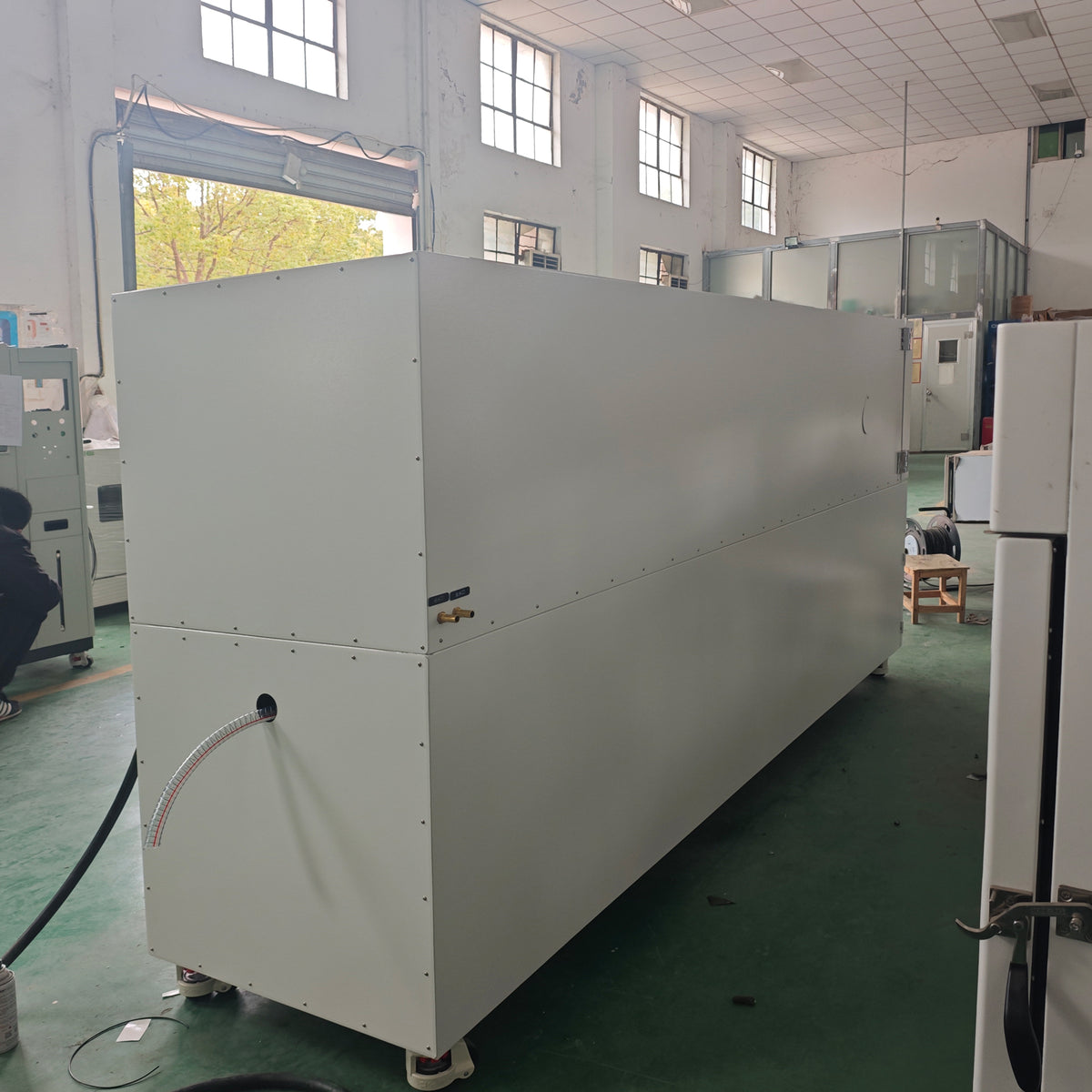

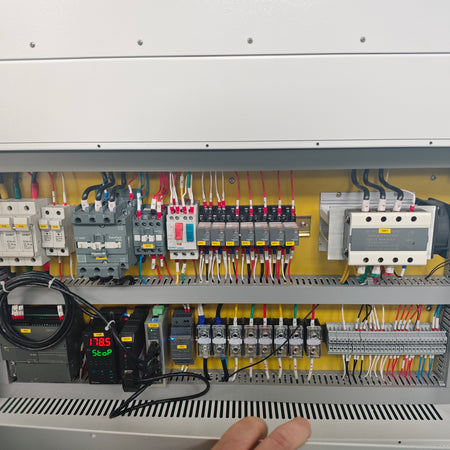

| Equipment Structure | Vertical structure: upper - working chamber; middle - control system; lower - vacuum system (pump located inside lower cabinet) |

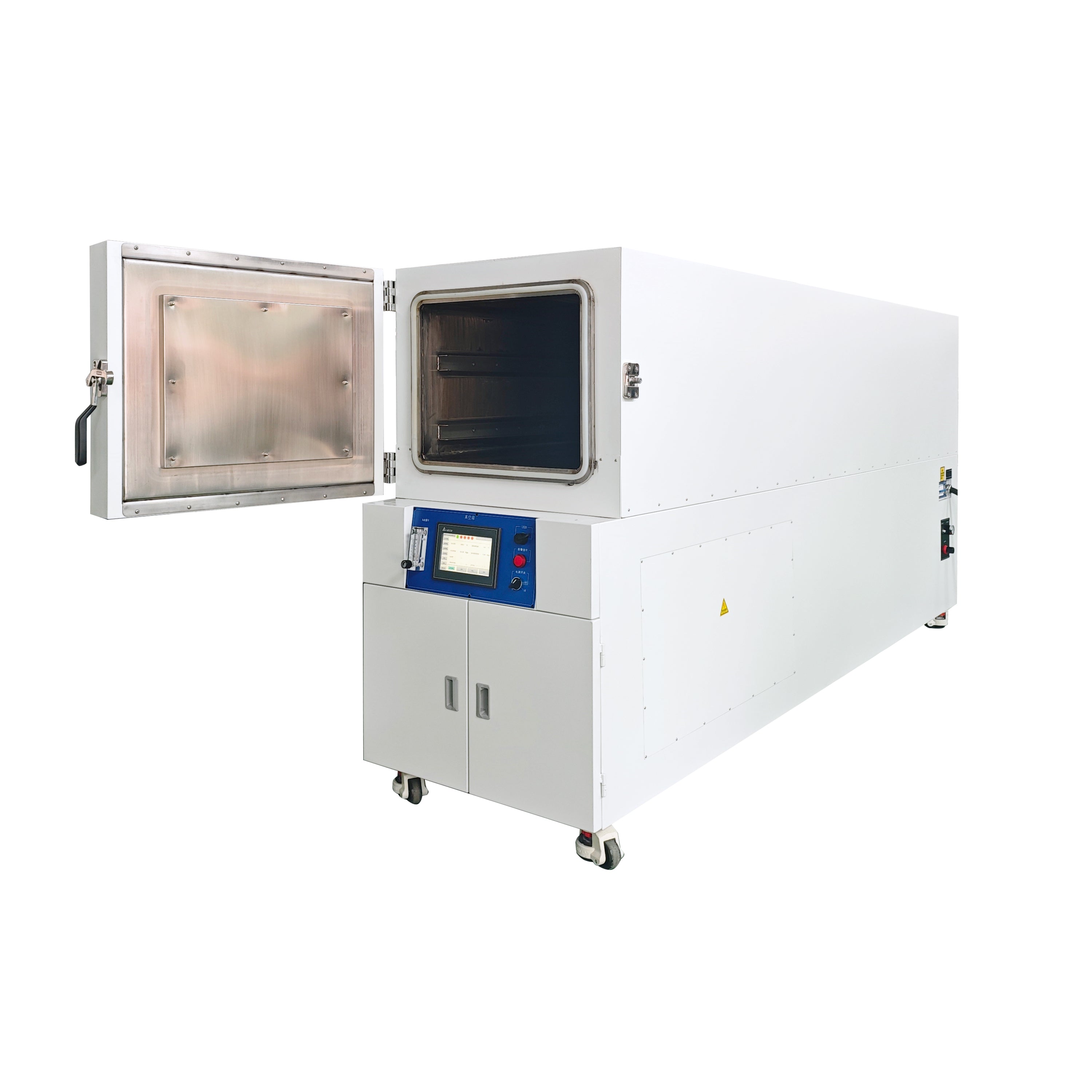

| Door Structure | Single door, left-hinged, no viewing window |
| Chamber Material | SUS304 stainless steel plate |
| Exterior Material | 1.5 mm thick cold-rolled steel plate, electrostatic powder coated (Color: RAL 9003 white) |
| Main Controller | 7-inch color touch screen, displaying temperature and vacuum degree simultaneously |
| Pressure Relief Method | Air or nitrogen purge, touch screen operation |
| Data Export | Equipped with USB interface for exporting experimental data, supporting connection to PC for data display, storage, and replay |
| Insulation Layer | Filled with high-temperature resistant fireproof ceramic fiber, 100 mm thick |
| Door Lock | Specialized compression rotary door lock |
| Casters | Heavy-duty universal casters with leveling adjustment |
