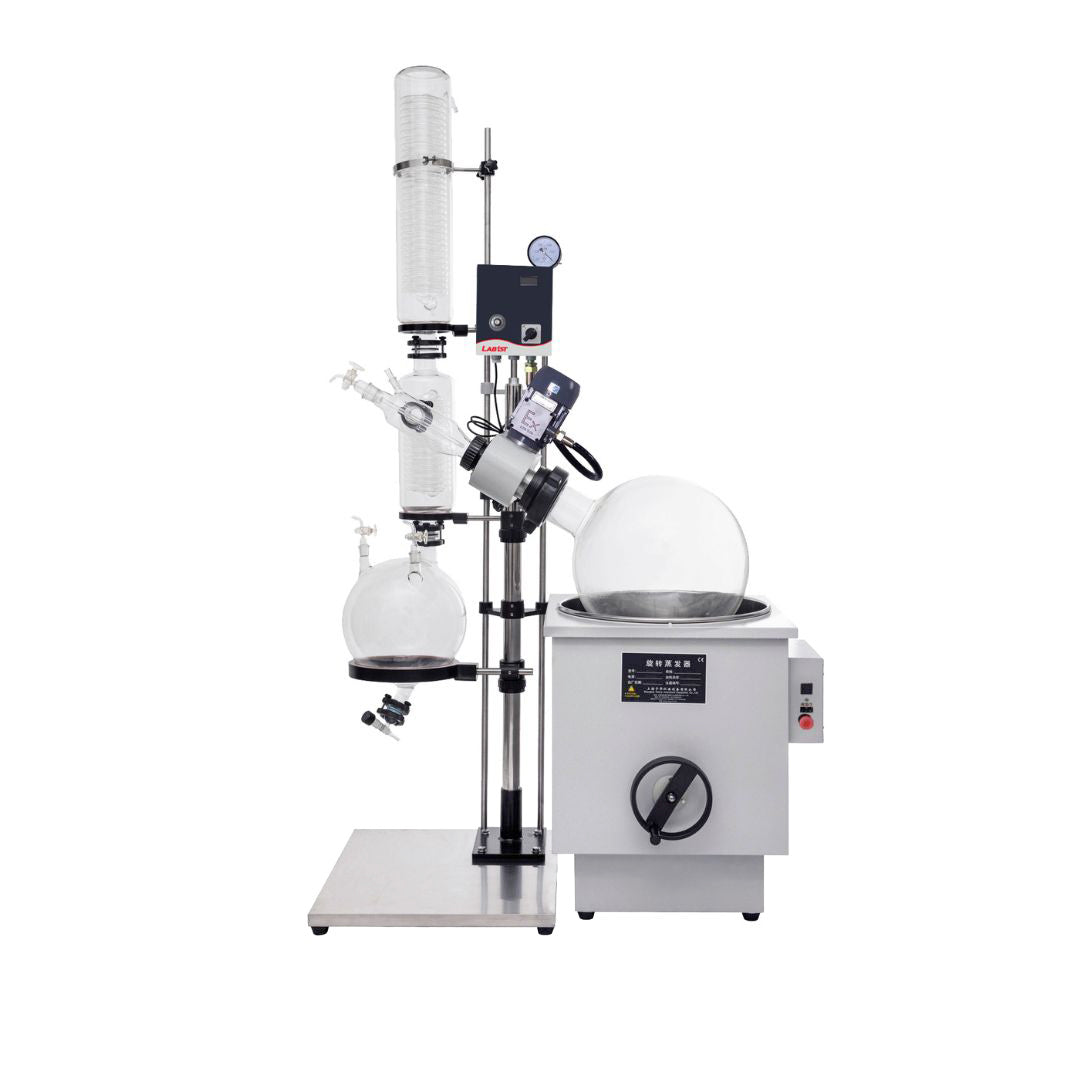

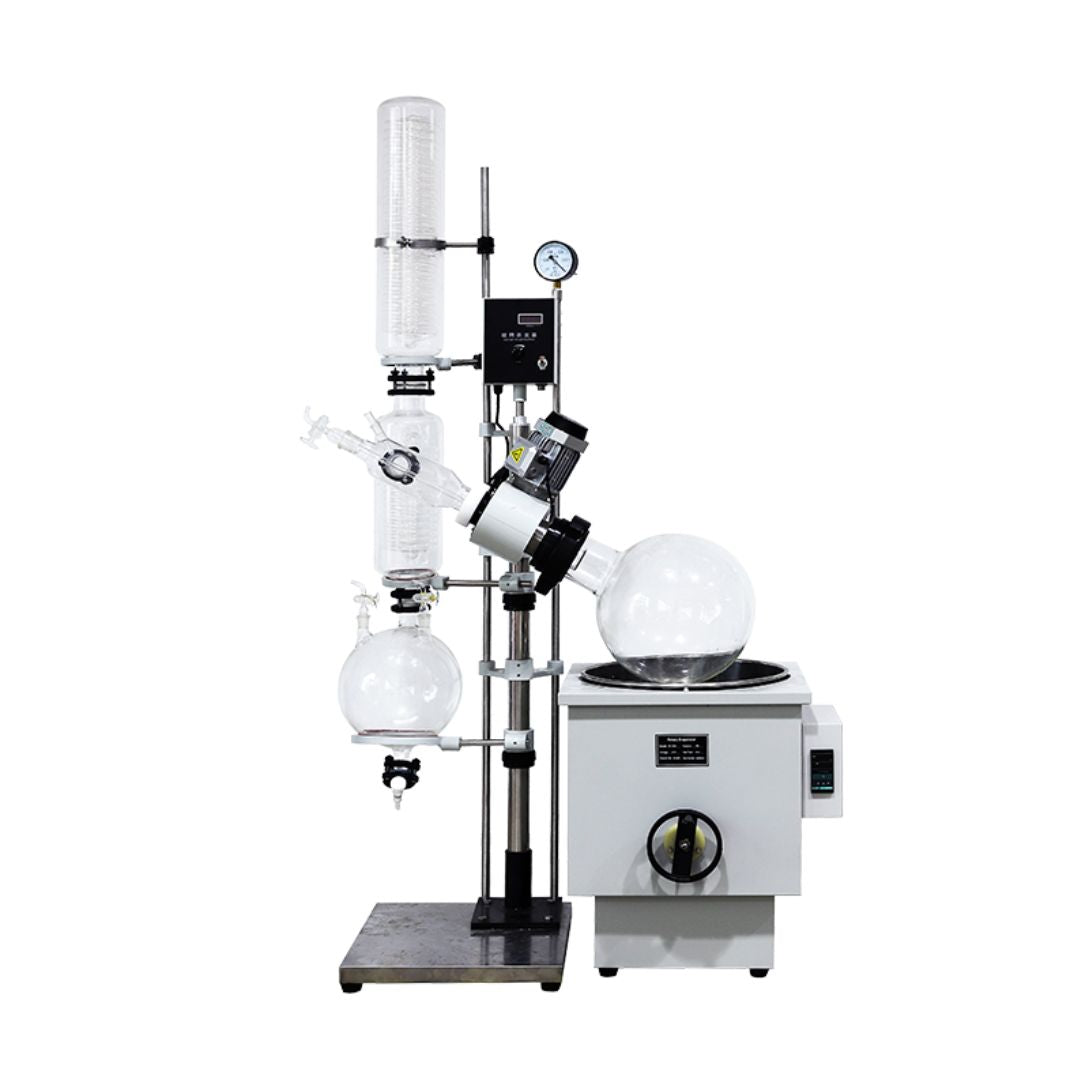

Rotary Evaporator Lab Manual Lifting Rotavap
Got questions?
Feel free to get in touch
Couldn't load pickup availability
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such an-hexane or ethyl acetate from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound if there is minimal co-evaporation (azeotropic behavior), and a sufficient difference in boiling points at the chosen.
We could also provide the other liters and kinds of the Rotary Evaporators, pls click here to learn more about it.
Features:
- Small footprint, quiet operation
- User-friendly operation with hand water bath lifting
- Fully customizable condenser structure
- Swivel casters can be adjusted for rotovap to stand securely on uneven floor
- Solvent-resistant PTFE and Viton gaskets, ensuring long time operation
- Downward-condensing vacuum connection design ensures safe vacuum operation
- Easy, straight-forward visual operation with digital speed and temperature display
- Immediate adjustment of heating temperature and rotation speed with LCD display controller
Specification:
| Model | RE-110 | RE-120 | RE-130 | RE-150 |
| Rotary flask | 10 L | 20 L | 30 L | 50 L |
| Receiving flask | 5 L | 10 L | 20 L | 20 L |
| Condensing area | 0.59 ㎡ | 1 ㎡ | 1 ㎡ | 1.5 ㎡ |
| Condenser type | Main condenser + assistant condenser | |||
| Evaporating speed | H₂O ＞ 3 L/h | H₂O ＞ 5 L/h | H₂O ＞ 7 L/h | H₂O ＞ 9 L/h |
| Discharge | PTFE (Teflon) Bottom discharge valve | |||
| Motor power | 180W | 180W | 250W | 250W |
| Rotation speed | 10~120 rpm/min | 10~90 rpm/min | ||
| Bath power | 3KW | 3KW | 6KW/9KW | 6KW/9KW |
| Voltage | 220V/60Hz | 220V/60Hz | 220V/60Hz | 380V/60Hz |
| Bath temp. range | Water: RT~99℃, Oil: RT~200℃, ±0.2℃ | |||
| Glass material | GG-17 (3.3) High Borosilicate Glass | |||
| PTFE Sealing | Excellent wear and corrosion resistance | |||
| Vacuum Meter | -0.1~0Mpa | |||
| Reachable vacuum rate | <133Pa (1.33mbar, 1 Torr, 1mmHg) | |||
| Bath dimension | 56*48*63.5cm | 61*57*65cm | 67*67*71cm | 73*73*75cm |
More information, pls click here to download the brochure.
We also provide customized services, please contact us (eshop@lab1st.com) if you have any needs.
