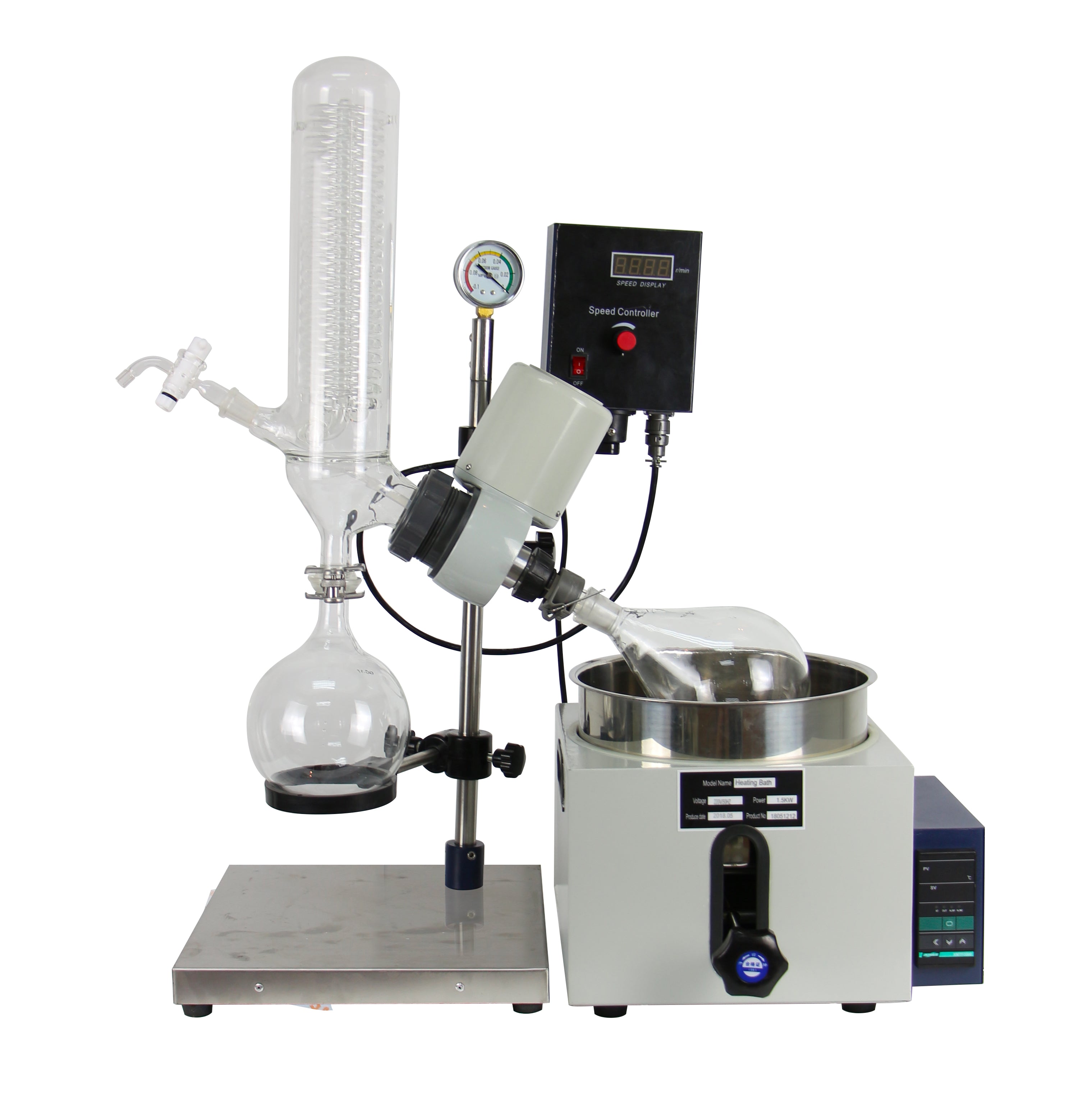

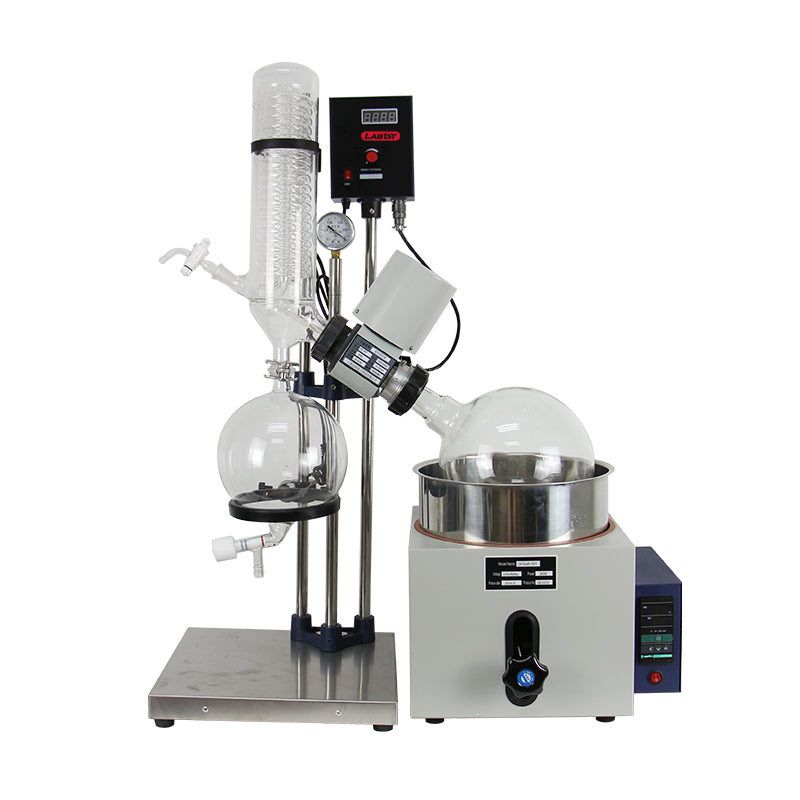

Rotary Evaporator Lab Manual Lifting Rotavap
Got questions?
Feel free to get in touch
Couldn't load pickup availability
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such an-hexane or ethyl acetate from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound if there is minimal co-evaporation (azeotropic behavior), and a sufficient difference in boiling points at the chosen.
We could also provide the other liters and kinds of the Rotary Evaporators, pls click here to learn more about it.
Features:
- Small footprint, quiet operation
- User-friendly operation with hand water bath lifting
- Fully customizable condenser structure
- Swivel casters can be adjusted for rotovap to stand securely on uneven floor
- Solvent-resistant PTFE and Viton gaskets, ensuring long time operation
- Downward-condensing vacuum connection design ensures safe vacuum operation
- Easy, straight-forward visual operation with digital speed and temperature display
- Immediate adjustment of heating temperature and rotation speed with LCD display controller
Specification:
| Model | RE-102 | RE-105 |
| Glass Material | GG-17 | |
| Support Material | Stainless Steel | |
| Size of Shell (mm) | 270*270*195 | 310*320*240 |
| Size of Baffle (mm) | 250*140 | 280*170 |
| Size of Baseboard (mm) | 280*330 | 350*330 |
| Volume of Rotary Flask | Standard configuration 1L, 24# standard | 5L, φ 50 flange mouth |
| Volume of Receiving Flask | 1L 35# ball mill mouth | 3L 35# ball mill mouth |
| Vacuum Degree | 0.098Mpa | |
| Rotary Power | 30W | 40W |
| Rotary Speed | 0-120rpm | |
| Heating Power | 1.5KW | 2KW |
| Temp. Control of Water Bath | 0-400℃ | |
| Temp. Control Accuracy | ±1℃ | |
| Voltage/Frequency (V/Hz) | 220V/50Hz | |
| Lifting Stroke | 120mm | |
| Size (mm*mm*mm) | 700*440*885 | 700*335*1009 |
| Package Size (mm*mm*mm) | 590*460*460 | 1040*620*410 |
| Package Weight (Kg) | 21 | 38 |
| Speed Regulation | Electronic stepless speed regulation | |
| Rotary Speed Display | Digital Display | |
| Temperature Display | K type sensor digital display | |
| Temp. Control | Intelligent temperature control | |
| Sealing Method | PTFE | |
| Condenser (mm) | φ 85*460 | φ 100*590 |
| Lifting Method | Hand-lifting | |
| Continuous Charging | 19# standard charging valve | |
| Discharging | None | Teflon discharge valve, φ 50 flange mouth |
| Vacuum Display | Vacuum meter | |
| Explosion-proof | Optional explosion-proof transducer, motor, EX40W | |
| Baffle | Optional plastic or PTFE spraying | |
More information, pls click here to download the brochure.
We also provide customized services, please contact us (eshop@lab1st.com) if you have any needs.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
