Larger Size 500L/1000L High-Temp Vacuum Drying Oven
Regular price
$10,522.00
Free Sea Shipping: Door-to-Door (US) / To Port (Other Countries, contact us for door delivery)
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
LAB1ST Largee Size VO Series Vacuum Drying Oven covers the full range from pilot-scale to production-scale vacuum processing in a single, configurable platform. Choose 500 L or 1000 L of chamber volume, then choose your heating architecture — uniform chamber heating for gentle, even drying, or independent shelf heating for faster ramp-up, higher temperatures up to 250 °C, and per-shelf temperature control.
Every configuration shares the same core build: a stainless steel 304 working chamber, a calibrated 4th-generation LCD temperature controller with a 1–9999 minute countdown timer, an oil-filled mechanical vacuum gauge, a dedicated inert gas inlet valve, a standard KF vacuum port, an independent over-temperature protector, and a thickened electrostatic powder-coated cold-rolled steel cabinet.
Key Features:
- Two chamber volumes, one platform — 500 L and 1000 L, fully customizable from 23 L to 1000 L
- Two heating architectures — chamber heating (up to 200 °C) or independent shelf heating (up to 250 °C)
- Up to 250 °C working temperature with ±1 °C stability and 0.1 °C control resolution on 1000 L models
- Vacuum down to <50 Pa via standard KF25 or KF40 vacuum ports
- Stainless Steel 304 interior — durable, easy to clean, non-contaminating
- Independent shelf temperature control — run a different temperature on each shelf in a single cycle
- Heating time under 30 minutes on the 1000 L shelf-heated models
- Calibrated 4th-generation controller with programmable 1–9999 minute countdown timer
- Dedicated inert gas inlet valve — N₂ or other inert gases; quick-plug Φ6 mm push-in fitting on 1000 L models
- Vertical chamber design for ergonomic front loading and a smaller footprint
- Ceramic fiber cotton insulation on 1000 L models — lower heat loss, lower surface temperature
- Comprehensive safety suite — leakage protection, over-temperature protection, overload protection, plus an independent over-temperature protector on 500 L models
- Thickened electrostatic powder-coated cabinet — strong corrosion resistance for production environments
- Wide option range — 7″ PLC touchscreen, digital vacuum gauge, vacuum controller, cold trap, chiller, oil-free screw pump, high-vacuum (<1 Pa), 300/400/500 °C high-temp builds
Specifications:

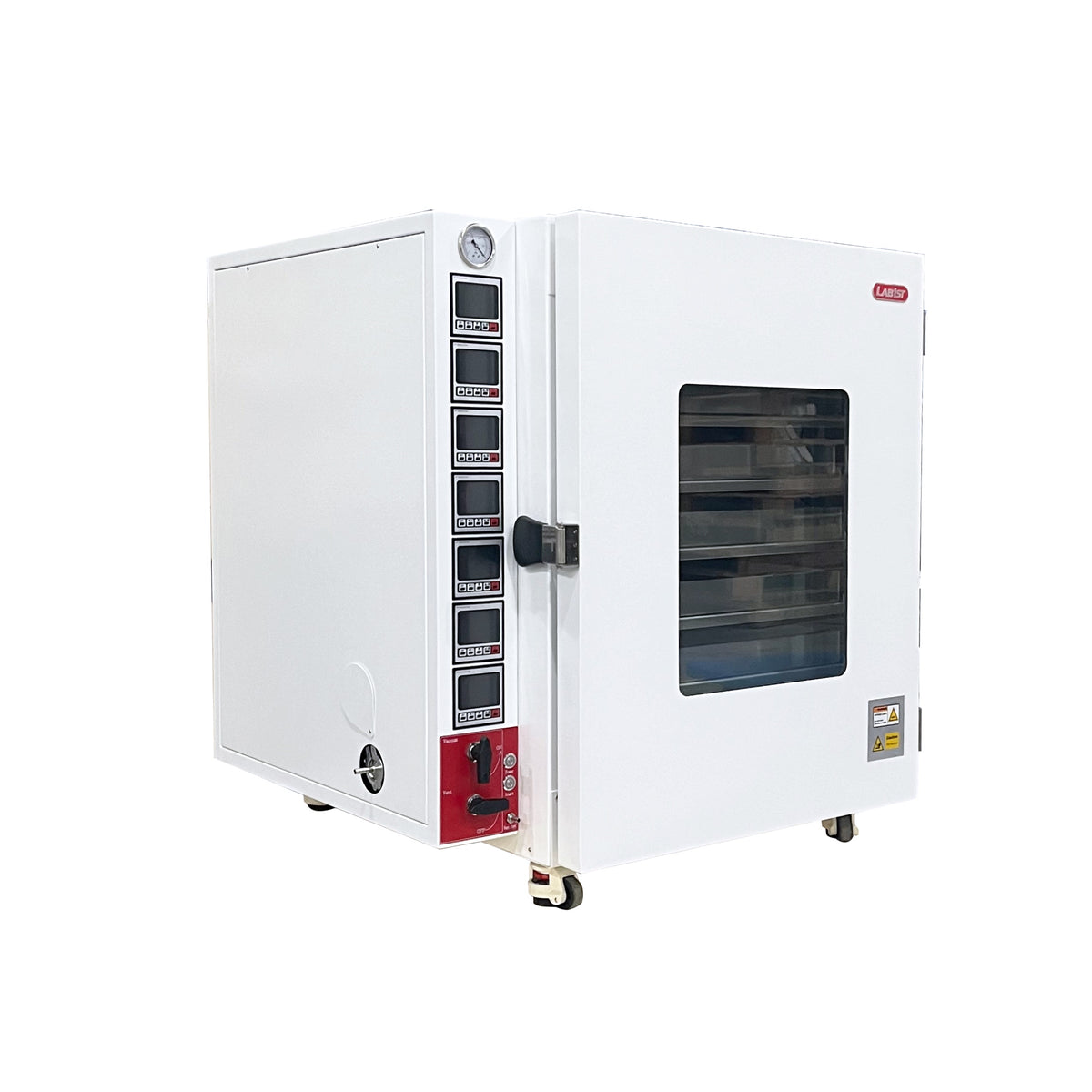

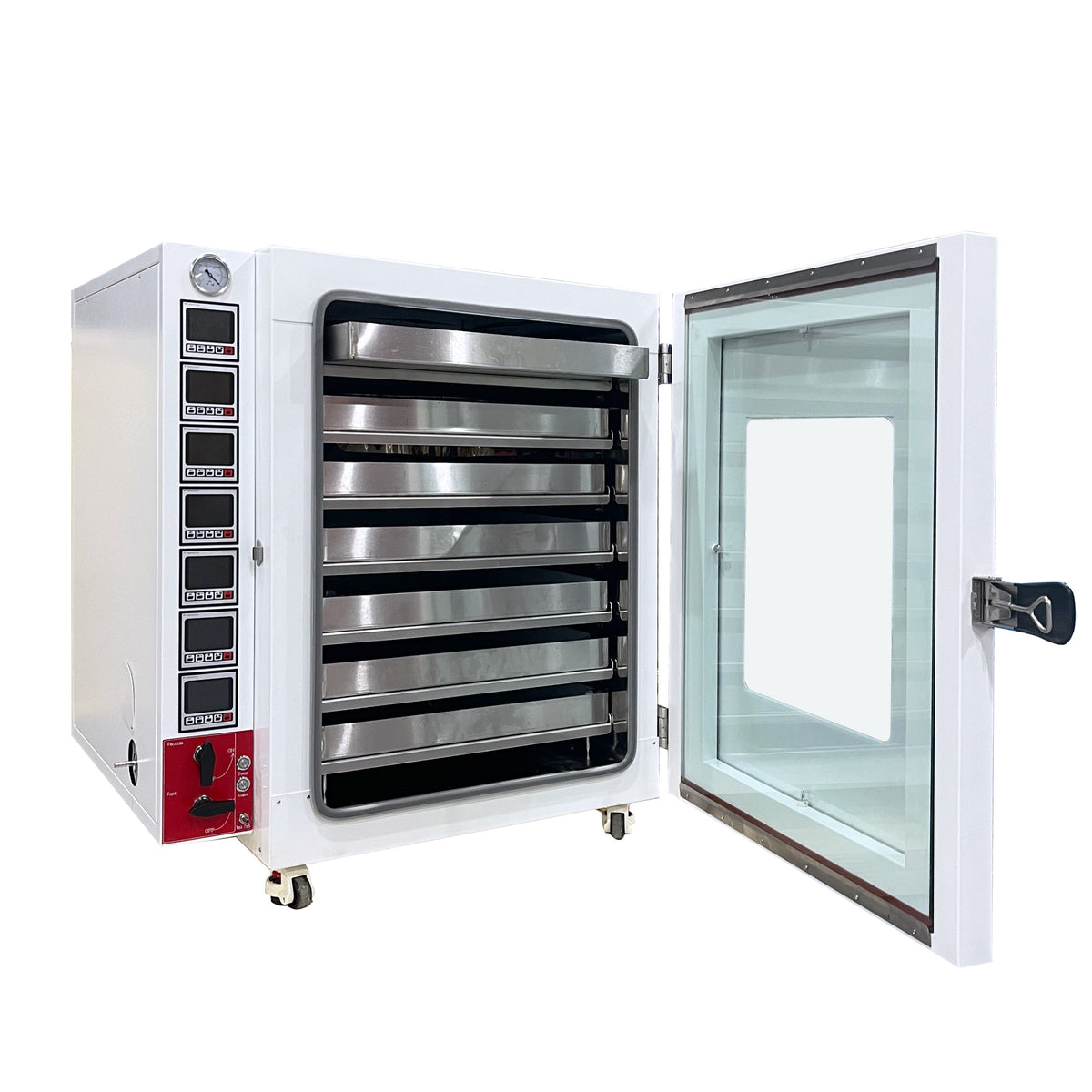

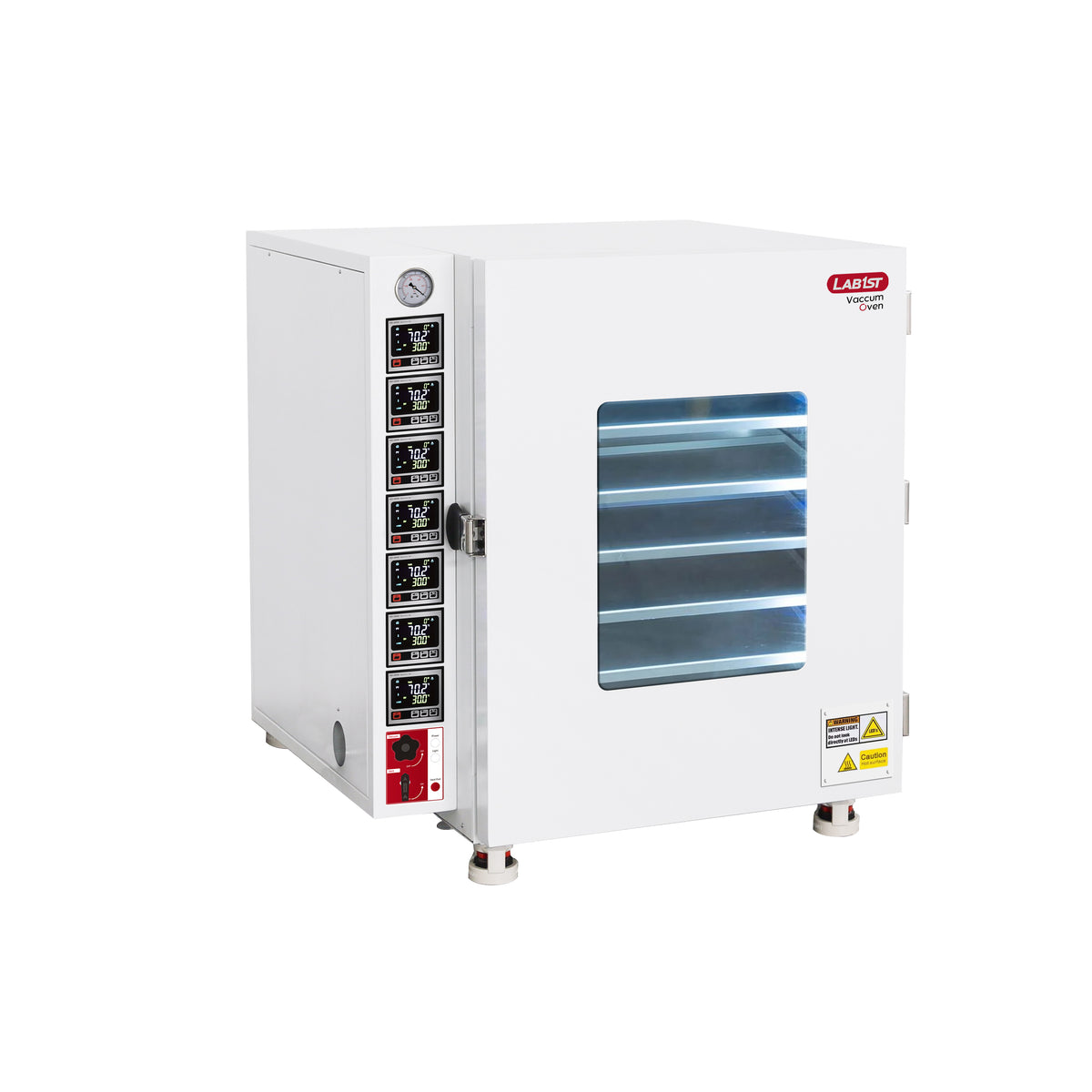

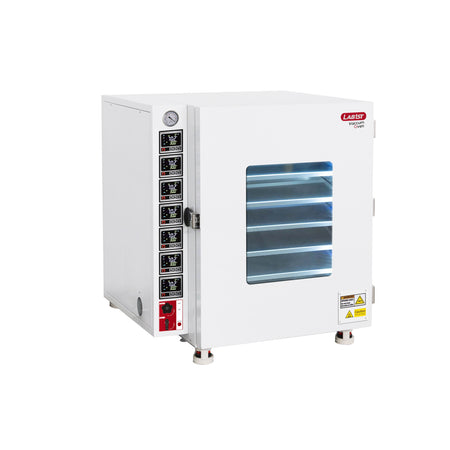

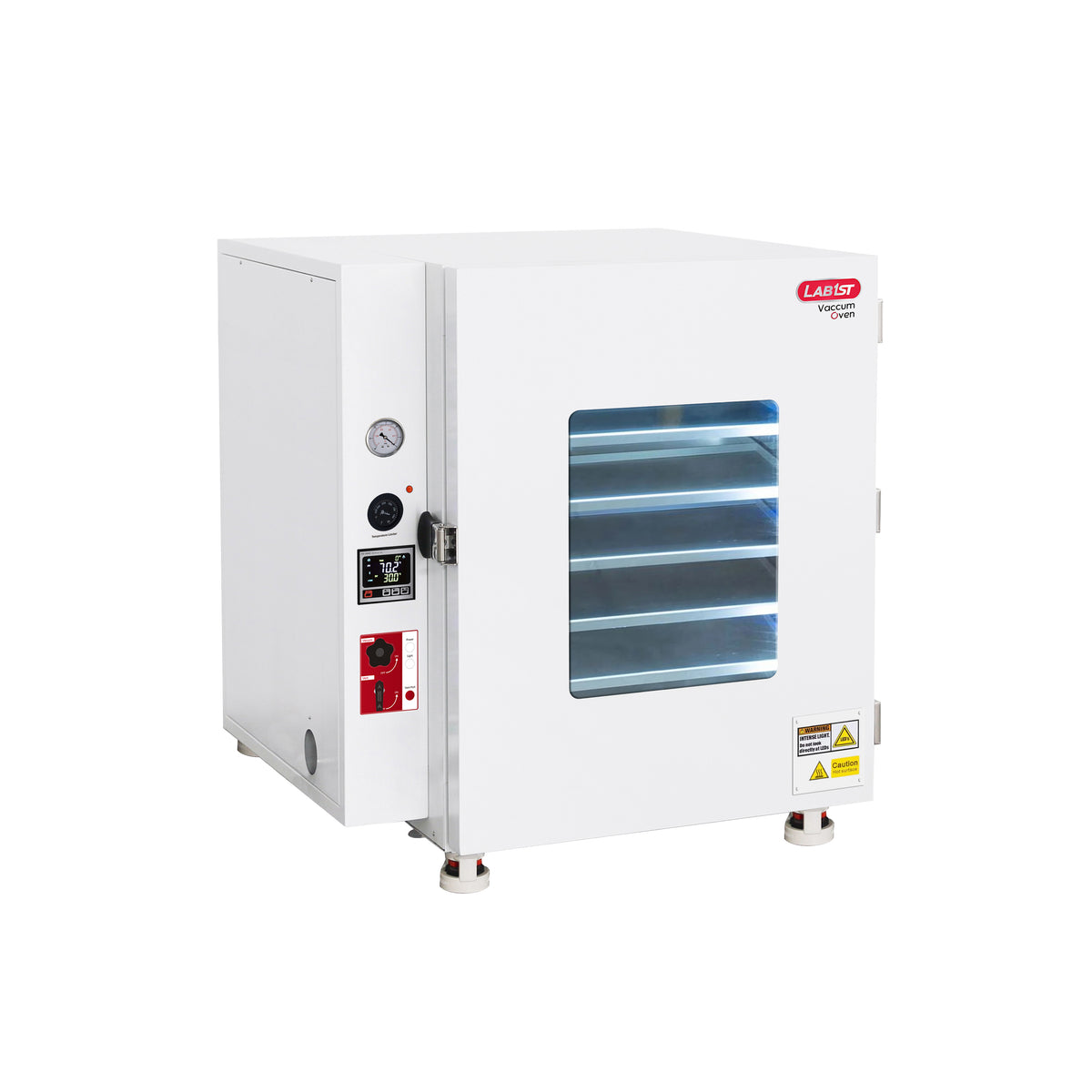

| Parameter | VO-18E | VO-18P |
|---|---|---|
| Capacity | 500 L / 17.66 cu ft | 500 L / 17.66 cu ft |
| Temperature Range | RT+15~200 °C | RT+15~250 °C |
| Heating Method | Chamber heating (external chamber-wall heating) | Independent shelf heating |
| Shelf Quantity (Std / Max) | 5 / 10 | 7 |
| Shelf Size | 780 × 625 mm | 610 × 740 mm |
| Interior Dimensions (W×D×H) | 630 × 810 × 845 mm | 630 × 810 × 845 mm |
| Exterior Dimensions (W×D×H) | 950 × 950 × 1115 mm | 950 × 950 × 1115 mm |
| Vacuum Port | KF25 | KF25 |
| Vacuum Level | <50 Pa | <50 Pa |
| Recommended Pump | 8 L/s | 8 L/s |
| Gross Weight | 600 kg | 600 kg |
| Power Input | 3500 W | 3900 W |
| Power Supply | AC220V 50Hz | AC380V 50Hz / AC220V 60Hz |
| Interior Material | Stainless Steel 304 | Stainless Steel 304 |
| Exterior | Cold-rolled steel plate, electrostatic powder coating | Cold-rolled steel plate, electrostatic powder coating |
| Chamber Design | Rectangular, vertical | Rectangular, vertical |
| Interior Light | LED | LED |
| Vacuum Gauge | Oil-filled mechanical | Oil-filled mechanical |
| Inert Gas Inlet | Dedicated valve | Dedicated valve |
| Safety | Independent over-temperature protector with indicator | Independent over-temperature protector with indicator |
| Timer | 1–9999 minutes (programmable) | 1–9999 minutes (programmable) |

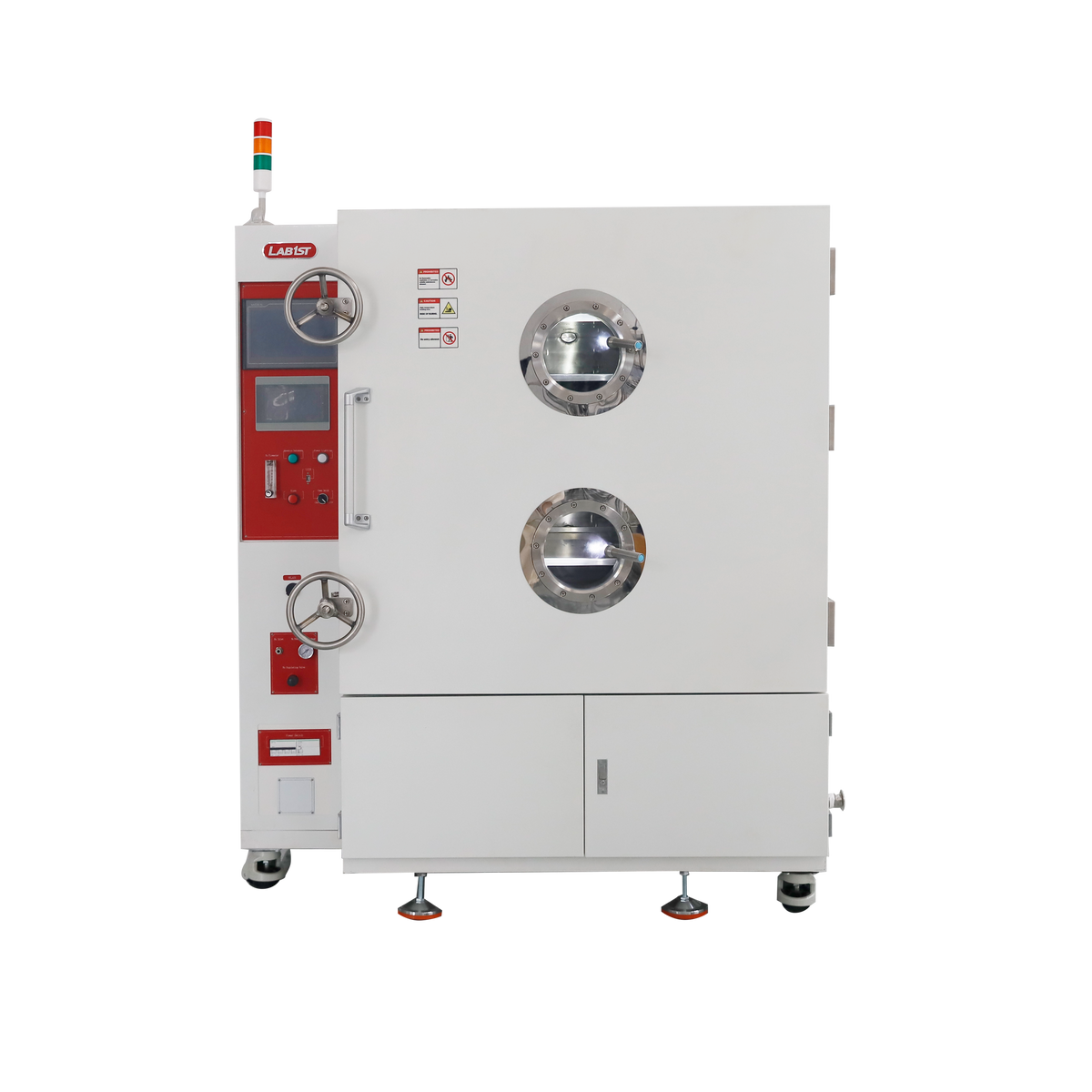

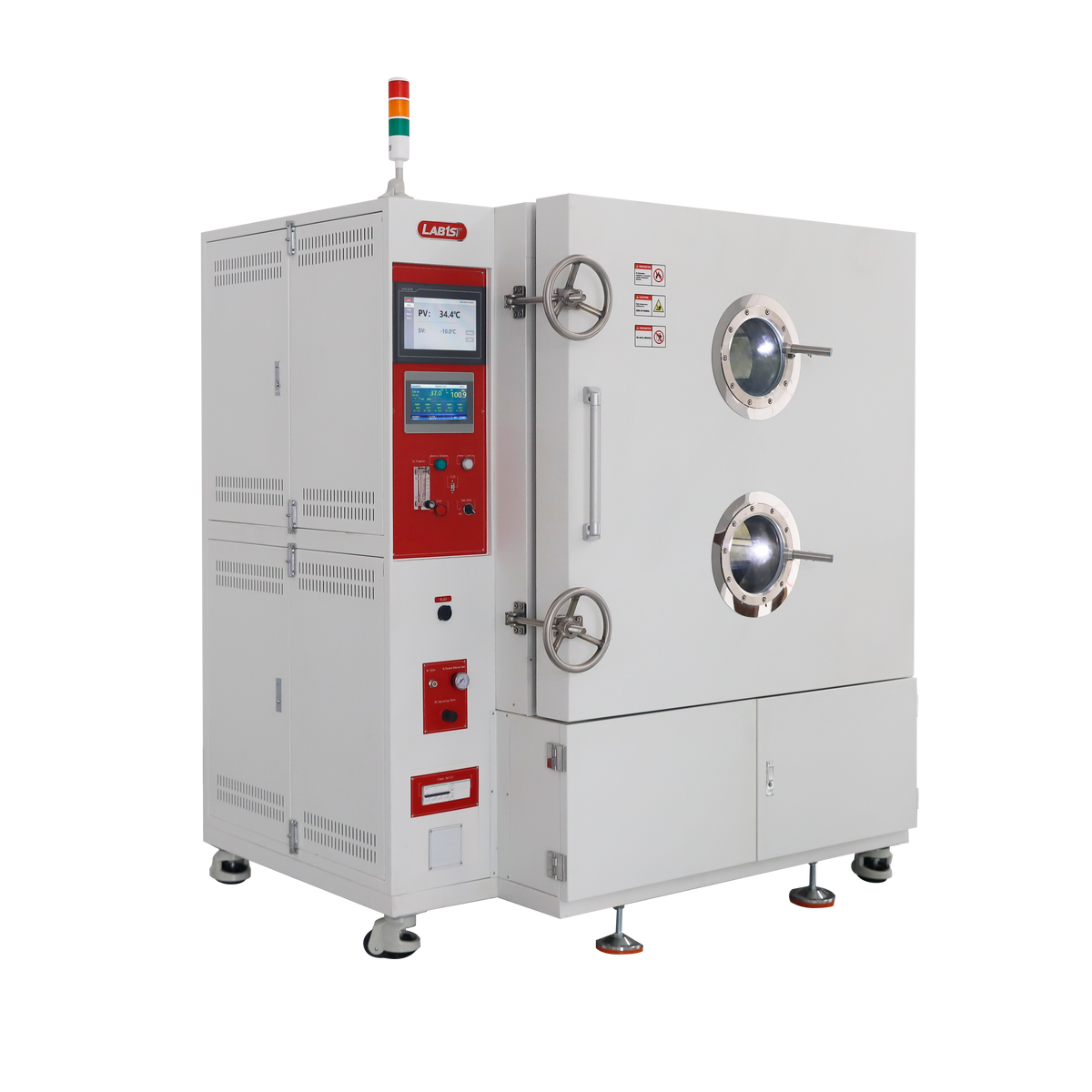

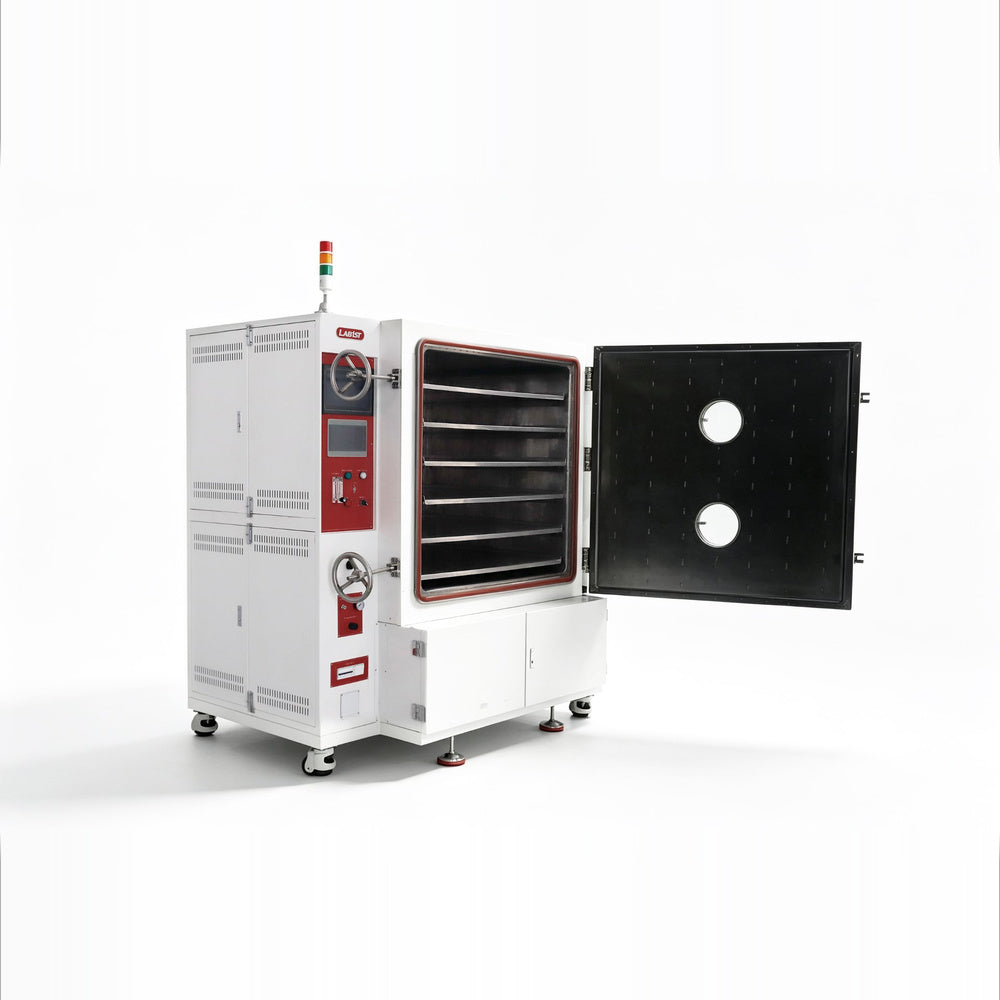

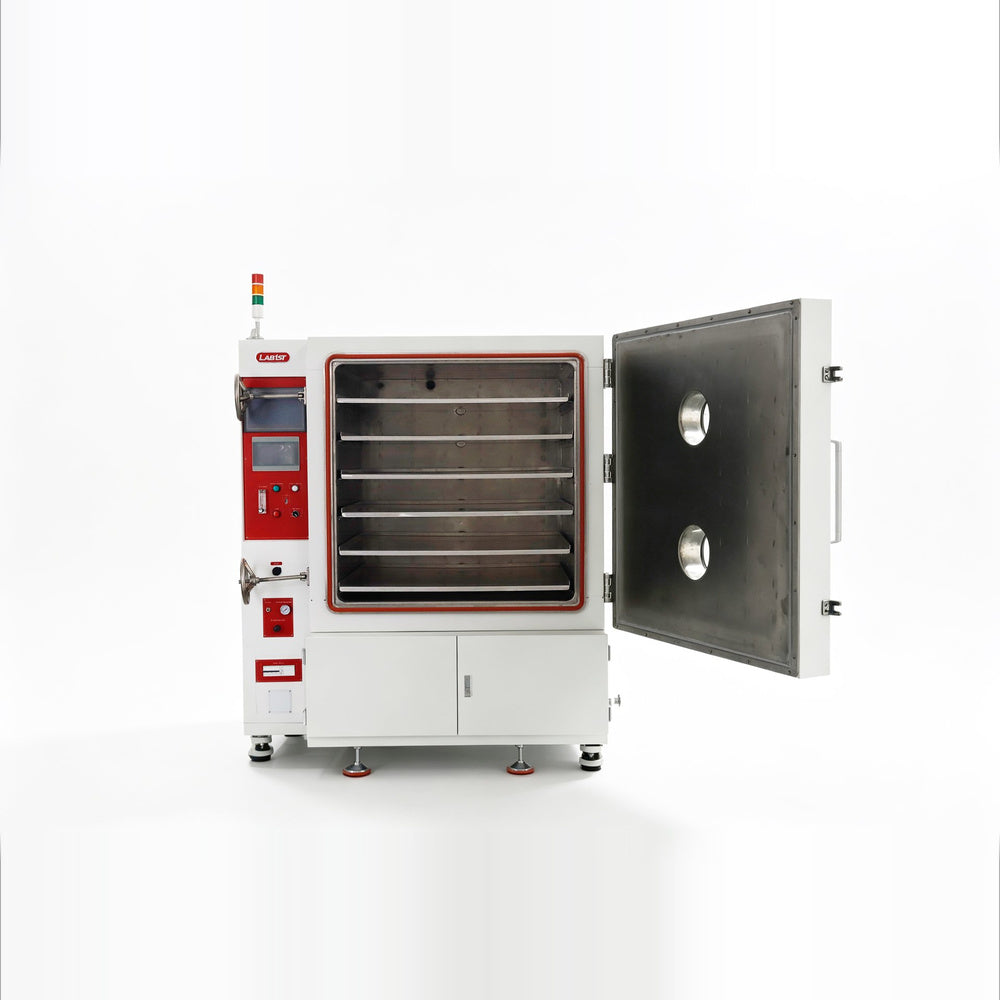

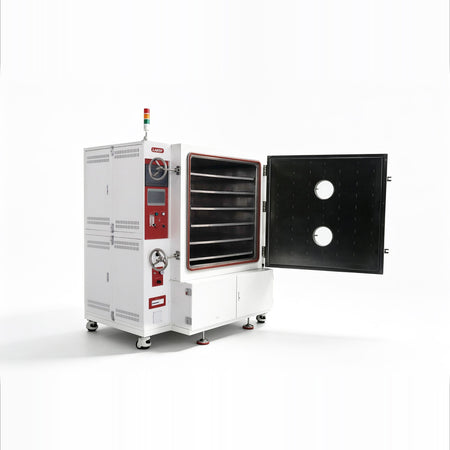

| Parameter | VO-1000P | VO-1000P-C |
|---|---|---|
| Capacity | 1000 L / 35.31 cu ft | 1000 L / 35.31 cu ft |
| Temperature Range | RT+15~250 °C | RT+15~250 °C |
| Temperature Control Resolution | 0.1 °C | 0.1 °C |
| Temperature Stability | ±1 °C | ±1 °C |
| Heating Time | <30 min | <30 min |
| Heating Method | Independent shelf heating | Independent shelf heating |
| Shelf Quantity | 6 | 7 |
| Shelf Size | 980 × 880 mm | 980 × 880 mm |
| Total Heated Shelf Area | ≈5.17 m² (≈55.7 sq ft) | ≈6.04 m² (≈65.0 sq ft) |
| Interior Dimensions (W×D×H) | 1000 × 950 × 1000 mm | 1000 × 950 × 1000 mm |
| Exterior Dimensions (W×D×H) | 1500 × 1200 × 1700 mm | 1500 × 1200 × 1700 mm |
| Vacuum Port | KF40 | KF40 |
| Vacuum Level | <50 Pa | <50 Pa |
| Recommended Pump | 14 L/s | 14 L/s |
| N₂ Inlet Port | Quick plug connector, Φ6 mm straight push-in fitting | Quick plug connector, Φ6 mm straight push-in fitting |
| Gross Weight | 1000 kg | 1000 kg |
| Power Input | 6200 W | 6200 W |
| Power Supply | AC380V 50Hz / AC220V 60Hz, 3 Phase | AC380V 50Hz / AC220V 60Hz, 3 Phase |
| Insulation Layer | Ceramic fiber cotton | Ceramic fiber cotton |
| Interior Material | Stainless Steel 304 | Stainless Steel 304 |
| Exterior | Thickened cold-rolled steel plate, electrostatic powder coating | Thickened cold-rolled steel plate, electrostatic powder coating |
| Chamber Design | Rectangular, vertical | Rectangular, vertical |
| Vacuum Gauge | Oil-filled mechanical | Oil-filled mechanical |
| Safety | Leakage protection, over-temperature protection, overload protection | Leakage protection, over-temperature protection, overload protection |
| Controller | 4th-gen LCD standard; 7" PLC touchscreen optional | 4th-gen LCD standard; 7" PLC touchscreen optional |
