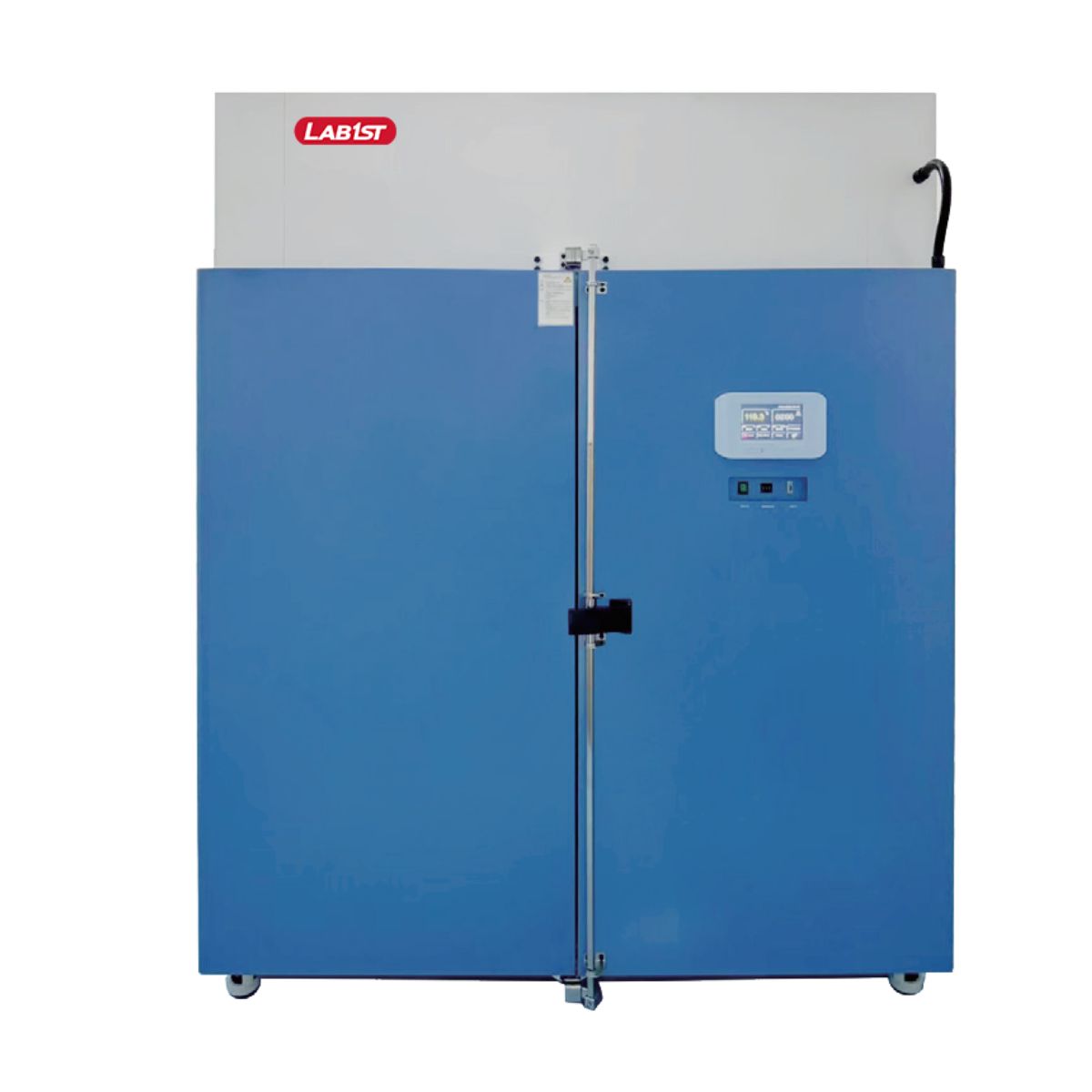

LAB1ST FCO220 Industrial Forced Air Oven delivers large-capacity thermal processing with 2-4 m³ workspace and exceptional temperature uniformity (±1.5°C). Engineered for industrial-scale applications, its double-door design accommodates oversized samples while maintaining precise PID control. The 7-inch smart touchscreen, polished stainless steel interior, and heavy-duty casters support efficient handling of bulk materials.
Large Forced Convection Oven FCO220 Series
Free Sea Shipping: Door-to-Door (US) / To Port (Other Countries, contact us for door delivery)
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
Features:
- High-Temperature Design: 7-inch Smart Touchscreen Control with intuitive menu navigation for quick temperature and time parameter setting
- Polished stainless steel interior with argon arc welding technology and external steel panel for durability and modern appearance
- Microcomputer PID Temperature Controller with timing function ensures precise and reliable temperature control
- Advanced Air Circulation System with high-temperature resistant fan and optimized air duct design improves temperature uniformity (±1.5°C at 100°C)
- High-temperature Synthetic Silicon Seal ensures long service life and easy replacement
- Adjustable Air Intake and Exhaust control from the operation panel
- Independent Over-temperature Protection System automatically cuts o power when temperature exceeds limits
- Double-door Design facilitates loading of large samples
- Standard Universal Casters provide exible mobility
Specifications:
| Model: | FCO220-2150L | FCO220-2850L | FCO220-3400L |
| Volume | 2150L [75.93 Cuft] | 2850L [100.65 Cuft] | 3400L [120.07 Cuft] |
| Temperature Range: | RT+10~220℃ [RT+50~428°F] | ||
| Temperature Control: | PID Control | ||
| Control Accuracy: | ±0.5 ℃ [±0.9°F] | ||
| Temperature Uniformity: | +1.5℃ (@100℃) [+34.7°F] | ||
| Operation Interface: | 7-inch Color Touchscreen | ||
| Power Supply: | 380V/50Hz | ||
| Power Consumption: | 8.5kW | 10kW | 11.5kW |
| Time Function: | Standard | ||
| Alarm System: | High/Low Temp Alarm | ||
| Door Structure: | Double-Door Design | ||
| Internal Dimension (W×D×H) m: | 1.4×1.12×1.35 | 1.88×1.12×1.35 | 2.25×1.12×1.35 |
| External Dimension (W×D×H) m: | 1.78×1.35×2.06 | 2.23×1.35×2.06 | 2.23×1.35×2.06 |
If you require customization — including size, temperature range, or other specifications — please contact us at eshop@lab1st.com for more information.
Series Compare:
| Model: | Temperature Range | Feature | Chamber Volume |
| FCO220 Series | RT+10~220℃ [RT+50~428°F] |
|
2150L, 2850L, 3400L |
| FCO250 Series | RT+10~250℃ [RT+50~482°F] |
|
16L, 30L, 50L, 80L, 136L, 220L, 420L, 620L, 1000L |
| FCO300 Series | RT+10~300℃ [RT+50~572°F] |
|
16L, 30L, 50L, 80L, 136L, 220L, 420L, 620L, 1000L |
| FCO250-Pro Series | RT+10~250℃ [RT+50~482°F] |
|
40L, 80L, 150L, 250L, 400L |
| FCO400 Series | RT+20~400℃ [RT+68~752°F] |
|
50L, 100L, 220L, 760L |
| FCO500 Series | RT+20~500℃ [RT+68~932°F] |
|
50L, 100L, 220L, 760L |
