LAB1ST Mini Spray Dryer For Laboratory Glass Type
Got questions?
Feel free to get in touch
Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information

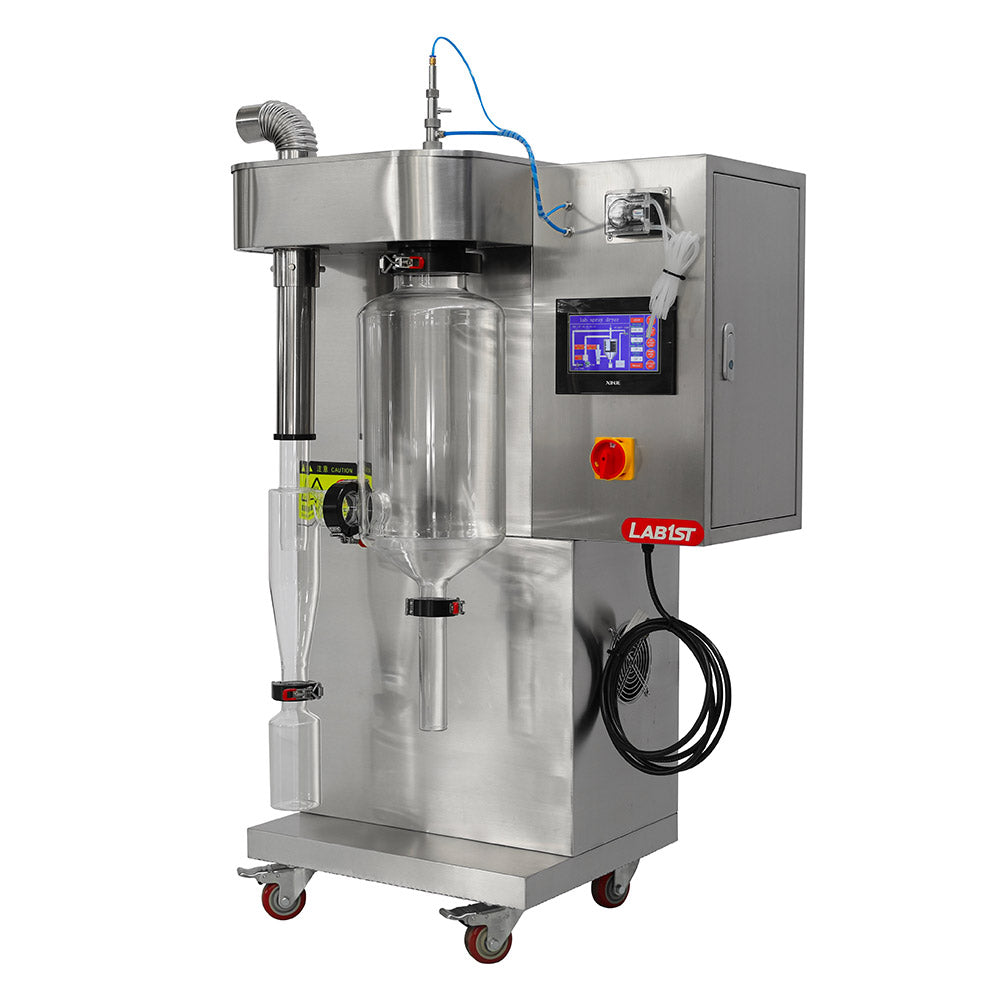

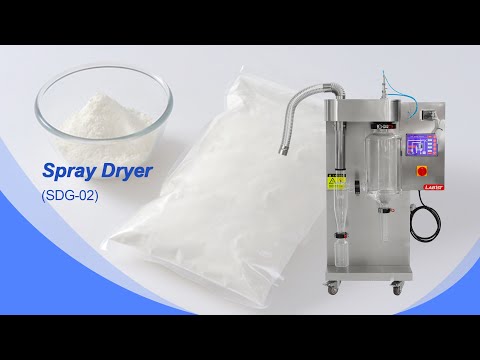

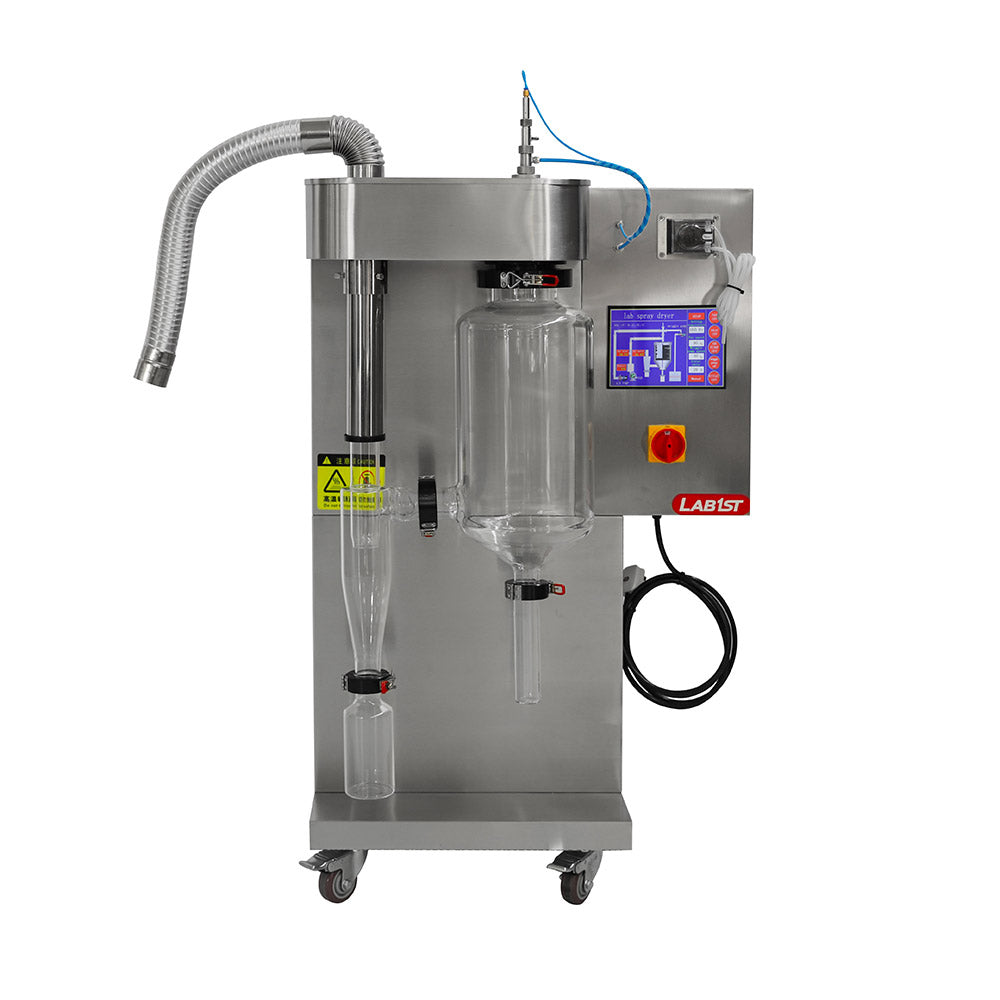

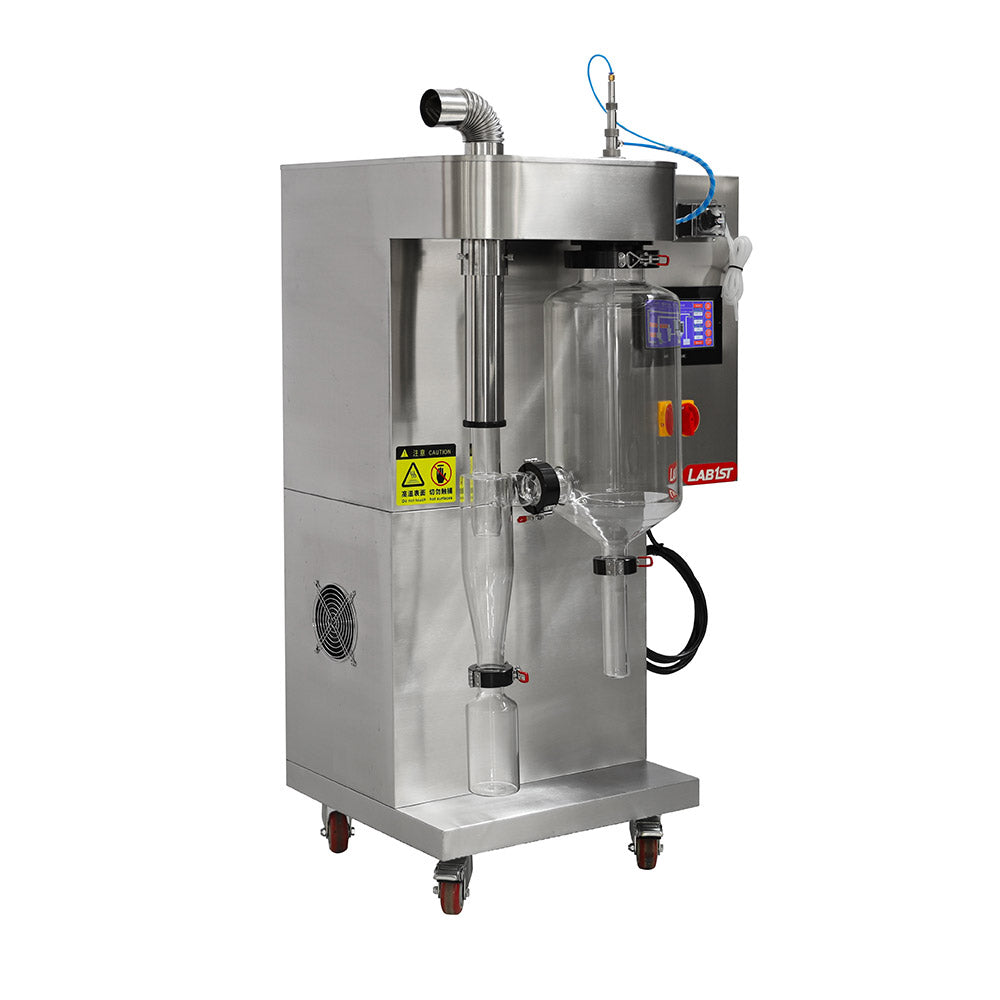

SDG-02 Laboratory Spray Dryer by LABIST is a cutting-edge solution designed for precision drying in research and industrial labs. Featuring a combination of high borosilicate glass and optional stainless steel components, this spray dryer ensures contamination-free processing, exceptional visibility, and robust performance. Ideal for pharmaceuticals, biotechnology, food science, and chemical applications, the SDG-02 delivers uniform particle size distribution and efficient drying with advanced control features.
Key Features
-
High-Quality Construction:

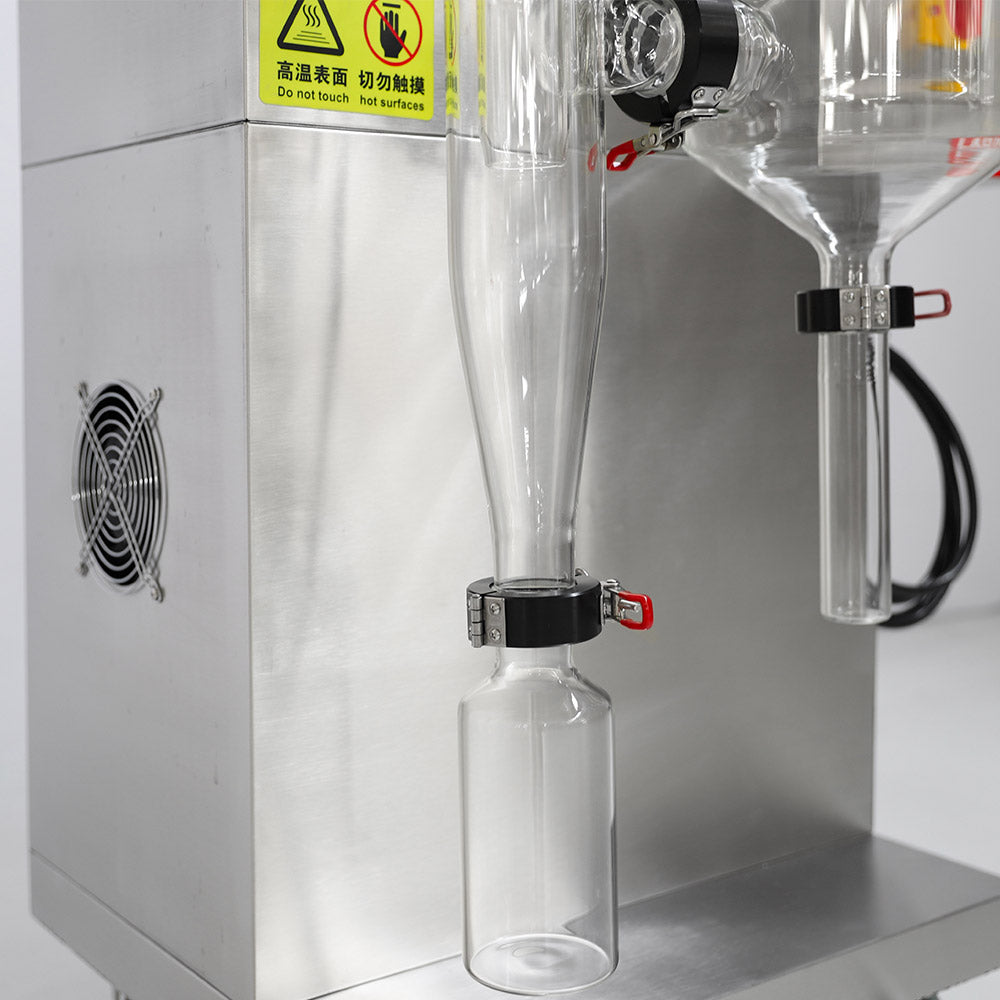

- Borosilicate Glass Chambers: Drying, separation, and collection systems made of heat-resistant glass for transparency and purity.
-
Advanced Atomization:

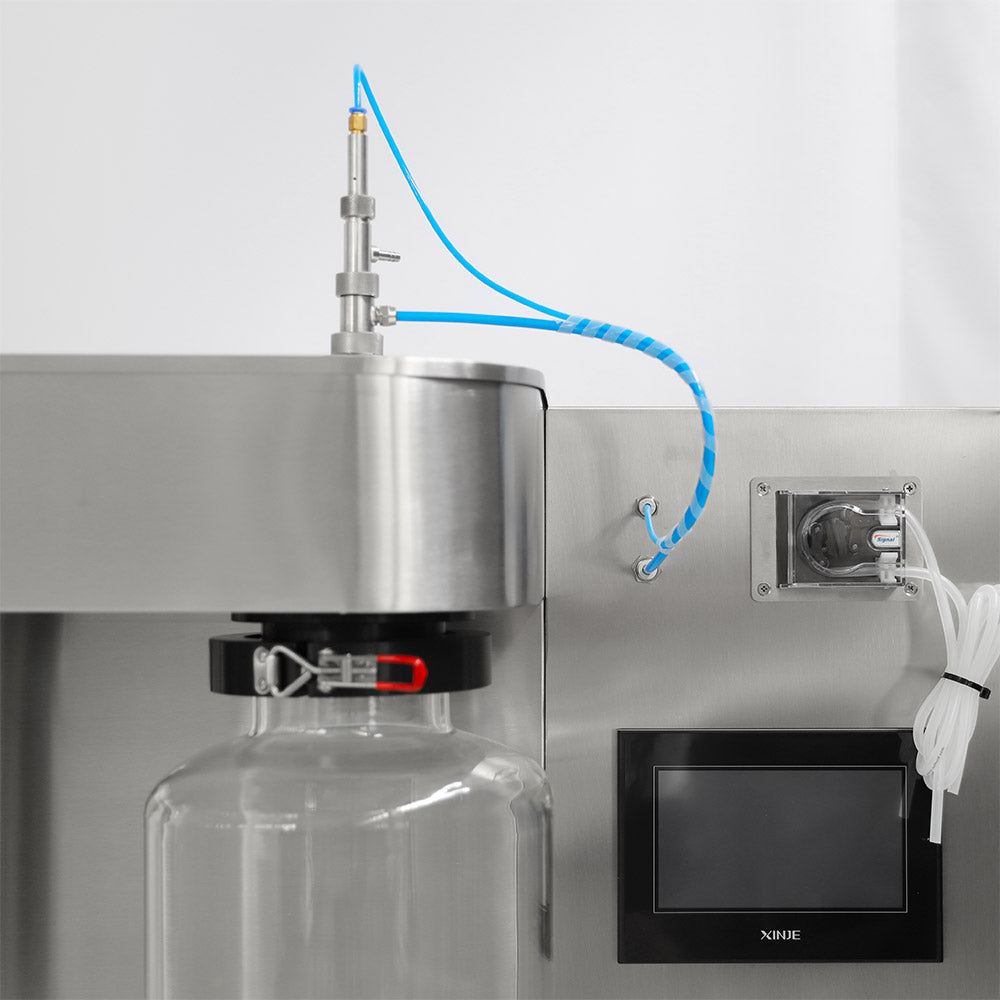

- Two-fluid stainless steel nozzle (1.0 mm standard; optional 0.5/1.5/2.0 mm) with auto-cleaning needle to prevent blockages.
- Two-fluid stainless steel nozzle (1.0 mm standard; optional 0.5/1.5/2.0 mm) with auto-cleaning needle to prevent blockages.
-
Precision Control & Monitoring:
- LCD touchscreen for real-time parameter tracking (inlet/outlet temps, pump speed, air volume, needle frequency).
- PID constant temperature technology for stable and repeatable results.
-
Flexible Sample Handling:
- Adjustable feed rate (30–2500 ml/h) via peristaltic pump; minimal sample volume of 30 ml.
- Uniform particle output: >95% of dry powder in the same size range.
- Safety & Purity: Air inlet filter ensures sample integrity during processing.
Specification:
- Model: SDG-02
- Temperature Control Range: ±1℃
- Inlet Temperature Control Range: 30℃～300℃
- Average Drying Time: 1.0～1.5S
- Outlet Temperature Control Range: 30℃～140℃
- Nozzle Tip Diameter: 0.75mm/1.5mm
- Evaporation Capacity: 1500mL/H～2500ml/h
- Power: 3KW /220V
- Feeding Capacity: 30～2500ml/h, adjustable

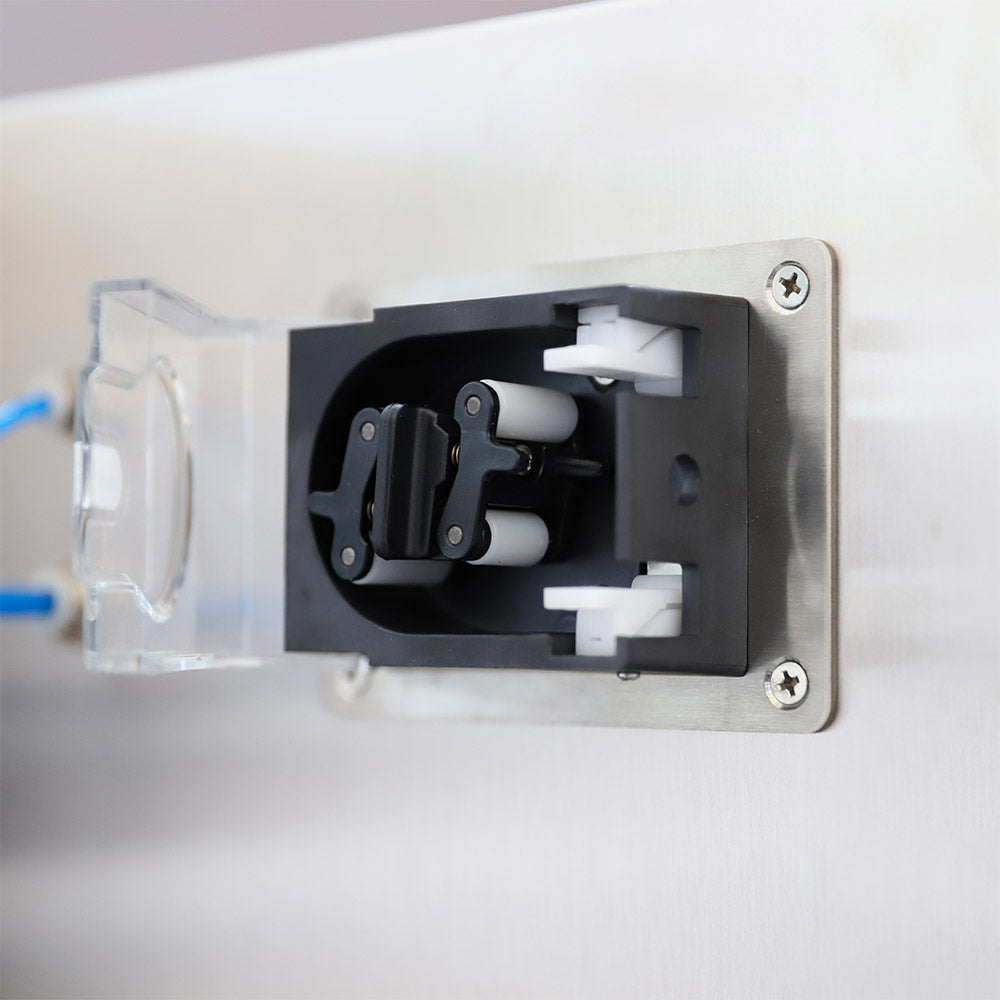

- Feeding Way: Peristaltic Pump
- Unit Dimensions: 650x500x1300mm
- Weight: 145kg
Option:

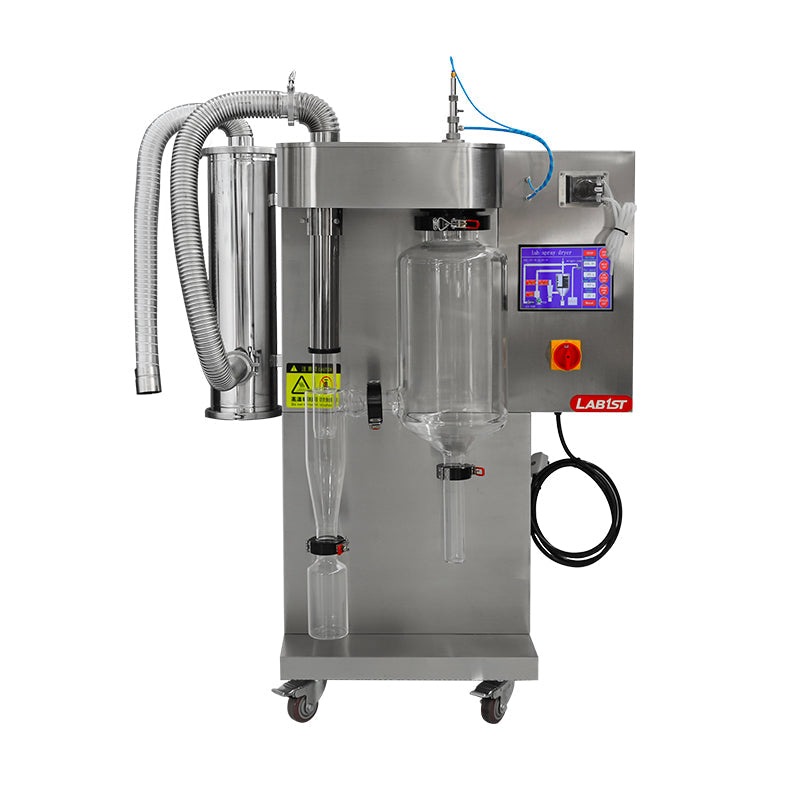

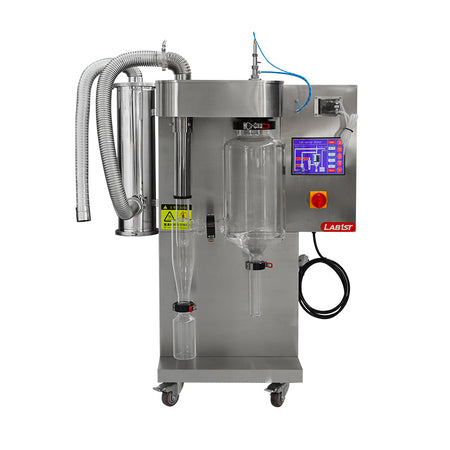

- Side-entry bag dust collector ($350)
- Dust bag for spray dryer ($50)
