LAB1ST FCO400 and FCO500 High-Temperature Forced Air Ovens deliver industrial-grade performance with operating temperatures up to 400°C and 500°C respectively. Featuring a polished stainless steel interior with semi-circular corners for easy cleaning, these ovens incorporate advanced PID control with multi-segment programming (7 groups/63 steps) and independent over-temperature protection with auto shutoff. Optional RS485 interface, built-in printer, and USB data storage enhance functionality. Ideal for demanding applications in research, mining, and industrial processing.

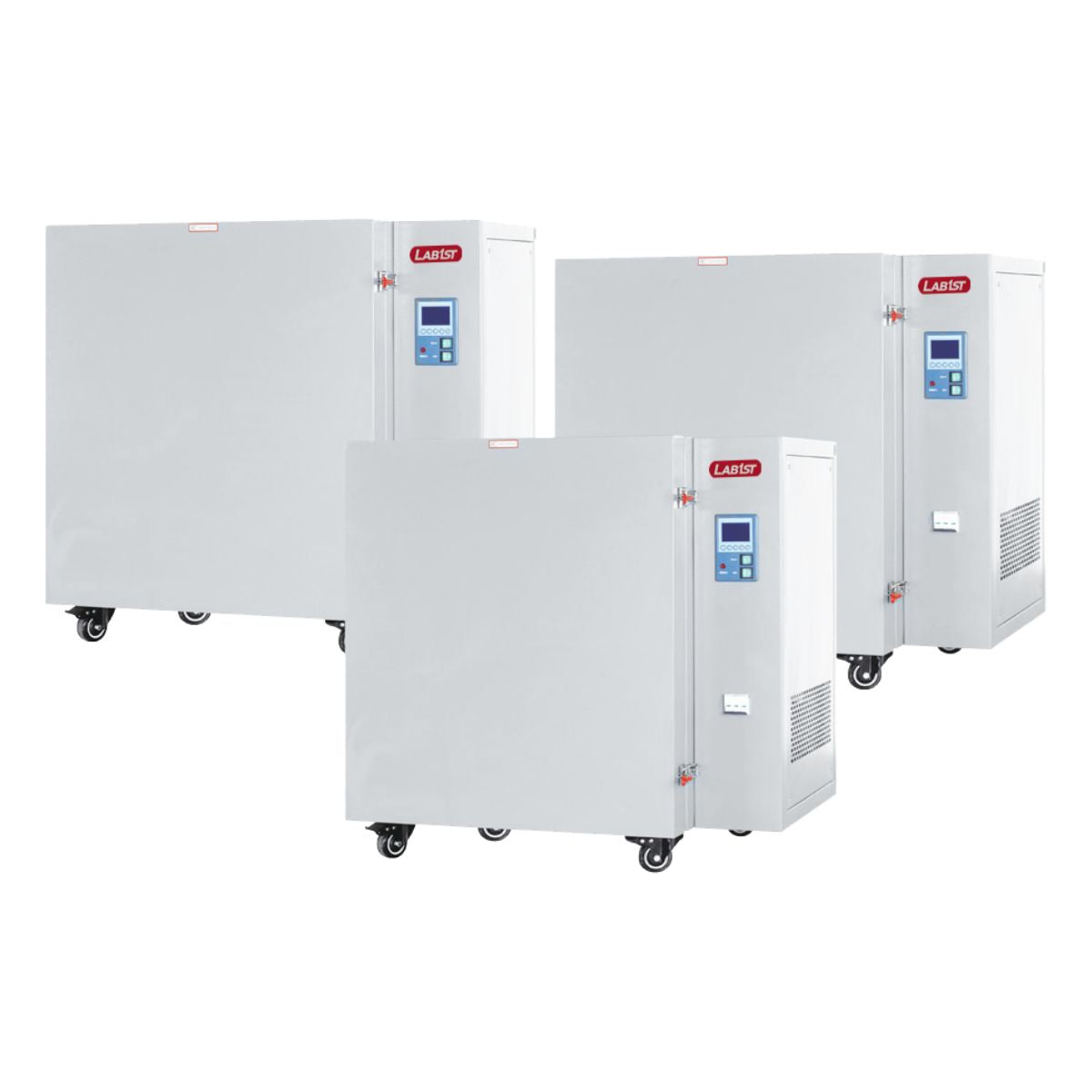

High Temperature Forced Convection Oven FCO400/FCO500 Series
Free Sea Shipping: Door-to-Door (US) / To Port (Other Countries, contact us for door delivery)
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
Features:
- High-Temperature Design: Maximum temp. 400°C (FCO400) or 500°C (FCO500)
- Polished Mirror-Finish Stainless Steel Chamber with smooth semi-circular corners for easy cleaning. Shelves are freely adjustable and removable for flexible workspace organization
- Advanced PID Fuzzy Logic Controller ensures fast heating, precise temperature control, and exceptional stability
- Multi-Segment Programmable Controller with intuitive menu-driven interface for simplified operation of complex experimental protocols
- Programmable Controller supports up to 7 groups (63 segments total) with timer settings from 0 to 5999 minutes per segment, adjustable fan speed, and pre-set start/stop time and heating rate capabilities
- Independent Over-Temperature Alarm System automatically cuts off power when temperature exceeds the limit, ensuring safe and accident-free operation
- Ceramic Fiber Door Seal offers superior high-temperature resistance and extended service life
Specifications:
FCO400 Series:
| Model: | FCO400-50L | FCO400-100L | FCO400-220L | FCO400-760L |
| Chamber Volume | 50L [1.8 Cuft] | 100L [3.5 Cuft] | 220L [7.8 Cuft] | 760L [28.4 Cuft] |
| Temperature Range: | RT+20~400℃ [RT+68~752°F] | |||
| Display Resolution: | 0.1℃ [0.18°F] | |||
| Temperature Stability: | ±0.5 ℃ [±0.9°F] | |||
| Ambient Temperature: | +5~40℃ [+41~104°F] | |||
| Power Consumption: | 3250W | 4050W | 4900W | 8500W |
| Internal Dimension (W×D×H) m: | 0.35×0.35×0.4 | 0.45×0.45×0.45 | 0.6×0.6×0.6 | 0.98×1×0.78 |
| External Dimension (W×D×H) m: | 0.89×0.7×0.92 | 0.99×0.79×0.99 | 1.14×0.95×1.14 | 1.324×1.263×1.77 |
| Shelves: | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
| Timing Range: | 0~5999min | |||
| Electrical Requirements: | AC380V 50HZ | |||
FCO500 Series:
| Model: | FCO500-50L | FCO500-100L | FCO500-220L | FCO500-760L |
| Chamber Volume | 50L [1.8 Cuft] | 100L [3.5 Cuft] | 220L [7.8 Cuft] | 760L [28.4 Cuft] |
| Temperature Range: | RT+20~500℃ [RT+68~932°F] | |||
| Display Resolution: | 0.1℃ [0.18°F] | |||
| Temperature Stability: | ±0.5 ℃ [±0.9°F] | |||
| Ambient Temperature: | +5~40℃ [+41~104°F] | |||
| Power Consumption: | 4050W | 4900W | 6050W | 8500W |
| Internal Dimension (W×D×H) m: | 0.35×0.35×0.4 | 0.45×0.45×0.45 | 0.6×0.6×0.6 | 0.98×1×0.78 |
| External Dimension (W×D×H) m: | 0.89×0.7×0.92 | 0.99×0.79×0.99 | 1.14×0.95×1.14 | 1.324×1.263×1.77 |
| Shelves: | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
| Timing Range: | 0~5999min | |||
| Electrical Requirements: | AC380V 50HZ | |||
If you require customization — including size, temperature range, or other specifications — please contact us at eshop@lab1st.com for more information.
Series Compare:
| Model: | Temperature Range | Feature | Chamber Volume |
| FCO220 Series | RT+10~220℃ [RT+50~428°F] |
|
2150L, 2850L, 3400L |
| FCO250 Series | RT+10~250℃ [RT+50~482°F] |
|
16L, 30L, 50L, 80L, 136L, 220L, 420L, 620L, 1000L |
| FCO300 Series | RT+10~300℃ [RT+50~572°F] |
|
16L, 30L, 50L, 80L, 136L, 220L, 420L, 620L, 1000L |
| FCO250-Pro Series | RT+10~250℃ [RT+50~482°F] |
|
40L, 80L, 150L, 250L, 400L |
| FCO400 Series | RT+20~400℃ [RT+68~752°F] |
|
50L, 100L, 220L, 760L |
| FCO500 Series | RT+20~500℃ [RT+68~932°F] |
|
50L, 100L, 220L, 760L |
