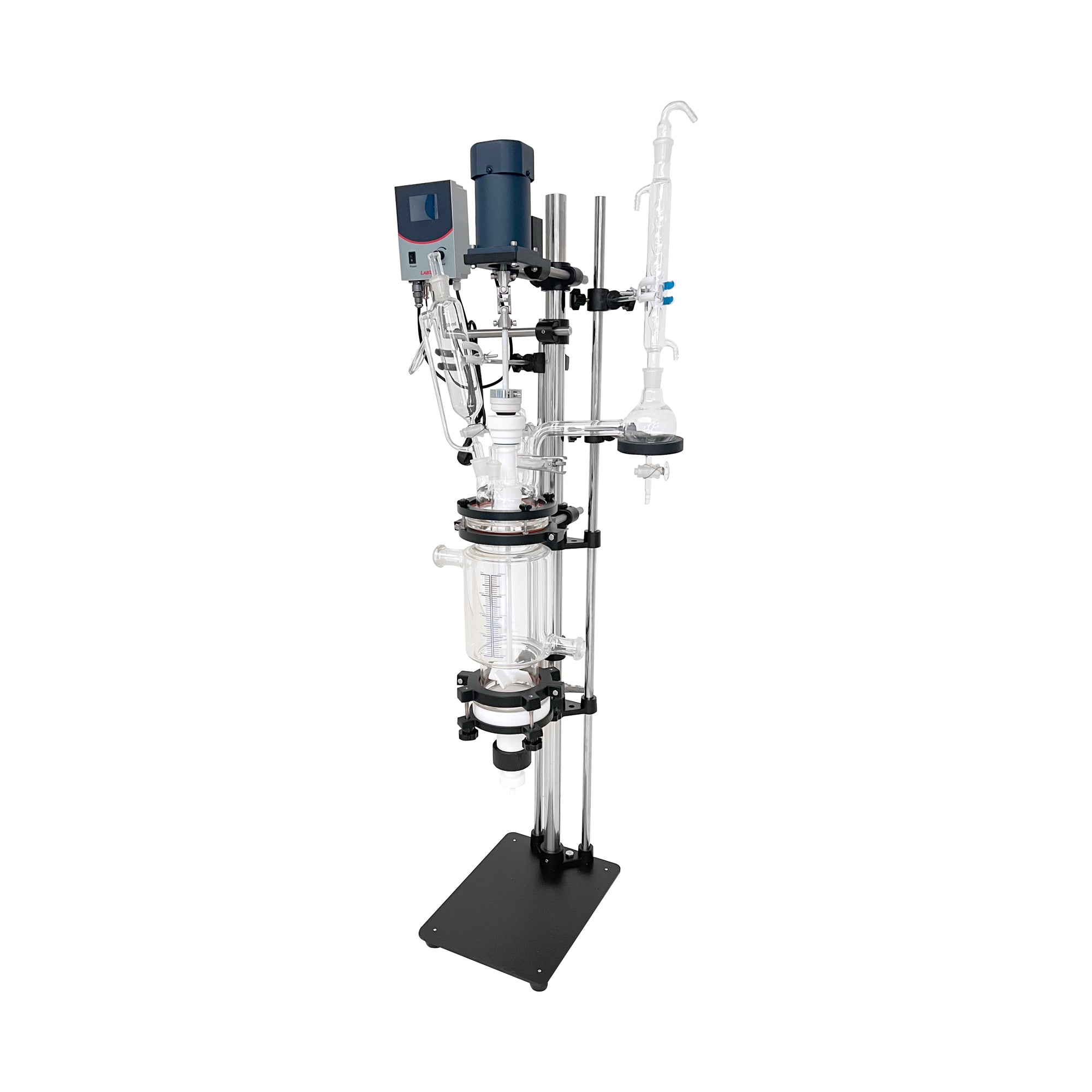

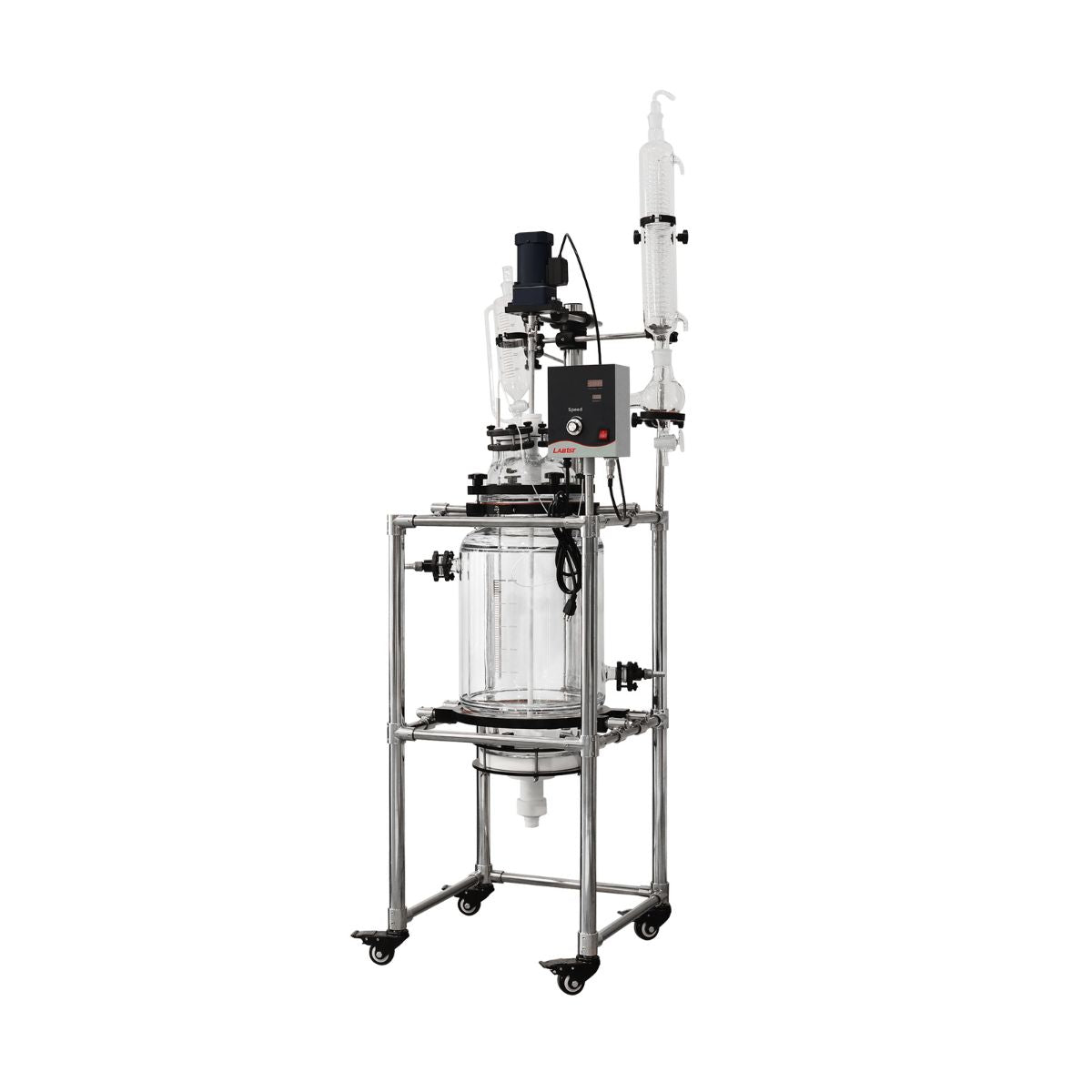

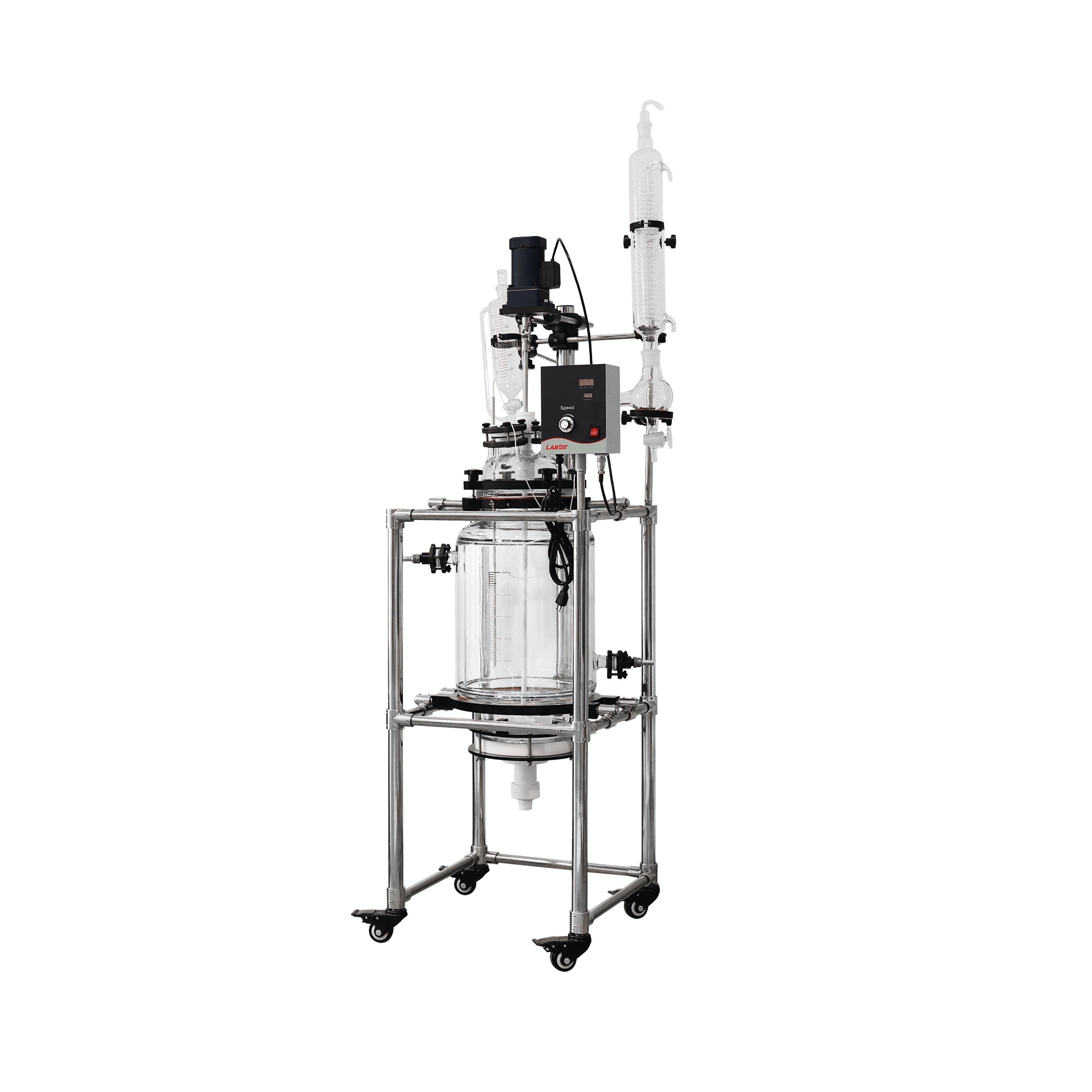

Glass Filter Reactor with Jacketed System 5L ~ 200L
Got questions?
Feel free to get in touch
Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information

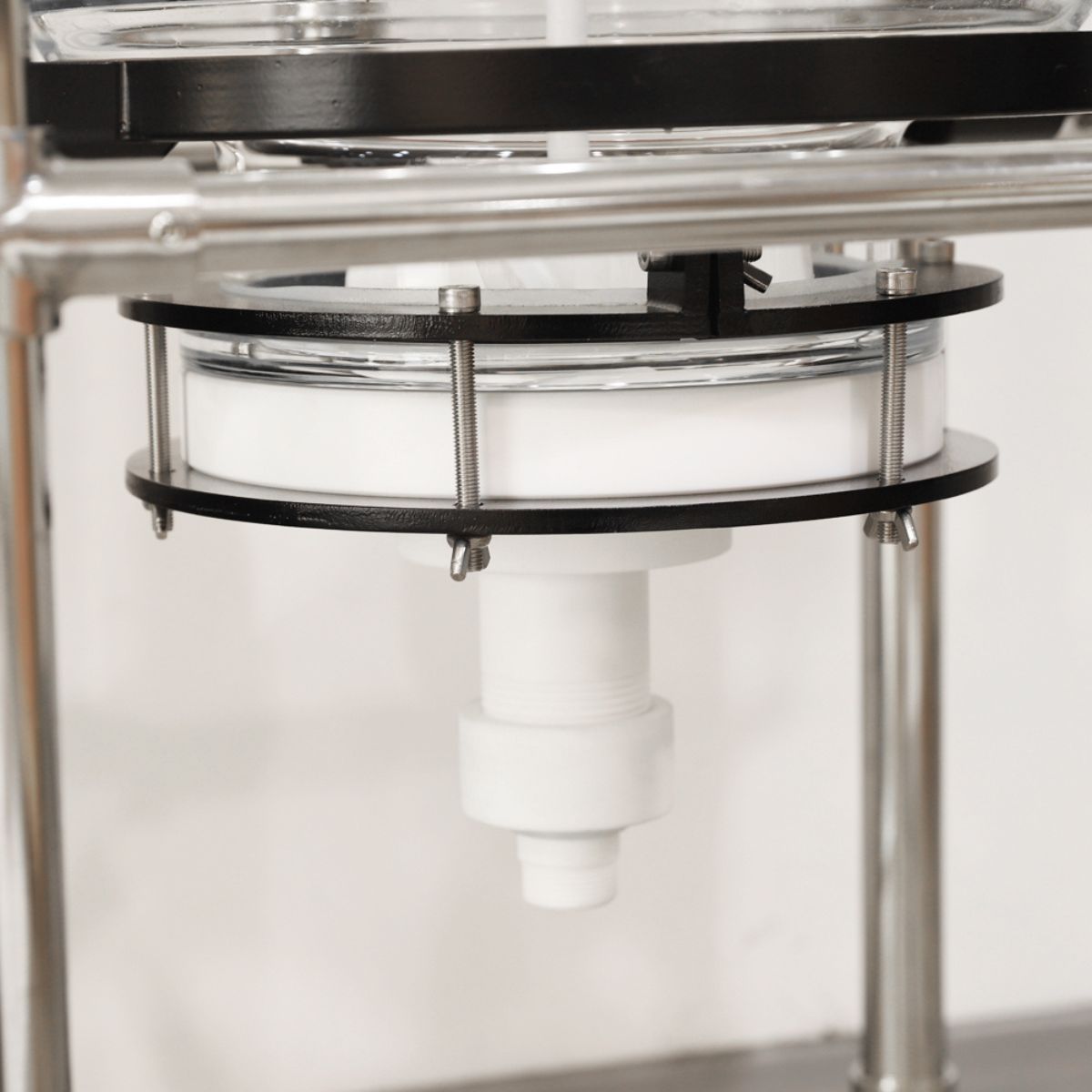

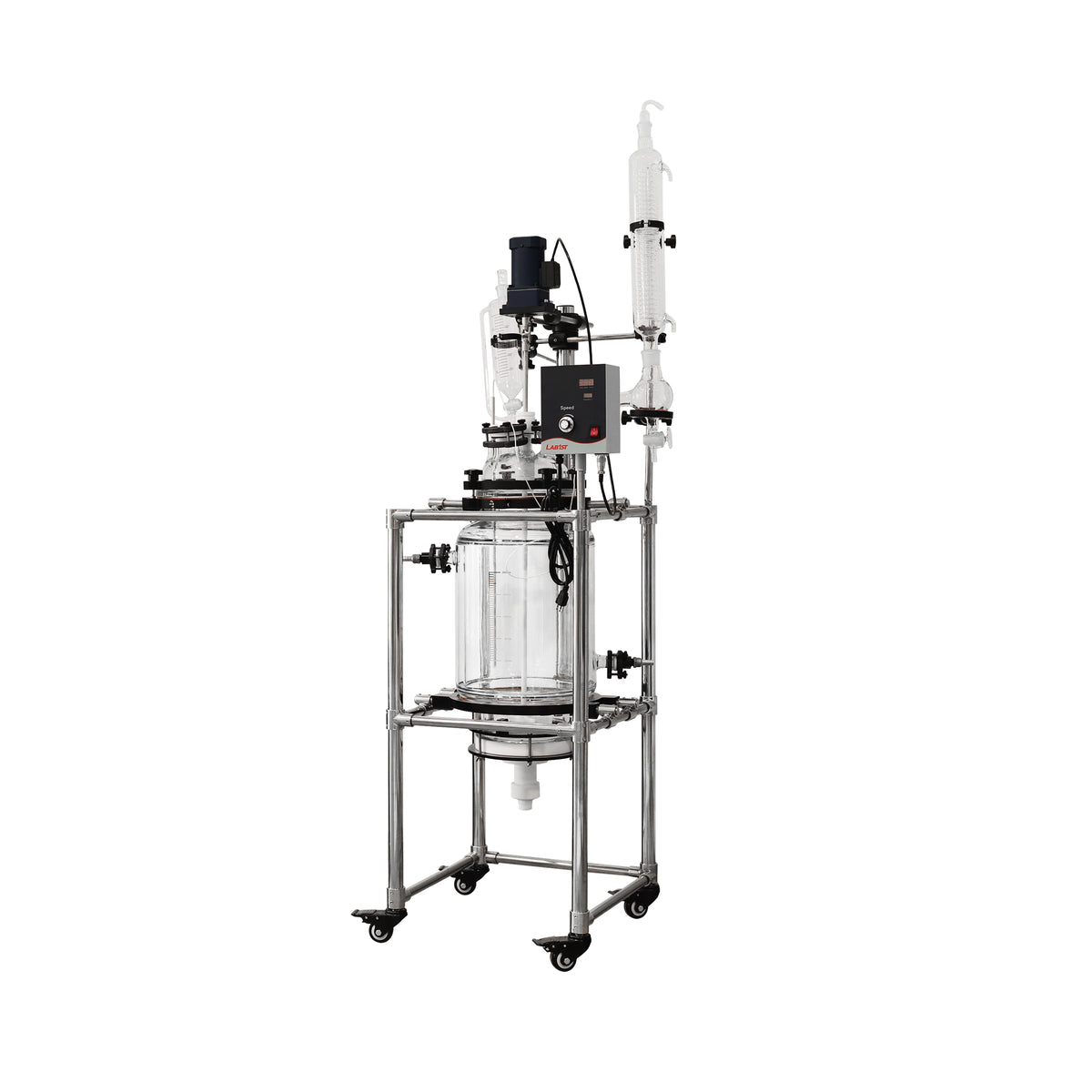

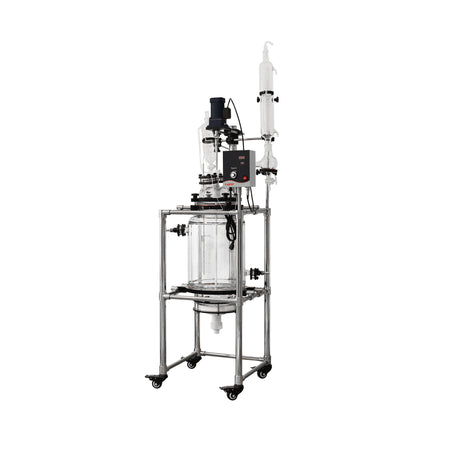

The Lab1st JGR-F series is more versatile than other series as it has three functions: reaction, crystallization and filtration. JGR-F series is made of high borosilicate glass amd equipped with PTFE seals, ensuring clean and long lifespan. It can be operated under a wide range of temperature from -80℃ to 200℃ and the stirring motor is 120W, bringing you remarkable performance. In addition, with a filter base at the bottom of the glass vessel, you no longer need to transfer material, hence largely reduces material losses.
We could also provide the other liters and kinds of the Glass Reactors and Stainless Steel Reactors for different needs, pls click here to learn more about it.
Features:
Specifications:

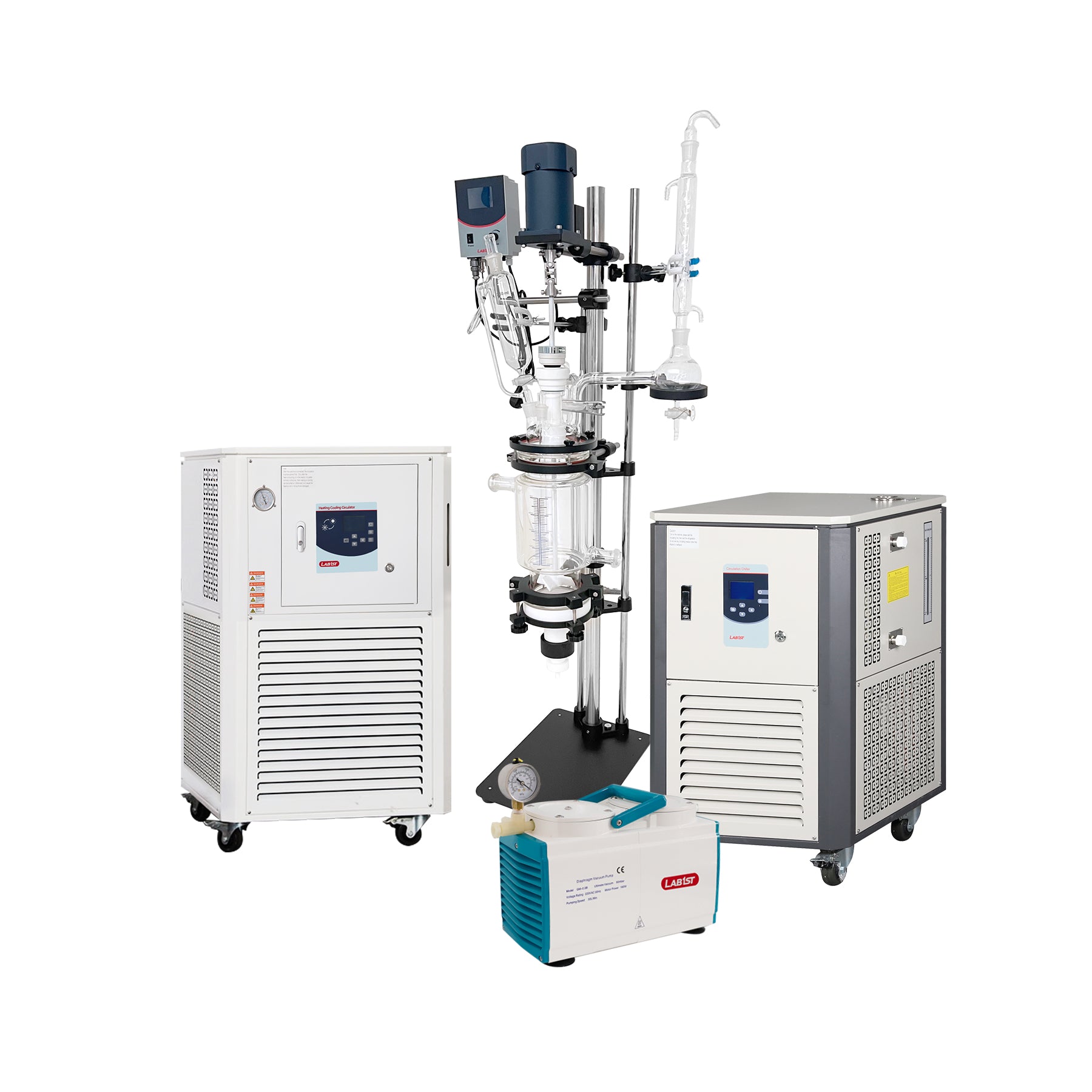

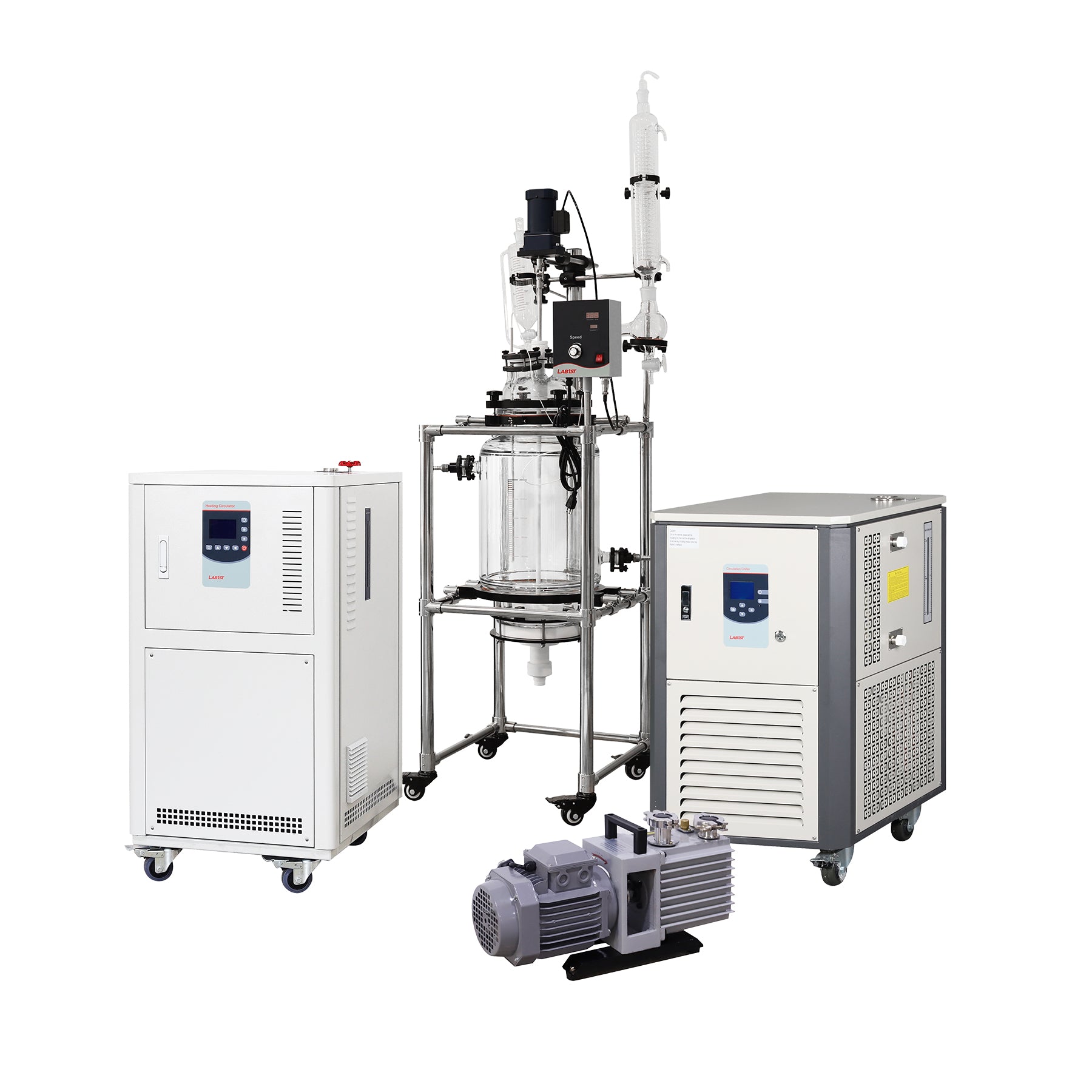

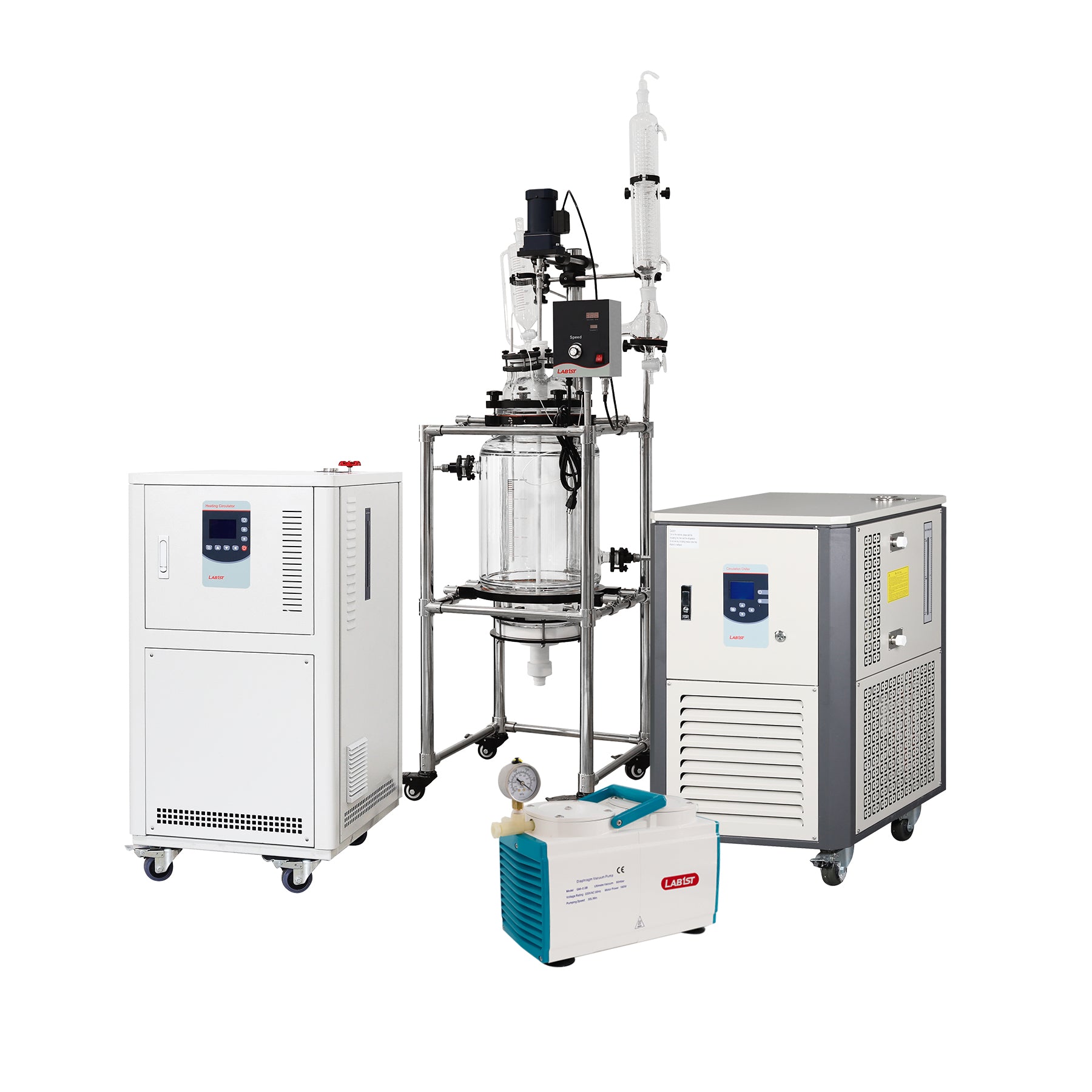

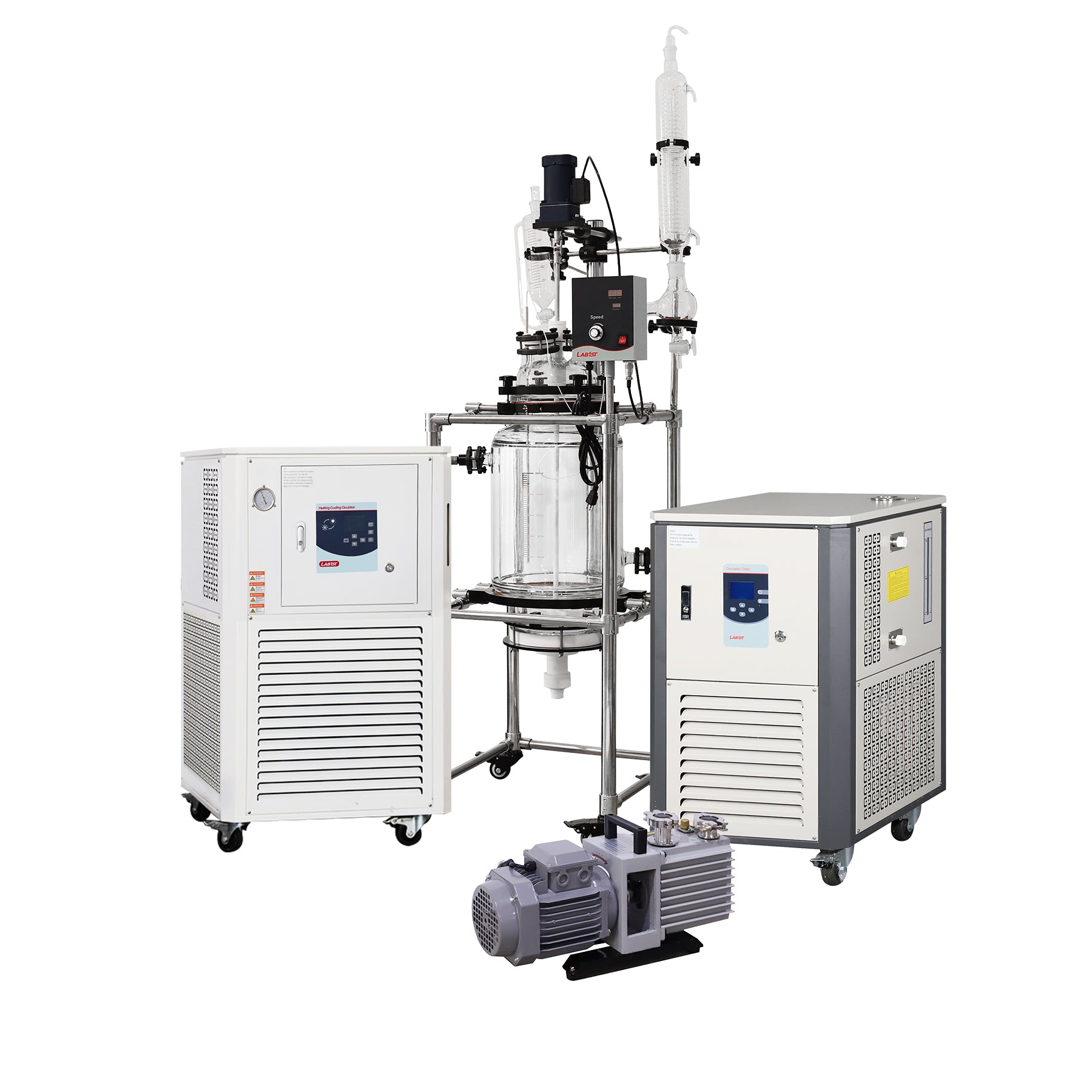

| Model | JGR-05F | JGR-10F | JGR-20F | JGR-30F | JGR-50F | JGR-80F | JGR-100F | JGR-200F |
| Temperature Range | -120°C~250°C [Glass] | |||||||
| Jacket Pressure | ≤0.05Mpa | |||||||
| Internal Vessel Pressure | -0.1Mpa ~ Atm | |||||||
| Glass Material | High borosilicate glass | |||||||
| Vacuum Sealing | Machinery Seal | |||||||
| Electrical Requirements | 110V | 220V | 220V, 50/60HZ, Single Phase | ||||||
| Stirring Motor Power [W] | 120 | |||||||

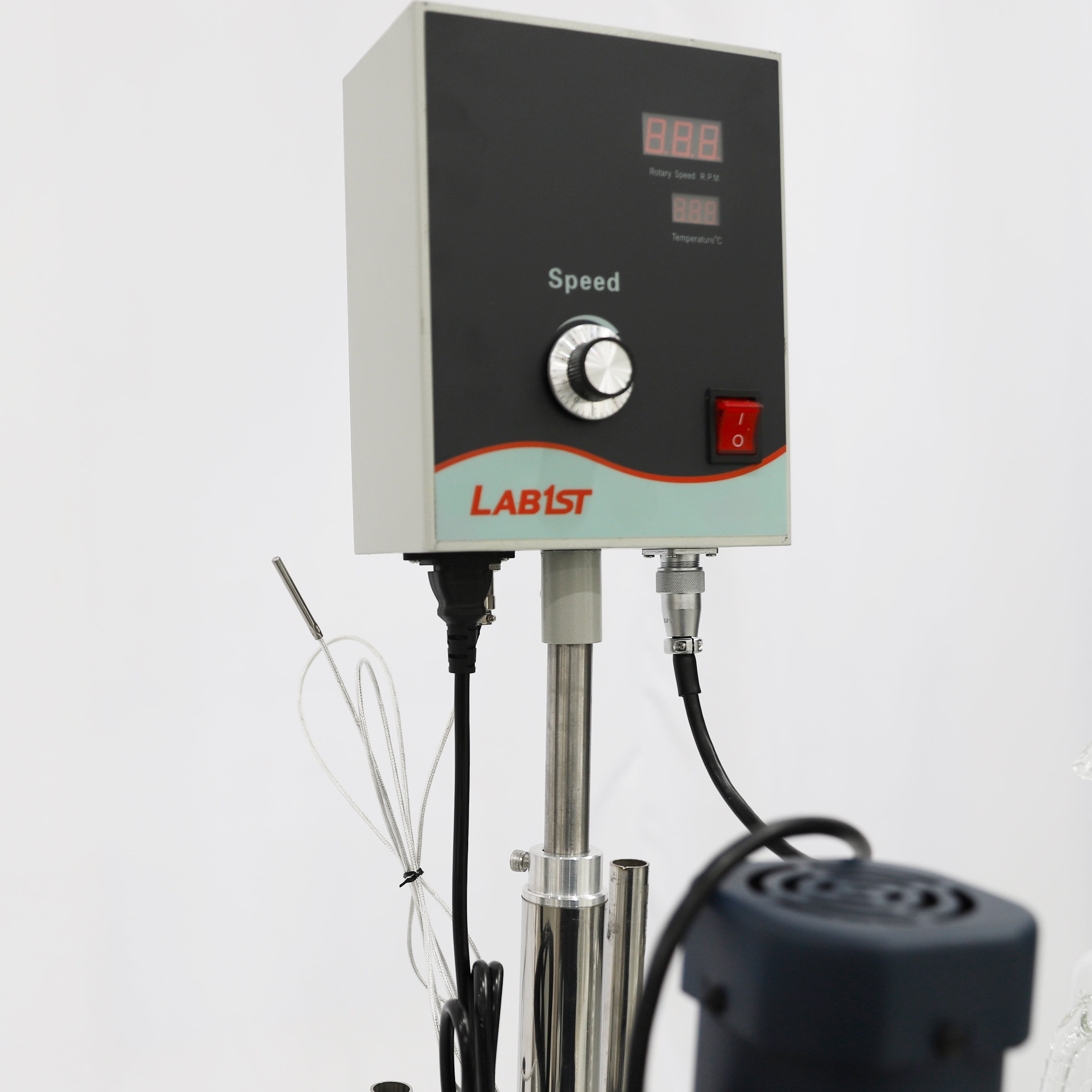

| Rotation Controller | Electronic Speed Control | |||||||

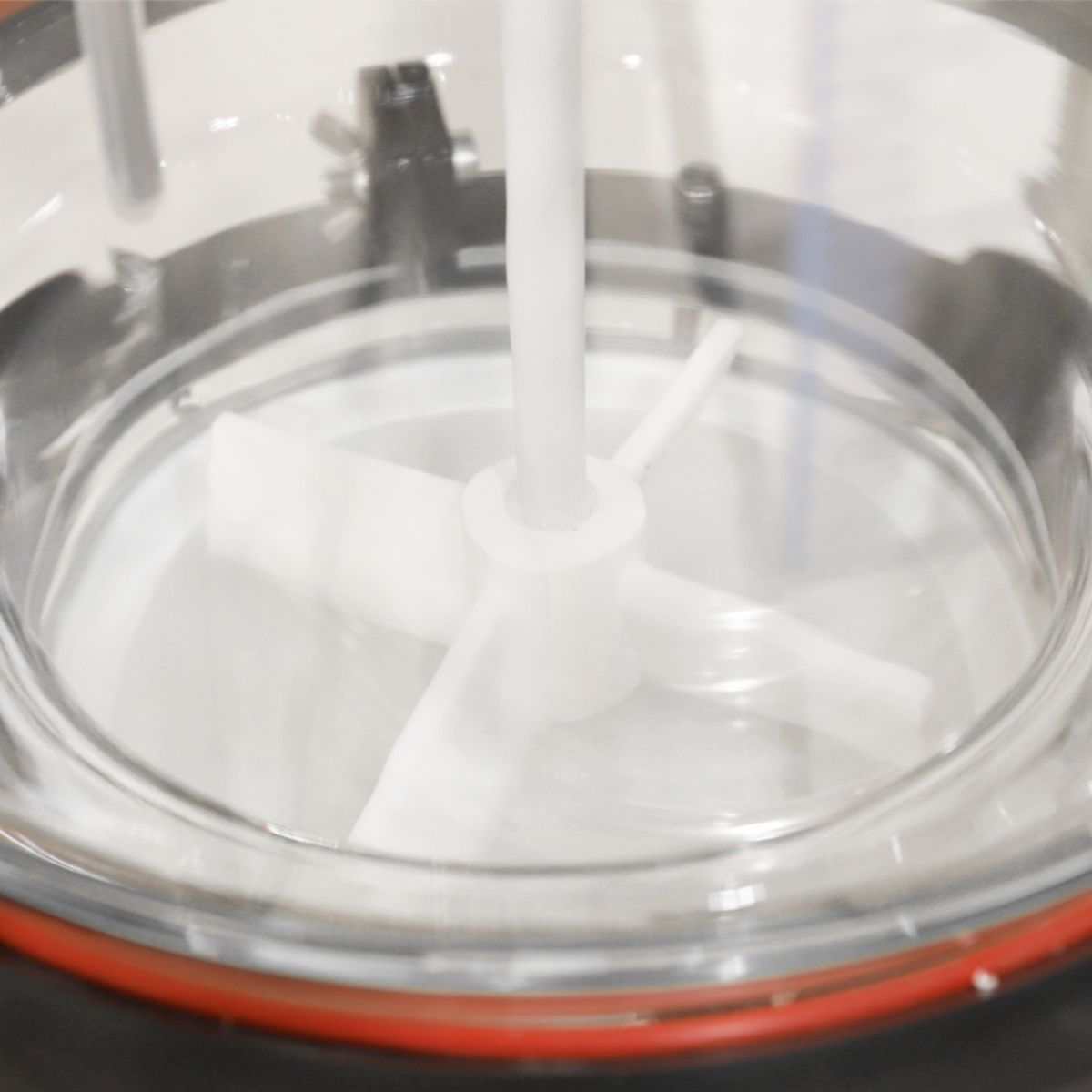

| Agitator Type | PTFE stirring paddle [Various types available] | |||||||
| Filtration Pore Size | 20-40 um | 40-80 um | ||||||

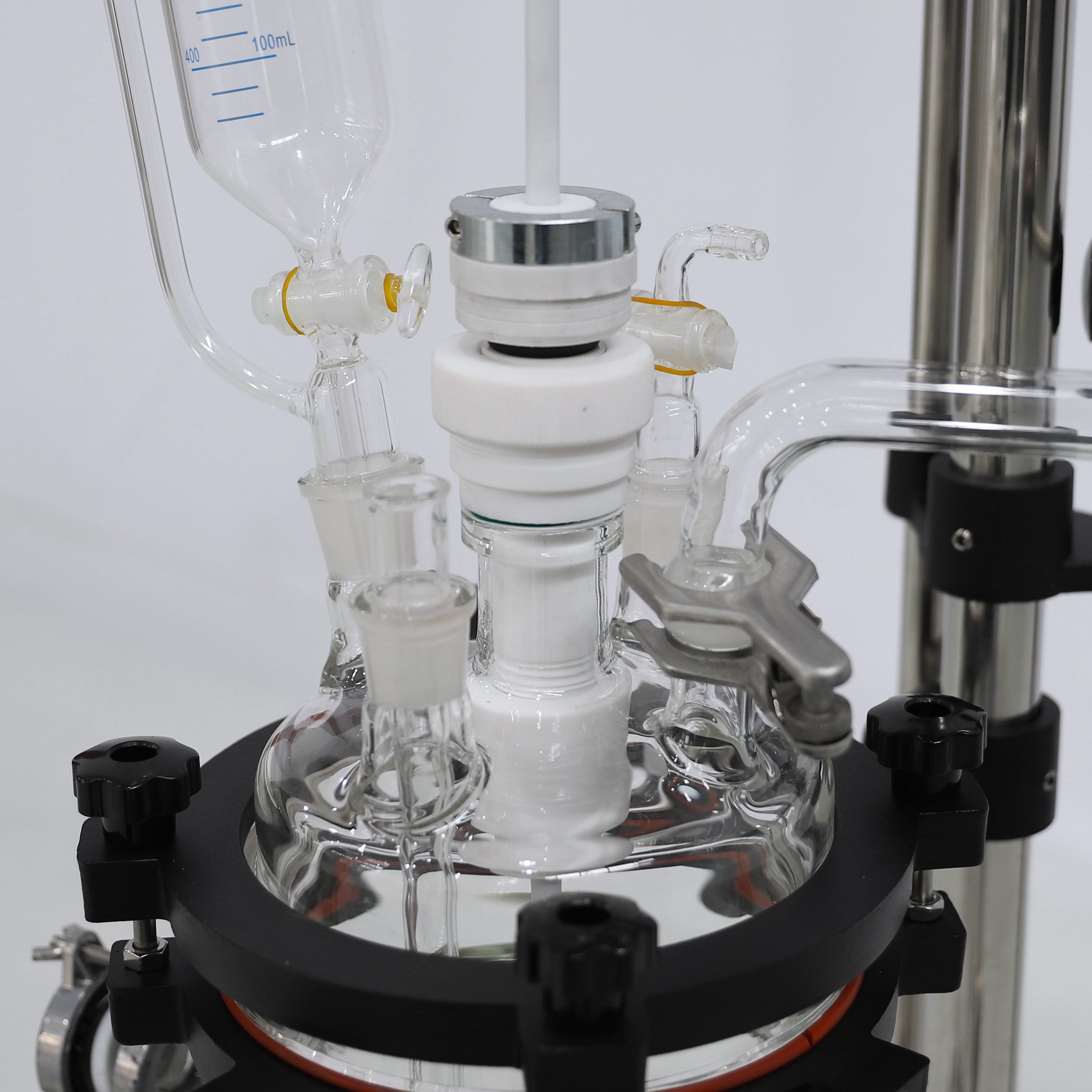

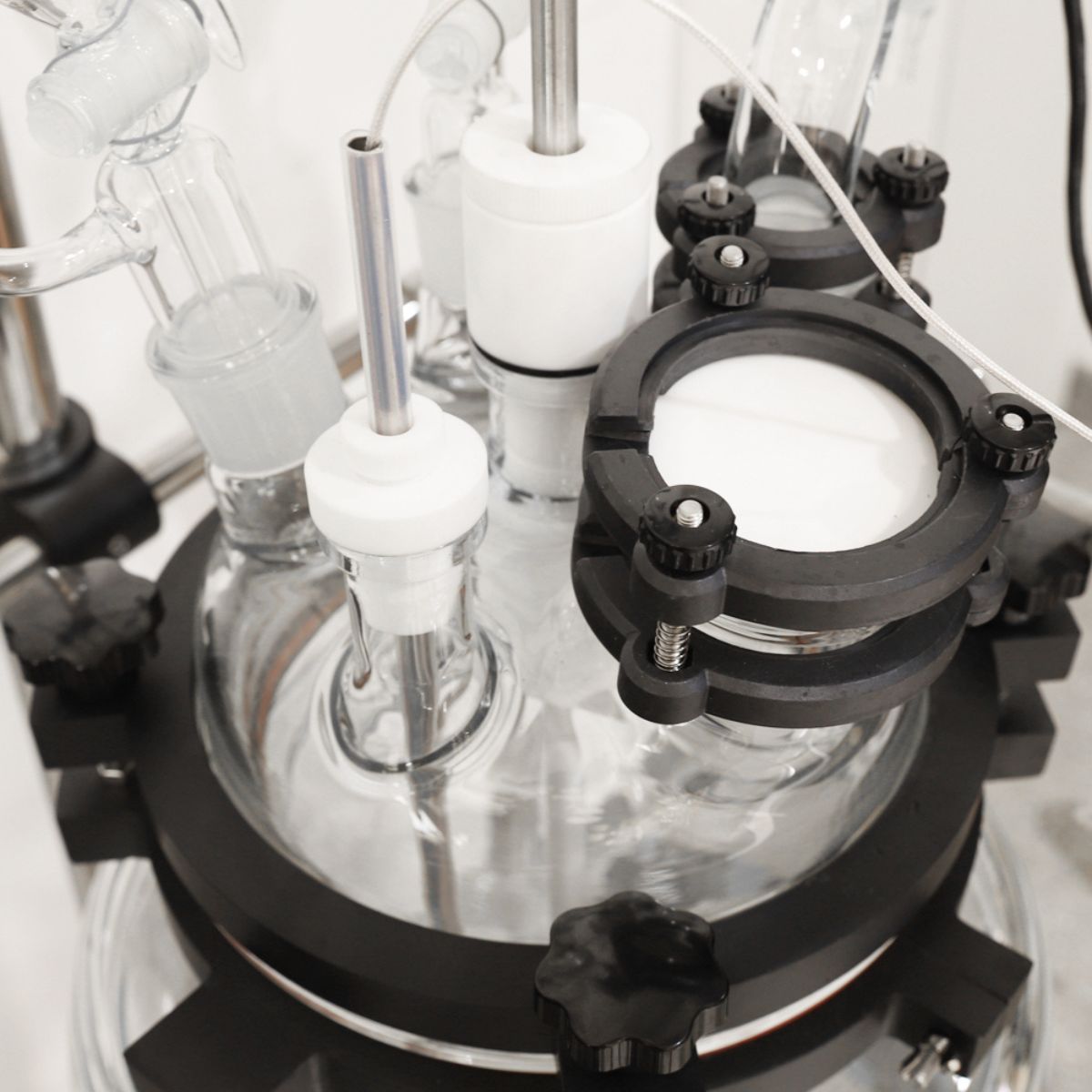

| Ports on the Lid [pcs] | 5+1 | |||||||
| Reaction Vessel Volume [L] | 5L | 10L | 20L | 30L | 50L | 80L | 100L | 200L |
| Jacket Volume [L] | 1.5L | 3L | 6L | 10L | 16L | 24L | 30L | 60L |
RFQ for Glass Reactor Series:
-
How long is the warranty period and what does it cover?
- We provide a one-year warranty, but consumables not included, like glassware, filter, etc.
-
If I need to ship to an address outside the United States, can you provide door-to-door delivery service?
- Yes, we could also ship to your door, just contact us (eshop@lab1st.com or 844-4522178) for the real-time freight.
-
What's the delivery time?
- For the standard one, we just need 3--10 business days to handle the order, another 3--7 business days ship to your door via Express or 20--30 business days to your door via Sea Shipping.
- For the customized one, it will depends on the complexity.
-
Where can I find technical information about the Lab1st reactor?
- Technical information can be found on the Lab1st website under the product download tab. If further technical information is needed, please reach out to the sales team via email or phone at Lab1st: eshop@lab1st.com or 844-4522178.
-
Can your mixing paddles be customized? How much do they cost??
- Yes, it could customized and depends on the complexity.
More information, pls click here to download the data sheet.
We can also provide customized services, if you need please freely to contact us (eshop@lab1st.com).
You can download the following files:
Shipping Information
All the Standard Shipping packages will be delivered by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping — please contact us at eshop@lab1st.com or chat with us online for real-time shipping cost. Please note that we are closed on weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you of the estimated delivery time according to different products. All orders will be processed within 2 days (handling time).
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
