Forced Convection Oven FCO250/FCO300 Series

In stock
SKU: FCO250-16L
Chamber Volume
Temperature Range
Free Sea Shipping: Door-to-Door (US) / To Port (Other Countries, contact us for door delivery)
Request a Quote
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details

Got questions?

Feel free to get in touch

Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.

Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
  • Description
  • Product Downloads
  • Shipping Information

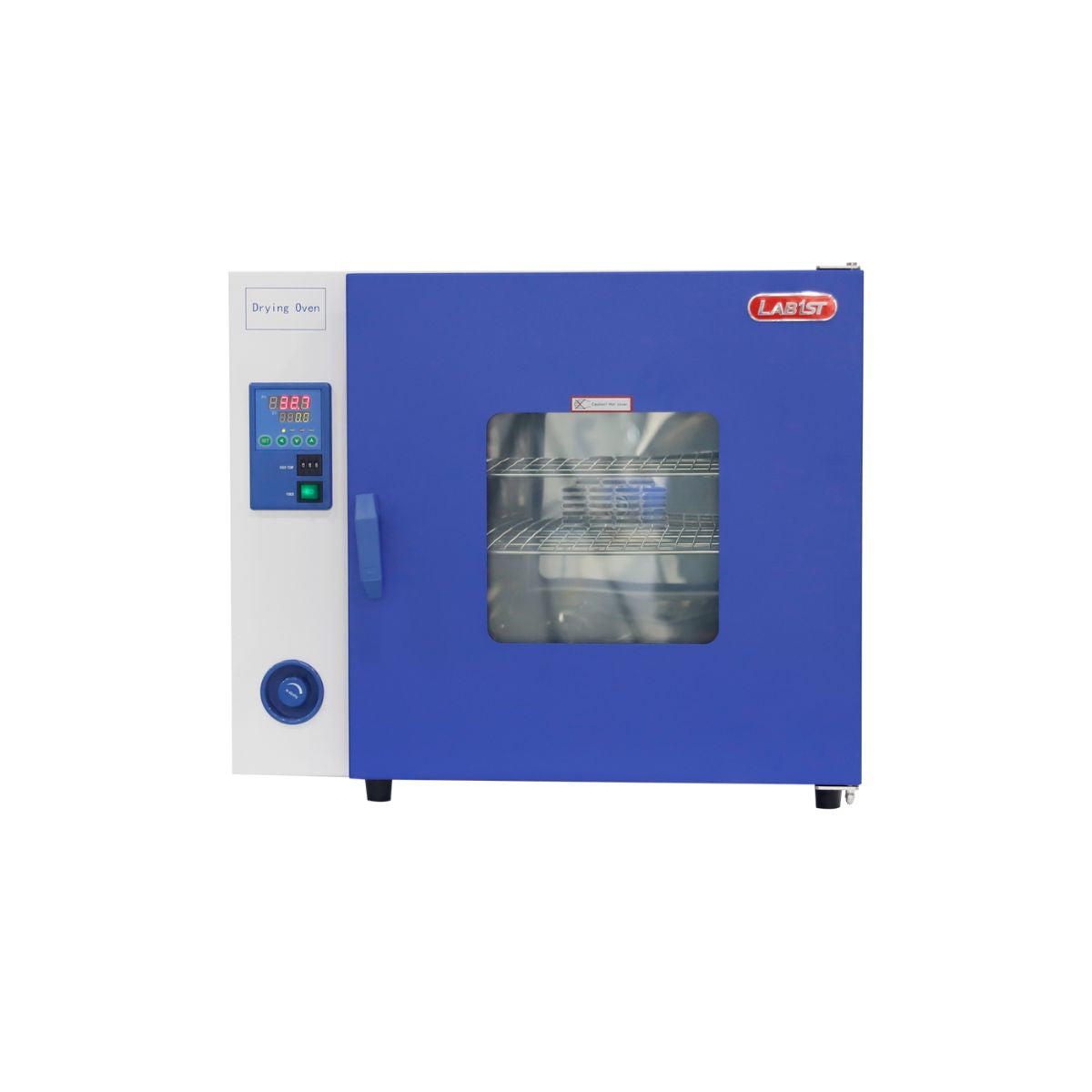

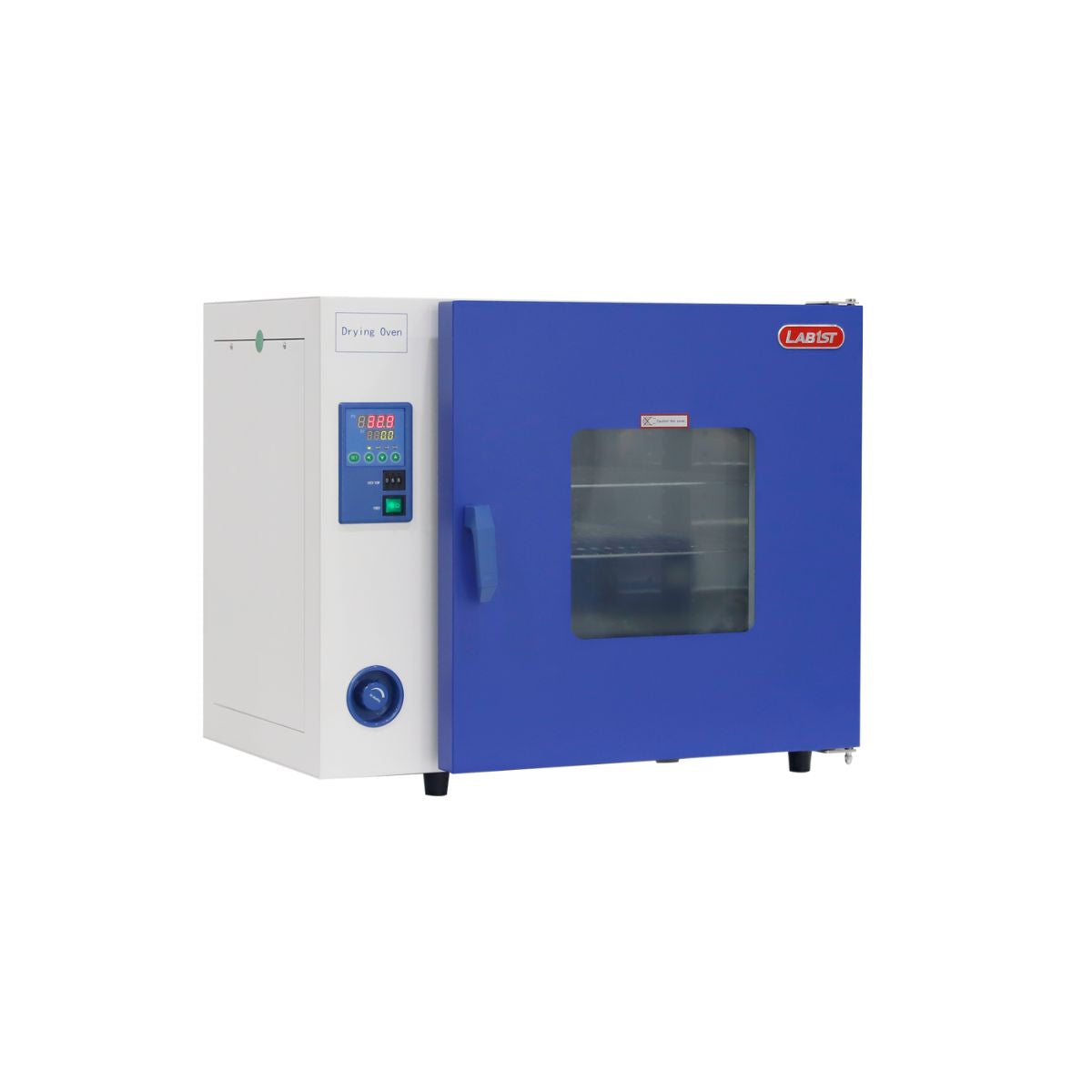

LAB1ST FCO250 and FCO300 Series Forced Convection Ovens are designed for demanding applications such as desiccation, torrefaction, wax-melting, and sterilization in mining, laboratories, and research. Featuring a durable mirror-finish stainless steel chamber with argon arc welding, these ovens include a high-temperature resistant synthetic silicone seal and a standard independent over-temperature controller for safety and reliability.

Features:

  • Premium 304 Stainless Steel Interior: The chamber is constructed with mirror-polished 304 stainless steel and assembled using argon arc welding, ensuring exceptional durability, corrosion resistance, and easy cleaning.
  • Advanced Thermal Sealing: Features new synthetic silicone door gaskets capable of withstanding long-term high-temperature operation, minimizing heat loss and improving efficiency.

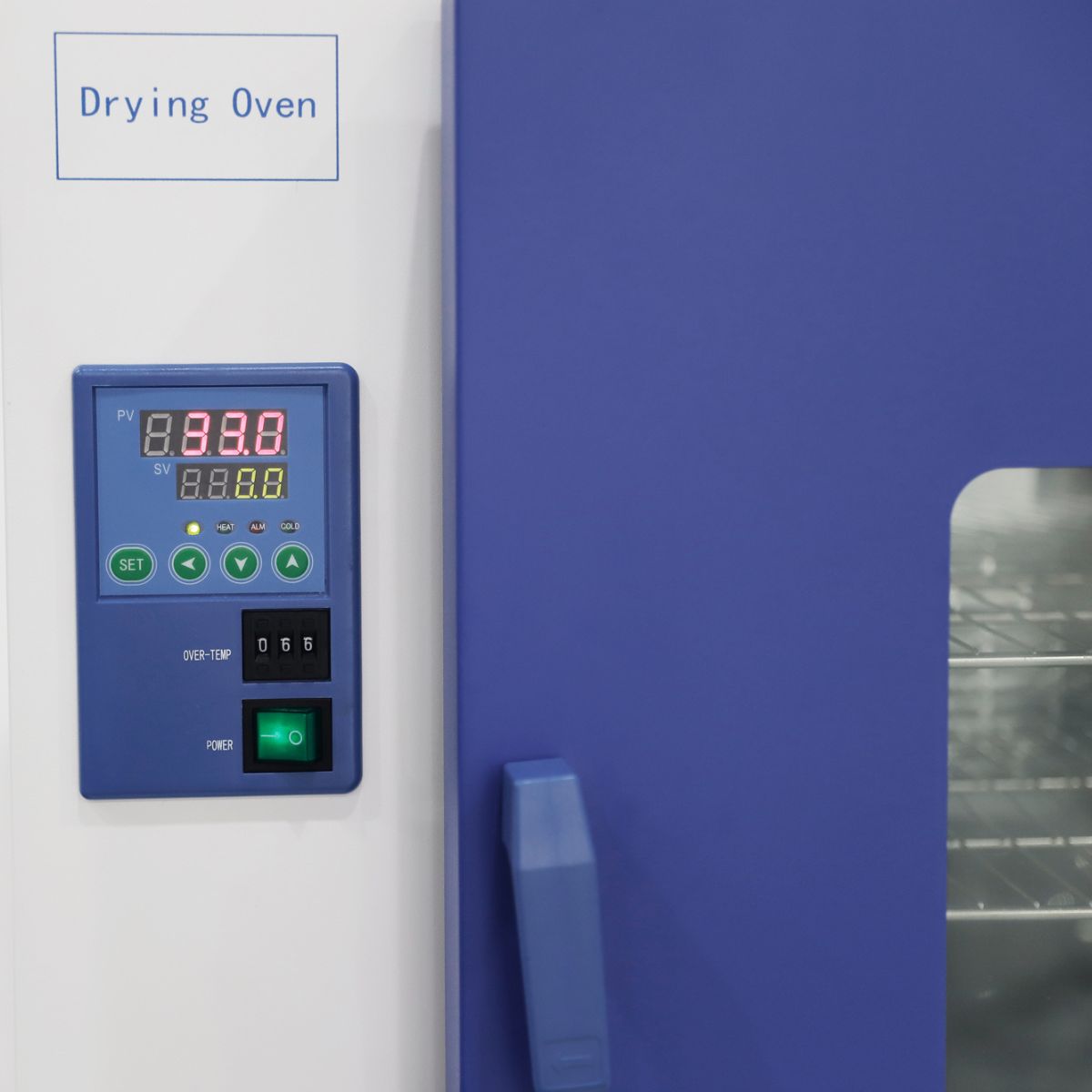

  • Precise & Intelligent Control: A sophisticated PID microprocessor controller with a timing function (0-9999 min) ensures accurate and stable temperature control (±1°C).
  • Enhanced Safety Protection: Includes an independent over-temperature alarm and cutoff system that automatically interrupts heating upon exceeding set limits, ensuring safe operation.
  • Superior Temperature Uniformity: The high-temperature resistant air circulation system, comprising a durable fan and optimized air duct, ensures excellent temperature uniformity throughout the working chamber.

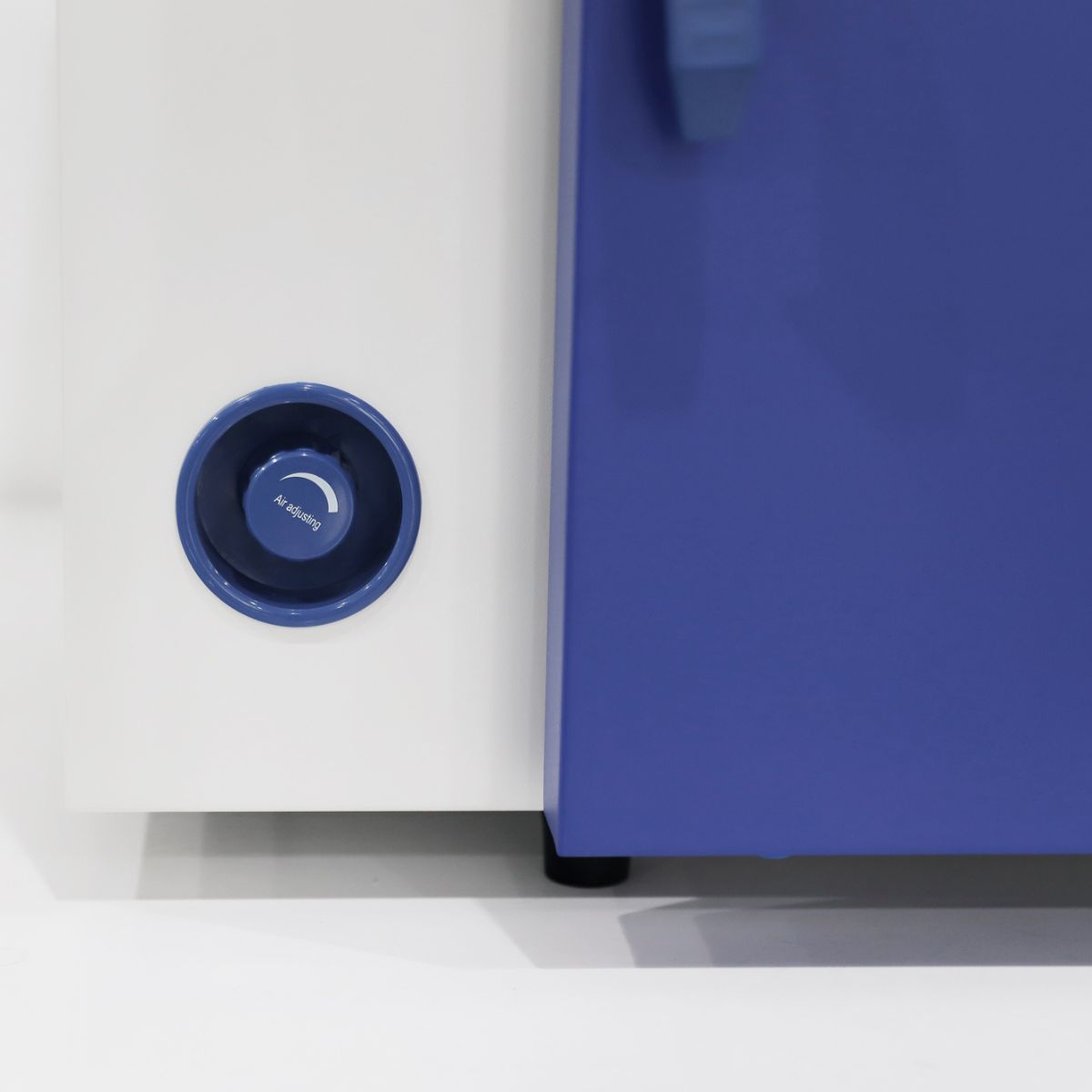

  • Adjustable Airflow Control: Built-in damper adjustment on the control panel allows precise regulation of intake and exhaust airflow levels within the chamber.

Specifications:

FCO250 Series:

Model: FCO250-16L FCO250-30L FCO250-50L FCO250-80L FCO250-136L
Chamber Volume 16L [0.6 Cuft] 30L [1.1 Cuft] 50L [1.8 Cuft] 80L [2.8 Cuft] 136L [4.8 Cuft]
Temperature Range: RT+10~250℃ [RT+50~482°F]
Display Resolution: 0.1℃ [0.18°F]
Temperature Stability: ±1 ℃ [±33.8°F]
Temperature Uniformity: ±3 ℃ (at 100℃)
Ambient Temperature: +5~40℃ [+41~104°F]
Power Consumption: 800W 850W 1100W 1550W 2050W
Internal Dimension (W×D×H) m: 0.25×0.26×0.25 0.34×0.32×0.32 0.42×0.395×0.35 0.45×0.4×0.45 0.55×0.45×0.55
External Dimension (W×D×H) m: 0.53×0.37×0.42 0.62×0.44×0.49 0.72×0.53×0.52 0.74×0.53×0.63 0.84×0.58×0.73
Shelves: 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs
Timing Range: 0~9999min
Electrical Requirements: 220V 50HZ



Model: FCO250-220L FCO250-420L FCO250-620L FCO250-1000L
Chamber Volume 220L [7.8 Cuft] 420L [14.8 Cuft] 620L [21.9 Cuft] 1000L [35.3 Cuft]
Temperature Range: RT+10~250℃ [RT+50~482°F]
Display Resolution: 0.1℃ [0.18°F]
Temperature Stability: ±1 ℃ [±33.8°F]
Temperature Uniformity: ±3 ℃ (at 100℃)
Ambient Temperature: +5~40℃ [+41~104°F]
Power Consumption: 2450W 3100W 4000W 5200W
Internal Dimension (W×D×H) m: 0.6×0.5×0.75 0.64×0.585×1.355 0.84×0.6×1.355 0.8×0.7×1.59
External Dimension (W×D×H) m: 0.88×0.63×0.93 0.78×0.73×1.78 0.98×0.8×1.88 1.05×0.88×2.06
Shelves: 2 pcs 3 pcs 4 pcs 4 pcs
Timing Range: 0~9999min
Electrical Requirements: 220V 50HZ

FCO300 Series:

Model: FCO300-16L FCO300-30L FCO300-50L FCO300-80L
Chamber Volume 16L [0.6 Cuft] 30L [1.1 Cuft] 50L [1.8 Cuft] 80L [2.8 Cuft]
Temperature Range: RT+10~300℃ [RT+50~572°F]
Display Resolution: 0.1℃ [0.18°F]
Temperature Stability: ±1 ℃ [±33.8°F]
Temperature Uniformity: ±3 ℃ (at 100℃)
Ambient Temperature: +5~40℃ [+41~104°F]
Power Consumption: 850W 850W 1100W 1550W
Internal Dimension (W×D×H) m: 0.25×0.26×0.25 0.34×0.32×0.32 0.42×0.395×0.35 0.45×0.4×0.45
External Dimension (W×D×H) m: 0.53×0.37×0.42 0.62×0.44×0.49 0.72×0.53×0.52 0.74×0.53×0.63
Shelves: 2 pcs 2 pcs 2 pcs 2 pcs
Timing Range: 0~9999min
Electrical Requirements: 220V 50HZ



Model: FCO300-136L FCO300-220L FCO300-420L FCO300-620L
Chamber Volume 136L [4.8 Cuft] 220L [7.8 Cuft] 420L [14.8 Cuft] 620L [21.9 Cuft]
Temperature Range: RT+10~300℃ [RT+50~572°F]
Display Resolution: 0.1℃ [0.18°F]
Temperature Stability: ±1 ℃ [±33.8°F]
Temperature Uniformity: ±3 ℃ (at 100℃)
Ambient Temperature: +5~40℃ [+41~104°F]
Power Consumption: 2050W 2450W 3100W 4000W
Internal Dimension (W×D×H) m: 0.55×0.45×0.55 0.6×0.5×0.75 0.64×0.585×1.355 0.84×0.6×1.355
External Dimension (W×D×H) m: 0.84×0.58×0.73 0.88×0.63×0.93 0.78×0.73×1.78 0.98×0.8×1.88
Shelves: 2 pcs 2 pcs 3 pcs 4 pcs
Timing Range: 0~9999min
Electrical Requirements: 220V 50HZ

If you require customization — including size, temperature range, or other specifications — please contact us at eshop@lab1st.com for more information.

Series Compare:

Model: Temperature Range Feature Chamber Volume
FCO220 Series RT+10~220℃ [RT+50~428°F]
  • High-Temp. Design
  • Polished stainless steel interior
  • Microcomputer PID Temp. Controller
  • High-Temp. Synthetic Silicon Seal
  • Adjustable Air Intake and Exhaust
  • Independent Over-Temp. Protection System
  • Double-door Design
  • Standard Universal Casters

2150L, 2850L, 3400L
FCO250 Series RT+10~250℃ [RT+50~482°F]
  • Premium 304 Stainless Steel Interior
  • Advanced Thermal Sealing
  • Precise & Intelligent Control
  • Enhanced Safety Protection
  • Superior Temperature Uniformity
  • Adjustable Airflow Control
 16L, 30L, 50L, 80L, 136L, 220L, 420L, 620L, 1000L
FCO300 Series RT+10~300℃ [RT+50~572°F]
  • Premium 304 Stainless Steel Interior
  • Advanced Thermal Sealing
  • Precise & Intelligent Control
  • Enhanced Safety Protection
  • Superior Temperature Uniformity
  • Adjustable Airflow Control
 16L, 30L, 50L, 80L, 136L, 220L, 420L, 620L, 1000L
FCO250-Pro Series RT+10~250℃ [RT+50~482°F]
  • Polished Mirror-Finish Stainless Steel Chamber
  • Multi-Segment Programmable Controller
  • Programmable Controller
  • Independent Over-Temp. Protection System
  • Standard 25mm Test Port
  • Highly Accurate and Reliable Temperature Control
  • User-Friendly Design
 40L, 80L, 150L, 250L, 400L
FCO400 Series RT+20~400℃ [RT+68~752°F]
  • High-Temp. Design
  • Polished Mirror-Finish Stainless Steel Chamber
  • Advanced PID Fuzzy Logic Controller
  • Multi-Segment Programmable Controller
  • Programmable controller
  • Independent Over-Temp. Alarm System
  • Ceramic Fiber Door Seal
 50L, 100L, 220L, 760L
FCO500 Series RT+20~500℃ [RT+68~932°F]
  • High-Temp. Design
  • Polished Mirror-Finish Stainless Steel Chamber
  • Advanced PID Fuzzy Logic Controller
  • Multi-Segment Programmable Controller
  • Programmable controller
  • Independent Over-Temp. Alarm System
  • Ceramic Fiber Door Seal
 50L, 100L, 220L, 760L
