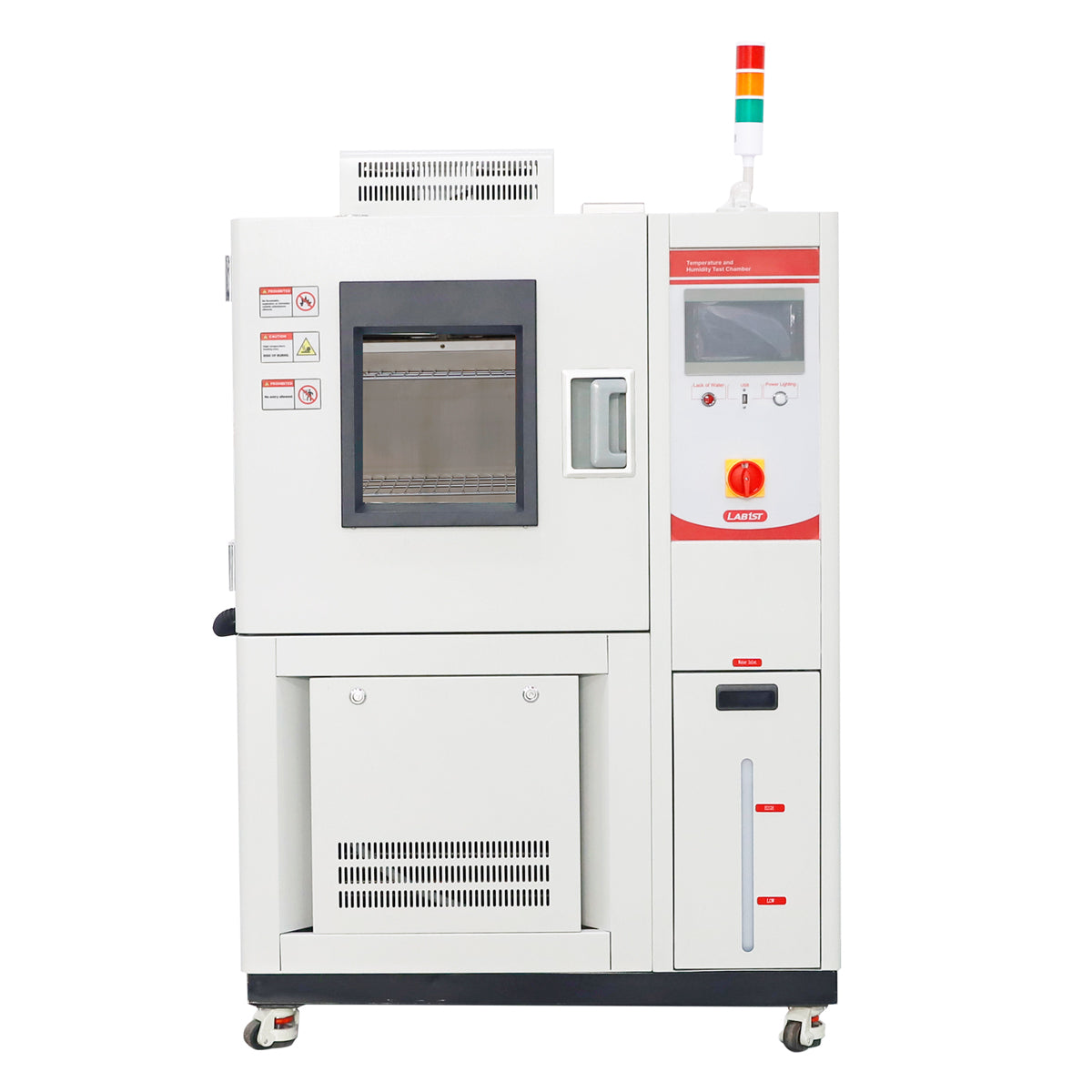

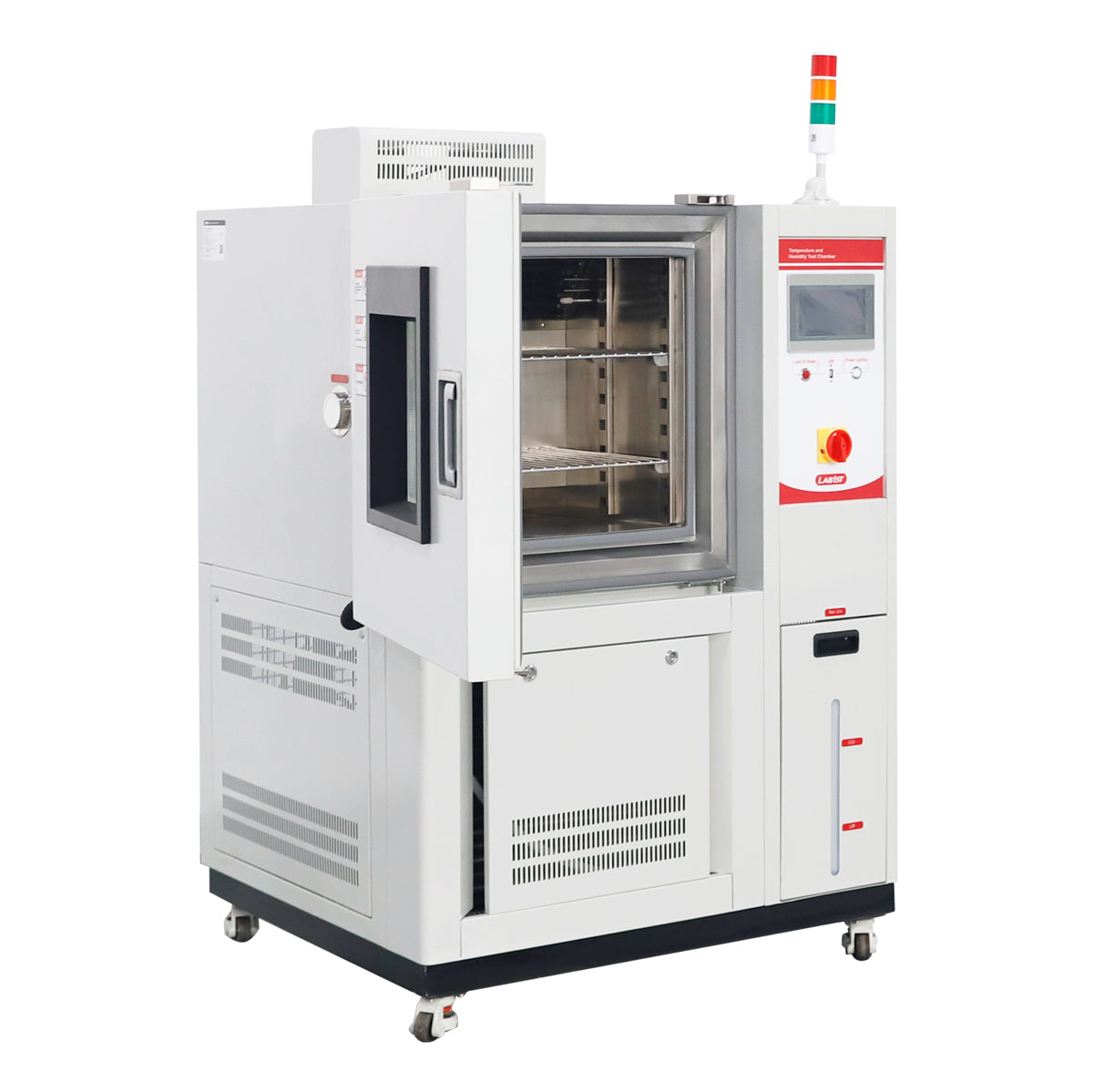

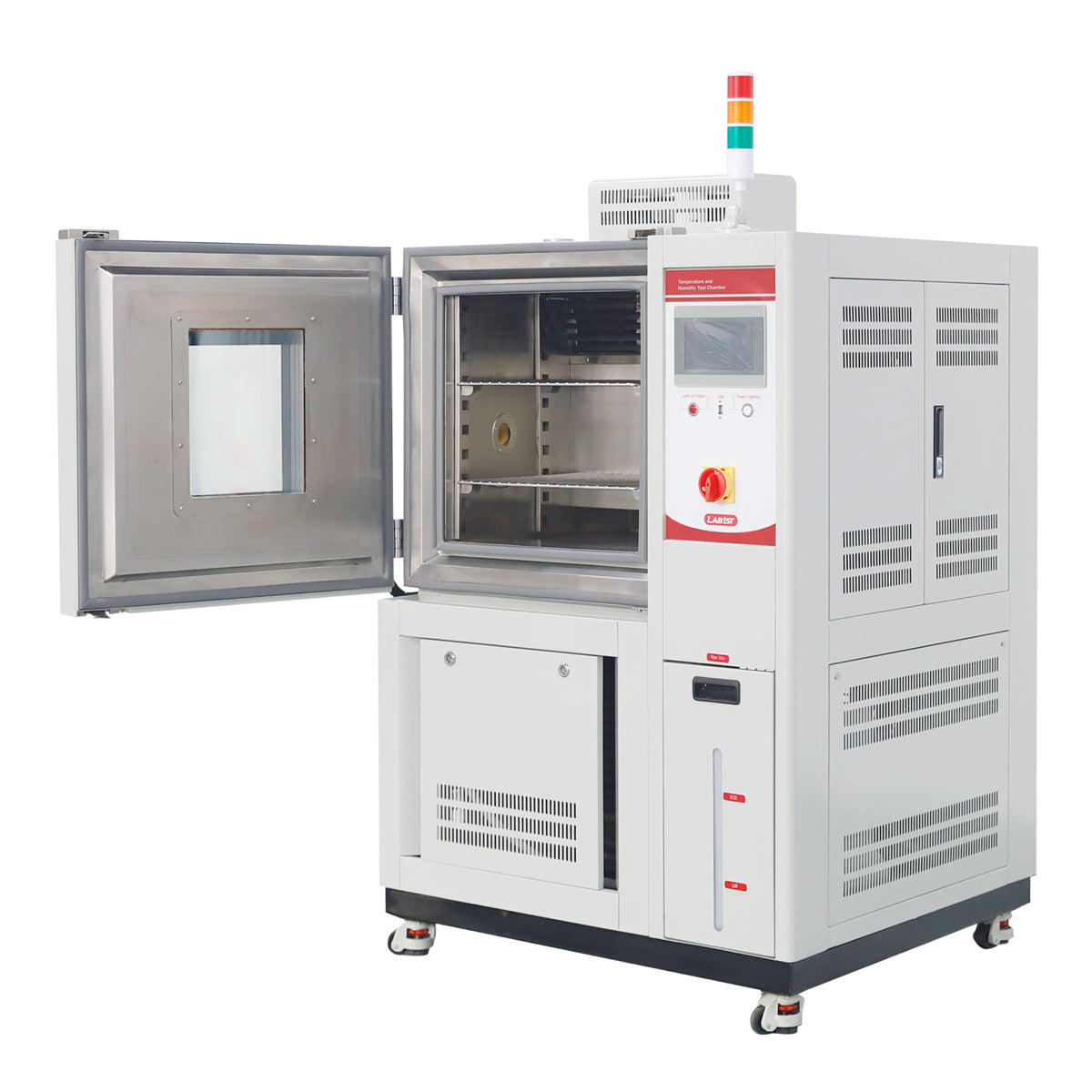

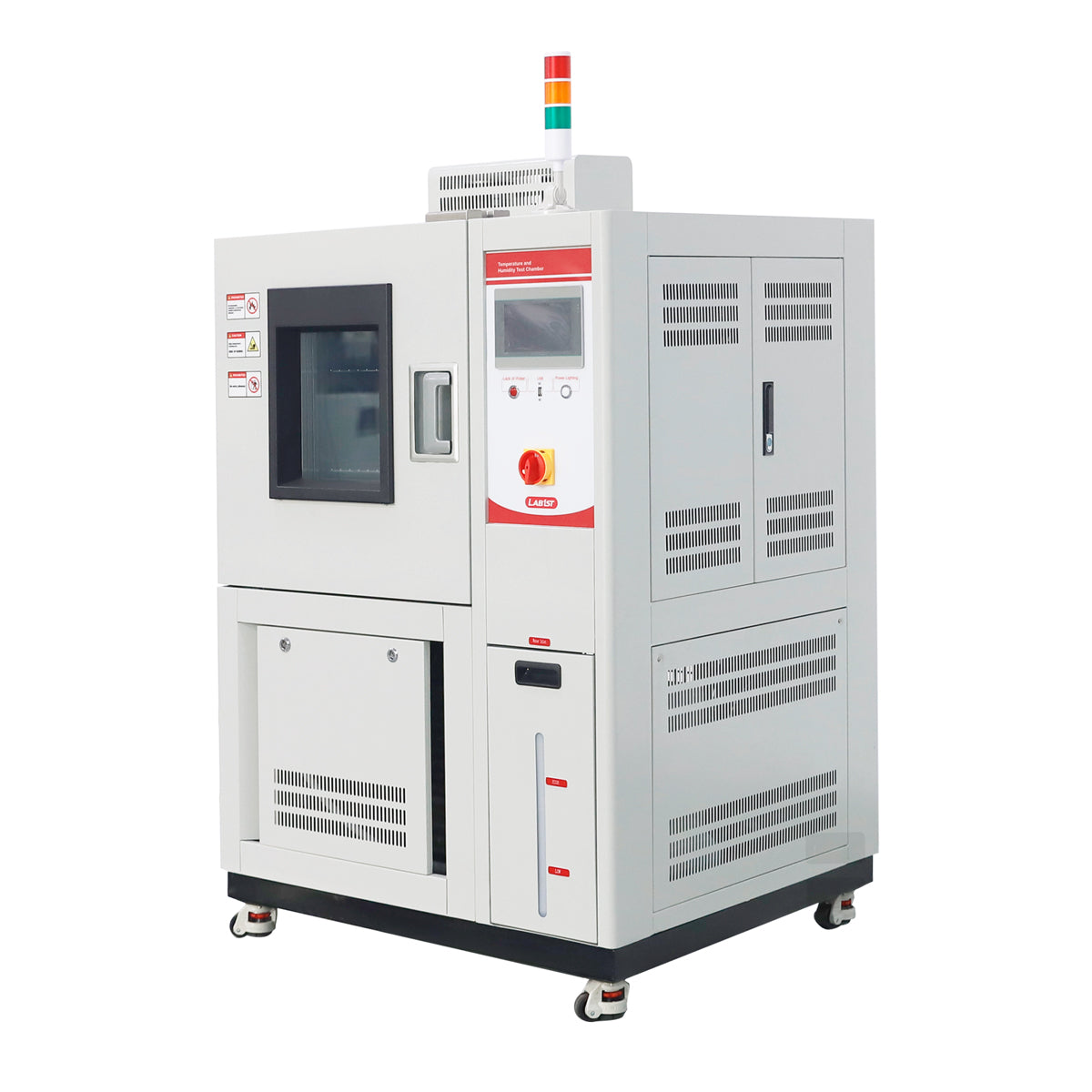

Designed for precision and adaptability, the TCH series temperature and humidity chamber features an expansive temperature range from -40°C to 150°C or -70°C to 150°C. This makes it an ideal choice for rigorous environmental simulation tasks across various industries. With advanced humidity control and a robust build, it ensures consistent and precise testing outcomes, supporting both quality assurance and research and development initiatives effectively. Discover enhanced performance and versatility in temperature and humidity testing with the TCH series, exemplifying excellence in environmental simulation technology.
Features:
Model Selection:
| Model | Workspace Volume | Temperature Range | Installed Power |
| TCH50F | 50L [1.8 cu ft] | -40℃~150℃ | 3.8kW |
| TCH100F | 100L [3.5 cu ft] | -40℃~150℃ | 4.7kW |
| TCH225F | 225L [7.9 cu ft] | -40℃~150℃ | 5kW |
| TCH500F | 500L [17.8 cu ft] | -40℃~150℃ | 8kW |
| TCH1000F | 1000L [35.3 cu ft] | -40℃~150℃ | 12kW |
| TCH50V | 50L [1.8 cu ft] | -70℃~150℃ | 4.2kW |
| TCH100V | 100L [3.5 cu ft] | -70℃~150℃ | 5kW |
| TCH225V | 225L [7.9 cu ft] | -70℃~150℃ | 5.7kW |
| TCH500V | 500L [17.8 cu ft] | -70℃~150℃ | 9kW |
| TCH1000V | 1000L [35.3 cu ft] |
-70℃~150℃ | 14kW |
Specifications:
| Workspace Volume: | 50L | 100L | 225L | 500L | 1000L |
| Performance |
|||||
| Temperature Range: | -40℃~150℃ [-40°F~302°F], -70℃~150℃ [-94°F~302°F], customizable (contact us: eshop@lab1st.com) | ||||
| Temperature Fluctuation: | ±0.5 ℃ | ||||
| Temperature Uniformity: | ±1 ℃ | ||||
| Heating Rate: | 3.0-5.0 ℃/min | ||||
| Cooling Rate | 0.7-1.5 ℃/min | ||||
| Humidity Range: | 20%~98% RH, customizable (contact us: eshop@lab1st.com) | ||||
| Humidity Fluctuation: | ±3% | ||||
| Humidity Uniformity: | ±2~±3% RH | ||||
| General Information |
|||||
| Chamber Material: | SUS304 | ||||
| Shelf: | 2 pcs [or more], SUS304 wired plates with support | ||||
| Max. Shelf Load: | Shelf: 10 kg [22 lbs], Chamber: 50kg [110 lbs] | ||||
| Cable Port: | 50 mm [2 inch] | ||||

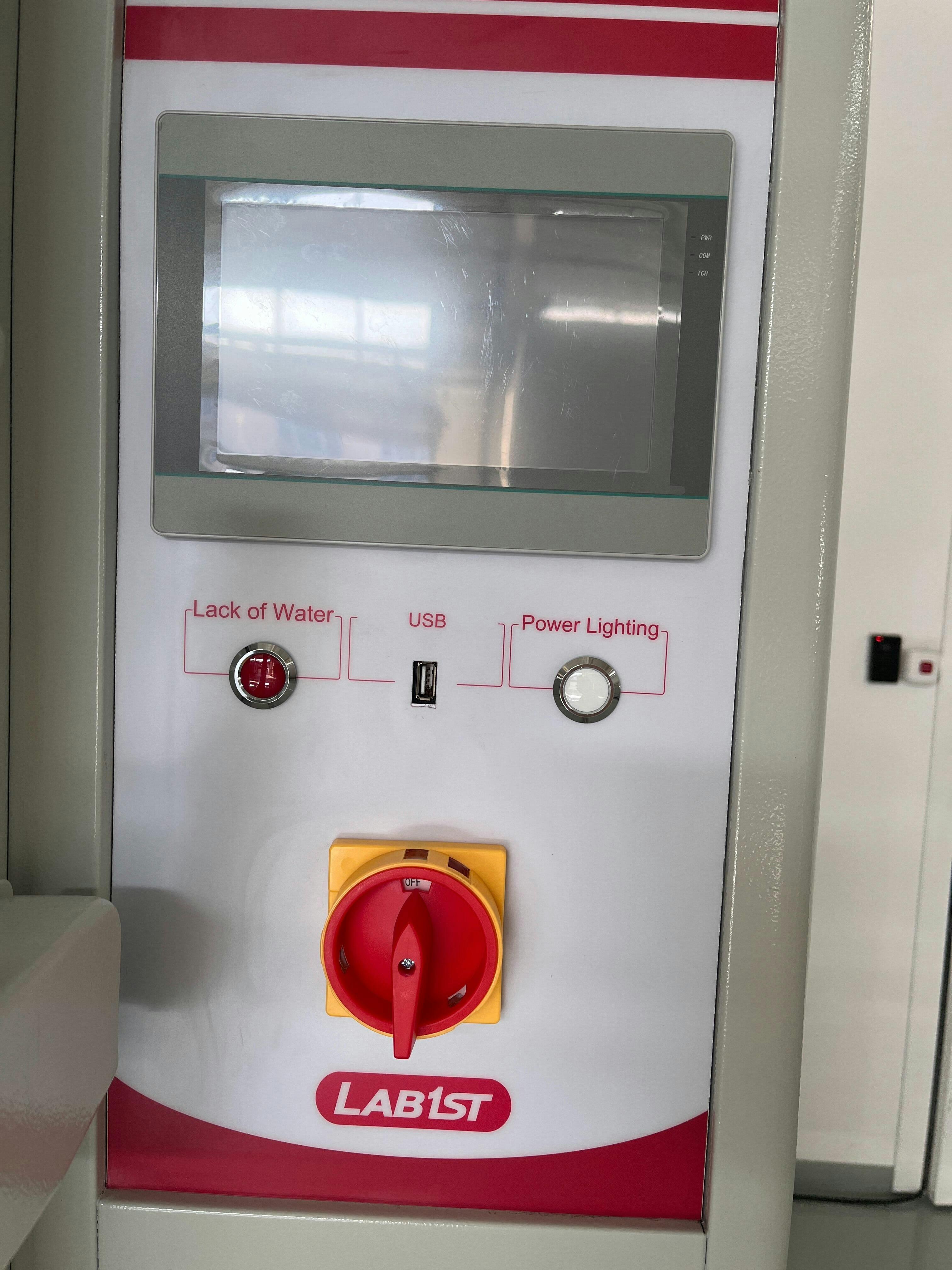

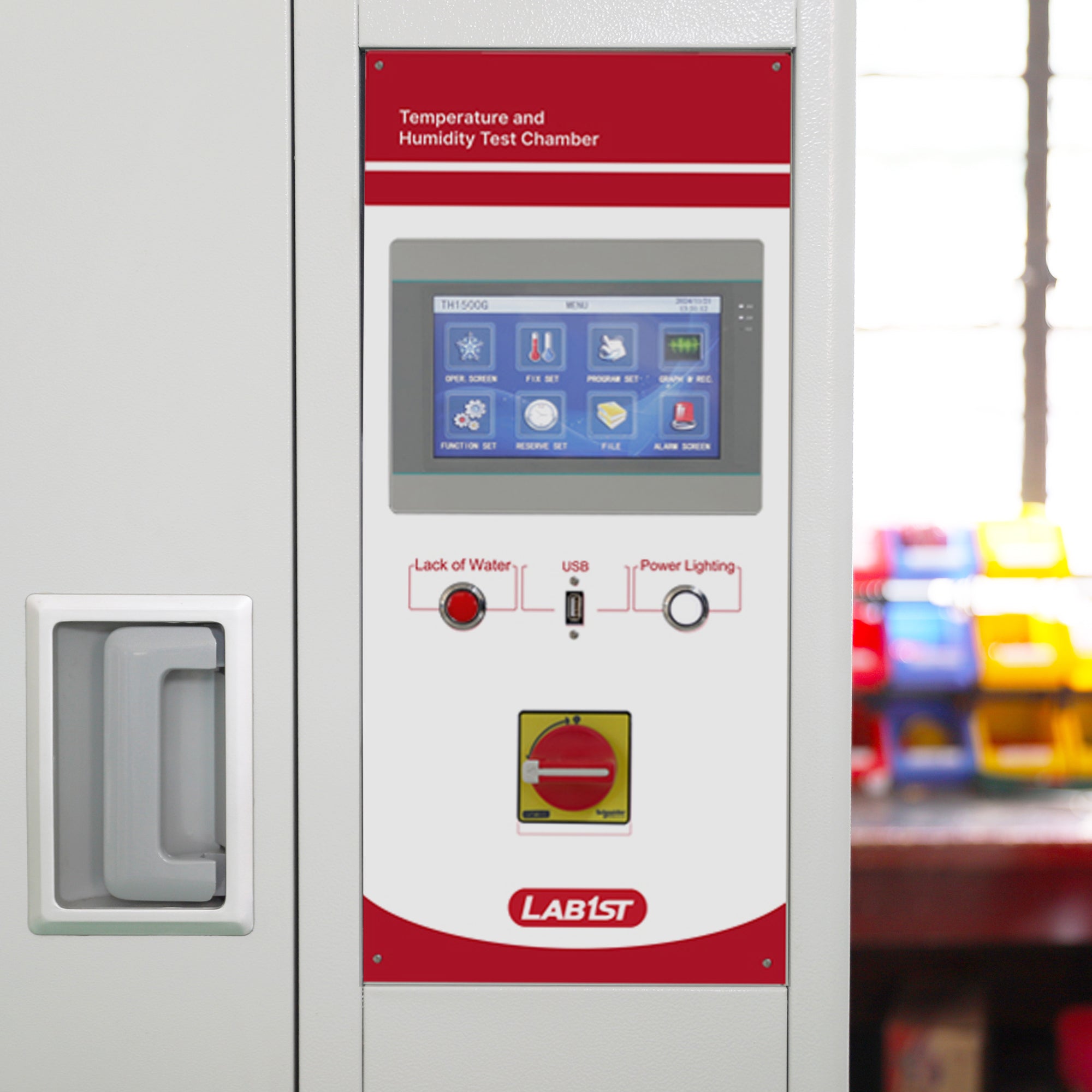

| Control Panel: | 7 inch industrial color touch screen, temperature and humidity program controller | ||||
| Communication: | USB, RS485 and Ethernet | ||||
| Compressor Brand: | Germany Secop, French Taikang, Germany Bitzer, etc. | ||||
| Cooling Mode: | Air-cooled | ||||
| Humidifier: | Heavy duty stainless steel 304 electrical heating humidifier | ||||
| Electrical Supply: |
North America: 110-120V, 1P, 60Hz or 208-240V, 1P, 60Hz or 208-240V, 3P, 60Hz International: 220-240V, 1P, 50Hz |
North America: 208-240V, 1P, 60Hz or 208-240V, 3P, 60Hz International: 220-240V, 1P, 50Hz |
North America: 208-240V, 1P, 60Hz or 208-240V, 3P, 60Hz or 460-480V, 3P, 60Hz International: 220-240V, 1P, 50Hz or 380-400V, 3P, 50Hz |
North America: 208-240V, 3P, 60Hz or 460-480V, 3P, 60Hz International: 380-400V, 3P, 50Hz |
|

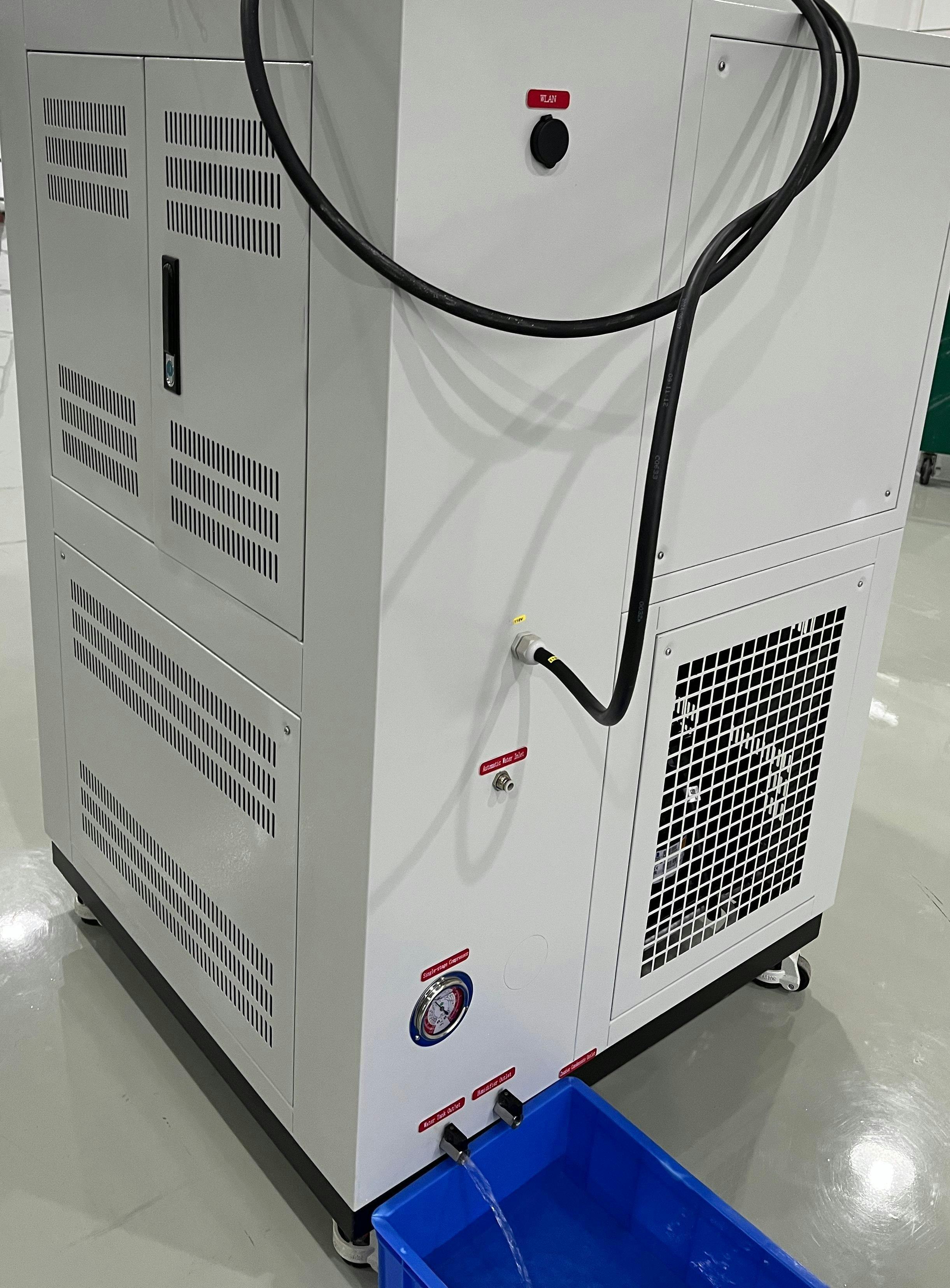

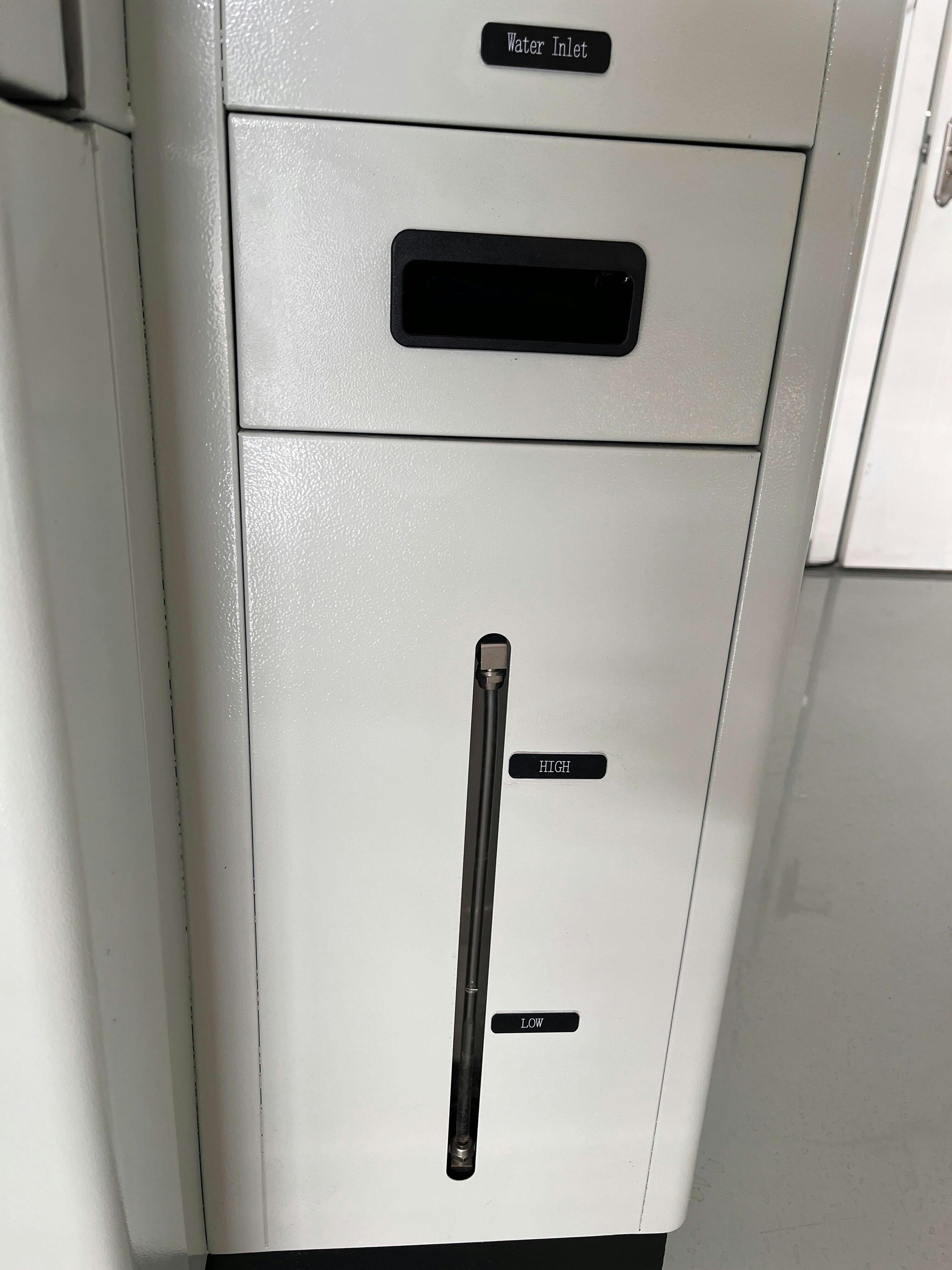

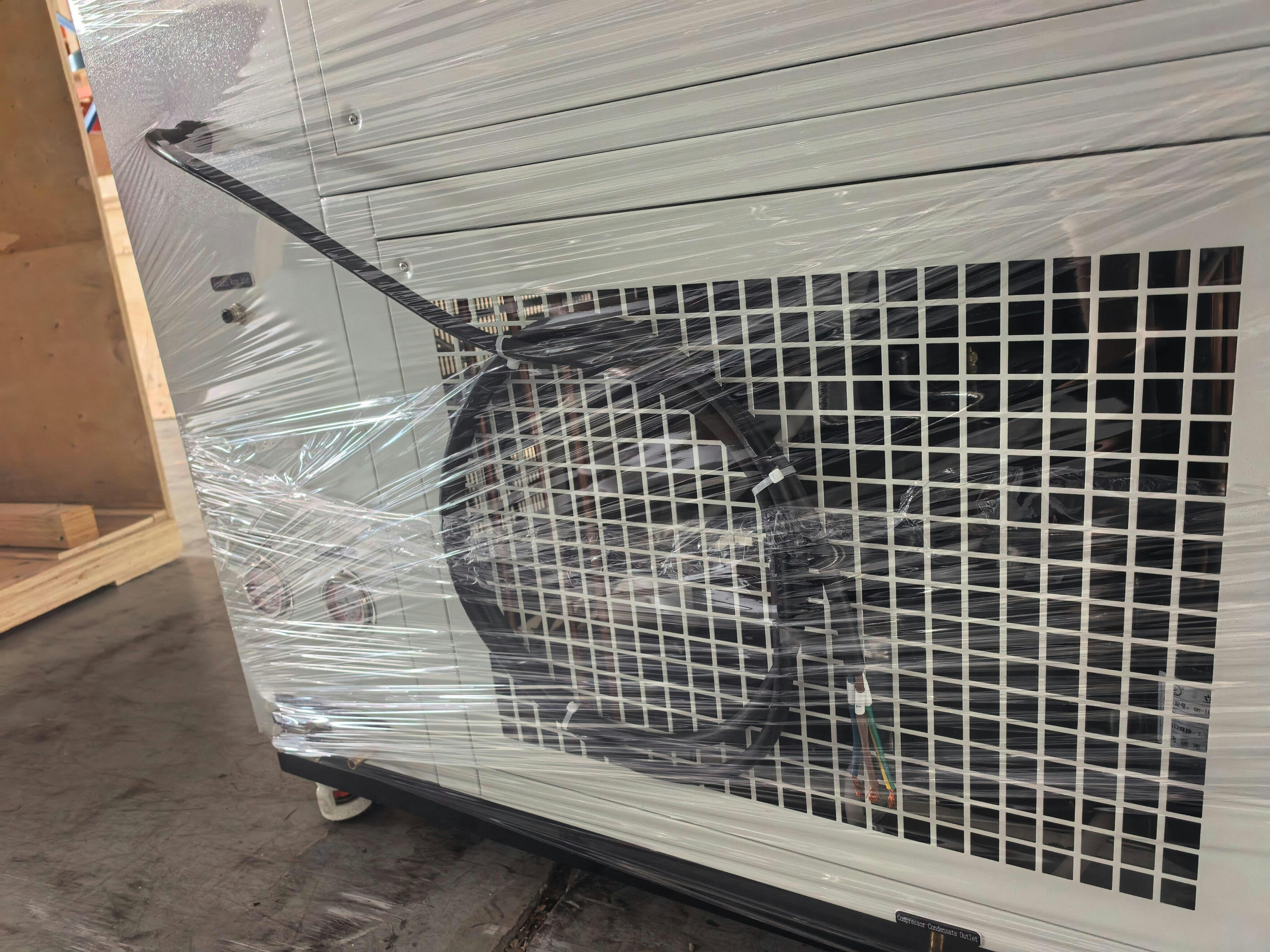

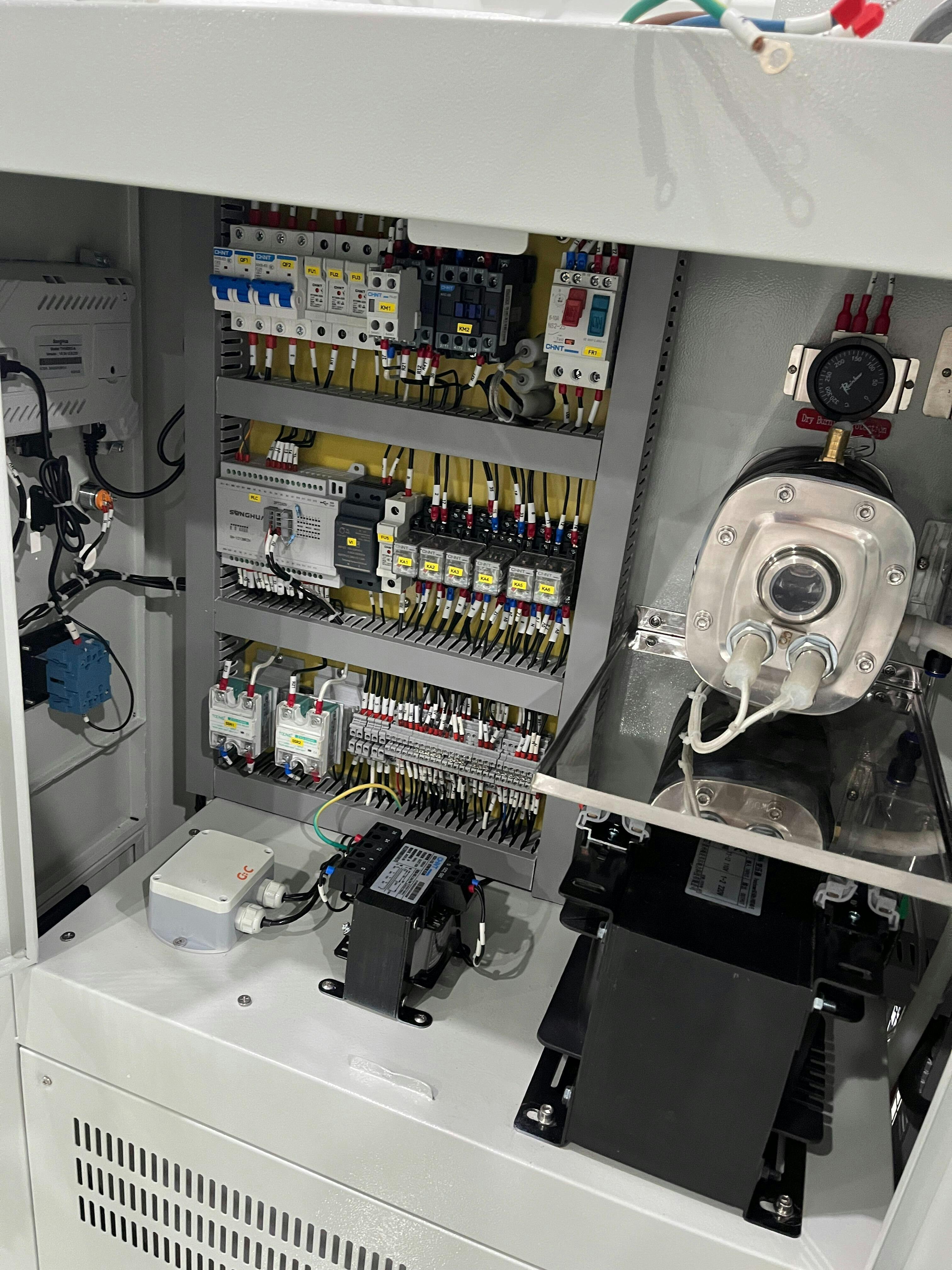

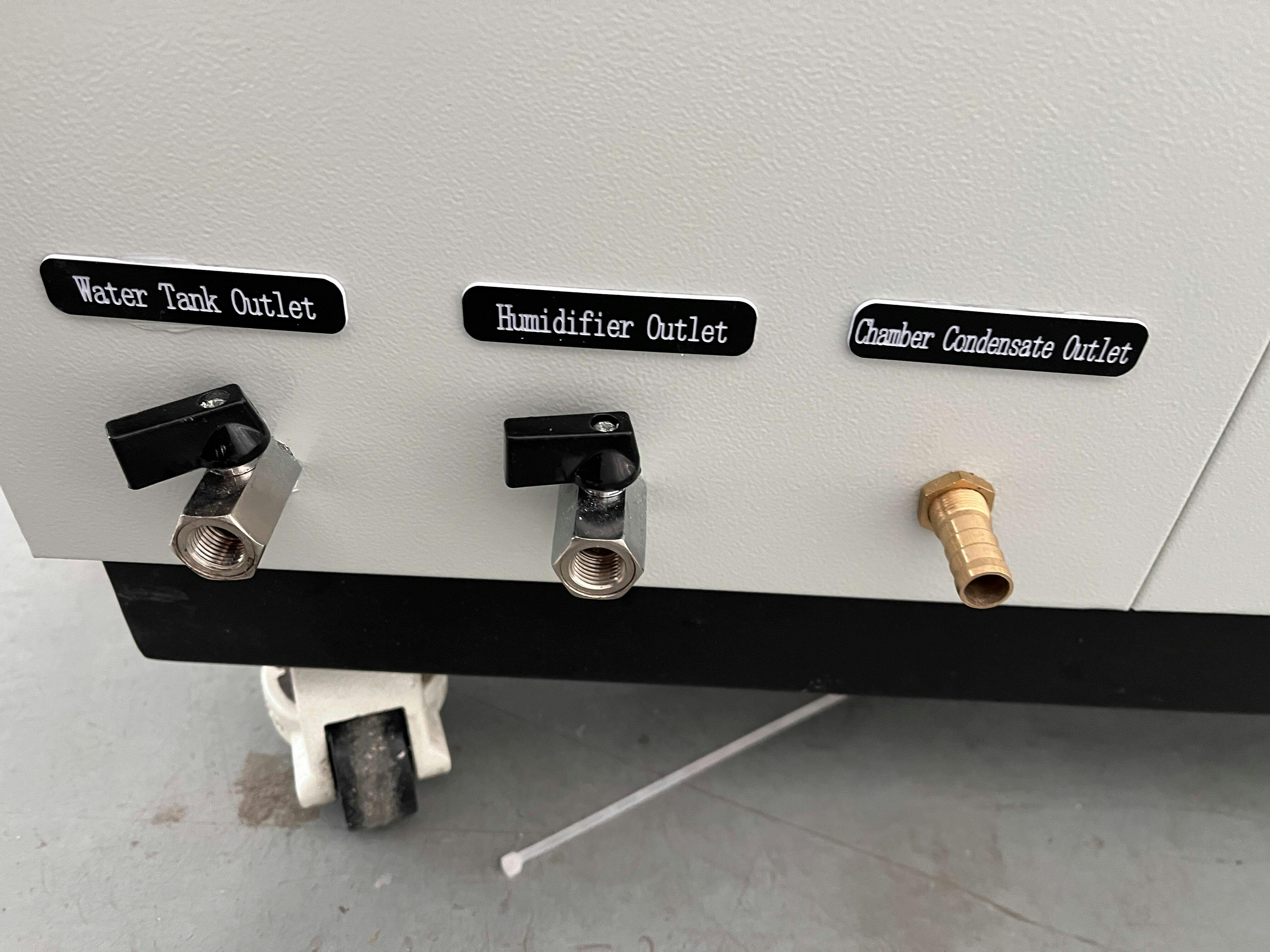

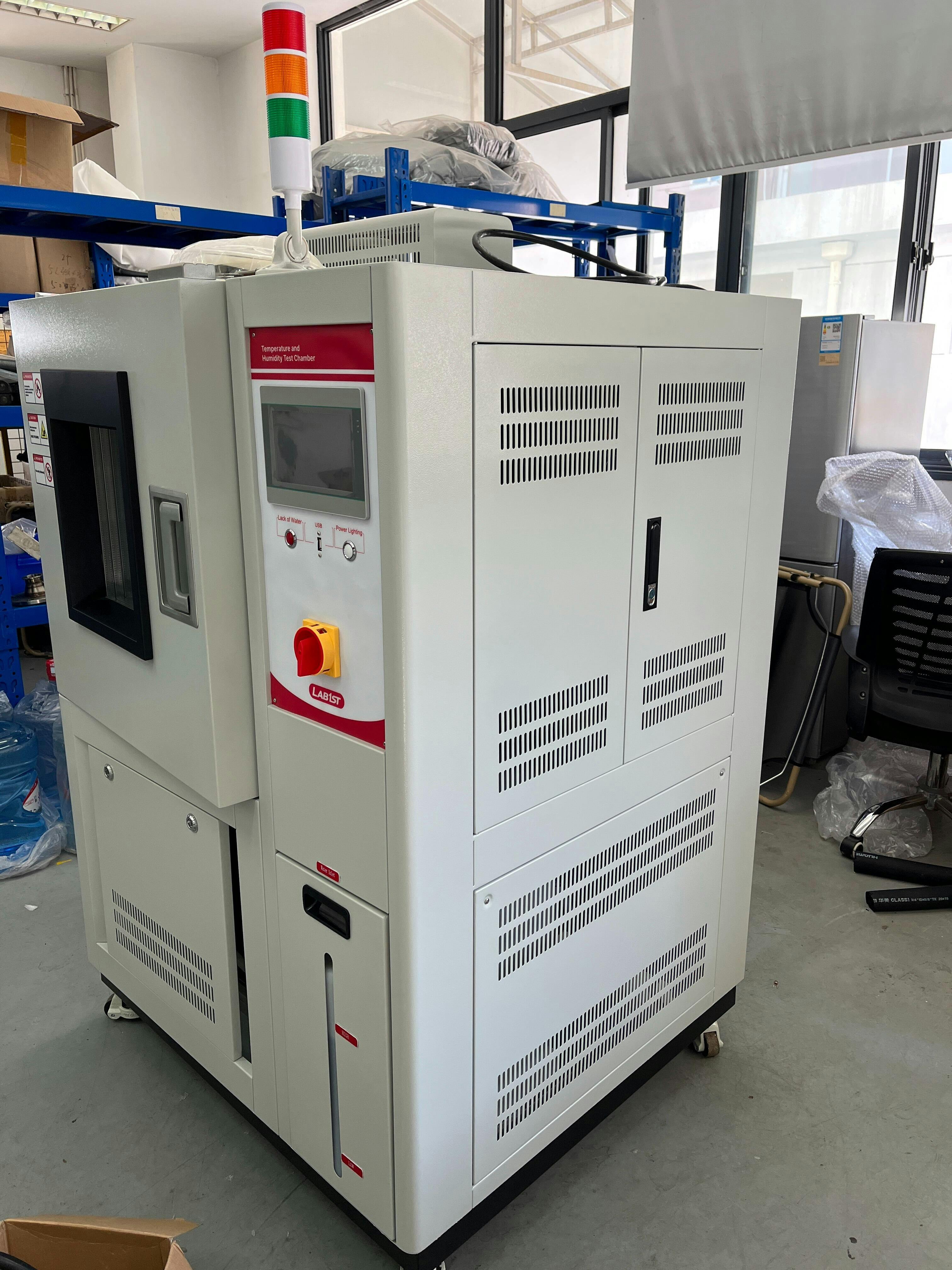

View Some Cases:
If you require customization — including size, temperature/humidity range, or other specifications — please contact us at eshop@lab1st.com for more information.
