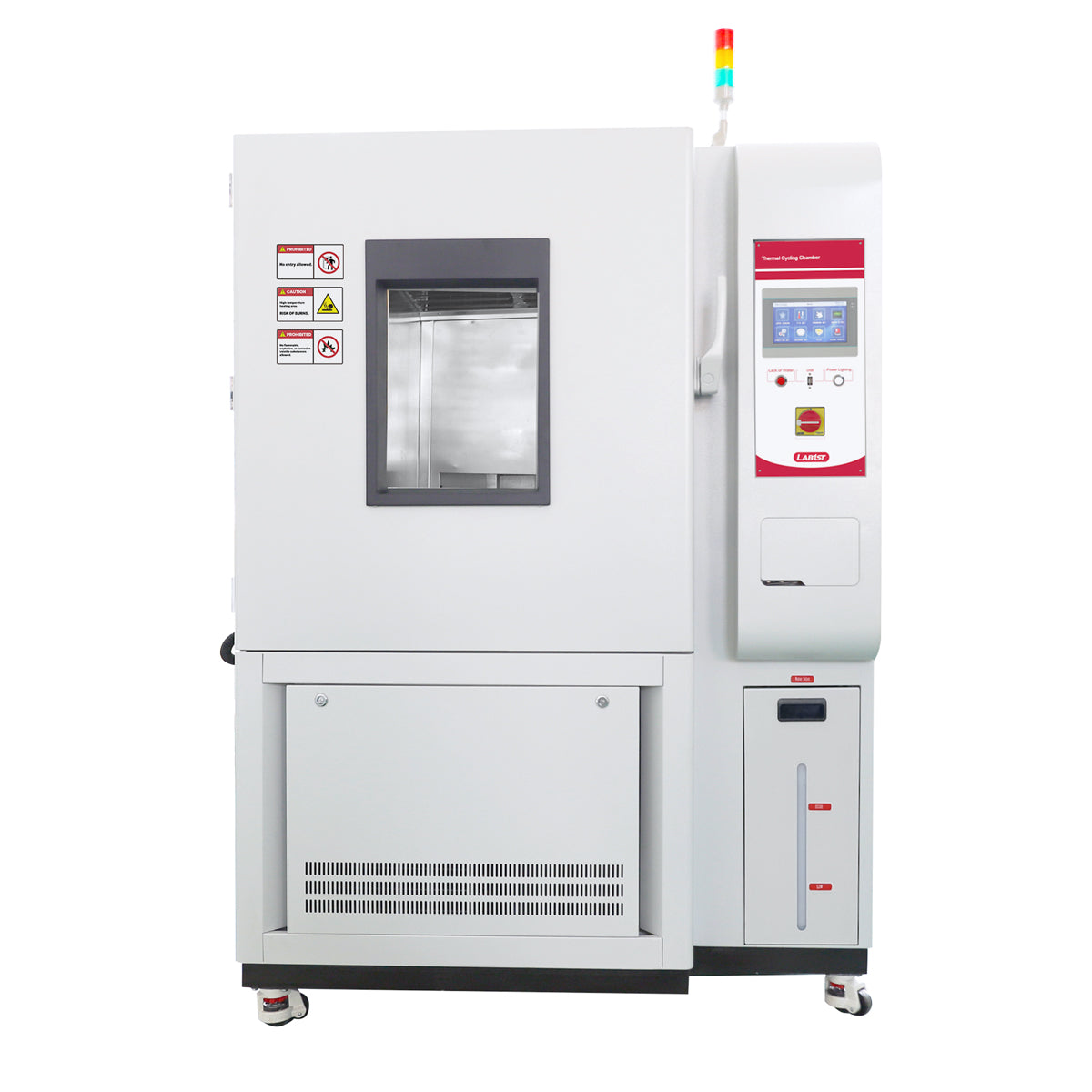

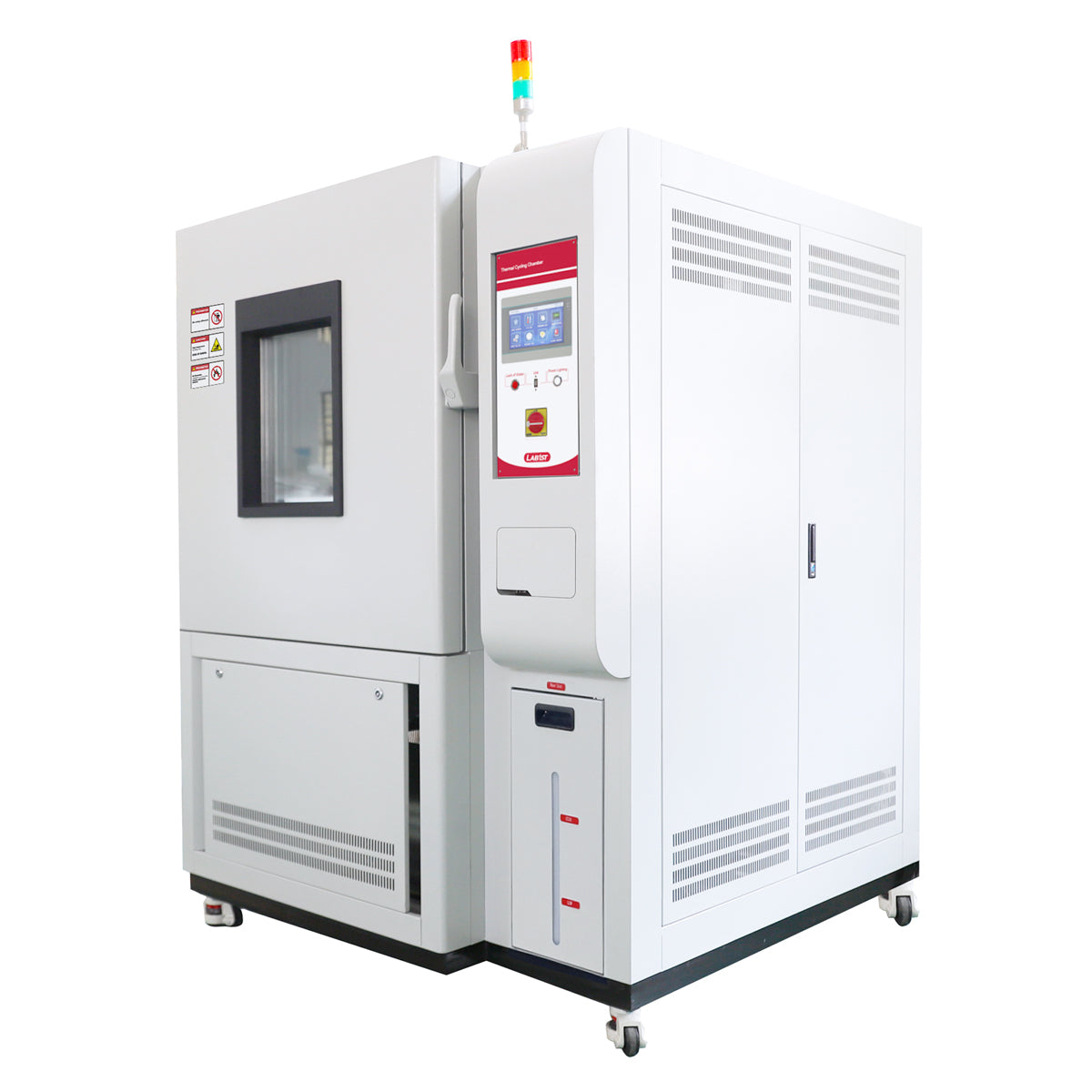

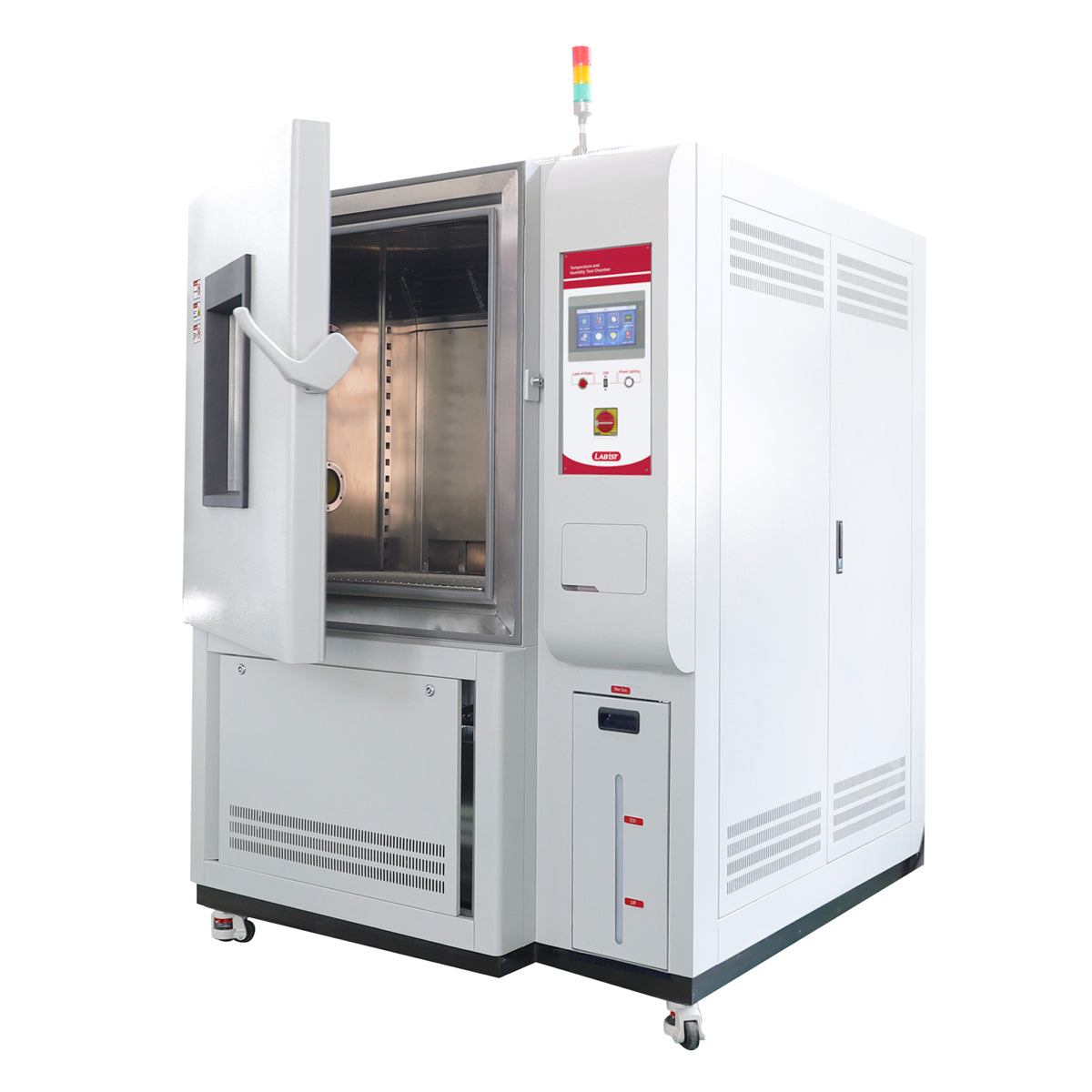

Dynamic Climate Chamber for Rapid Temperature Changes
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
TCH*V-R Series Temperature and Humidity Chamber, known for its industry-leading speed, it offers rapid heating and cooling rates exceeding twice those of conventional chambers. With three adjustable levels (5°C/min, 10°C/min, and 15°C/min) for rapid temperature changes, it operates within temperature range from -40°C to 120°C. Ideal for electronics, automotive, pharmaceuticals, and materials science applications, these chambers ensure efficient and precise environmental simulation.
We could also provide the 50L~1000L Environmental Test Chamber with Temperature and Humdity Control, if you're interested in, pls click here to learn more.
Features:
Model Selection:
| Model | Workspace Volume | Rapid Temp. Cycling Rate | Installed Power |
| TCH100V-R5 | 100L [3.5 cu ft] | 5℃/min | 7.5kW |
| TCH225V-R5 | 225L [7.9 cu ft] | 5℃/min | 12kW |
| TCH500V-R5 | 500L [17.8 cu ft] | 5℃/min | 20kW |
| TCH1000V-R5 | 1000L [35.3 cu ft] | 5℃/min | 26kW |
| TCH100V-R10 | 100L [3.5 cu ft] | 10℃/min | 16kW |
| TCH225V-R10 | 225L [7.9 cu ft] | 10℃/min | 26kW |
| TCH500V-R10 | 500L [17.8 cu ft] | 10℃/min | 38kW |
| TCH1000V-R10 | 1000L [35.3 cu ft] | 10℃/min | 55kW |
| TCH100V-R15 | 100L [3.5 cu ft] | 15℃/min | 22kW |
| TCH225V-R15 | 225L [7.9 cu ft] | 15℃/min | 33kW |
| TCH500V-R15 | 500L [17.8 cu ft] | 15℃/min | 60kW |
| TCH1000V-R15 | 1000L [35.3 cu ft] | 15℃/min | 88kW |
Specifications:
| Workspace Volume: | 100L | 225L | 500L | 1000L | |
|
Performance |
|||||
| Temperature Range: | -70℃~150℃ [-94°F~302°F], customizable | ||||
| Rapid Temperature Cycling Range: | -40℃~120℃ [-40°F~248°F] | ||||
| Temperature Fluctuation: | ±0.5 ℃ | ||||
| Temperature Uniformity: | ±1 ℃ | ||||
| Heating Rate: | Standard: 3.0-5.0 ℃/min; Rapid temperature cycling: 5℃/min, 10℃/min, 15℃/min | ||||
| Cooling Rate | Standard: 0.7-1.5 ℃/min; Rapid temperature cycling: 5℃/min, 10℃/min, 15℃/min | ||||
| Humidity Range: | 20%~98% RH | ||||
| Humidity Fluctuation: | ±3% | ||||
| Humidity Uniformity: | ±2~±3% RH | ||||
|
General Information |
|||||
| Chamber Material: | SUS304 | ||||
| Shelf: | 2 pcs [or more], SUS304 wired plates with support | ||||
| Max. Shelf Load: | 10 kg [22 lbs] | ||||
| Cable Port: | 50 mm [2 inch] | ||||

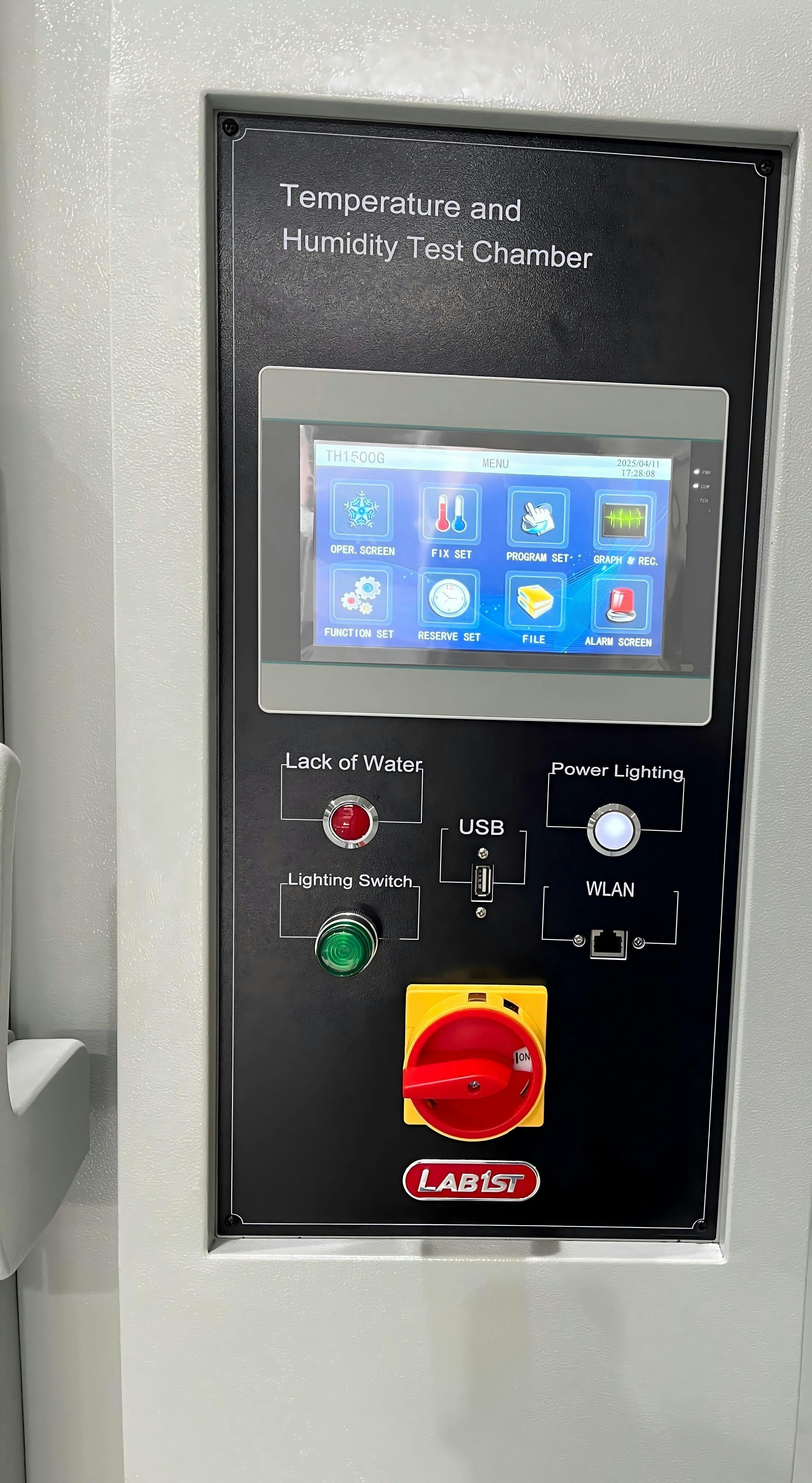

| Control Panel: | 7 inch industrial color touch screen, temperature and humidity program controller | ||||
| Communication: | USB, RS485 and Ethernet | ||||
| Compressor Brand: | Germany Secop, French Taikang, Germany Bitzer, etc. | ||||
| Cooling Mode: | Air-cooled / water-cooled | ||||
| Humidifier: | Heavy duty stainless steel 304 electrical heating humidifier | ||||

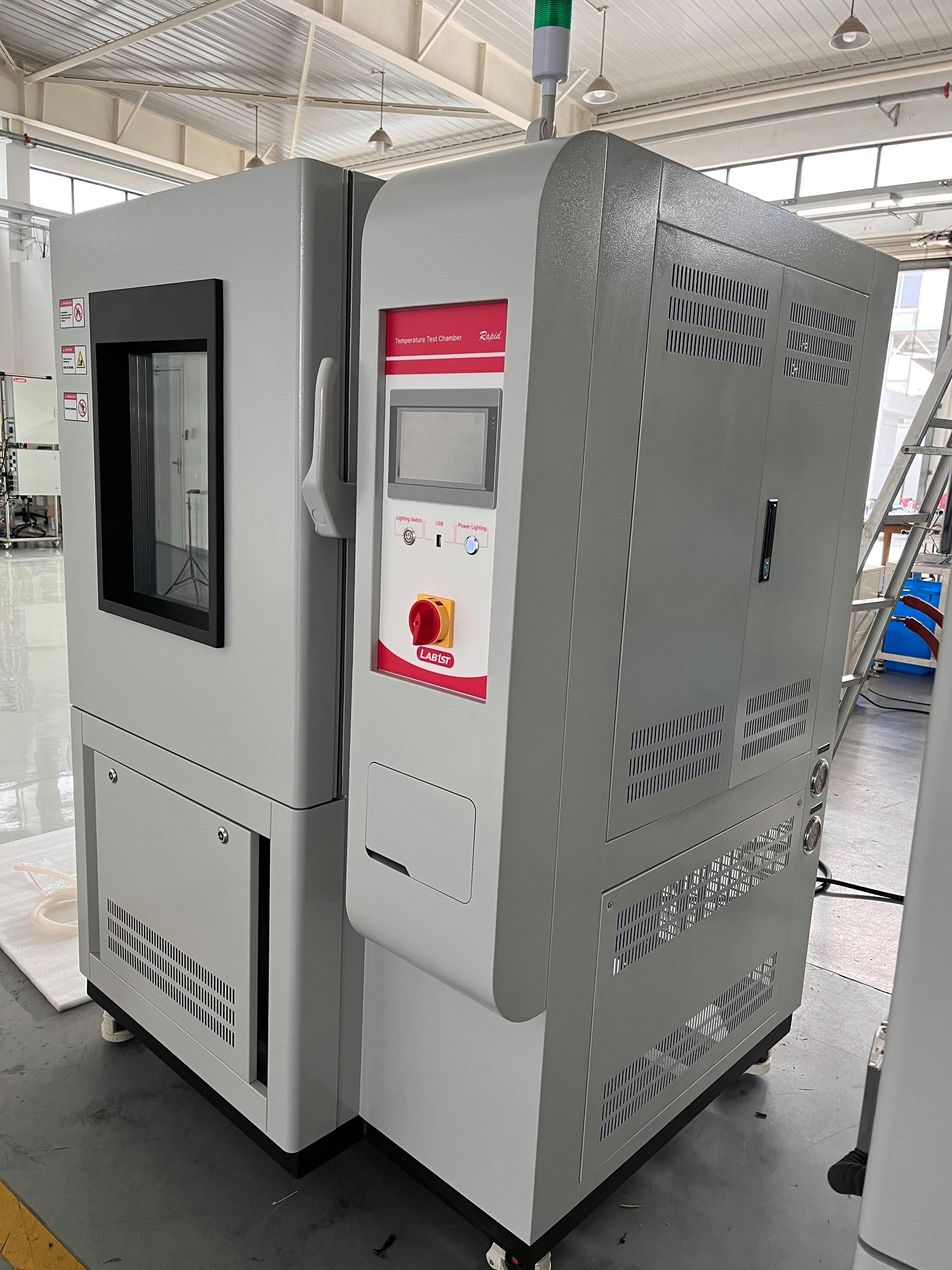

View Some Cases:
