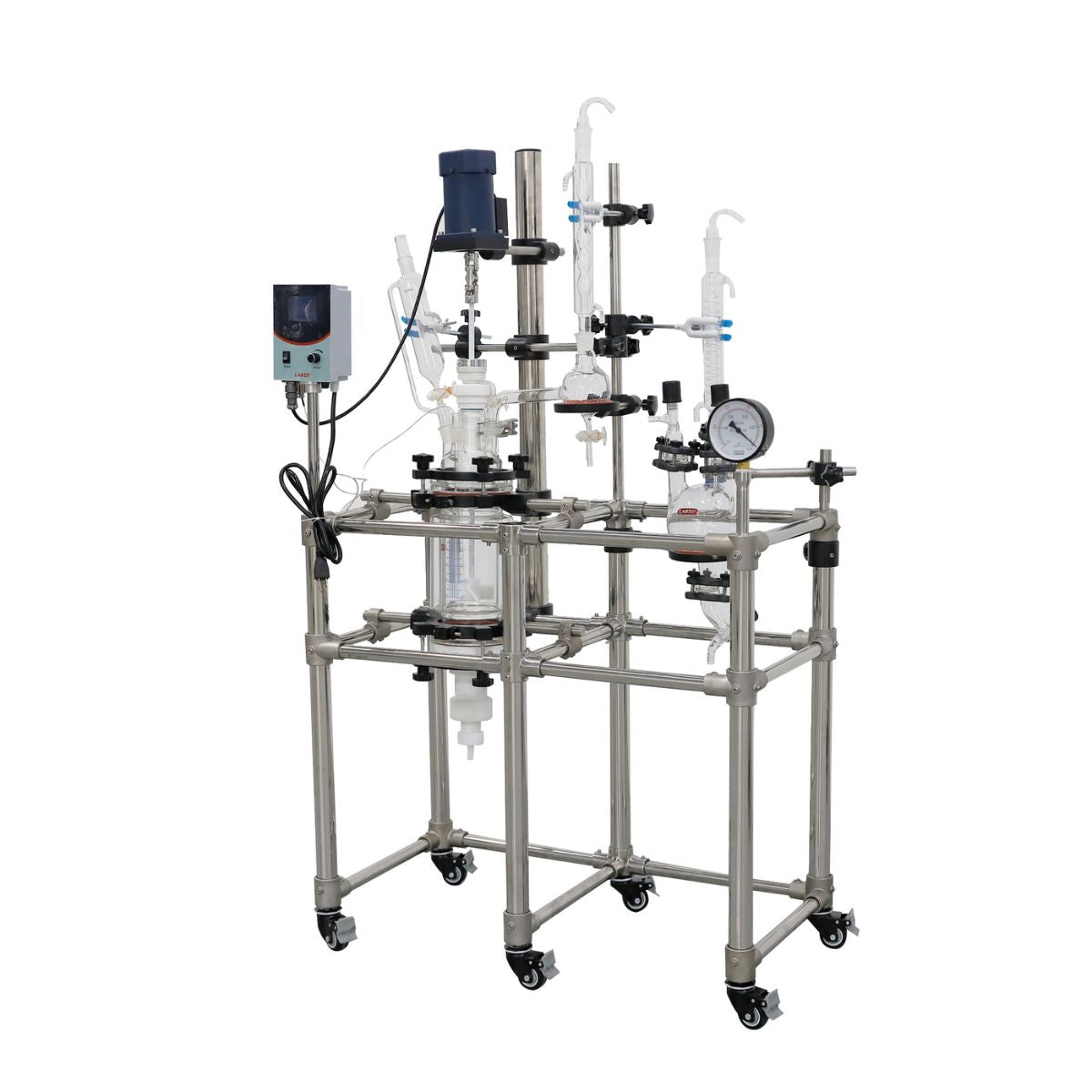

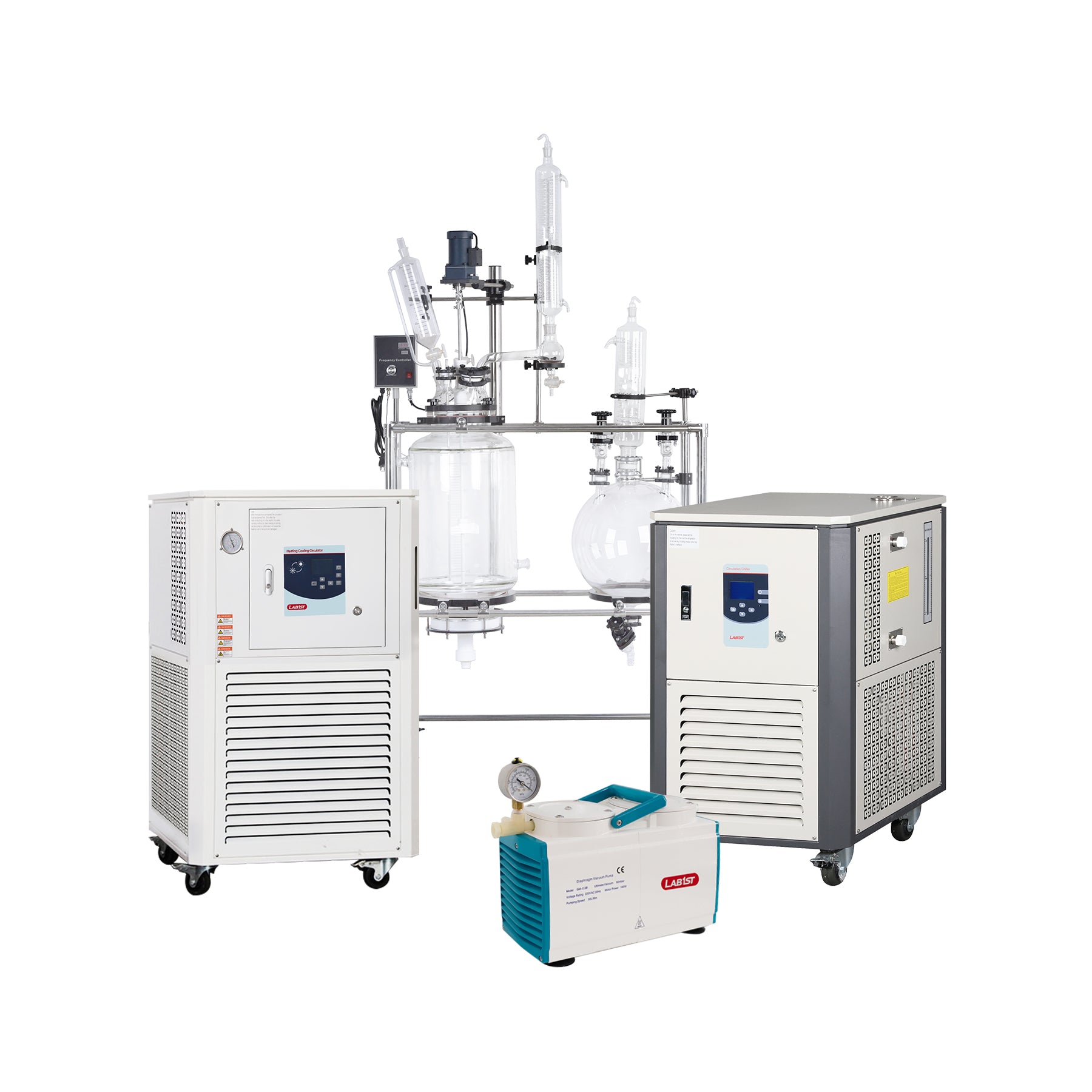

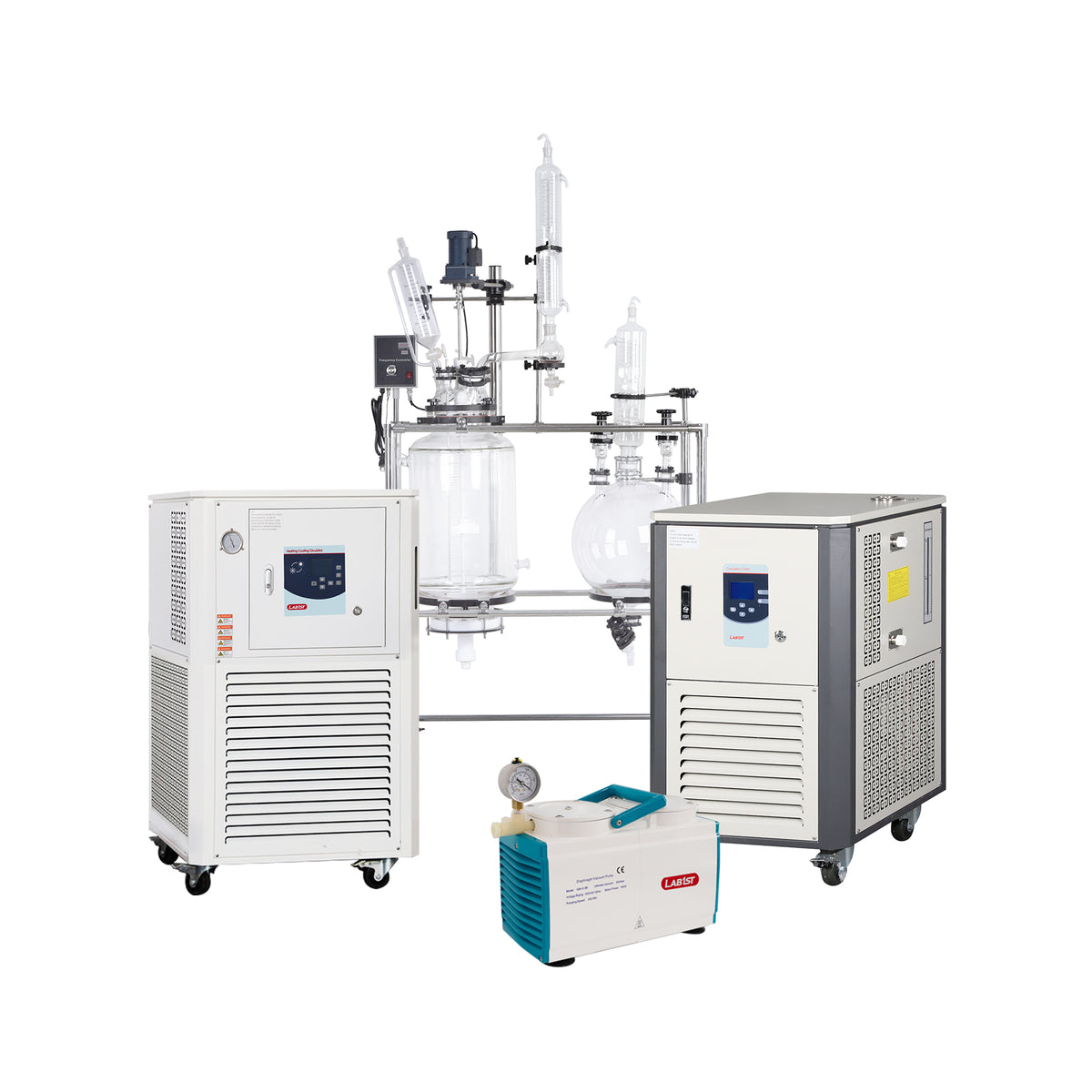

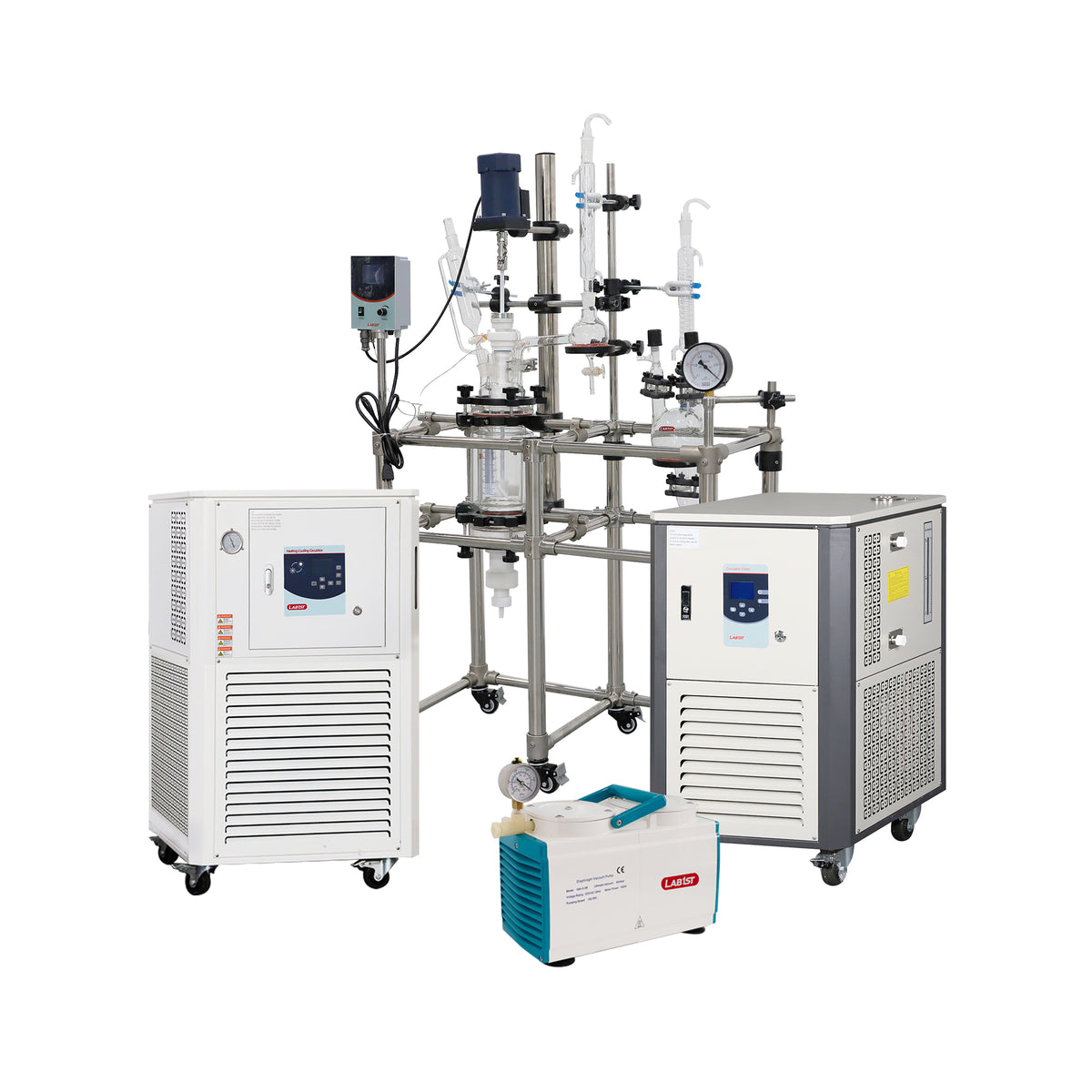

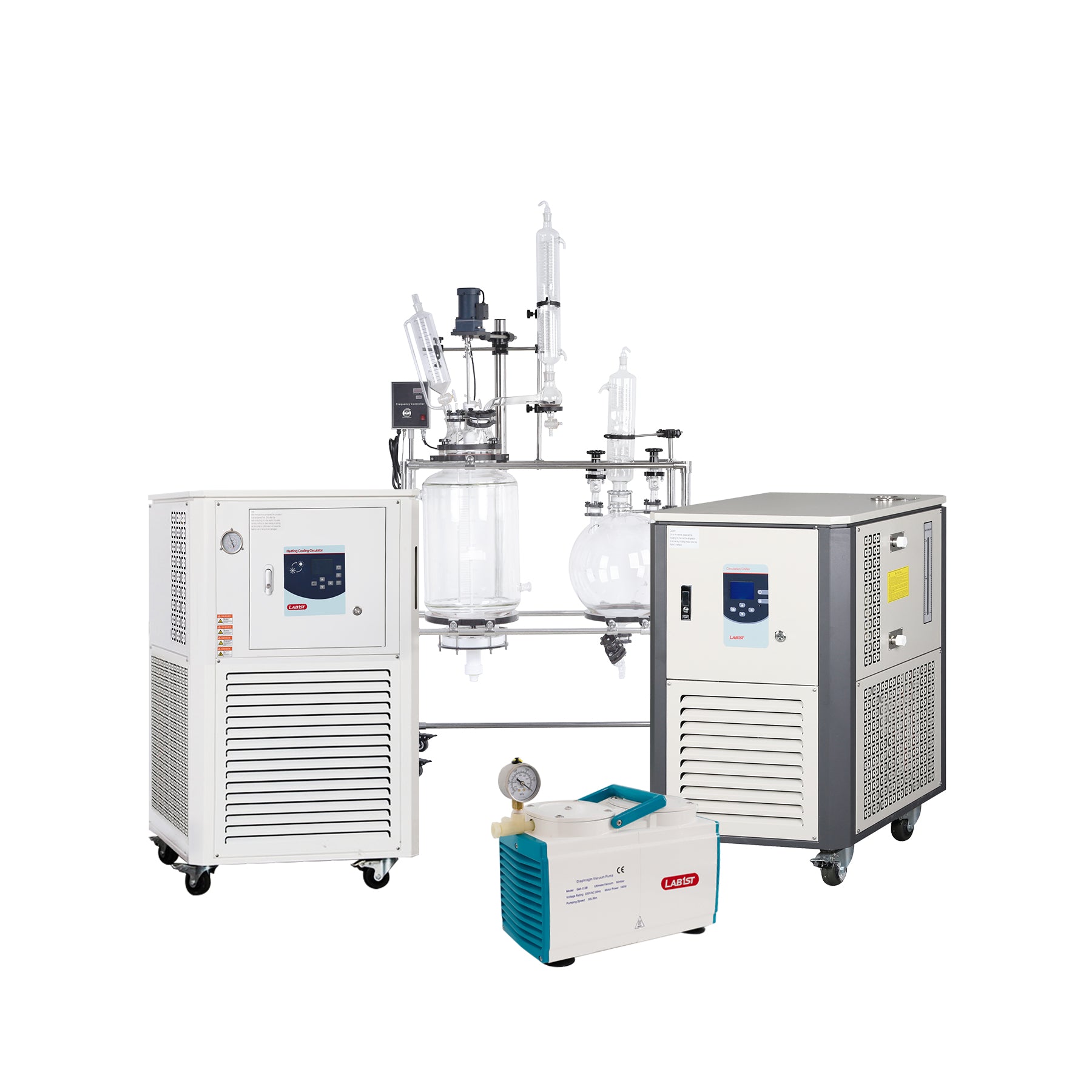

Crystallization Glass Reactor with Vacuum Filter 5L ~ 100L
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information

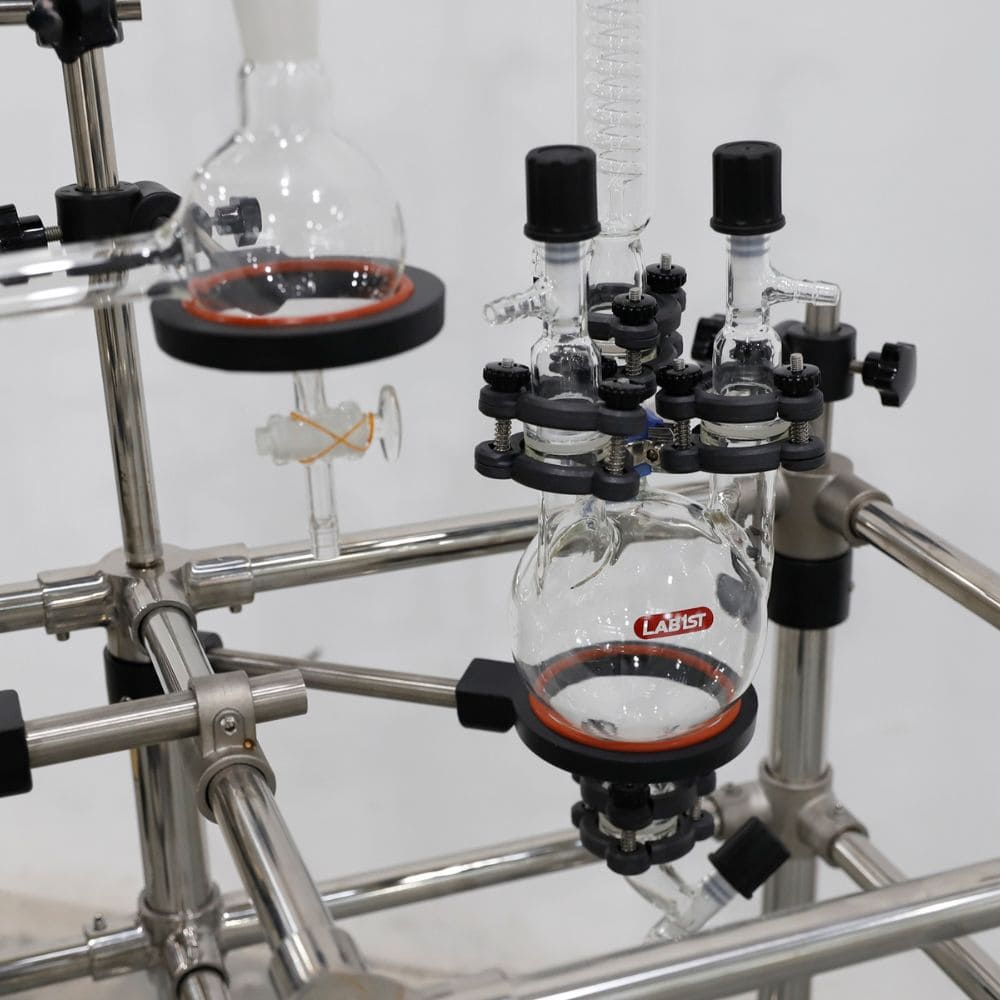

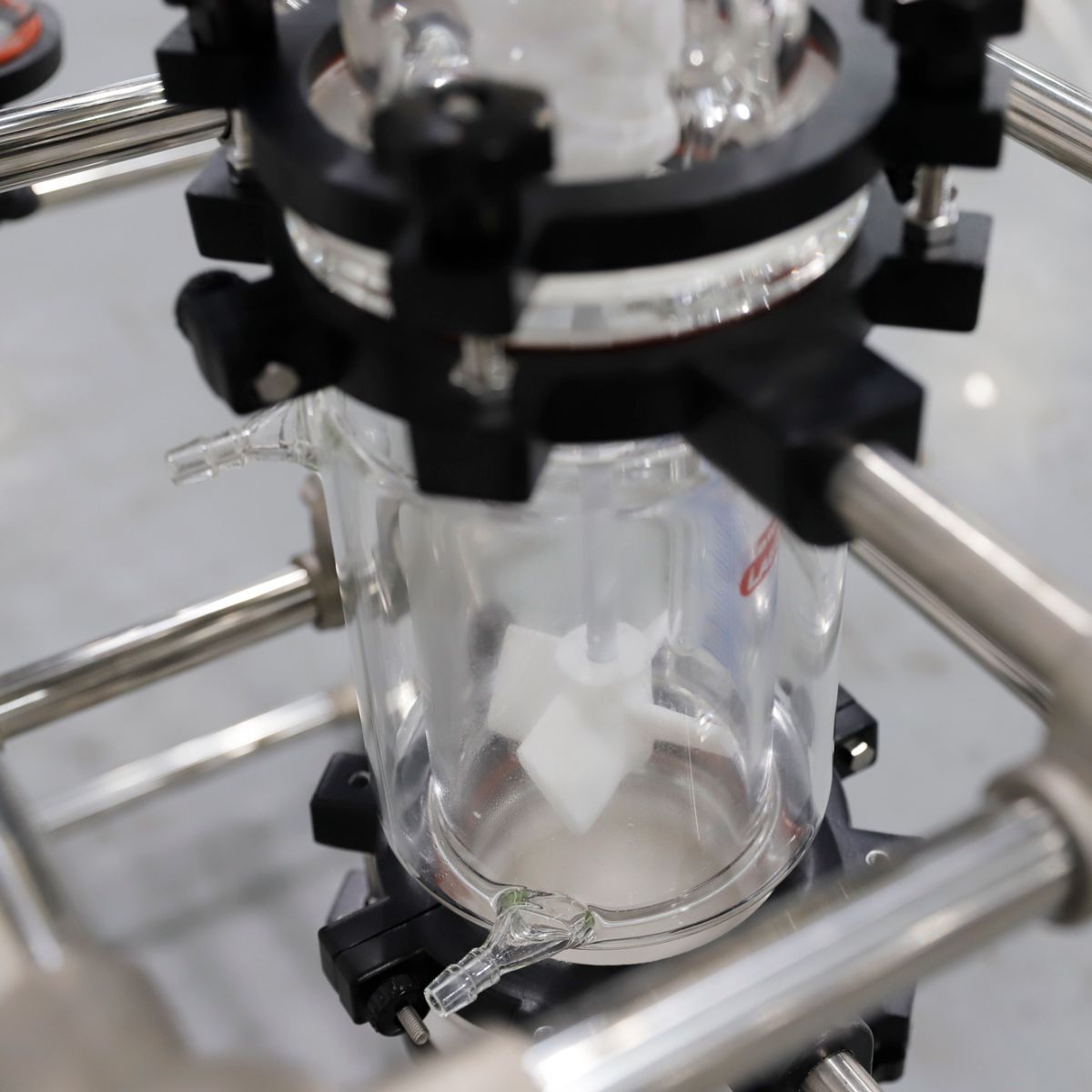

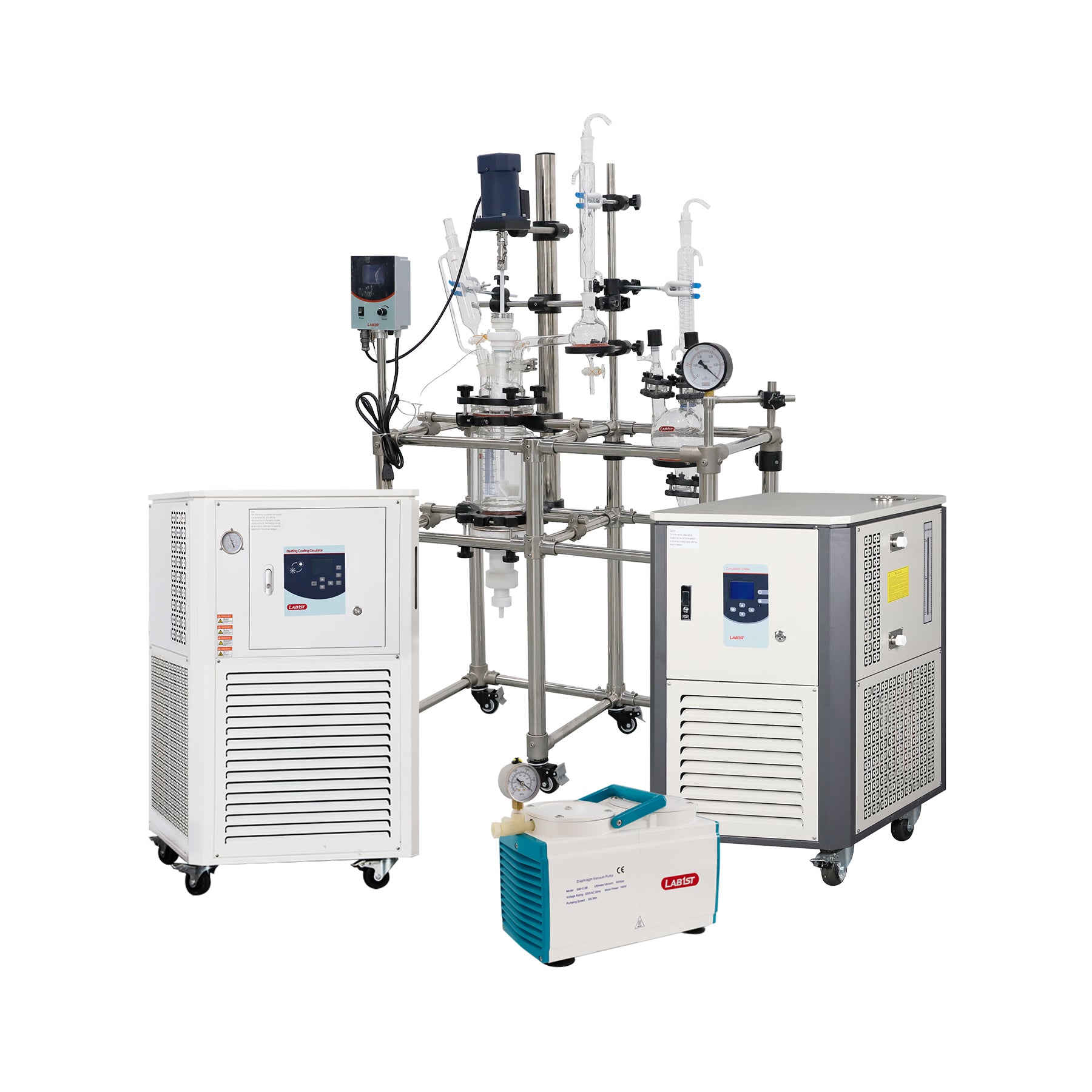

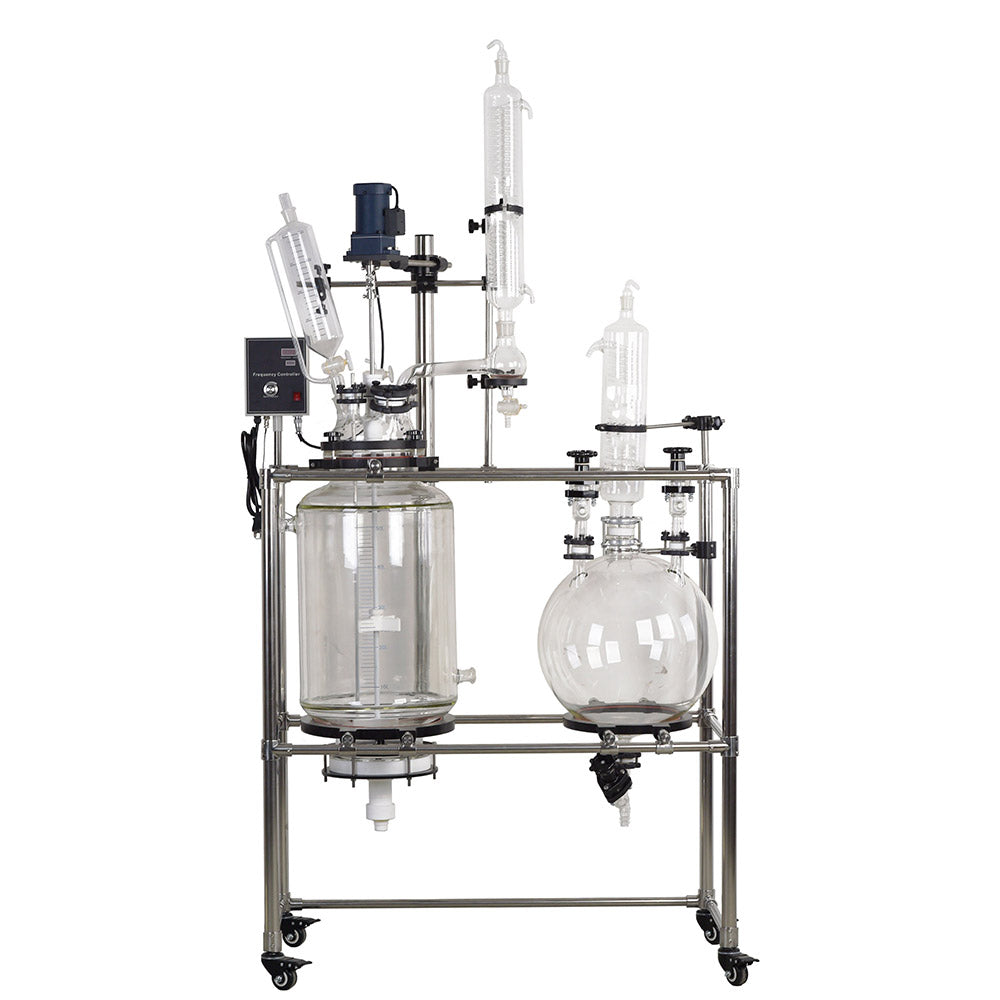

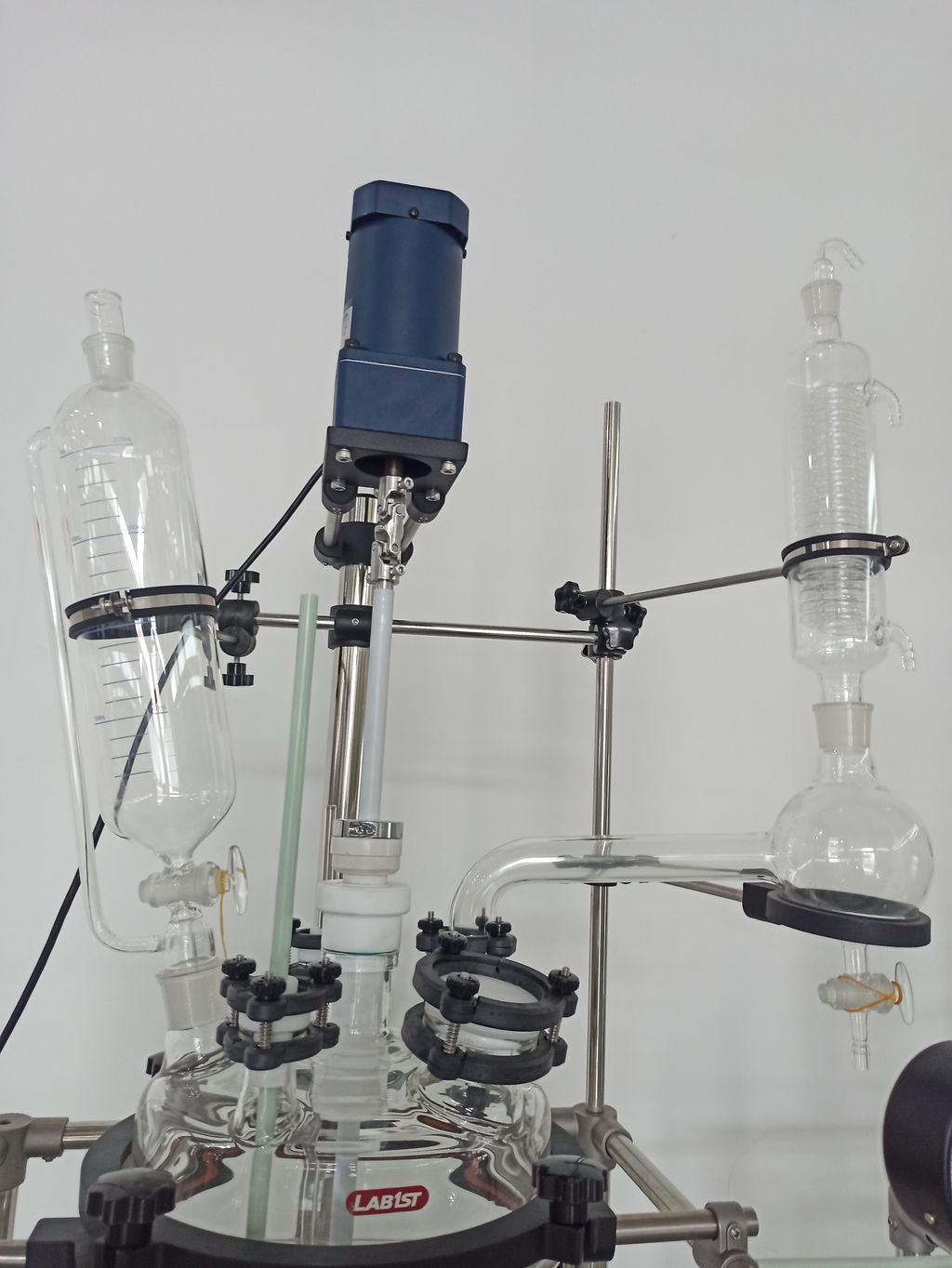

Compared to standard jacketed glass reactor, the Lab1st JGR-FK series is more multifunctional since it has reaction, crystallization as well as filtration functions. Besides, it has a liquid collection flask to collect liquids after reaction. JGR-FK series is made of high borosilicate glass amd equipped with PTFE seals, ensuring clean and long lifespan. It can be operated under a wide range of temperature from -80℃ to 200℃ and the stirring motor is 120W, bringing you remarkable performance.
We could also provide the other liters and kinds of the Glass Reactors and Stainless Steel Reactors for different needs, pls click here to learn more about it.
Features:


Specifications:
| Model | JGR-5FK | JGR-10FK | JGR-20FK | JGR-30FK | JGR-50FK | JGR-80FK | JGR-100FK |
| Electrical Requirements | 110/220V, 50/60Hz,1 phase | ||||||
| Standard Stirring Motor Power | 120W | 200W | |||||

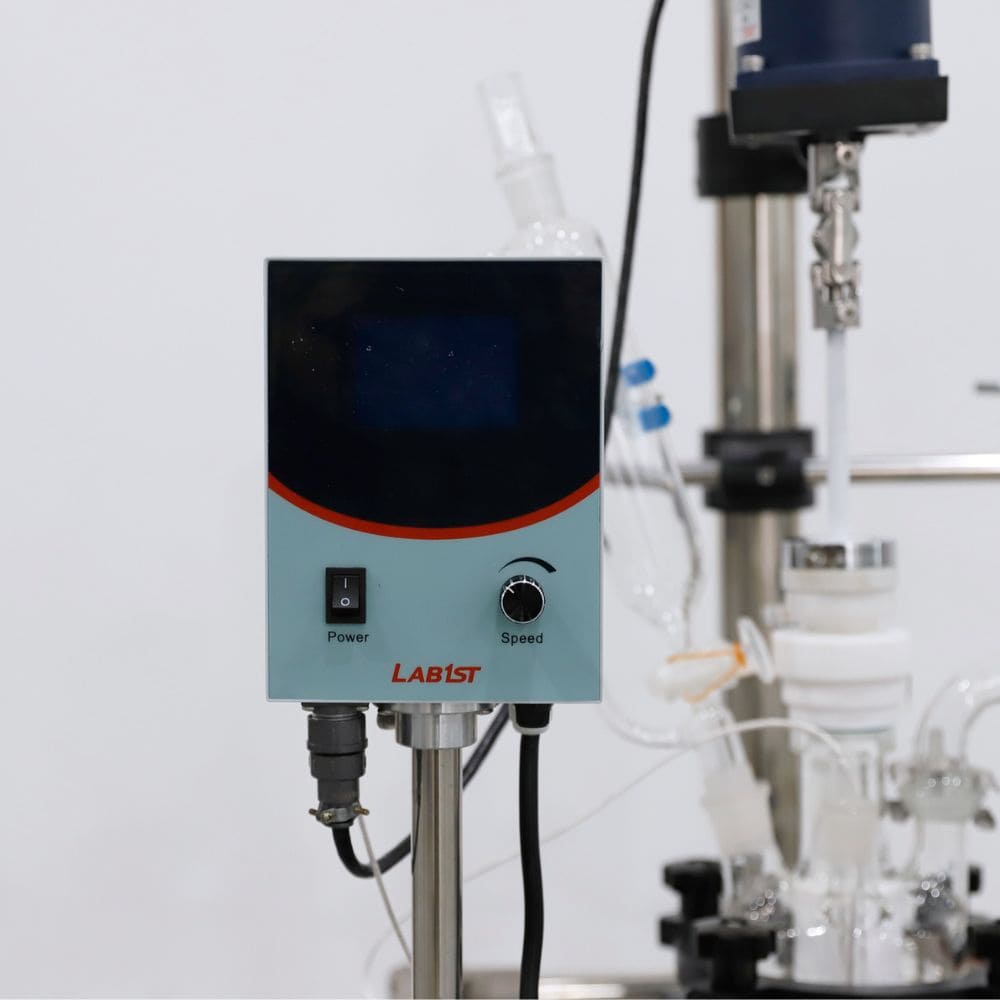

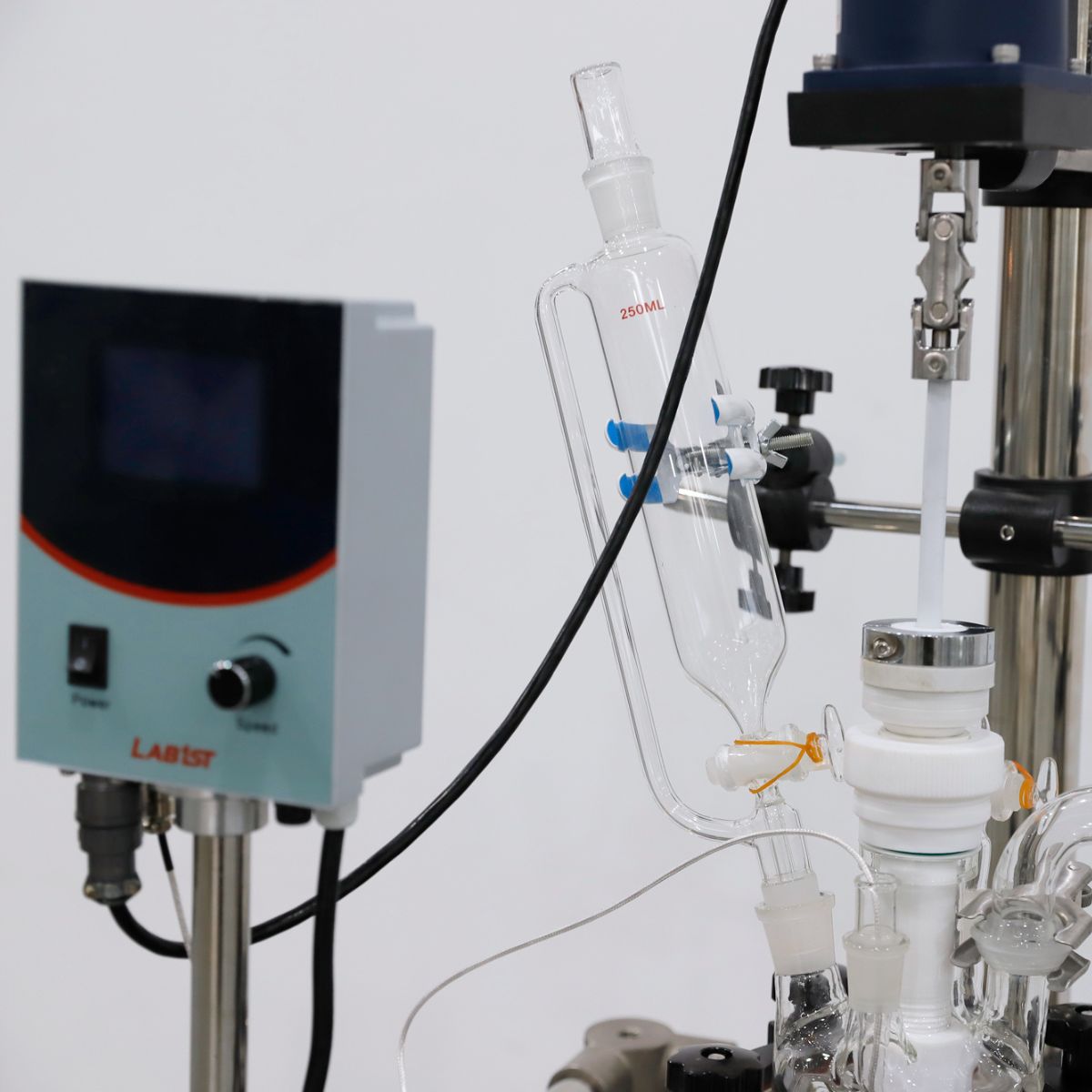

| Rotation Controller | Digital controller with variable frequency drive, 600 rpm | ||||||
| Agitator Type | Anchor Design, 304 Stainless Steel Reinforced with PTFE Coating | ||||||

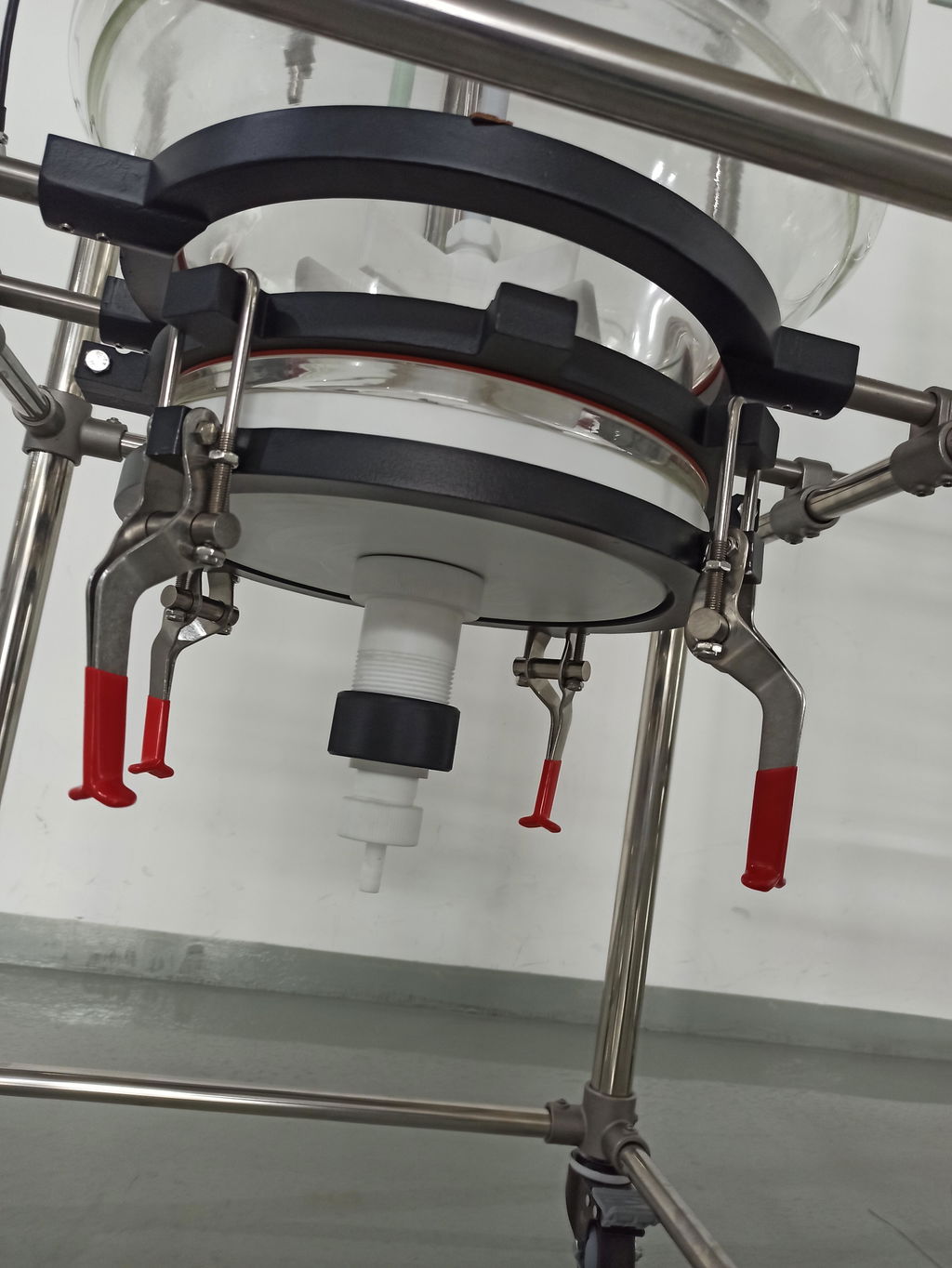

| Filter Plate | Glass Sand Core Filter | ||||||
| Reaction Vessel Capacity | 5L | 10L | 20L | 30L | 50L | 80L | 100L |

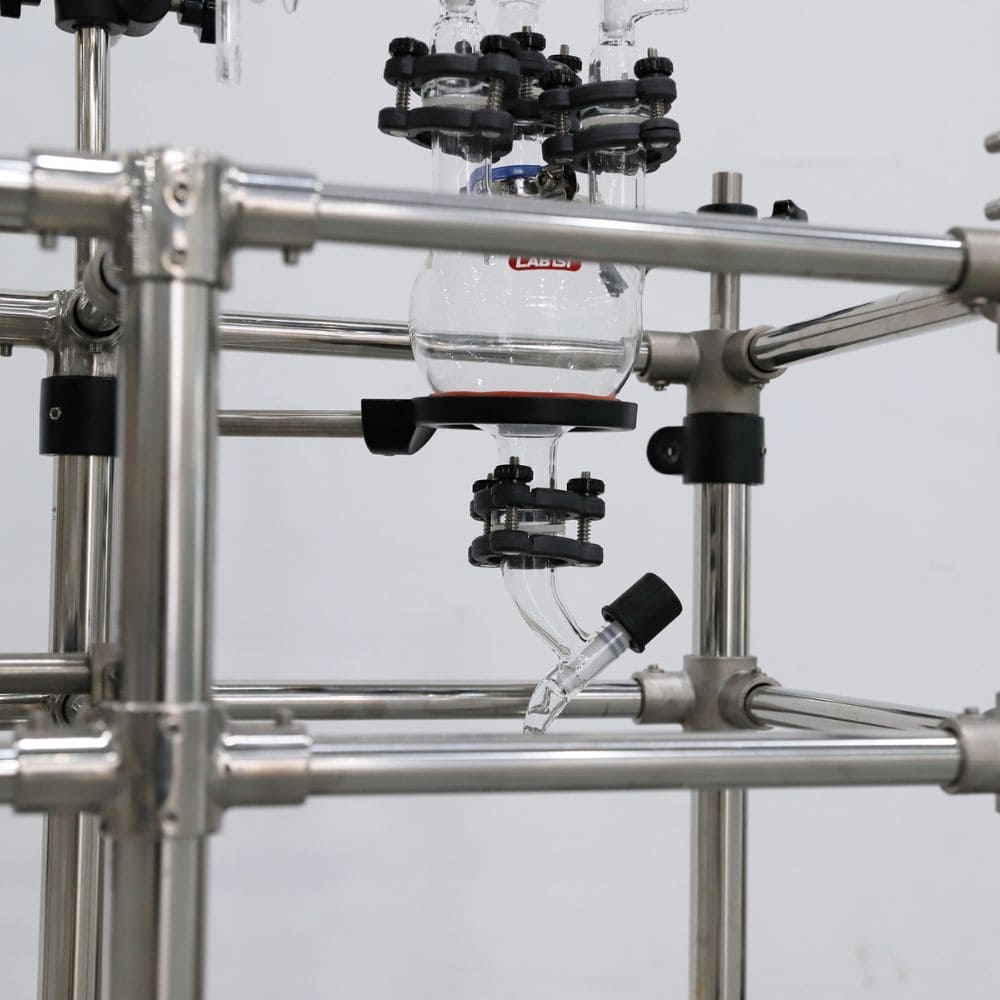

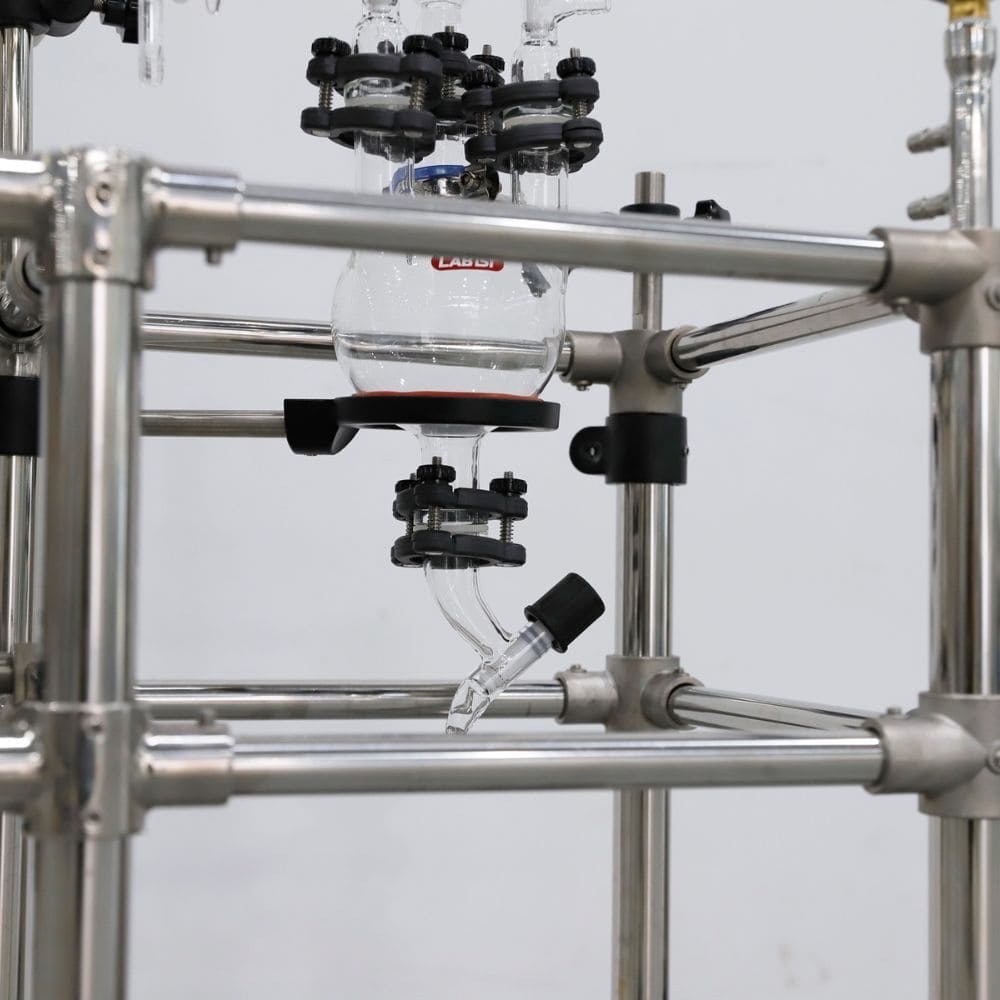

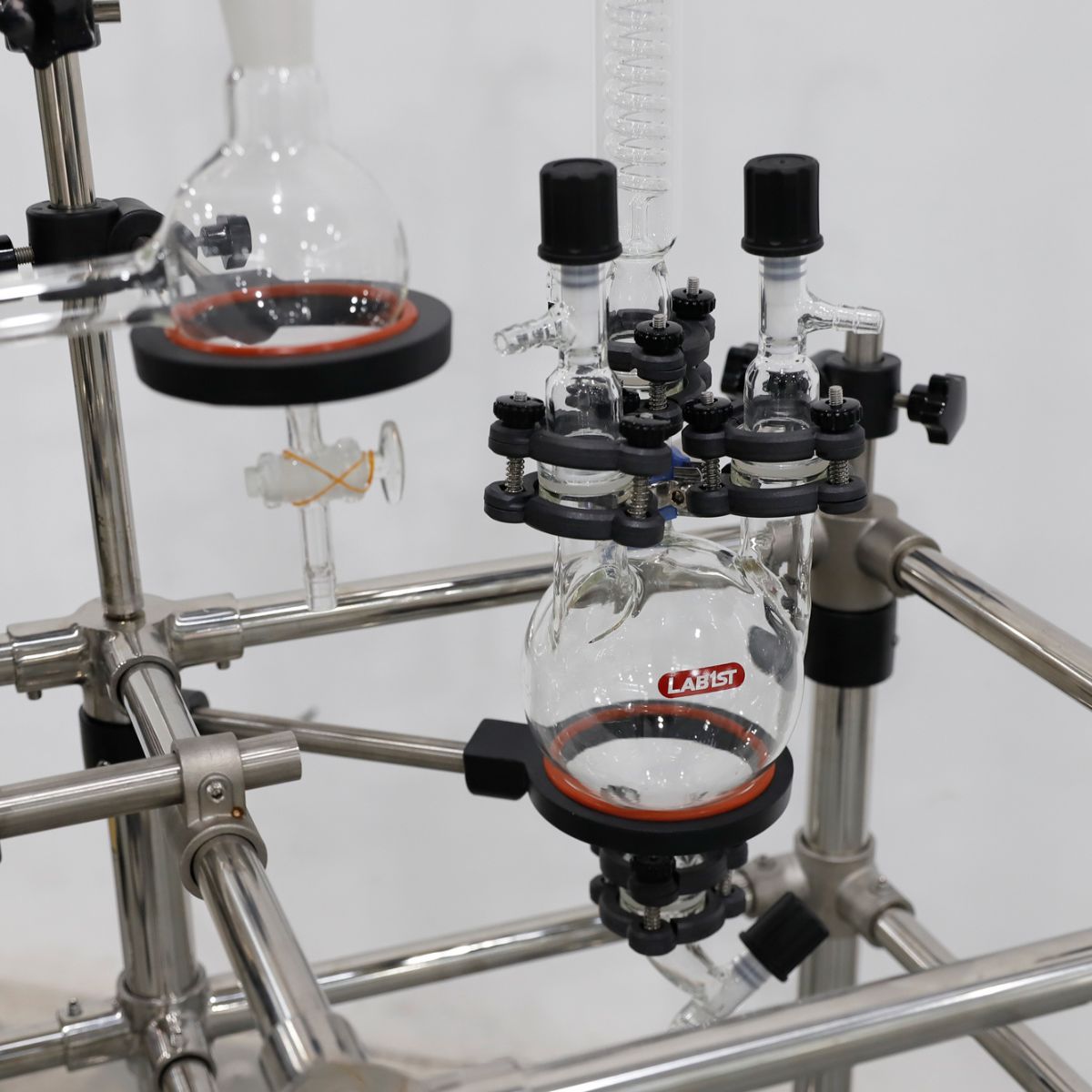

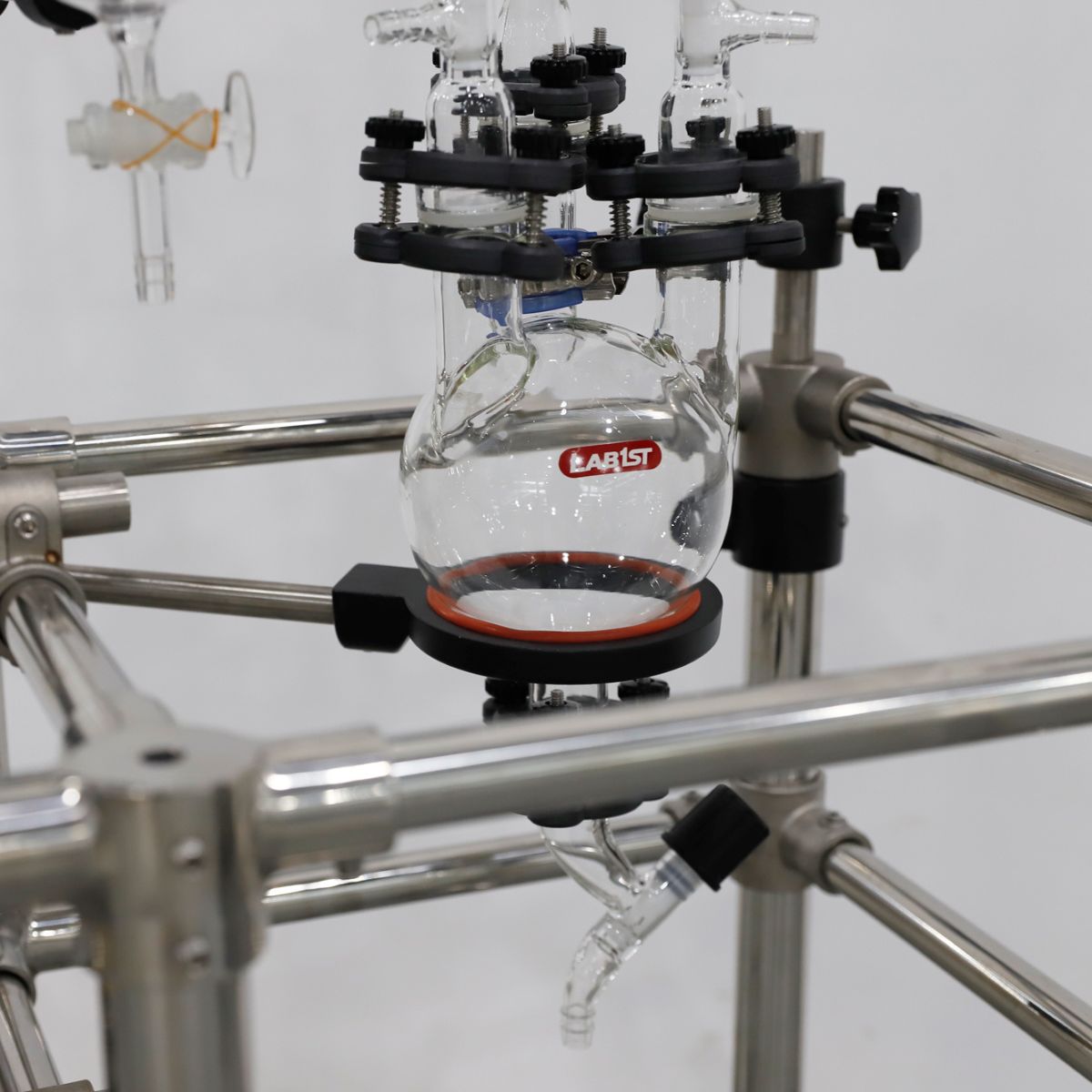

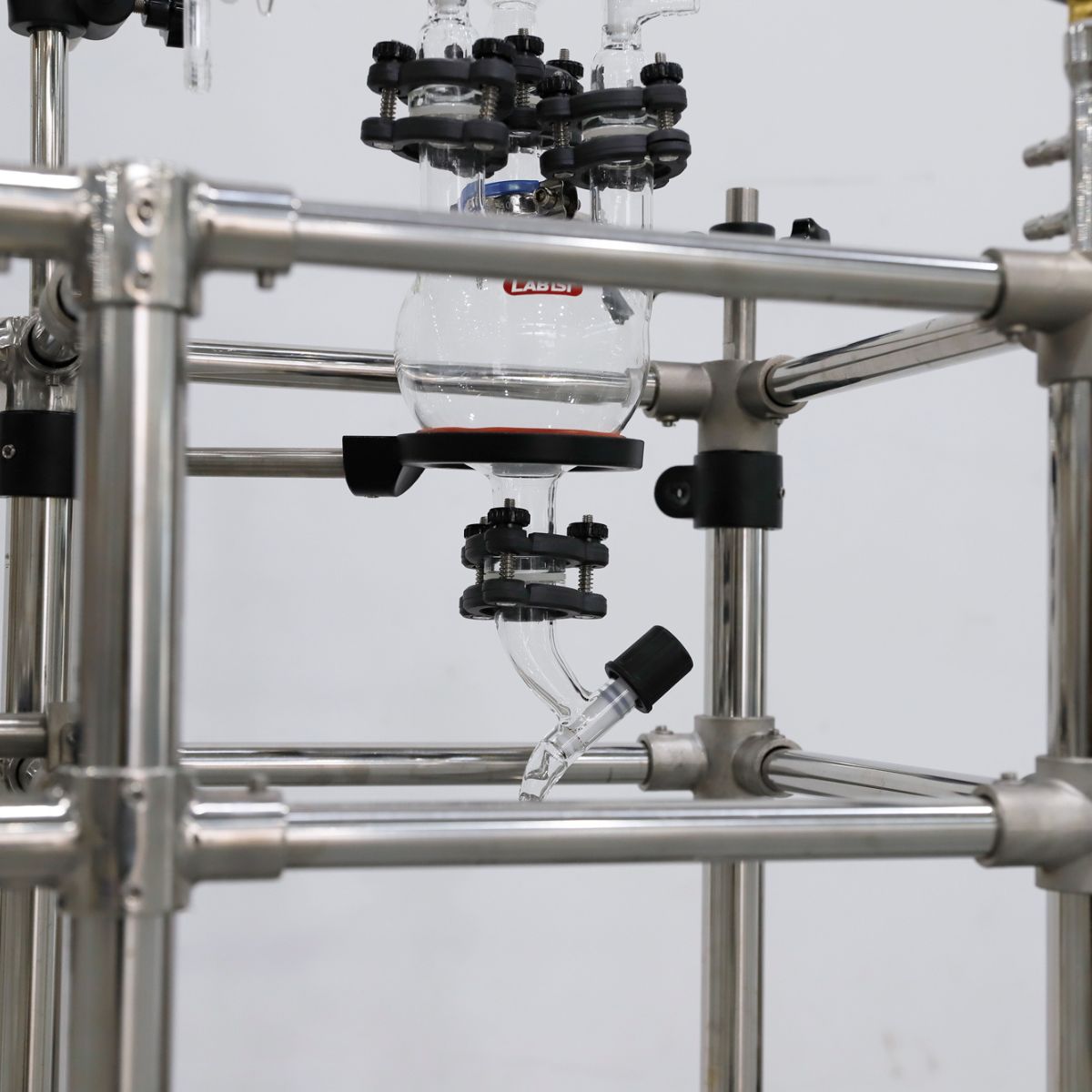

| Liquid Collection Vessel | 5L | 10L | 20L | 30L | 50L | 80L | 100L |
| Jacket Capacity | 2L | 3L | 6L | 10L | 16L | 24L | 30L |
| Filter Pore Size | 20~40 um | 40~80 um | |||||
| Glass Vessel Temperature Range | -120~250°C | ||||||
| Jacket Pressure | Under 0.05Mpa | ||||||

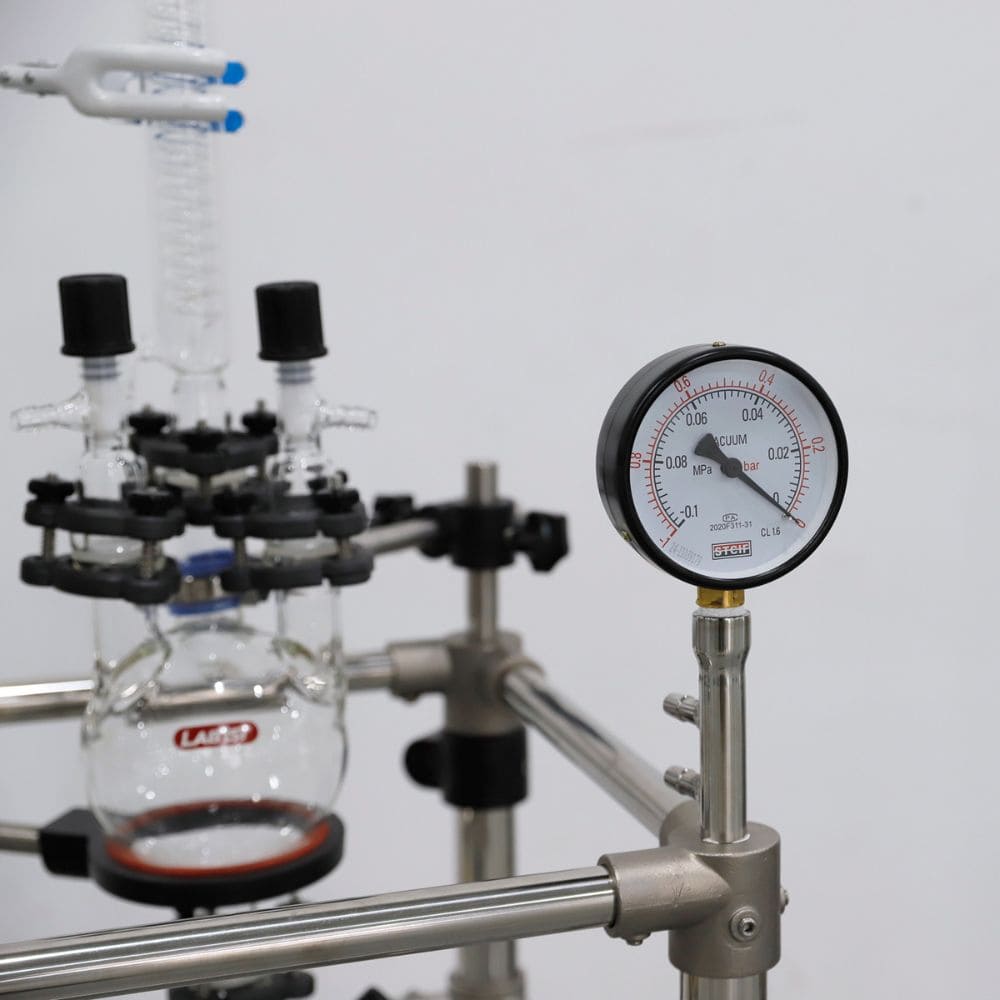

| Inner Vessel Pressure | Under 0.098Mpa | ||||||
| Glass Material | High Borosilicate Glass 3.3 | ||||||
| Vacuum Sealing | PTFE to increase durability and longevity | ||||||

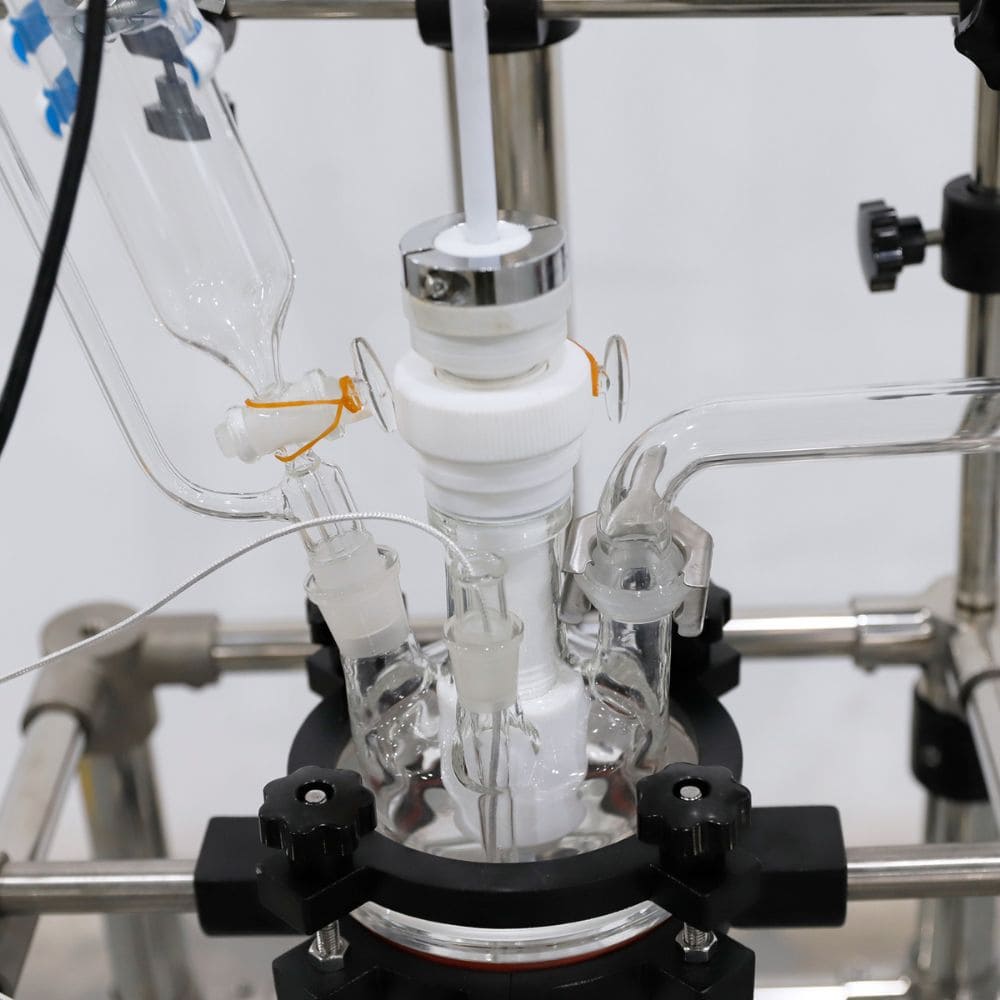

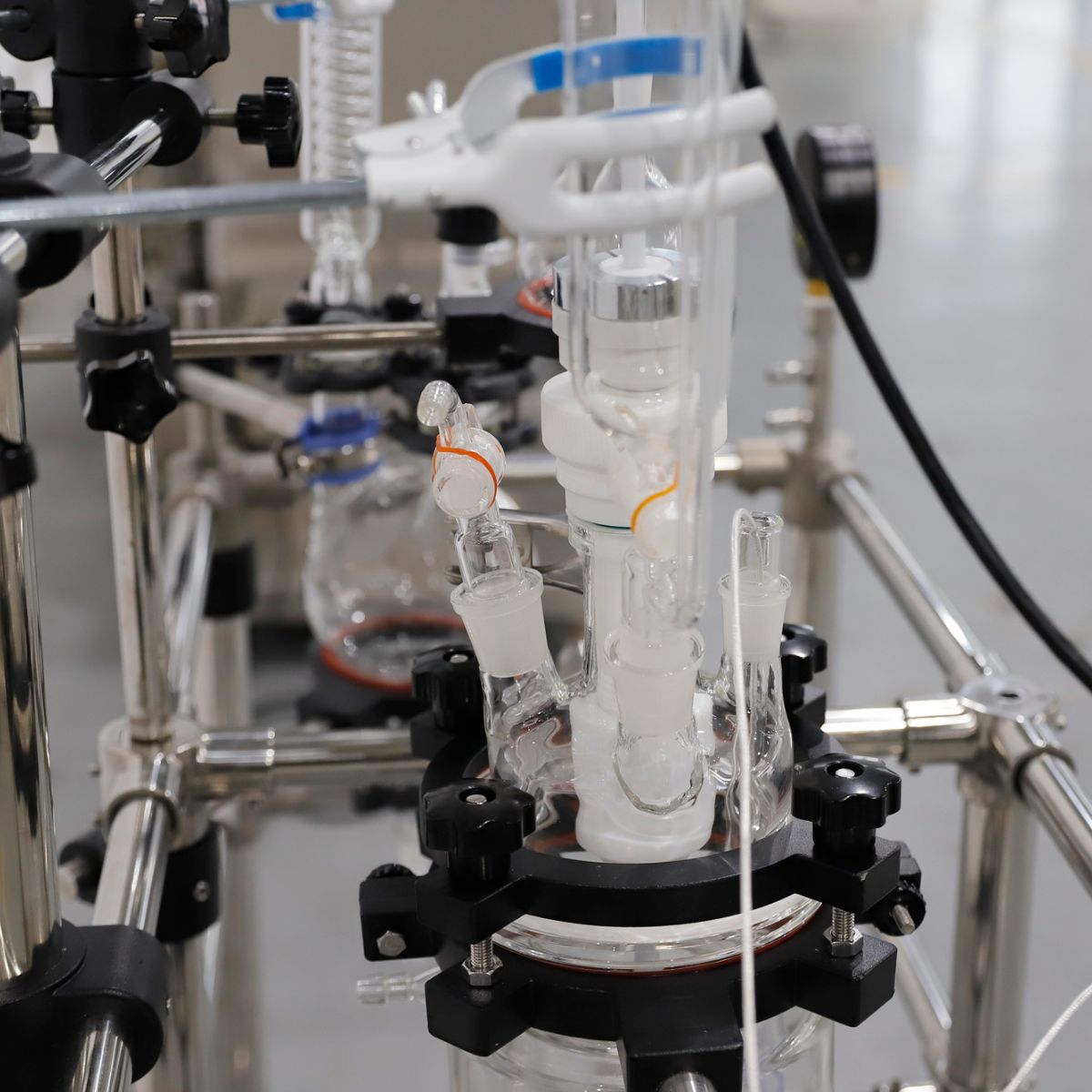

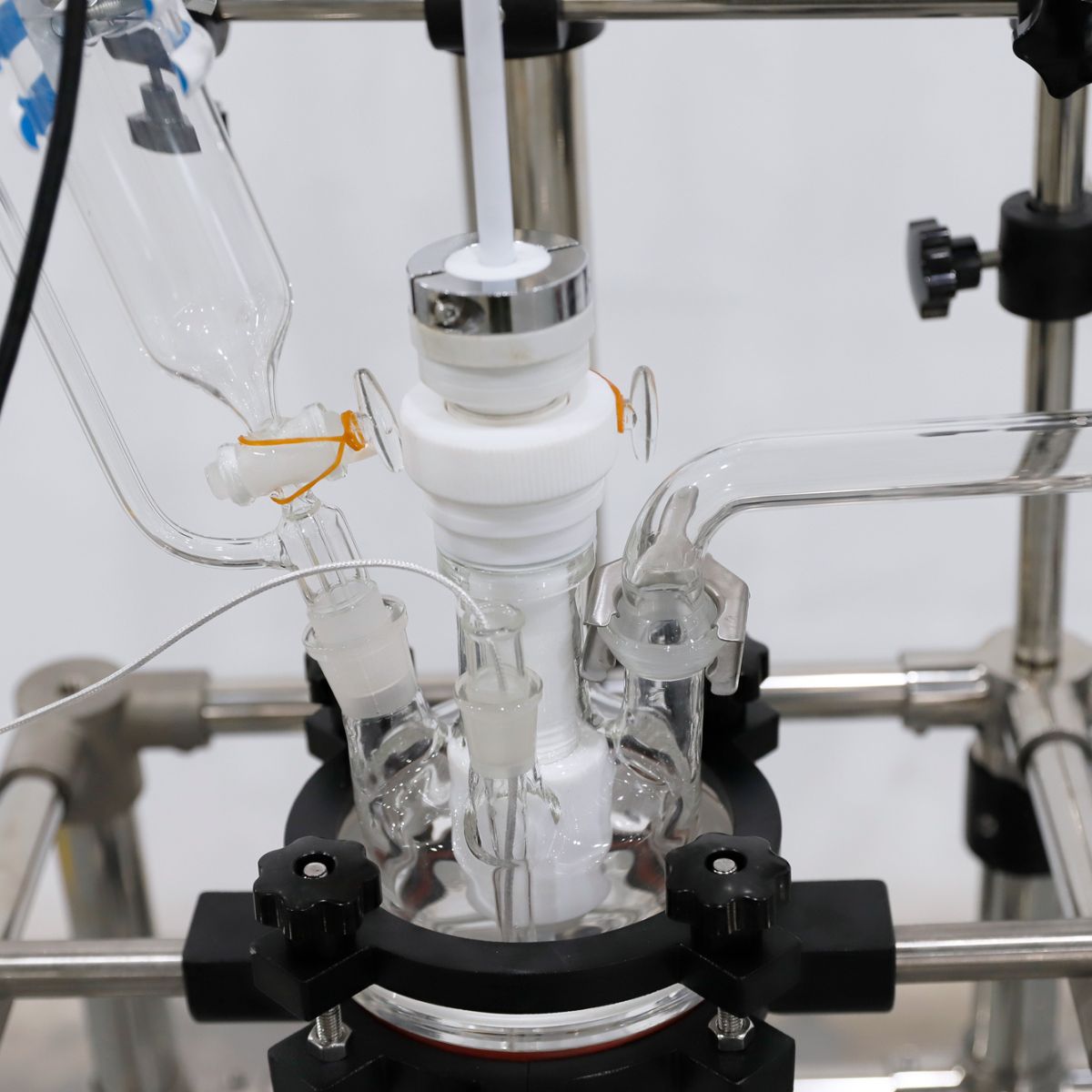

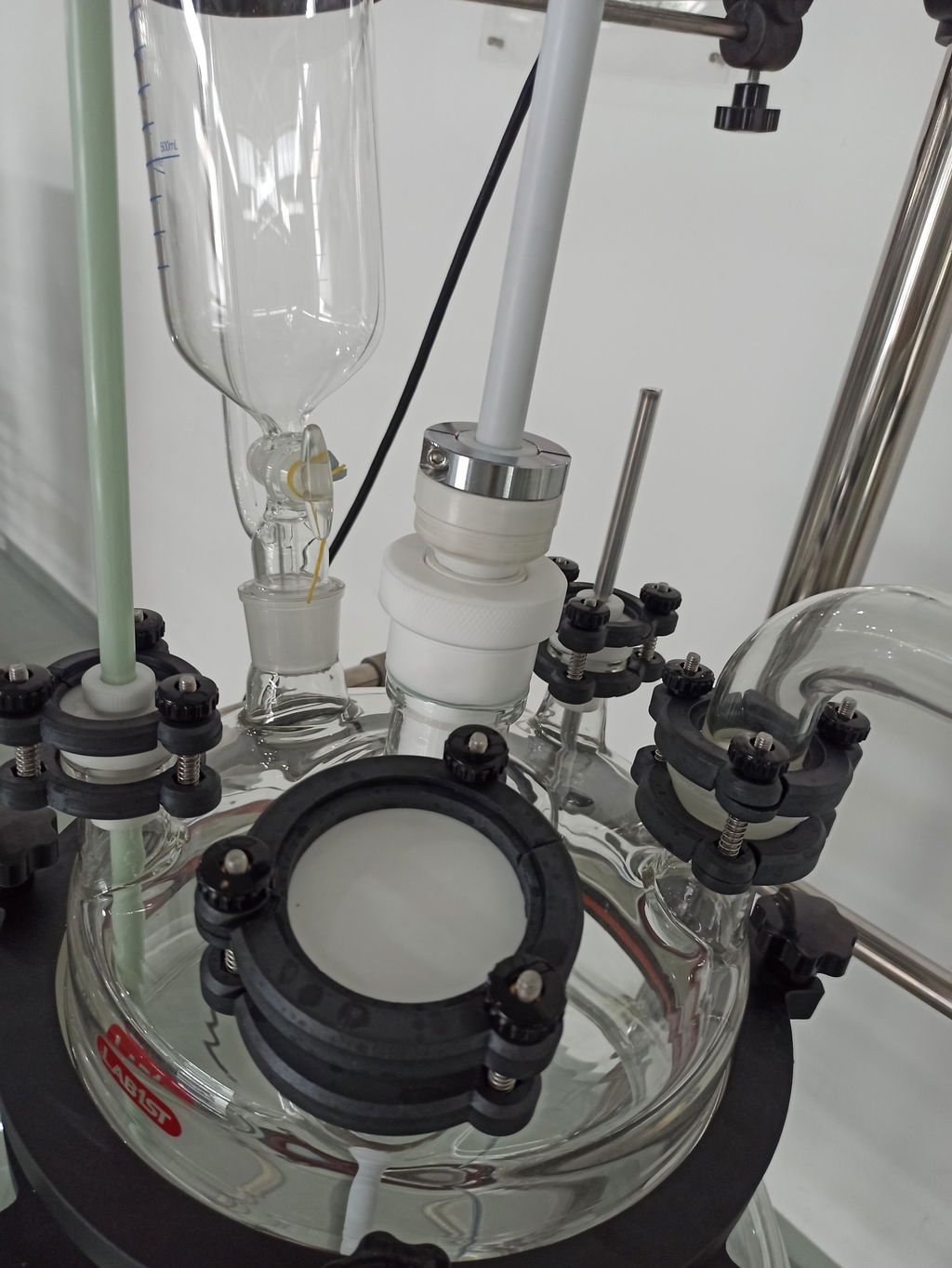

| Port 1 on the Lid (Thermometer) |
24mm Joint | DN25 Flange | |||||
| Port 2 on the Lid (Vacuum Suction) |
24mm Joint | 34mm Joint | |||||
| Port 3 on the Lid (Solid Inlet) |
/ | 80mm Flange | |||||

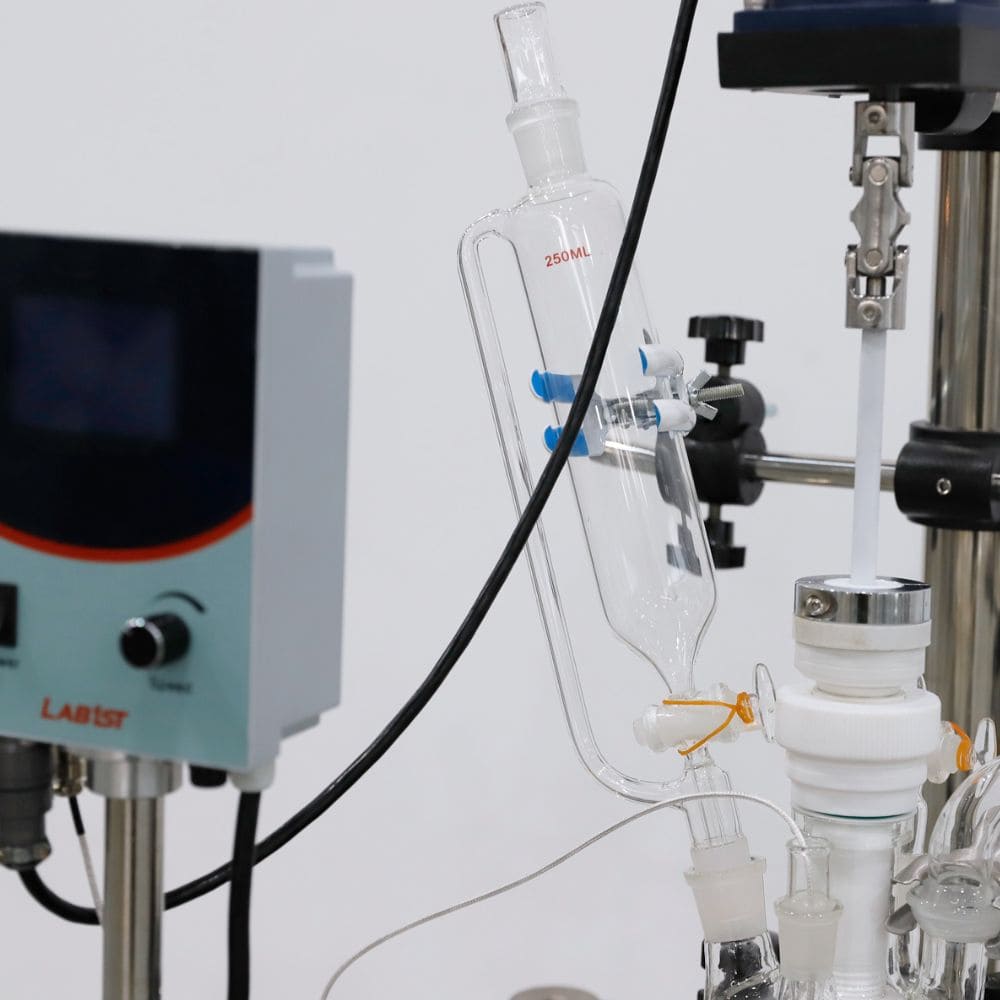

| Port 4 on the Lid (Constant Pressure Funnel) |
29mm | 40mm Joint | |||||

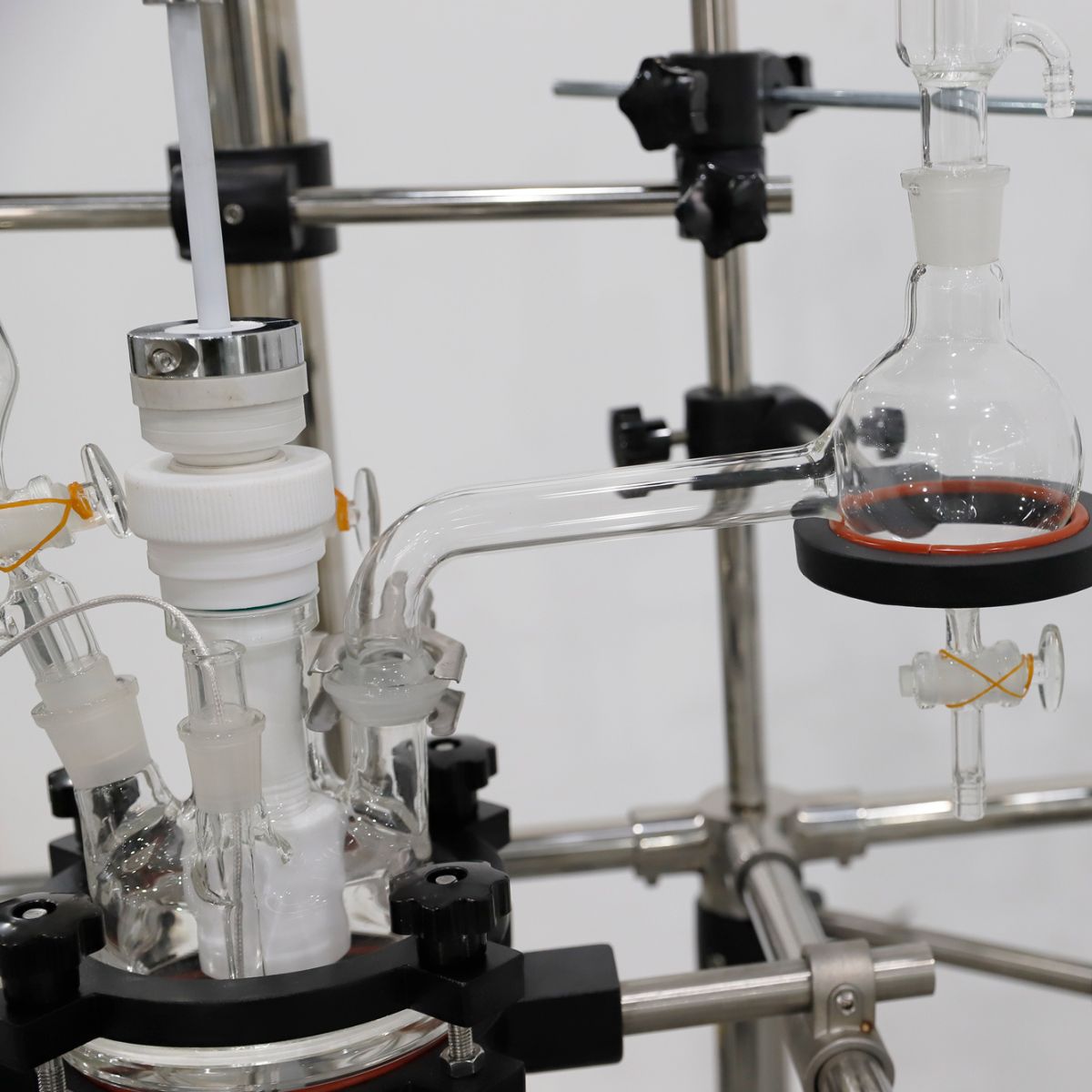

| Port 5 on the Lid (Reflux) |
35mm Ball Joint | 50mm Ball Joint | |||||
| Port 6 on the Lid (Stirring) |
50mm Flange | ||||||
| Vacuum Port on the Condenser | 12mm Barb | ||||||
| Liquid Inlet and Outlet on the Condenser | 12mm Barb | ||||||
| Reflux Drain Port | 12mm Barb | ||||||

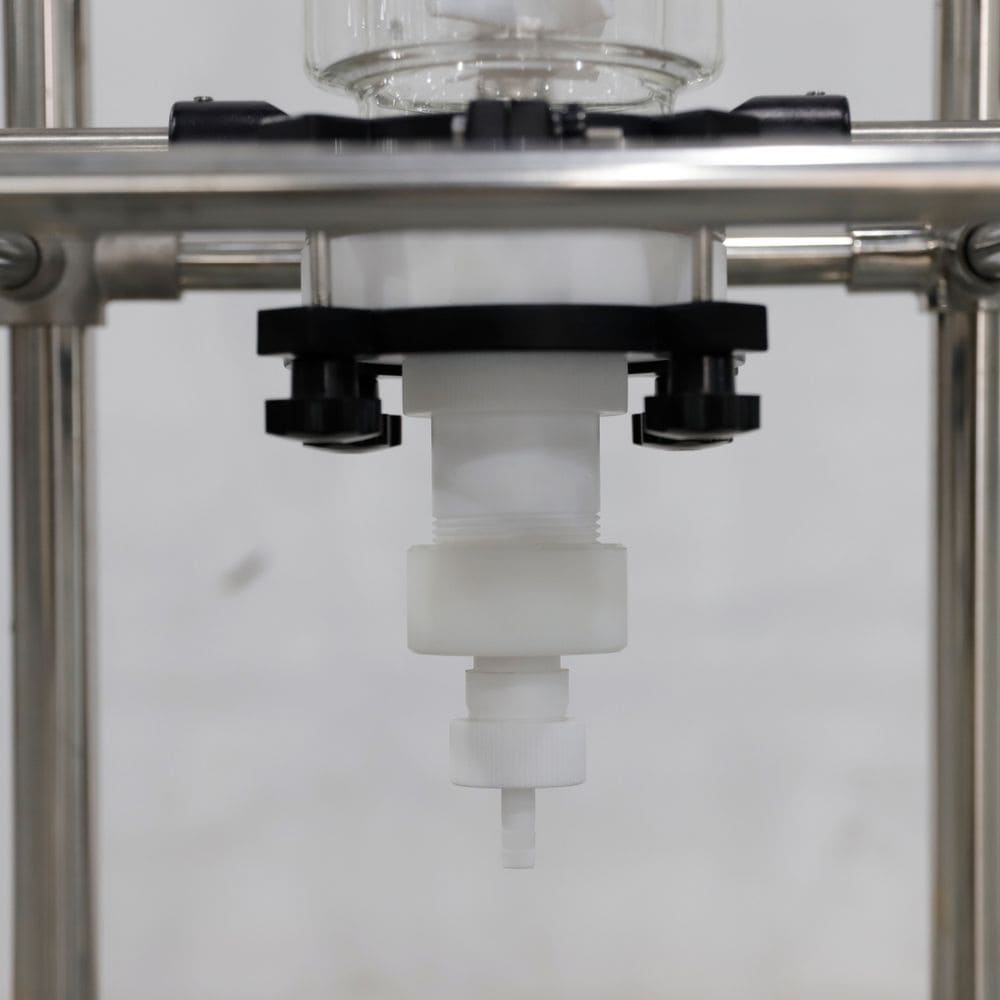

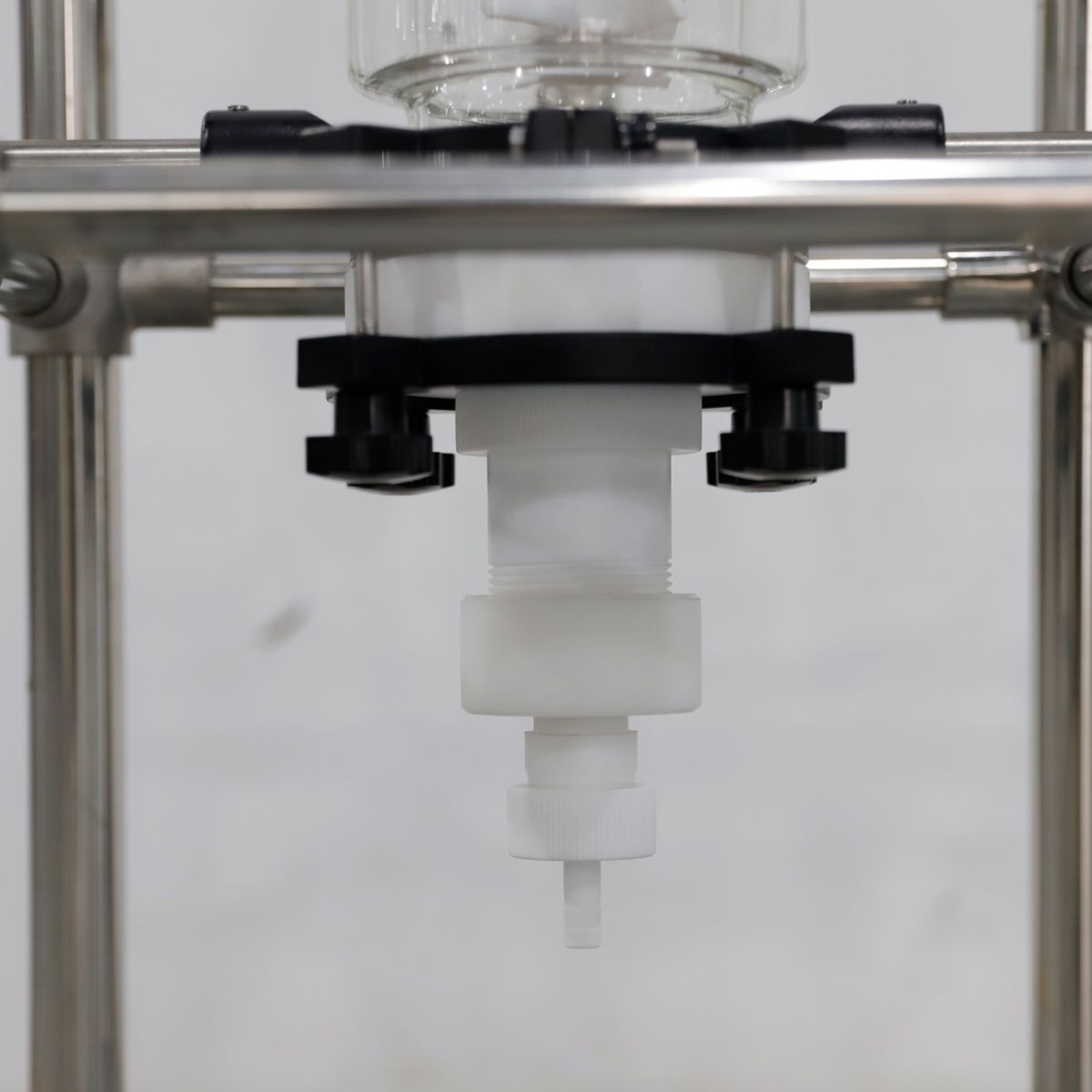

| Drain Port Below the Filter Plate | 12mm Barb | ||||||
RFQ for Glass Reactor Series:
-
How long is the warranty period and what does it cover?
- We provide a one-year warranty, but consumables not included, like glassware, filter, etc.
-
If I need to ship to an address outside the United States, can you provide door-to-door delivery service?
- Yes, we could also ship to your door, just contact us (eshop@lab1st.com or 844-4522178) for the real-time freight.
-
What's the delivery time?
- For the standard one, we just need 3--10 business days to handle the order, another 3--7 business days ship to your door via Express or 20--30 business days to your door via Sea Shipping.
- For the customized one, it will depends on the complexity.
-
Where can I find technical information about the Lab1st reactor?
- Technical information can be found on the Lab1st website under the product download tab. If further technical information is needed, please reach out to the sales team via email or phone at Lab1st: eshop@lab1st.com or 844-4522178.
-
Can your mixing paddles be customized? How much do they cost??
- Yes, it could customized and depends on the complexity.

We can provide customized services, if you need please freely to contact us (eshop@lab1st.com).
