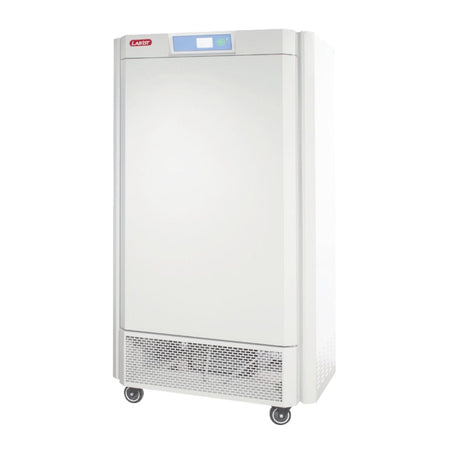

Climate Chamber with Light / Plant Growth CCL Series

In stock
SKU: CCL-150
Chamber Volume
Temperature Control Range
Electrical Requirement
Request a Quote
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details

Got questions?

Feel free to get in touch

Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.

Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
  • Description
  • Product Downloads
  • Shipping Information
LAB1ST CCL Series Climate Chamber provides a precisely controlled environment tailored for advanced plant cultivation, seed germination, and photobiological research. It integrates high-precision temperature control with energy-efficient LED lighting to simulate ideal growth conditions.
Engineered for demanding applications in agricultural research, forestry, and biotechnology, the CCL series ensures consistent, reproducible results for your most critical experiments.

Features:

  • User-Centered & Intelligent Operation:
    • Intuitive Touchscreen Interface: Features a large LCD screen that displays multiple parameters simultaneously with a clear, menu-driven interface for straightforward setup, monitoring, and operation.
    • 30-Stage Programmable Control: Simplifies complex experimental protocols. Each program supports flexible timing from 1 minute to 99 hours and 59 minutes, enabling true walk-away automation.
    • Versatile Simulation Capabilities: Can simulate natural day/night temperature variations and multi-directional light sources.
  • Advanced, Energy-Efficient LED Lighting System:
    • Precision Spectrum & Cool Operation: Utilizes energy-saving LED lighting that provides stable, full-spectrum illumination ideal for photosynthesis without generating excess heat, ensuring consistent chamber temperature and optimal plant growth.
    • Superior Performance: Compared to traditional lighting, our LED system offers precise wavelength control, an extended lifespan exceeding 30,000 hours, and reduces energy consumption by approximately 80%.
    • Rapid Response & Uniformity: Optional planar lighting configuration ensures even light distribution for consistent absorption by specimens, maintaining experimental reproducibility.
  • Hygienic & Flexible Chamber Design:
    • Easy-Clean Construction: Features a mirror-finish stainless steel interior with smooth rounded corners. Internal shelves or partitions can be removed without tools, facilitating thorough chamber disinfection and cleaning.
    • Gentle Airflow Design: The optimized air circulation system provides uniform conditions without excessive wind speed that could disturb or damage delicate plant seedlings.
  • Unmatched Reliability for Continuous Research:
    • Dual Redundant Compressor System: A key differentiating feature. Two imported compressors operate in an automatic, alternating cycle to ensure uninterrupted, long-term operation—overcoming a common limitation in standard growth chambers.
    • Power Failure Protection: User-defined parameters are automatically saved in non-volatile memory, ensuring programs resume automatically after a power outage.
  • Comprehensive Safety & Protection:
    • Independent Over-Temperature Alarm: Automatically cuts off power and triggers alerts if temperature limits are exceeded, safeguarding both your experiments and the equipment.
    • Built-In Diagnostics: The system performs self-checks and displays clear fault messages on the screen for immediate identification and troubleshooting of operational issues.
    • Audible & Visual Alarms: Includes alerts for high temperature and over-temperature conditions.
  • Eco-Friendly Design:
    • Fluorine-Free Construction: Manufactured with environmentally friendly materials, supporting a greener and healthier approach to research.

Specifications:

Model CCL-150 CCL-250 CCL-300 CCL-450
Temperature Control Range With light: 10~50°C | Without light: 0~50°C
Temperature Resolution 0.1°C
Temperature Fluctuation ±1°C
Light Intensity Range 0 ~ 18,000 Lux 0 ~ 18,000 Lux 0 ~ 28,000 Lux 0 ~ 35,000 Lux
Light Intensity 6-level adjustable
Light Source / Illumination Method LED, door-mounted lighting LED, door-mounted lighting LED / Three-side lighting LED / Three-side lighting
Power Supply AC220V 50HZ
Input Power (W) 1500 1750 1700 2000
Chamber Volume (L) 150 250 350 450
Interior Dimensions (WxDxH mm) 550×400×670 600×610×830 520×550×1140 700×550×1140
Exterior Dimensions (WxDxH mm) 690×800×1410 760×815×1550 830×850×1850 950×850×1850
Program Control Function Independent setting of temperature, and light intensity. Capable of setting 30 program segments, with each segment's time range adjustable from 1~99 hours 59 minutes.
Operating Environment Temperature +5~30°C
Continuous Operation Time Capable of long-term continuous operation (two sets of international fully sealed compressors automatically switch in rotation).



Model CCL-800 CCL-1000 CCL-1500
Temperature Control Range With light: 10~50°C | Without light: 0~50°C
Temperature Resolution 0.1°C
Temperature Fluctuation ±1°C
Light Intensity Range 0 ~ 42,000 Lux 0 ~ 50,000 Lux 0 ~ 55,000 Lux
Light Intensity 6-level adjustable
Light Source / Illumination Method Fluorescent lamp, partition-type lighting Fluorescent lamp, partition-type lighting Fluorescent lamp, partition-type lighting
Power Supply AC220V 50HZ
Input Power (W) 2700 2800 4300
Chamber Volume (L) 800 1000 1500
Interior Dimensions (WxDxH mm) 800×590×1650 1050×590×1650 1550×590×1650
Exterior Dimensions (WxDxH mm) 1475×890×1780 1410×890×1950 1570×1475×2050
Program Control Function Independent setting of temperature, and light intensity. Capable of setting 30 program segments, with each segment's time range adjustable from 1~99 hours 59 minutes.
Operating Environment Temperature +5~30°C
Continuous Operation Time Capable of long-term continuous operation (two sets of international fully sealed compressors automatically switch in rotation).
