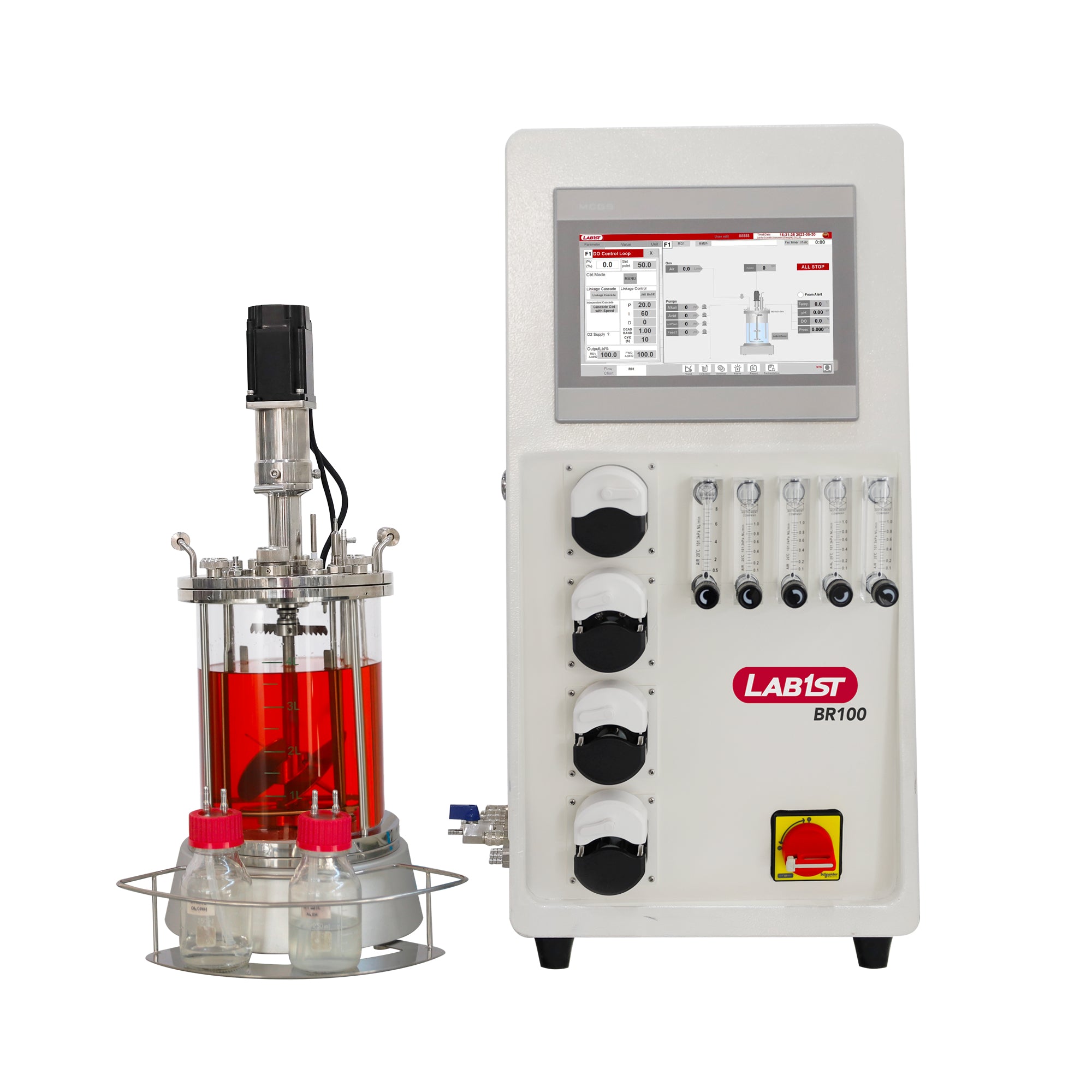

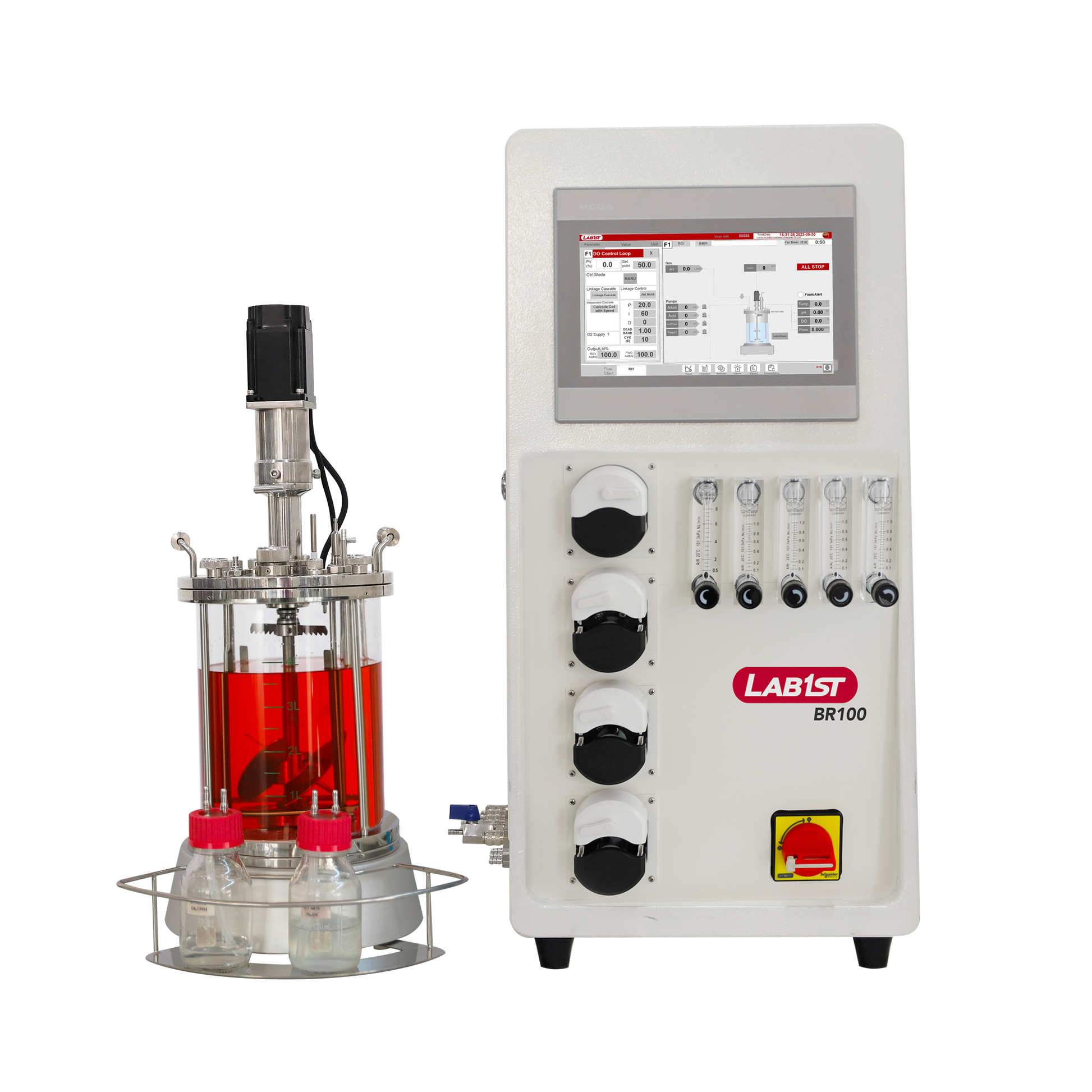

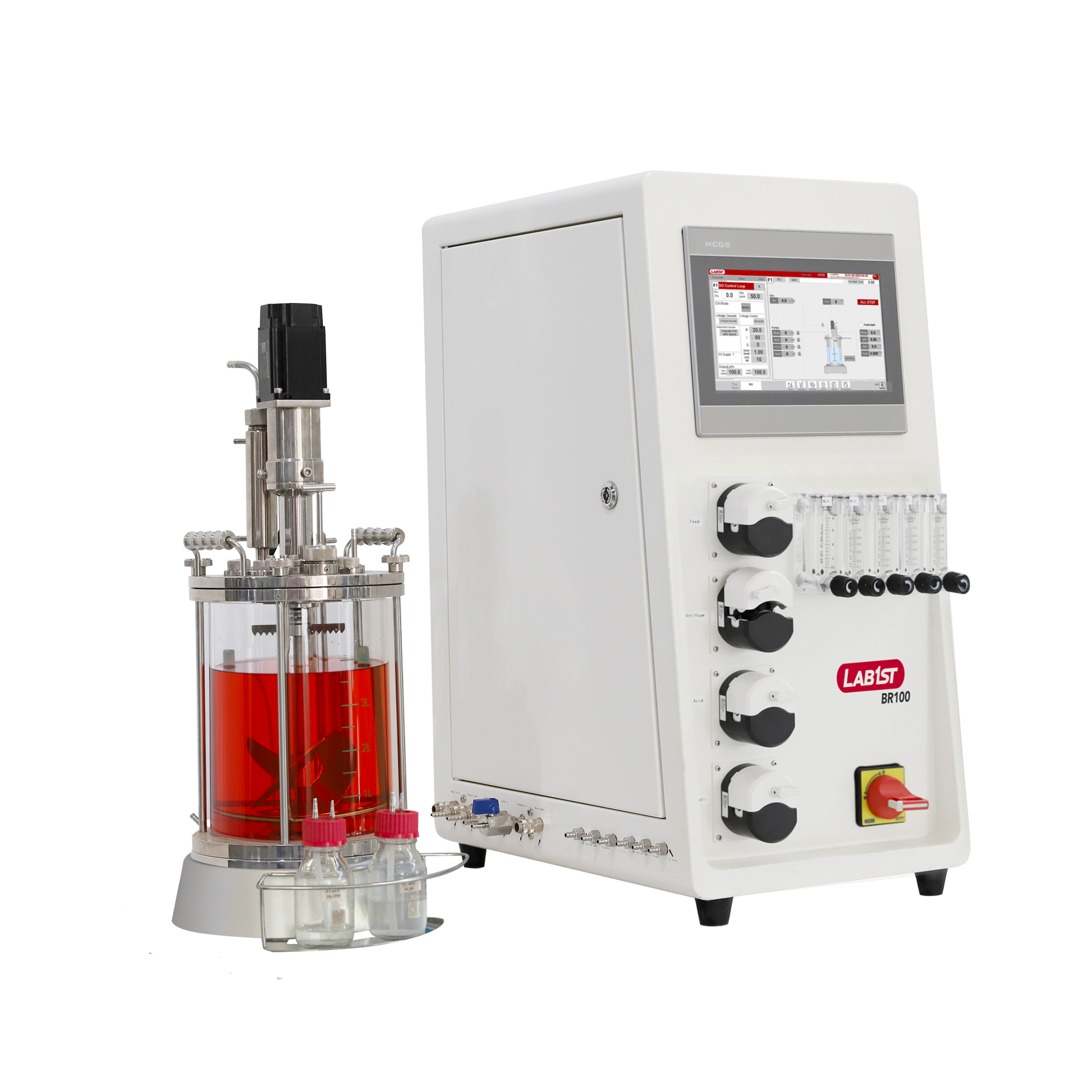

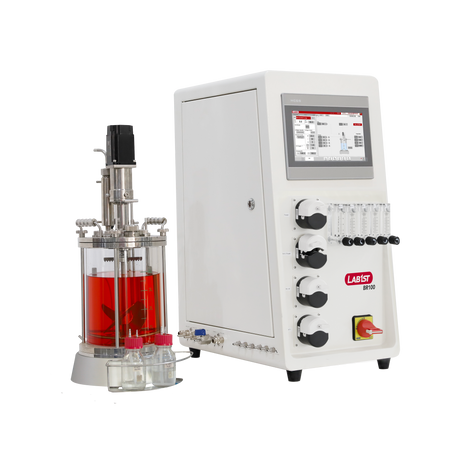

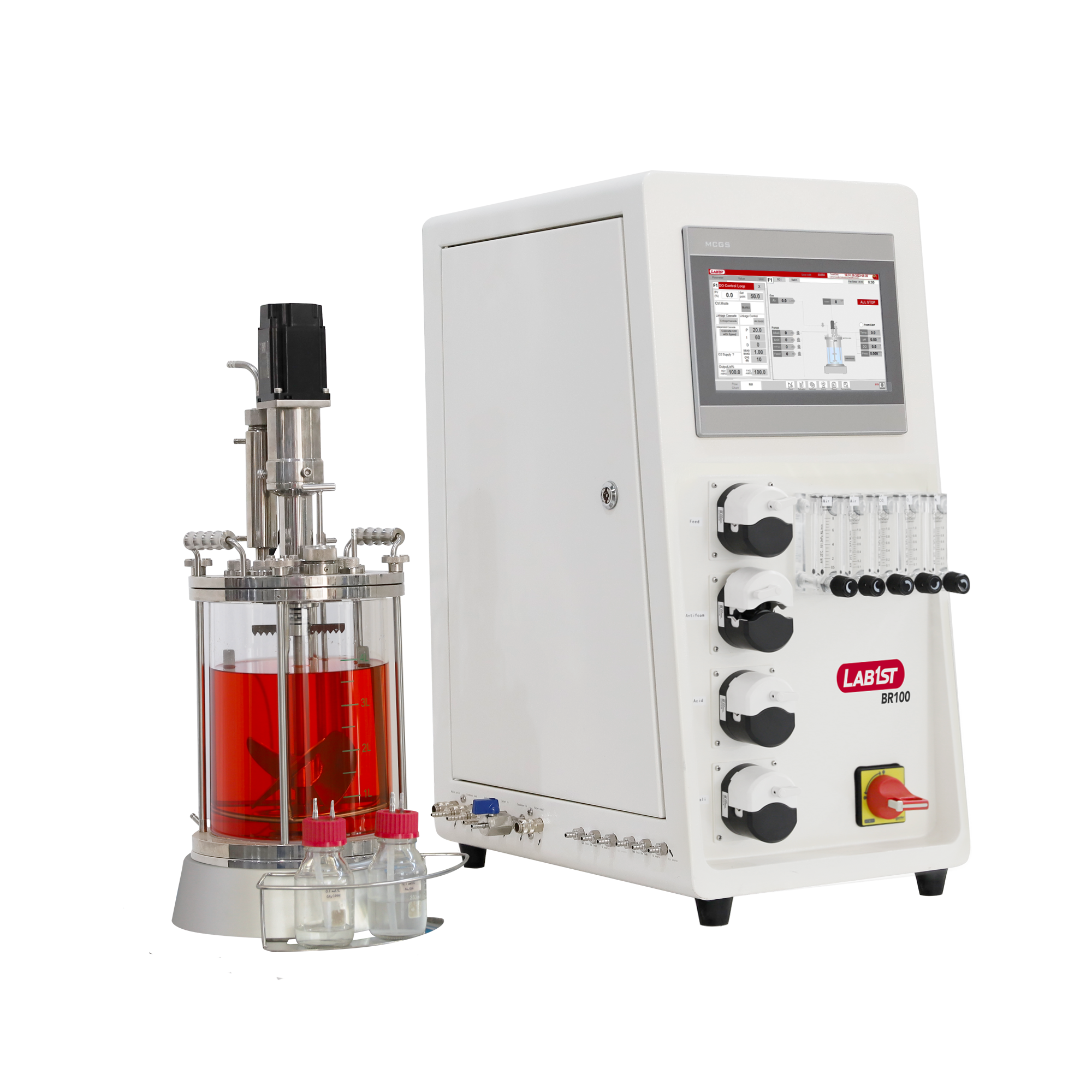

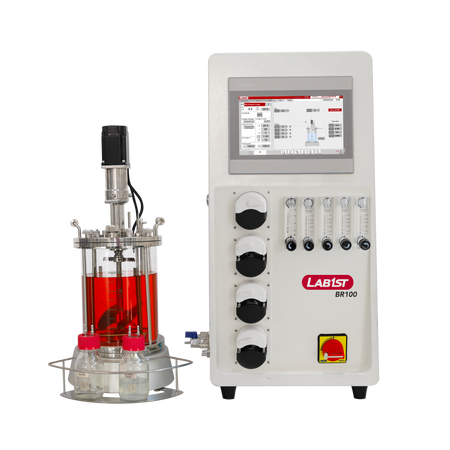

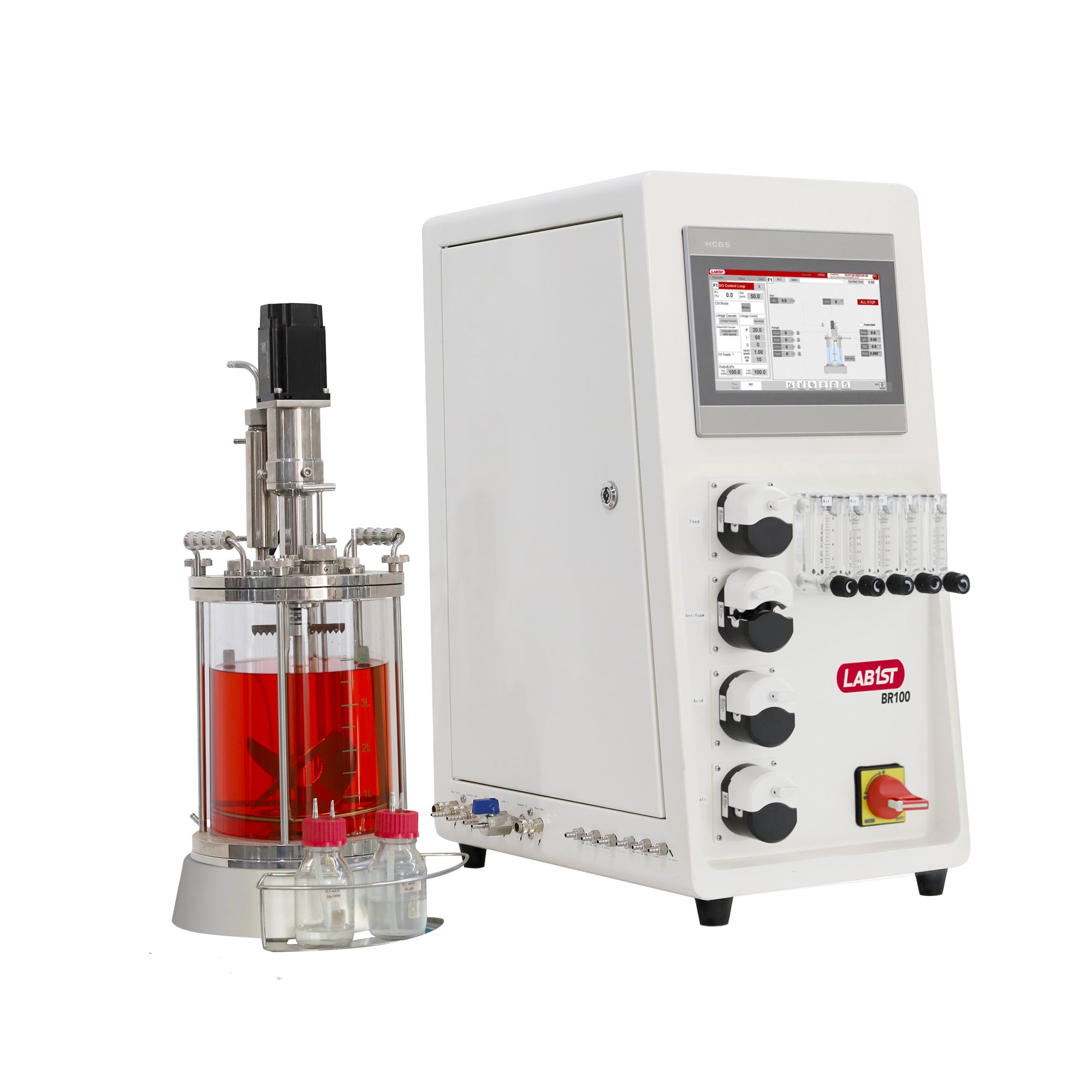

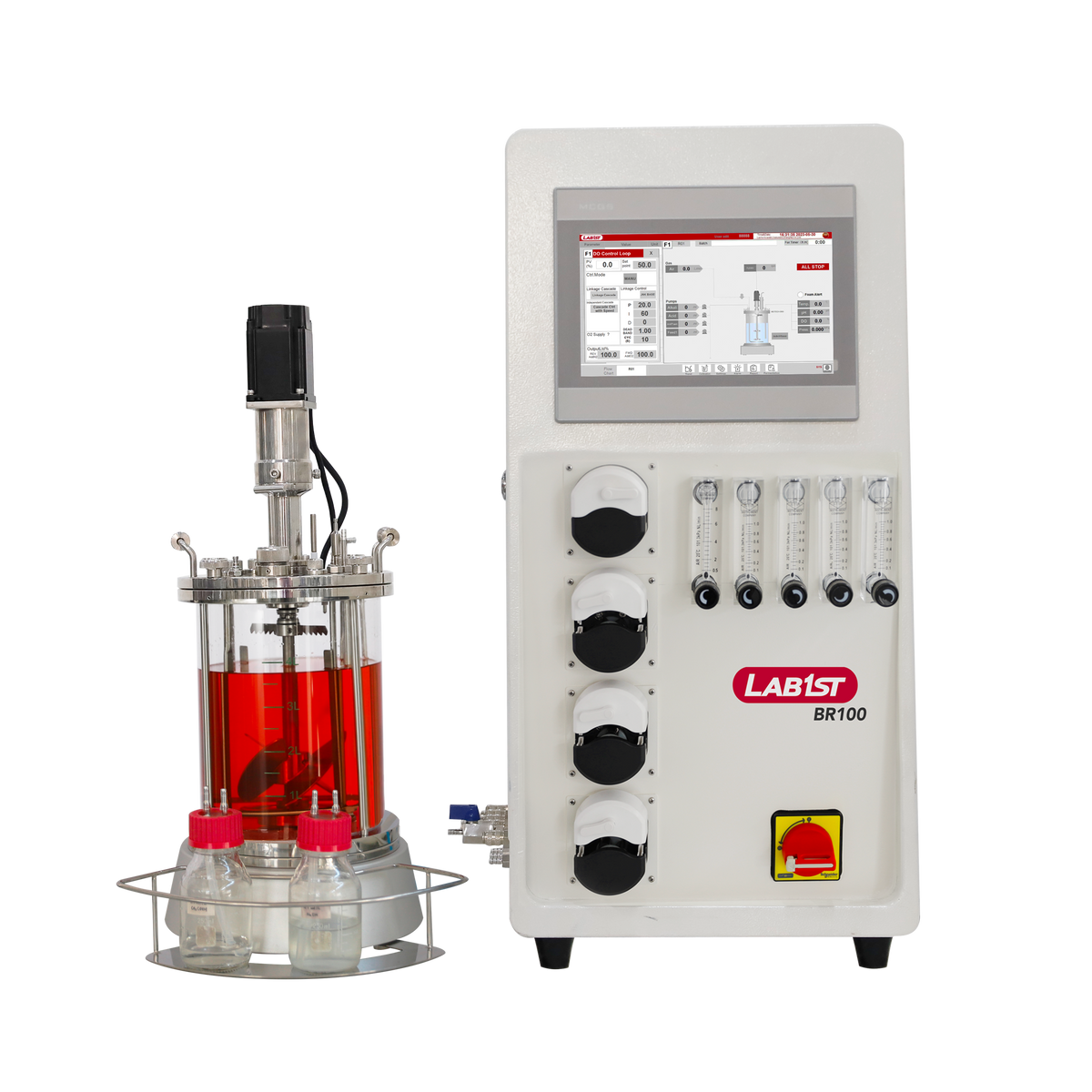

Our BR100-C1 series Bnechtop Glass Bioreactor cell culture system offers a cost-effective, standardized solution suitable for a wide range of cell culture applications. Equipped with core hardware from internationally recognized brands, it ensures reliable performance and precise control. The system supports seven different total volumes, ranging from 1L to 15L, providing flexibility for various experimental and production scales.

The equipment is easy to install and has a compact footprint, allowing for quick setup and user-friendly operation. It features powerful software functions that enable full control through feedback, time, conditions, and scripting. A 10.1-inch touch screen with an intuitive graphical interface enhances user interaction.

In addition, the system supports both wired and wireless LAN for remote monitoring and control. Its mature vessel manufacturing process ensures the components are easy to disassemble, clean, and maintain. You can also request customized configurations to meet specific application needs.

Features:

• Performance Meets Affordability with Uncompromised Quality

• • The BR100-C1 bioreactor is developed based on years of industry experience and customer feedback, offering a simple yet efficient design that balances performance and cost.
  • It features top-class components from trusted brands like Siemens, Hamilton, and Jumo, ensuring reliable, continuous monitoring and stable operation throughout the biological process.
  • The combination of rotameters, solenoid valves and built-in integrated peristaltic pumps achieves essentialgas and feeding control.
  • Its compact design minimizes space usage, making the most efficient use of laboratory space while boosting high performance and functionality

• Simple Operation and Hassle-Free Maintenance

• • The complete kit includes everything needed for the application, pre-configured, and ready to use, withoutthe need to purchase additional accessories.
  • No tools are required, and the user-friendly interface design makes installation simple and simplifies the preparation work before the process starts.
  • The separation of the base, vessel body and stirring motor enables a lightweight design, making it easier for experimenters to transfer it to the sterilizer.
  • The 10.1-inch touchscreen, combined with a simple and intuitive software design, offers full support for biological processes, making operation no longer complicated.
  • All components are located on the vessel lid, allowing for easy disassembly and reassembly, simplifying cleaning and maintenance.

• Software Functions: Precision Control and Full Process Flexibility

• • Comprehensive control including manual, automatic, secuential, cascaded, conditional, etc. meet diferent experimental needs.
  • Multiple cascades for DO control by means of agitation speed, oxygen bypass, and feed, increasing process control flexibility.
  • Up to 24 recipes, with no theoretical upper limit on steps, to achieve automatic operation of the biological process.
  • Easily perform online calilbration for sensor and peristaltic pump ensures accurate and reliable process control.
  • Extensible real-time display trend chart for easily viewing your entire biological process.
  • Complete batch data, alarm and operation records, easy to query, export and backup. With 8G ROM, data can be saved for many years.

  • Three-level authority management and upper & lower limit alarm settings reduce risks.
  • Wireless and wired LAN communication, easily realize remote monitoring and control.

• Glass Vessel: Optimal Design for Efficient Cultivation

• • The single-wall flat-bottom cylindrical vessel is equipped with a heating base. The stainless steel bottom makes it more sturdy and reliable, and has good heat conduction.

  • Electropolished 316L stainless steel, Boro 3.3 high borosilicate glass, EPDM and silicon sealing, clean and hygienic.

  • Standard 2:1 height-to-diameter ratio, meeting most mass transfer and heat transfer requirements.

  • Sufficient interfaces to meet the installation requirements of standard accessories and sensors.

  • Knurled screw design for quick assembly easy cleaning and maintenance.

Specification - Control Capacity

Specifications - Vessel

More information, pls click here to download our brochure.

We also provide customized services, please contact us(eshop@lab1st.com) if you have any needs.
