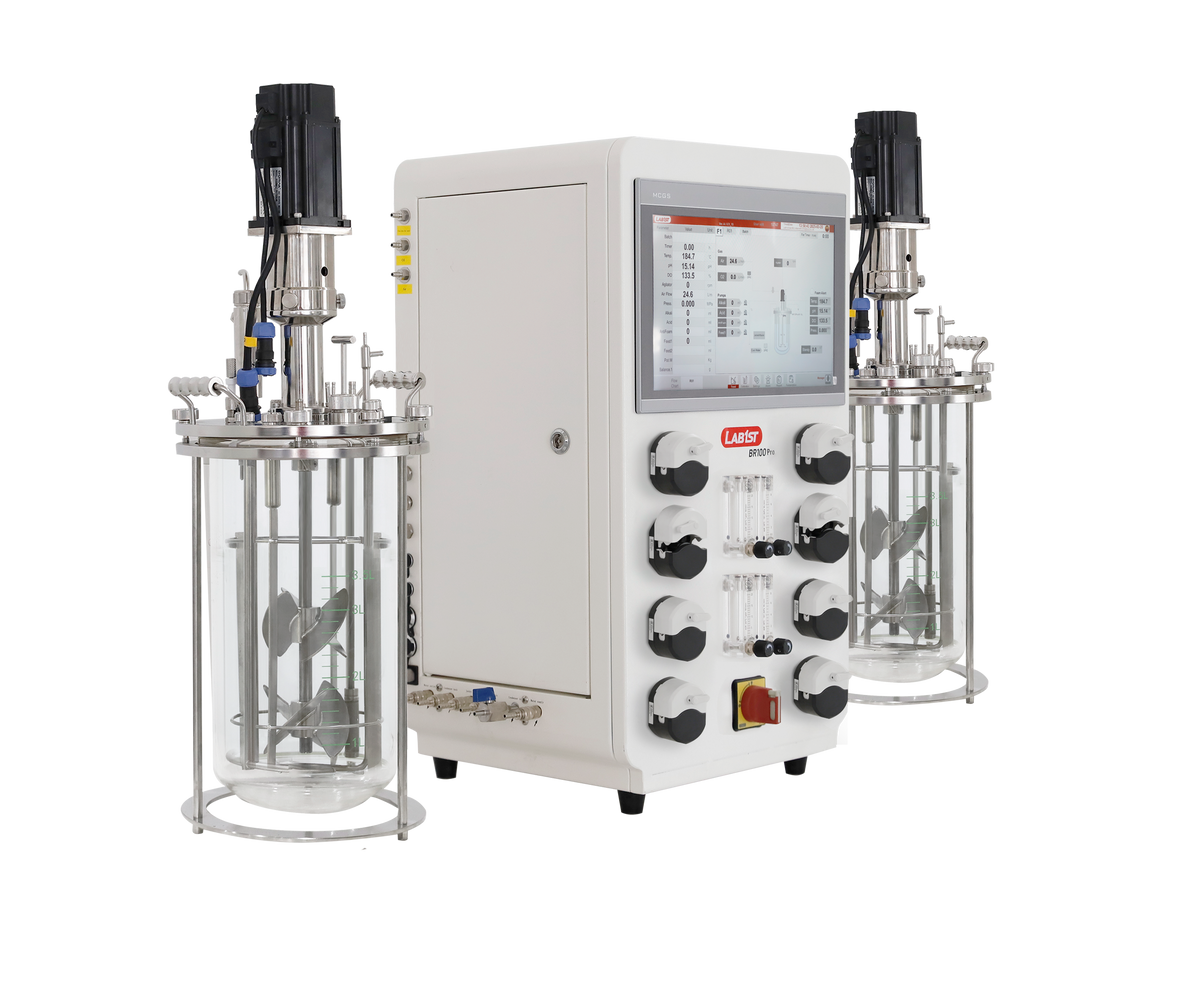

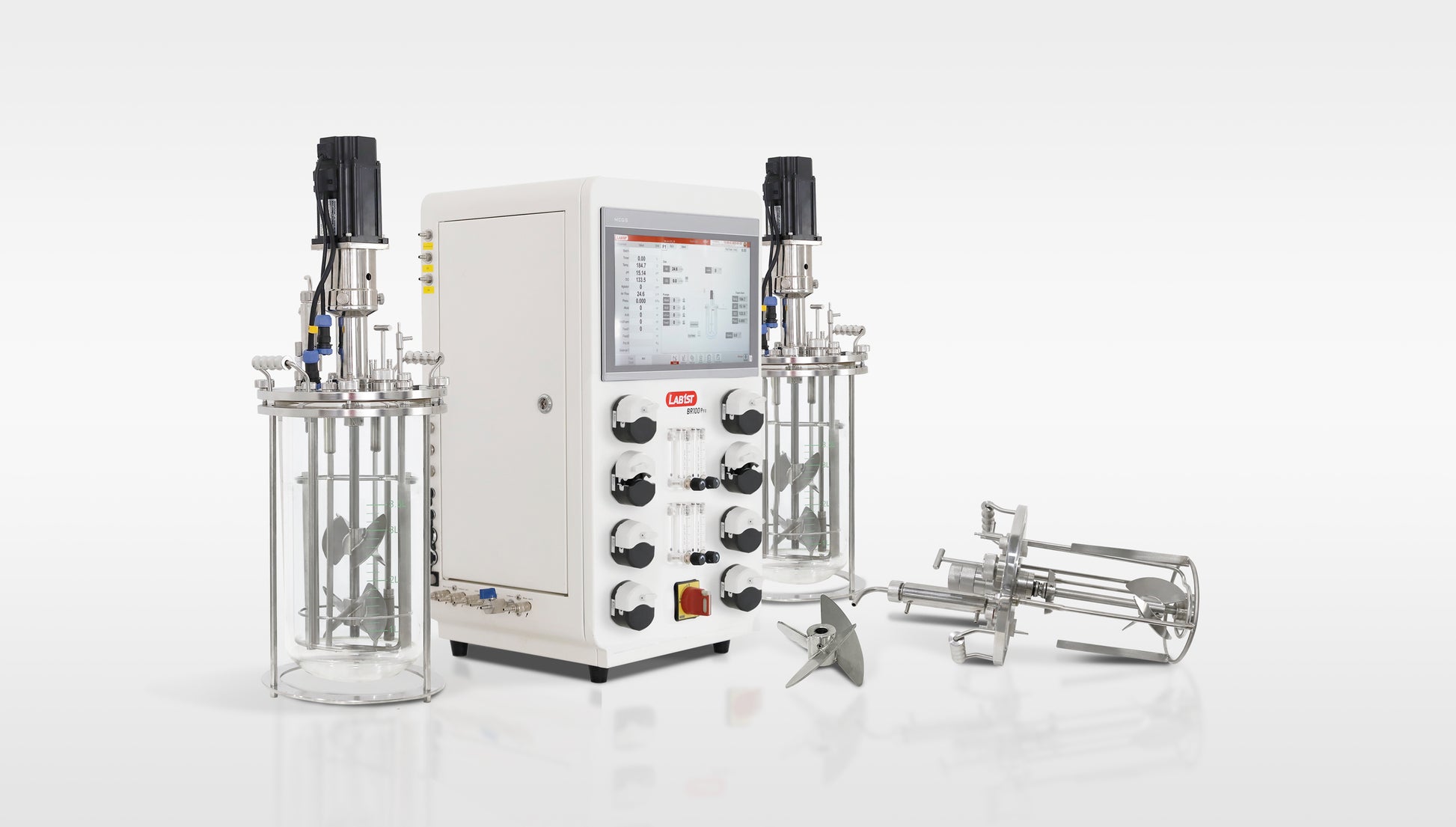

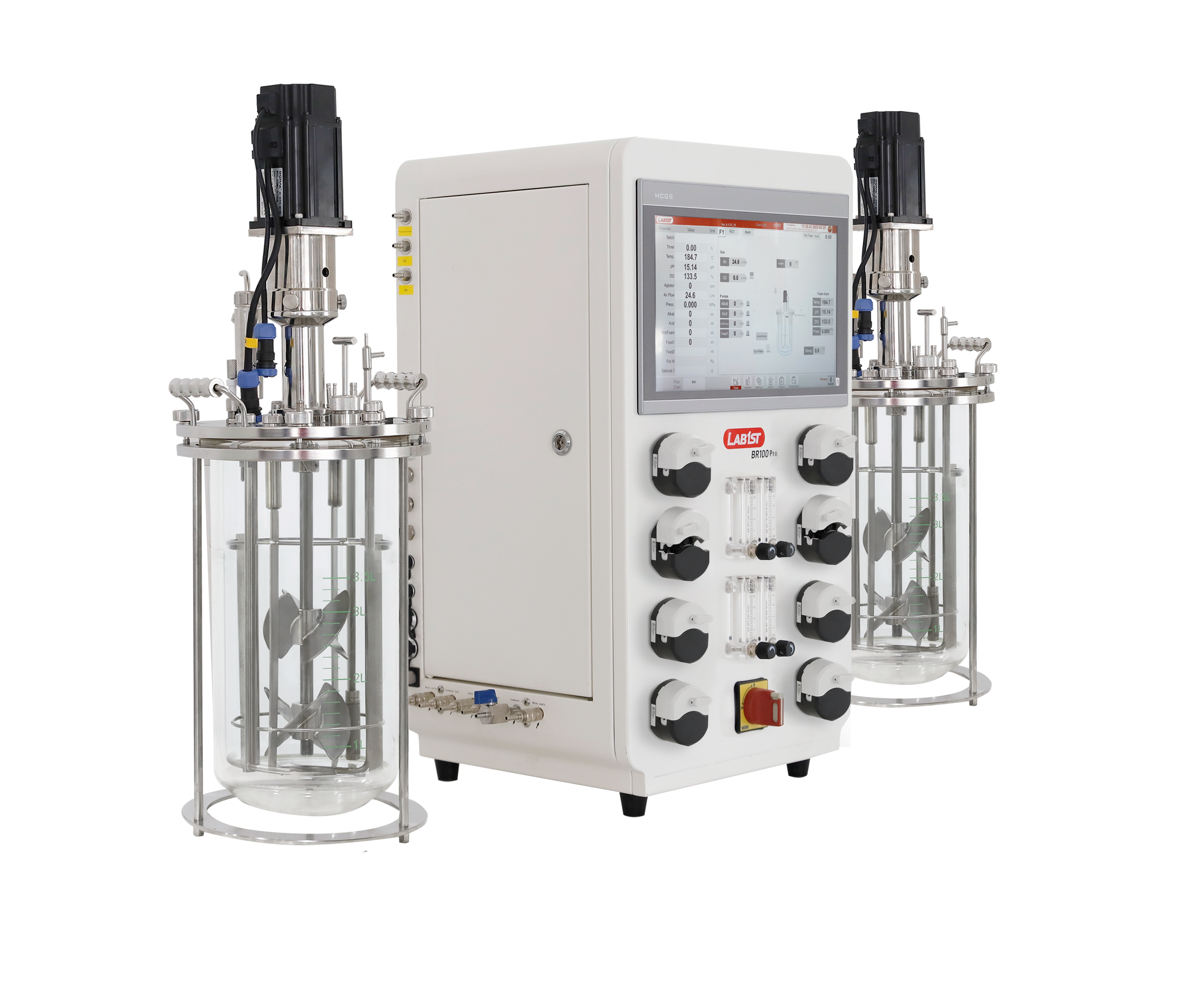

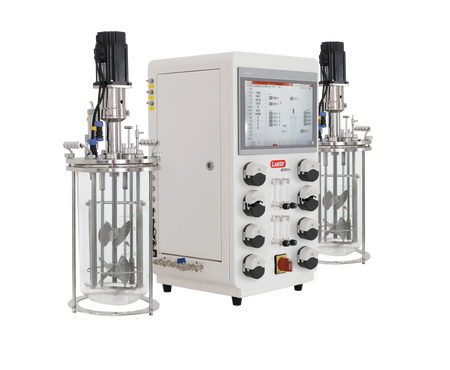

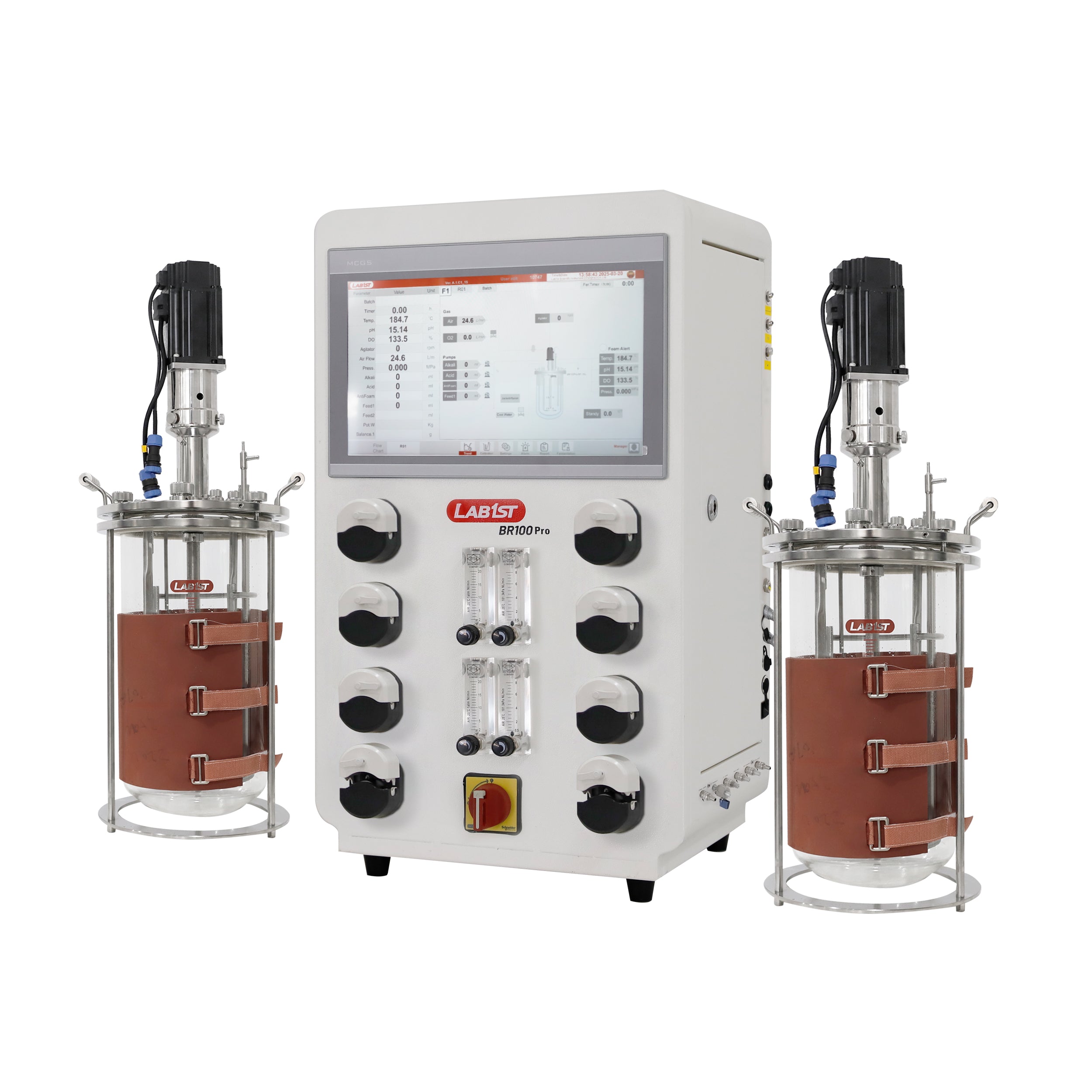

Benchtop Bioreactor Twin Control for Cell Culture Upgrated BR100Pro-C2
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Discover a smarter way to culture cells with our advanced, cost-effective Benchtop Bioreactor—designed for precision, flexibility, and ease of use. With seven vessel sizes, intuitive touchscreen controls, and powerful automation software, it's built to meet the needs of any lab. Enjoy reliable performance, remote monitoring, and future-ready expandability—all in one user-friendly platform.
Features:
-
Higher Flexibility and Automation
-
- Precision gas flow control: With MFC for dynamic gas flow control, enhancing bioprocess automation.
- Adjustable pump speed: Peristaltic pump for precise feeding control.
- Full automation: Automated control of critical process parameters (CPP), such as temperature, pH, DO and agitation to advance bioprocess R&D.
- One-controller-fits-all: Flexibly adapts to vessels of varying sizes, reducing future investment needs for capacity expansion.
- Extension interface: 1 user-defined analog input for auxiliary equipment integration.
- Precision gas flow control: With MFC for dynamic gas flow control, enhancing bioprocess automation.
- User-Friendly, Safe, and Efficient
-
- 15.6-inch touchscreen: Glove-friendly, intuitive interface for easy operation.
- Robust safety features: Aviation connectors and safety locks for enhanced security and maintenance efficiency.
- Uniform heating: Independent heating blanket for consistent culture temperature.
- Efficient vessel design: Round-bottom vessels for better mixing, easier cleaning, and reduced contamination risks.
- 15.6-inch touchscreen: Glove-friendly, intuitive interface for easy operation.
- Software Functions: Integrated Control Systems and Enhanced Process Automation for Cell Culture Applications
-
- Comprehensive control including manual, automatic, secuential, cascaded, conditional, etc. meet diferent experimental needs.
- Supporting recipe sharing, synchronized comparison of parameter curves, and synchronized setting and control of parameters, enhances efficiency and consistency in experimental design and process optimization.
- Multiple cascades for DO control by means of agitation speed, air flow oxygen bypass, and feed, increasing process control flexibility.
- Up to 24 recipes, with no theoretical upper limit on steps, to achieve automatic operation of the biological process.
- Easily perform online calilbration for sensor and peristaltic pump ensures accurate and reliable process control.
- Extensible real-time display trend chart for easily viewing your entire biological process.
- Complete batch data, alarm and operation records, easy to query, export and backup. With 8G ROM, data can be saved for many years.
- Three-level authority management and upper & lower limit alarm settings reduce risks.
- Wireless and wired LAN communication, easily realize remote monitoring and control.
- Glass Vessel: Optimal Design for Efficient Cultivation
-
- Single-wall round-bottom cylindrical vessel with electric heating blanket for good temperature uniformity.
- Electropolished 316L stainless steel, borosilicate 3.3 high borosilicate glass, EPDM and silicon sealing, clean and hygienic.
- Standard 2:1 height-to-diameter ratio, meeting most mass transfer and heat transfer requirements.
- Sufficient interfaces to meet the installation requirements of standard accessories and sensors.

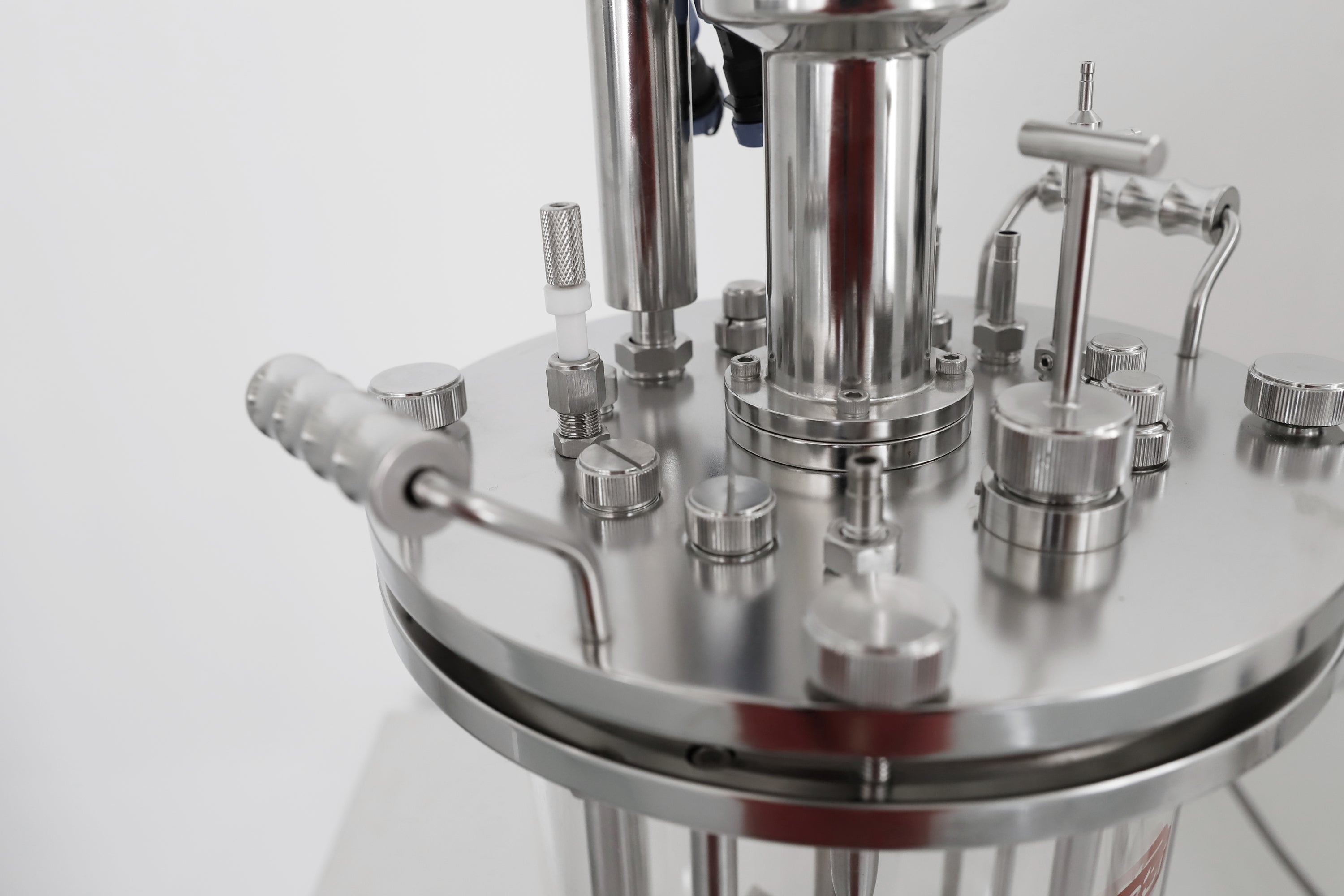

- Knurled screw design for quick assembly, easy cleaning and maintenance.
- Single-wall round-bottom cylindrical vessel with electric heating blanket for good temperature uniformity.
Specification - Control Capacity

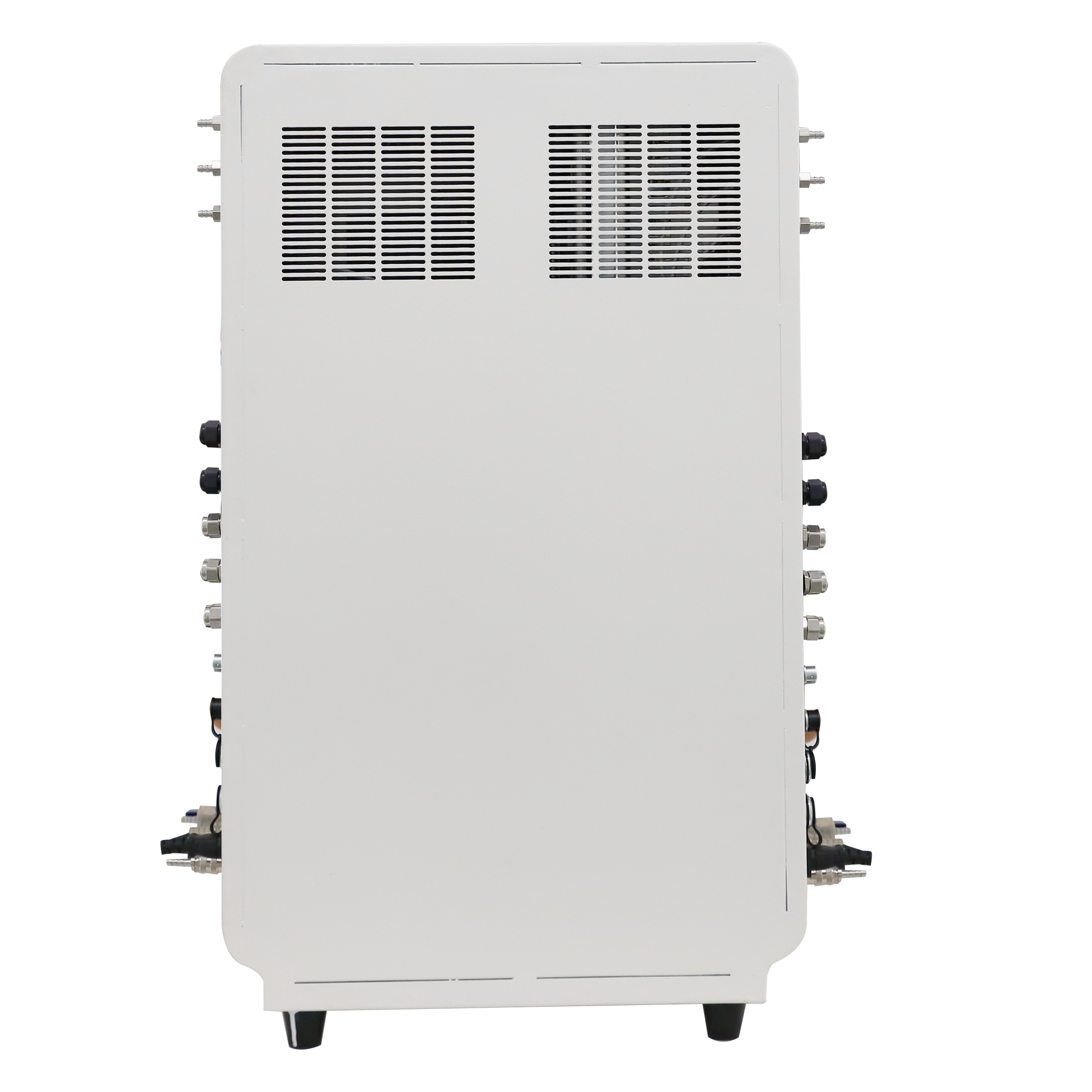

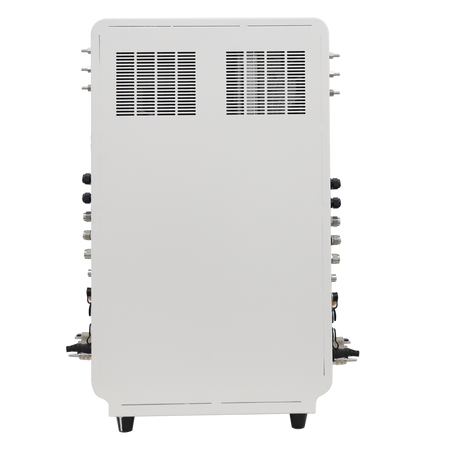

| Independent Control Tower | |||||||
| Housing Material | Carbon steel, plastic powder coating | ||||||
| Dimension [W×D×H] | 435×360×730 | ||||||
| Weight | Approx. 40 Kg (depending on configuration) | ||||||
| Display / Operation | 15.6" color touch screen | ||||||
| Controller | Siemens S series PLC, MCGS HMI | ||||||
| Integrated Pump | 4 variable-speed peristaltic pumps | ||||||
| Flow Meter | 2 rotameters + 1 MFC | ||||||
| Communication | USB [software upgrade, data copy and export], Industrial Ethernet, WiFi, 1 x Analog Input 4 to 20 mA | ||||||
| Water Interface | 6 × hose barb fitting [inlet/outlet for exhaust condenser, cooling finger, chilled water] | ||||||
| Air Interface | 6 × hose barb fitting [4 x gas supply interface, 2 x gas outlet] | ||||||
| Power Supply | 220V(±10%), 50HZ, single phase | ||||||
| Adapter Culture Vessel | 1L | 2L | 3L | 5L | 7L | 10L | 15L |
| Rated Power | Max. 1.5 KW | ||||||
| Agitation Control | |||||||
| Motor | Maintenance-free, low noise servo motor | ||||||
| Speed Range | 5-1000rpm | ||||||
| Accuracy | ±0.5% | ||||||
| Rated Power | Max. 750W | ||||||
| Gas Control | |||||||
| Gas Source | Air, O2, N2, CO2 | ||||||
| Gas Inlet | Ring sparger and ring sparger | ||||||
| Flow Accuracy | Rotameter accuracy: ± 4%, MFC accuracy: ± 1% | ||||||
| Temperature Control | |||||||
| Control Method | Robust PID algorithm | ||||||
| Heating Method | Heating blanket | ||||||
| Heating Power | Max. 500W | ||||||
| Cooling Method | Tap water or circulating cooling water | ||||||
| Sensor | PT100 RTD[JUMO, German] | ||||||
| Control Accuracy | ±0.2% | ||||||
Specifications - Vessel
| Glass Vessel |
|||||||
| Type | Single-wall Flat-bottom cylindrical vessel, available for electric blanket | ||||||
| Total Volume | 1L | 2L | 3L | 5L | 7L | 10L | 15L |
| Max. Working Volume | 0.75L | 1.5L | 2.25L | 3.75L | 5.25L | 7.5L | 11.25L |
| Min. Working Volume | 0.25L | 0.5L | 0.75L | 1.25L | 1.75L | 2.5L | 3.75L |
| Pressure Design | Working pressure:0~1 bar@150℃ Autoclavable | ||||||
| Height to Diameter Ratio [H:D] | Approx. 2:1 | ||||||

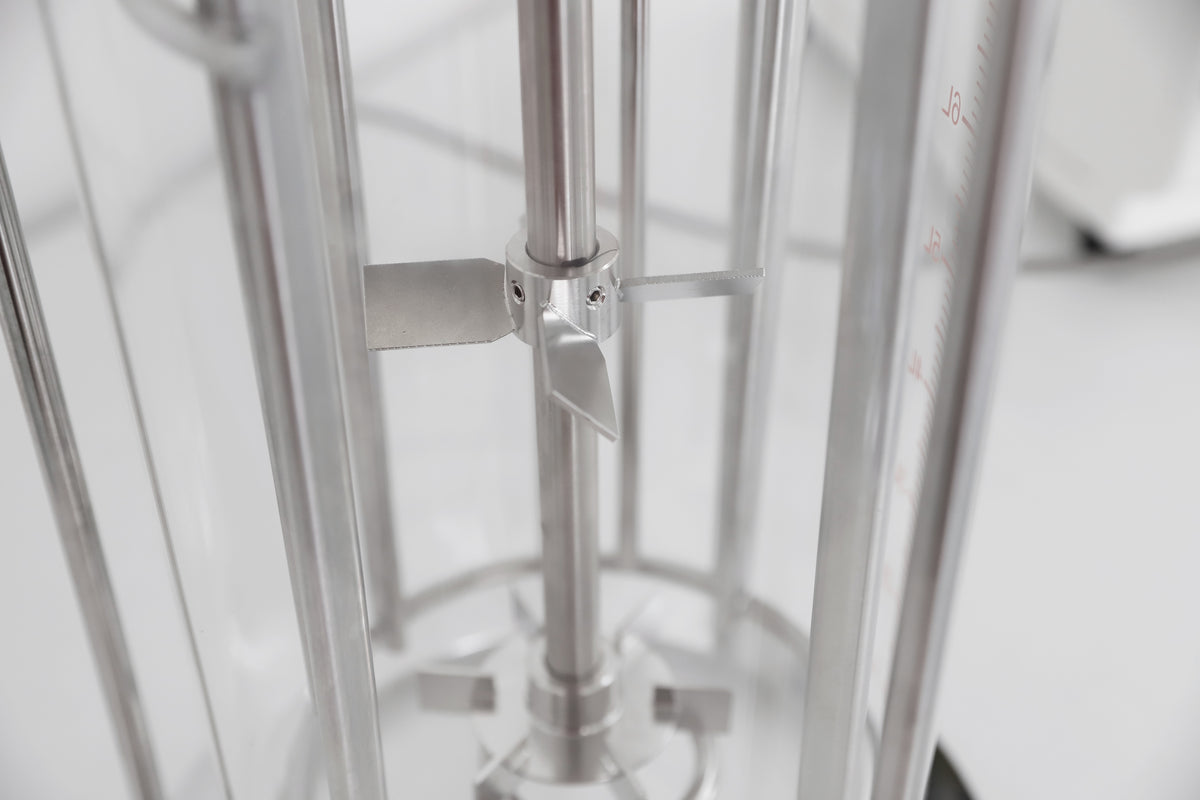

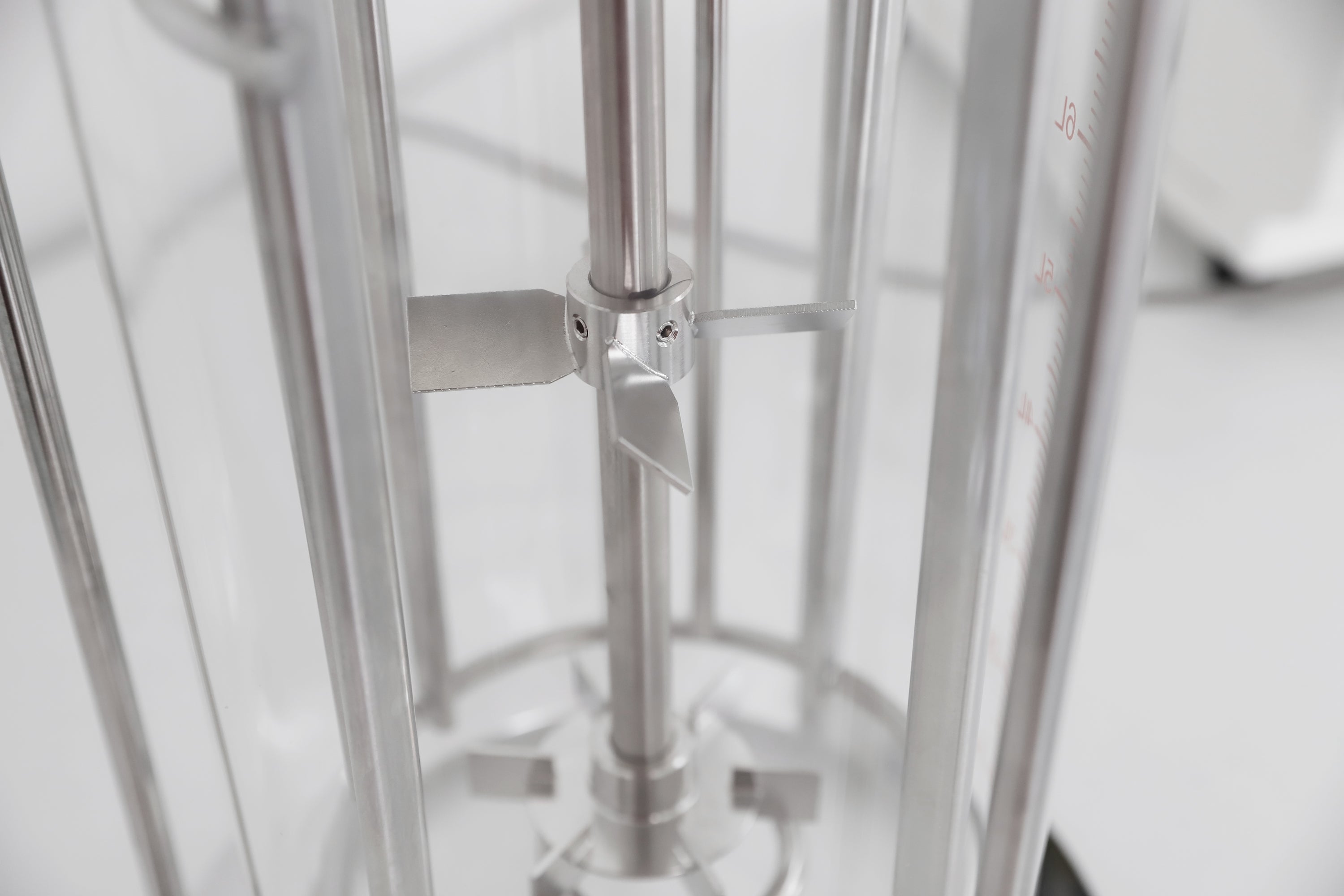

| Impellers | 2 layers, top: foam breaker, bottom: 3-blade elephant ear impeller; Detachable, height adjustable | ||||||
| Baffles | None | ||||||
More information, pls click here to download our brochure.
We also provide customized services, please contact us(eshop@lab1st.com) if you have any needs.
