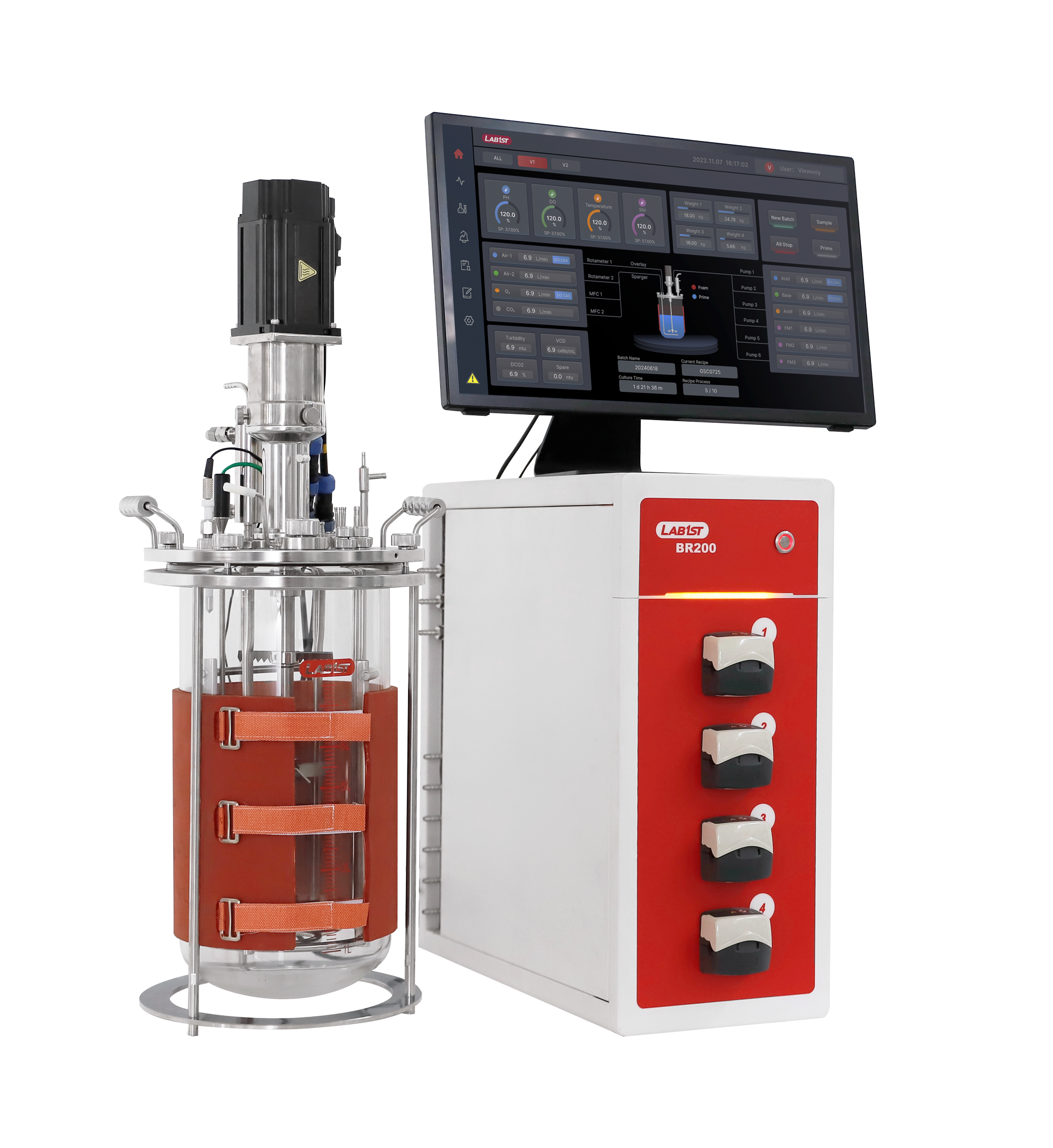

Benchtop Bioreactor for Cell Culture Next-Gen Processing BR200-C1
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information

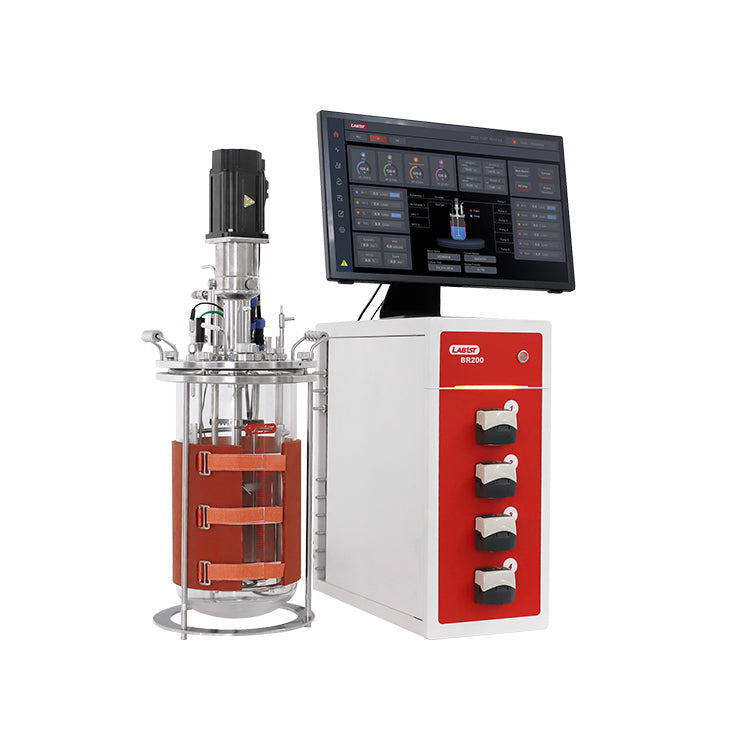

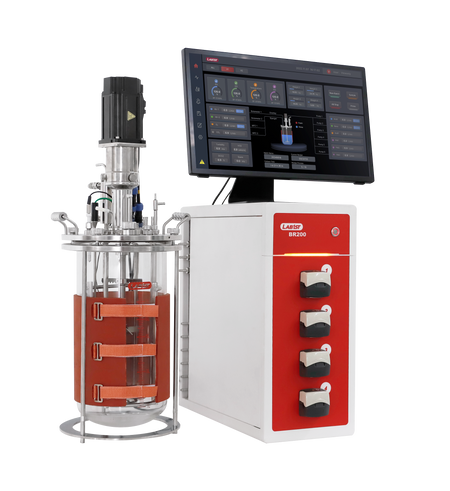

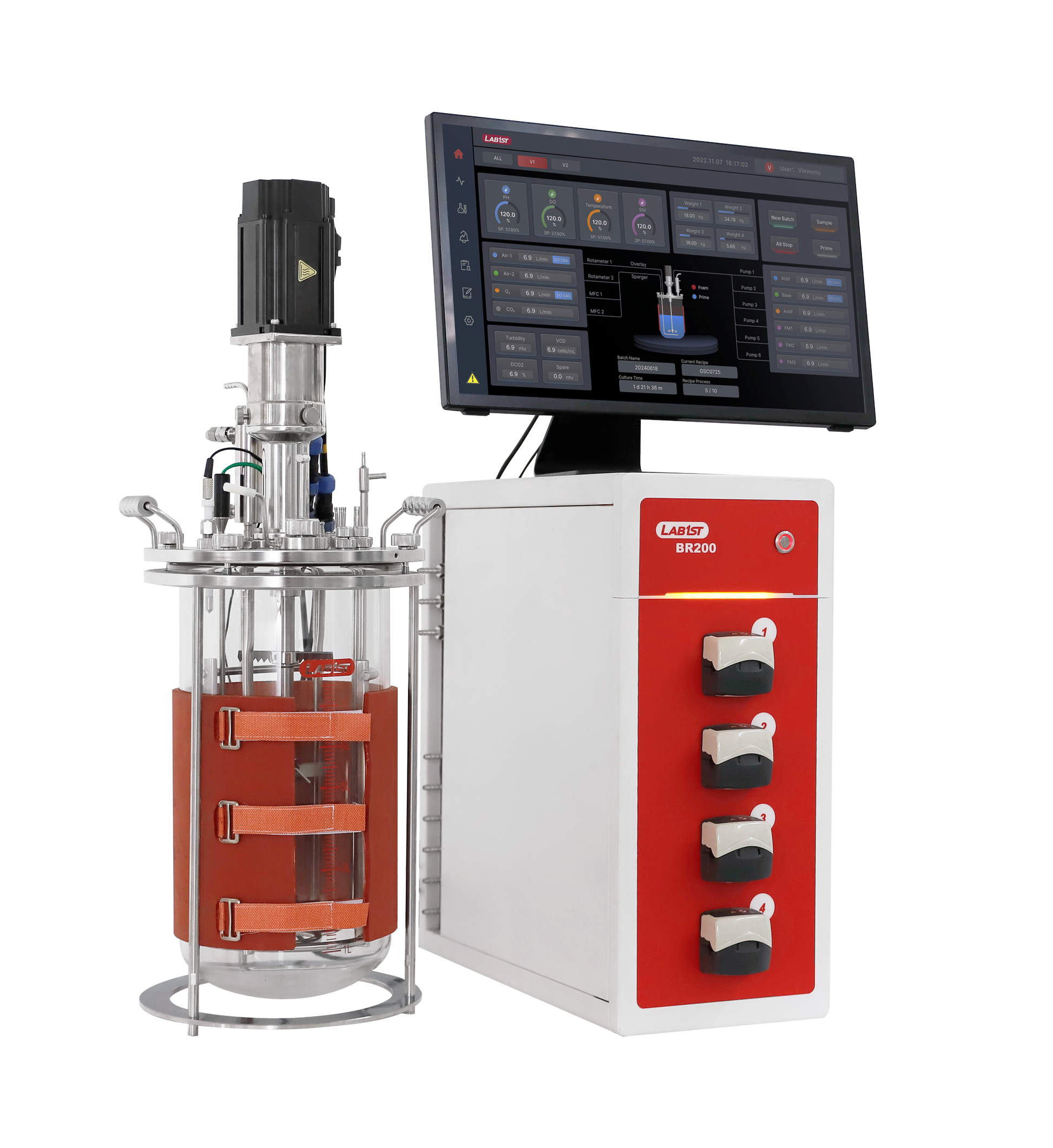

Discover a smarter way to culture cells with our advanced, cost-effective Benchtop Bioreactor—designed for precision, flexibility, and ease of use. With seven vessel sizes, intuitive touchscreen controls, and powerful automation software, it's built to meet the needs of any lab. Enjoy reliable performance, remote monitoring, and future-ready expandability—all in one user-friendly platform.
Features:
-
Design excellence: An advanced solution for cell culture.
- Versatile vessel volumes: 7 vessel sizes (1L, 2L, 3L, 5L, 7L, 10L and 15L) to suit diverse experimental needs.
-
Powerful scalability:
-
- Interchangeable vessels support a wide range of volumes (2L-15L).
- Modular expansion allows one master chassis to control a slave for dual-vessel operation.
- Centralized SCADA control can scale to manage up to 8 units for parallel production.

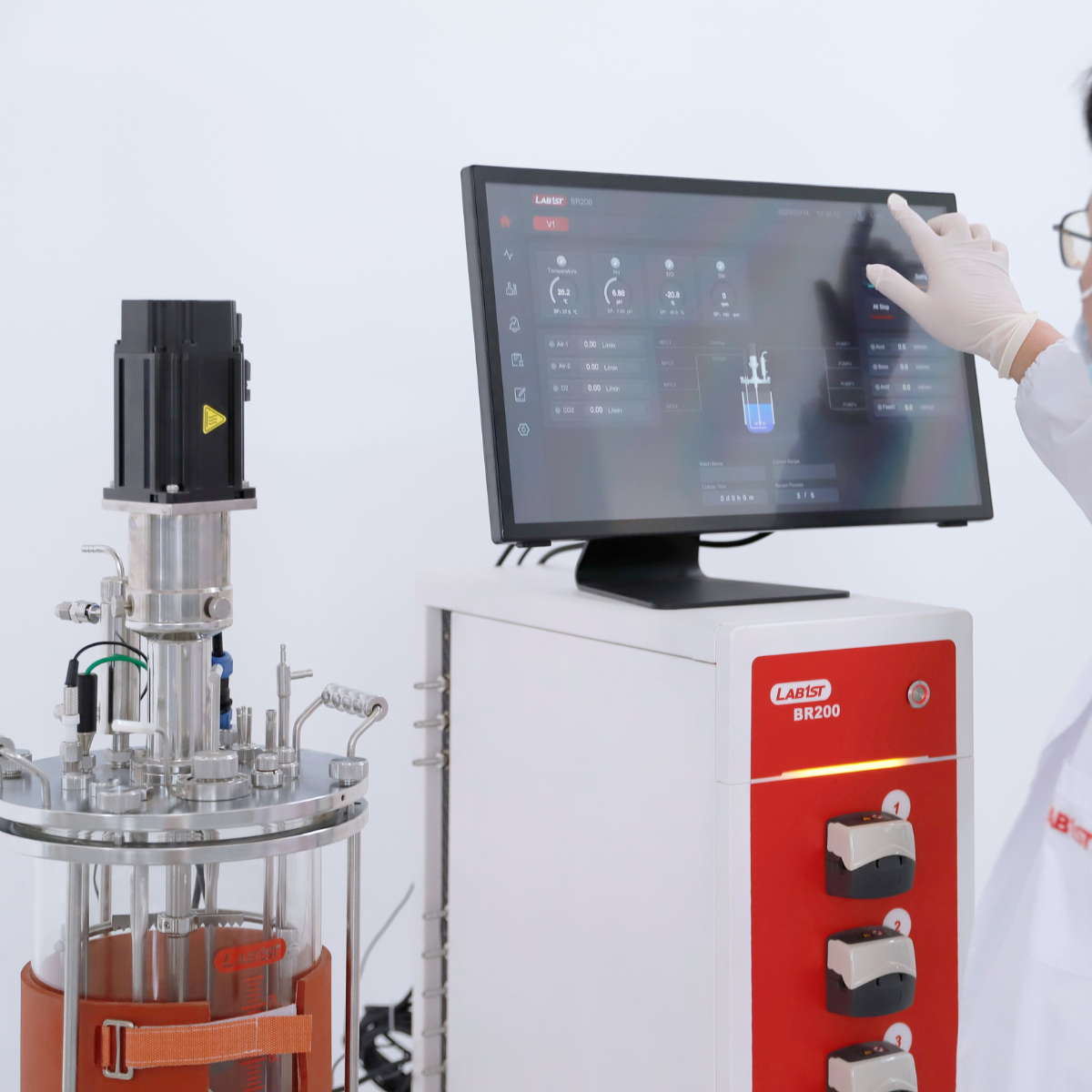

- Next-Gen interface: 22" capacitive touchscreen with multi-touch support (including zoom and gloved operation) and an intuitive second-generation GUI for effortless control.
- Global remote access: Secure real-time monitoring via PC/mobile devices with worldwide connectivity.
- Space-efficient architecture: Compact footprint with flexible touchscreen placement for optimal lab space utilization.
- Advanced automation: Mass flow controllers (MFCs) replace rotameters for automated, quantified gas control and accelerated process development.
- Advanced software capabilities: Feedback-, time-, condition-, and script-based control strategies.
- Optimized vessel engineering: Premium materials with modular construction for easy disassembly and maintenance.
- Reliable precision performance: Equipped with globally top-tier hardware components for superior control accuracy.
- Two type interface: Optional dark/light background for your choice.
- Tri-color status lights: Red/Yellow/Green indicators for alarm/standby/operation status.
- Customizable Chassis Color: Flexible exterior color options to match lab aesthetics or branding.
Specification - Control Capacity
| Independent Control Tower | |||||||
| Series | BR200-C-Master | BR200-C-Slave | |||||
| Housing Material | Cold rolled steel plate + white powder coating | ||||||
| Dimension [W×D×H] | 240×535×560 | ||||||
| Weight | Approx. 32 Kg | Approx. 23 Kg | |||||
| Display / Operation | 22-inch Elo projected capcacitive touch display | N/A | |||||
| Controller | Siemens S1200 series PLC, Weinview HMI | Distributed I/O | |||||

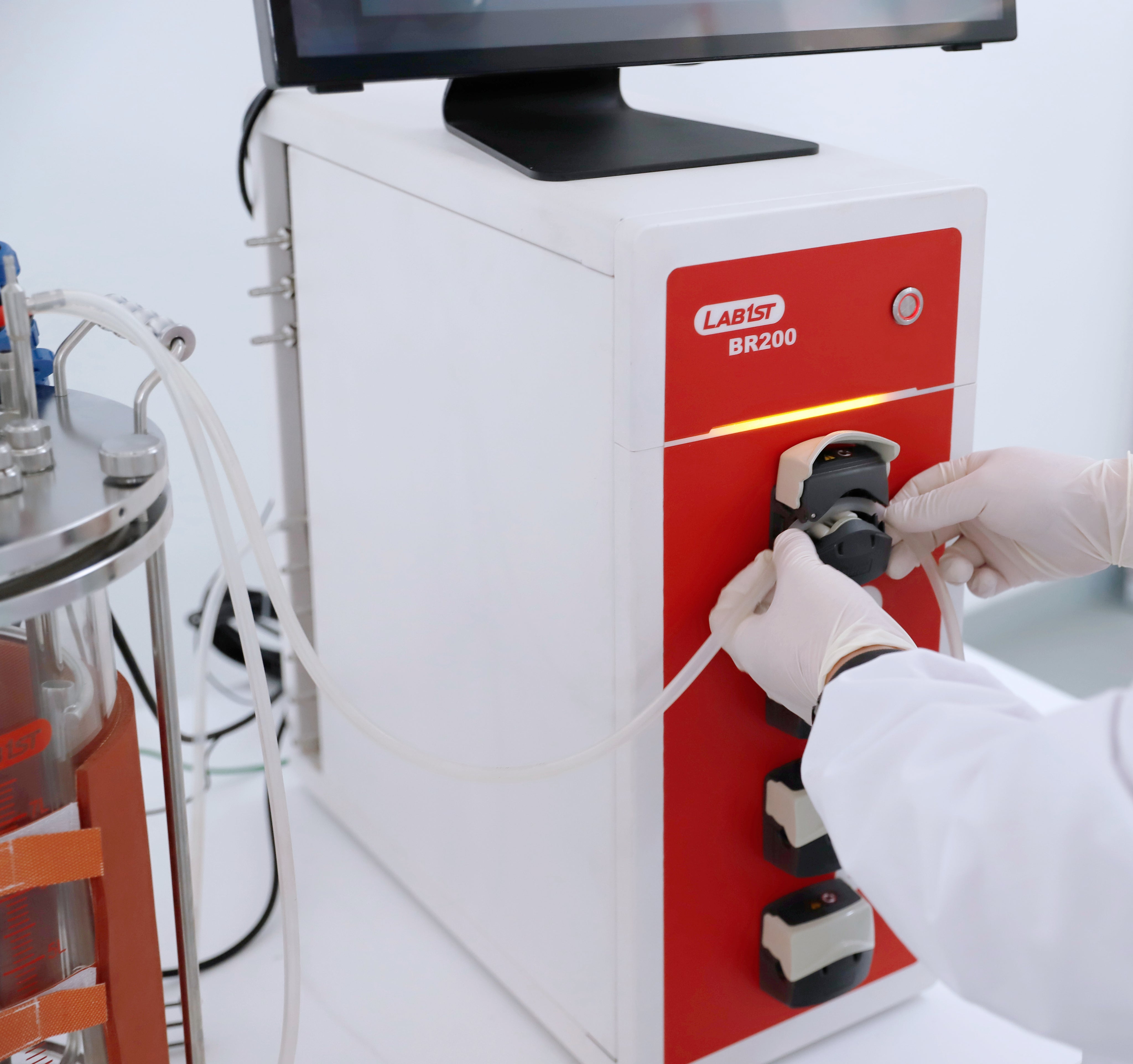

| Integrated Pump | 4 Watson Marlow 114 variable-speed peristaltic pumps | ||||||
| Flow Meter | 4MFCs | ||||||
| Communication | 2×USB, 1×Industrial Ethernet, 1×Internet, 1×HDMI | 2×Industrial Ethernet, 1×RS232 | |||||
| Interface | 1×pH sensor cable, 1×DO sensor cable, 2×stirring motor control wires, 1×temperature sensor interface, 1×foam sensor cable, 1×heating blanket control wire interface, 1×main power interface | ||||||
| Water Interface | 6×barb interface [inlet/outlet for exhaust condenser, cooling finger, chilled water] | ||||||
| Air Interface | 2×barb [Mixing gas to vessel], 3xpneumatic[Gas supply] | ||||||
| Power Supply | 220V(±10%), 50HZ, single phase | ||||||
| Rated Power | Max. 1.5 KW | ||||||
| Agitation Control | |||||||
| Motor | Maintenance-free, low noise servo motor | ||||||
| Speed Range | 5-500rpm | ||||||
| Accuracy | ±0.5% | ||||||
| Rated Power | 1L: 100W, 2-7L: 400W, 10-15L: 750W | ||||||
| Gas Control | |||||||
| Gas Source | Air, O2, CO2 | ||||||
| Control Method | 4×MFCs | ||||||
| Gas Supply | Overlay (for air)+Ring sparger | ||||||
| Flow Range | Overlay O2: up to 2L/min | Sparger Air, O2,CO2: up to 2L/min | ||||||
| Flow Accuracy | 1% | ||||||
| Temperature Control | |||||||
| Control Method | Robust PID algorithm | ||||||
| Heating Method |
Electric blanket heating [additional]
|
||||||
| Cooling Method | Tap water or circulating cooling water [additional chiller] | ||||||
| Sensor | Germany JUMO Pt100 RTD | ||||||
| Measurement Range and Accuracy | 0~150℃, ±0.1℃ | ||||||
| Control Range and Accuracy | 8.0℃ above coolant to 40℃ above ambient (0-65℃ absolute), ±0.2℃ | ||||||
| PH Control | |||||||
| Cooling Method | Robust PID algorithm, Cascade control with peristaltic pump by adding alkali or MFC by adding O2 | ||||||
| Sensor | Hamilton Sterilizable Gel-filled pH electrode | ||||||
| Measurement Range and Accuracy | 2.00~12.00, 0.01 | ||||||
| Control Accuracy | ±0.05 | ||||||
| DO Control | |||||||
| Control Method | Robust PID algorithm, Cascade control with different parameters (agitation, gas flow and peristaltic pump) | ||||||
| Sensor | Hamilton Sterilizable polarographic DO electrode | ||||||
| Measurement Range and Accuracy | 0~150℃, ±0.1℃ | ||||||
| Control Accuracy | ±3% | ||||||
| Foam Control | |||||||
| Control Method | Cascade control with peristaltic pump by adding defoamer, Mechanical defoaming blade | ||||||
Specifications - Vessel

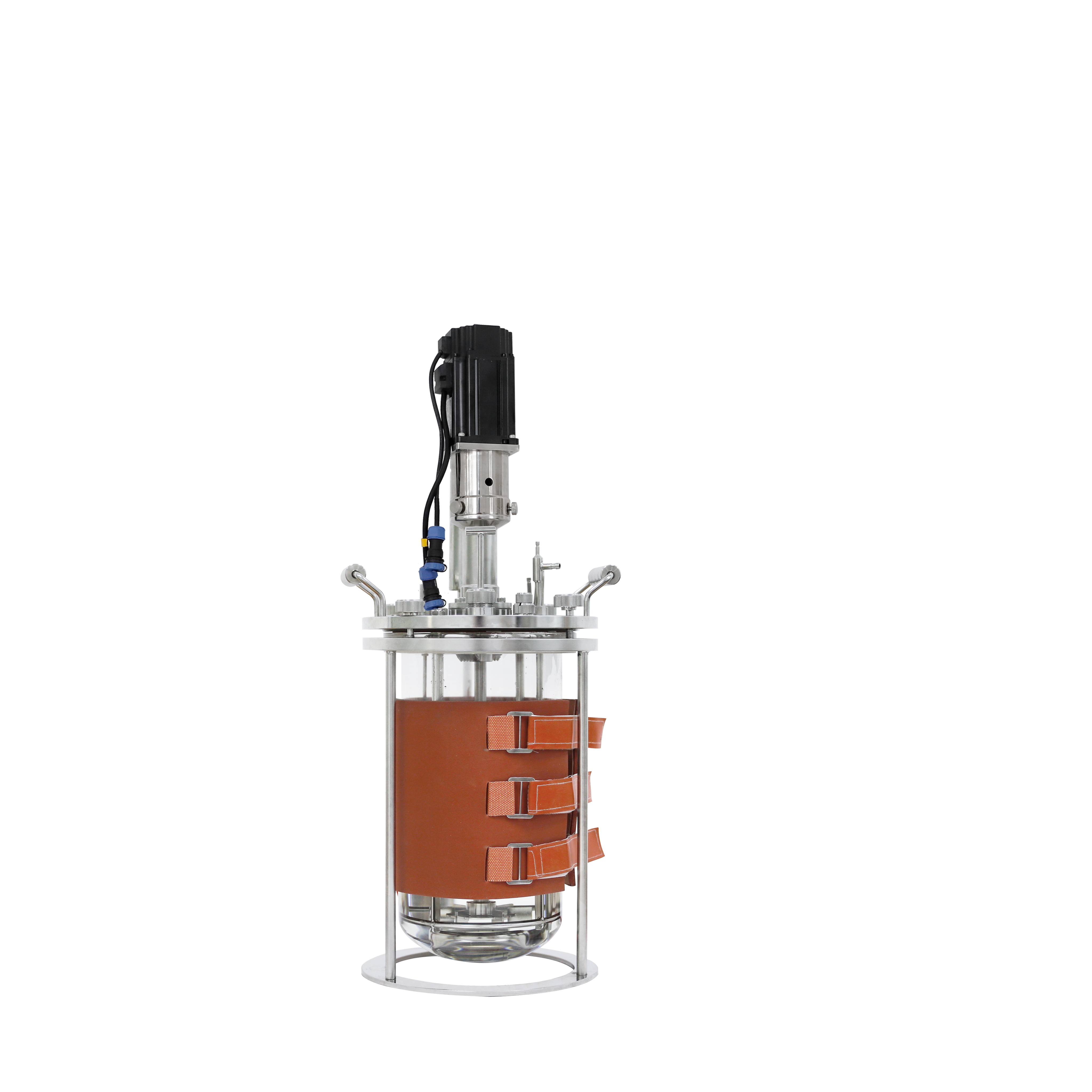

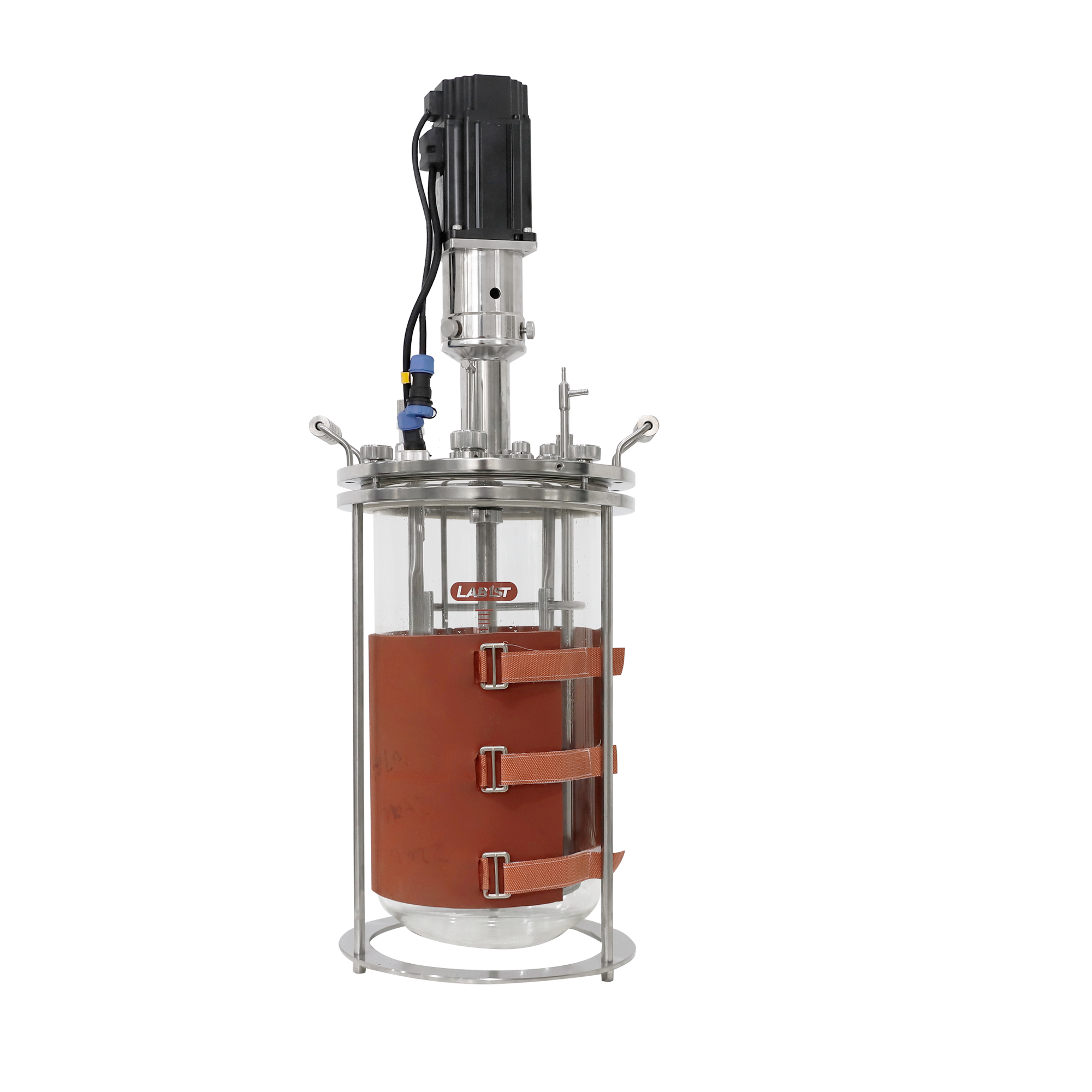

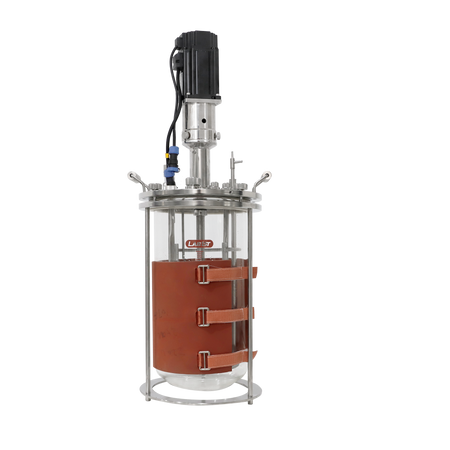

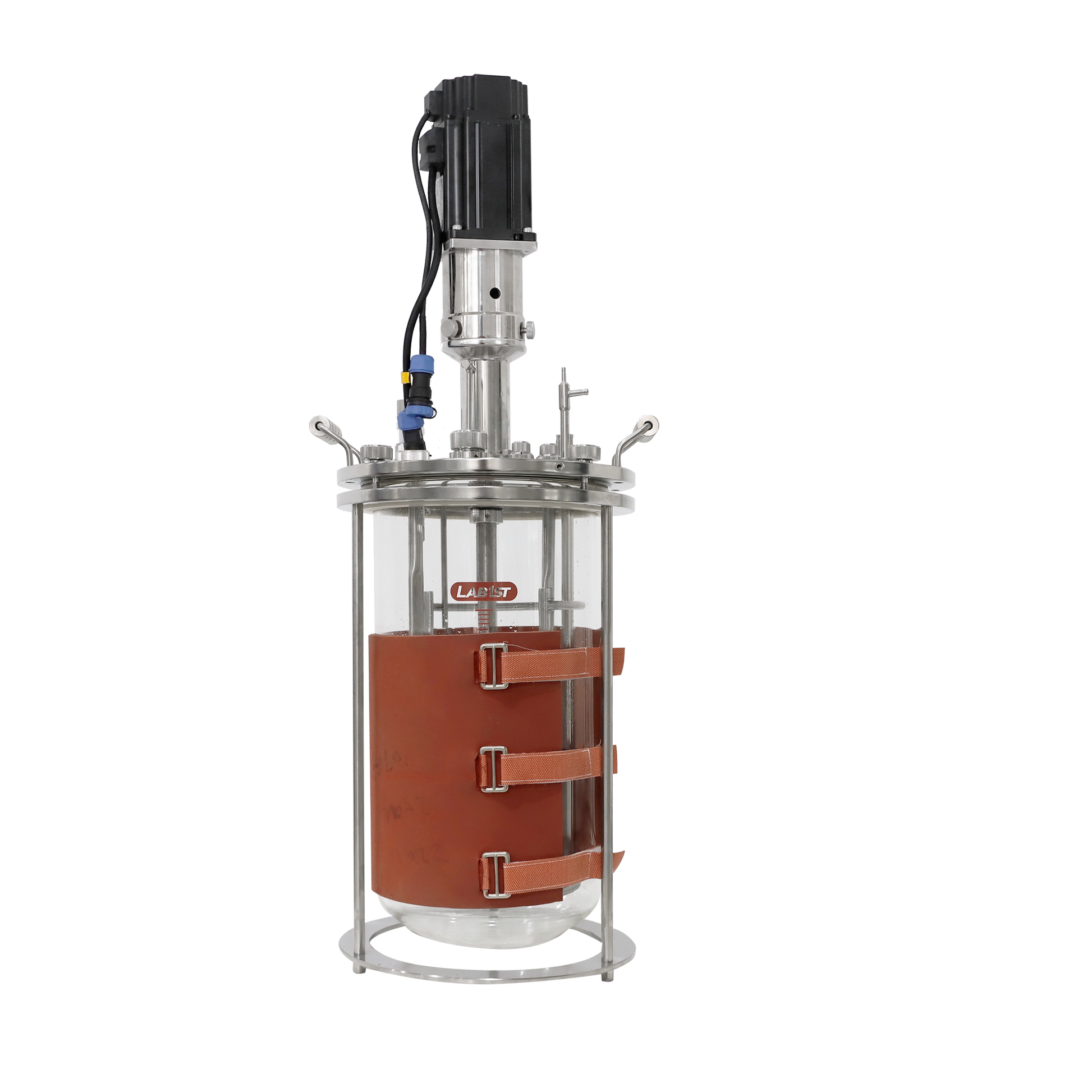

| Glass Vessel |
|||||||
| Type | Single-wall round-bottom cylindrical vessel, available for electric blanket | ||||||
| Total Volume | 1L | 2L | 3L | 5L | 7L | 10L | 15L |
| Max. Working Volume | 0.75L | 1.5L | 2.25L | 3.75L | 5.25L | 7.5L | 11.25L |
| Min. Working Volume | 0.25L | 0.5L | 0.75L | 1.25L | 1.75L | 2.5L | 3.75L |
| Material [Watted Part] | Glass vessel material: Boro 3.3 high borosilicate glass, Vessel cover and inner parts: SUS 316L, Seal: EPDM and Silicon | ||||||
| Surface Treatment | Inner surface: electrolytic polishing, Ra＜0.4um, Outlet surface: Ra＜0.6um | ||||||
| Pressure Design | Working pressure: 0~1 bar@150℃ Autoclavable | ||||||
| Height to Diameter Ratio [H:D] | Approx. 2:1 | ||||||
More information, pls click here to download our brochure.
We also provide customized services, please contact us(eshop@lab1st.com) if you have any needs.
