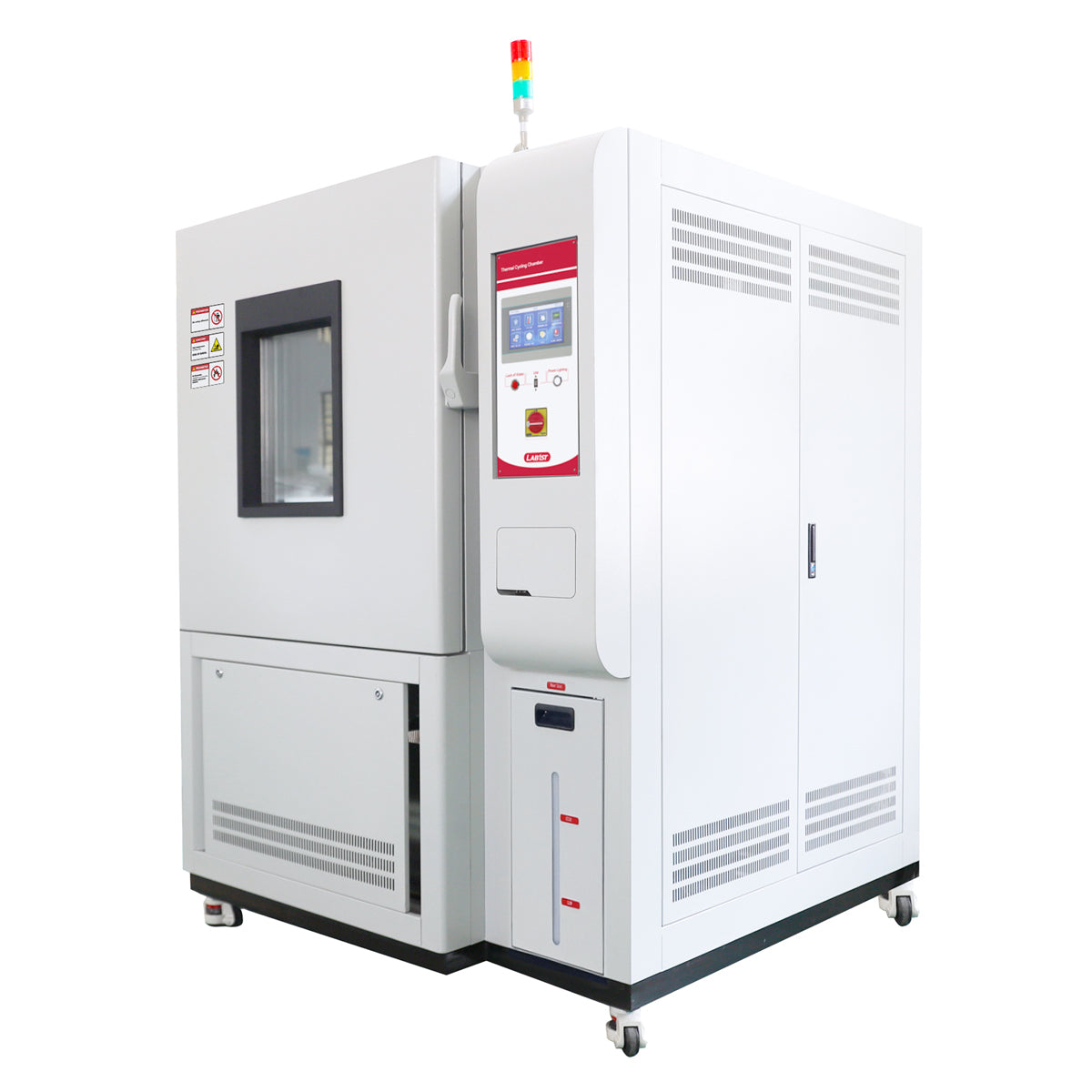

TCH*V-R Series Temperature and Humidity Chamber, known for its industry-leading speed, it offers rapid heating and cooling rates exceeding twice those of conventional chambers. With three adjustable levels (5°C/min, 10°C/min, and 15°C/min) for rapid temperature changes, it operates within temperature range from -40°C to 120°C. Ideal for electronics, automotive, pharmaceuticals, and materials science applications, these chambers ensure efficient and precise environmental simulation.
7.9 Cu ft Environmental Temperature and Humidity Test Chamber with Rapid Temperature Change
Regular price
$25,168.00
Free Sea Shipping: Door-to-Door (US) / To Port (Other Countries, contact us for door delivery)
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Warranty: Rest easy with our 1-year warranty on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrodes, and 1 year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.
Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
- Description
- Product Downloads
- Shipping Information
Features:
Specifications:
| Model: | TCH225V-R5 | TCH225V-R10 | TCH225V-R15 |
| Workspace Volume: | 225L [7.9 cu ft] | ||
| Temperature Range: | -70℃~150℃ [-94°F~302°F], customizable | ||
| Rapid Temperature Cycling Range: | -40℃~120℃ [-40°F~ 248°F] | ||
| Temperature Fluctuation: | ±0.5 ℃ | ||
| Temperature Uniformity: | ±1 ℃ | ||
| Heating Rate: | Standard: 3.0-5.0 ℃/min | ||
| Rapid Temp. Cycling Rate: | 5 ℃/min | 10 ℃/min | 15 ℃/min |
| Humidity Range: | 20%~98% RH | ||
| Humidity Fluctuation: | ±3% | ||
| Humidity Uniformity: | ±2~±3% RH | ||
| Chamber Material: | SUS304 | ||
| Shelf: | 2 pcs [or more], SUS304 wired plates with support | ||
| Max. Shelf Load: | Shelf: 10 kg [22 lbs], Chamber: 50 kg [112lbs] | ||
| Cable Port: | 50 mm [2 inch] | ||
| Control Panel: | 7 inch industrial color touch screen, temperature and humidity program controller | ||
| Communication: | USB, RS485 and Ethernet | ||
| Compressor Brand: | Germany Secop, French Taikang, Germany Bitzer, etc. | ||
| Humidifier: | Heavy duty stainless steel 304 electrical heating humidifier | ||
| Exterior Dimensions [WxDxH]]: | 1200*1170*1950 mm [47.2∗46.1∗76.8 in] | 1260*1510*2080 mm [49.6∗59.4∗81.9 in] | 1260*1510*2080 mm [49.6∗59.4∗81.9 in] |
| Installed Power: | 12 kW | 26 kW | 33 kW |
| Cooling Mode: | Air-cooled | Air-cooled / water-cooled | Water-cooled |
| Electrical Supply: | 208~240V, 3P, 60Hz or 380~400V, 3P, 50Hz | ||
| Gross Weight: | 590 kg | 12994 lbs | 680 kg | 1496 lbs | 800 kg | 1763 lbs |
You can download the following files:
Shipping Information
All the Standard Shipping packages will be delivered by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping — please contact us at eshop@lab1st.com or chat with us online for real-time shipping cost. Please note that we are closed on weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you of the estimated delivery time according to different products. All orders will be processed within 2 days (handling time).
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
