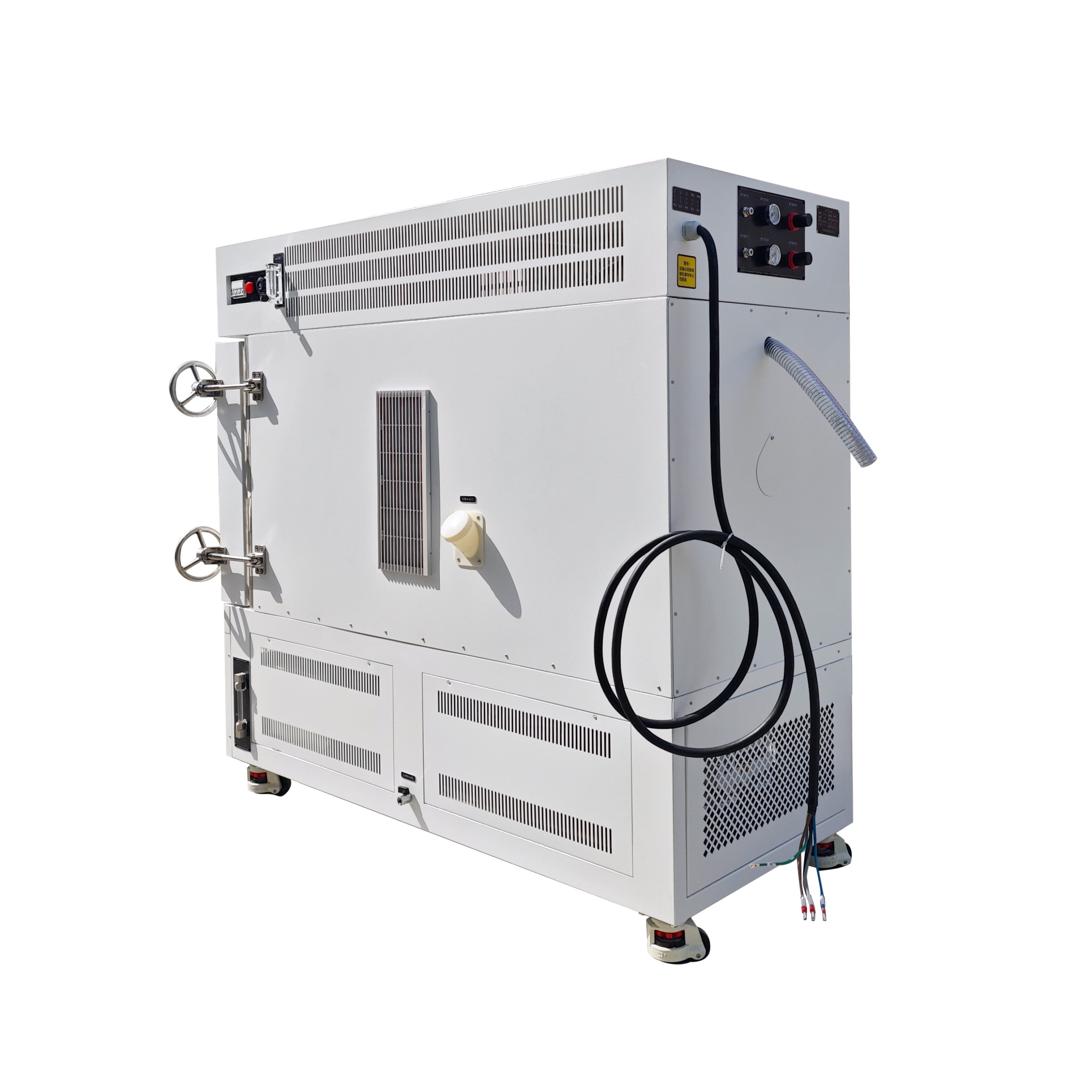

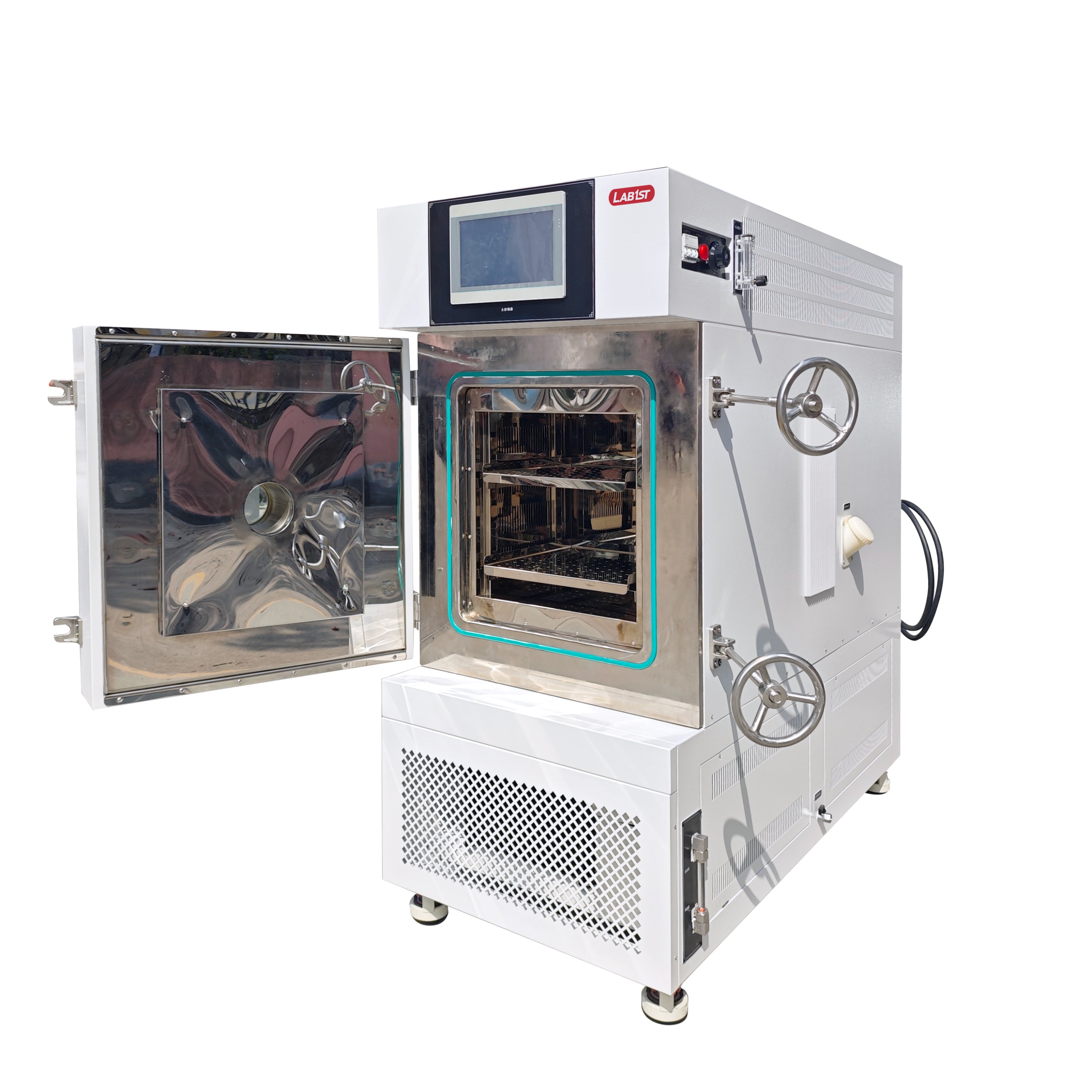

64L Custom Vacuum Drying Oven
Got questions?
Feel free to get in touch
Couldn't load pickup availability
This system has an internal dimension of 400×400×400mm with two partitions and a temperature control range from RT+50°C to 400°C, powered by 6KW external heating. It features a touch screen display with a USB interface for easy operation. Pressure relief is achieved by introducing air or nitrogen. The recommended vacuum system includes a pump group (first-stage two-stage oil pump and second-stage Roots pump), with a design vacuum degree of 0.1Pa.
For more customized cases, please click here to see details. Or you could contact us (eshop.lab1st.com) for more information.
Features:
- Internal Dimension [W×D×H]: 400×400×400mm, 2 partitions
- Temperature control range: RT+50～400℃
- Heating method: external heating, heating power 6KW
- Touch screen display, with USB interface
- Pressure relief method: air or nitrogen enters pressure relief
- Vacuum system recommends to equip: pump group (first-stage two-stage oil pump, second-stage Roots pump), design vacuum degree: 0.1Pa
Customized Contents:
| Model | DZF-64F |
| Internal Dimension | 400 × 400 × 400 mm [W×D×H] |
| External Dimension | 760 × 1620 × 1520 mm [W×D×H] |

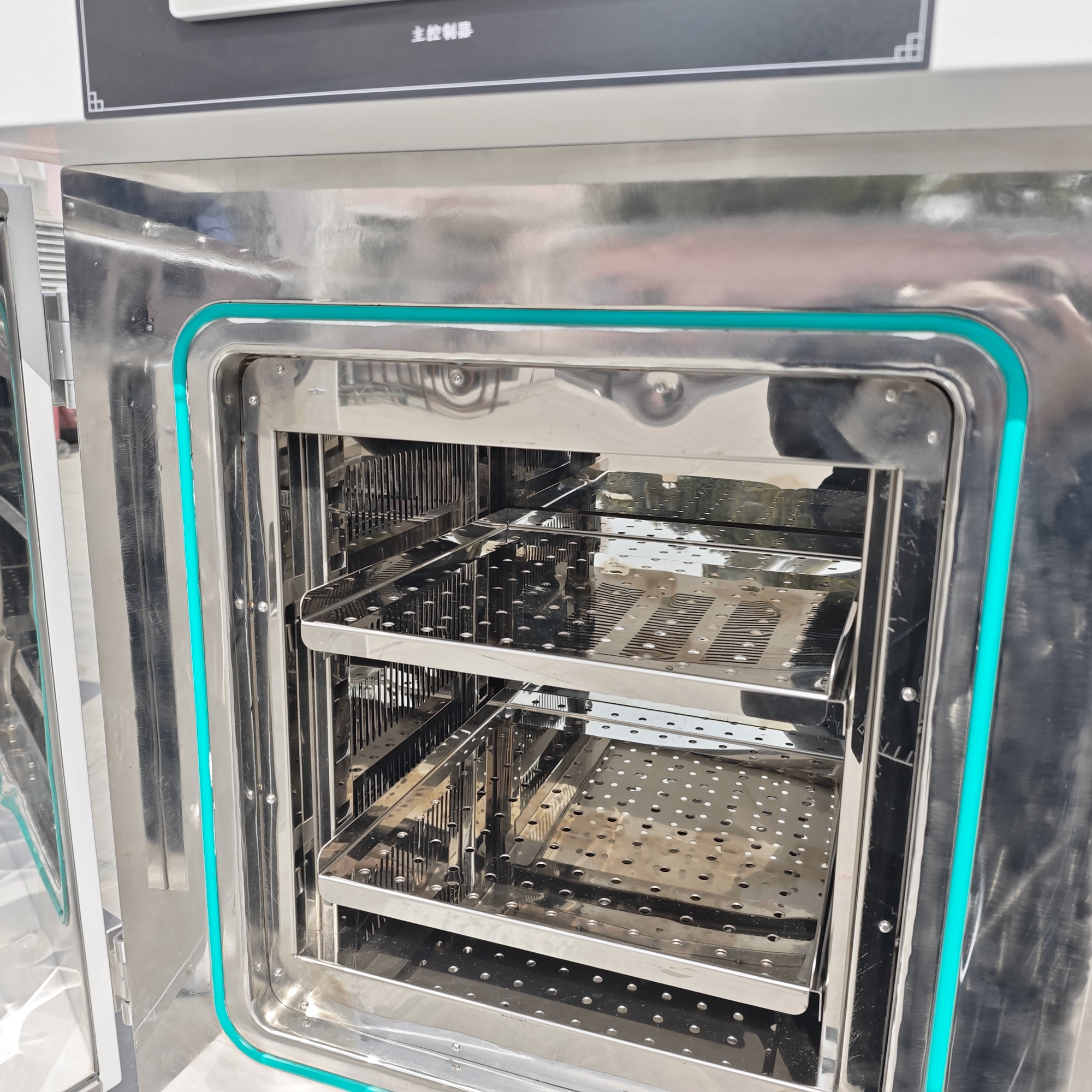

| Shelf | 2 Pcs |
| Shelf Load Capacity | 10 kg per shelf |
| Temperature Range | RT+50 ~ 400℃ |
| Heating Method | External heating |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1℃ |
| Vacuum Display | Digital Touchscreen |
| Designed Vacuum Degree | 0.1 Pa |
| Power Supply Voltage | AC 380V/50Hz, three-phase, five-wire system |
| Heating Power | 6KW |

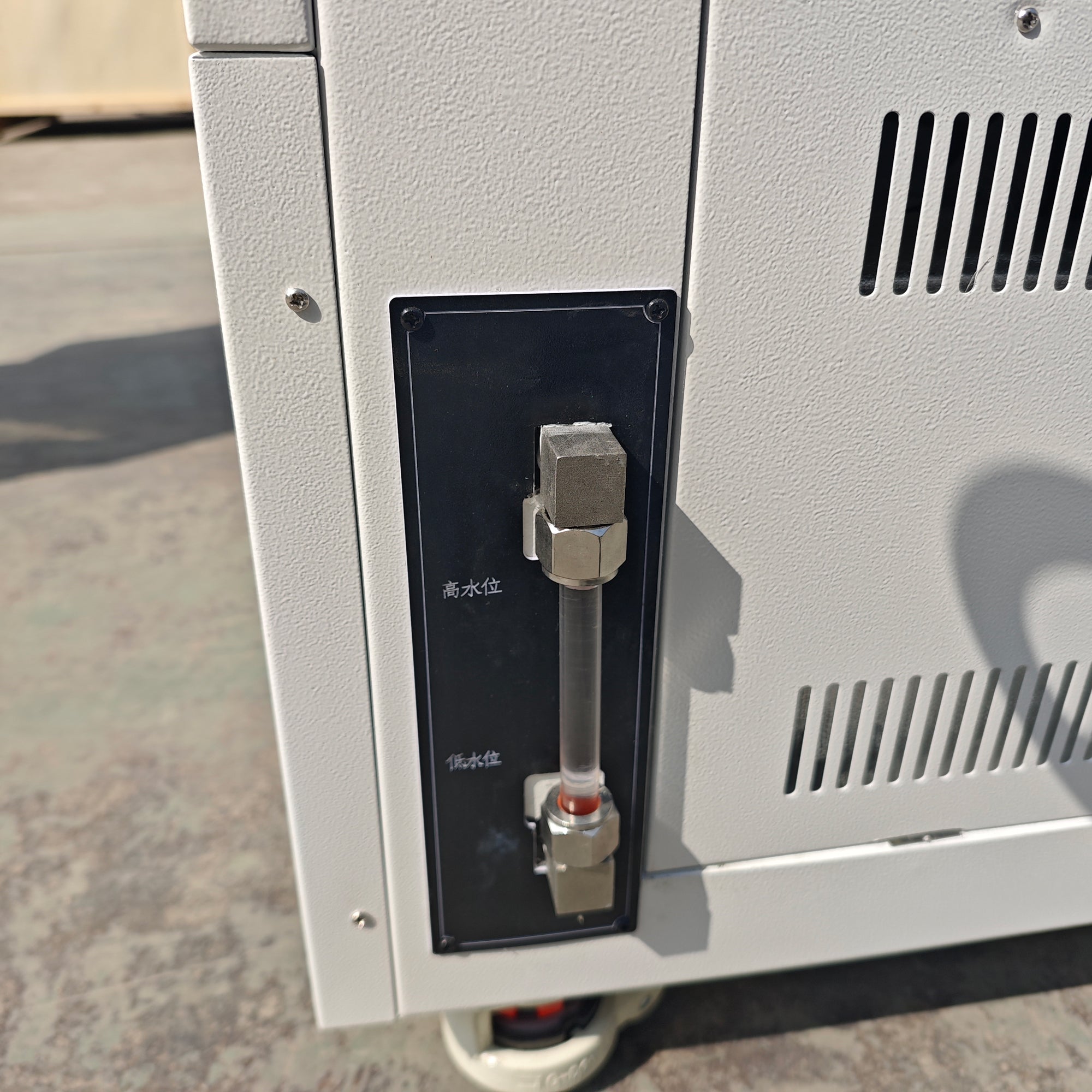

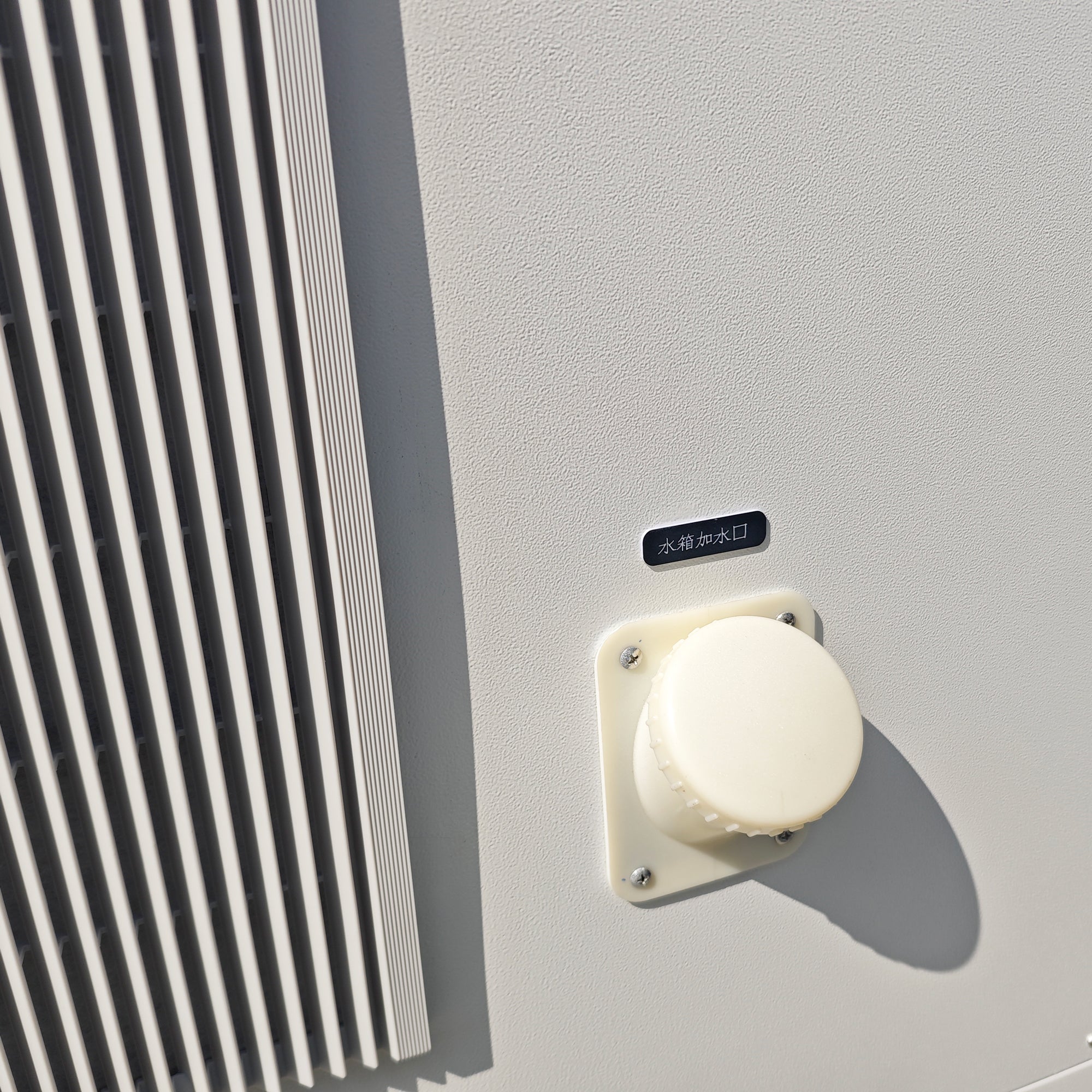

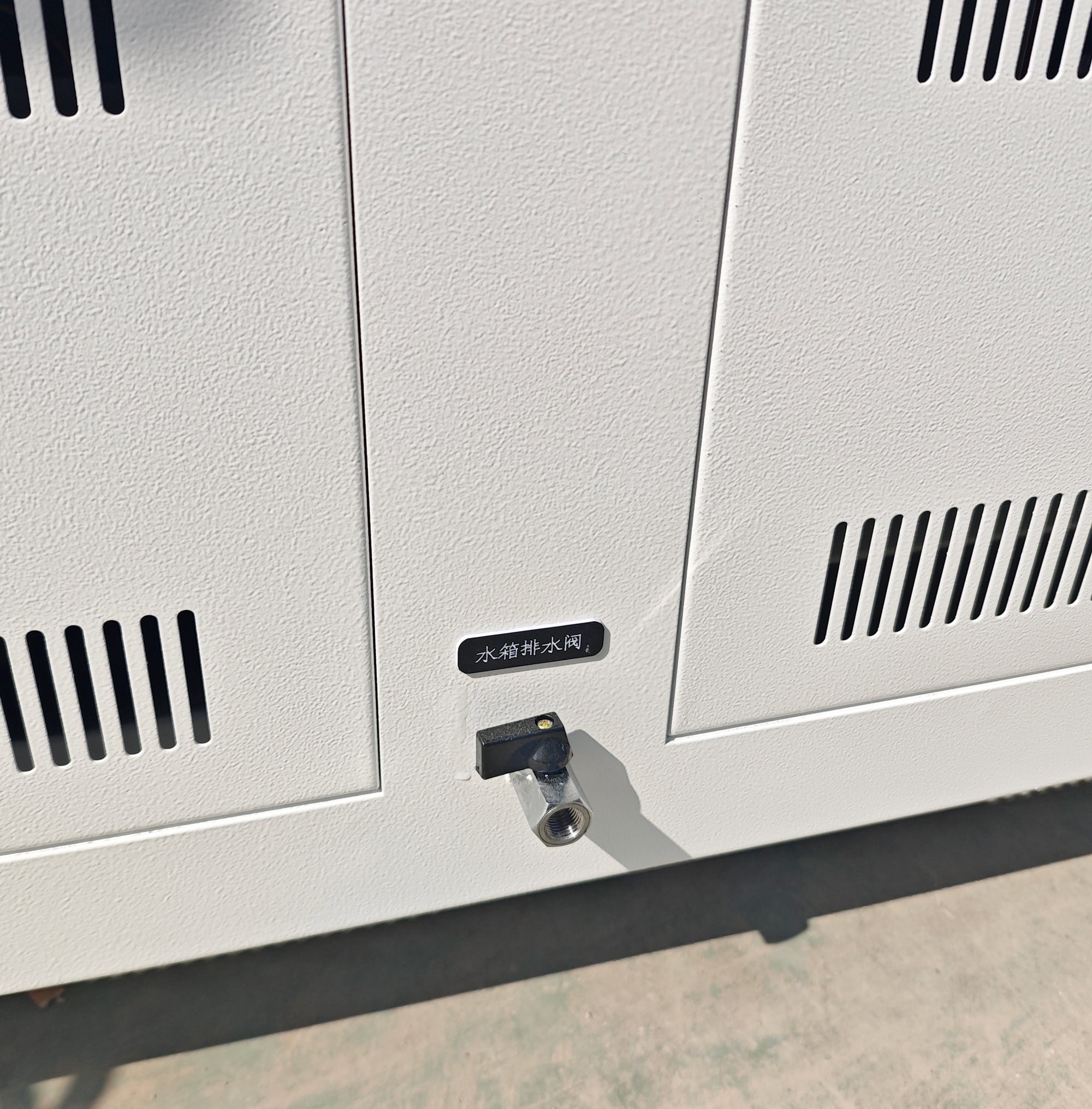

| Equipment Structure | Vertical structure; upper section for control system, middle section for operation chamber, lower section for vacuum and water-cooling systems |

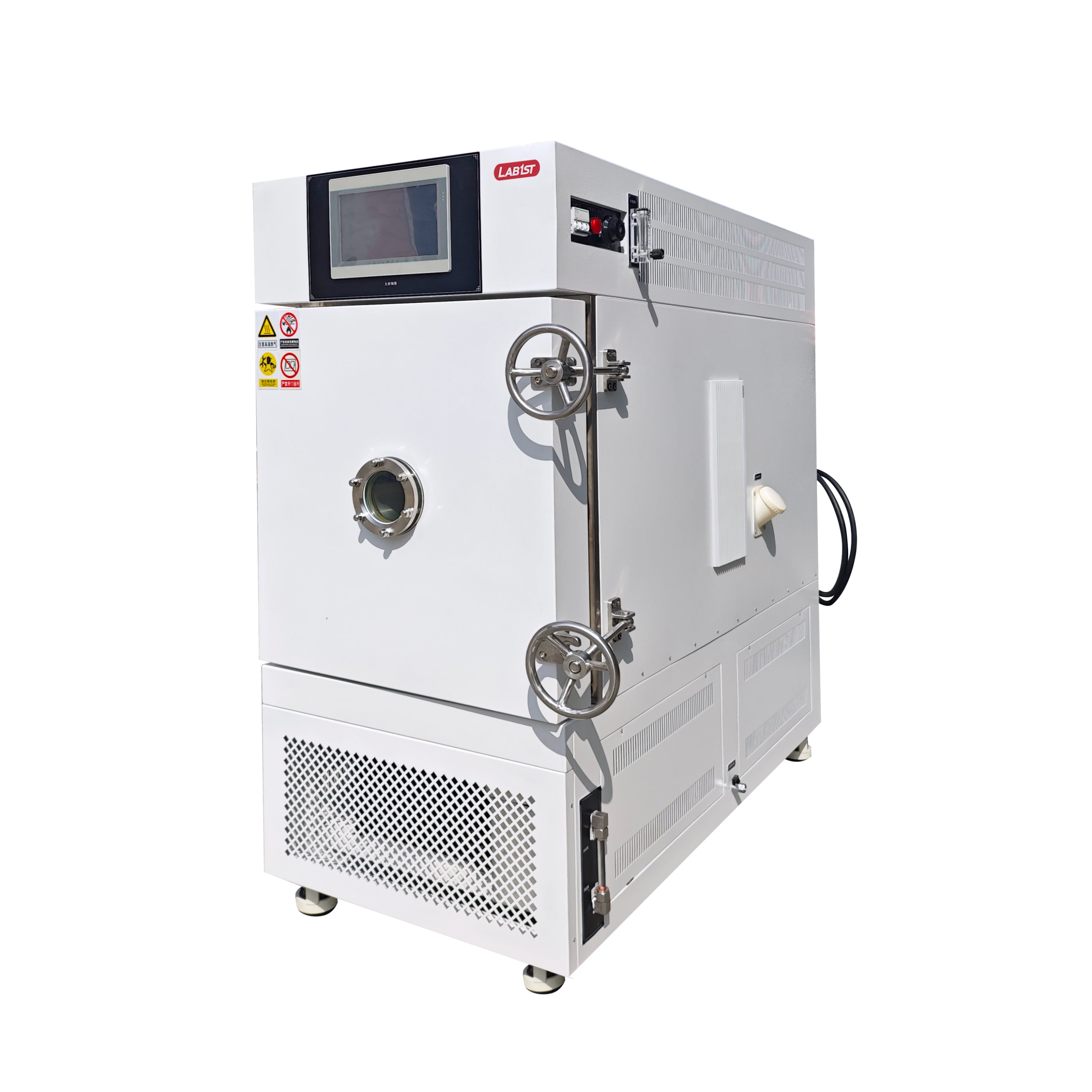

| Door Structure | Single door, left-hinged, with a circular glass viewing window |
| Chamber Material | SUS304 stainless steel plate |
| Exterior Material | 1.5 mm thick cold-rolled steel plate, surface treated with electrostatic powder coating, RAL 9003 white color |
| Main Controller | 10-inch color touchscreen; temperature and vacuum level displayed on a screen |
| Vacuum System | Pump set (primary two-stage oil pump + secondary Roots pump) |

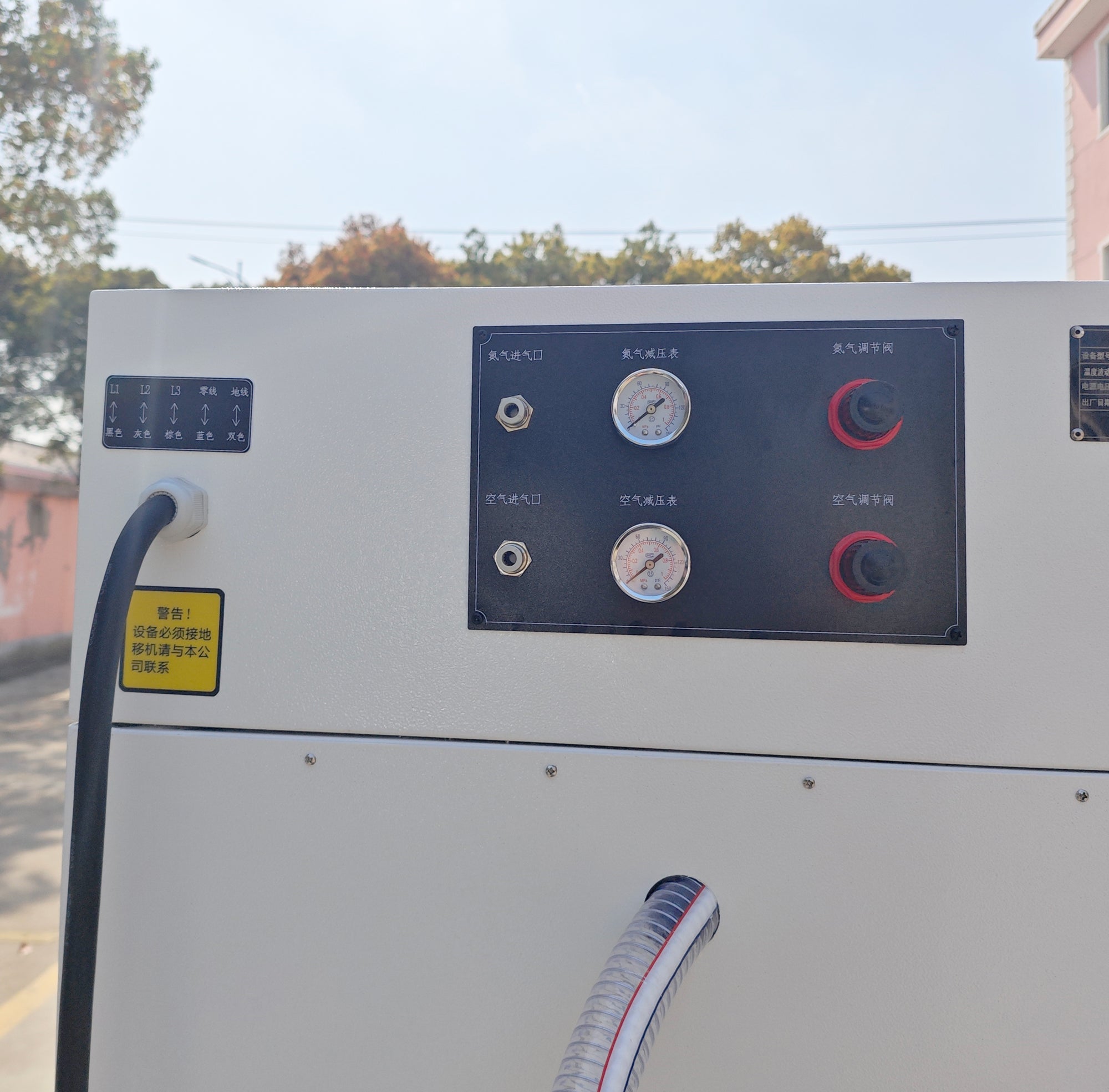

| Pressure Relief Method | Air or nitrogen intake; direct operation via touchscreen |

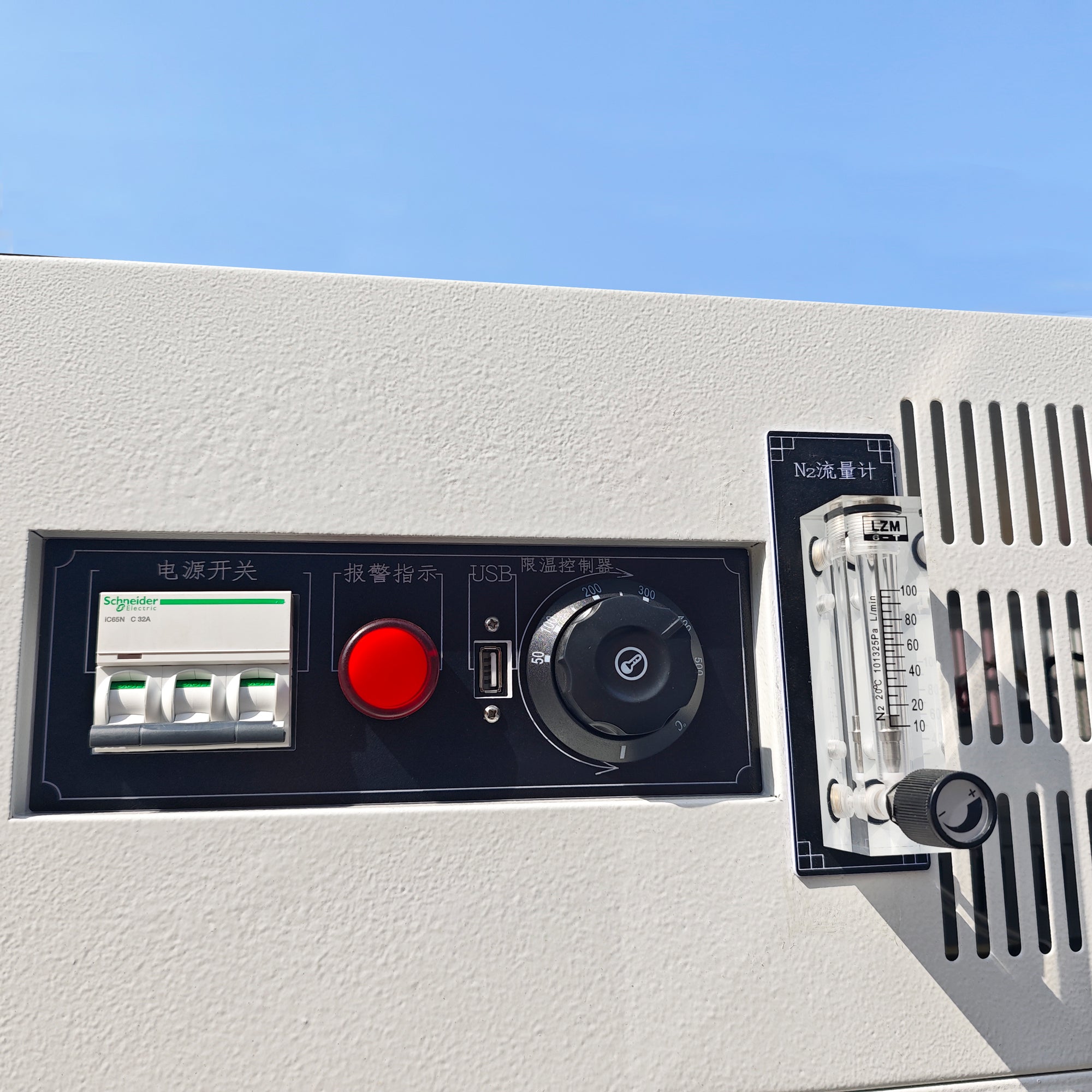

| Communication | Equipped with USB interface for data export; supports connection to USB communication interface and computer for real-time data display, storage and playback |
| Insulation Layer | Filled with high-temperature-resistant and fireproof aluminum silicate fiber, 120 mm thick |
| Door Lock | Special pressure-tight latch door lock |
| Casters | Heavy-duty universal casters (Fuma type), adjustable for leveling |
