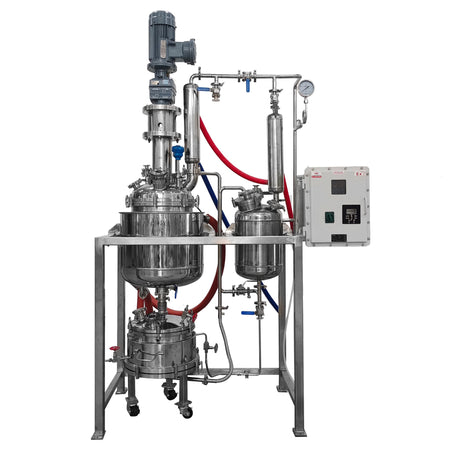

Jacketed Stainless Steel Crystallization Reactor with Vaccum Filter
Got questions?
Feel free to get in touch
Couldn't load pickup availability

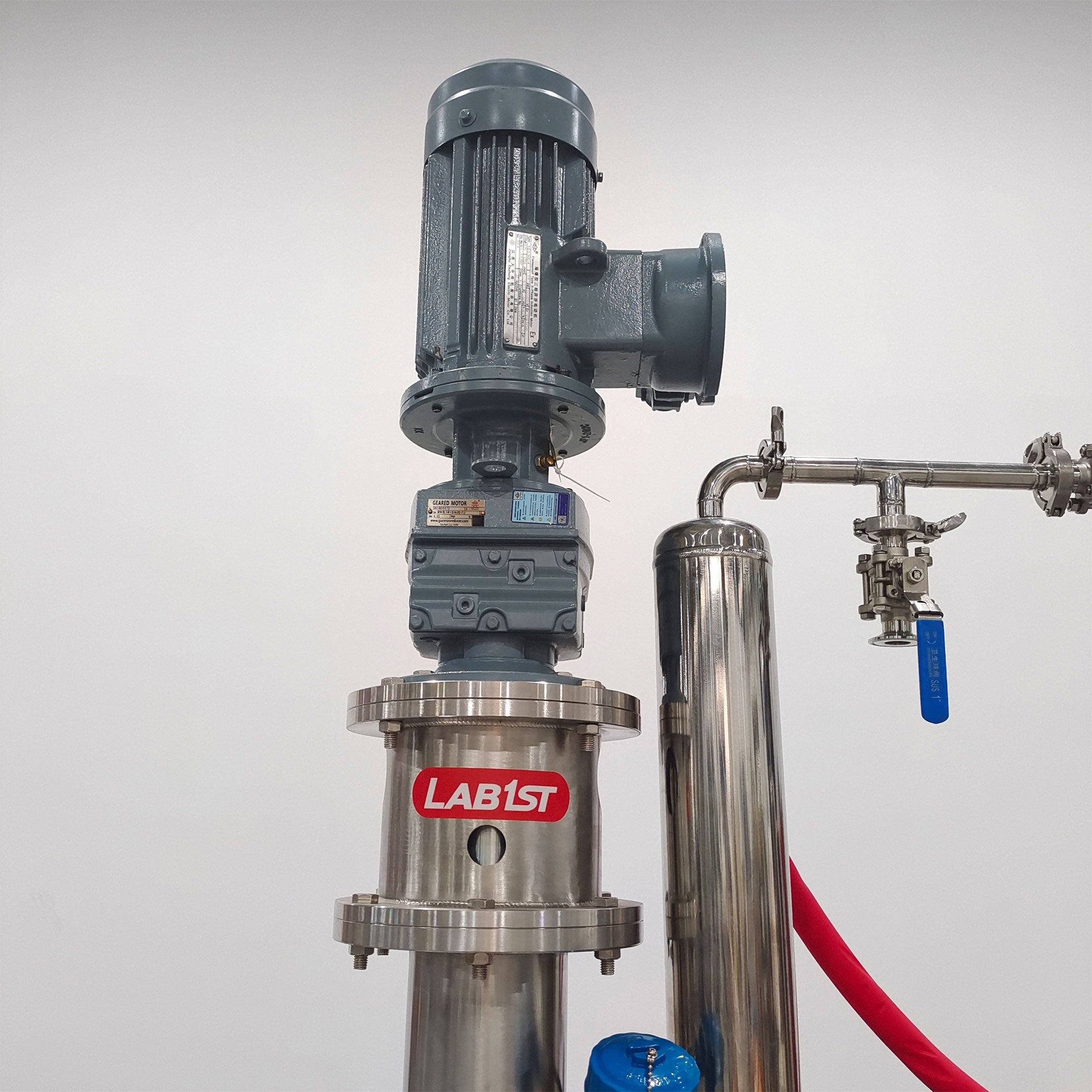

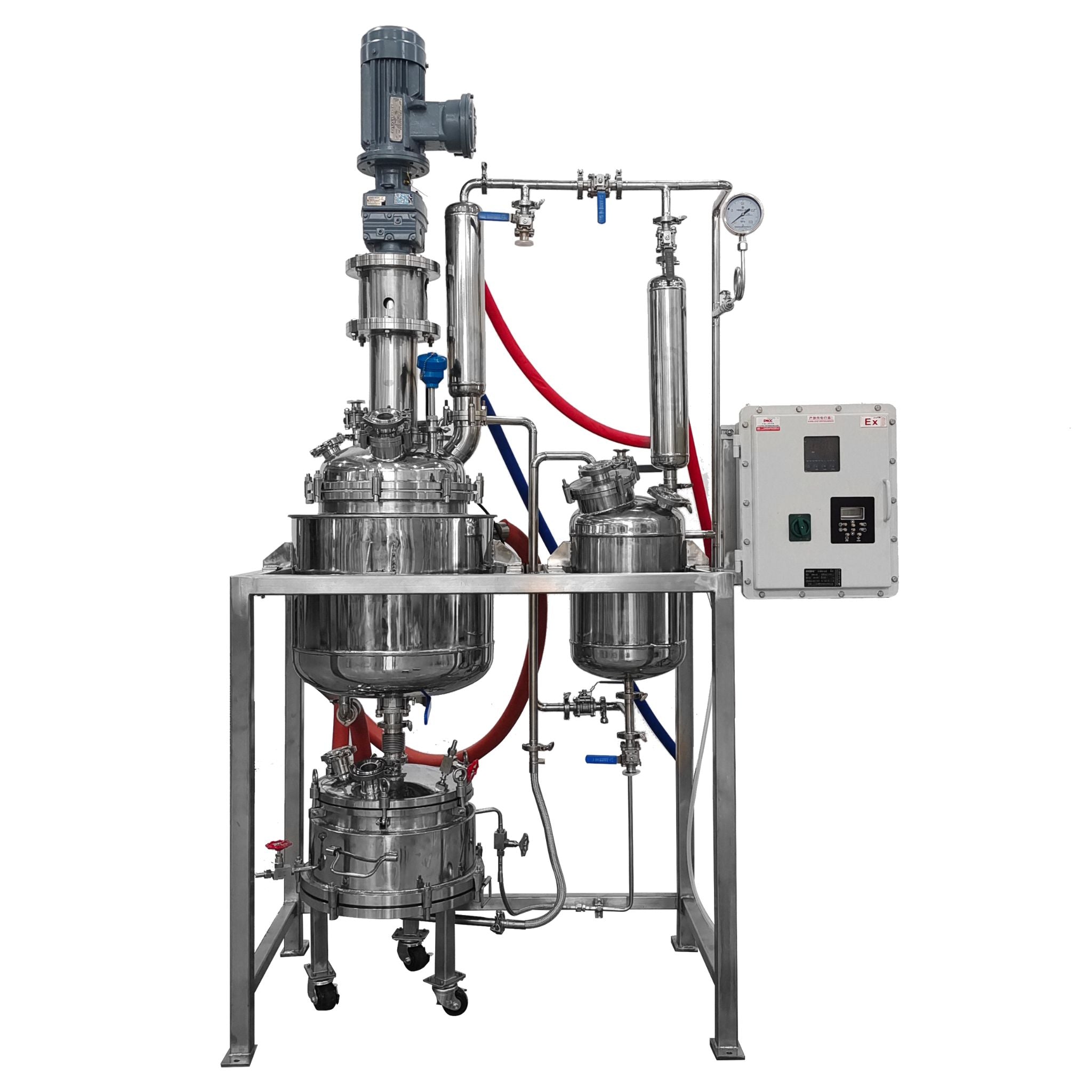

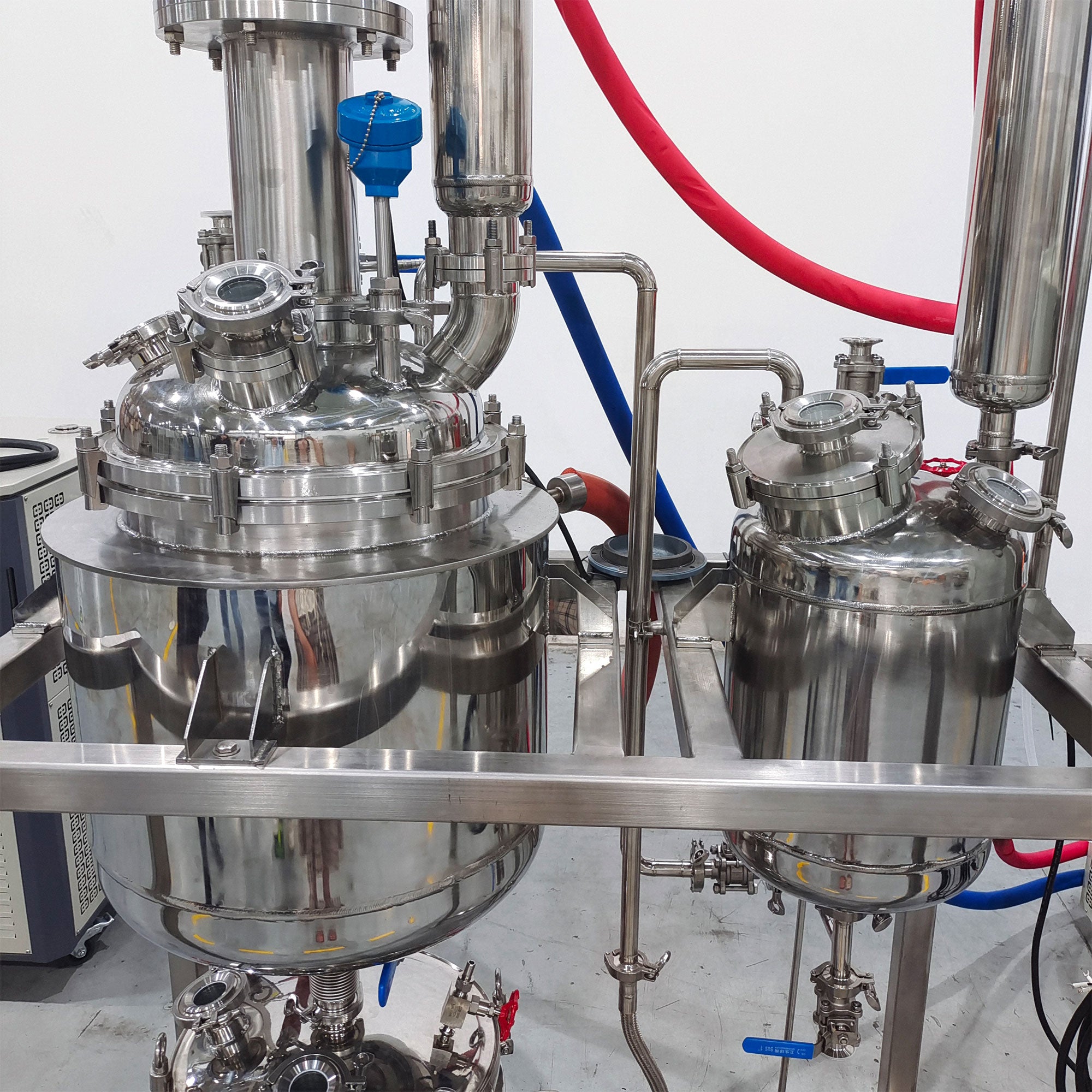

Lab1st JSR-FK (stainless steel type) jacketed filter reactors are designed as crystallization device with controlled temperature and pressure environment. The system not only includes filter reactors who can make reaction and filtration in the same vessel to reduce the material losses, but also can recover the solvents with the help of condenser and collection tank in the vacuum environment. Each crystallization reactor consists of a filter plate, corrosion resistant jacketed reaction vessel, PTFE coated variable speed stirrer system, and other accessories like electric control cabinet.
The standard JGR-FK reactors come with vessels from 5L to 300L. It can be fully customizable to fulfill various needs, like high torque high speed agitation, baffled reaction vessel, programmable controller, explosion proof or air driven motor, ect
We could also provide the other liters and kinds of the Glass Reactors and Stainless Steel Reactors for different needs, pls click here to learn more about it.
Features:
- Integrated design with crystallization, filtration and mother liquid collection functions for easy operation
- Explosion-proof or pneumatic options are available
- Large condenser to protect the solvent and make recovery

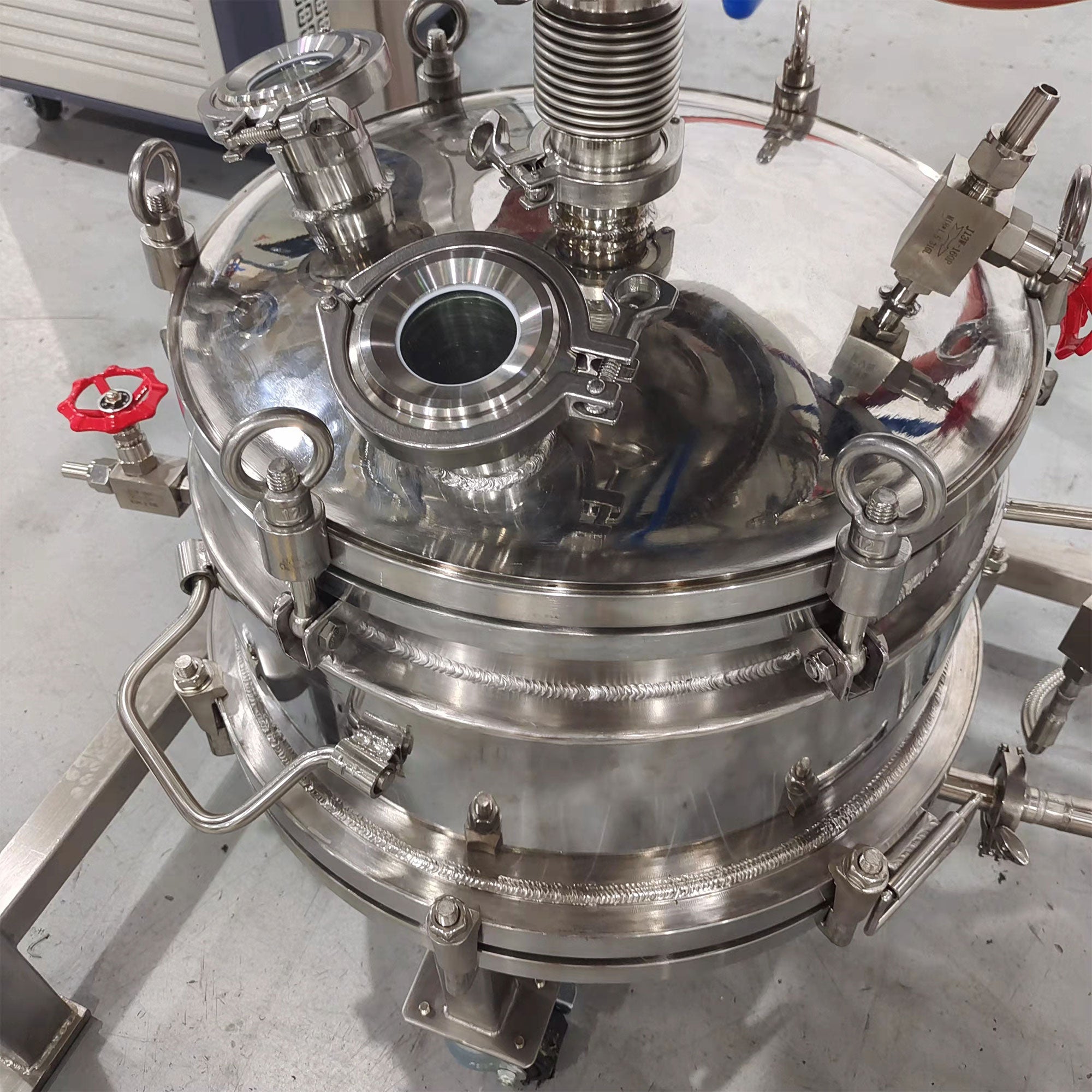

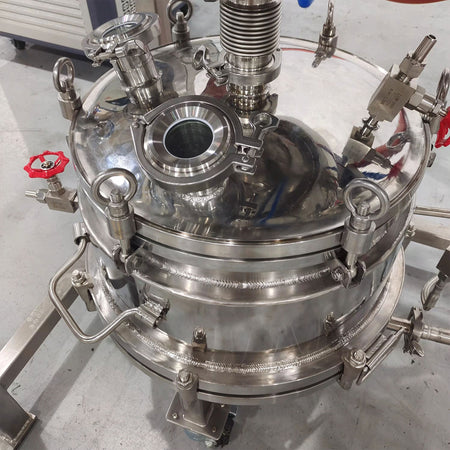

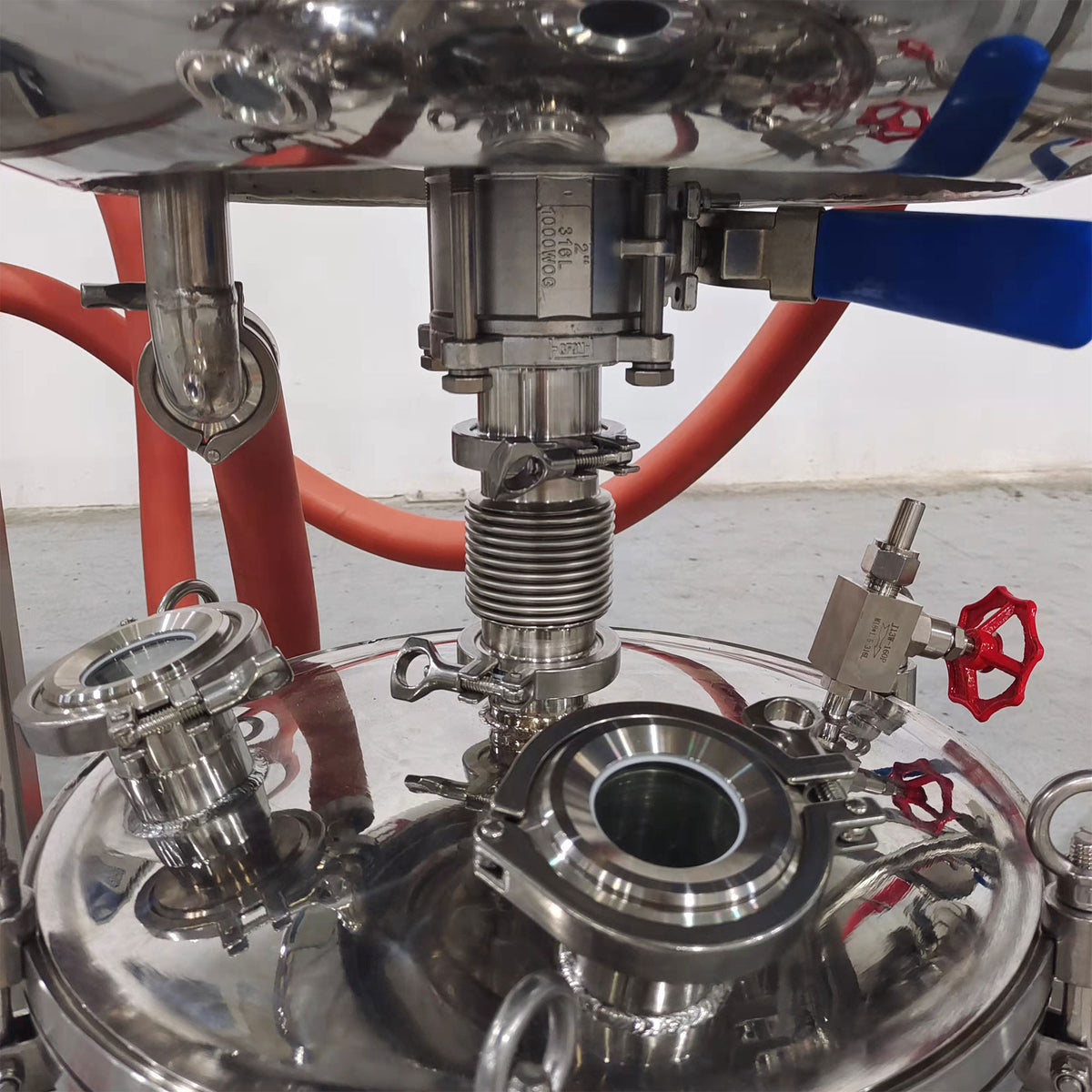

- Movable filter plate, easy to operate/discharge Magnetic sealing guarantees the inner vessel’s vacuum
Specifications:
| Model | JSR-50FK | JSR-100FK | JSR-200FK | JSR-300FK | JSR-500FK | |
| TECHNICAL DATA | ||||||
| Temperature Range | -60°C~200°C | |||||
| Heating Method | Jacket Circulation Heating | |||||
| Material | SUS30408 | |||||
| Vacuum Sealing | Magnetic Seal | |||||
| Agitation Type | Single Layer Paddle Agitation | |||||
| Agitation Speed [rpm] | 80~350 | |||||
| ELECTRICAL REQUIREMENT | ||||||
| Voltage [V] | 220 | |||||
| Phase [P] | 3 | |||||
| Frequency [Hz] | 50 | 60 | |||||
| Total Power [W] | 1.5 | |||||

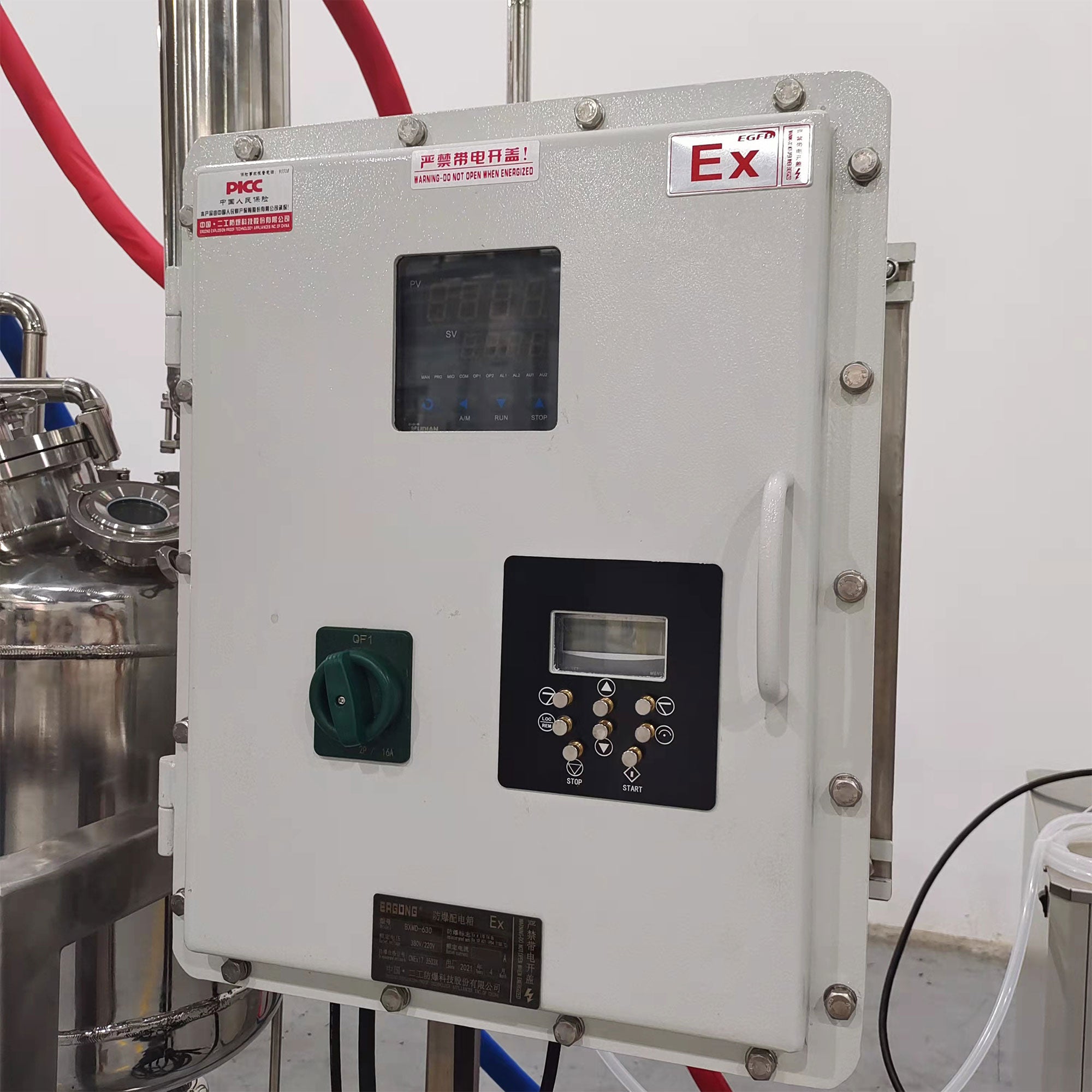

| Electric Cabinet | Explosion-proof Electric Cabinet | |||||
| VESSEL | ||||||
| Vessel Volume [L] | 50 | 100 | 200 | 300 | 500 | |
| Inner Vessel Pressure [Mpa] | 0.1~0.3 | 0.1~0.1 | ||||
| Jacket Volume [L] | 20 | 30 | 45 | 60 | 60 | |
| Jacket Pressure [Mpa] | 0.1~0.3 | |||||
| Jacket Interface | DN25 | |||||
| Insulation Layer Thickness [mm] | 70 | |||||
| REACTOR LID | ||||||

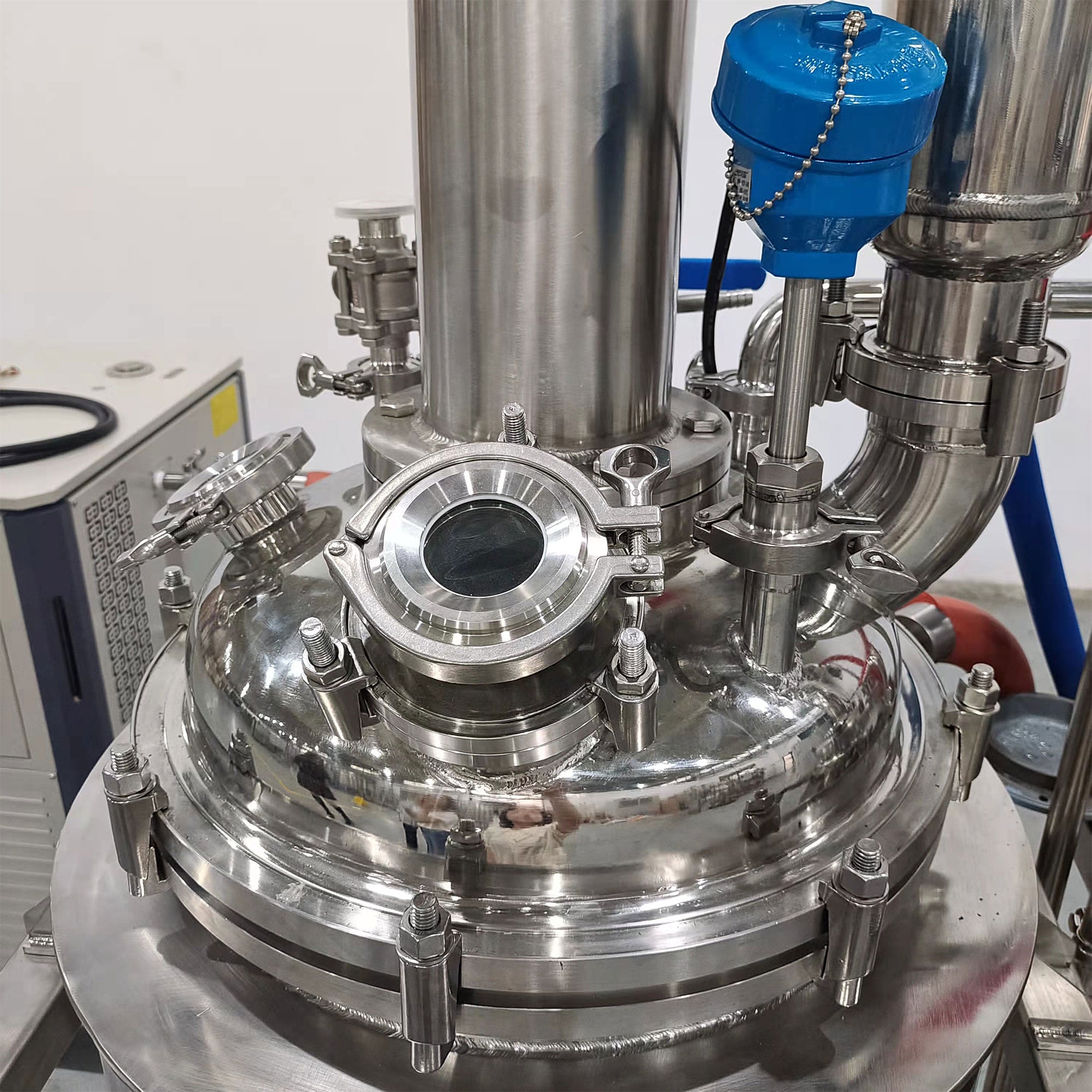

| Port [Thermometer] | OD50.5 [ISO2852] | |||||
| Port [Liquid Inlet] | DN15 [1/2"TC, OD50.5] | DN20 [3/4"TC, OD50.5] | DN20 [3/4"TC, OD50.5] | DN25 [1"TC, OD50.5] | DN25 [1"TC, OD50.5] | |
| Port [Inert Gas] | DN15 [1/2"TC, OD50.5] | DN20 [3/4"TC, OD50.5] | DN20 [3/4"TC, OD50.5] | DN25 [1"TC, OD50.5] | DN25 [1"TC, OD50.5] | |
| Port [Solid Inlet] | DN80 [3"TC, OD106] | DN80 [3"TC, OD106] | DN80 [3"TC, OD106] | DN80 [3"TC, OD106] | DN150 [6"TC, OD106] | |
| Port [Sight Glass 1] | DN50 [2"TC, OD64] | DN50 [2"TC, OD64] | DN50 [2"TC, OD64] | DN50 [2"TC, OD64] | DN65 [2.5"TC, OD64] | |
| Port [Sight Glass 2] | DN50 [2"TC, OD64] | DN50 [2"TC, OD64] | DN50 [2"TC, OD64] | DN50 [2"TC, OD64] | DN65 [2.5"TC, OD64] | |
| Port [Stirring] | DN50 | DN50 | DN50 | DN50 | DN50 | |
More information, pls click here to download the brochure.
We can also provide customized services, if you need please freely to contact us (eshop@lab1st.com).
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
