1‘’ or 2'' Orbit 4° to 60°C 180L Programmable Stackable Incubator Shaker ISS180/180R
Got questions?
Feel free to get in touch
Couldn't load pickup availability
If you want to choose a stackable incuabtor shaker, which could not only maximize your efficiency but also is convenience and safety, our triple CAM structure incubated/refrigerated stackable shaker should be your best choice.
Features:
-
Compact Design, High Capacity:

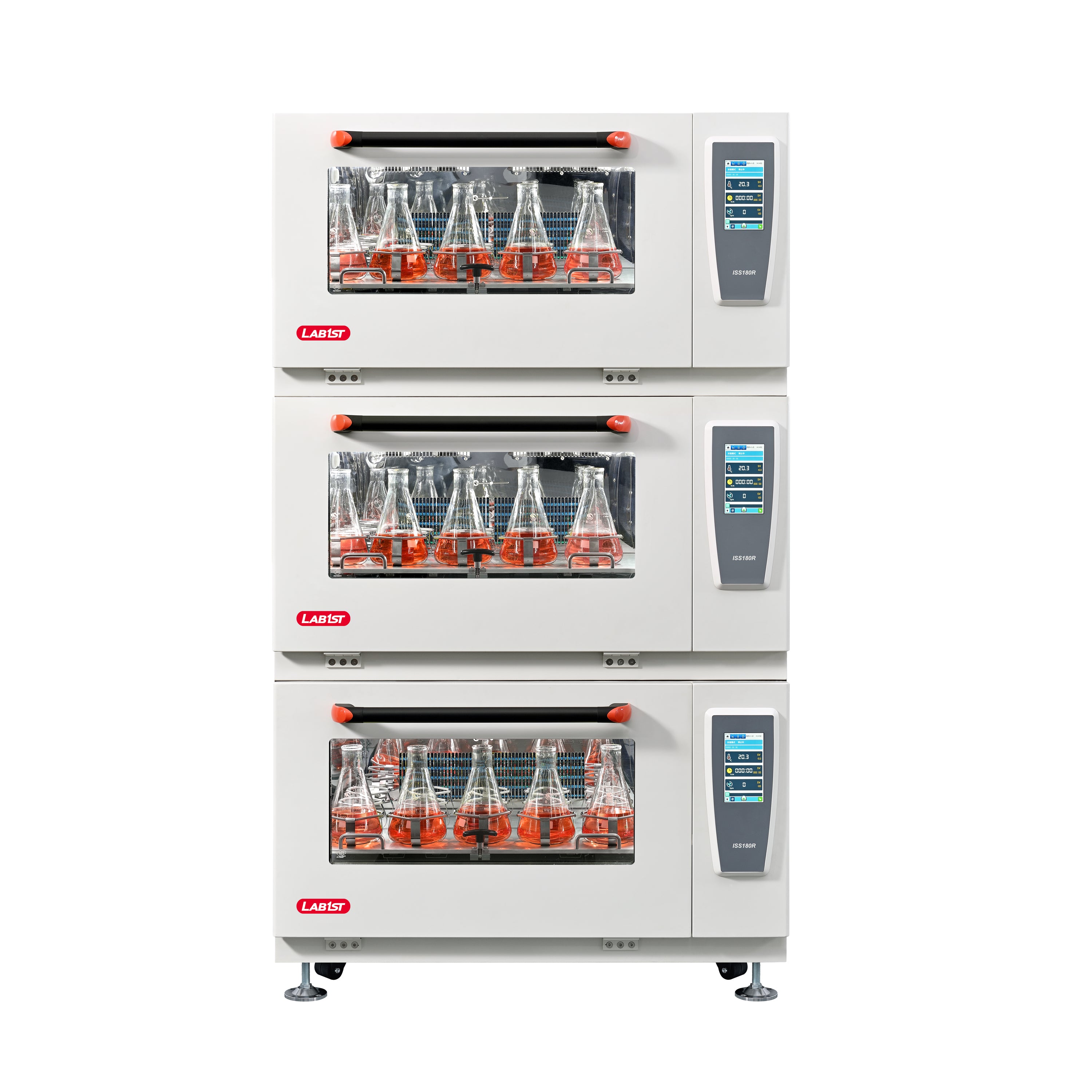

- Stackable up to 3 units.
- Equipped with a stainless steel tray.
- Holds 45 units of 2L erlenmeyer flasks within a compact footprint of 9315cm² / 1440 in² (width: 115cm / 45 in, depth: 81 cm / 32 in).
- Equipped with sequential, timed, or step-by-step execution (up to 30 steps); can store a maximum of 5 programs.
-
Intuitive User Interface:
- The 7 inch color touch LCD display enables easy setup and control of multiple parameters.
- The 7 inch color touch LCD display enables easy setup and control of multiple parameters.
-
Flexible Shaking:
- 2 kinds of shaking options: orbital and linear motions (can be switched freely).
- Selectable 25mm or 50mm shaking diameters, and even 0-50mm stepless adjustment is available as an option.
-
Precise Control:
- Temperatue control: accuracy: ±0.1℃.
- Uniformity: ±0.5℃[at 37℃].
- Speed accuracy: ±1rpm
-
Easy Maintenance:
- Features a mirror-finish stainless steel working chamber with an arch design for easy and fast cleaning.
- The incubator chamber can be cleaned with chemicals or sterilized by UV lighting.
-
Easy Observation of Samples:
- Large viewing window and internal light provide easy observation of samples with no need to open the door.
- Large viewing window and internal light provide easy observation of samples with no need to open the door.
Specifications:
| Parameter Contro;: | LCD color touch screen [P.I.D Microprocessor] |
| Maxium Expansion | 25mm Shaking Throw: Stackable up to 3 units |
| 50mm Shaking Throw: Stackable up to 2 units | |
| Max. Vessel: | 2L |
| Tray Size [cm/in]: | 78×50cm [30.71×19.69''] |
| Tray QTY [pcs]: | 250ml×40, 500ml×28, 1000ml×15, 2000ml×12 |
| Tray Max. Capacity: | 1 |
| External Dimensions [W×H×D]: | 1150×730×810cm [45.27×28.74×31.89''] |
| Weight: | 320KG |
| Material: | Mirror SUS304 |
| Temp. Range: [Ambient Temp. 5-35℃] | Incubated: 5℃ above ambient to 60℃ |
| Refrigerated: 18℃ below ambient[min. 4℃] to 60℃ | |
| Temperature Accuracy: | 0.1℃ |
| Temperature Uniformity: | ≤0.5℃ [37℃] |
| Shaking Throw [Orbital]: | 25mm | 50mm [Option] | 0-50mm [Option] |
| Platform Type: | Slide Out |
| Shaking Frequency [25mm Shaking Throw]: | 20-300rpm[±1rpm] Depending on load and stacking |
| Shaking Frequency [50mm Shaking Throw] | 2 Stacked Unit: 20-300rpm[±1rpm] |
| Door Opening: | Flip up/down door |
| Total Power.: | 1580W | 1819W [with Cooling] |
| Power Source: | AC200-240V, 1 Pharse, 50-60HZ; AC108-120V, 1 Phase, 60HZ [Optional] |
| Package Dimension [W×D×H]: | 1270×920×980mm [50.00×36.22×38.58''] |
| Package Weight: | 383KG |
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
