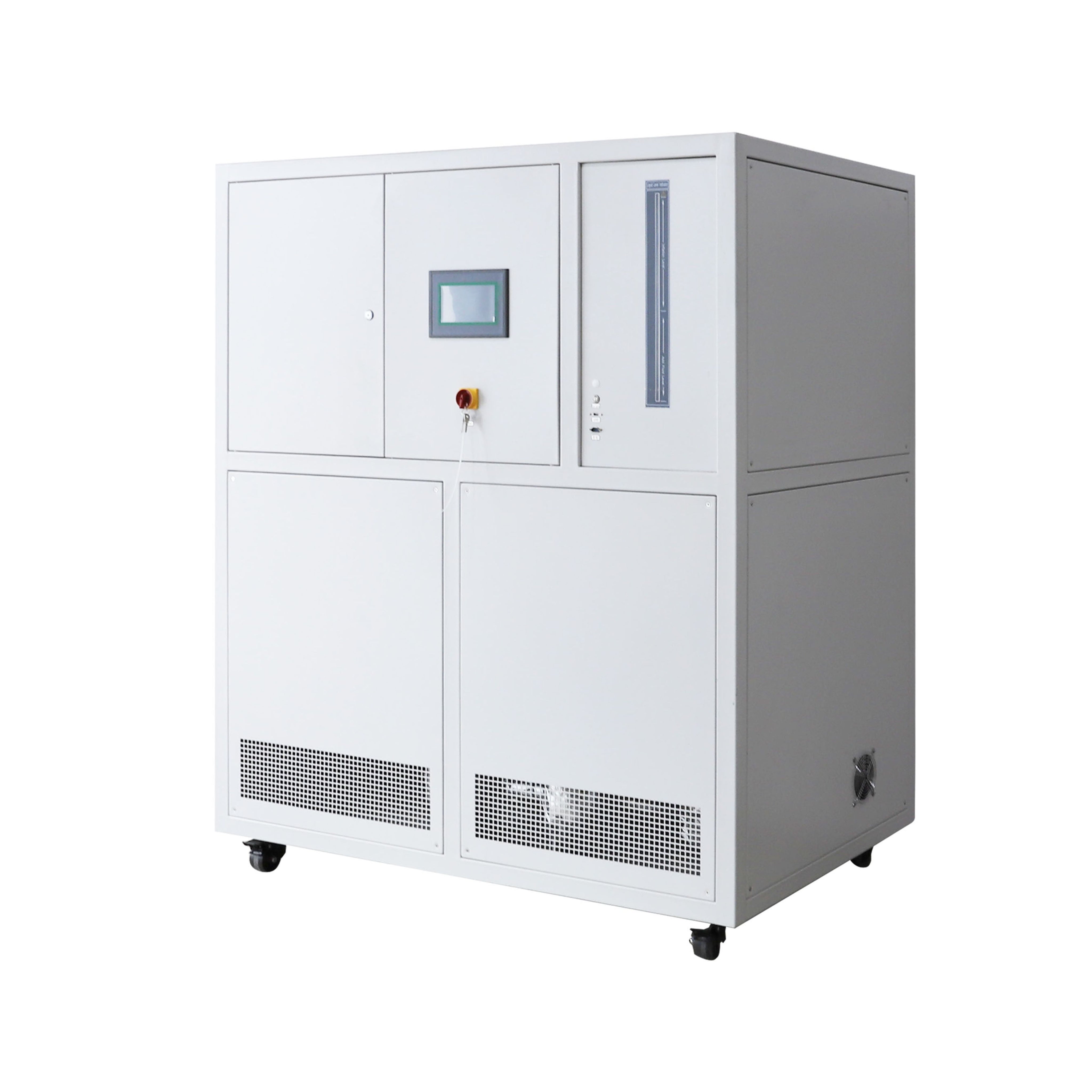

38kW, 60kW, 90kW, 120kW or 150kW Hermatic Heating Circulator with Water Cooling for Rapid Chilling
Got questions?
Feel free to get in touch
Efficiently chill your materials with our Hermatic Heating Circulator, available in 38kW, 60kW, 90kW, 120kW, and 150kW options. Its water cooling feature ensures speedy temperature drops, making it perfect for laboratory use. Shop now at Lab1st for quality and reliable chilling performance.
Features:
- Hermetic design to prevent heat conduction oil oxidation and evaporation
- The circulation pump is strong, suitable for the reactor
- Standard cooling water interface can achieve high accuracy and rapid cooling
- Optional temperature range, maximum 300℃
- RS485 interface (optional)
Specifications:
- Design Temperature [℃]: RT-200℃; ±1℃
- Ambient Temperature [℃]: 5-30℃
- Optimum Ambient Humidity: 45-80%RH
- Voltage | HP: 220/380/480V | 3P
- Temperature sensor: PT100
- Safety: Self-diagnosis; High Pressure Switch; Overload Relay, Thermal Protection Device
- Cooling method: Water-cooling
- 38kW Hermatic Heating Circulator (UC-200-A38)
- Total power[kW]: 41
- Heating power[kW]: 38
- Cooling Capacity [kW]:
- 200℃: 38
- 100℃: 30
- 65℃: 12
- Circulation Pump
- Power[W]: 1500
- Pressure[bar]: 2.5
- Rated Flow[L/min]: 110
- 60kW Hermatic Heating Circulator (UC-200-A60)
- Total power[kW]: 63
- Heating power[kW]: 60
- Cooling Capacity [kW]:
- 200℃: 60
- 100℃: 48
- 65℃: 19
- Circulation Pump
- Power[W]: 2200
- Pressure[bar]: 2.5
- Rated Flow[L/min]: 250
- 90kW Hermatic Heating Circulator (UC-200-A90)
- Total power[kW]: 93
- Heating power[kW]: 90
- Cooling Capacity [kW]:
- 200℃: 90
- 100℃: 65
- 65℃: 32
- Circulation Pump
- Power[W]: 3000
- Pressure[bar]: 4
- Rated Flow[L/min]: 300
- 120kW Hermatic Heating Circulator (UC-200-A120)
- Total power[kW]: 123
- Heating power[kW]: 120
- Cooling Capacity [kW]:
- 200℃: 120
- 100℃: 85
- 65℃: 43
- Circulation Pump
- Power[W]: 3000
- Pressure[bar]: 4
- Rated Flow[L/min]: 350
- 150kW Hermatic Heating Circulator (UC-200-A150)
- Total power[kW]: 154.5
- Heating power[kW]: 150
- Cooling Capacity [kW]:
- 200℃: 150
- 100℃: 105
- 65℃: 57
- Circulation Pump
- Power[W]: 4500
- Pressure[bar]: 5
- Rated Flow[L/min]: 400
