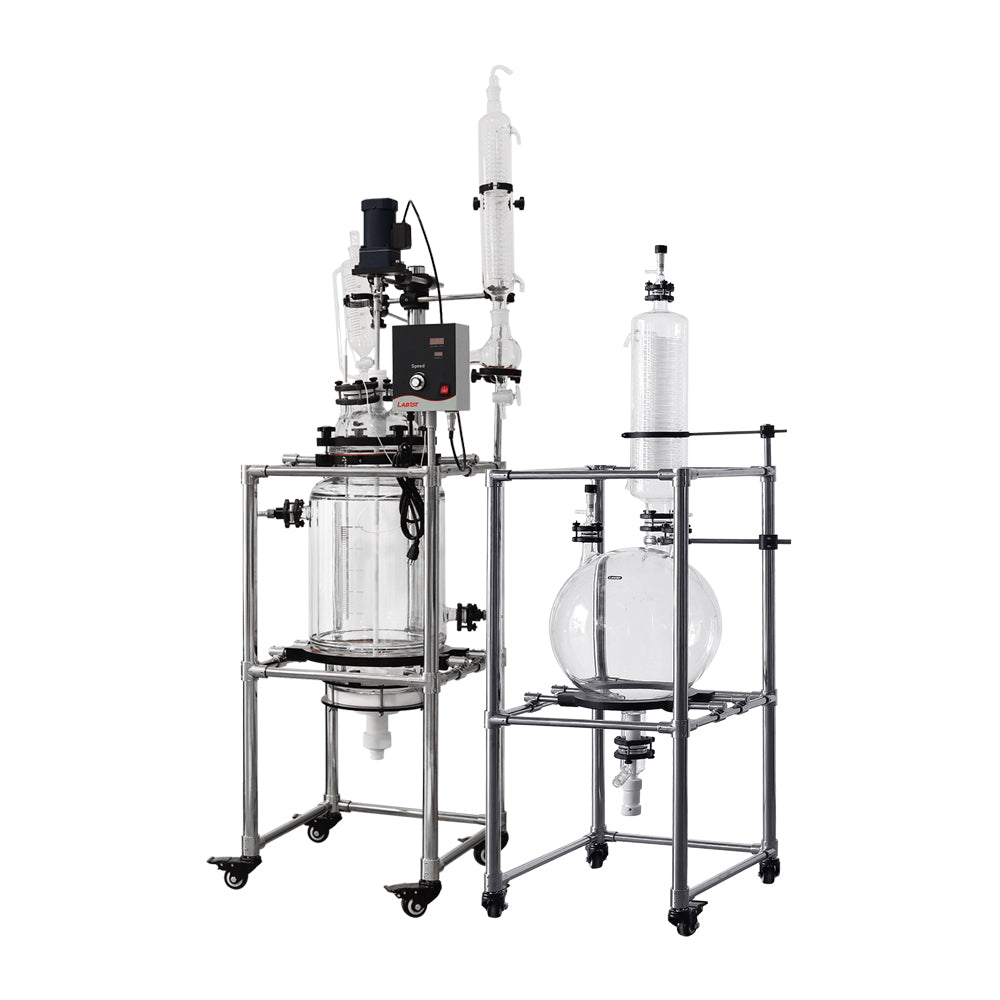

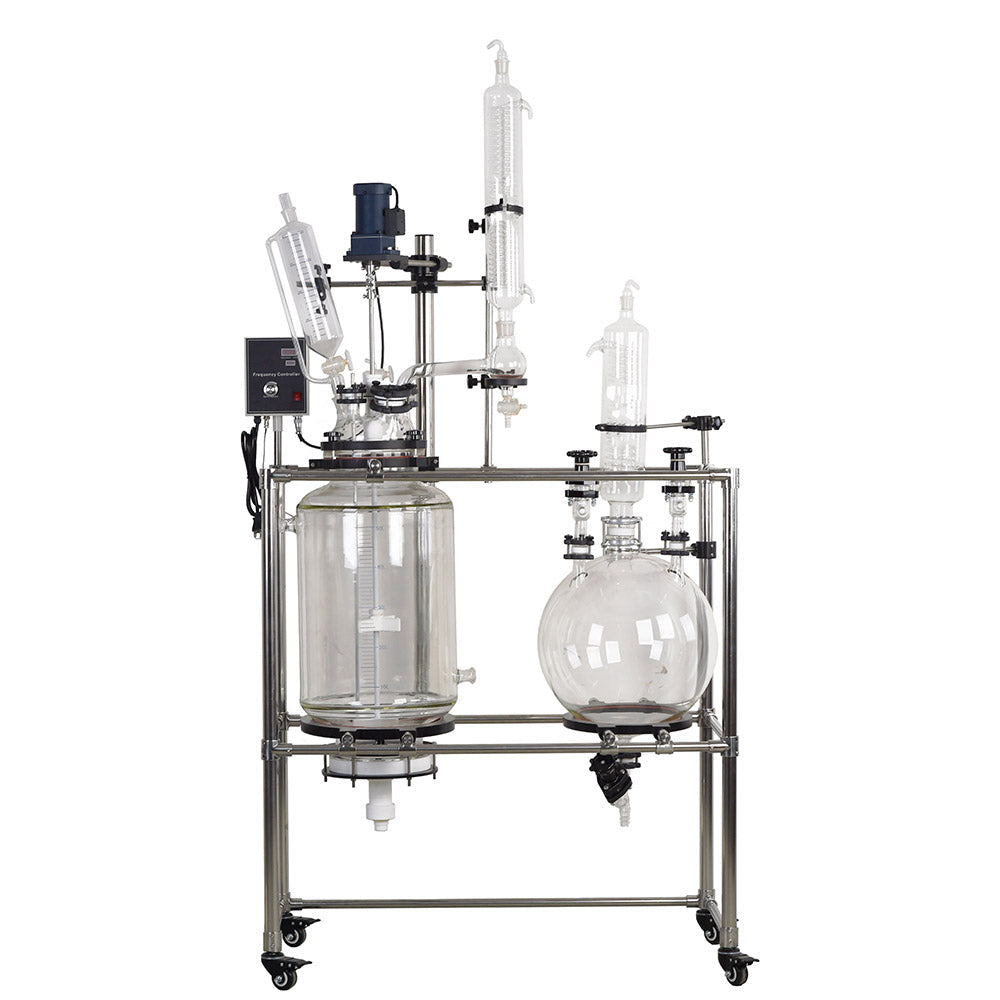

30L Vacuum Filter Jacketed Glass Vessel Stirred Crystallization Reactor
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Compared to standard jacketed glass reactor, the Lab1st JGR-FK series is more multifunctional since it has reaction, crystallization as well as filtration functions. Besides, it has a liquid collection flask to collect liquids after reaction. JGR-20FK is made of high borosilicate glass amd equipped with PTFE seals, ensuring clean and long lifespan. It can be operated under a wide range of temperature from -80℃ to 200℃ and the stirring motor is 120W, bringing you remarkable performance.
Features:
- With filter plate on the bottom for filtration

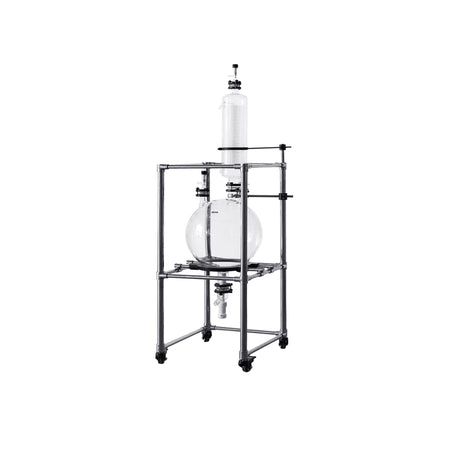

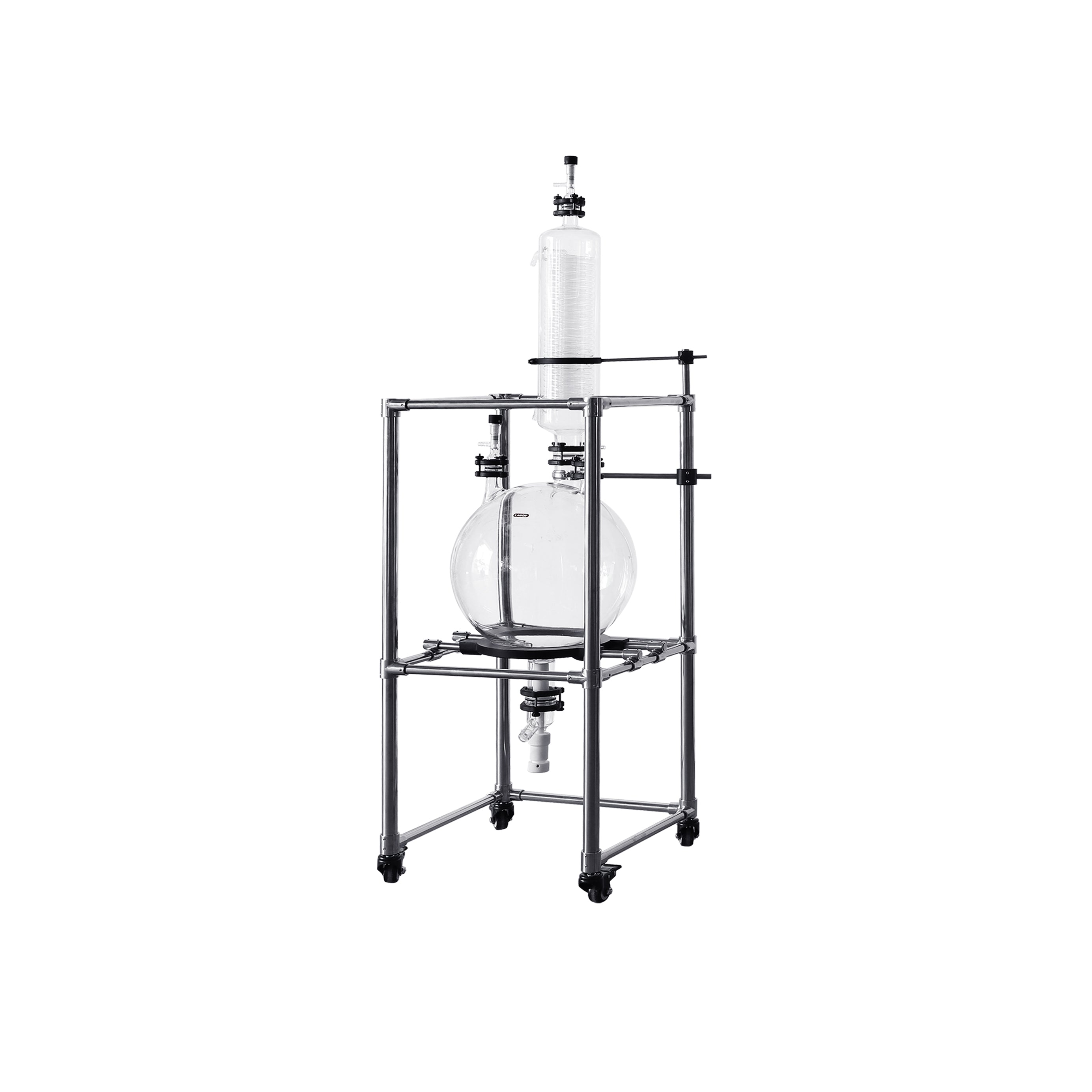

- Equipped with mother liquor collection flask with condenser and moving trolley.
- Jacket interface can be matched with different heater and chiller.
- Optional high quality thermal insulation jacket available.
Specification:
- Temperature Range: -80℃~200℃ [Glass]
- Jacket Pressure: ≤0.05Mpa
- Internal Vessel Pressure: ≥-0.098Mpa
- Glass Material: High borosilicate glass
- Vacuum Sealing: PTFE
- Electrical Requirements: 220V, 50/60HZ Single Phase
- Stirring Motor Power [W]: 120
- Rotation Controller: Variable frequency drive，600 rpm
- Agitator Type: PTFE stirring paddle（Various types available）
- Filtration Pore Size: 40~80μm
- Stirring Blades Layer: Single layer (double layer can be customized)
- Ports on the Lid [pcs]: 5+1
- Reaction Vessel Volume [L]: 30
- Liquid Collection Flask Volume [L]: 30
- Jacket Volume [L]: 10
