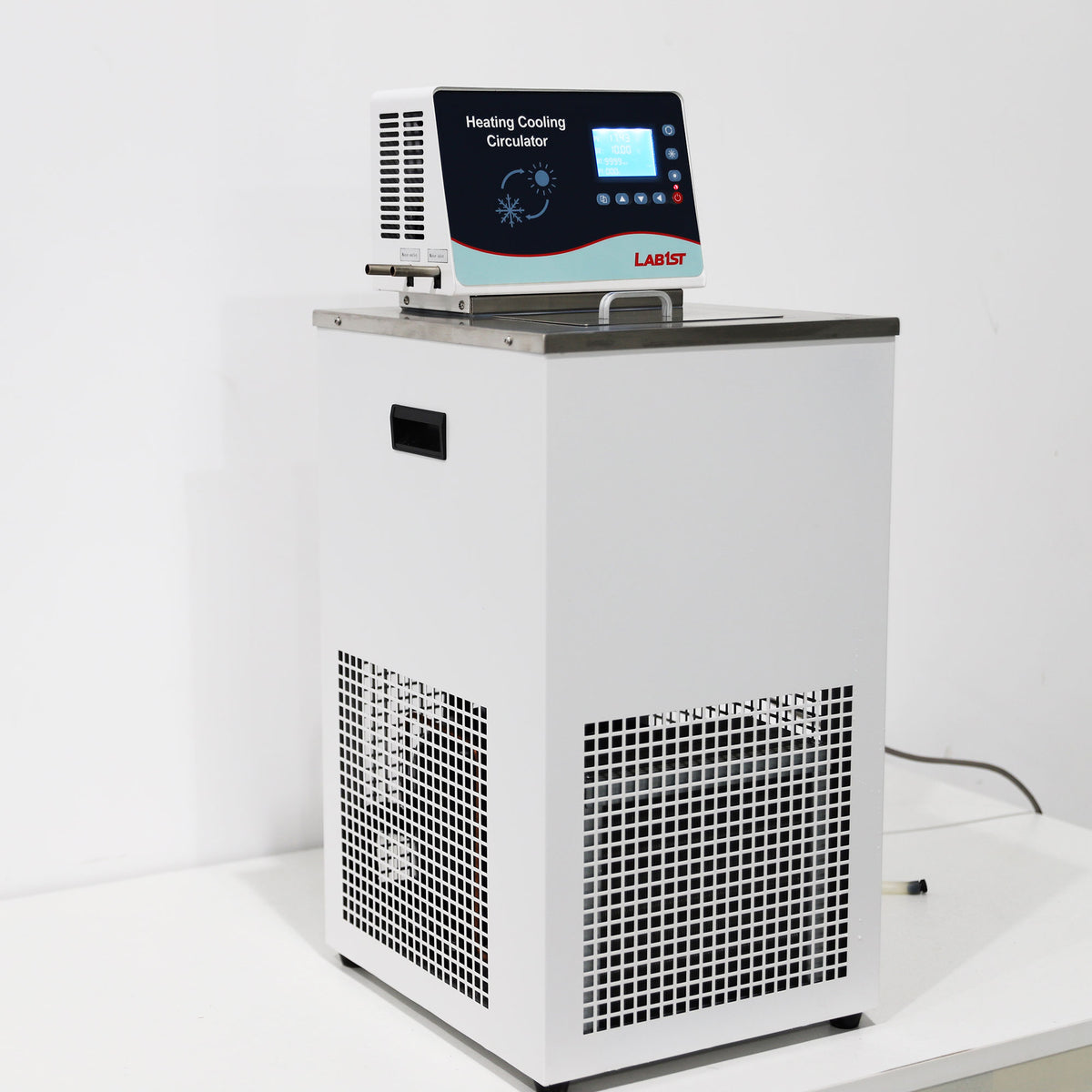

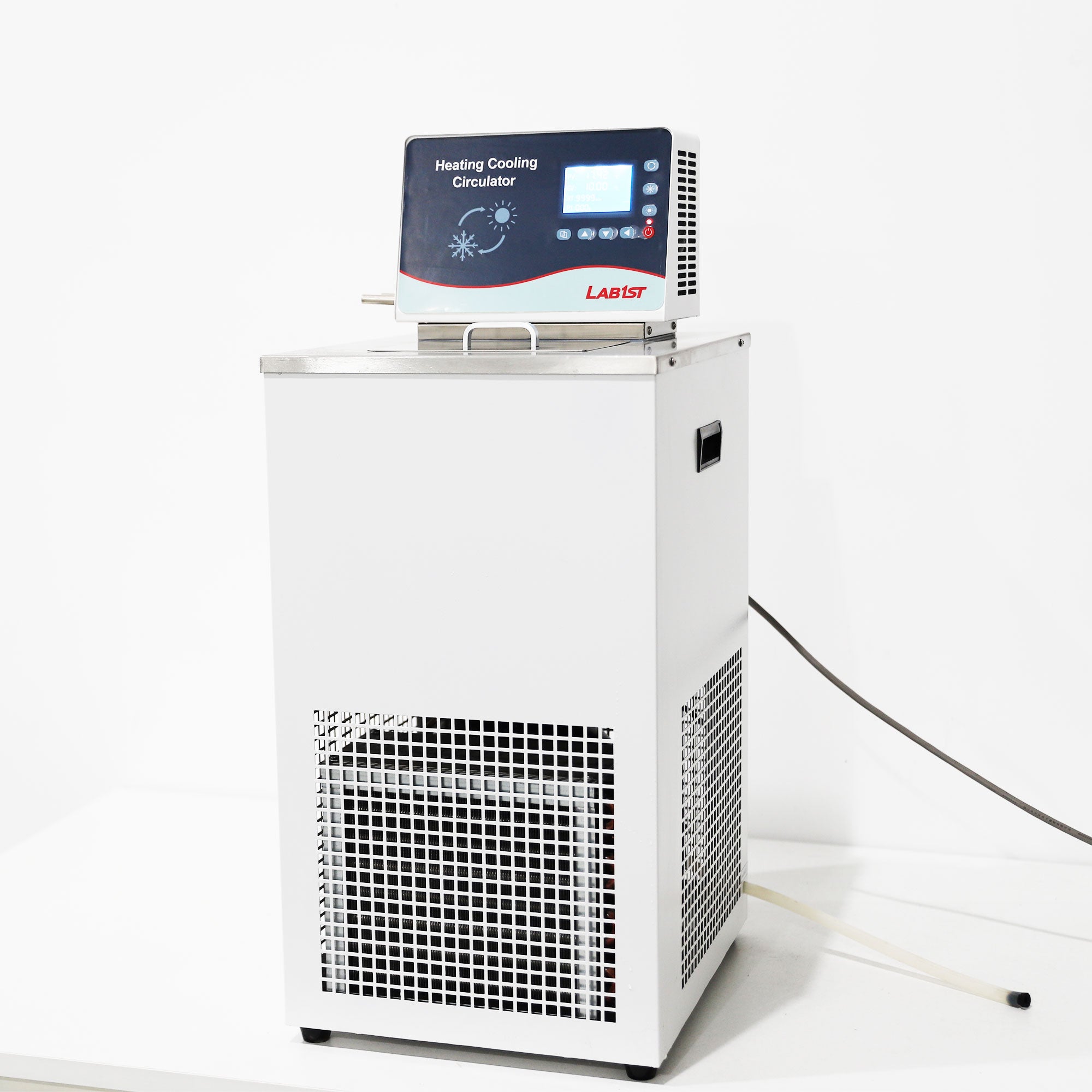

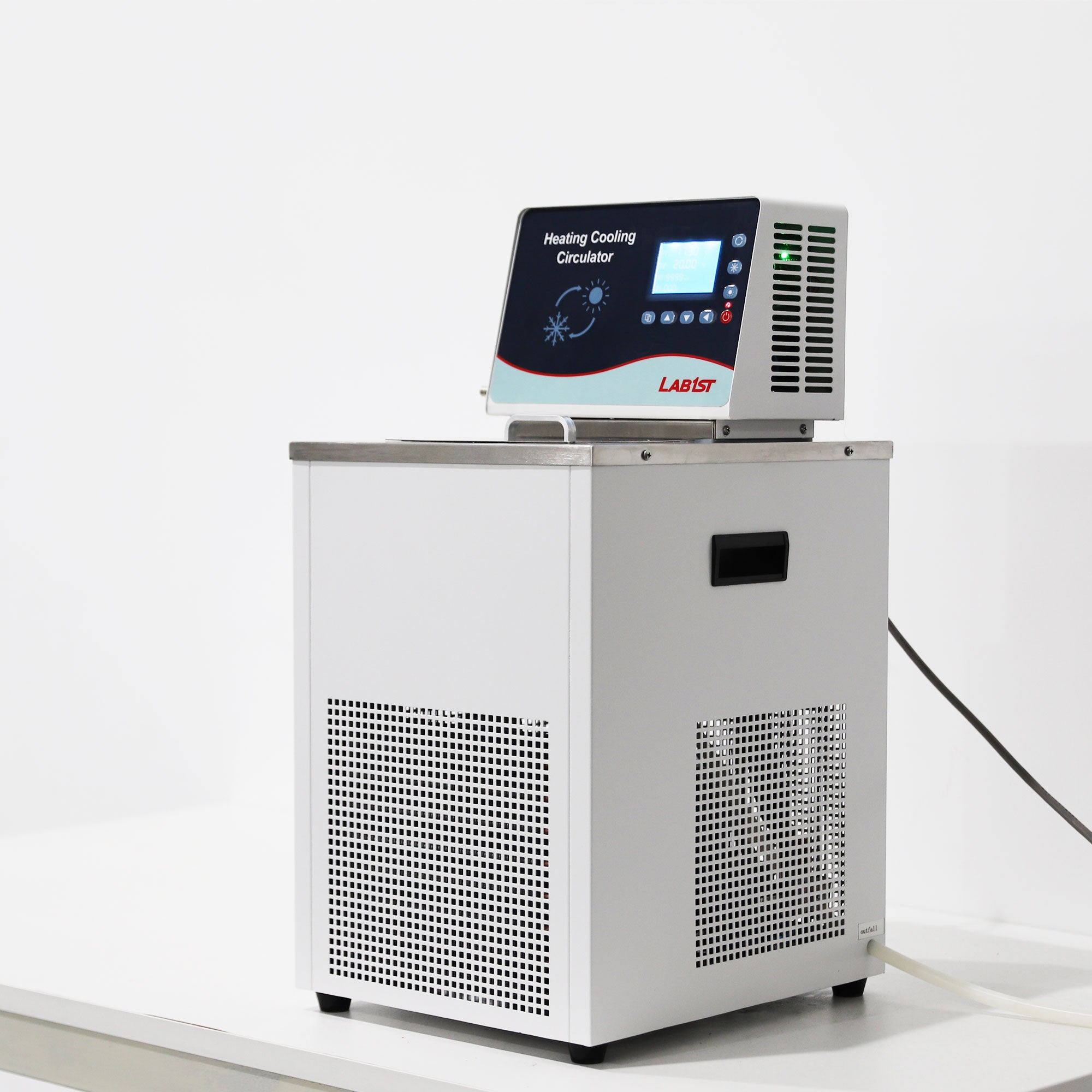

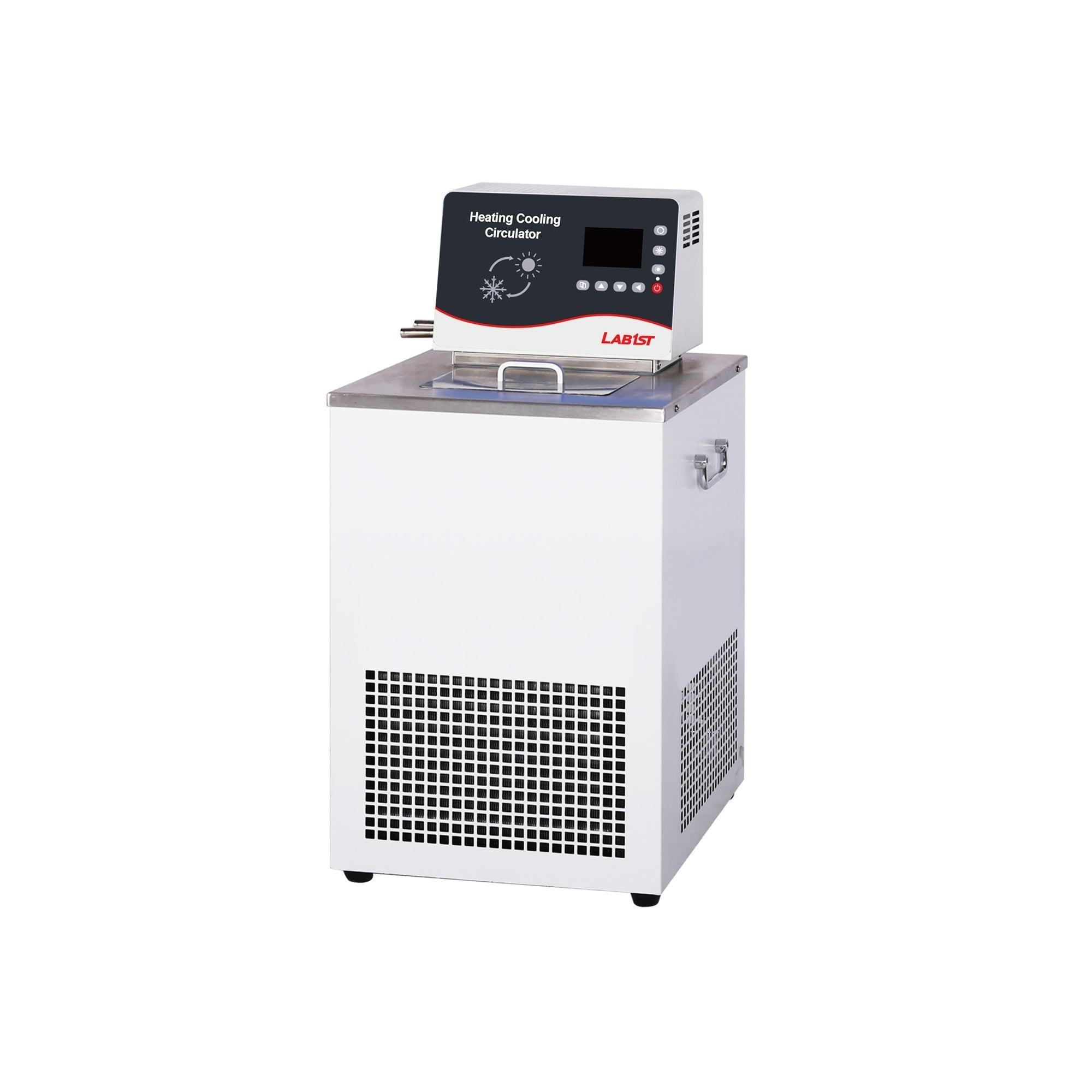

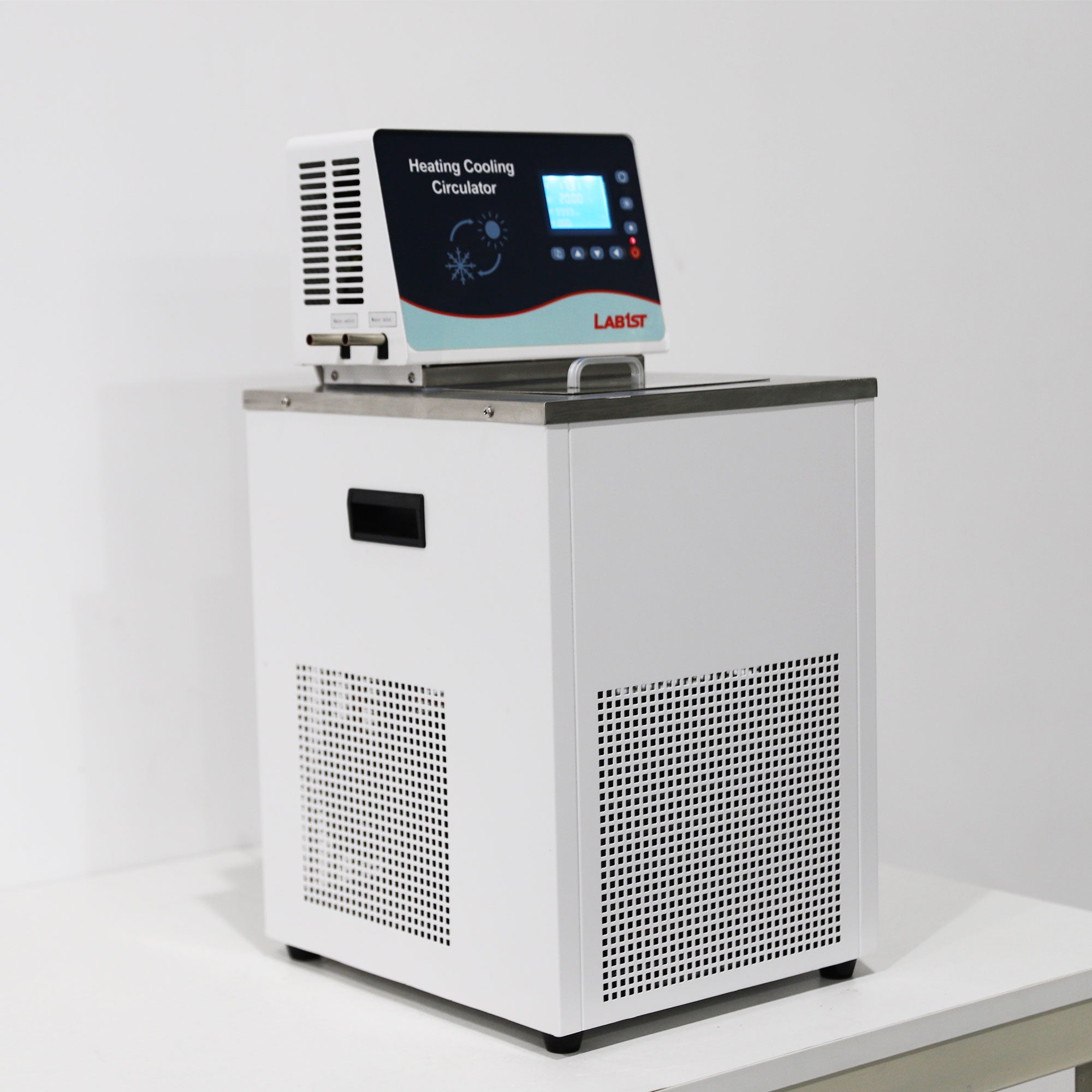

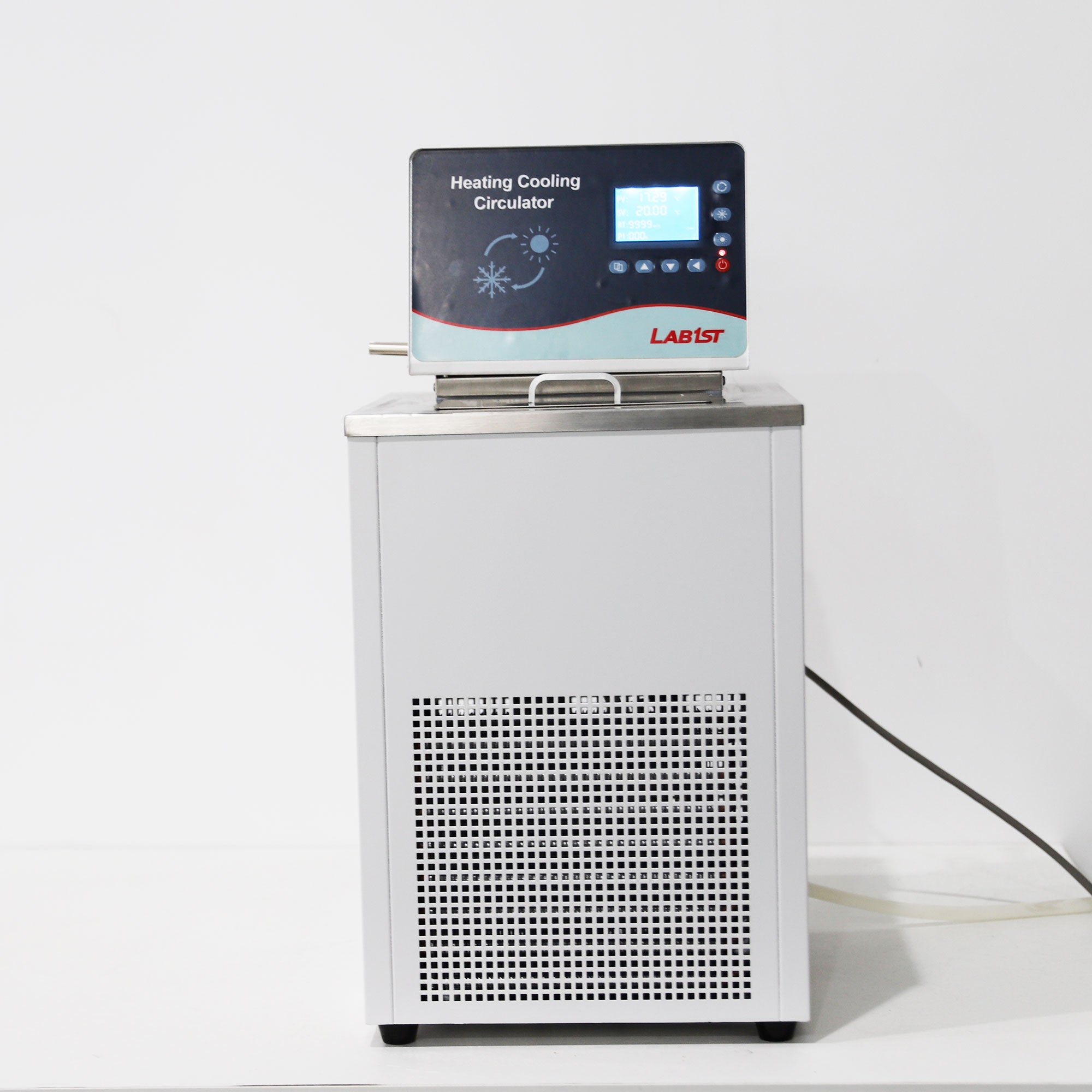

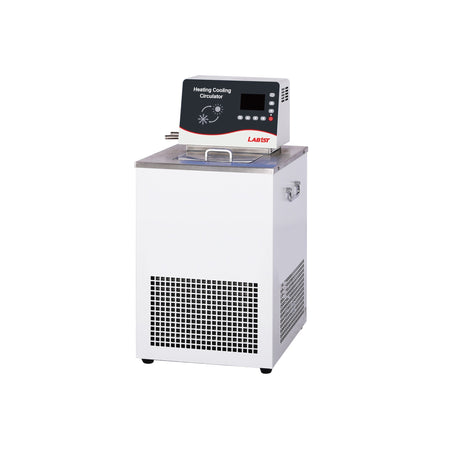

-30℃~95℃ 10L, 15L, 20L or 30L Water Bath Recirculating Water Heating Cooling Chiller Circulators for Laboratory
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Increase the efficiency of your laboratory with our -30℃~95℃ Water Bath Recirculating Chiller! With 10L, 15L, 20L, or 30L options, enjoy precise temperature control for heating or cooling. Perfect for various experiments and processes, this product is a must-have for any lab.
Features:
- Realize inside and outside circulation, achieve "constant temperature" in the liquid tank
- The compressor can be started at high temperature
- Intelligent control system, rapid temperature rise, stable temperature, easy to operate
- Benchtop design, compact structure

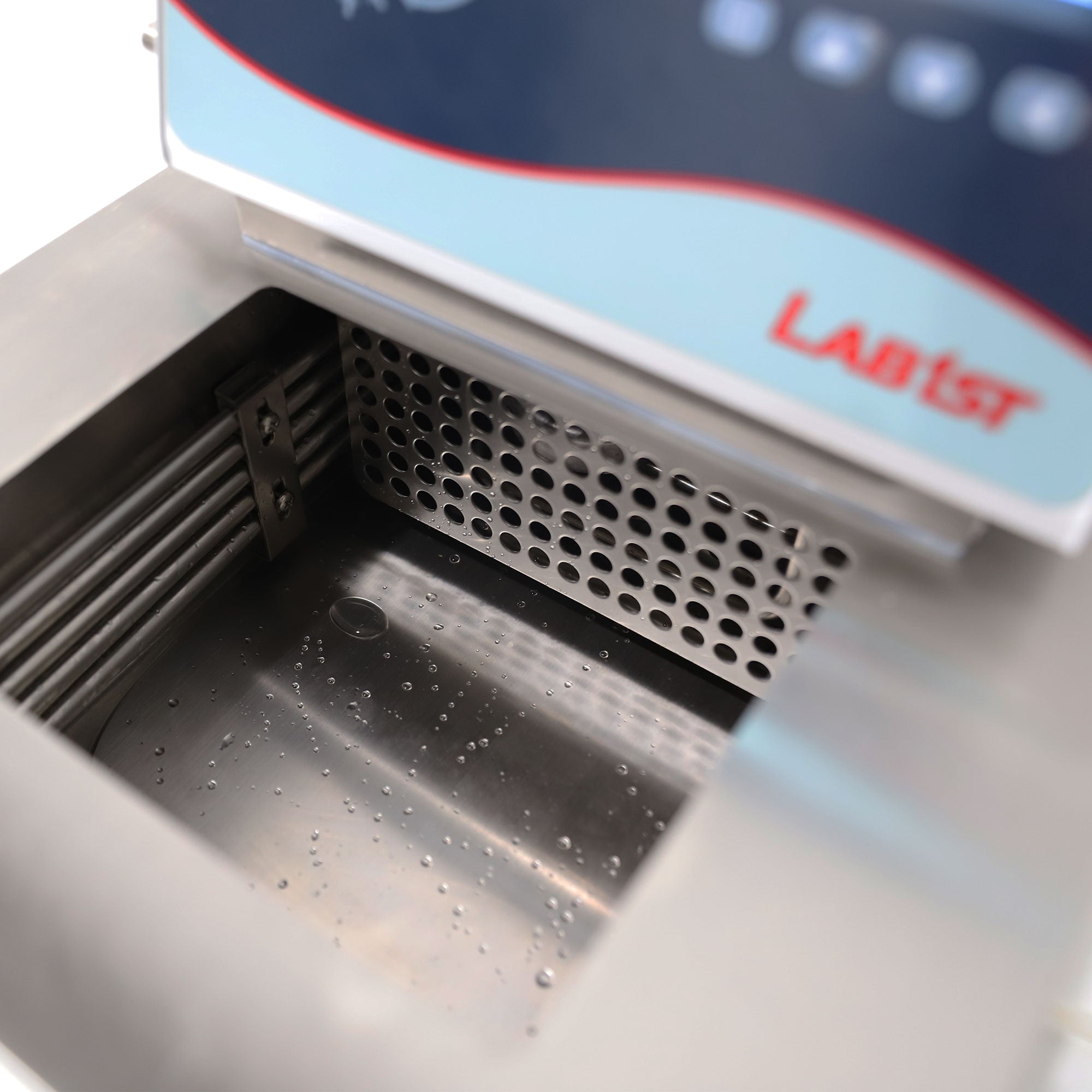

- Open bath, suitable for internal/external applications
- Suitable for small applications with high precision
Specification:
- Usage Temperature [℃]: -30~95℃; ±0.05℃
- Ambient Temperature [℃]: 5-30℃
- Optimum Ambient Humidity: 45-80％RH
- Electrical Requirements: 220V;1P; 50/60HZ
- Temperature Sensor: PT100
- Safety: It has multiple protection of overheat and overcurrent
- 10L water heating cooling chiller (DC-30-10L)
- Bath Dimension [mm]: 280×220×165
- Bath Opening Size [mm]: 180×140

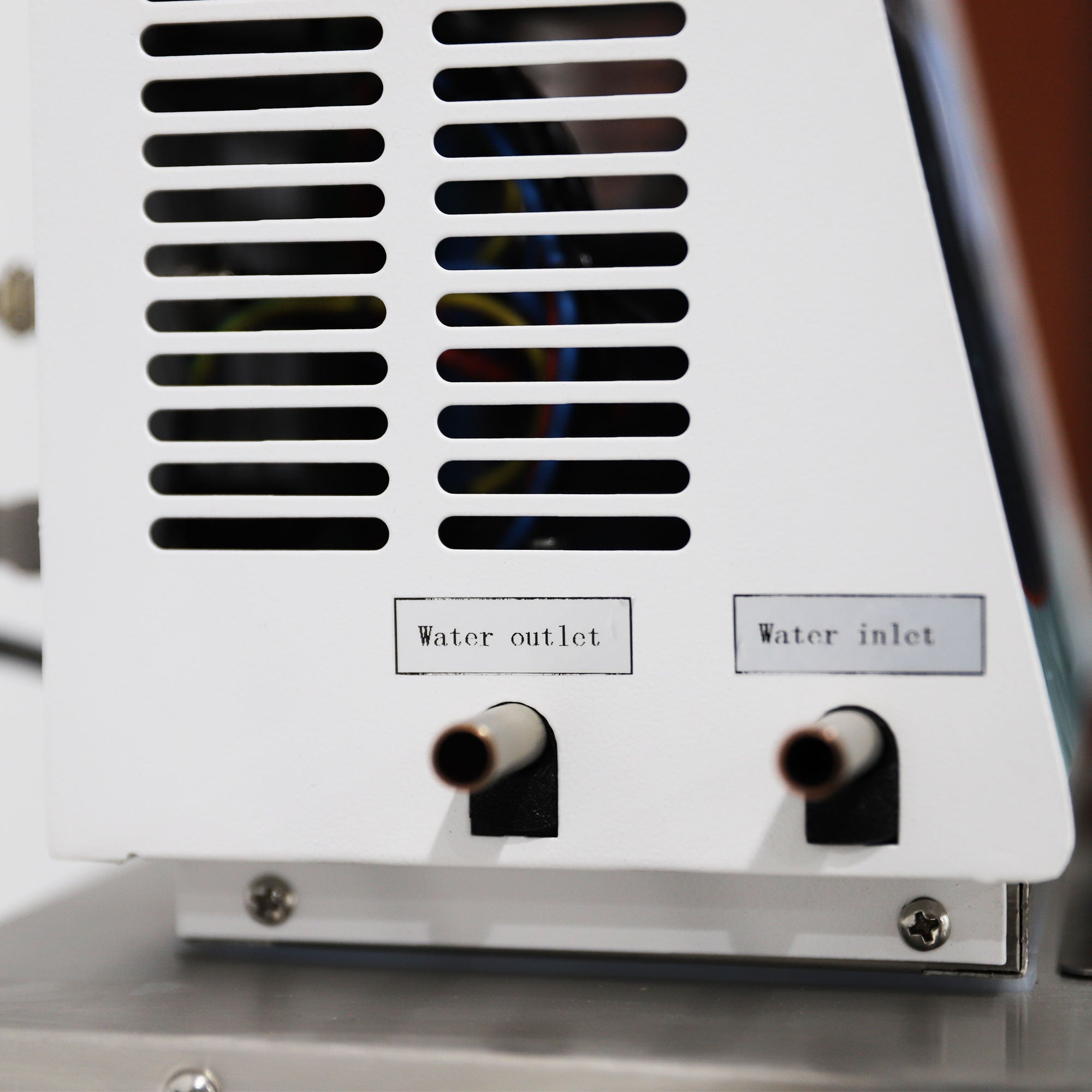

- Circulation Interface: 10mm Barb×2
- Heating Power [W]: 1000
- Power [W]: 450
- Refrigerating Fluid: R404A
- Rated Lift [m]: 8
- Rated Flow [L/min]: 10
- Running Weight [KG]: 35
- Unit Dimension [mm]: 420×350×820
- 15L water heating cooling chiller (DC-30-15L)
- Bath Dimension [mm]: 300×220×200
- Bath Opening Size [mm]: 180×140
- Circulation Interface: 10mm Barb×2
- Heating Power [W]: 1500
- Power [W]: 450
- Refrigerating Fluid: R404A
- Rated Lift [m]: 8
- Rated Flow [L/min]: 10
- Running Weight [KG]: 36
- Unit Dimension [mm]: 420×350×820
- 20L water heating cooling chiller (DC-30-20L)
- Bath Dimension [mm]: 400×320×180
- Bath Opening Size [mm]: 300×220
- Circulation Interface: 12mm Barb×2
- Heating Power [W]: 2000
- Power [W]: 620
- Refrigerating Fluid: R22
- Rated Lift [m]: 11
- Rated Flow [L/min]: 20
- Running Weight [KG]: 42
- Unit Dimension [mm]: 485×400×925
- 30L water heating cooling chiller (DC-30-30L)
- Bath Dimension [mm]: 400×320×240
- Bath Opening Size [mm]: 300×220
- Circulation Interface: 12mm Barb×2
- Heating Power [W]: 3000
- Power [W]: 730
- Refrigerating Fluid: R22
- Rated Lift [m]: 11
- Rated Flow [L/min]: 20
- Running Weight [KG]: 47
- Unit Dimension [mm]: 485×400×925
