Designed for precision and adaptability, the TCH*F series temperature and humidity chamber features an expansive temperature range from -40°C to 150°C. This makes it an ideal choice for rigorous environmental simulation tasks across various industries. With advanced humidity control and a robust build, it ensures consistent and precise testing outcomes, supporting both quality assurance and research and development initiatives effectively. Discover enhanced performance and versatility in temperature and humidity testing with the TCH*F series, exemplifying excellence in environmental simulation technology.

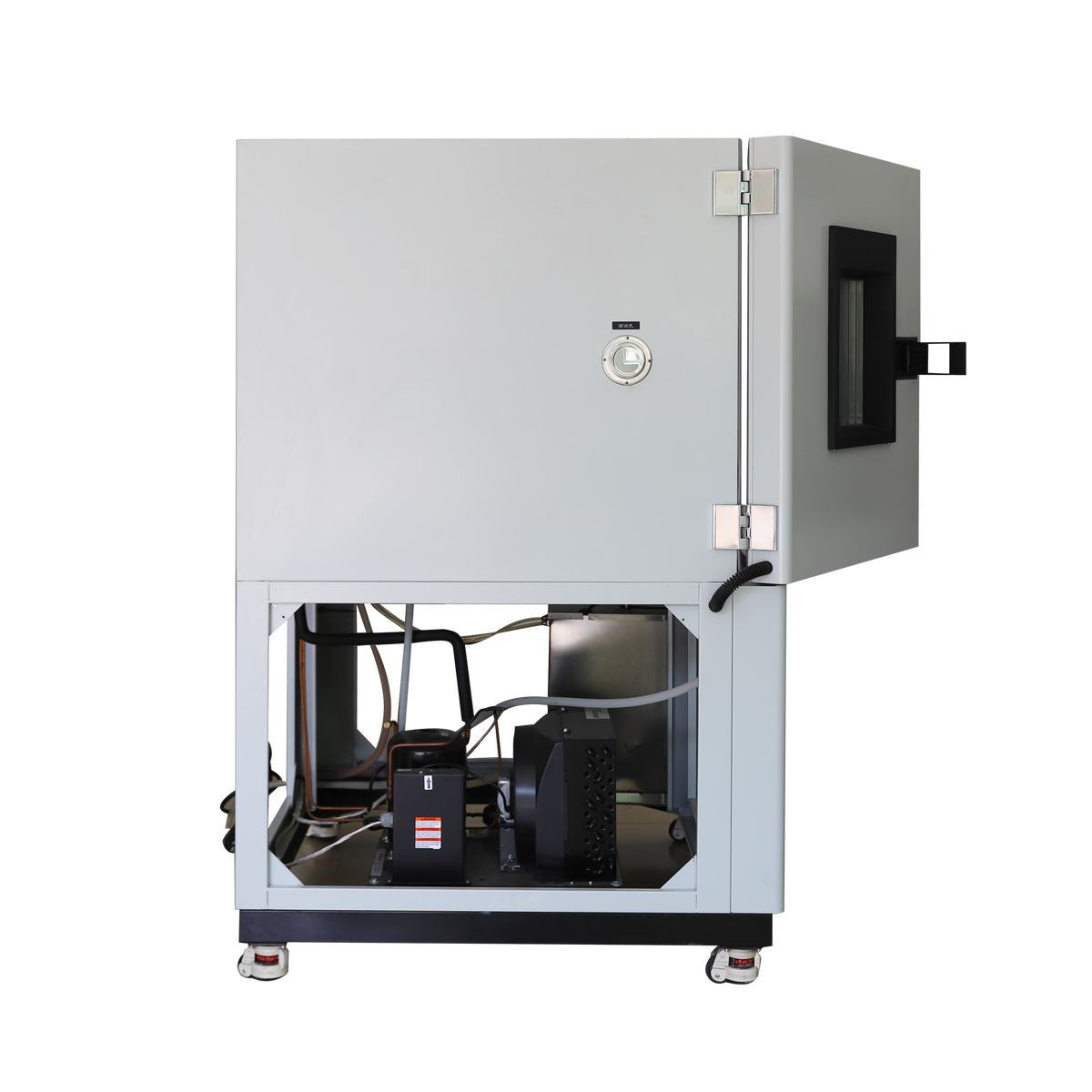

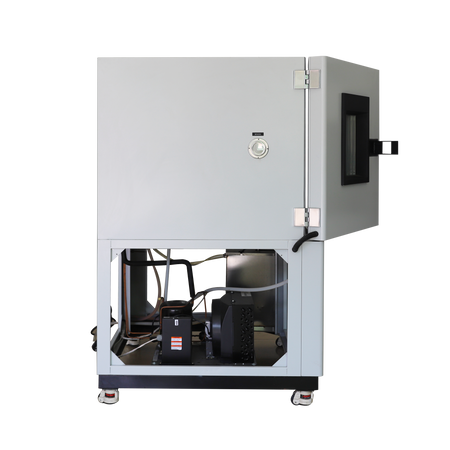

-40℃~150℃ 100L Environmental Temperature and Humidity Test Chamber 3.5 Cu ft
Regular price
$7,375.00
Merry Christmas! Enjoy the Special Discount now!
Over $500, SAVE $50. Over $1000, SAVE $100. Over $5000, SAVE $500.
1-year warranty, except for consumables
Extended warranty service is available, please contact us for details
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Features:
- Software/Controller

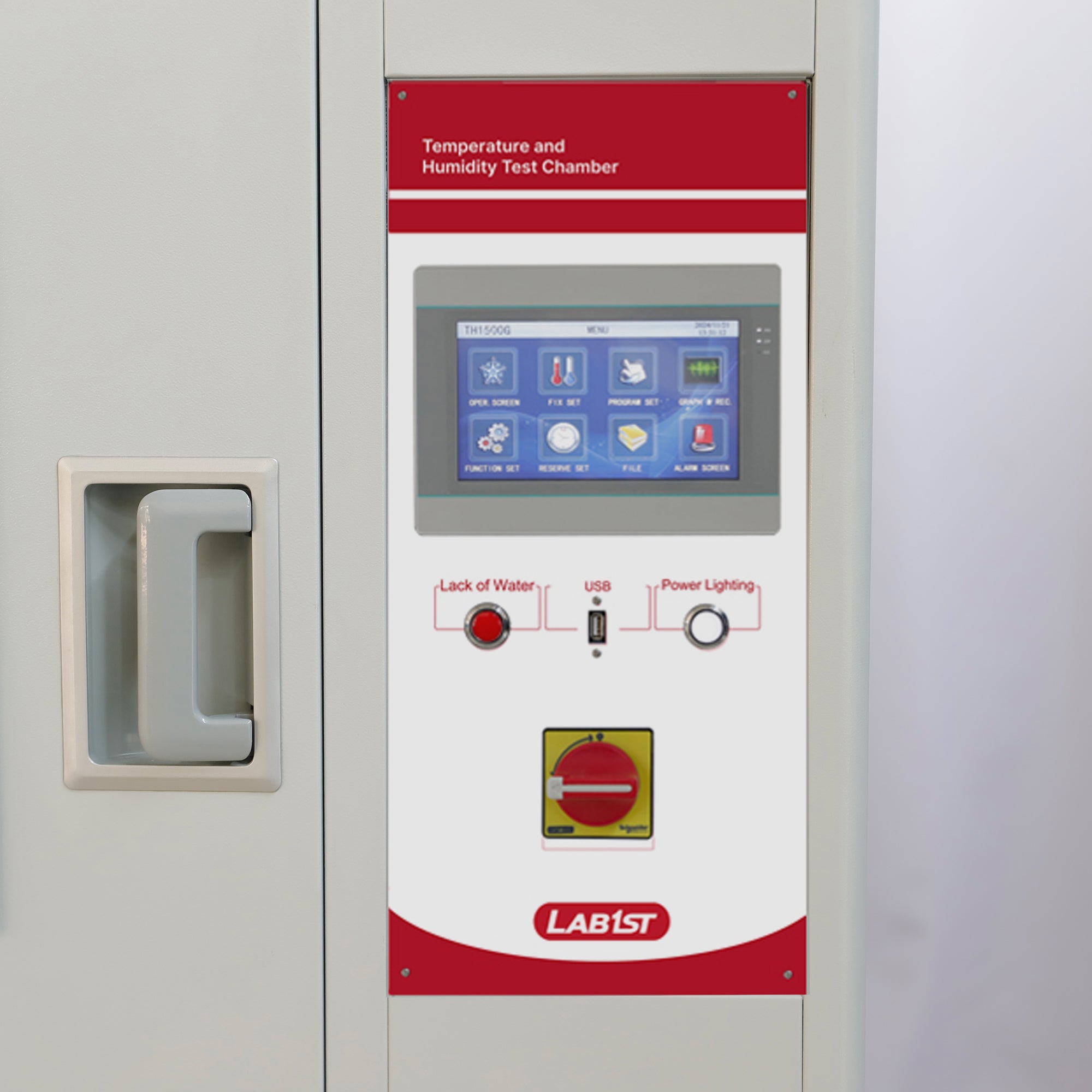

- 7-inch color touch screen, preset 100 groups x 100 steps to achieve automatic control and repeated operation, can be operated even with gloves
- View the historical record curve
- 2 working modes: program mode and constant temperature and humidity mode
- Capacity to add/delete/copy/modify programs
- Selectable restart mode after power failure
- Structure and Shell/Material
- Cold-rolled plate sprayed plastic or all stainless steel 304 shell (optional, suitable for harsh environments)
- Use high-precision electronic humidity sensor, no maintenance, precise control
- Standard large windows (4 layers of glass insulation) with glass heating to effectively prevent glass fogging at low temperatures
- Use electronic expansion valves or high-performance capillary tubes to achieve efficient and precise refrigeration control and save energy

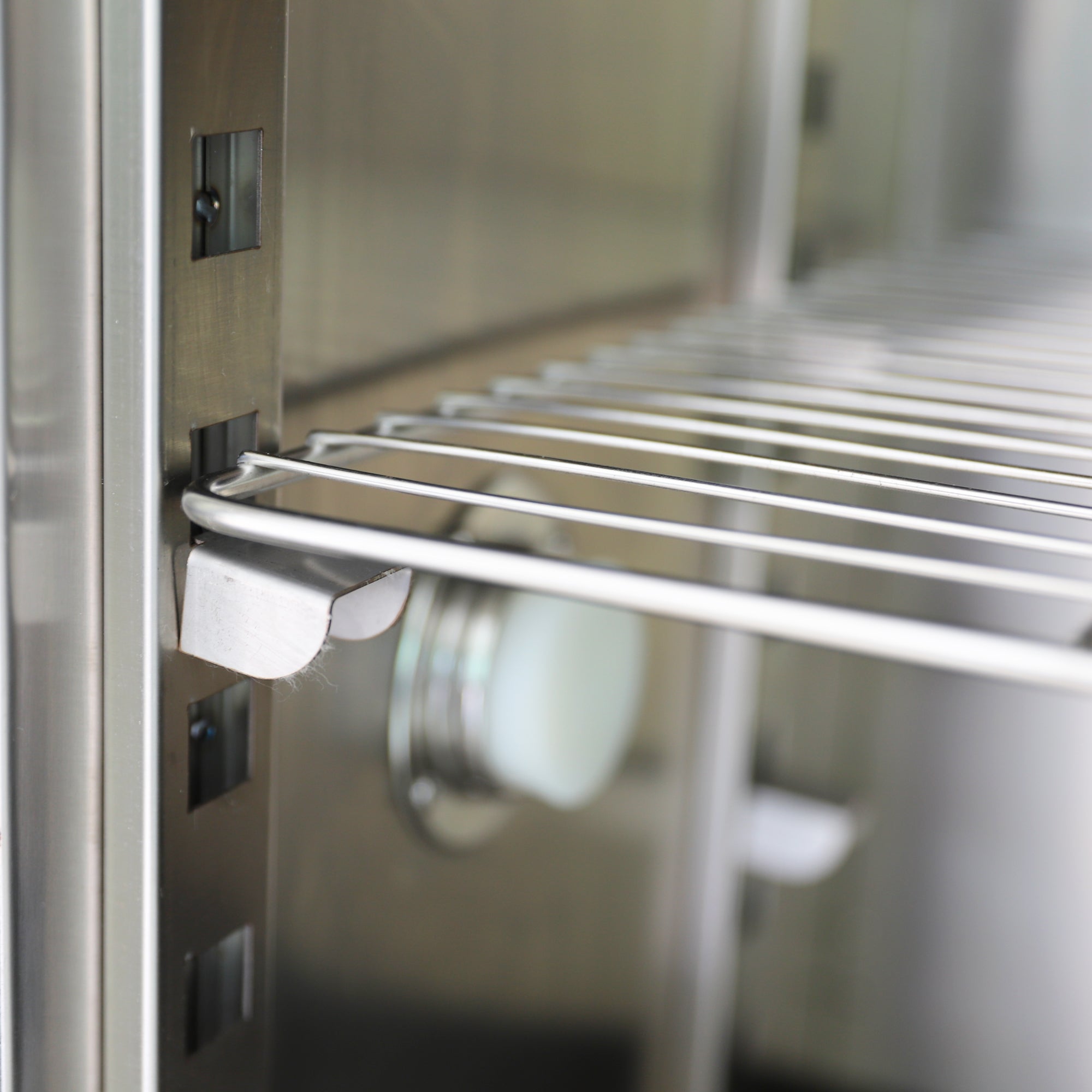

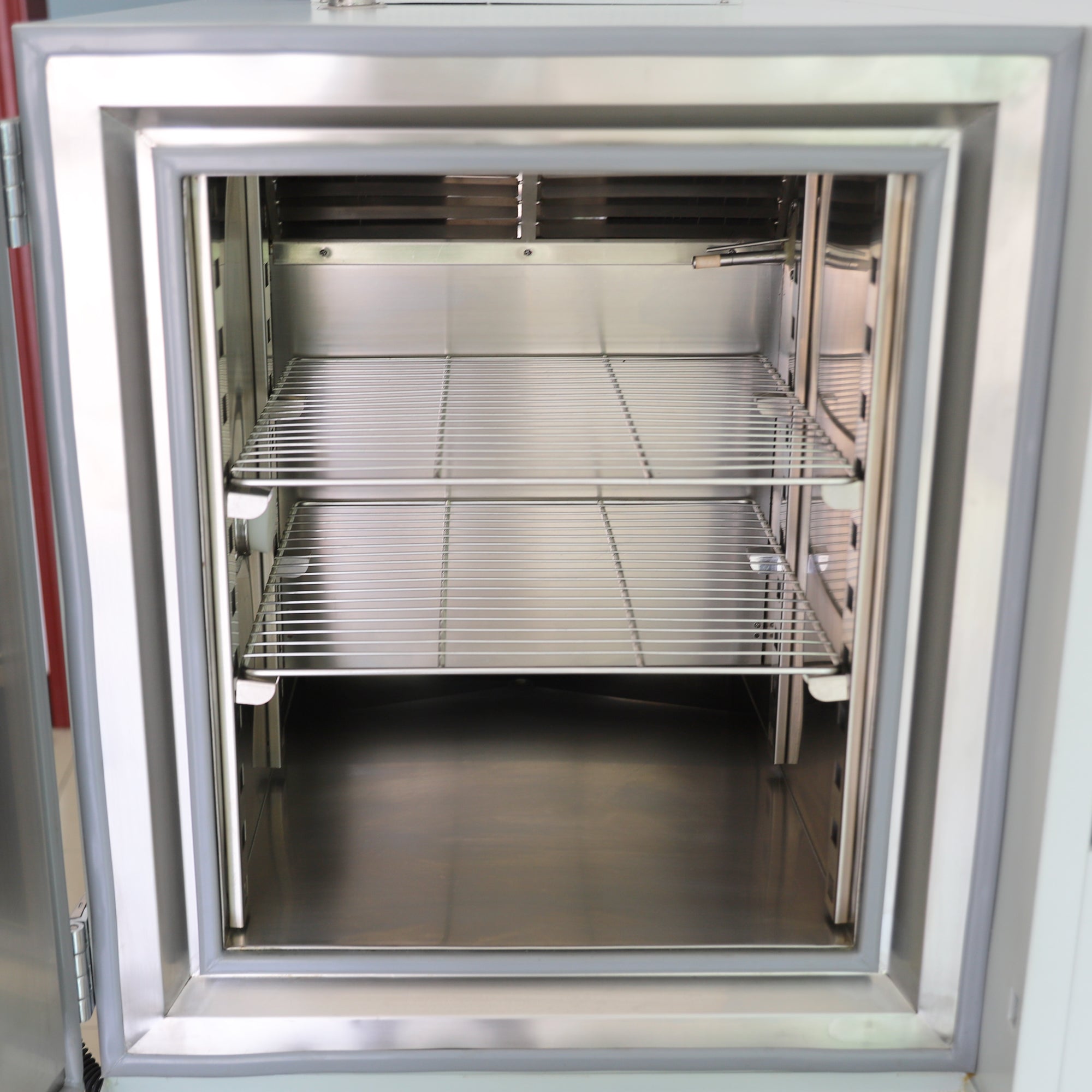

- Adjustable stainless steel shelves with heavy-duty support rails can be freely disassembled to facilitate cleaning inside the chamber

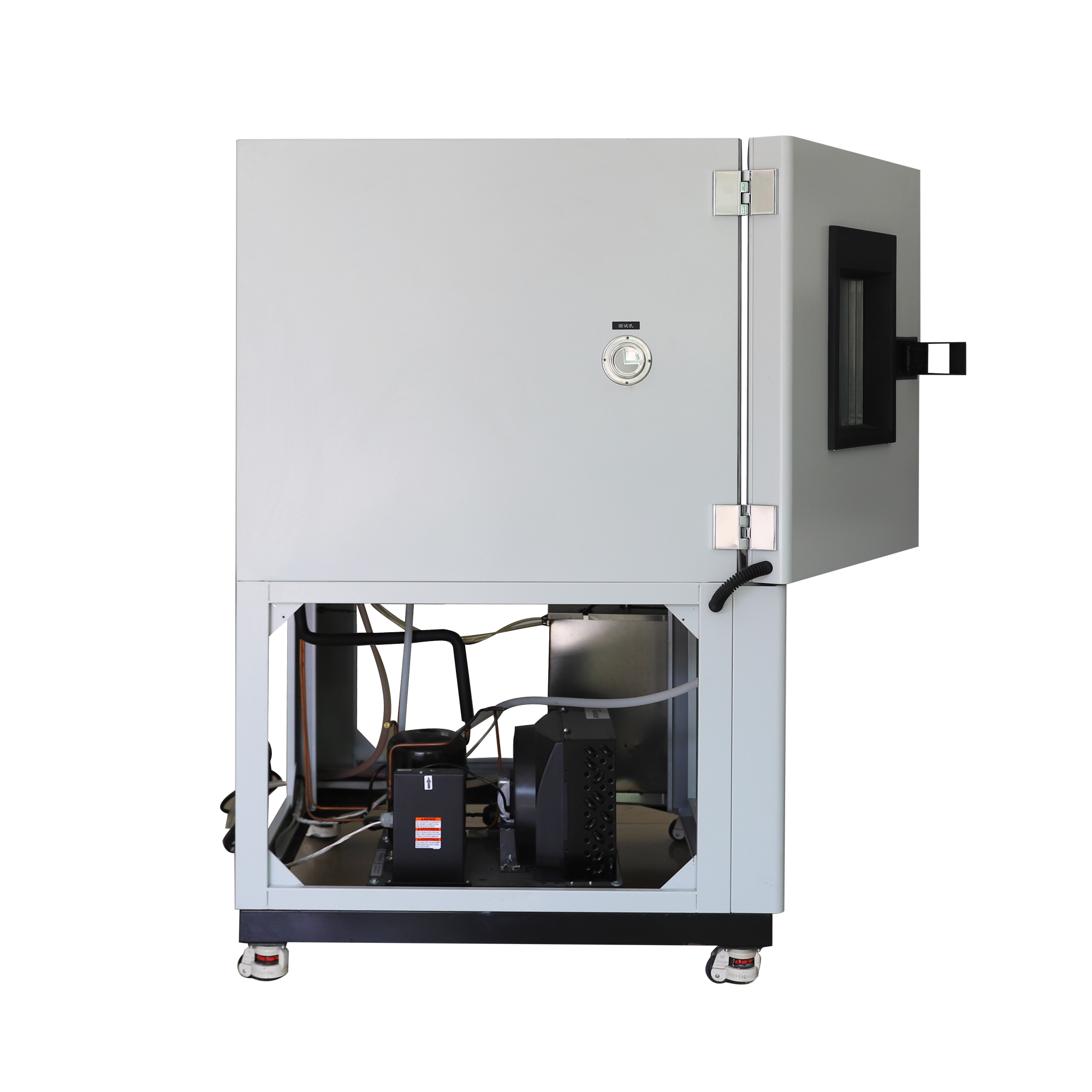

- Standard heavy duty casters for easy mobility

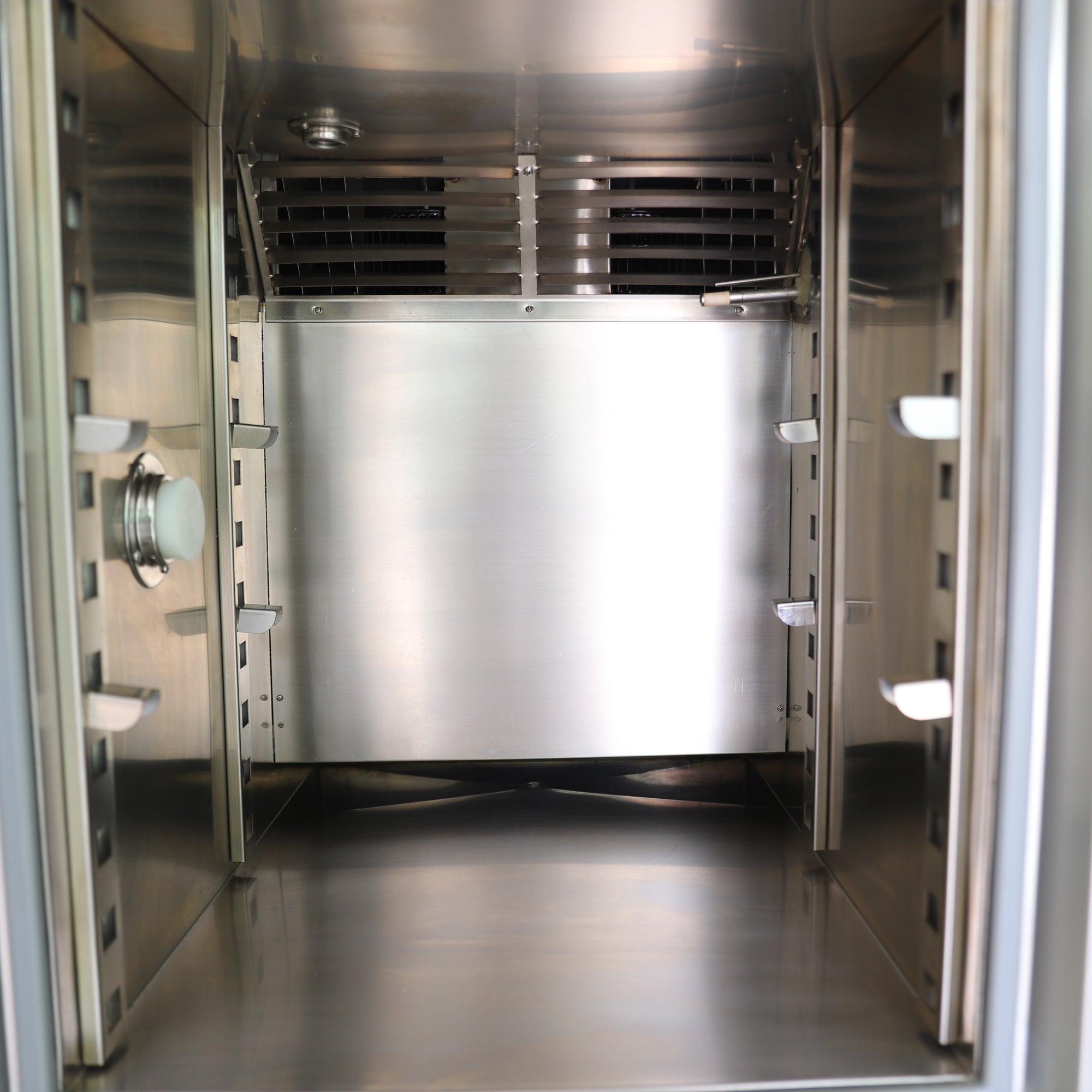

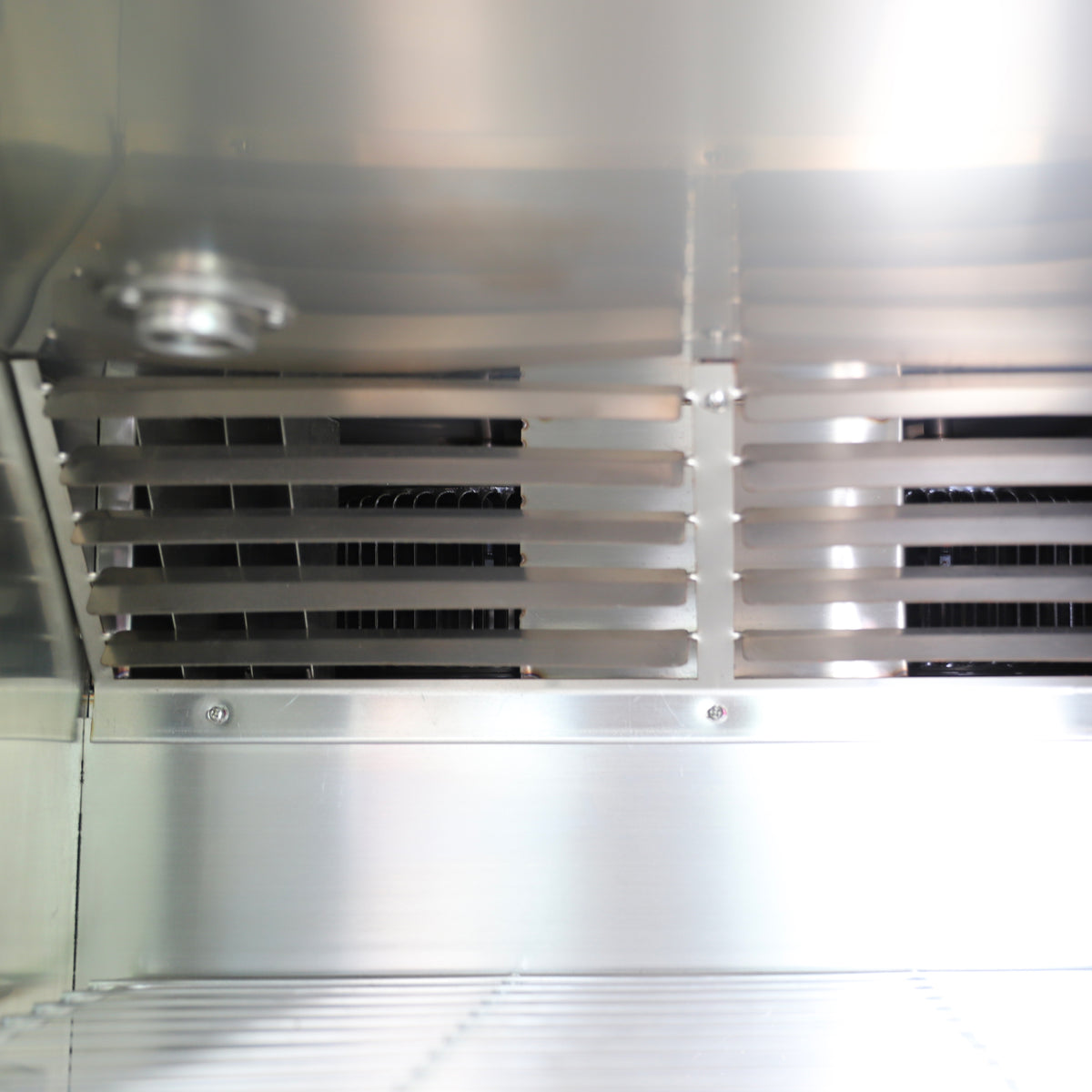

- Independent air duct circulation system ensures uniform temperature and humidity in the working room.
- Electrical/Software/Control
- Standard USB port, convenient for data output and later analysis
- Upgraded algorithm makes the control of temperature and humidity more precise

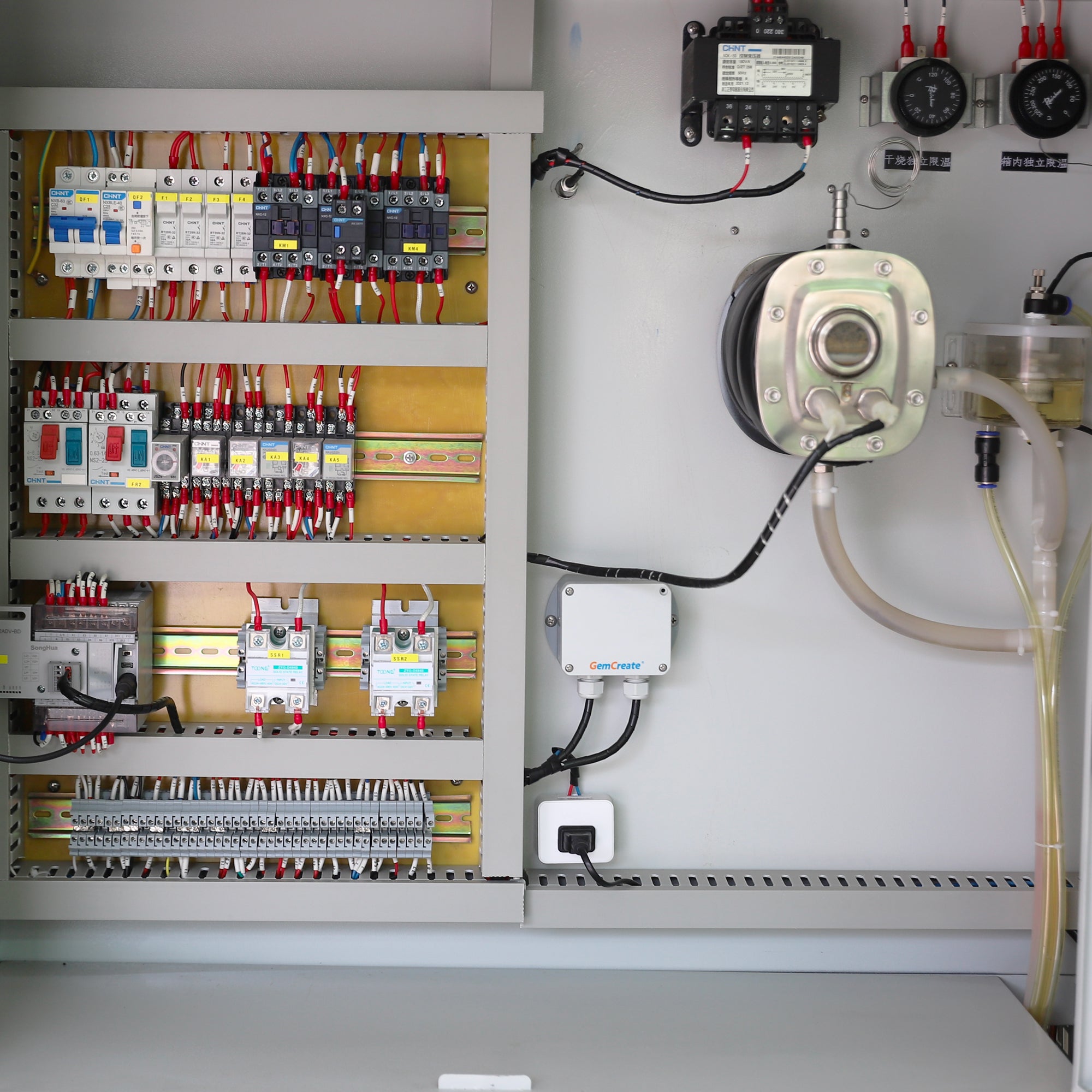

- Industrial standard electrical panel, safe, stable and easy to maintain
- Standard RS485 communication and Ethernet communication
- Security and Certification
- Independent temperature limit switch (shuts off the circuit when control fails) and sound and light alarms to remind the operator and ensure safe operation of the test without accidents
- Compressor overheat, overcurrent, overload protection, fan overheat protection, water shortage protection
- CE certification, optional UL/ETL standard electrical (UL508A)
- Multiple voltage options (North American or international standards)
Specifications:
| Workspace Volume: | 100L [3.5cu ft] |
| Temperature Range: | -40℃~150℃ [-40°F~302°F] |
| Temperature Fluctuation: | ±0.5 ℃ |
| Temperature Uniformity: | ±1 ℃ |
| Heating Rate: | 3.0-5.0 ℃/min |
| Cooling Rate | 0.7-1.5 ℃/min |
| Humidity Range: | 20%~98% RH |
| Humidity Fluctuation: | ±3% |
| Humidity Uniformity: | ±2~±3% RH |
| Chamber Material: | SUS304 |
| Shelf: | 2 pcs [or more], SUS304 wired plates with support |
| Max. Shelf Load: | 10 kg [22 lbs] |

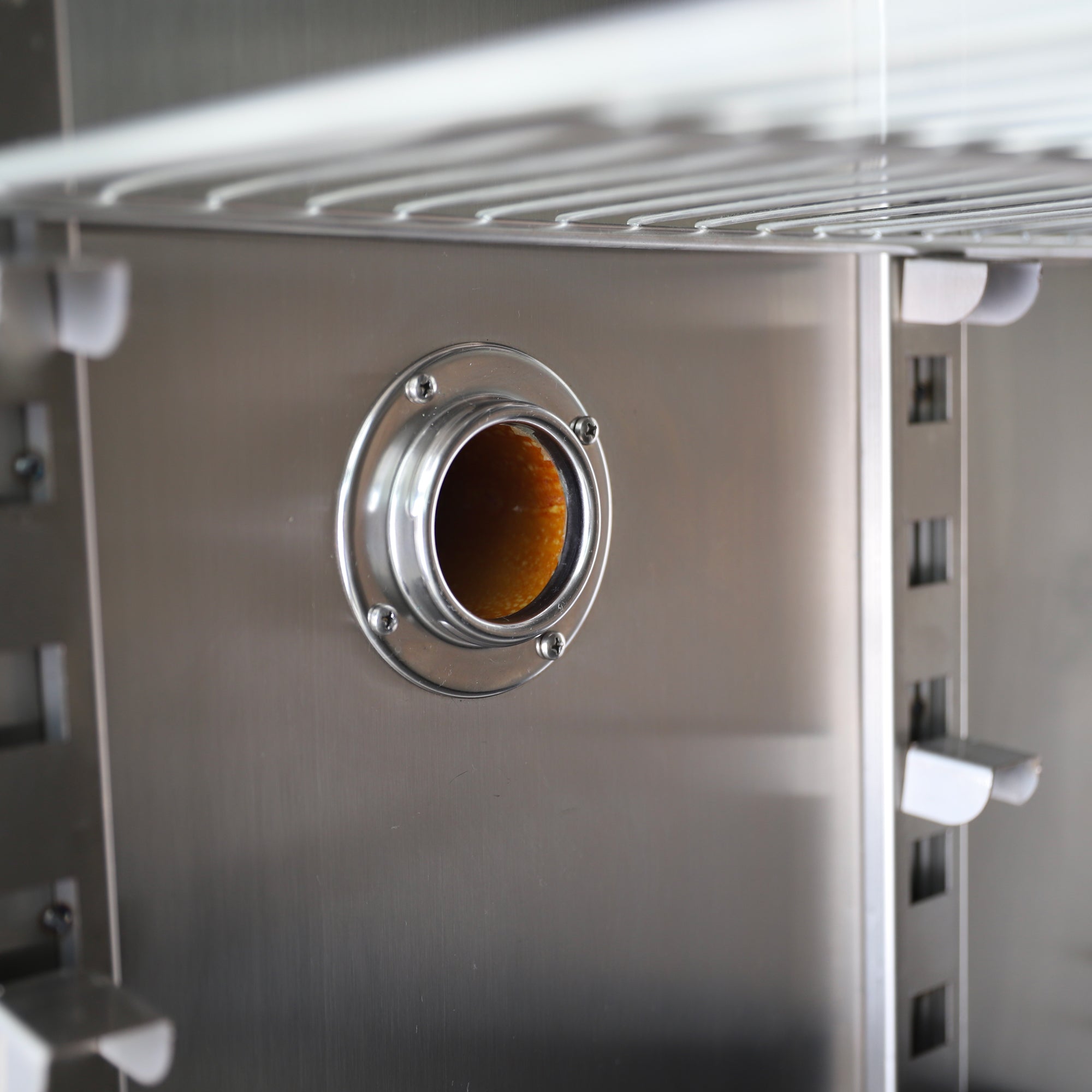

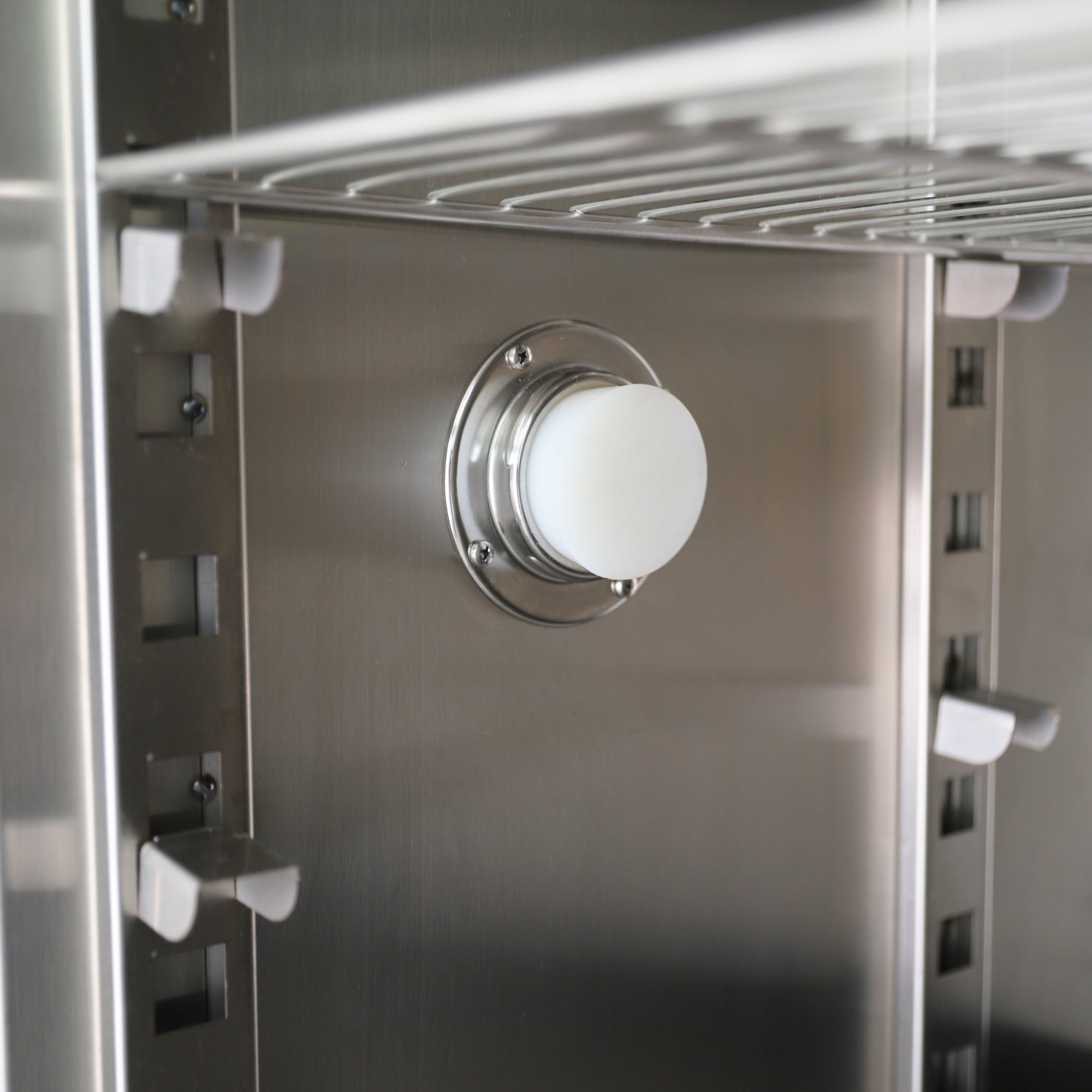

| Cable Port: | 50 mm [2 inch] |
| Control Panel: | 7 inch industrial color touch screen, temperature and humidity program controller |
| Comminication: | USB, RS485 and Ethernet |
| Compressor Brand: | Germany Secop, French Taikang, Germany BIitzer, etc. |
| Cooling Mode: | Air-cooled |
| Humidifier: | Heavy duty stainless steel 304 electrical heating humidifier |
| Cooling Mode: | Air-cooled |
| Workspace Dimensions [WxDxH]: | 500*400*500 mm [19.7∗15.7∗19.7 in] |
| Exterior Dimensions [WxDxH]]: | 980*920*1600 mm [38.6∗36.2∗63.0 in] |
| Installed Power: | 3.8 kW |
| Electrical Supply: | North America: 208~240V, 1P, 60Hz or 208~240V, 3P, 60Hz International: 220~240V, 1P, 50Hz or 380~400V, 3P, 50Hz |
| Gross Weight: | 300 kg | 661lbs |
