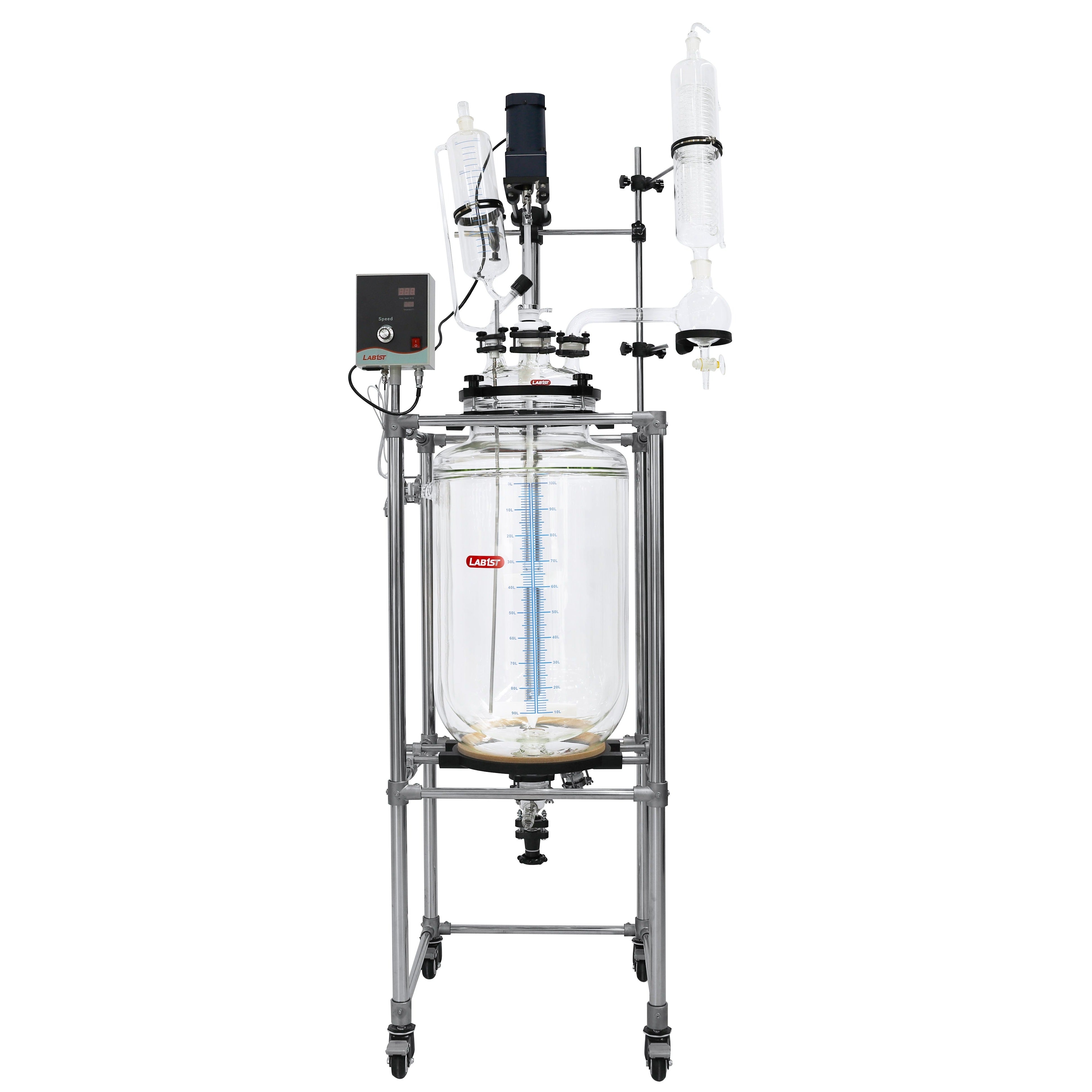

50L Chemical Lab Jacketed Glass Reactor Vessel with Digital Display for Laboratory Reaction
Got questions?
Feel free to get in touch
Couldn't load pickup availability

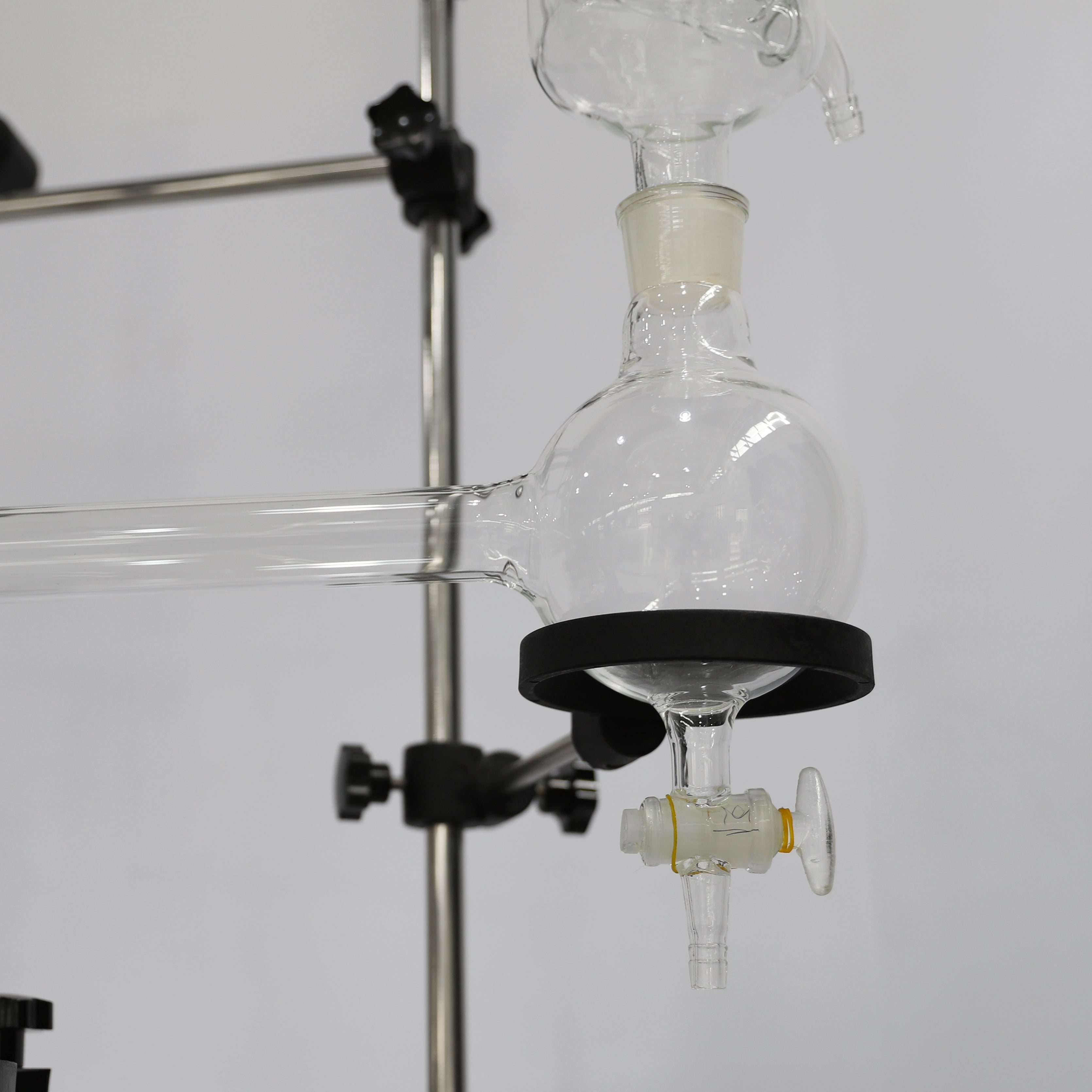

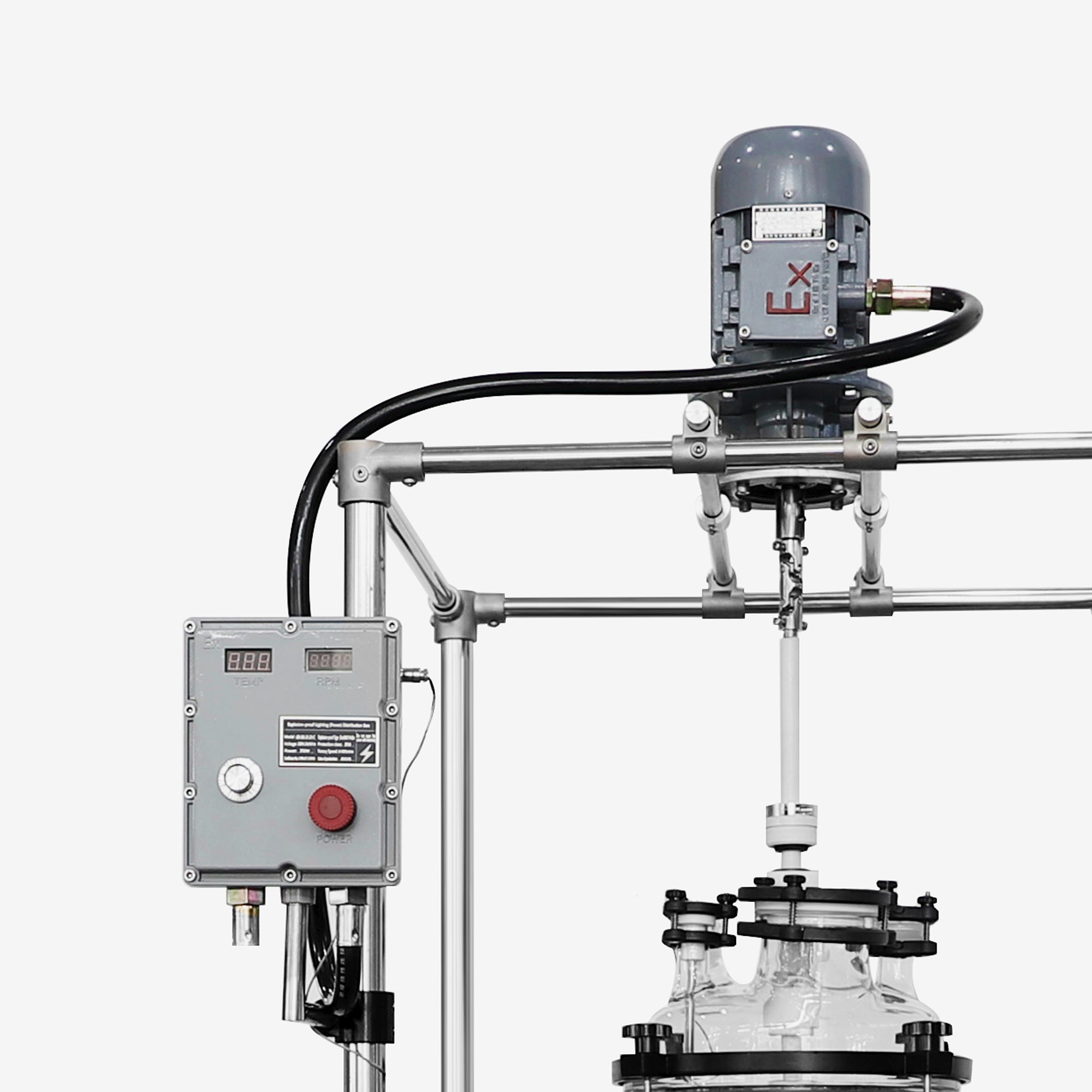

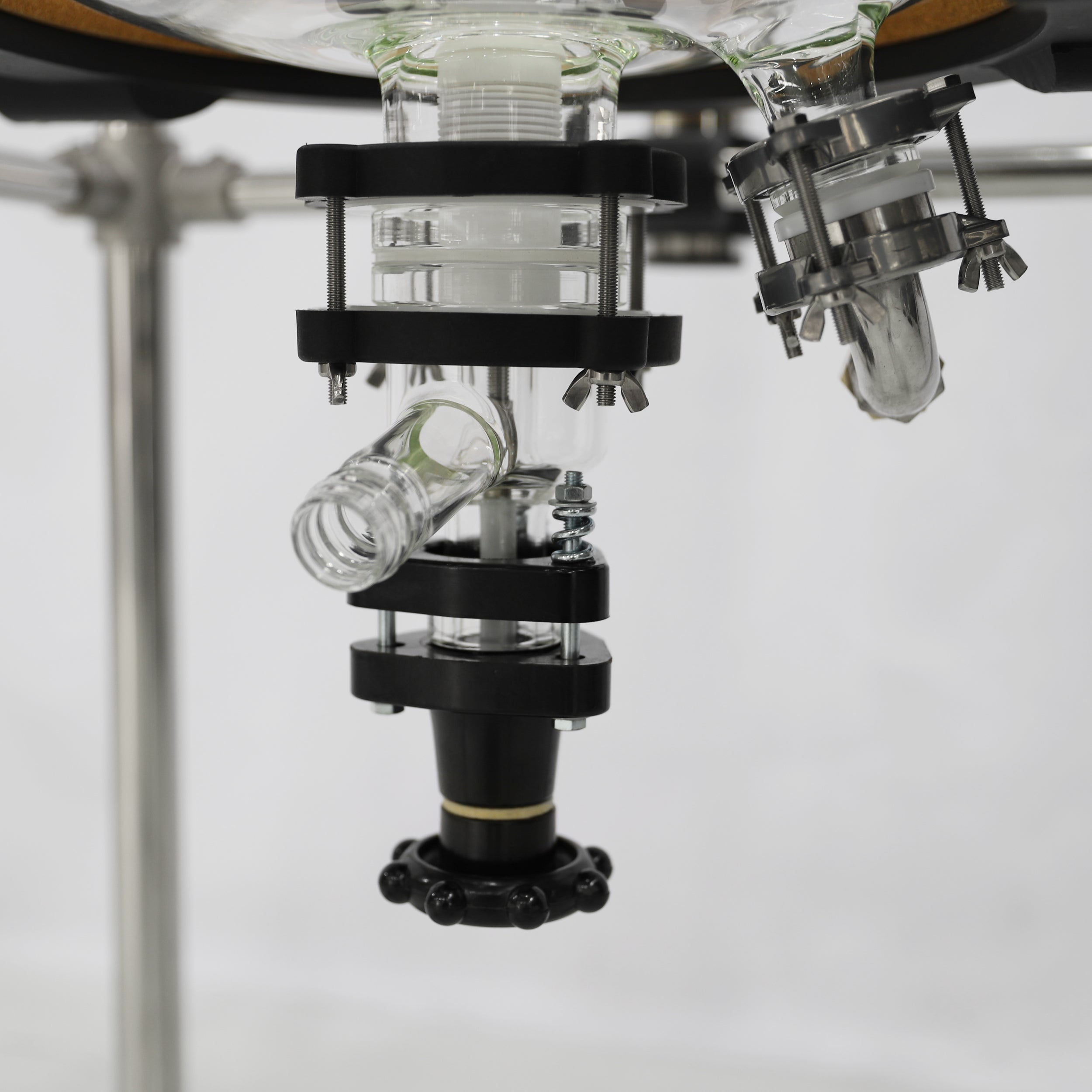

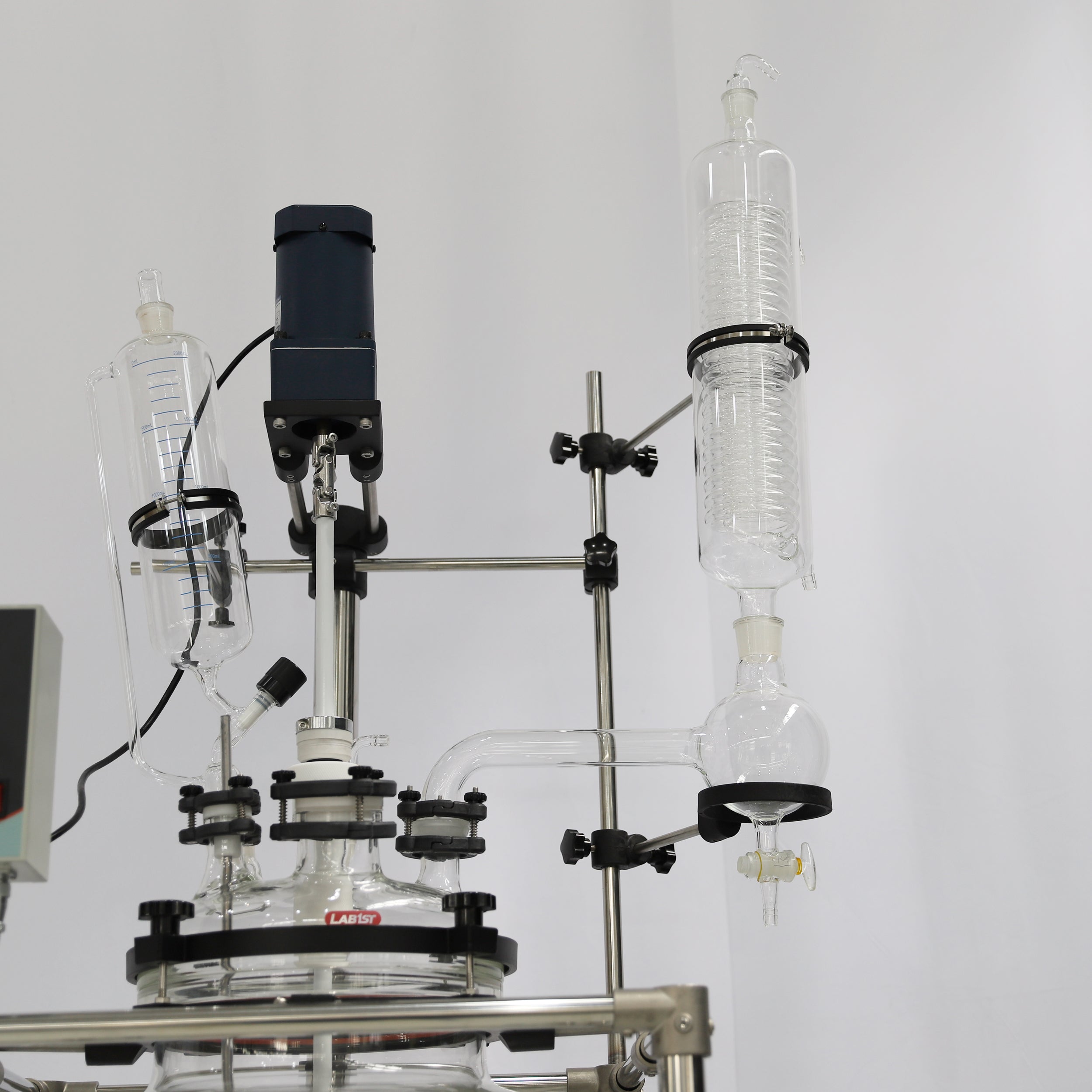

Lab1st JGR-L series jacketed glass reactors are designed as a multi-purpose reaction platform with controlled temperature and pressure environment, for both laboratory and scale-up applications. Each reactor consists of a corrosion resistant jacketed glass reaction vessel, PTFE coated variable speed stirrer system, temperature probe and digital display, and other accessories like feeding funnel, coiled condenser and bottom discharge valve.
Features:
- Multifunctional ports on the lid for feeding funnel, temperature probe, condenser, stirrer, material feeding port and vacuum port.
- Large condenser cooling surface for exceptional condensation performance.
- Jacket interface can be matched with different heater and chiller.
- Optional high quality thermal insulation jacket available.
Specification:
- Temperature Range: -120℃~250℃
- Jacket Pressure: ≤0.05Mpa
- Internal Vessel Pressure: ≥-0.098Mpa
- Glass Material: High borosilicate glass
- Vacuum Seaing: PTFE
- Electrical Requirements: 220V, 50/60HZ , Single Phase

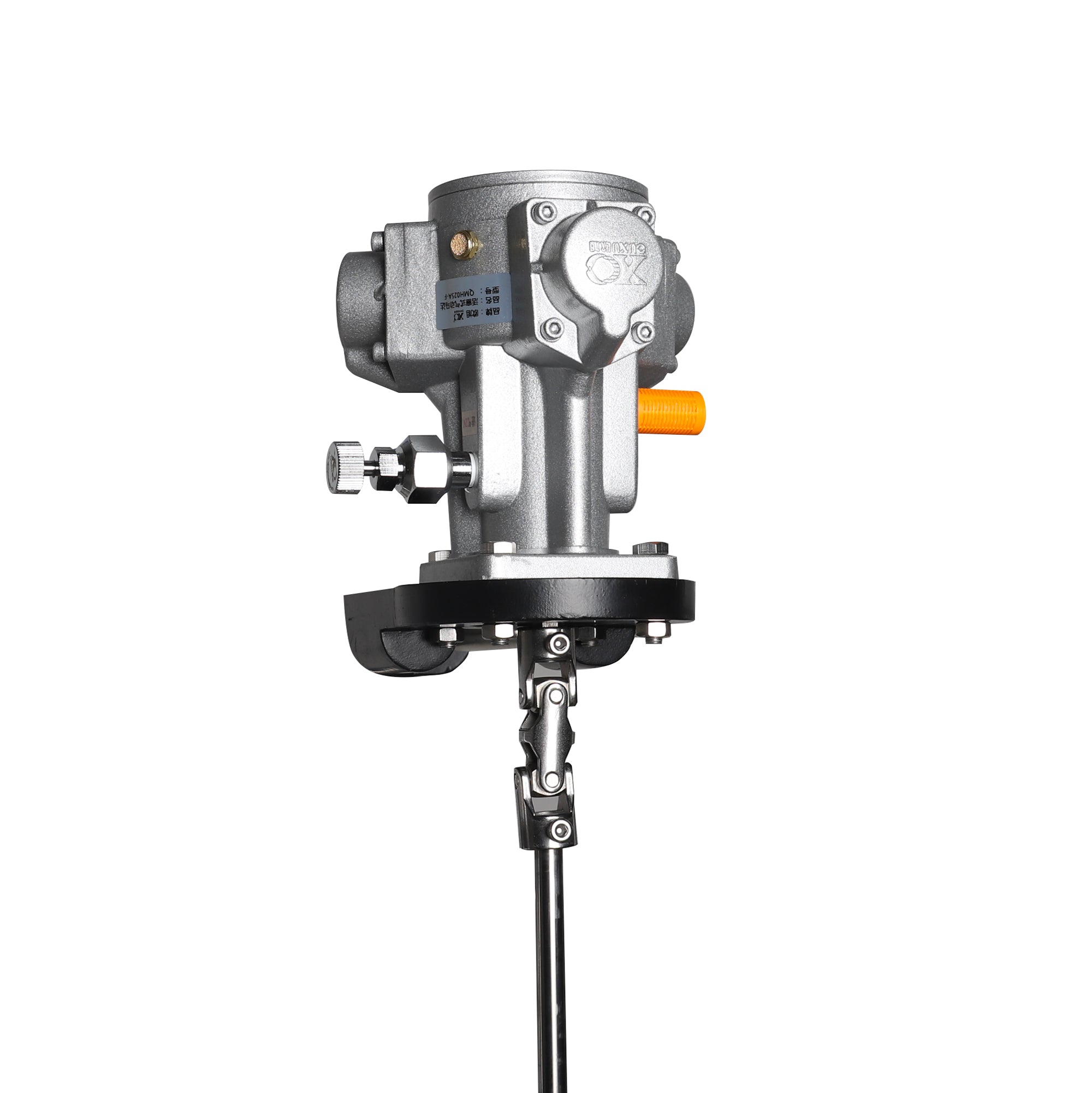

- Stirring Motor Power [W] : 120
- Rotation Controller: 1200 rpm
- Agitator Type: PTFE paddle (multiple types available)
- Stirring Blades Layer: Single layer ( double layer can be customized)
- Ports on the Lid [pcs]: 5+1
- Reaction Vessel Volume [L]: 50L
- Jacket Volume [L]: 16L
