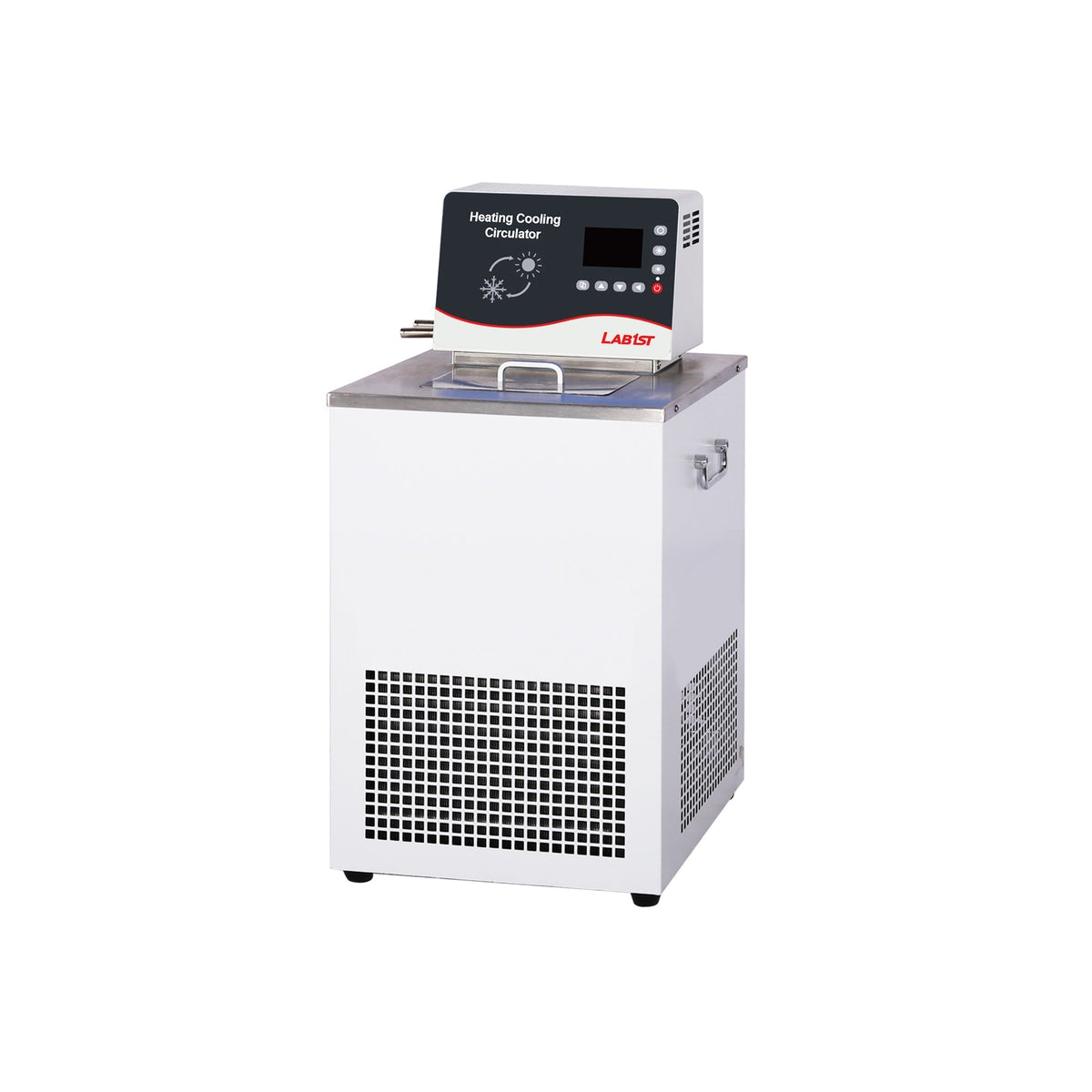

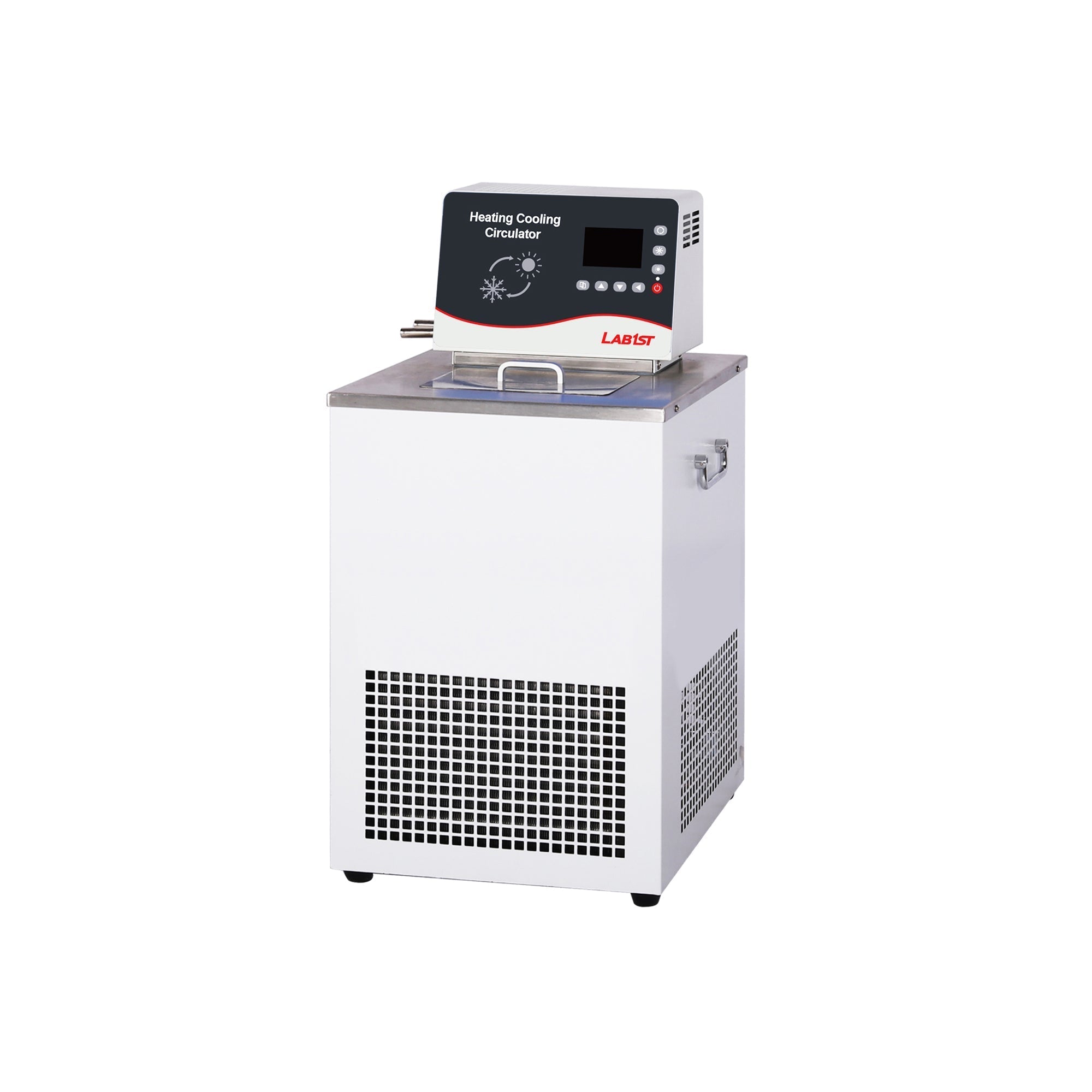

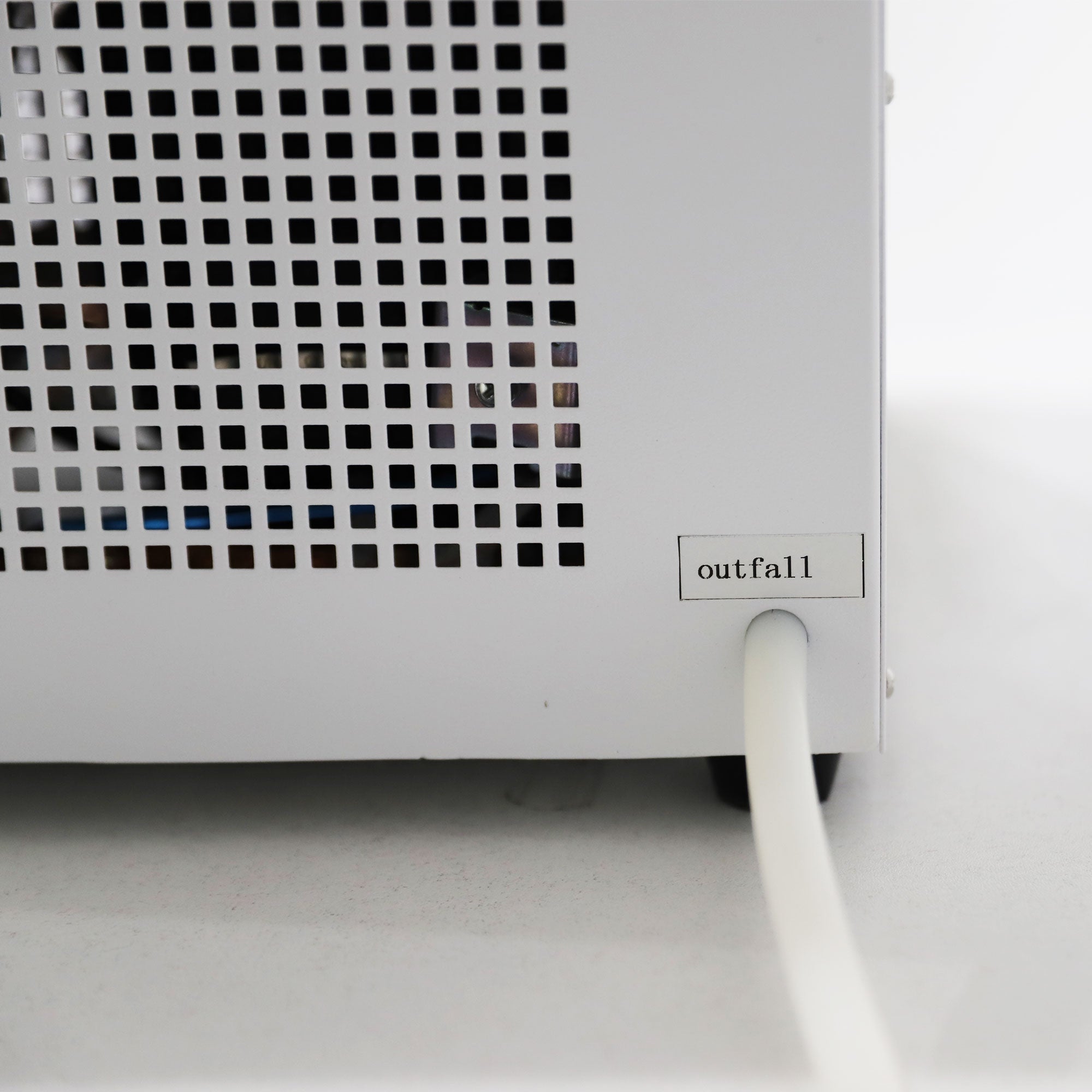

-20℃~95℃ 6L, 20L or 30L Water Bath Recirculating Water Heating Cooling Chiller Circulators for Laboratory
Got questions?
Feel free to get in touch
This Water Bath Recirculating Water Heating Cooling Chiller Circulator is perfect for laboratory use, with a temperature range of -20℃ to 95℃ and varying capacities of 6L, 20L, or 30L. Its precise temperature control and constant flow allow for accurate and efficient heating and cooling. A must-have for any laboratory setting.
Features:
- Realize inside and outside circulation, achieve "constant temperature" in the liquid tank
- The compressor can be started at high temperature
- Intelligent control system, rapid temperature rise, stable temperature, easy to operate
- Benchtop design, compact structure
- Open bath, suitable for internal/external applications
- Suitable for small applications with high precision
Specification:
- Usage Temperature [℃]: -20~95℃; ±0.05℃
- Ambient Temperature [℃]: 5-30℃
- Optimum Ambient Humidity: 45-80％RH
- Electrical Requirements: 220V;1P; 50/60HZ
- Temperature Sensor: PT100
- Safety: It has multiple protection of overheat and overcurrent
- 6L water heating cooling chiller (DC-20-06L)
- Bath Dimension [mm]: 280×220×165
- Refrigerating Fluid: R134A
- Bath Opening Size [mm]: 180×140
- Heating Power [W]: 800

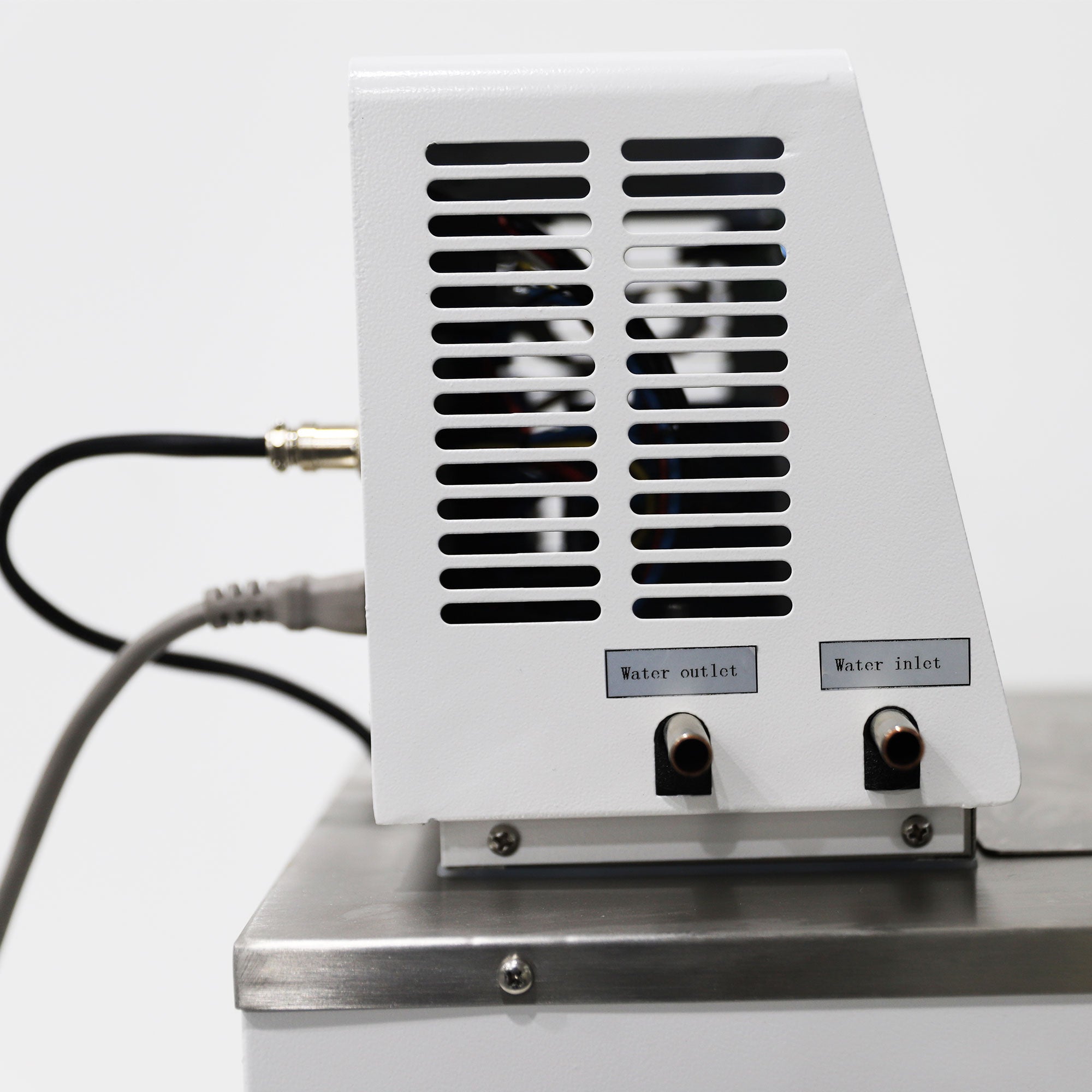

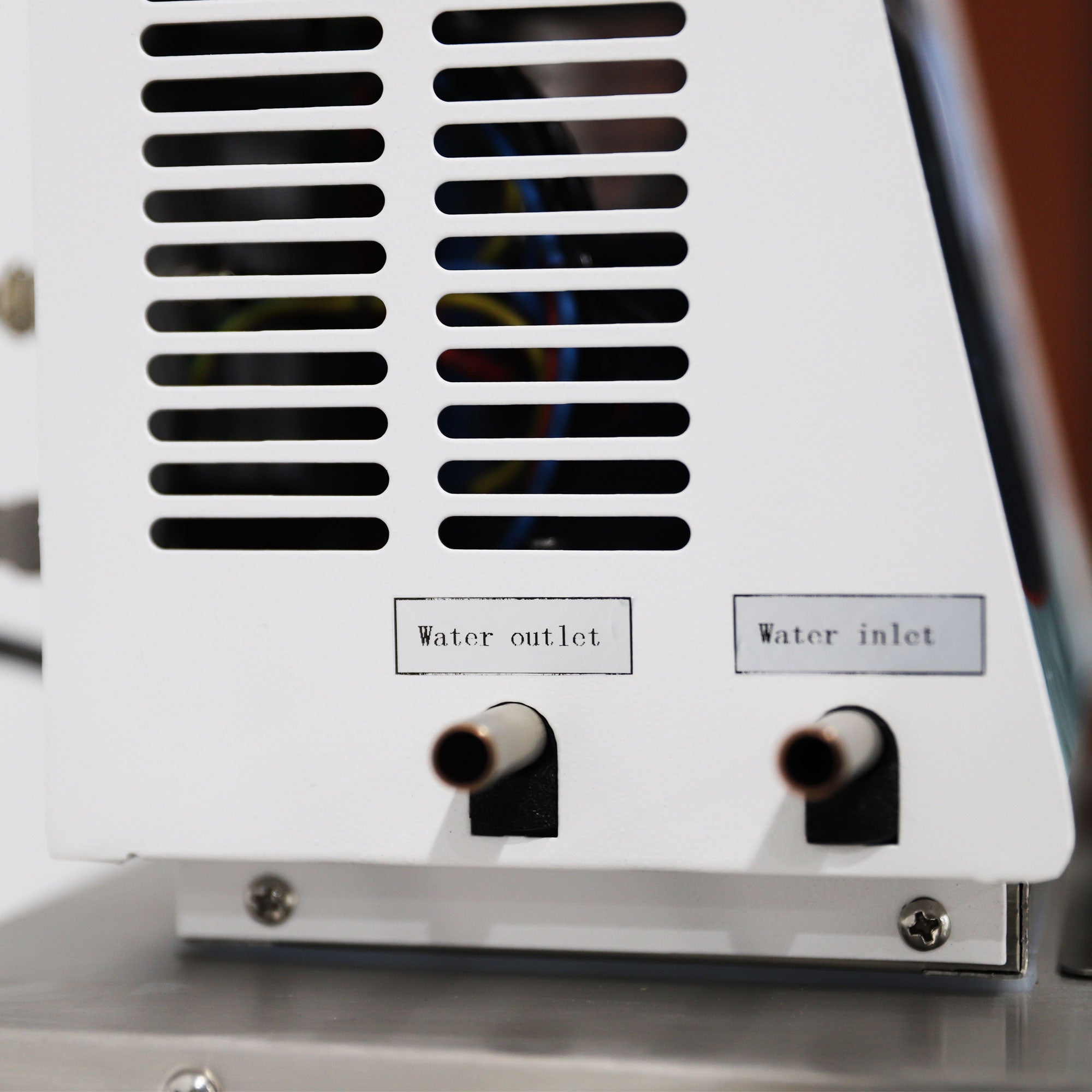

- Circulation Interface: 10mm Barb×2
- Power [W]: 136
- Rated Lift [m]: 1
- Rated Flow [L/min]: 6
- Running Weight [KG]: 22
- Unit Dimension [mm]: 370×320×650
- 20L water heating cooling chiller (DC-20-20L)
- Bath Dimension [mm]: 300×220×200
- Refrigerating Fluid: R22
- Bath Opening Size [mm]: 300×220
- Heating Power [W]: 2000
- Circulation Interface: 10mm Barb×2
- Power [W]: 620
- Rated Lift [m]: 11
- Rated Flow [L/min]: 20
- Running Weight [KG]: 43
- Unit Dimension [mm]: 485×400×925
- 30L water heating cooling chiller (DC-20-30L)
- Bath Dimension [mm]: 300×220×200
- Refrigerating Fluid: R22
- Bath Opening Size [mm]: 300×220
- Heating Power [W]: 2000
- Circulation Interface: 12mm Barb×2
- Power [W]: 680
- Rated Lift [m]: 11
- Rated Flow [L/min]: 20
- Running Weight [KG]: 49
- Unit Dimension [mm]: 485×400×925
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
Customer Reviews
Works great. Temp readout is nice and clear. No issues!
