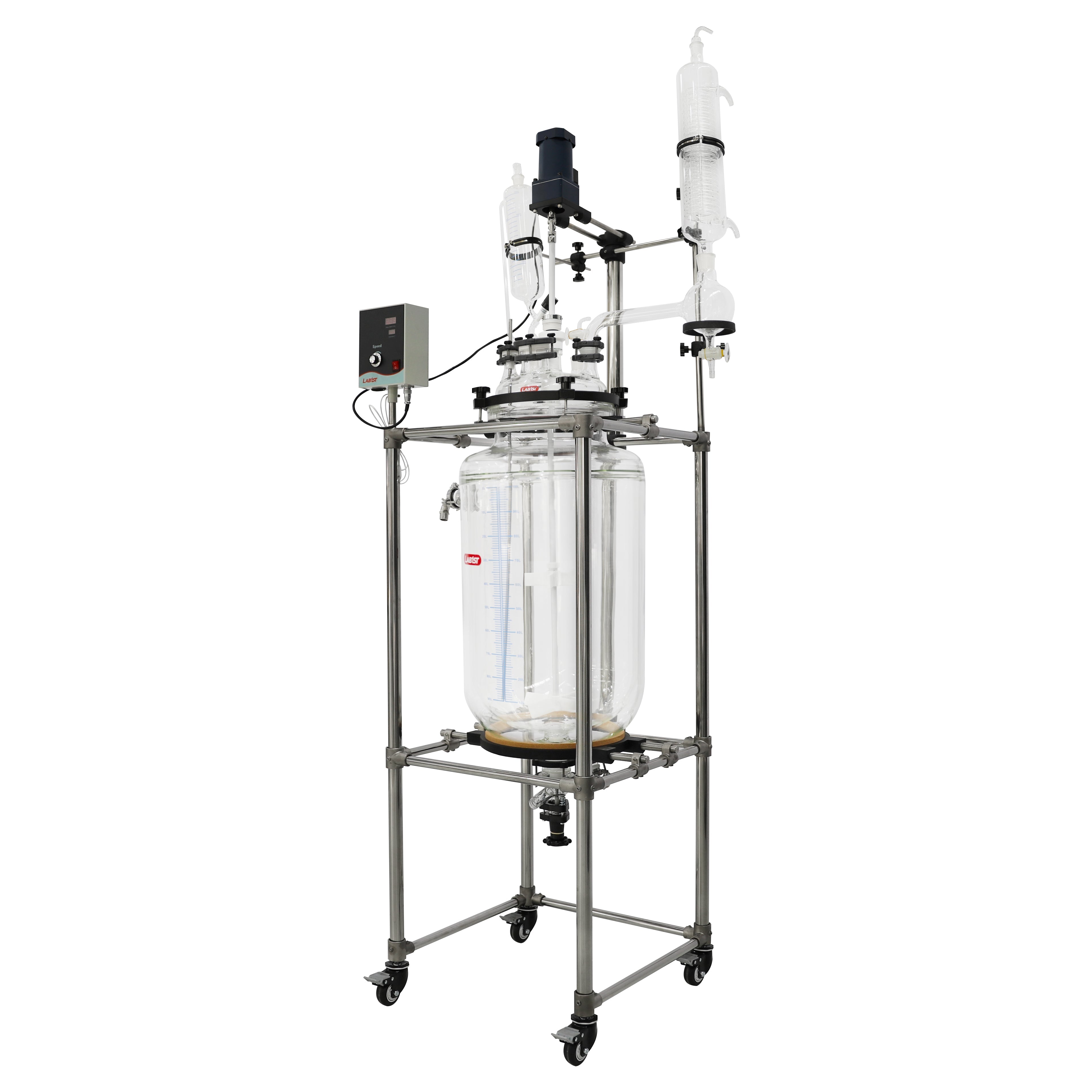

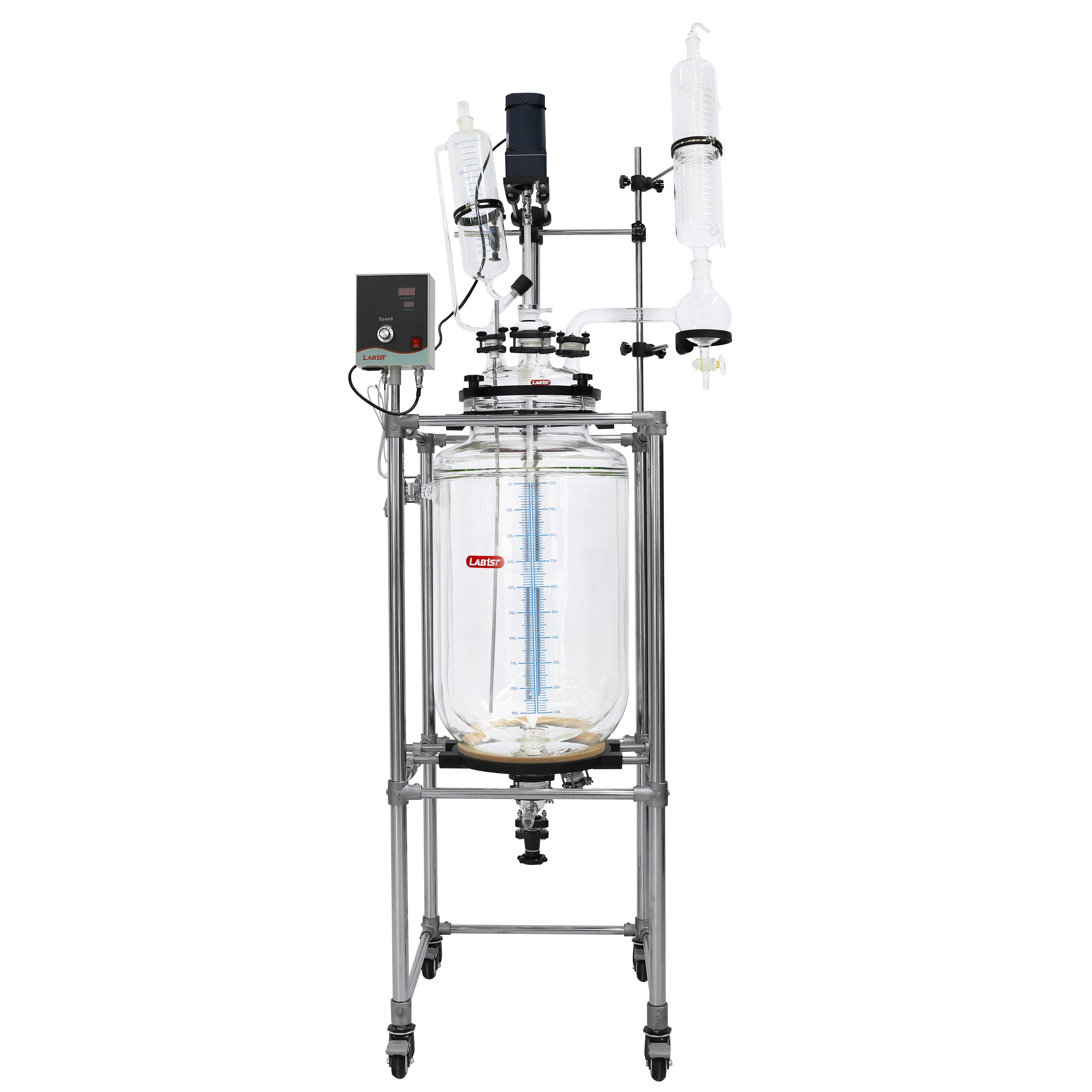

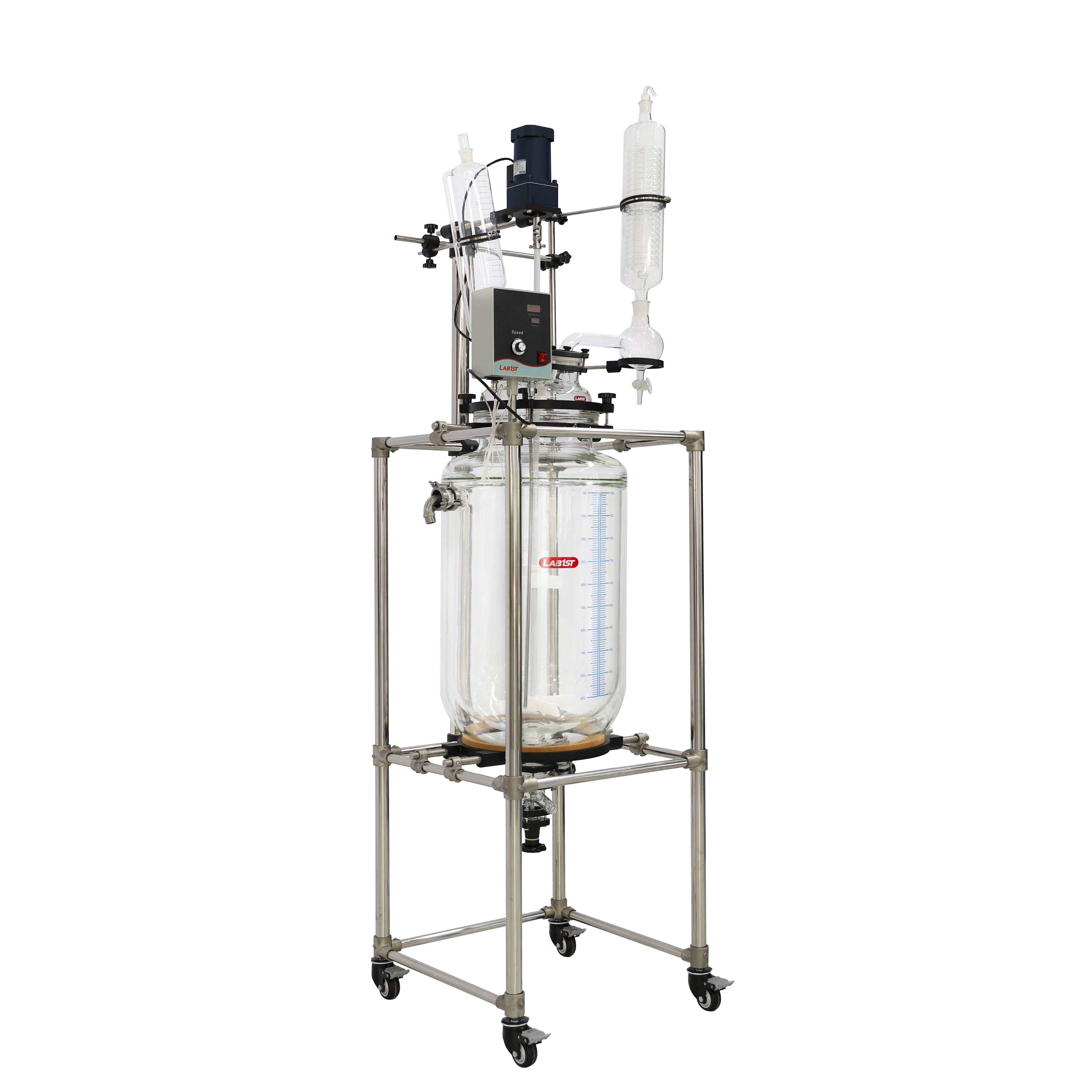

150L Chemical Lab Jacketed Glass Reactor Vessel with Digital Display for Laboratory Reaction
Got questions?
Feel free to get in touch
Couldn't load pickup availability

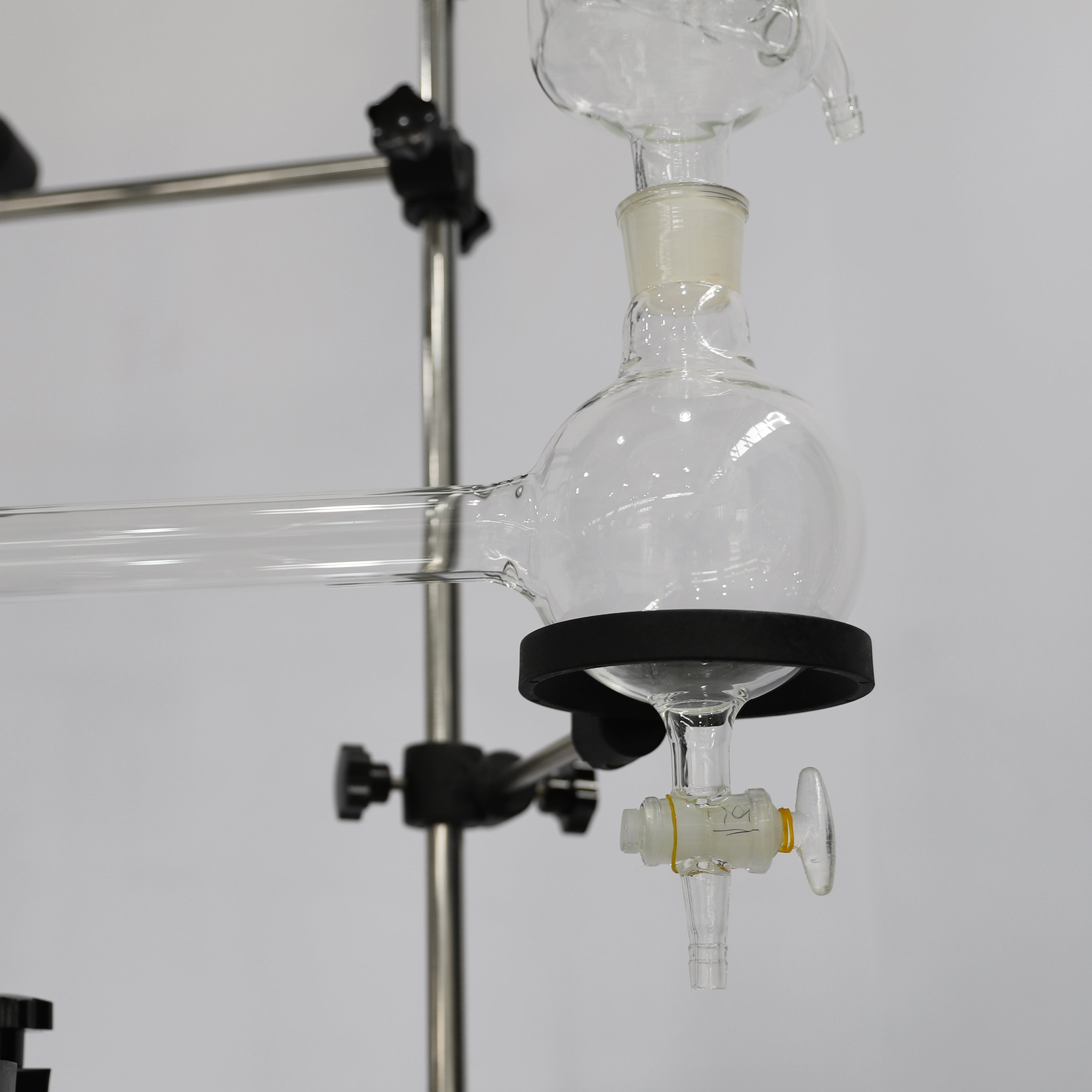

The Lab1st JGR-L series jacketed glass reactor is ideal equipment for reactions and mixing of different materials under a specific adjustable temperature and vacuum environment. JGR-150L with 150L reaction vessel perfectly fits for varied reaction needs. It can be operated under a wide range of temperature, from -80℃ to 200℃. All of its glassware of is made of high borosilicate glass that is heat, cold and corrosion resistant. Besides, a condenser is installed to make recovery.
Features:

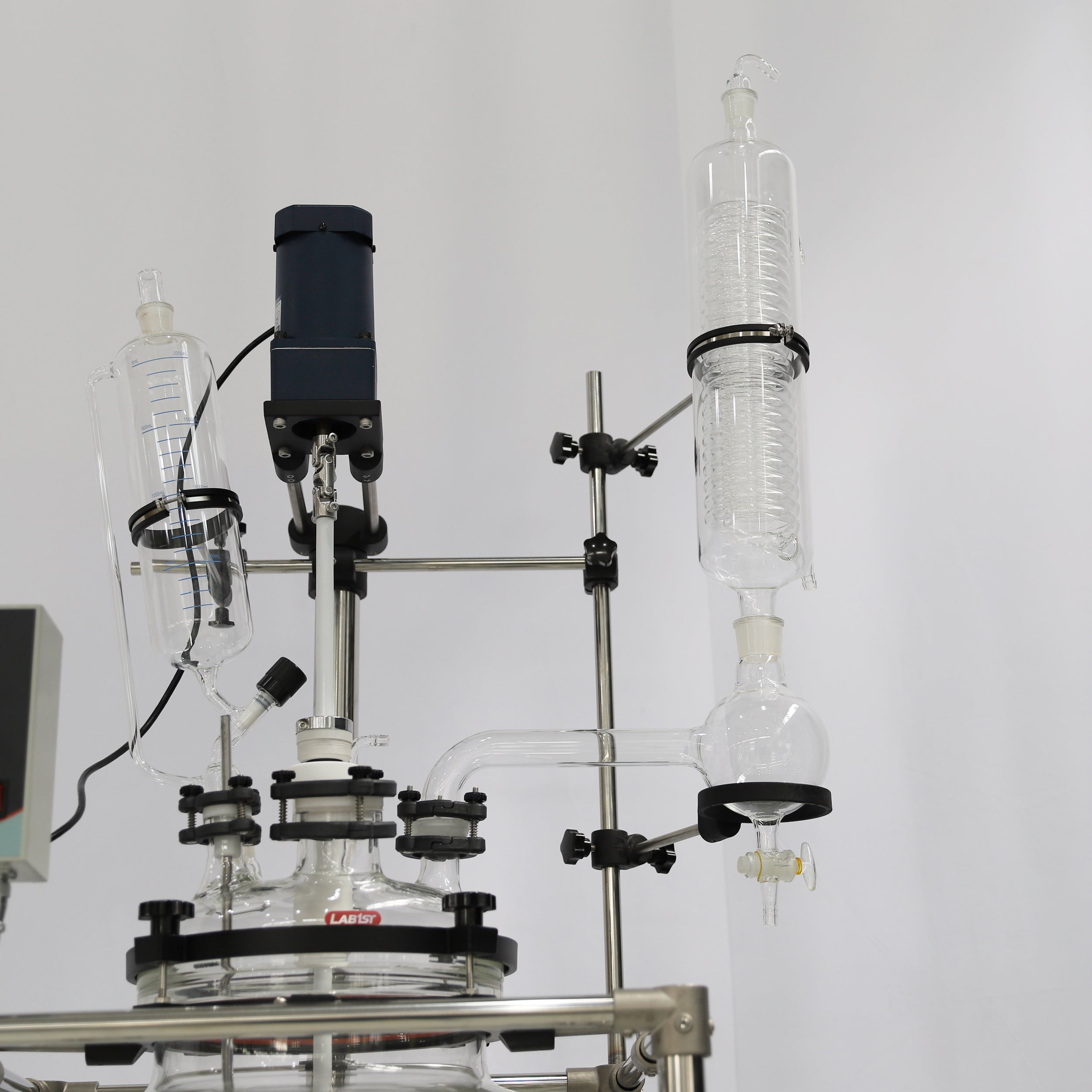

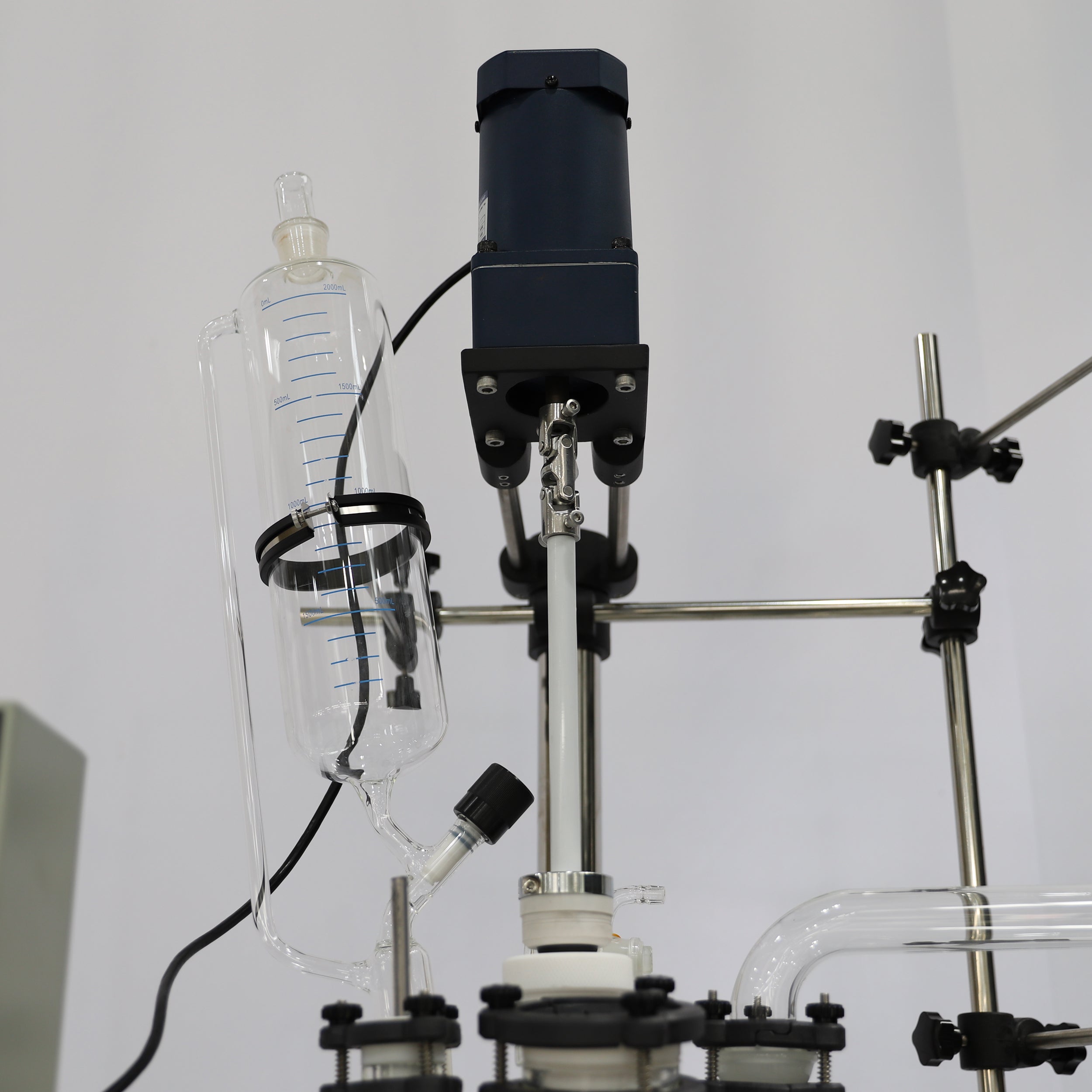

- Multifunctional ports on the lid for feeding funnel, temperature probe, condenser, stirrer, material feeding port and vacuum port.
- Large condenser cooling surface for exceptional condensation performance.
- Jacket interface can be matched with different heater and chiller.
- Optional high quality thermal insulation jacket available.
Specification:
- Temperature Range: -120℃~250℃
- Jacket Pressure: ≤0.05Mpa
- Internal Vessel Pressure: ≥-0.098Mpa
- Glass Material: High borosilicate glass
- Vacuum Seaing: PTFE
- Electrical Requirements: 220V, 50/60HZ , Single Phase

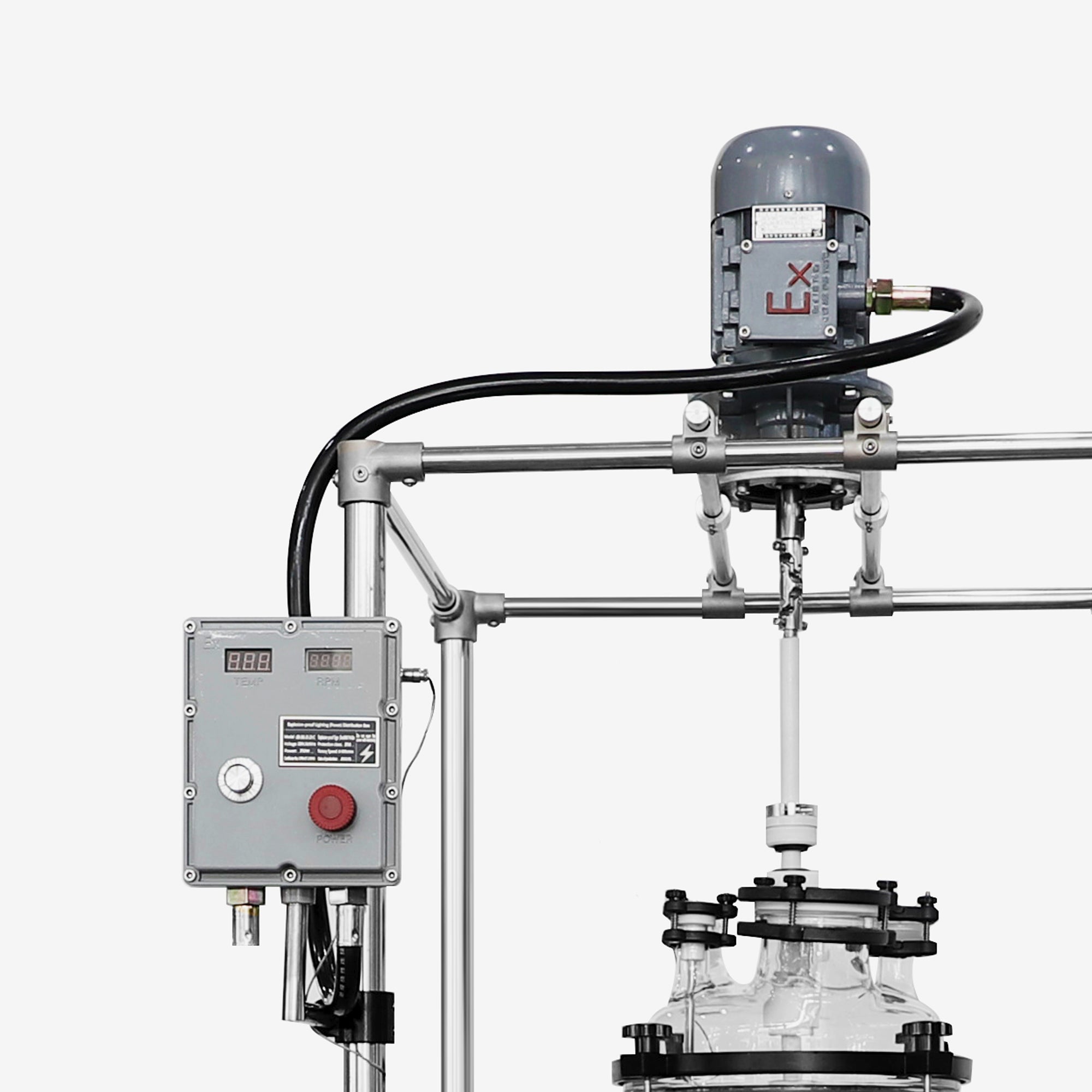

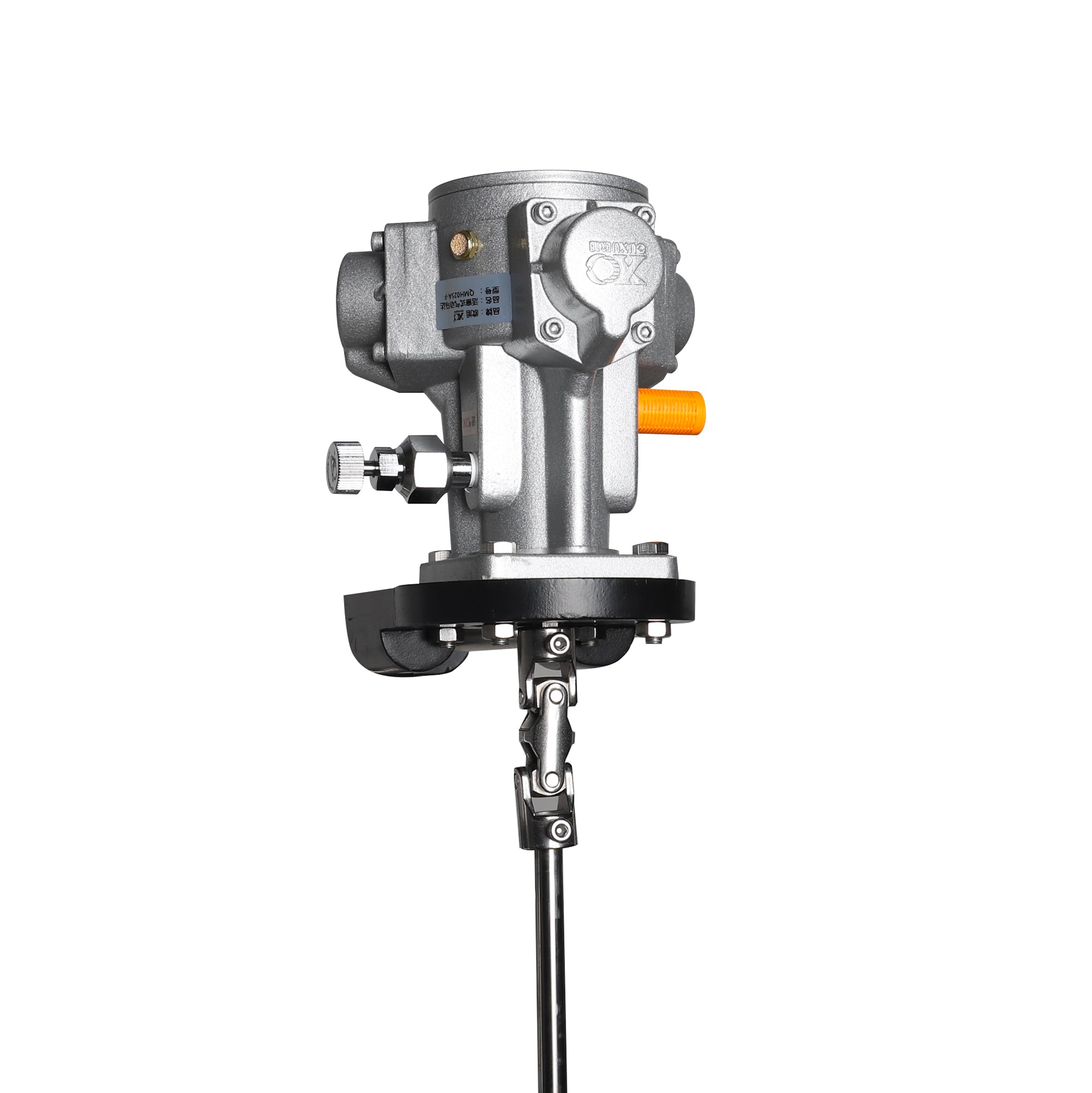

- Stirring Motor Power [W] : 750
- Rotation Controller: 1200 rpm
- Agitator Type: PTFE paddle (multiple types available)
- Stirring Blades Layer: Single layer ( double layer can be customized)
- Ports on the Lid [pcs]: 5+1
- Reaction Vessel Volume [L]: 150L
- Jacket Volume [L]: 35L
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
