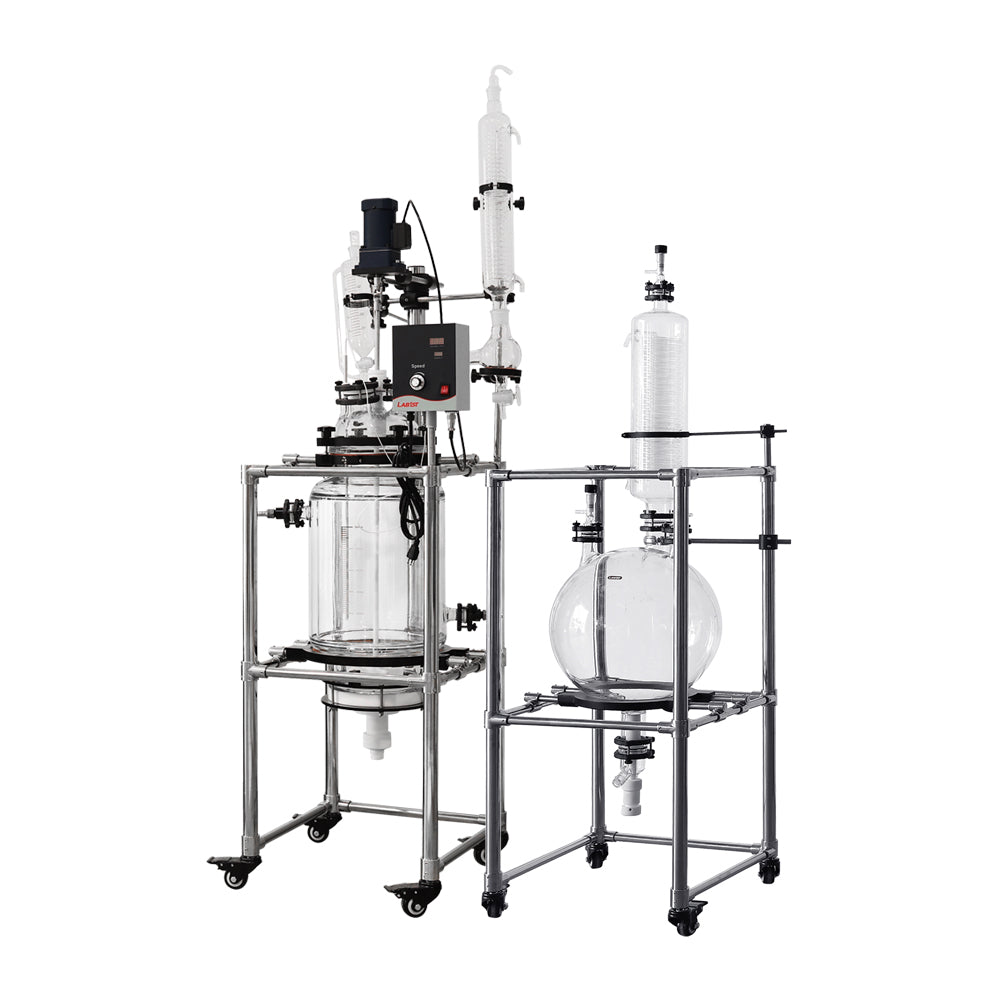

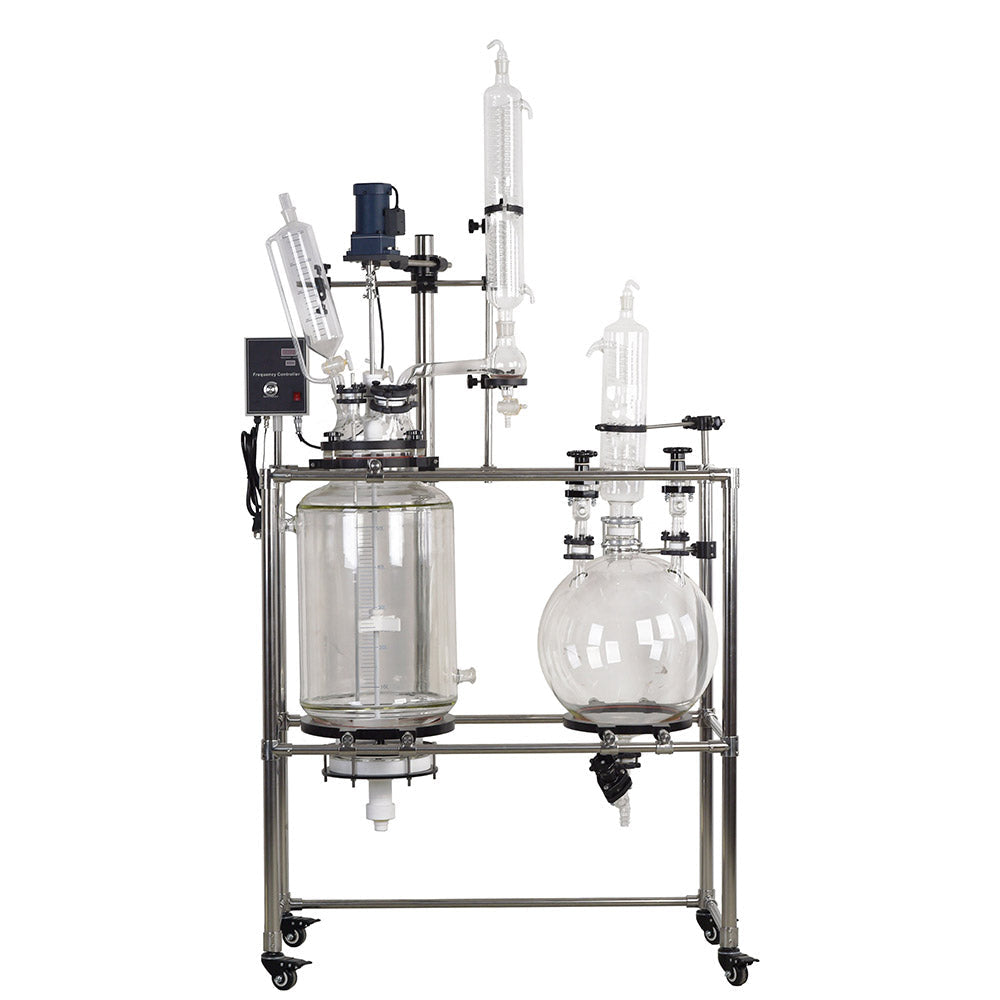

10L Vacuum Filter Jacketed Glass Vessel Stirred Crystallization Reactor
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Experience top-notch laboratory performance with our 10L Vacuum Filter Jacketed Glass Vessel Stirred Crystallization Reactor. Designed for efficient filtration and crystal formation, this reactor utilizes vacuum technology for superior results. The jacketed glass vessel ensures precise temperature control, while the stirring mechanism promotes even mixing. Perfect for any laboratory or research setting.
Features:
- With filter plate on the bottom for filtration

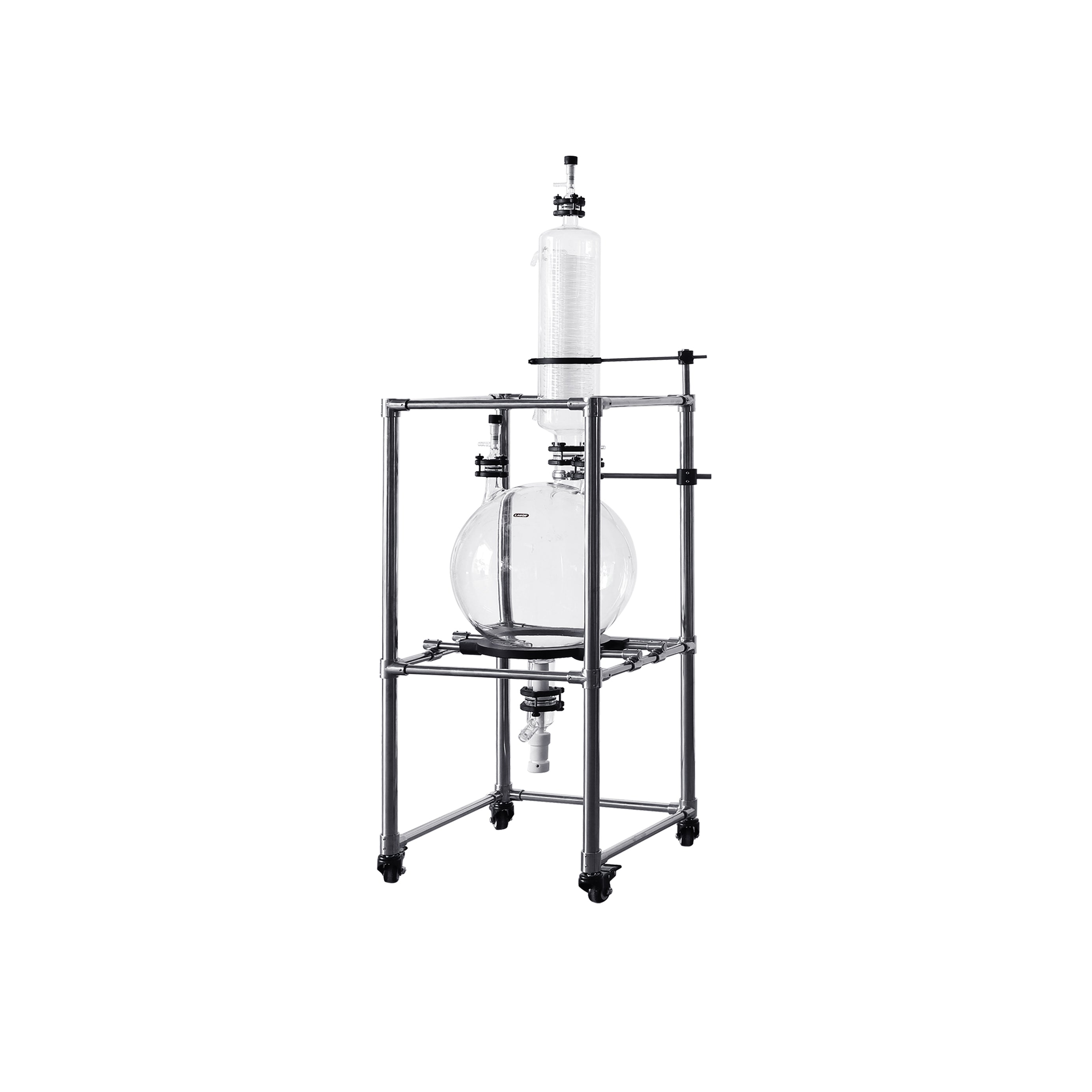

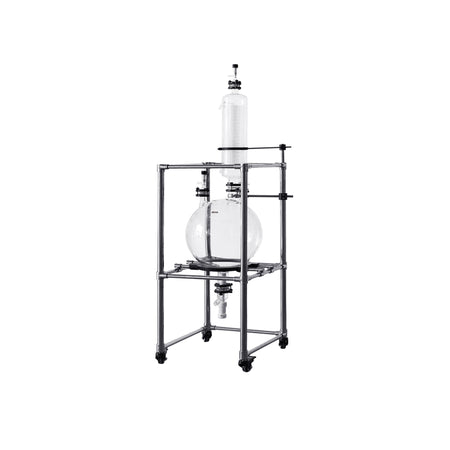

- Equipped with mother liquor collection flask with condenser and moving trolley.
- Jacket interface can be matched with different heater and chiller.
- Optional high quality thermal insulation jacket available.
Specification:
- Temperature Range: -80℃~200℃ [Glass]
- Jacket Pressure: ≤0.05Mpa
- Internal Vessel Pressure: ≥-0.098Mpa
- Glass Material: High borosilicate glass
- Vacuum Sealing: PTFE
- Electrical Requirements: 220V, 50/60HZ Single Phase
- Stirring Motor Power [W]: 120
- Rotation Controller: Variable frequency drive，600 rpm
- Agitator Type: PTFE stirring paddle（Various types available）
- Filtration Pore Size: 40~80μm
- Stirring Blades Layer: Single layer (double layer can be customized)
- Reaction Vessel Volume [L]: 10
- Liquid Collection Flask Volume [L]: 10
- Jacket Volume [L]: 3
