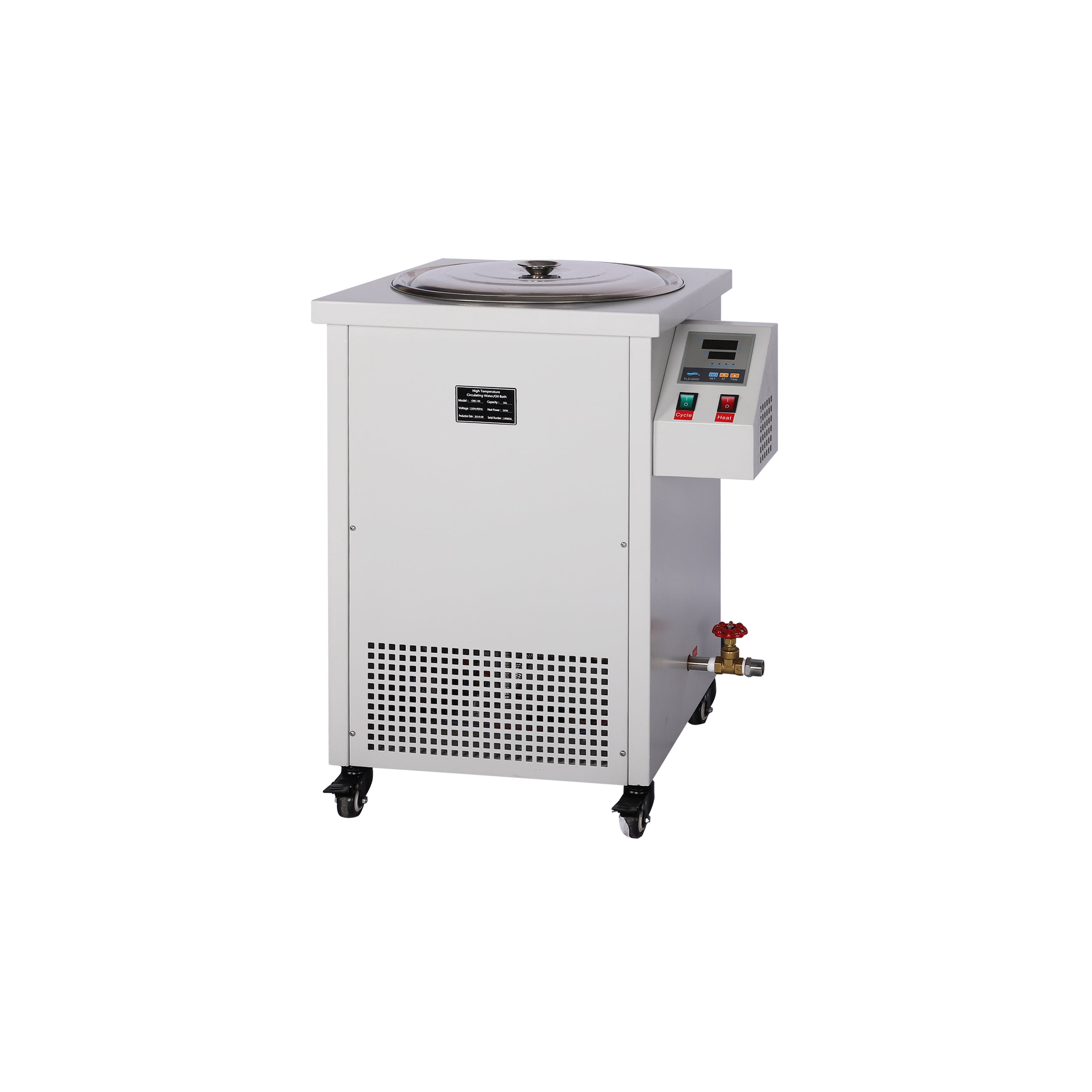

10L/min Up to 180C 5L Open Bath Heating Circulator
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Lab1st OBC series is a kind of heating bath circulator, with temperature ranges from RT~99°C or RT~180°C. It can provide heating fluid to jacketed reactors or other devices. Heat transfer fluid can be water or oil according to specific temperature requirements. It is widely used for drying, concentration, distillation, dipping in chemical reagents, dipping medicines and biological products.
Specification:
- Design Temperature [℃] Water bath: RT~99°C; ±1°C; Oil bath: RT~180°C; ±1°C
- Ambient Temperature: -10 ~ 60°C
- Optimum Ambient Humidity: < 90%RH
- Electrical Requirements: 220V;1P
- Frequency [HZ]: 50 or 60
- Total Power [Kw]: 1.6
- Heating Power [Kw]: 1.5
- Temperature Sensor: PT100
- ---FLUID BATH---
- Volume [L]: 6
- Bath Opening Size [mm]: Ø200
- Bath Depth [mm]: 200
- Circulation Interface: DN20
- ---CIRCULATION PUMP---
- Power [W]: 100
- Lift [m]: 4~6
- Rated Flow [L/min]: 10
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
Certificates
Frequently Asked Questions
Yes, all of our products have CE marked.
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping package(s) and about 20 to 30 business for Sea Shipping package(s). If it is out of stock, we will inform you the estimated delivery time according to different products.
To cancel an order, please submit a Support Form with “Cancel/Change Order” as reason for inquiry. Please include your order number in the body or subject line of the email to help us resolve the issue right away. Since orders often ship in 3--7 days after they are placed, it is important to contact us as soon as possible so that we can stop the order before it ships. Once the order is picked up we cannot cancel the order, but we can initiate a return. Please be aware that if the product is customized and there are no quality problems, it cannot be canceled, returned, or exchanged once the customization is completed.
Usually, our lab equipment can not customize and our most of our processing equipment can, if you're not sure, please contact us.
