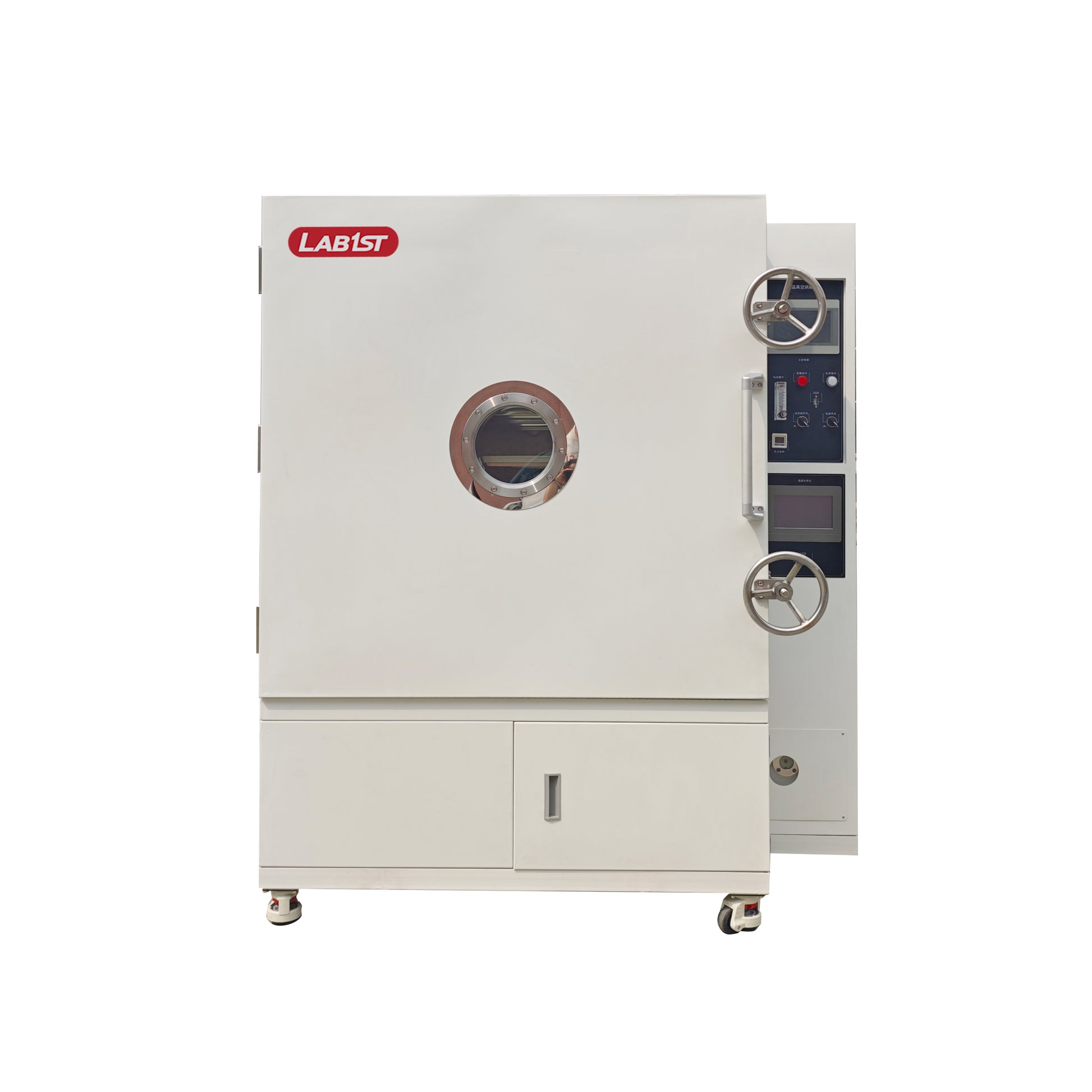

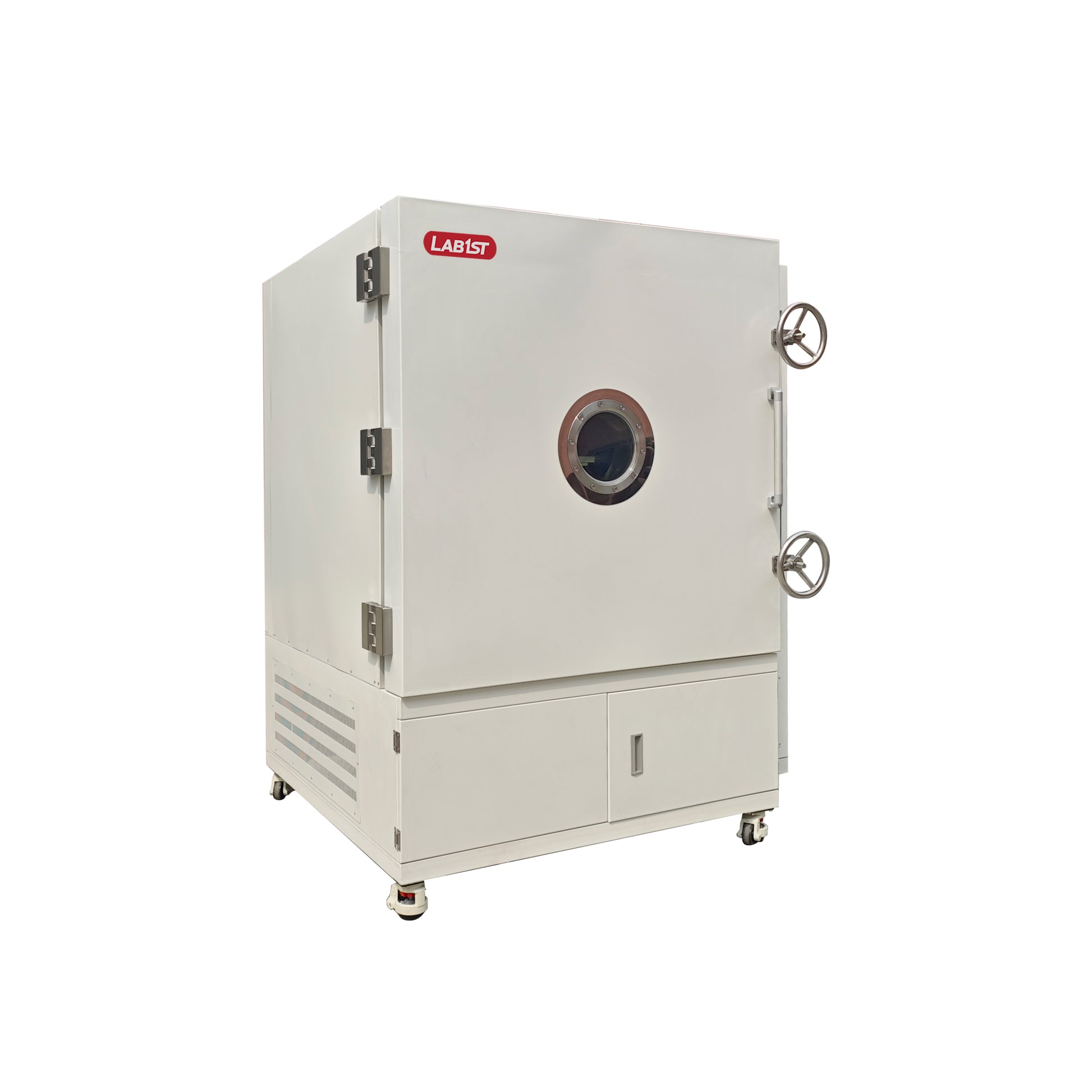

1000L Vacuum Oven with Recorder
Got questions?
Feel free to get in touch
Couldn't load pickup availability

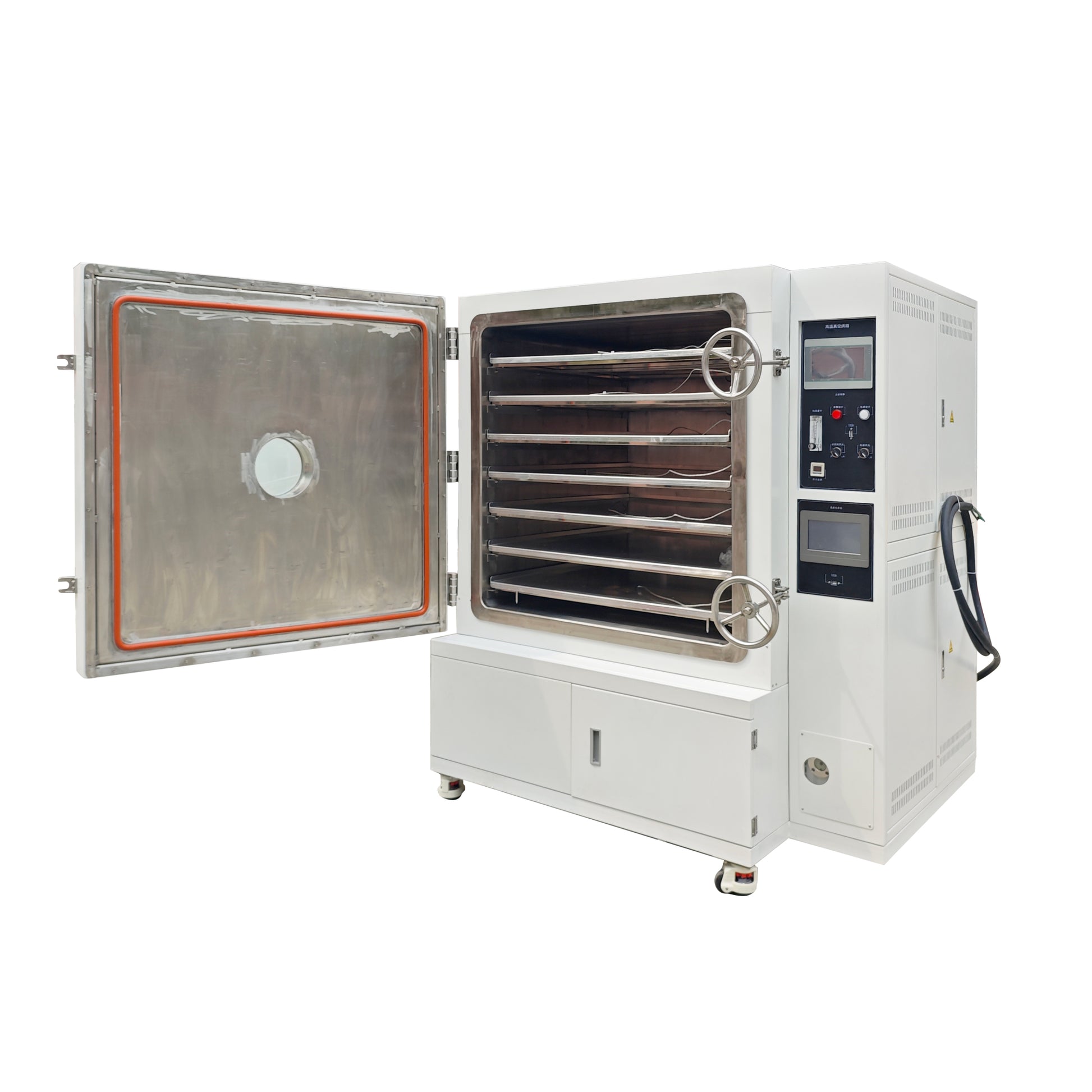

This unit features a compact internal chamber of 1000×1000×1000mm, with seven independently controlled heating plates, each capable of supporting up to 35kg. It offers precise temperature control from room temperature up to 400°C, with a single-layer error margin of 5–8°C and excellent stability at ±0.2°C. The vacuum system achieves a range from 100kPa down to 0.1kPa, and includes a front-stage condensation filter to prevent product powder from entering the pump. When the pump stops, the cold trap tank automatically vents and drains via a bottom electric valve. The door seal includes a water-cooling function for added thermal protection.
For more customized cases, please click here to see details. Or you could contact us (eshop.lab1st.com) for more information.
Features:
- Internal Dimension [W×D×H]: 1000×1000×1000mm
- When the vacuum pump is stopped, the cold trap tank is released from vacuum, and the bottom electric valve automatically drains the liquid.
- Total power: heating 6.6KW + pump 1.5KW

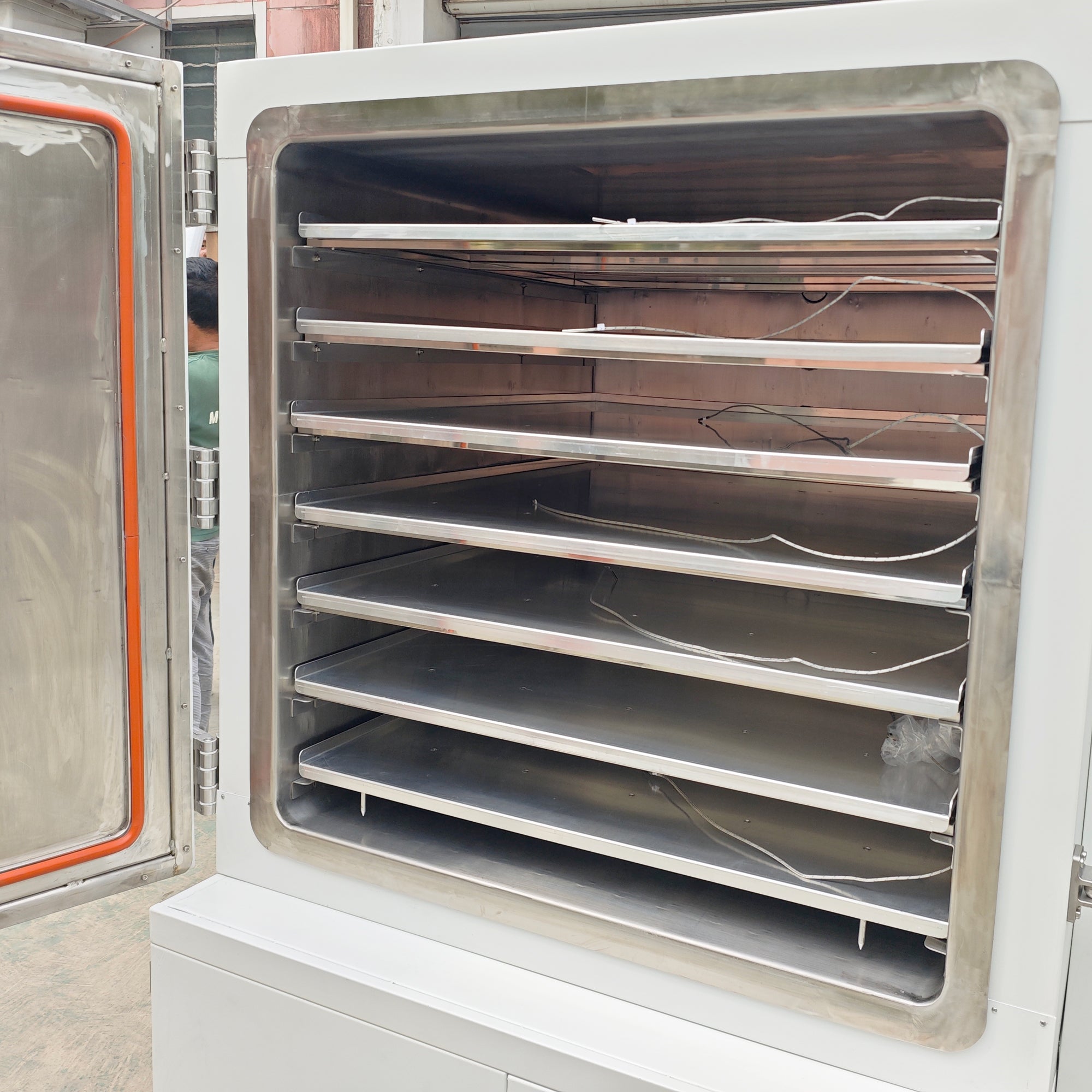

- Heating plate: 7 layers of independent heating plates (layer load-bearing 35Kg)
- Temperature range: RT~ 400℃, (common temperature unknown) single layer error 5~8℃, temperature fluctuation: 0.2℃
- Vacuum degree: limit 100Kpa~0.1KPa
- Requirements: The door seal ring has water cooling function, and the vacuum pump has a front-stage condensation filter to filter out the powder of the customer's product. It is not allowed to enter the vacuum pump
Customized Contents:
| Model | LBE-V3 |
| Basic Information | |
| Internal Chamaber Dimension [W×D×H] | 1000×1000×1000mm |
| External Dimension [W×D×H] | 1450×1520×1500mm |

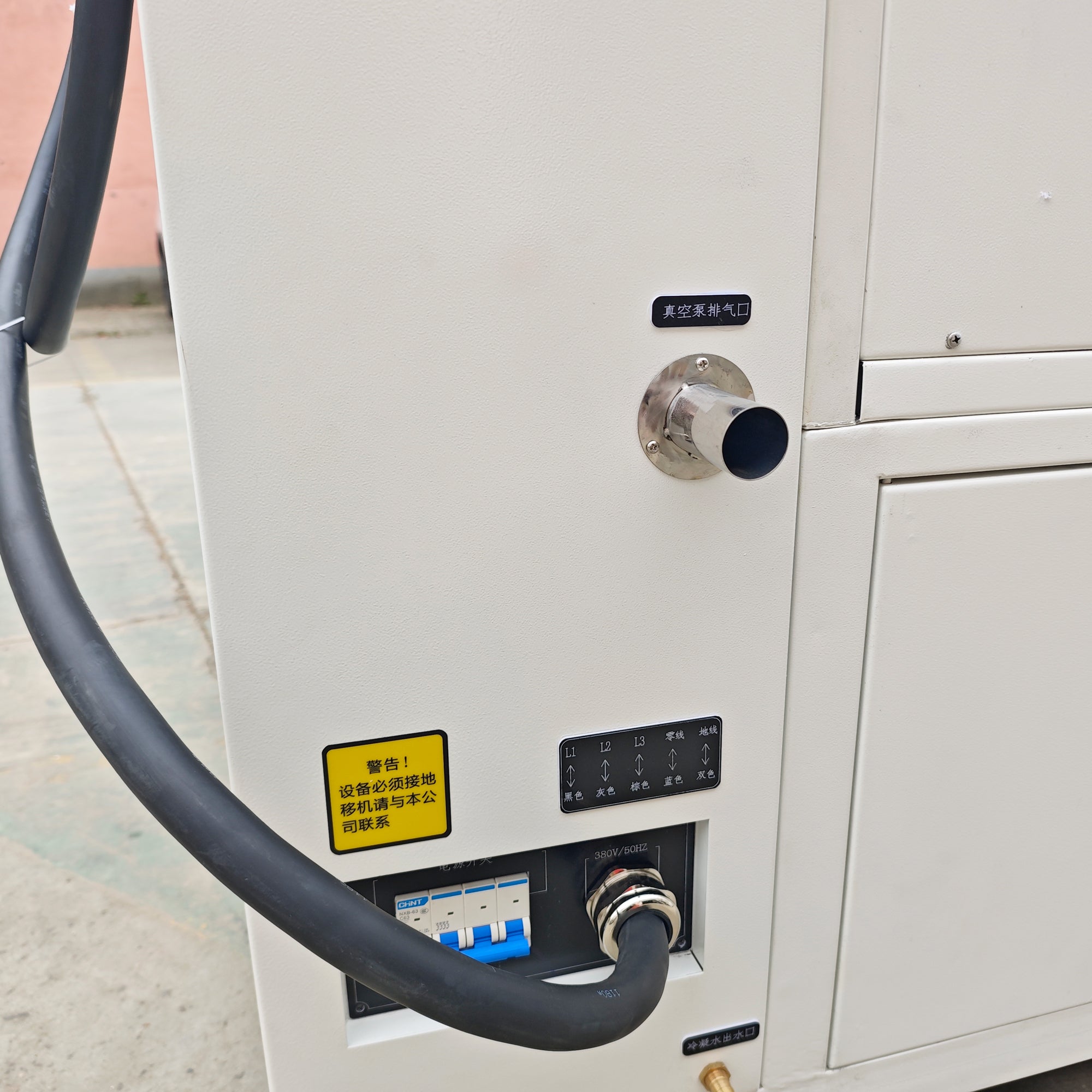

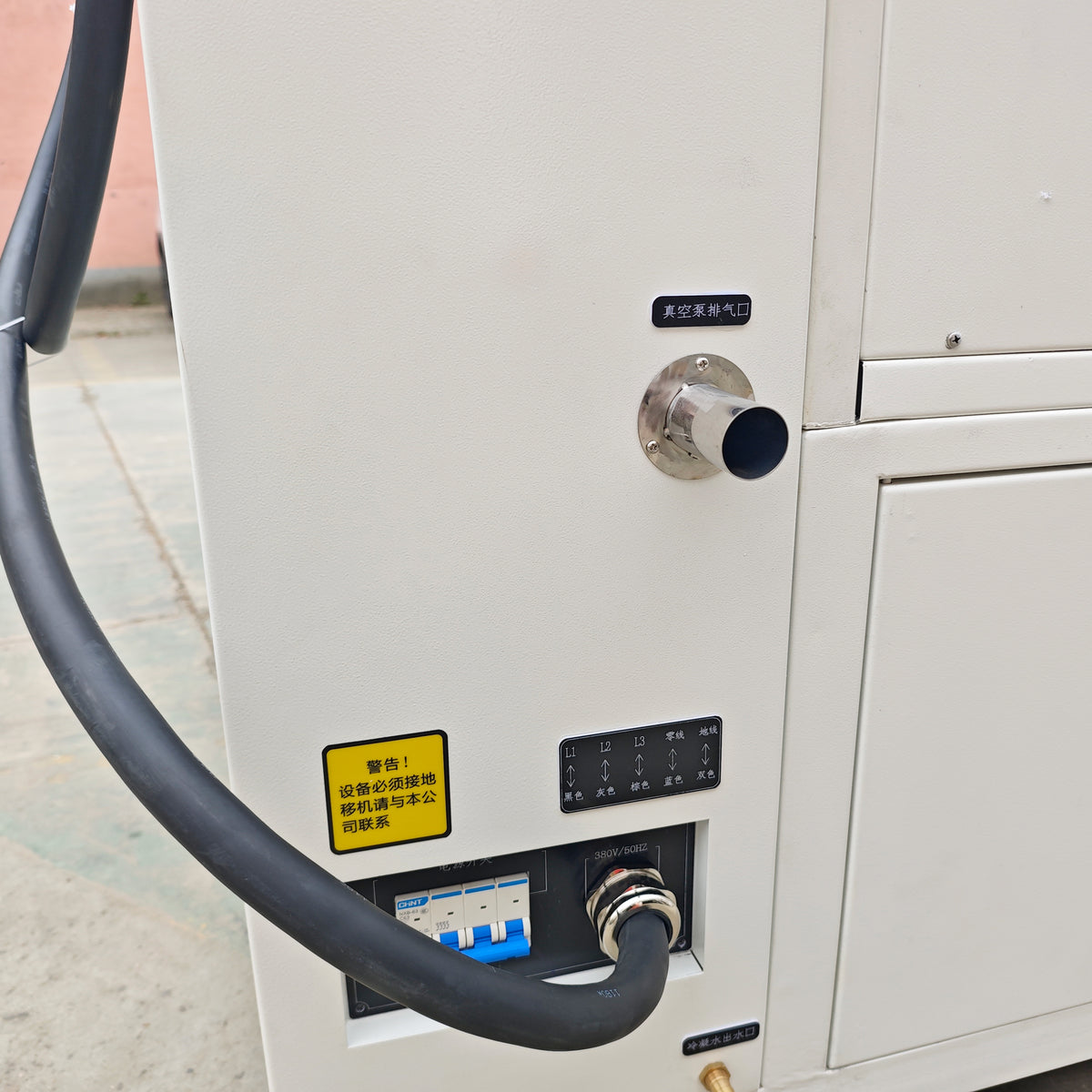

| Voltage | 380V, three-phase five-wire system |
| Power | Heating: 6.6kW; Pump: 1.5Kw |
| Heating Plates | 7 layers of independent heating plates (each layer supports 35kg) |
| Temperature Range | Room temperature ~ 400℃, [Single layer temperature difference 5~8℃] |
| Temperature Fluctuation | 0.2℃ |
| Vacuum Level | Limit: 100Kpa~0.1KPa |
| Door seal ring with water cooling function; Vacuum pump with pre-stage condensation filter to prevent product powder from entering the pump | |
| When the vacuum pump stops, the cold trap releases the vacuum, and the bottom electric valve automatically drains liquid |
