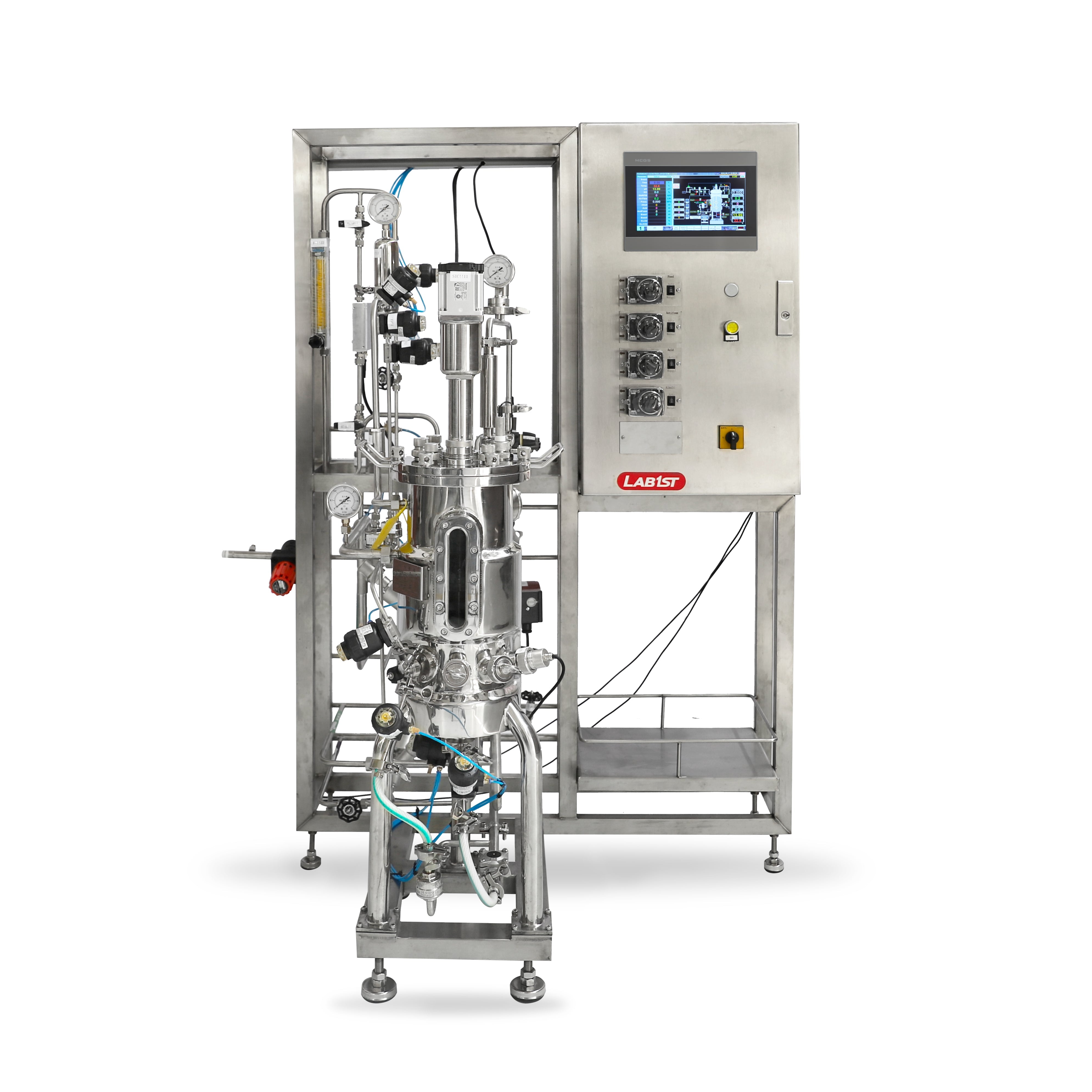

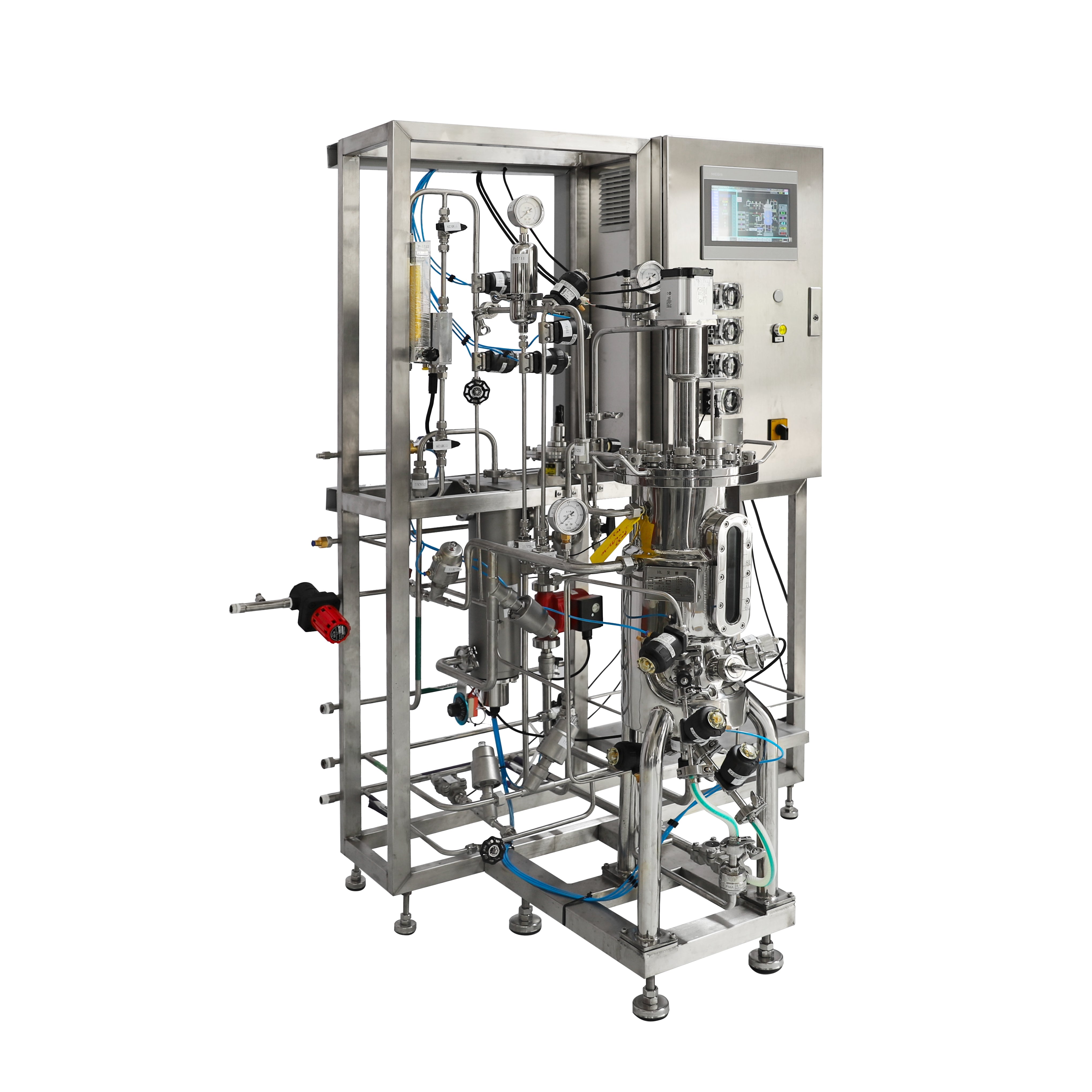

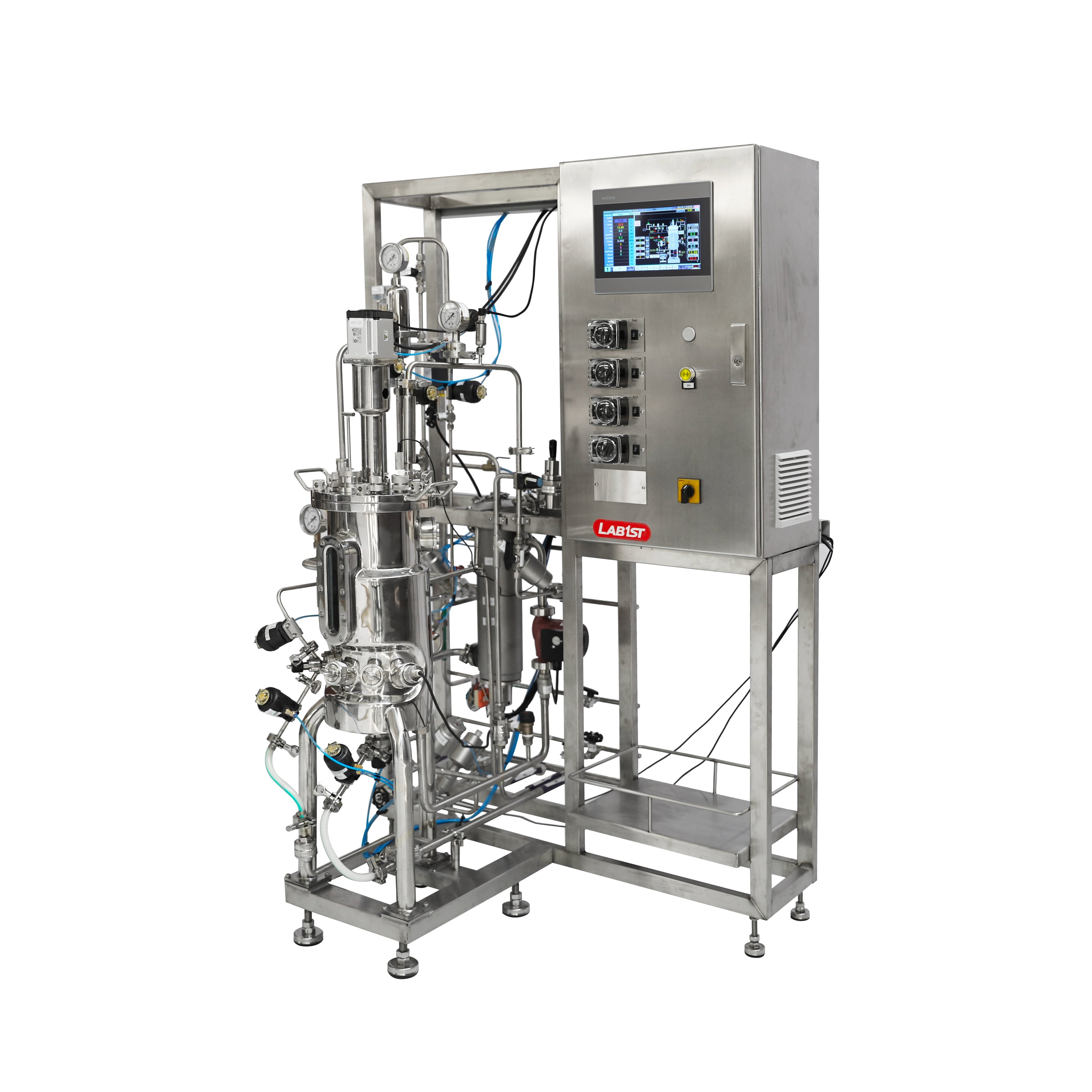

The 1000L Stainless Steel Bioreactor for Microbial Fermentation with 2 Gas Inlets BR500-M1 provides a reliable and efficient solution for large-scale microbial fermentation. Its stainless-steel construction offers superior durability, while its two gas inlets enable efficient gas-mixing. This robust bioreactor is the perfect choice for your microbial fermentation needs.

Specification:

Items Included:

• Control Console: BR500-M1
• Culture Vessel: 1000L tank SUS316L, 3 layers, with top mechanical stirring
  (25~70% working volume)
• Sensors: PT100, DO, foam, pH
• Feeding Pumps: 4 peristaltic pump heads, controlled
• Gas Inlet
• Sparger from the bottom (Air + O2): controlled by rotameter and electromagetic valve;
• Air inlet controlled by rotameter (manually);
• O2 inlet controlled by rotameter and electromagnetic valve
• Heating & Cooling: The jacketed water bath is electrically heated, cooled by stainless steel cooling tube (for chilled water)
• Accessories: 4 supplement bottles, SS316L feeding needle, etc.
• Consumables: O-rings, fuses, silicone stoppers, inlet air filter, vent filter, 20m silicone tubing, etc.

Functions Included:

• Temperature
• Robust PID algorithm;
• Electrical-heating by SS316L electric hot plate at vessel bottom, chilled by tap or chilled water supply;
• Sequential control coupled with fermentation process
• pH
• pH control coupled with peristaltic pump or CO2;
• Manual pH control by peristaltic pump
• DO
• Cascade control, coupled with different parameters (agitation, gas inlet and peristaltic pump)
• Agitation
• Robust PID algorithm;
• Manual speed control or speed control coupled with other parameters;
• Agitation speed control coupled with other parameters (like DO)
• Foam
• Foam control coupled with peristaltic pump; (anti-foam);
• Mechanial defoaming blade;
• Automatic SIP
• SIP with pre-set automatic sequence
• Feeding (peristaltic pump)
• Accumulation volume control;
• Manual control; Or control by plan or pre-set curve;
• Coupled with other parameters (DO, pH, etc)
• Fermentation Sequence
• Pre-set fermentation sequences along with timeline (pH, DO, agitation, temperature, etc)
• Others
• Historical data export and curves;
• Fermentation/culture batch record;
• Calibration of sensors and peristaltic pumps;
• 3-level authority setting & control;
• Record historical operations

Product Brochure / Data Sheet
