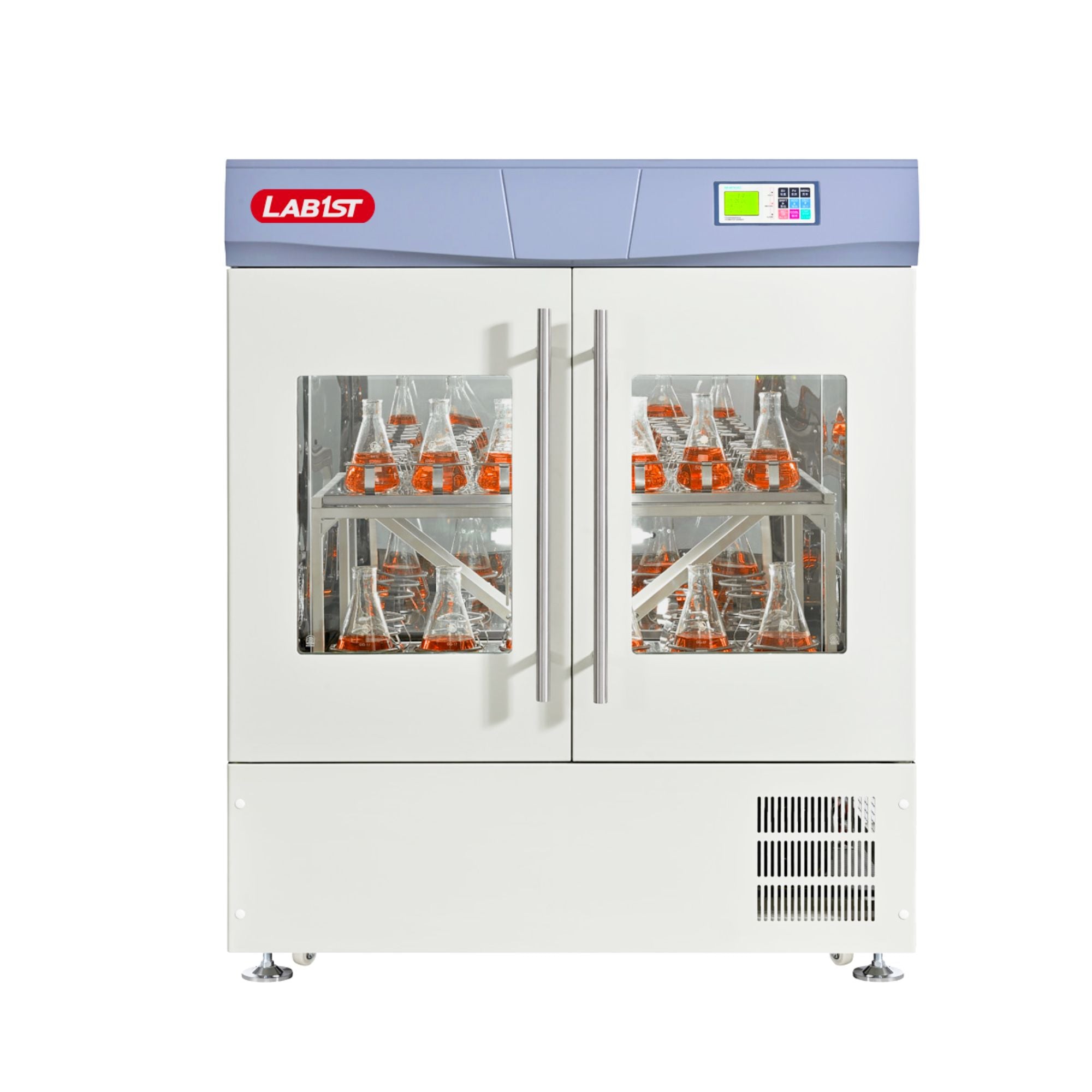

4℃ to 60℃ 624L Programmable Floor-Stand Vertical Oscillation Incubator ISF624/624R
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Experience the pinnacle of laboratory efficiency with our advanced incubation system. Featuring state-of-the-art temperature control, versatile shaking options, and a spacious stainless steel chamber, this unit is designed to meet all your experimental needs with unmatched precision and reliability. Ideal for any research setting, our system guarantees consistent, high-quality results every time. Elevate your experiments to the next level with our robust, user-friendly incubation solution.
Features:
- Compact footprint, High Capacity:
- Non-stackable, equipped with two layers of stainless steel trays, holds 14 × 1L or 32×250mL erlenmeyer flasks within a compact footprint of 4060cm²/644in² (width: 70cm / 28 in, depth: 58 cm / 23 in).
- Capable of accommodating 50mL×264, 1000mL×48, or 2000mL×32 erlenmeyer flasks, which largely increase the culturing efficiency.
- Non-stackable, equipped with two layers of stainless steel trays, holds 14 × 1L or 32×250mL erlenmeyer flasks within a compact footprint of 4060cm²/644in² (width: 70cm / 28 in, depth: 58 cm / 23 in).
- Powerful Programming Capability:
- Equipped with sequential, timed, or step-by-step execution (up to 8 steps).
- Can store a maximum of 1 programs
- Easy Maintenance:
- Features a mirror-finish stainless steel working chamber with an arch design for easy and fast cleaning.
- Can be cleaned with chemicals or sterilized by UV lighting.
- Easy Observation of Samples:
- Large viewing window and internal light provide easy observation of samples with no need to open the door.
- Precise Control:
- Temperatue control: accuracy: ±0.1℃, uniformity: ±1℃[at 37℃].
- Speed accuracy: ±1rpm.
- Advanced Driving Technology:
- The 5-dimensional counter-balanced drive technology ensures low noise, minimized mechanical friction, and extended lifespan even shaking at a high speed.
Specifications:
| Parameter Contro: | Basic LCD display [P.I.D Microprocessor] |
| Max. Vessel: | Non-Stackable |
| Tray Size [cm/in]: | 92.8×53cm [36.54×20.87in] |
| Tray QTY [pcs]: | 50ml×264, 100ml×180, 250ml×120, 500ml×80, 1000ml×48，2000ml×32 |
| Air Circulation: | Forced air circulation |
| External Dimensions [W×H×D]: | 124×150×83.6cm [48.82''×59.06''×32.9''] |
| Weight: | 456KG |
| Material: | Mirror SUS304 |
| Temp. Range: [Ambient Temp. 5-35℃] | Incubated: 5℃ above ambient to 60℃ |
| Refrigerated: 18℃ below ambient[min. 4℃] to 60℃ | |
| Shaking Motion: | Orbital |
| Shaking Throw [Linear/Reciprocating]: | --- |
| Shaking Throw [Orbital]: | 35mm | 50mm [Option] |
| Platform Type: | Fixed |
| Shaking Frequency: | 20-300rpm[±1rpm] Depending on load and stacking |
| Door Opening: | Opening to front |
| Total Power: | 1498W | 1885W [with cooling] |
| Power Source: | AC200-240v, 1 Phase, 50-60HZ; AC108-120V,1 Phase, 60HZ [Option] |
| Package Dimension [cm] [W×H×D]: | 136×166×100cm [53.54''×65.35''×39.37''] |
| Package Weight: | 530KG |
All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.
If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).
