Stainless Steel Reactor with Jacketed System

In stock
SKU: JSR-1B
$3,910.00
Liter
Motor
Free Express (DHL, FedEx, UPS, etc., Door to Door)

Got questions?

Feel free to get in touch

1-year warranty, except for consumables
Extended warranty service is available, please contact us for details

Warranty: Rest easy with our 1-year on all products (consumables excluded). pH meters include 2-year coverage for the main unit, 6 months for ions electrode, and 1-year for pH/conductivity/DO electrodes. Just show us your proof of purchase, and we'll take care of the rest - no hassle guaranteed.

Return: No worries if it's not quite right! You can return any unused item in its original packaging for a refund. For all the details, just check out our Return Policy. Once we receive your return, we'll typically process your refund.
  • Description
  • Product Downloads
  • Shipping Information

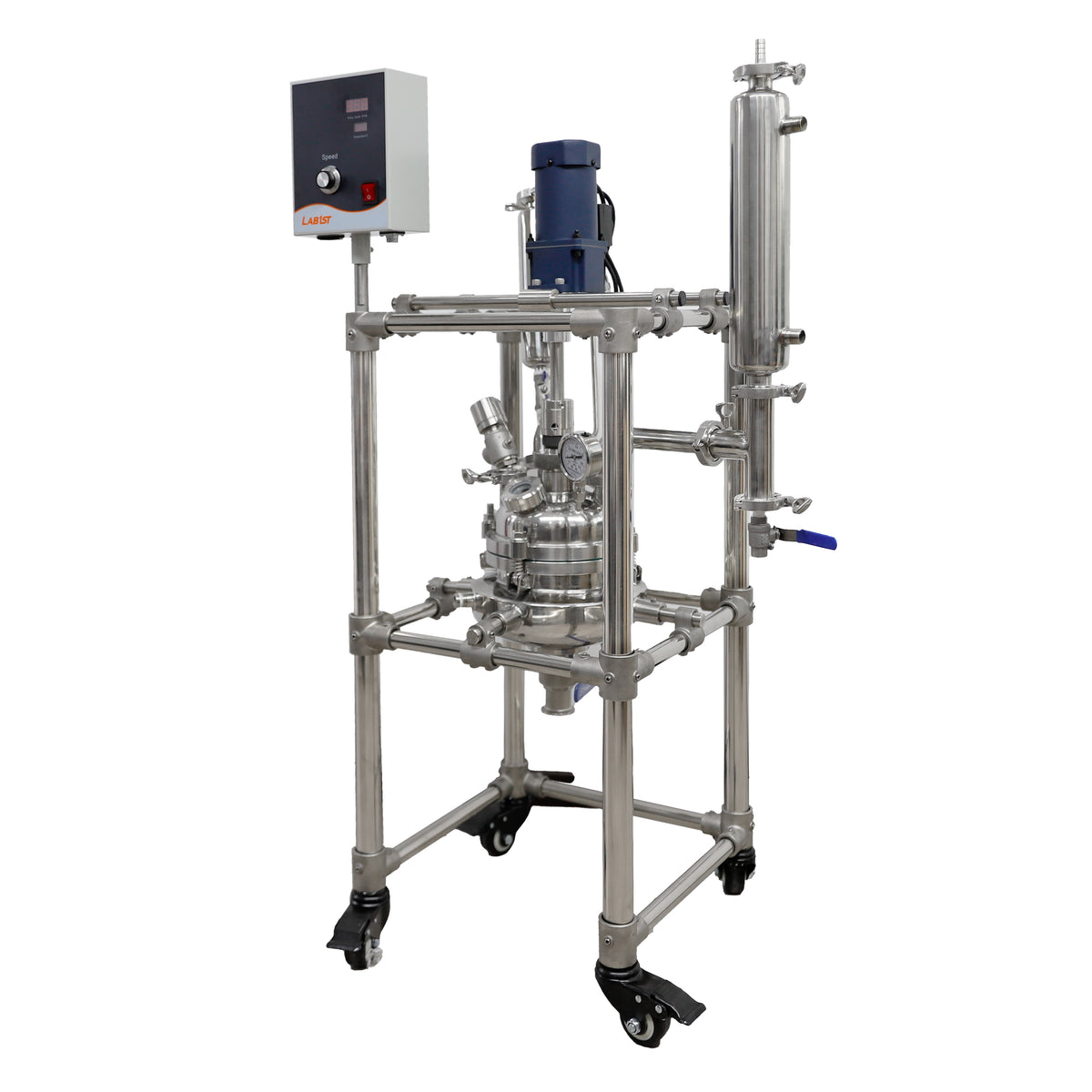

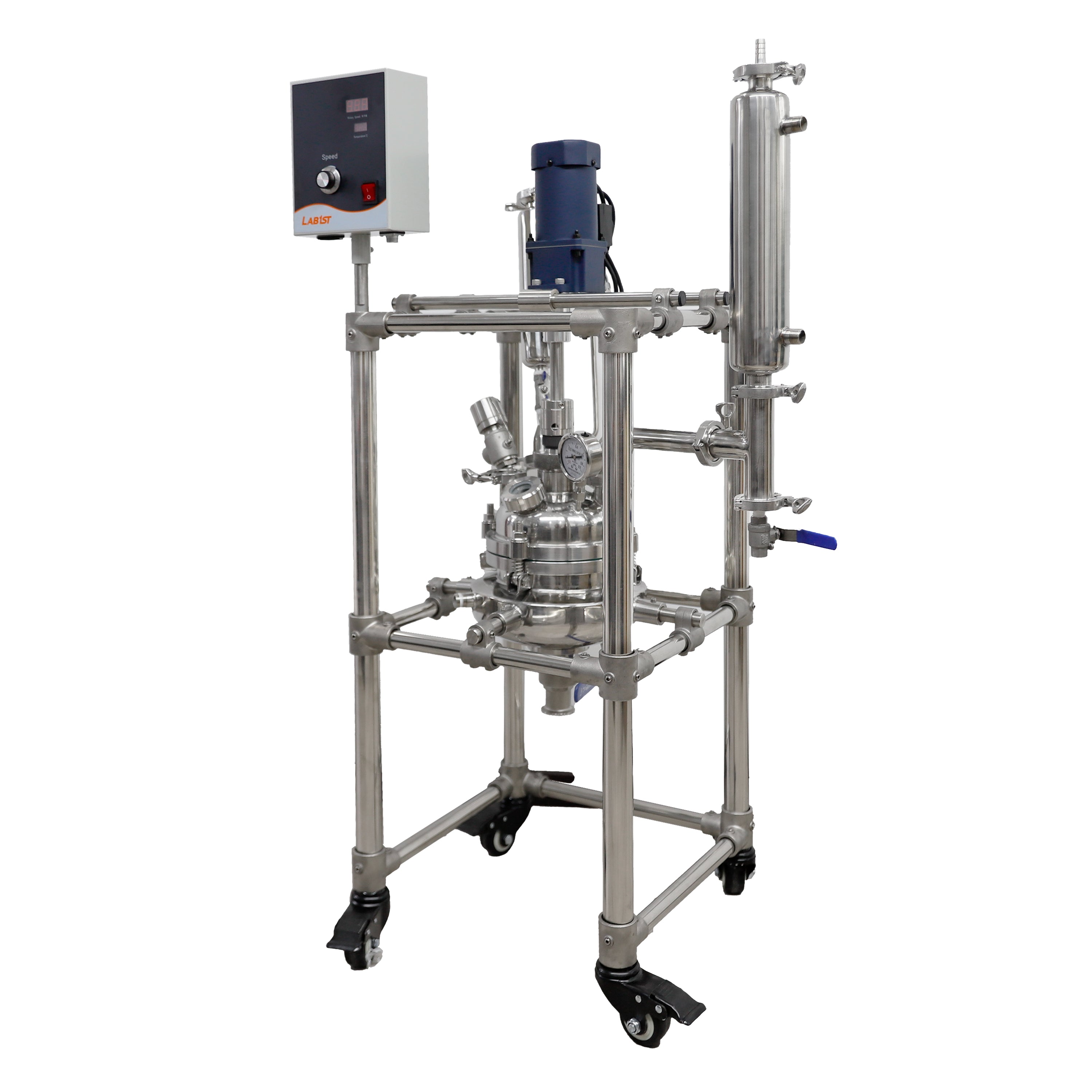

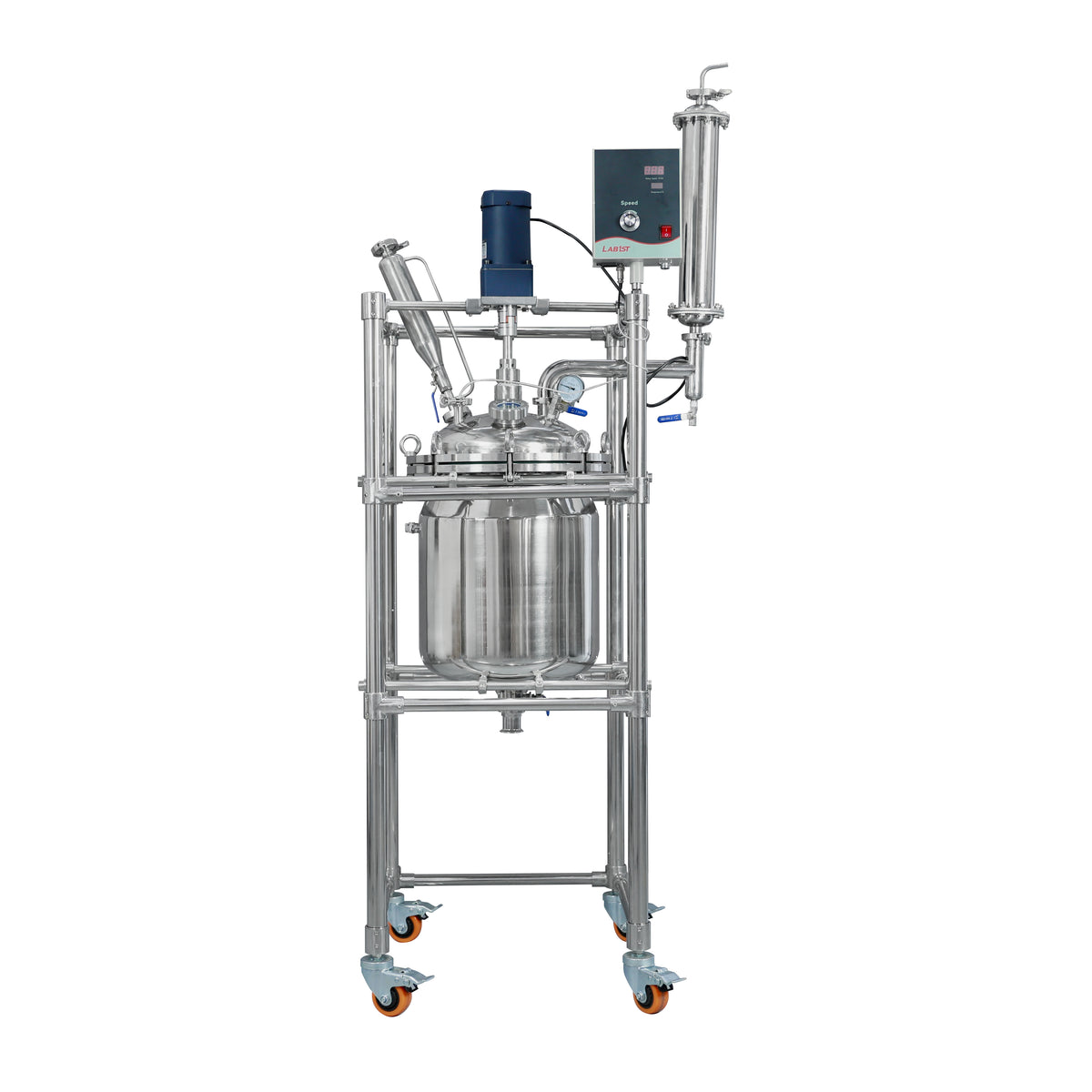

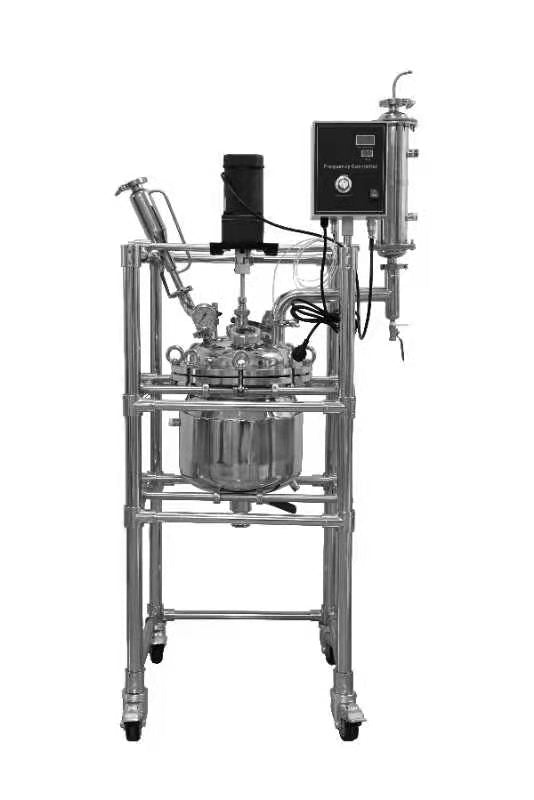

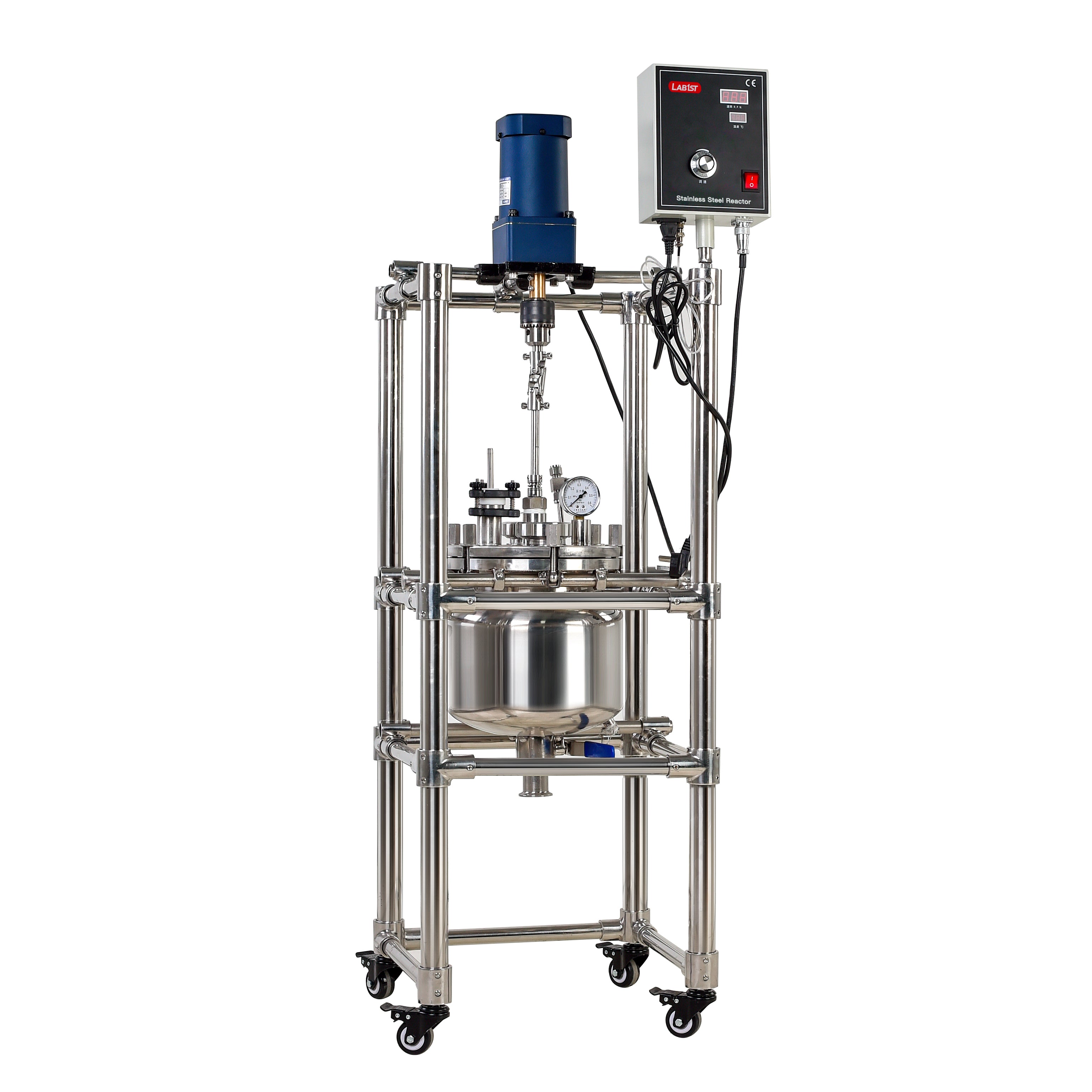

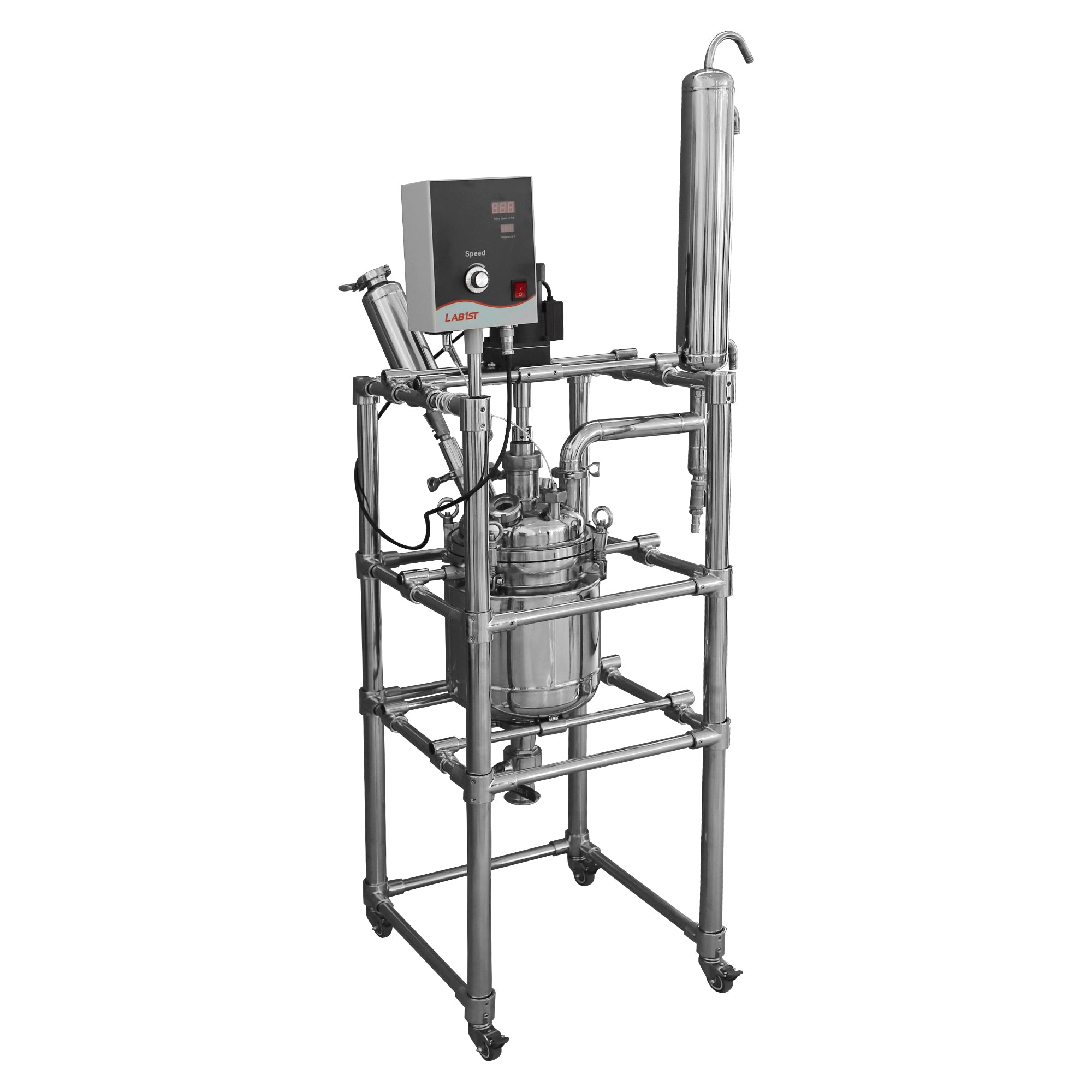

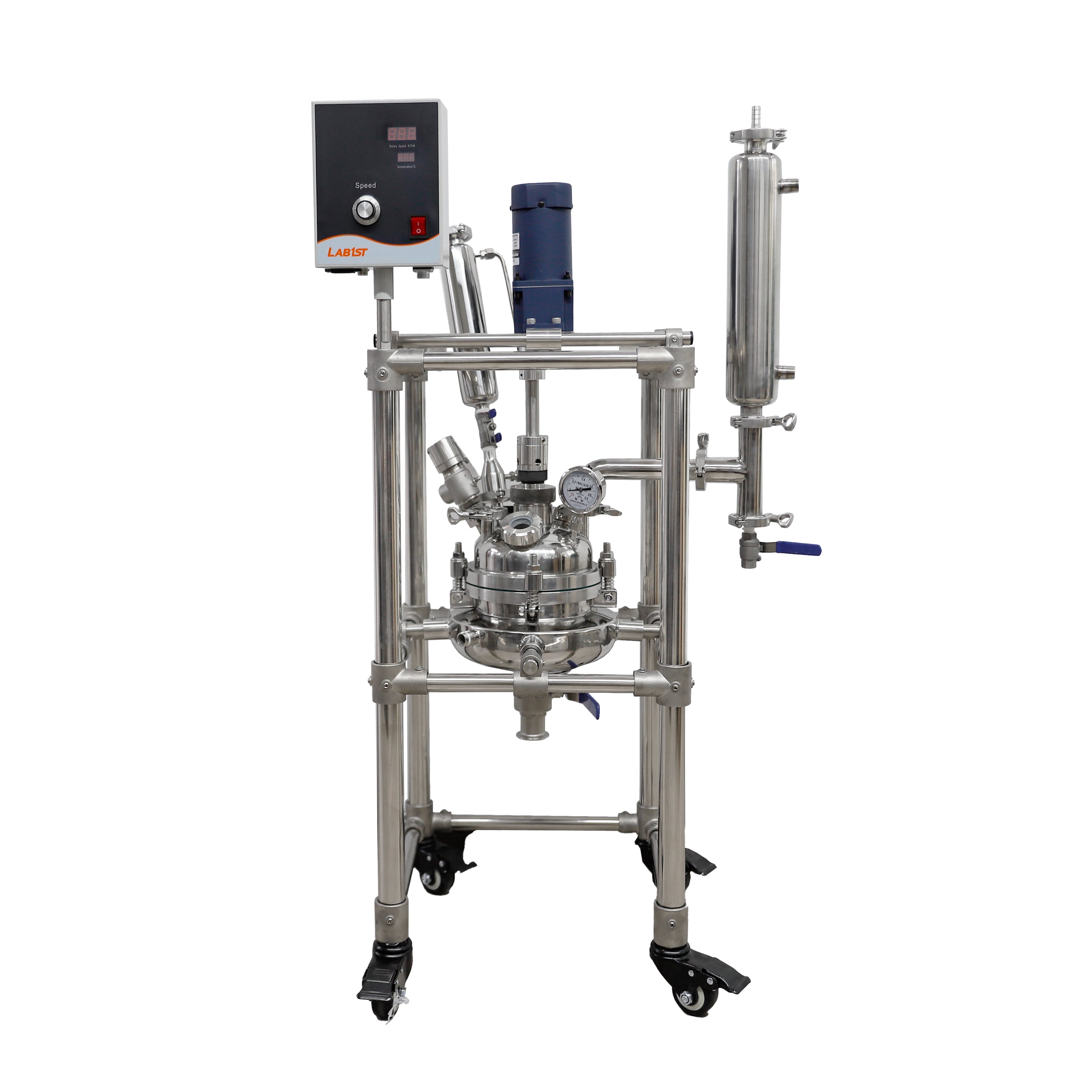

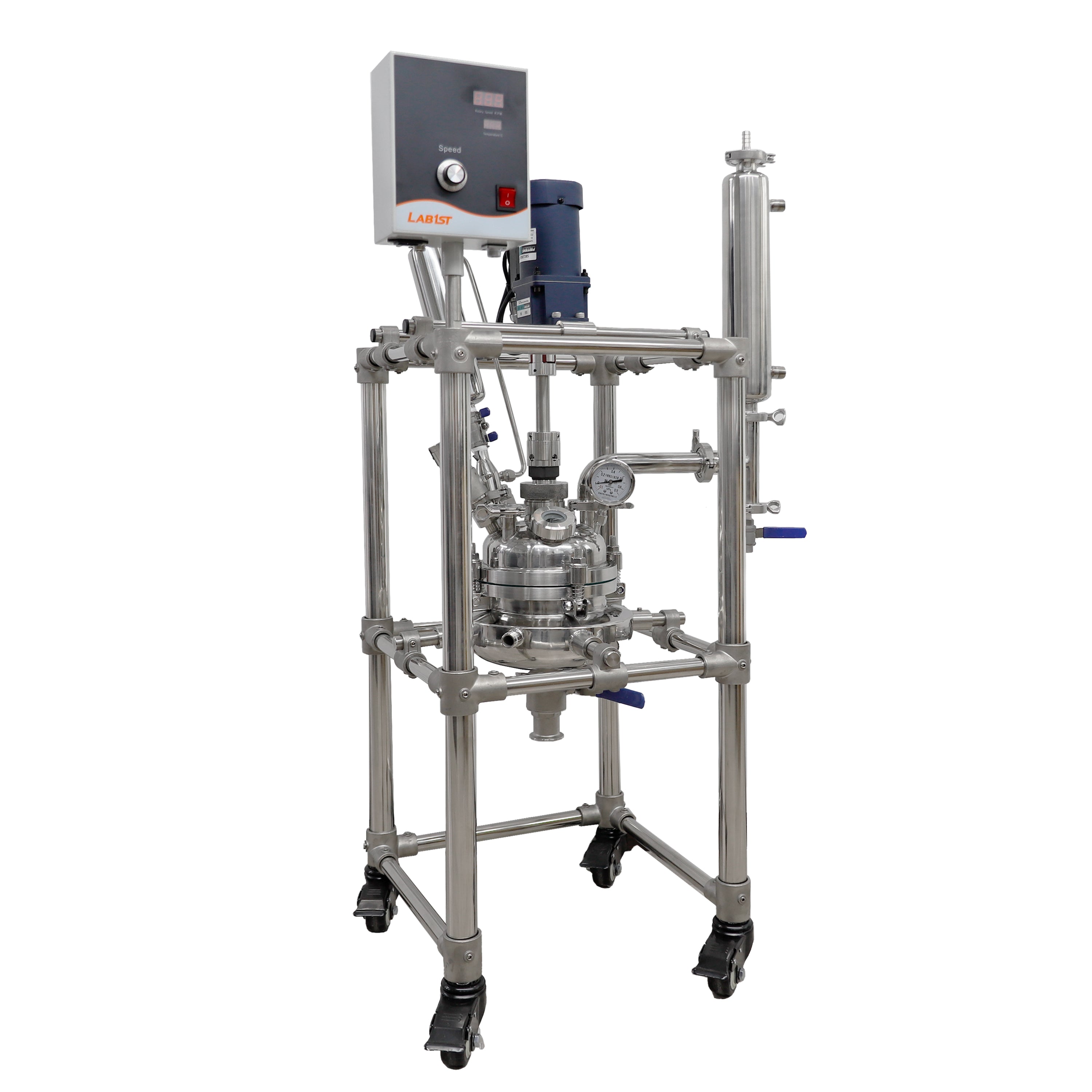

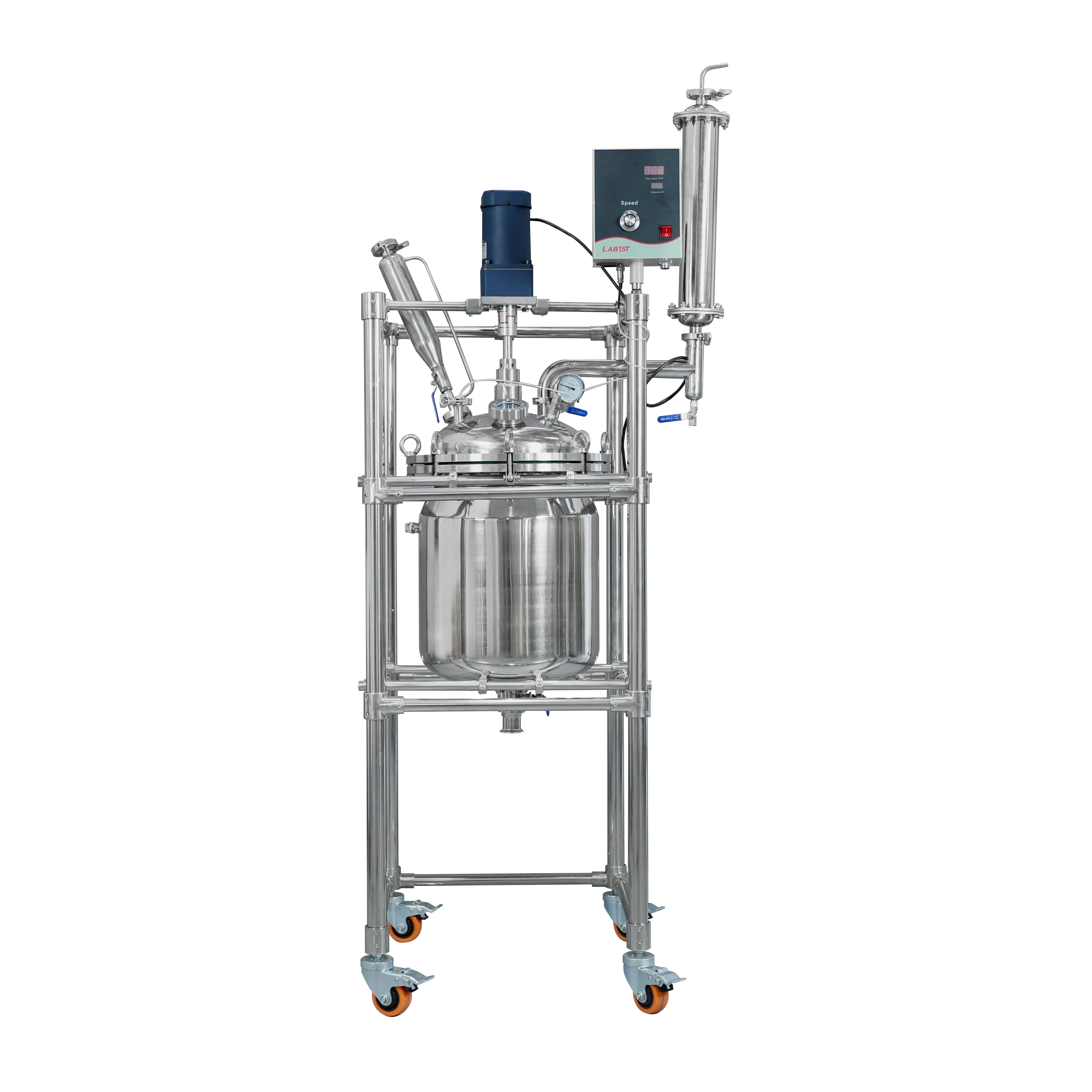

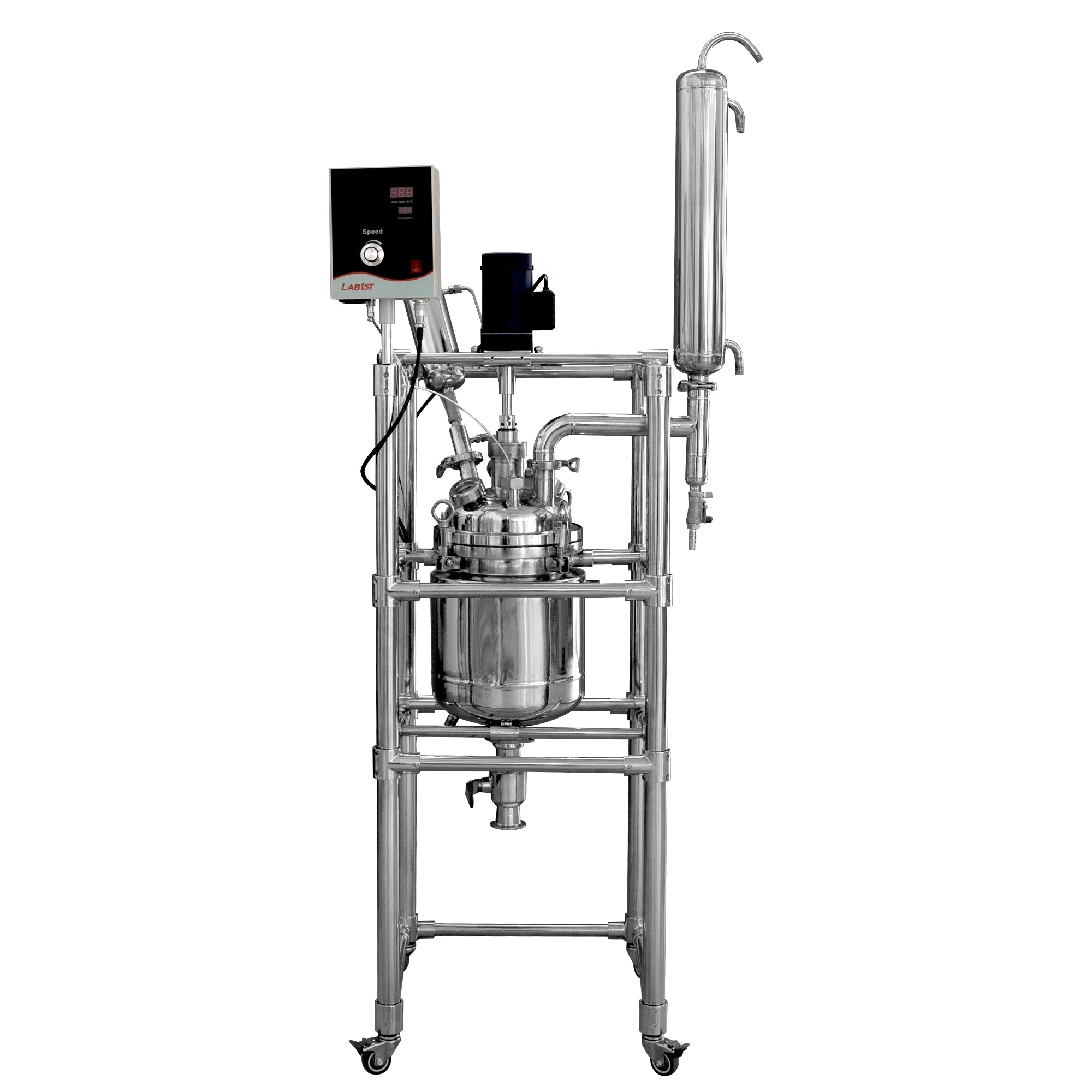

Lab1st JSR-B series jacketed stainless steel reactor is built with advanced technology and quality material. lt provides controlled temperature and pressure environment for your versatile lab needs. Each stainless steel jacketed reactor consists of SUS30408 stainless steel reaction vessel, rotary lip seal, single layer paddle agitation, temperature probe and digital display, and other accessories like coiled condenser, bottom discharge valve and other accessories.

The standard JSR-B series stainless steel reactors come with vessels from 1L to 150L. The jacketed can be heated and the vessel can belifted and rotated. lt can also be fully customized to meet all your essential requirementslike high torque, high speed agitation, baffled reaction vessel, programmable controller, airdriven motor, etc.

Features:

  • Rugged SUS304 stainless steel, corrosion resistant, customizable 316L
  • Ports on the lid can be customizableoased on your needs.
  • Intuitive LCD display for speed andtemperature.
  • Condenser for recovering smallamounts of gas or liquid.

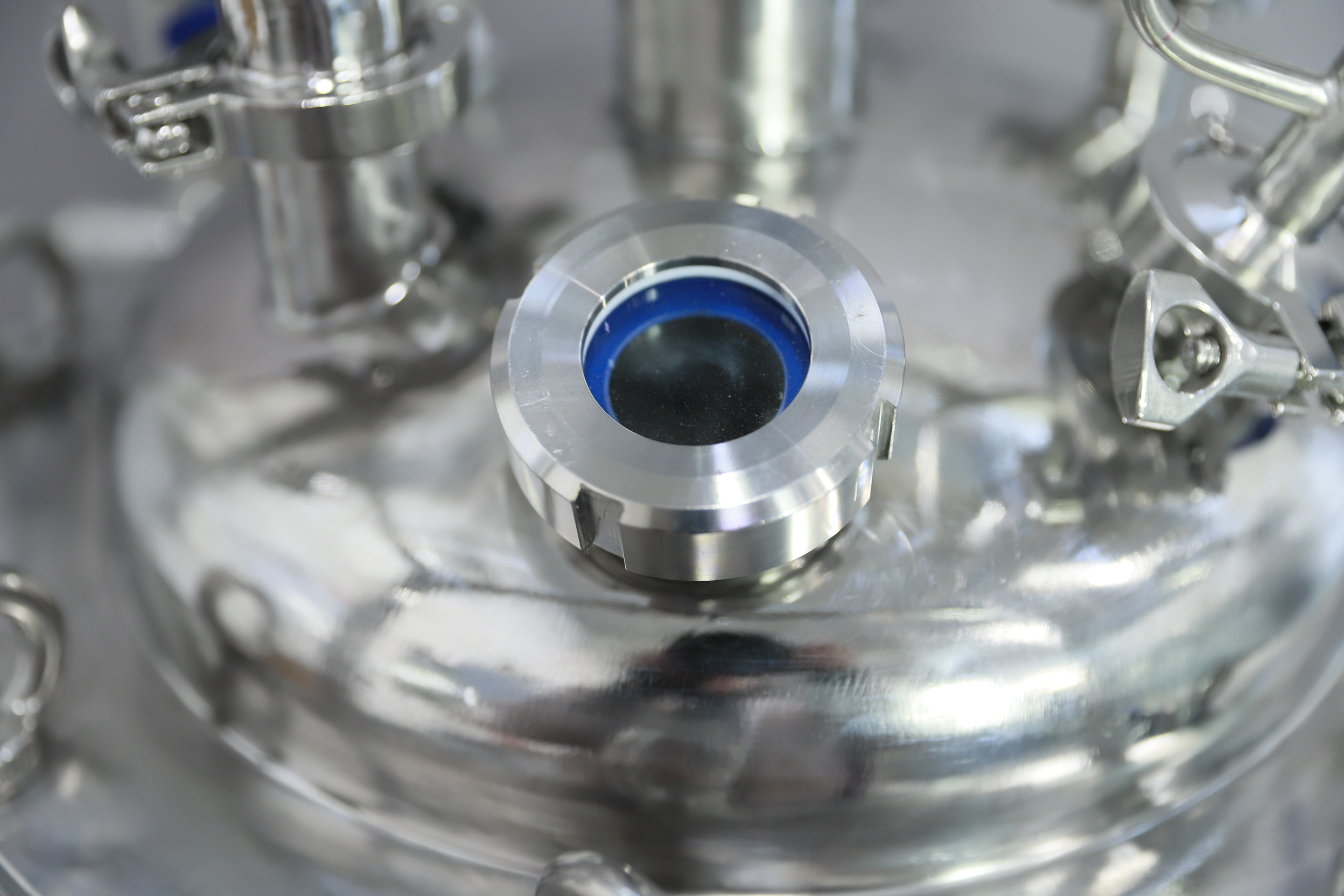

  • Built with a sight glass for easy observation.
  • High torque motor,suitable for a varity of solents.
  • The jacket can be heated/cooled with a circulator, ot heated by eletricity (option), more flexible.
  • Standard with single layer paddle agitation, optional multi-layer stiring blades for optional reaction results.
  • Mechanical sealing guarantees the inner vessel's vacuum.
  • Can be customized according to different requirements.

Specification:

Model JSR-1B JSR-2B JSR-3B JSR-5B JSR-10B JSR-20B JSR-30B
Technical Data
Design | Working Temp. Range -40℃ ~ 250°C | -20℃ ~ 220°C
Range of Speed 0-600rpm
Material SUS304
Vacuum Sealing Machinery Seal
Electrical Data
Voltage [V] 220
Phase [P] 1
Frequency [Hz] 50/60
Total Power [W] 120W
Glass Vessel
Volume 1L 2L 3L 5L 10L 20L 30L
Vessel Pressure -0.1~0.6
Inner Vessel Diameter [mm] 180 180 180 200 215 318 318
Jacket Pressure 0.1~0.3

More information, pls click here to download the brochure.

We can also provide customized services, if you need please freely to contact us (eshop@lab1st.com).
