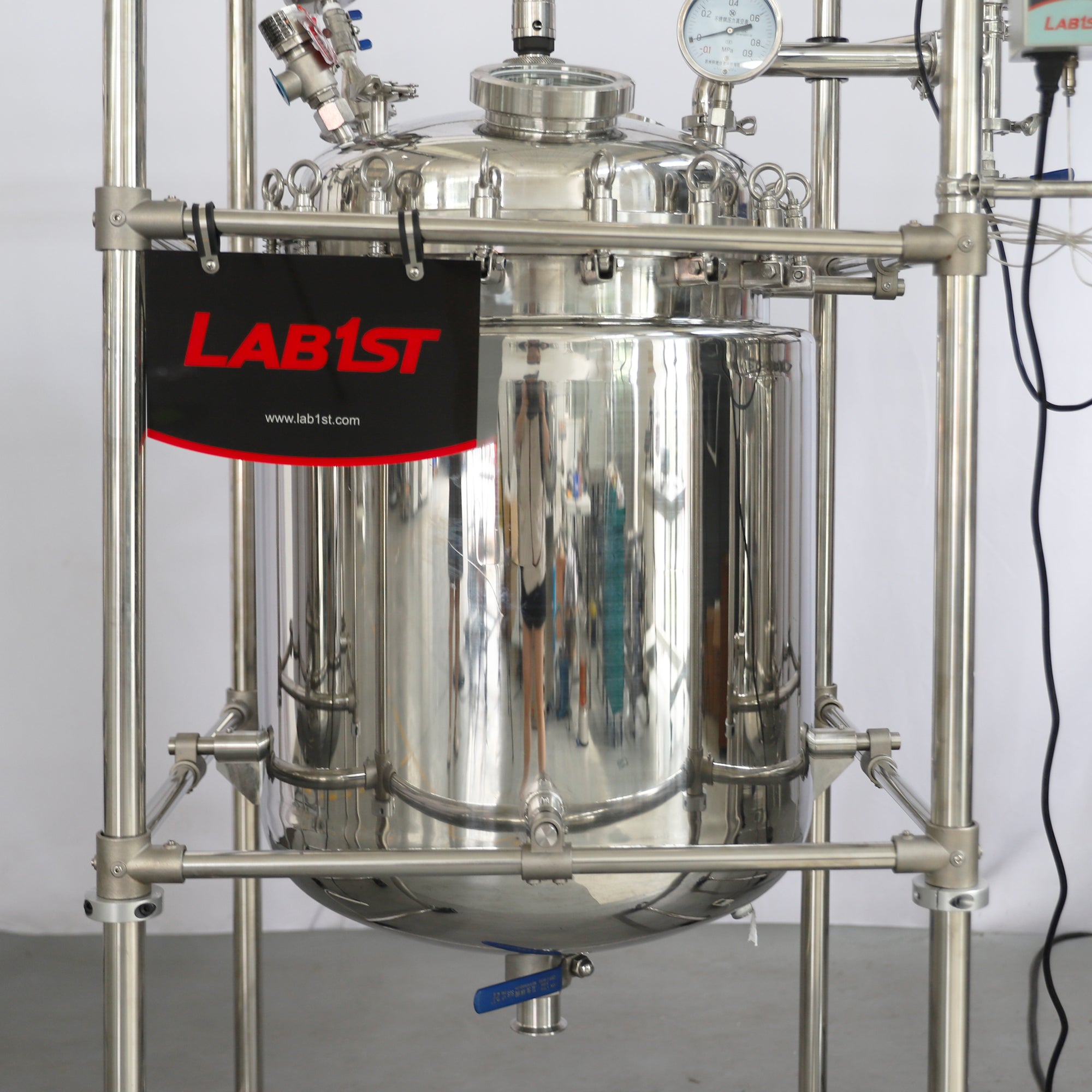

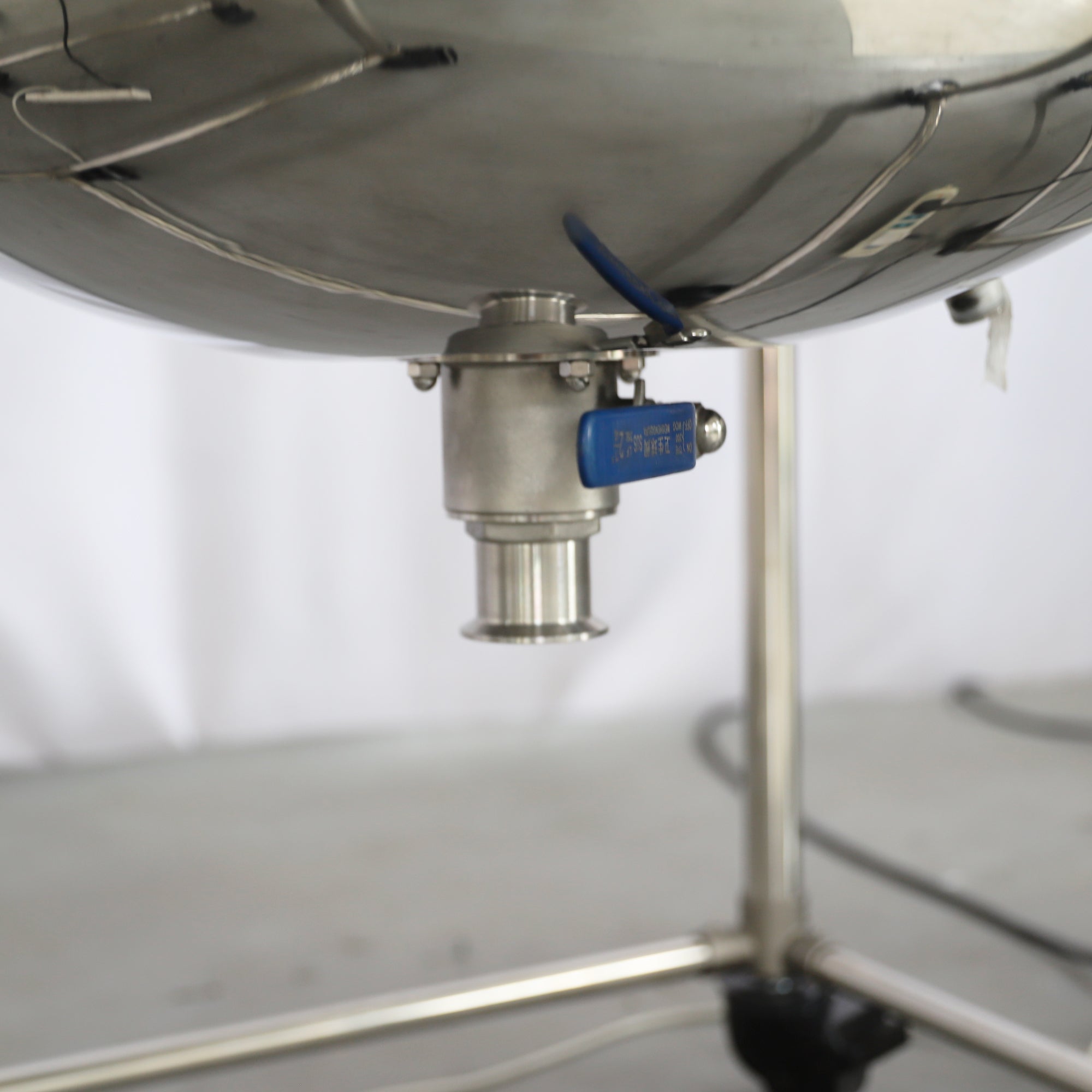

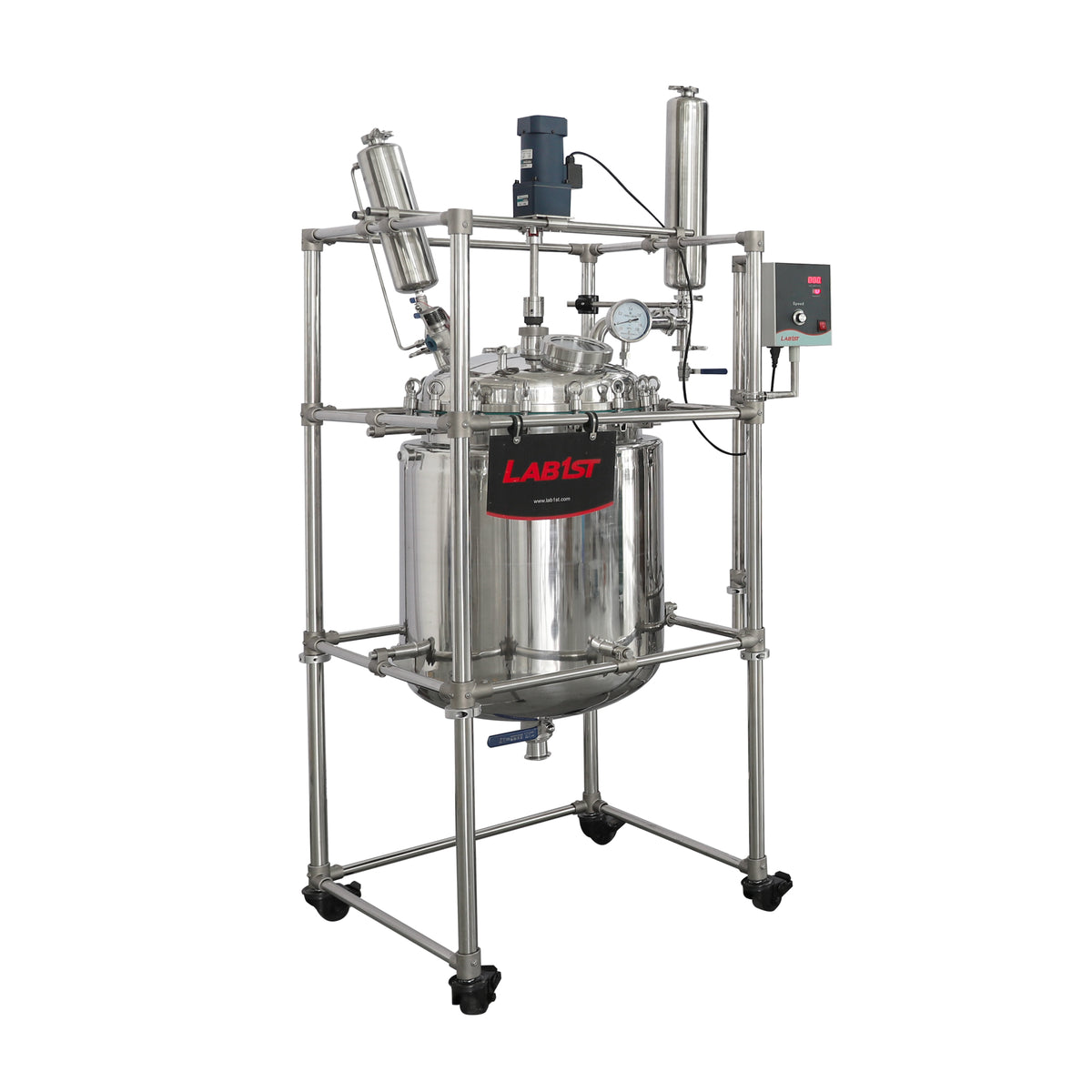

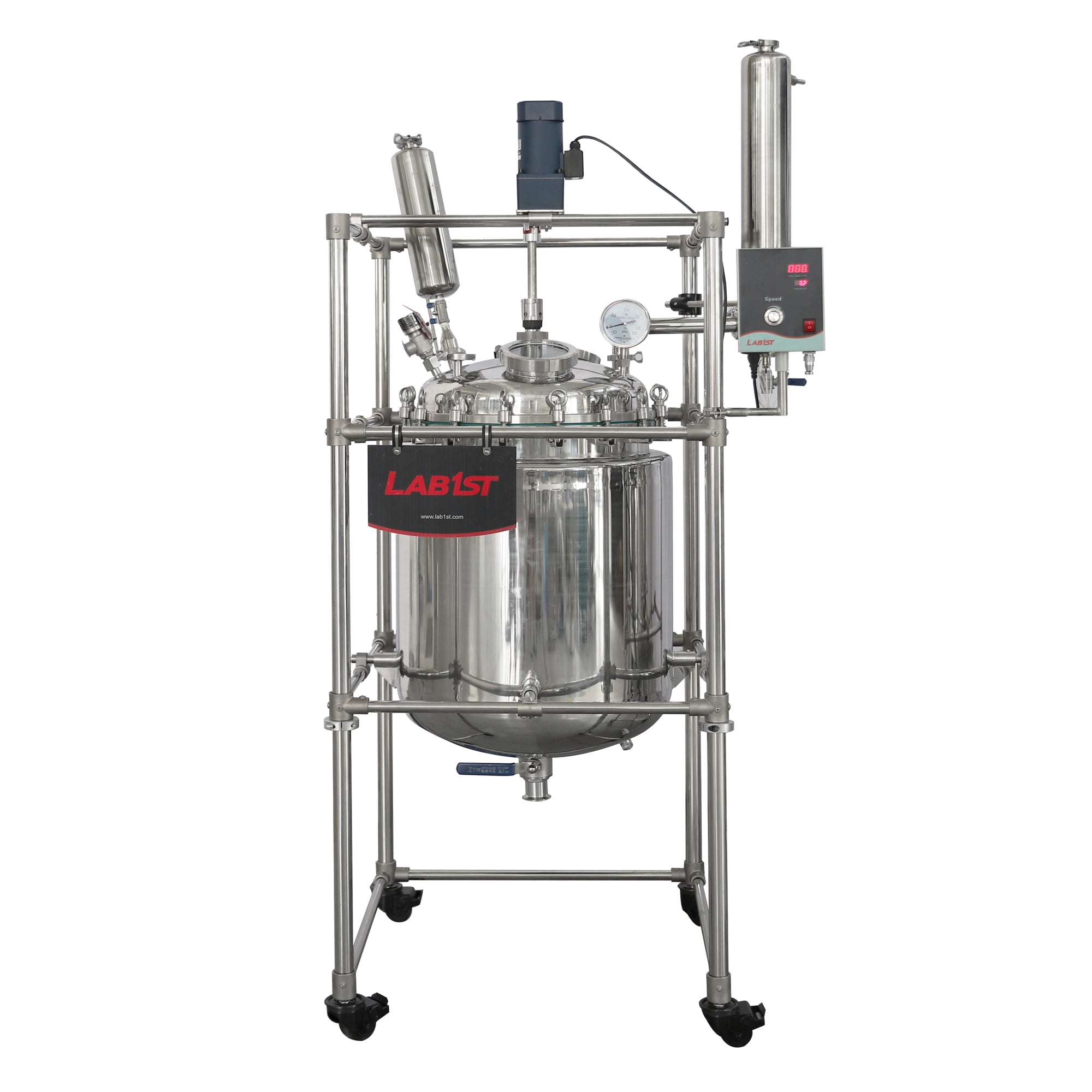

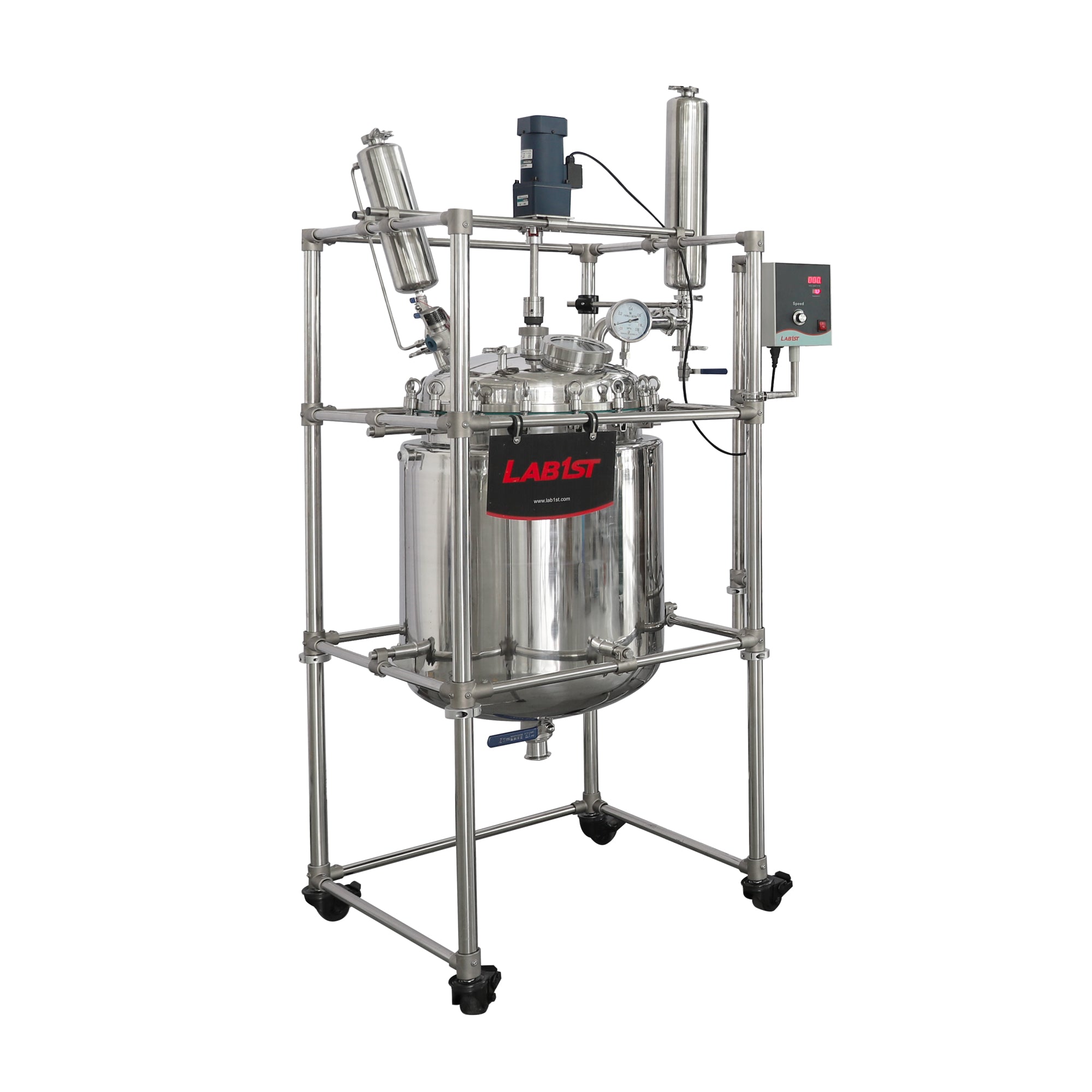

Lab1st JSR-B series jacketed stainless steel reactor is built with advanced technology and quality material. lt provides controlled temperature and pressure environment for your versatile lab needs. Each stainless steel jacketed reactor consists of SUS30408 stainless steel reaction vessel, rotary lip seal, single layer paddle agitation, temperature probe and digital display, and other accessories like coiled condenser, bottom discharge valve and other accessories.
The standard JSR-B series stainless steel reactors come with vessels from 1L to 150L. The jacketed can be heated and the vessel can belifted and rotated. lt can also be fully customized to meet all your essential requirementslike high torque, high speed agitation, baffled reaction vessel, programmable controller, airdriven motor, etc.
Features:
- Rugged SUS304 stainless steel, corrosion resistant, customizable 316L
- Ports on the lid can be customizableoased on your needs.

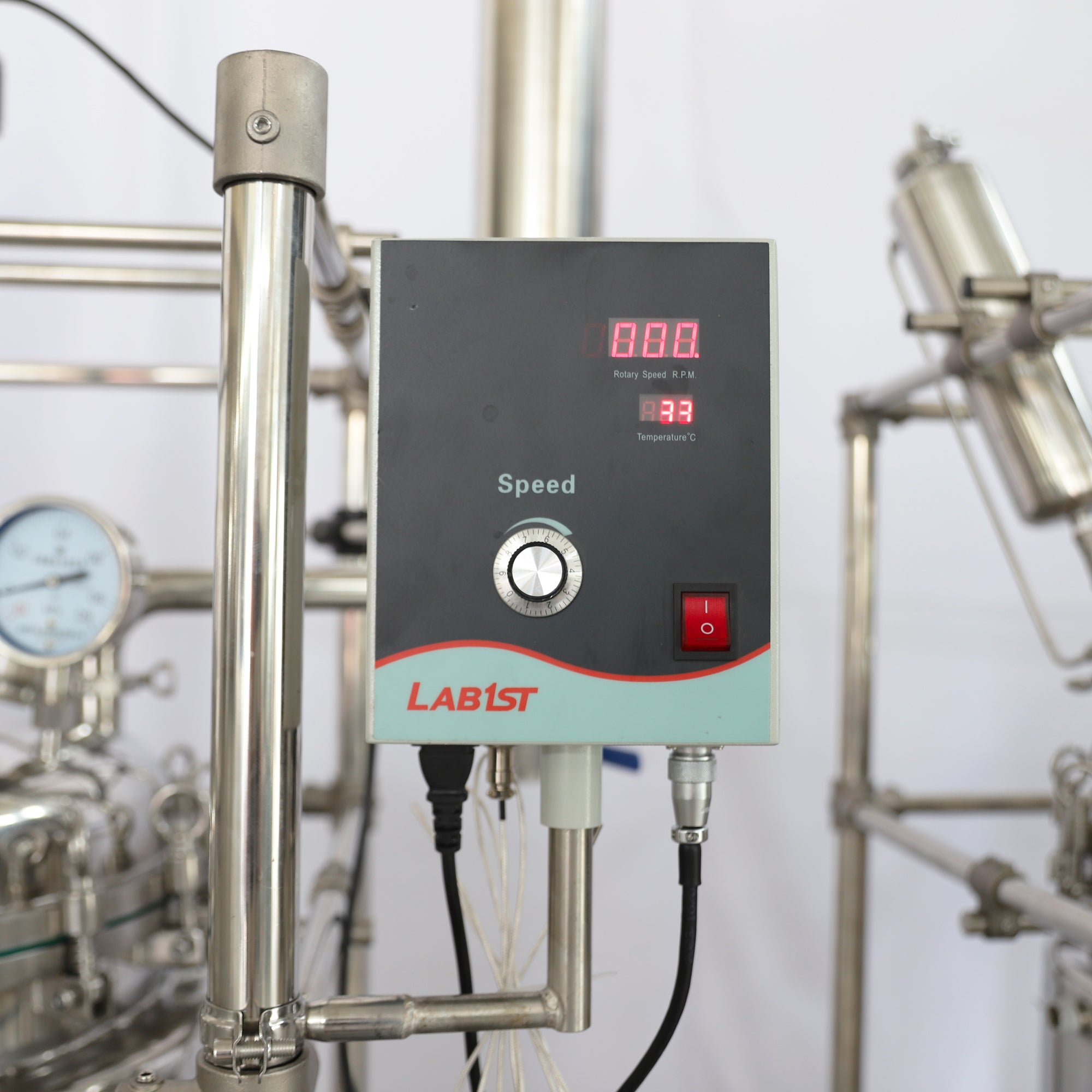

- Intuitive LCD display for speed andtemperature.

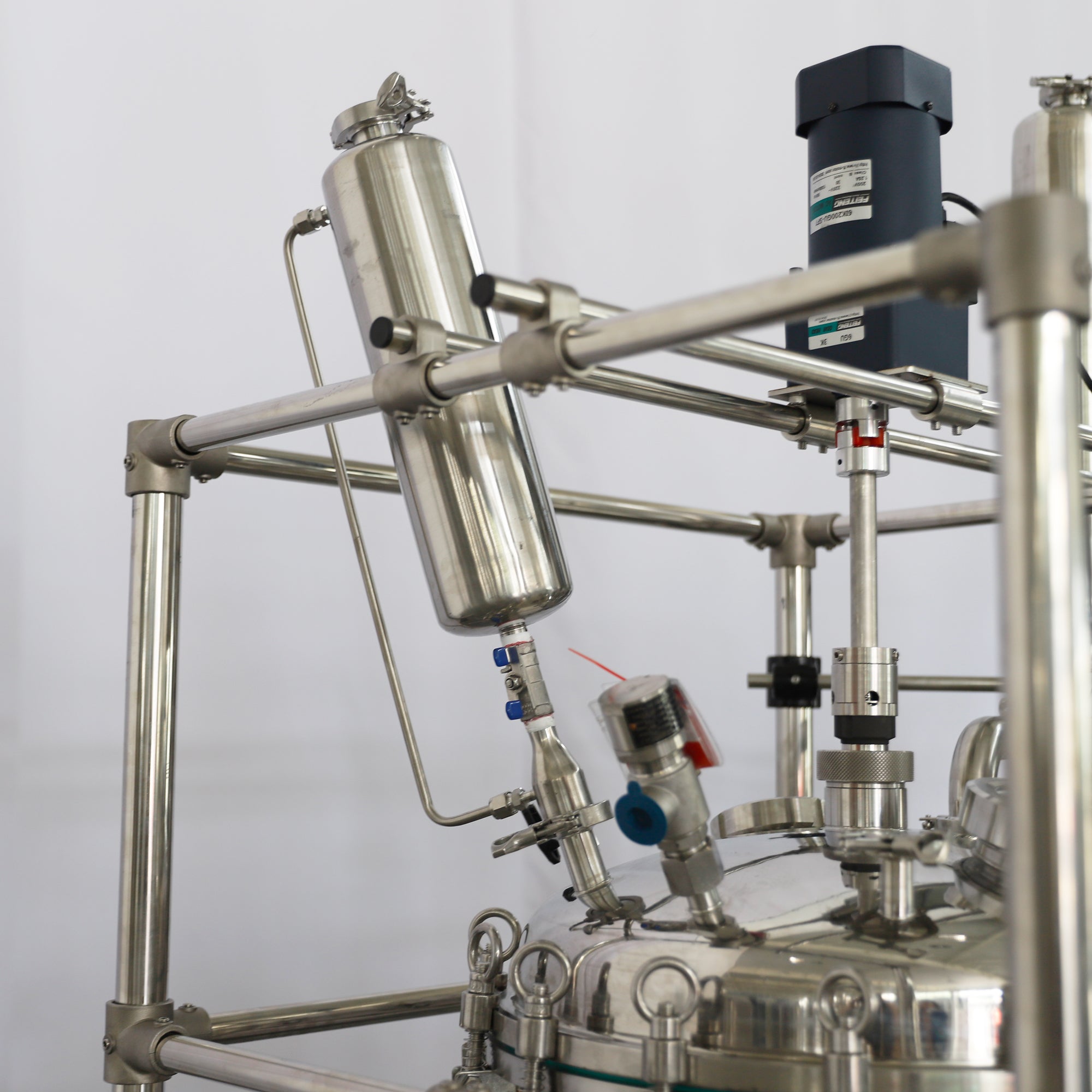

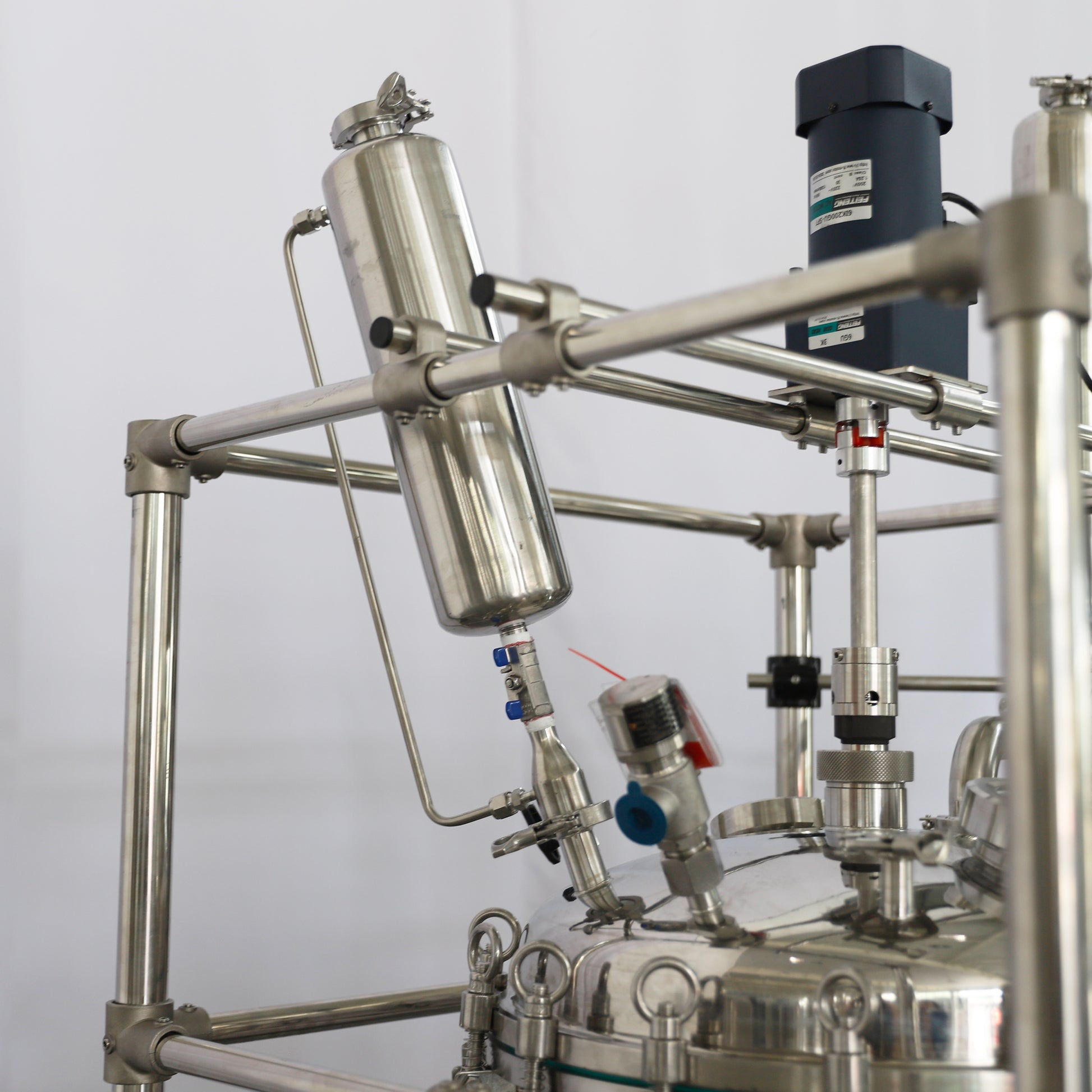

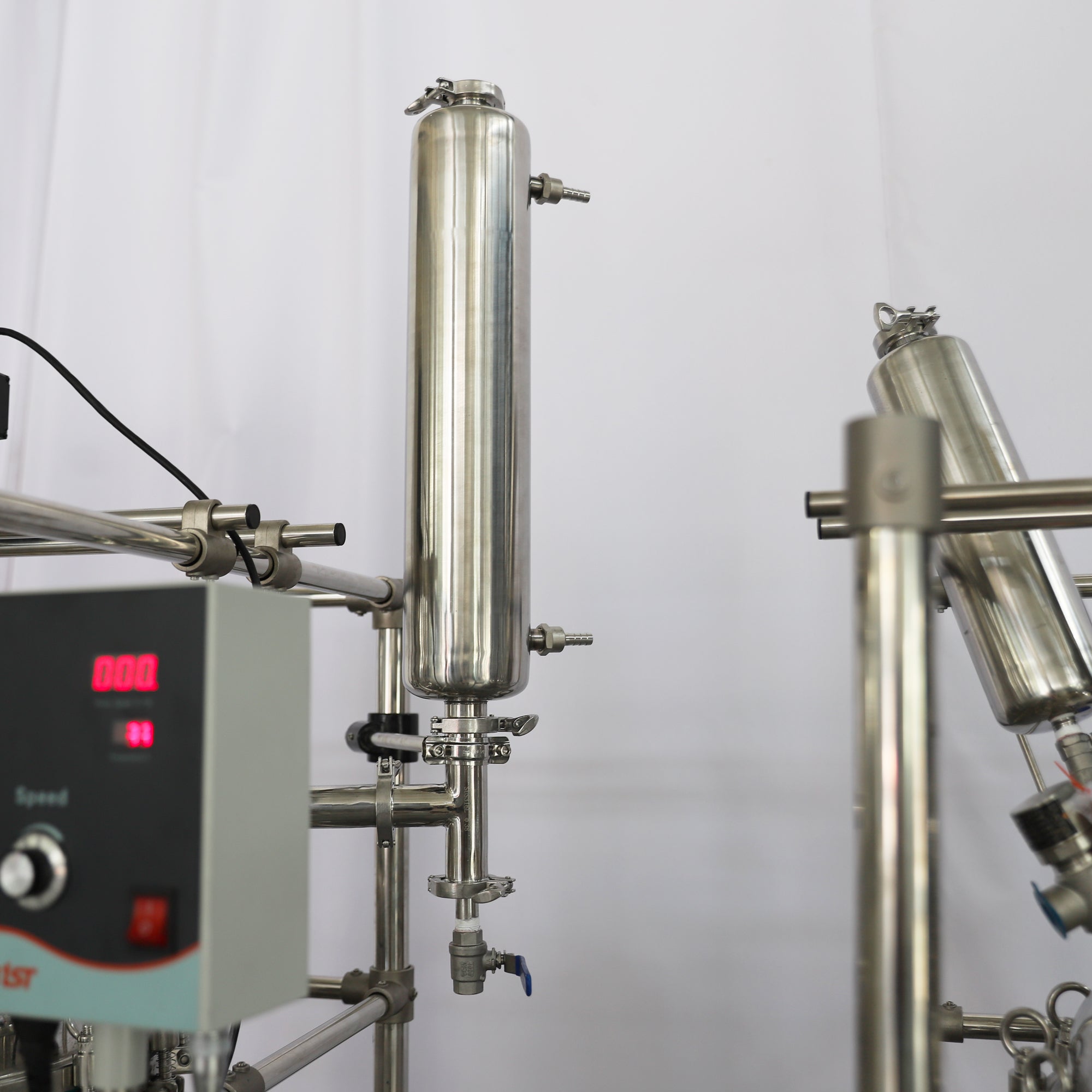

- Condenser for recovering smallamounts of gas or liquid.

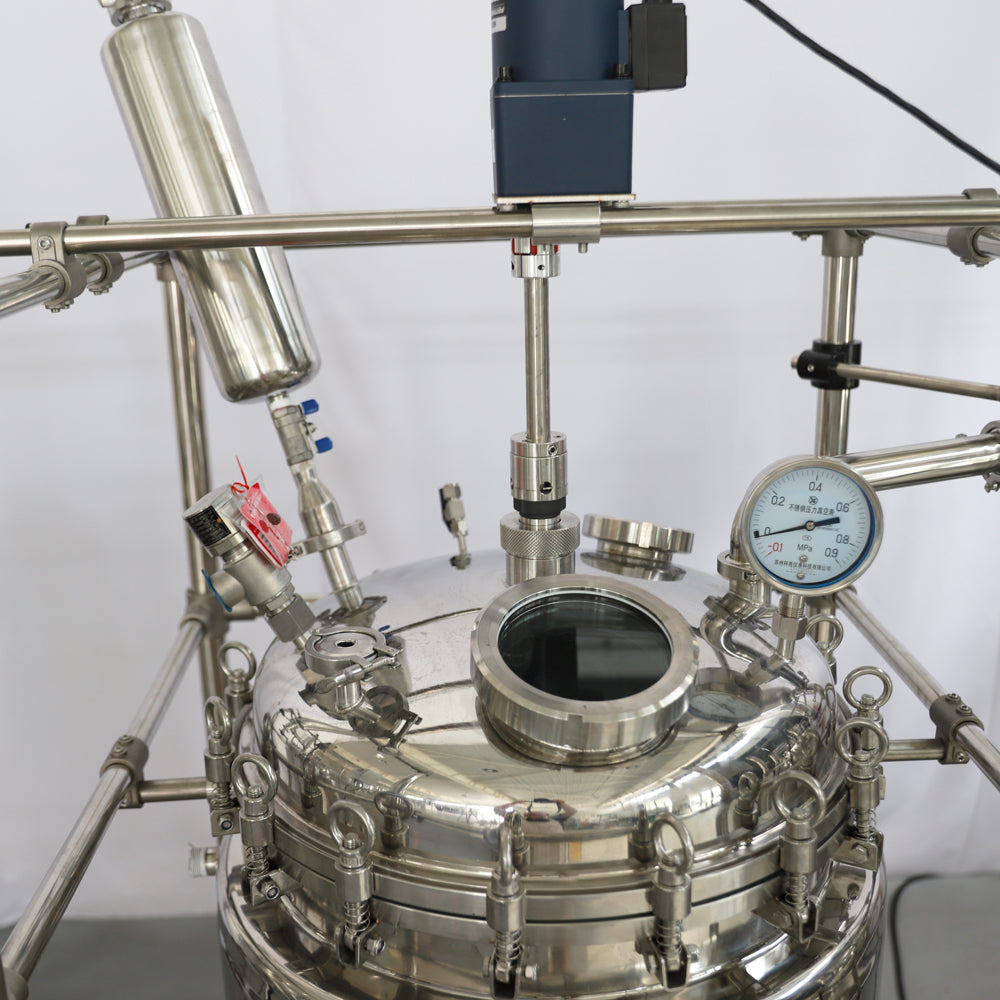

- Built with a sight glass for easy observation.
- High torque motor,suitable for a varity of solents.
- The jacket can be heated/cooled with a circulator, ot heated by eletricity (option), more flexible.
- Standard with single layer paddle agitation, optional multi-layer stiring blades for optional reaction results.
- Mechanical sealing guarantees the inner vessel's vacuum.
- Can be customized according to different requirements.
Specification:
| Model | JSR-50B | JSR-100B | JSR-150B | |
| Technical Data | ||||
| Design | Working Temp. Range | -40℃ ~ 250°C | -20℃ ~ 220°C | |||
| Range of Speed | 0-600rpm | |||
| Material | SUS304 | |||
| Vacuum Sealing | Mechanical Seal | |||
| Electrical Data | ||||
| Voltage [V] | 220 | |||
| Phase [P] | 1 | |||
| Frequency [Hz] | 50/60 | |||
| Total Power [W] | 120W | |||
| Glass Vessel | ||||
| Volume | 50L | 100L | 150L | |
| Vessel Pressure | -0.1~0.6 | |||
| Inner Vessel Diameter [mm] | 360 | 500 | 550 | |
| Jacket Pressure | 0.1~0.3 | |||
More information, pls click here to download the brochure.
We can also provide customized services, if you need please freely to contact us (eshop@lab1st.com).
