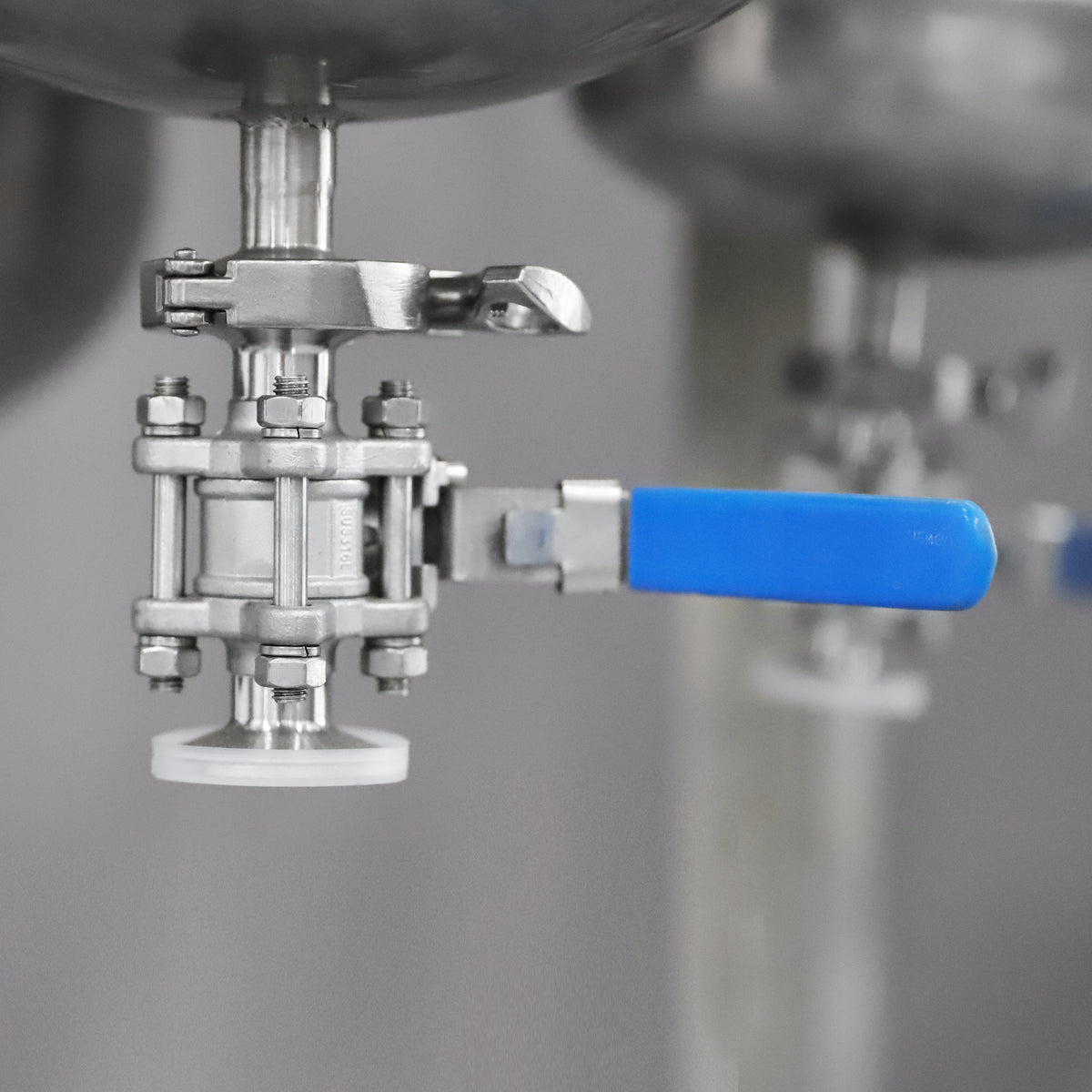

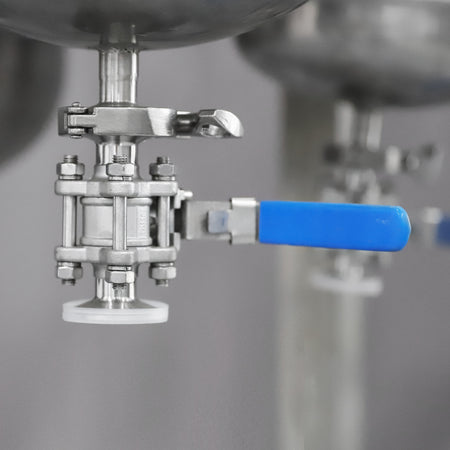

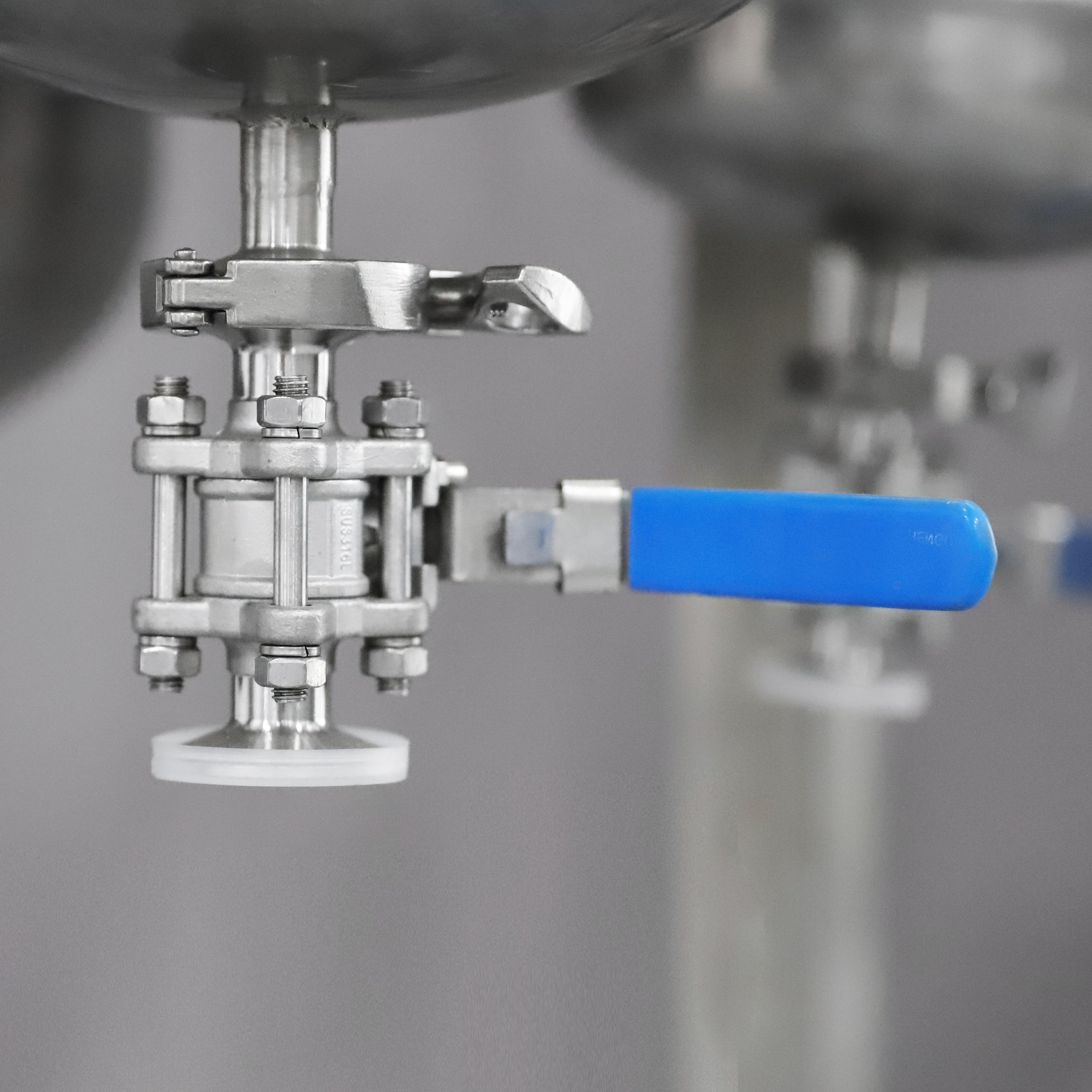

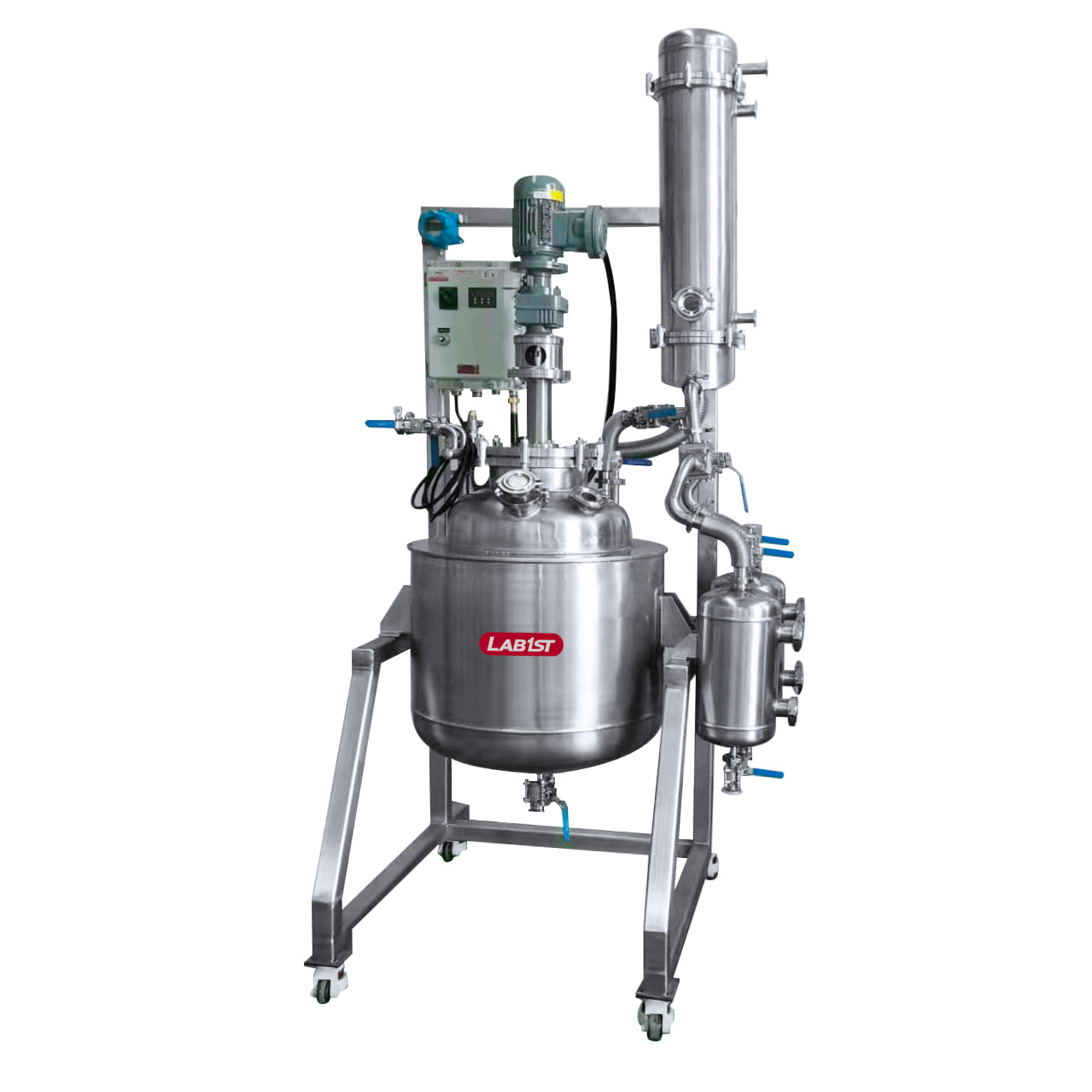

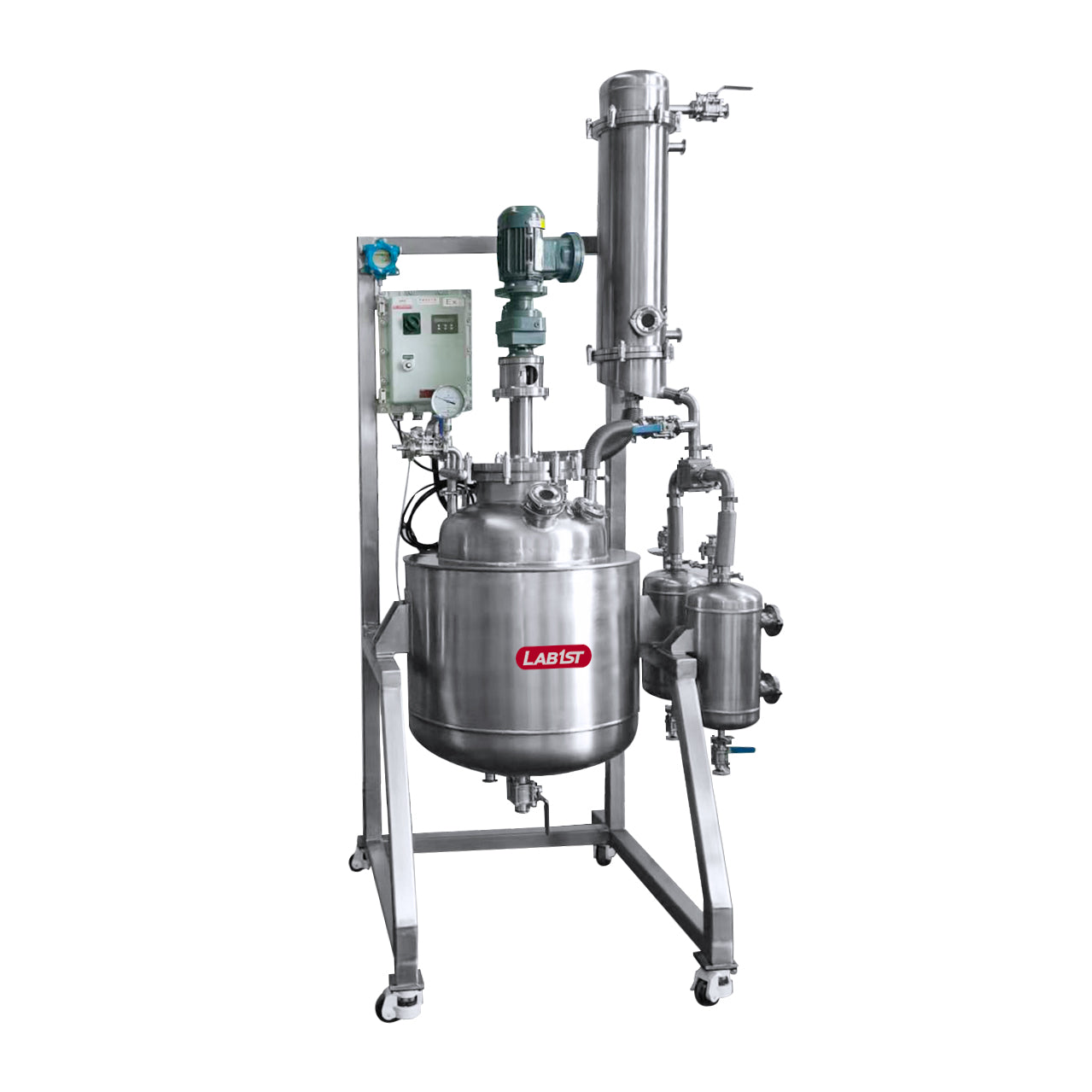

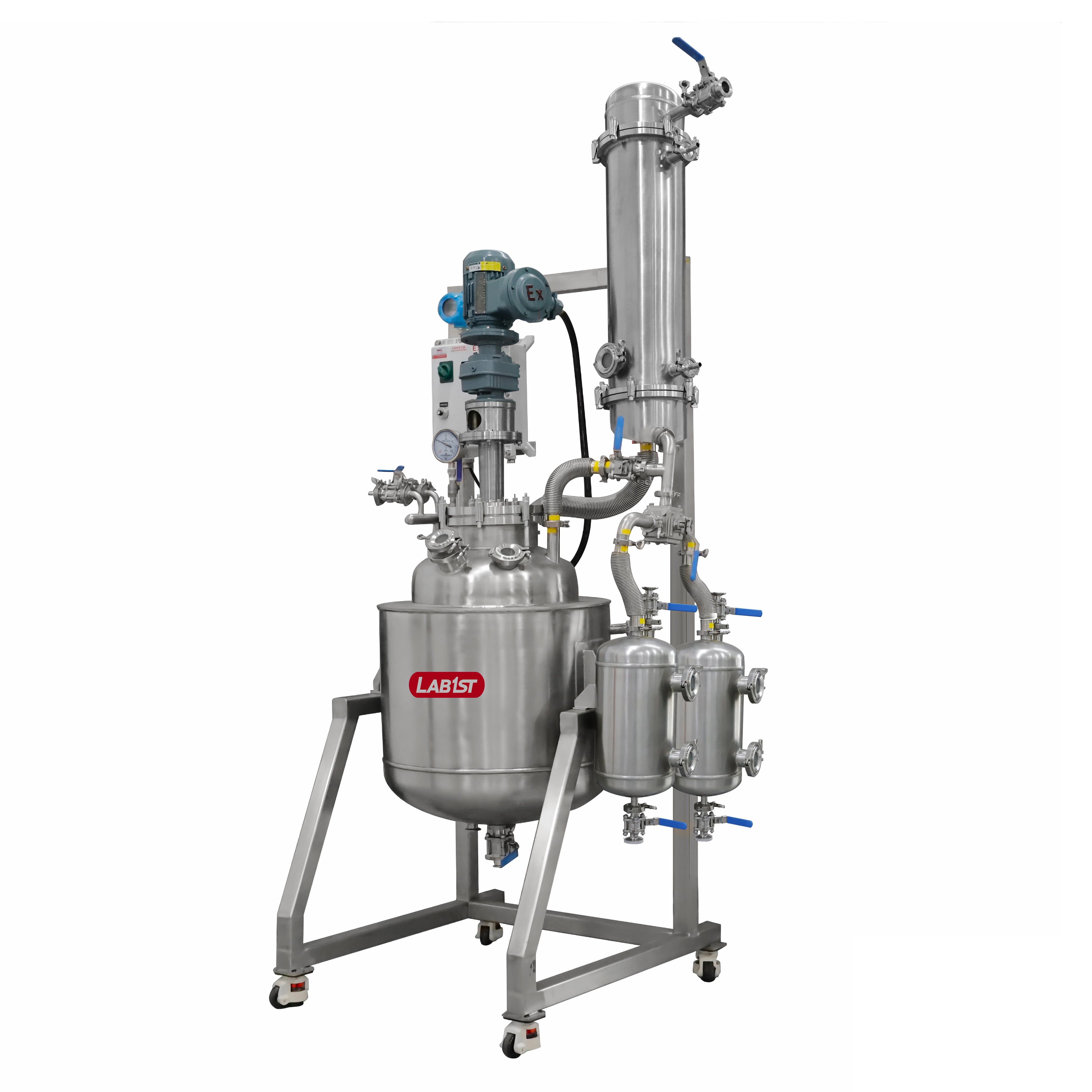

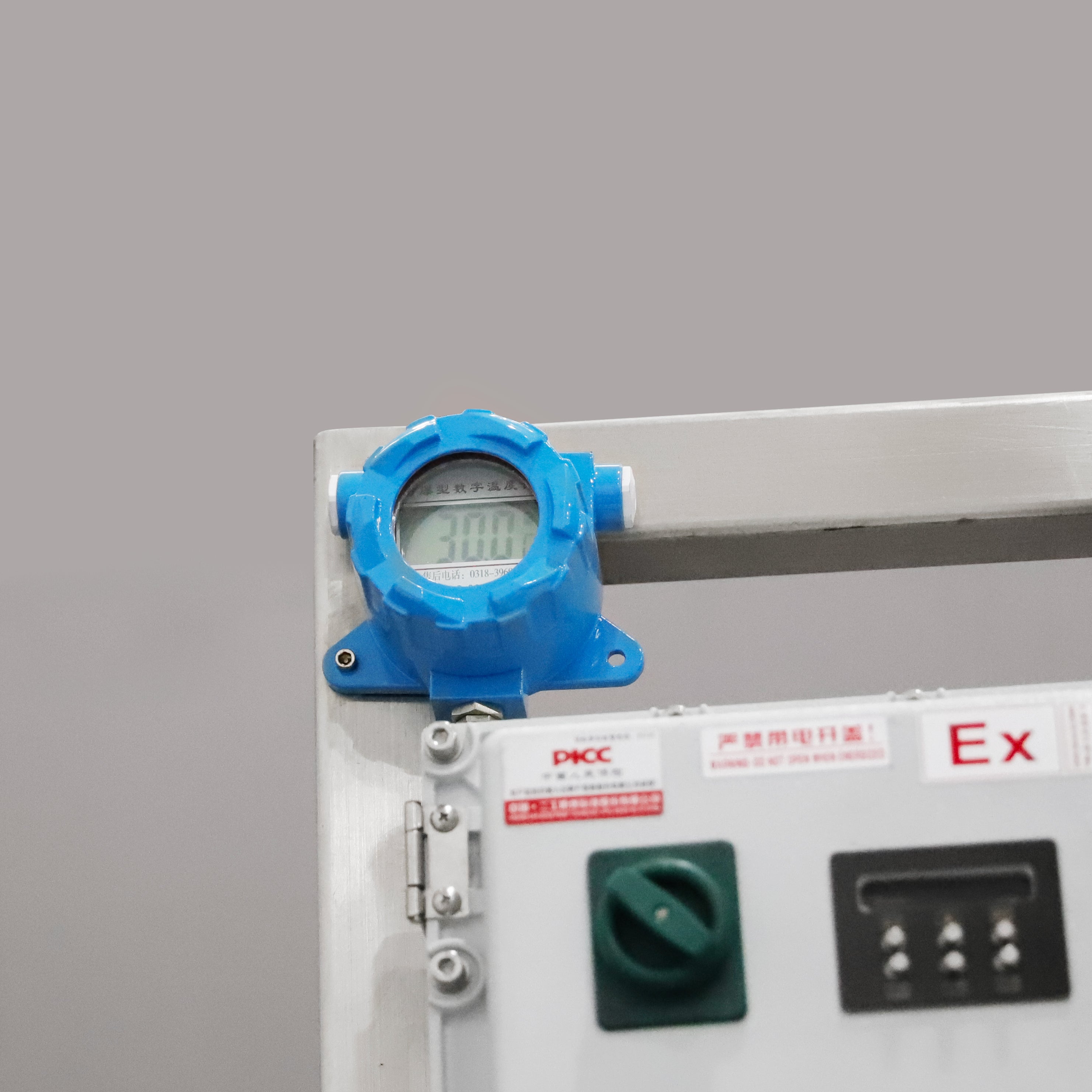

Lablst JSR-EVP series jacketed stainless steel reactors are designed as a multi-purpose reaction platform with controlled temperature and pressure environment. Each stainless steel jacketed reactor consists of SUS30408 stainless steel reaction vessel, mechanical seal, single layler paddle agitation, temperature probe and digital display, and other accessories like coiled condenser, bottom discharge valve and other accessories.
We offer 50L to 300L standard stainless steel jacketed multi-function reactors. Furthermore, this reactor can be customized according to different requirements, such as larger volume receiving tank, pneumatic motor, etc.
We could also provide the other liters and kinds of the Glass Reactors and Stainless Steel Reactors for different needs, pls click here to learn more about it.
Features:
- Stainless steel material, capacity 50L to 300L

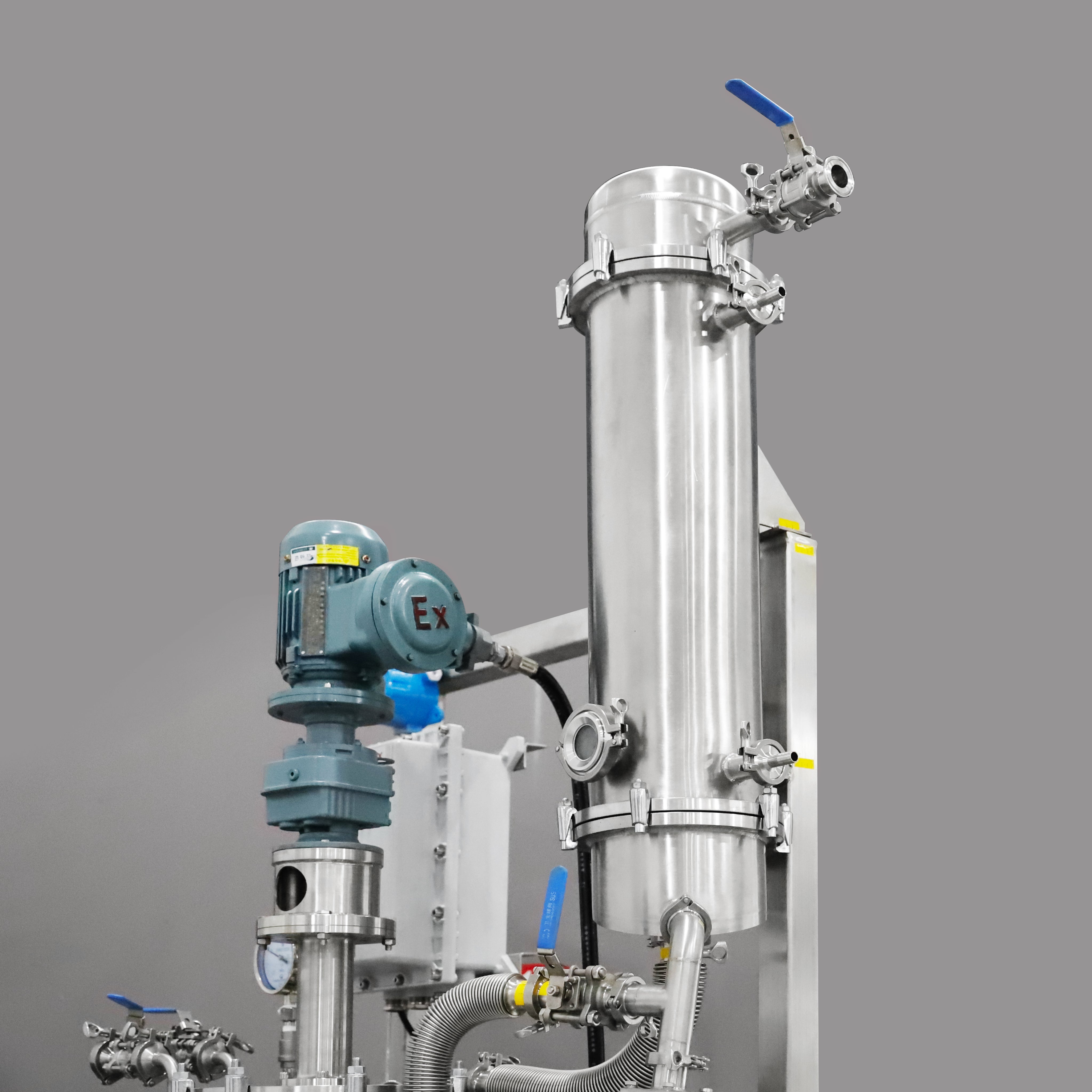

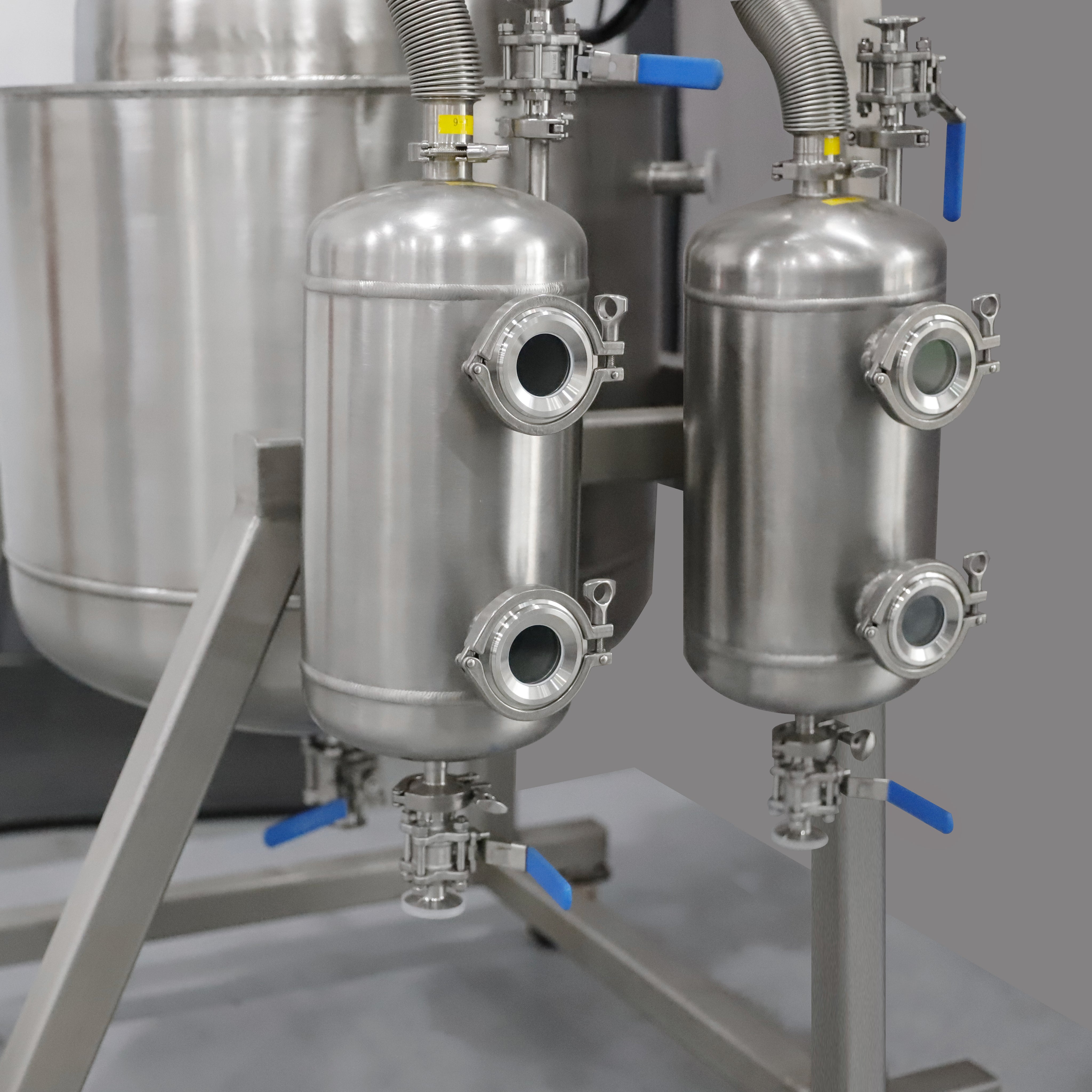

- Equipped with super large condenser and liquid collection tank
- Standard with Explosion-proof motor, pneumatic type available
- Magnetic sealing guarantees the inner vessel's vacuum
- Rugged SUS304 stainless steel, corrosion resistant, customizable 316L

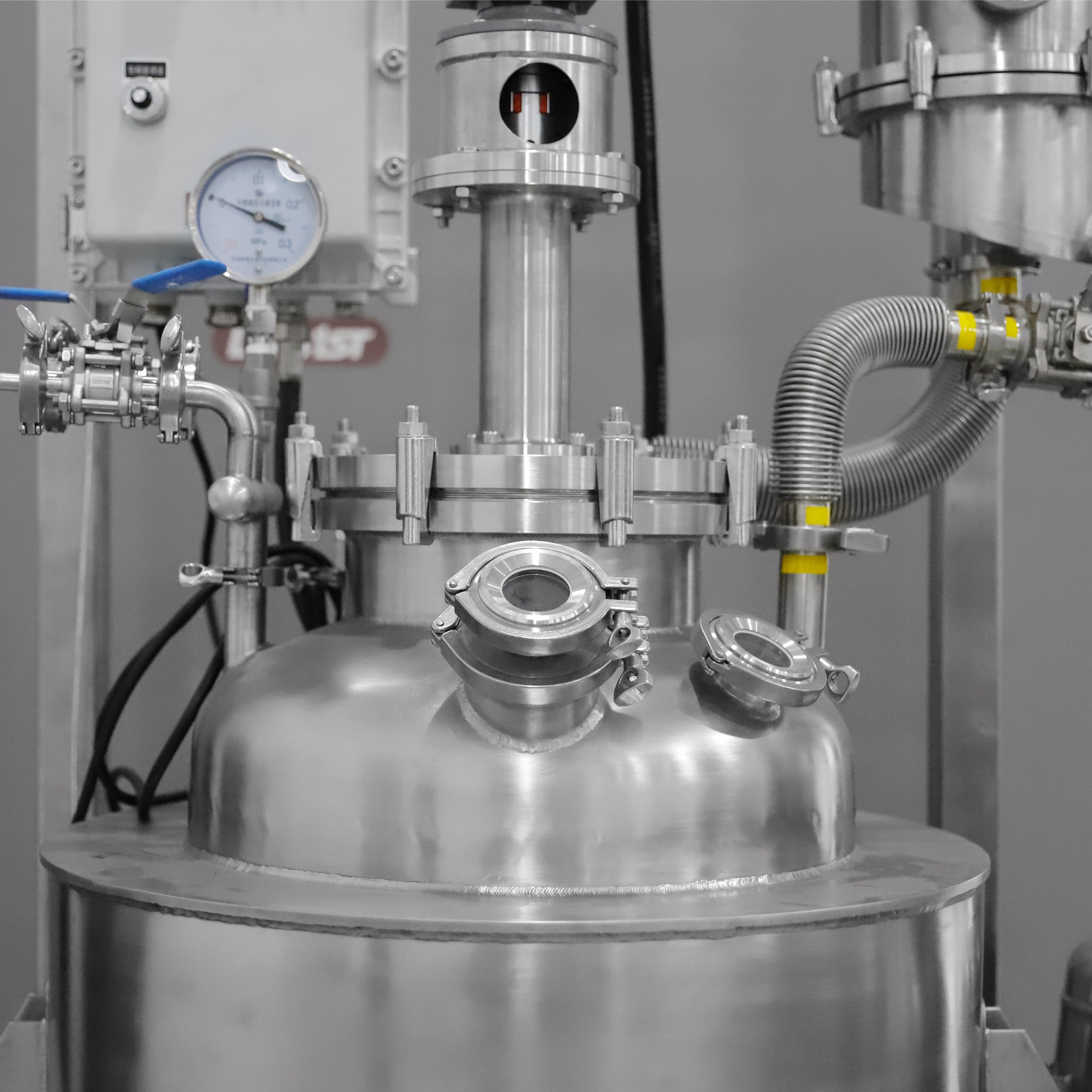

- Customizable vessel cover with adjustable andmultifunctional ports
Specifications:
| Model | JSR-50L-EVP | JSR-100L-EVP | JSR-200L-EVP |
| Technical Data | |||
| Temperature Range | RT-200°C | RT-200°C | RT-200°C |
| Heating Method | Jacket Circulation Heating | Jacket Circulation Heating | Jacket Circulation Heating |
| Material | SUS316, SUS304 | SUS316, SUS304 | SUS316, SUS304 |
| Vacuum Sealing | Magnetic Sealing | Magnetic Sealing | Magnetic Sealing |
| Electrical Requirement | |||
| Voltage [V] | 220 | 380 | 220 | 380 | 220 | 380 |
| Phase [P] | 1[220V] | 3[380V] | 1[220V] | 3[380V] | 1[220V] | 3[380V] |
| Frequency [Hz] | 50/60 | 50/60 | 50/60 |
| Total Power [W] | 750 | 1500 | 1500 |

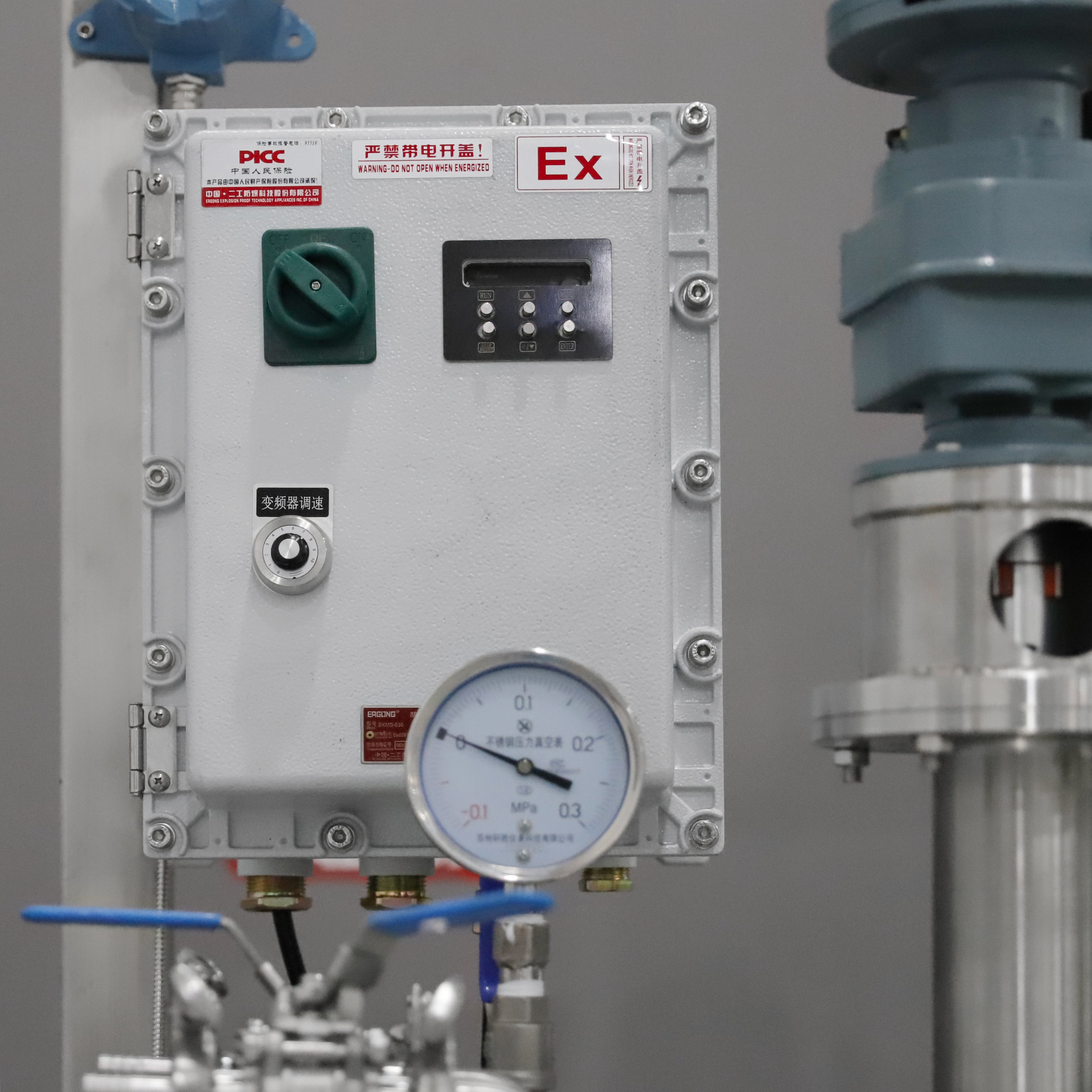

| Electric Cabinet | Explosion-proof Electric Cabinet | Explosion-proof Electric Cabinet | Explosion-proof Electric Cabinet |
| Agitation | |||
| Drive Type | Magnetic Drive | Magnetic Drive | Magnetic Drive |
| Agitation Type | Single Layer Paddle Agitation | Single Layer Paddle Agitation | Single Layer Paddle Agitation |
| Rotation Speed 50Hz [rpm] | 80~270 | 80~270 | 80~270 |
| Rotation Speed 60Hz [rpm] | 100~350 | 100~350 | 100~350 |
| Vessel | |||
| Vessel Volume [L] | 50 | 100 | 200 |
| Inner Vessel Diameter [mm] | 400 | 500 | 600 |
| Inner Vessel Height [mm] | 400 | 475 | 600 |
| Vessel Pressure [Mpa] | -0.1-Atm | -0.1-Atm | -0.1-Atm |
| Jacket Volume [L] | 20 | 30 | 45 |
| Outer Vessel Diameter [mm] | 450 | 550 | 650 |
| Jacket Pressure [Mpa] | 0.1...0.3 | 0.1...0.3 | 0.1...0.3 |
| Drain Valve Port | KF40 | KF40 | KF40 |
| Jacket Port | DN25[ISO2852] | DN25[ISO2852] | DN25[ISO2852] |
More information, pls click here to download the brochure.
