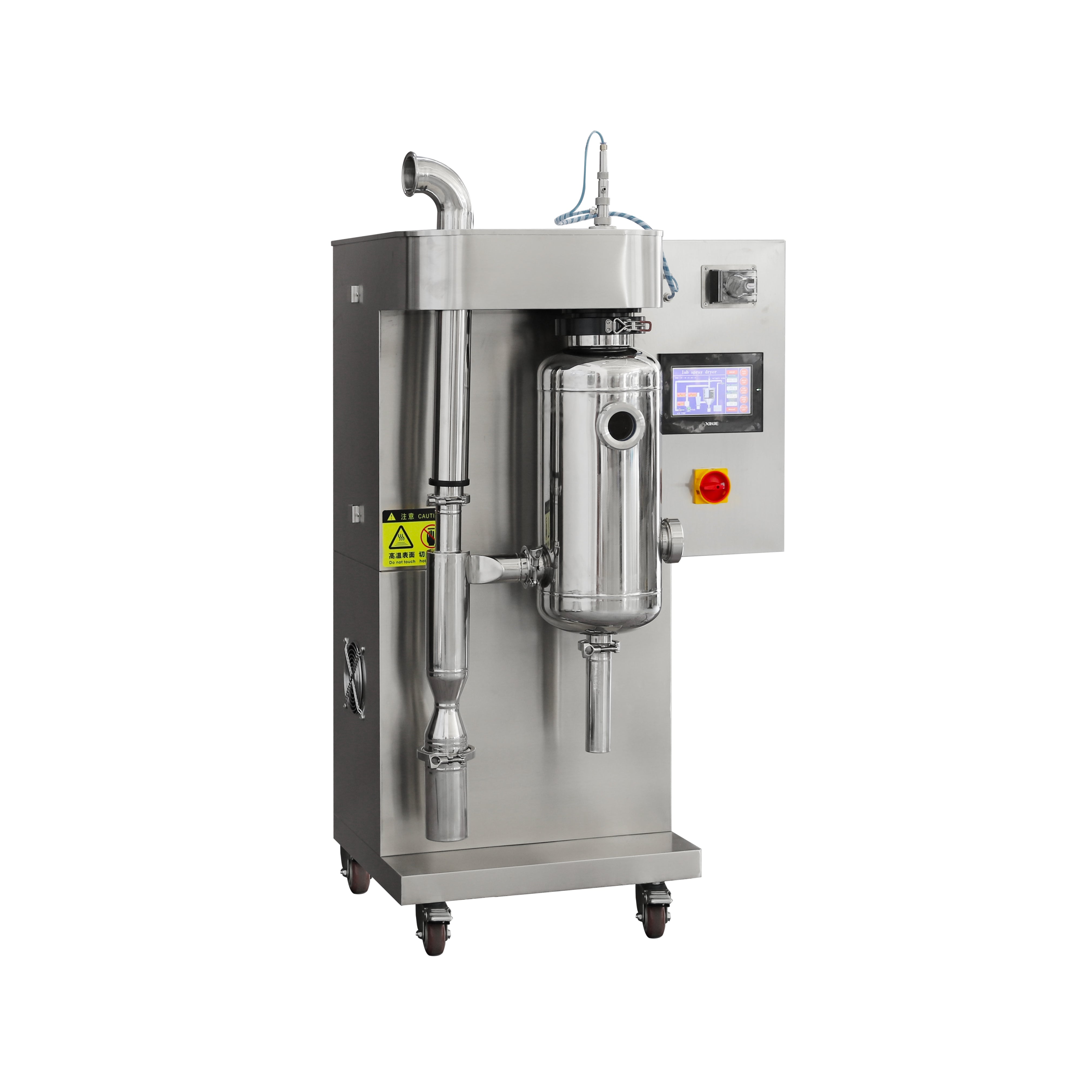

SDS-02 Mini Spray Dryer by LABIST is a compact, high-performance solution designed for laboratory-scale drying applications. Engineered with precision and durability in mind, it ensures efficient atomization, uniform particle distribution, and contamination-free processing. Ideal for pharmaceuticals, food science, and chemical research, this spray dryer combines advanced technology with user-friendly operation.

Key Features

• Premium Stainless Steel Construction: SUS304/SUS316 (optional) material ensures anti-rust, anti-corrosion, and a pollution-free environment.
• Advanced Atomization: Two-fluid stainless steel nozzle with auto-cleaning (needle system) to prevent blockages.
• Precision Control:
  • LCD touchscreen for real-time monitoring (inlet/outlet temps, pump speed, air volume, needle frequency).
  • PID constant temperature control for stable drying conditions.
• Flexible Sample Handling: Adjustable feed volume (30–2500 ml/h) via peristaltic pump.

• High-Quality Output: Uniform particle size distribution (>95% in the same range).
• Safety & Purity: Equipped with an air inlet filter to maintain sample integrity.
• Versatile Nozzle Options: Standard 1.0 mm nozzle, with optional sizes (0.5/1.5/2.0 mm).

Specification

• Model: SDS-02
• Air Compressor: Built-in, Silent type
• Temperature Control Range: ±1℃
• Inlet Temperature Control Range: 30℃～300℃
• Average Drying Time: 1.0～1.5S

• Outlet Temperature Control Range: 30℃～140℃
• Evaporation Capacity: 1500mL/H～2500ml/h

• Power: 3KW /220V
• Feeding Way: Peristaltic Pump

• Unit Dimensions: 650x500x1300mm

Product Brochure

Data Sheet

All the Standard Shipping package will be delivery by standard logistics, such as DHL, FedEX, UPS, etc (shipping terms: DAP). We also provide Sea Shipping, please contact us (eshop@lab1st.com) or chat with us online for real-time shipping cost. Please note that we are day off on the weekends and holidays.

If the merchandise is in stock, we will ship it within 3 to 7 business days for Standard Shipping and about 20 to 30 business days for Sea Shipping. If it is out of stock, we will inform you the estimated delivery time according to different products. All orders will be processed within 2 days (handing time).

Q1: If I do not order the dust option, will this have any impact on the samples and results? (What is the purpose of the dust bag?)
A1: It has no effect on the samples and results. The function of the dust bag is to intercept the samples blown out by the airflow to prevent the room from being filled with dust gas. If there is no dust bag, you only need to connect the air outlet to a pipe to the outside.

Q2: If we need to export data for reporting or chart retrieval, is it possible?
A2: Yes, USB can export historical data for reporting or making charts.

Q3: Can your spray dryer handle ethyl acetate and isopropyl alcohol (also two different ratio mixtures)?
A3: Yes, it can.

Q4: Can it be used to treat microorganisms? Minimum and maximum volumes and cell concentration? Minimum and maximum flow rates?
A4: Yes, it can be. For water-soluble solutions, the viscosity cannot be higher than 100CPS (salad oil), and the solid content of the suspension cannot exceed 30%. 2~5L/min.
