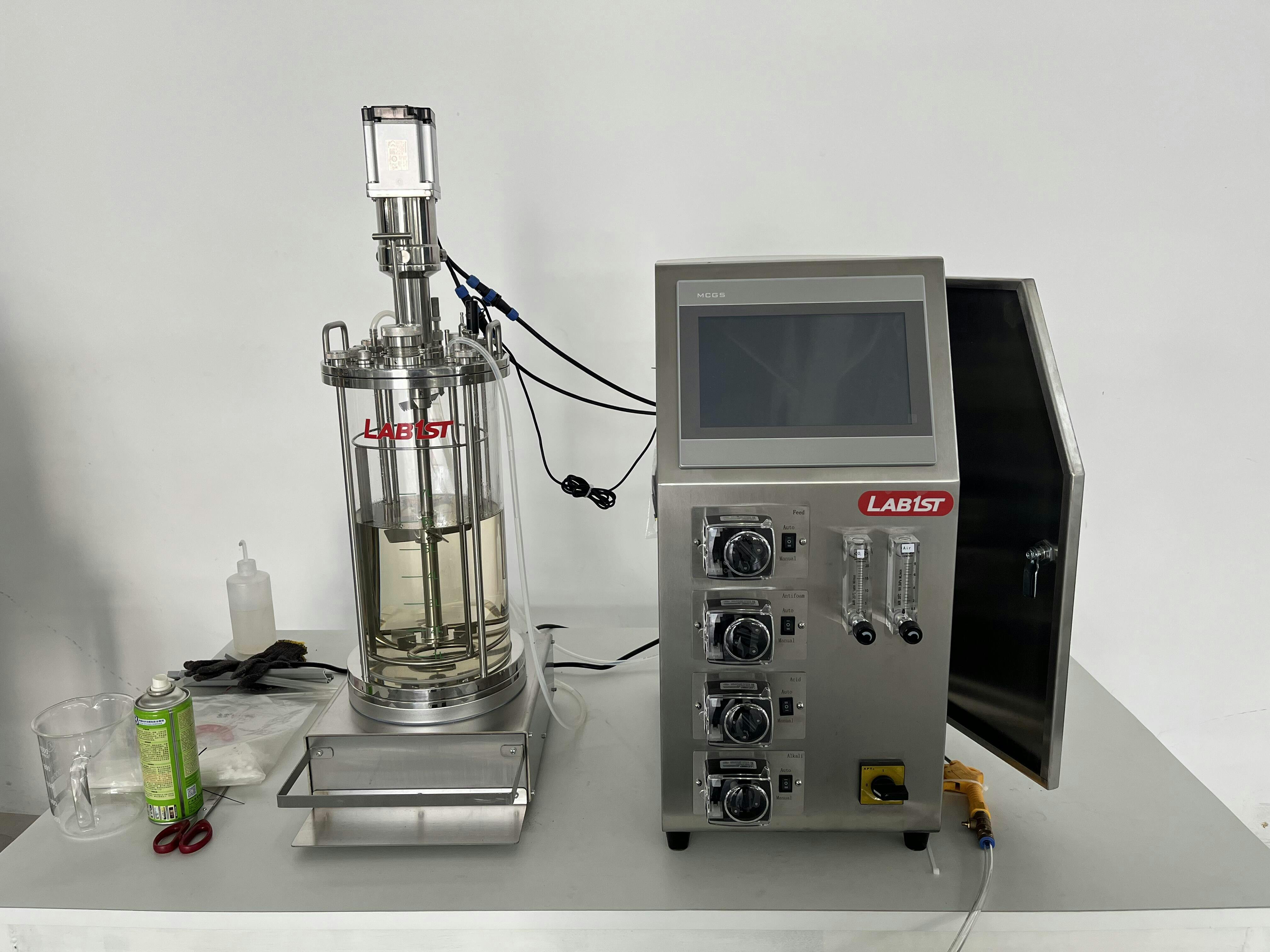

The BR100-M1 10L Benchtop Bioreactor is designed for microbial fermentation processes with automatic control, featuring two gas inlets and efficient heat exchange. Ideal for laboratory and small-scale production, this benchtop bioreactor revolutionizes the way microbial fermentation is conducted.

Specification:

Items Included:

• Control Console: BR100-M1
• Culture Vessel: 10L Boro3.3 glass vessel with top mechanical stirring (25~75%working volume), SS316L cover
• Sensors: PT100, DO, foam, pH
• Feeding Pumps: 4 peristaltic pump heads, controlled
• Gas Inlet
• Sparger from the bottom (Air +O2);
• Air inlet controlled by rotameter (manually);
• O2 inlet controlled by rotameter and electromagnetic valve
• Heating & Cooling: Heated by bottom electric hot plate; cooled by stainless steel cooling tube (chilled water)
• Accessories: 4 supplement bottles, SS316L feeding needle, etc.
• Consumables: O-rings, fuses, silicone stoppers, inlet air filter, vent filter, 20m silicone tubing, etc.

Functions Included:

• Temperature
• Robust PID algorithm;
• Electrical-heating by SS316L electric hot plate at vessel bottom, chilled by tap or chilled water supply;
• Sequential control coupled with fermentation process
• pH
• pH control coupled with peristaltic pump;
• Manual pH control by peristaltic pump
• DO
• Cascade control, coupled with different parameters (agitation, gasinlet and peristaltic pump)
• Agitation
• Robust PID algorithm;
• Manual speed control or speed control coupled with other parameters;
• Agitation speed control coupled with other parameters (like DO)
• Foam
• Foam control coupled with peristaltic pump; (anti-foam);
• Mechanial defoaming blade;
• Feeding (peristaltic pump)
• Accumulation volume control;
• Manual control or control by plan (pre-set) curve;
• Coupled with other parameters (DO, pH, etc)
• Fermentation Sequence
• Pre-set fermentation sequences along with timeline (pH, DO, agitation, temperature, etc)
• Others
• Historical data export and curves;
• Fermentation/culture batch record;
• Calibration of sensors and peristaltic pumps;
• 3-level authority setting & control;
• Record historical operations

Product Brochure / Data Sheet
